SWRL Rule Editor
A Web Application as Rich as Desktop Business Rule Editors
João Paulo Orlando
, Adriano Rívolli
, Saeed Hassanpour
, Martin J. O'Connor
Amar Das
and Dilvan A. Moreira
Dept. of Computer Science, ICMC - Universidade de São Paulo, Campus de São Carlos,
Caixa Postal 668, 13560-970, São Carlos, SP, Brazil
Stanford Center for Biomedical Informatics Research, Stanford, CA, U.S.A.
Keywords: SWRL Tool, SWRL API, Rule Tool, Rule SWRL, Rule Visualization, Rule Composition, Semantic Web,
Abstract: The Semantic Web Rule Language (SWRL) allows the combination of rules and ontology terms, defined
using the Web Ontology Language (OWL), to increase the expressiveness of both. However, as rule sets
grow, they become difficult to understand and error prone, especially when used and maintained by more
than one person. If SWRL is to become a true web standard, it has to be able to handle big rule sets. To find
answers to this problem, we first surveyed business rule systems and found the key features and interfaces
they used and then, based on our finds, we proposed techniques and tools that use new visual
representations to edit rules in a web application. They allow error detection, rule similarity analysis, rule
clustering visualization and atom reuse between rules. These tools are implemented in the SWRL Editor, an
open source plug-in for Web-Protégé (a web-based ontology editor) that leverages Web-Protégé’s
collaborative tools to allow groups of users to not only view and edit rules but also comment and discuss
about them. We evaluated our solution comparing it to the only two SWRL editor implementations openly
available and showed that it implements more of the key features present in traditional rule systems.
The Semantic Web has the goal of making the
content available on the Web not only understood by
people but also by machines (Berners-Lee, Hendler,
and Lassila, 2011). To this end, it uses ontologies for
knowledge representation and for the generation of
semantically annotated data.
The Web Ontology Language (OWL) is the
W3C standard language for Semantic Web
ontologies (McGuinness and van Harmelen, 2004).
It is a powerful language for building ontologies to
specify high-level descriptions of web content.
These ontologies are built using class hierarchies
representing domain concepts and their related
properties. OWL also provides a powerful set of
axioms to define precisely how to interpret concepts
in an ontology and infer information from these
However, the expressiveness of OWL is not
always sufficient for modeling all kinds of problems.
To overcome this deficiency, the SWRL (Semantic
Web Rule Language) was created. It extends the set
of OWL axioms to include Horn-like rules. It thus
enables Horn-like rules to be combined with an
OWL knowledge base to create assertions in the
form of rules, using concepts defined in OWL to
represent, organize and share specific domain
knowledge by means of conditional statements
(World Wide Web Consortium [W3C], 2004).
As the complexity of systems modeled using
SWRL grows, developers face difficulties in
managing the resulting rule set properly. A system
with a large rule number becomes difficult to
understand and error prone, especially when used
and maintained by more than one person
(Hassanpour, O’Connor, and Das, 2009). But SWRL
lacks a rule-editing tool that is little more than a
simple text editor and that incorporates the best
techniques in rule creation/management tools to
support users in creating and managing large rule
sets. That is the problem we wanted to alleviate.
Research in rule management and development
happens in several areas, such as databases, business
systems, etc. So, to begin with, we conducted an
Paulo Orlando J., Rívolli A., Hassanpour S., J. O’Connor M., Das A. and A. Moreira D..
SWRL Rule Editor - A Web Application as Rich as Desktop Business Rule Editors.
DOI: 10.5220/0003999402580263
In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 258-263
ISBN: 978-989-8565-11-2
2012 SCITEPRESS (Science and Technology Publications, Lda.)
extensive survey on this kind of business rule
systems (which are generally rule-based systems
used by large corporations) and found the key
features and interfaces found on them. After that, we
proposed new features and interfaces to recreate/
adapt the ones we have found, in the business
sytems, for use in a web application environment
tailored for SWRL (all the tools studied were for
desktop use). Finally, we implemented an editor, the
SWRL Editor, to use these proposed features and
interfaces to offer the SWRL community a rule
editor with the same capability as the best editors
available to other communities (mainly the business
rule community).
In this paper, we present the SWRL Editor. It
includes new or adapted visual representations and
techniques to enhance the viewing and composition
of rules. It aims to help Semantic Web developers in
the process of creating, viewing and managing
SWRL rules. It allows:
Knowledge acquisition with less
inconsistencies, ambiguities and duplicated
A better viewing experience for rules and rule
sets to facilitate the understanding, knowledge
and manipulation of them;
SWRL is an expressive rule language that combines
Horn clauses with concepts defined in OWL and can
be used to increase the capacity of inference about
individuals in a knowledge base in OWL (W3C,
2004). SWRL rules are composed by two parts: the
antecedent (body) and consequent (head). Each rule
is an implication between the body and head that can
be understood as if the body conditions are true then
make the conditions of the head also true. Both parts
consist of a conjunction of zero or more atoms, not
allowing disjunctions or denial.
Atoms, on the one hand, are formed by a
predicate and one or more arguments (the number
and type of arguments are determined by the atom
type). Although the W3C specification defines seven
atom types, in this paper, we adopt the convention
used in (Hassanpour et al., 2009) that considers
SameAs and DifferentFrom as having the same type
because they are syntactically identical, even though
they have different semantics (what leaves us with
six types).
The six types of atoms are: the Class, Object
property and Data valued property types correspond
to elements (concepts) defined in the ontology. Data
range type corresponds to the data types used in the
ontology. The type Same/Different is used to explain
the equality or difference between two individuals,
as OWL needs to work with the open-world
paradigm. Finally, Built-ins are types that
encapsulate utility functions and can even be
extended by users. Although SWRL rules can be
represented in more than one format, the human-
readable format is adopted in this paper. The arrow
() is used to separate body and head, the caret (^)
represents the conjunction of atoms and the question
mark (?) distinguishes variable names from
individuals. Using this syntax, a rule that states that
the brother of the father of an individual is his uncle
can be written as follows:
hasParent(?x,?y) ^ hasBrother(?y,?z)
Before developing the SWRL Editor, we conducted
an extensive research on tools to edit rules in general
(not only SWRL rules), as well as general-purpose
tools for SWRL rules (a total of 16 tools were
reviewed). We were interested in their key features
and interfaces adopted (Rivolli, Orlando and
Moreira, 2011). In this section, two of these tools,
the SWRL Tab and Axiomé, are briefly presented.
They are directly related to our SWRL Editor and
were the only two openly available tools we found to
edit SWRL. We also discuss some of the key
features found in tools for creating business rule
systems (which are rule-based systems used by large
The SWRL Tab (SWRLTab, 2012) is a plug-in
for the Protégé ontology editor and its main purpose
is to allow editing and management of SWRL rules.
The rules are presented in tabular format, so they
can be edited directly where they are displayed or in
an editor. The tool performs the identification of
syntax errors, using the SWRL specification (W3C,
2004), and validates the correct use of ontology
terms. In addition, a set of Application Programming
Interfaces (APIs) is available, allowing, for example,
rule inference and syntax validation. On the other
hand, the tool does not offer any facilities to
organize or group the rules.
Axiomé (Hassanpour et al., 2009) is also a plug-
in for Protégé and uses the APIs provided by the
SWRL Tab tool. From the user perspective, Axio
offers more tools to organize and view rules and also
allows rule edition using templates that are
generated based on the structure of the rules. The
main technical tools offered are: Automatic rule
grouping; Visualization of dependences between
rules; Rule Paraphrase (a dynamically generated
textual explanation of a rule); and Templates for
editing and acquiring rules.
There are a number of techniques and tools
related to the creation of business rules that may be
reused for the improvement or creation of new
techniques related to SWRL rules (Rivolli et al.,
2011). Although tools related to the creation of
business rules are still evolving (Zacharias, 2008),
their current development stage is far ahead
compared to SWRL tools.
The analysis of these tools shows different forms
of user interaction with rules, for example, decision
trees and tables, templates for editing rules, natural
language interfaces, automatic term suggestion, error
correction, visualization diagrams and integrated
editors that use grouping techniques.
4.1 Infrastructure and Architecture
The SWRL Editor was developed as a plug-in for
Web-Protégé, the web version of the ontology editor
Protégé (Tudorache, Vendetti and Noy, 2008a).
Protégé is a free, extensible, open source, ontology
editor developed by the Stanford Center for
Biomedical Informatics Research (Stanford
University). Web-Protégé uses the Google Web
Toolkit (GWT) to provide a desktop-like user
experience on the web, actually similar to the
desktop version of Protégé. The architecture, based
on plug-ins, is one of the main Protégé/Web-Protégé
features. The extension mechanism allows new
features to be added gradually, what made the
Protégé/Web-Protégé a flexible but yet solid
platform for developing semantic technologies
(Tudorache, Noy, and Musen, 2008b). Web-Protégé
plugins make it possible to add new tabs containing
one or more portlets, reusable graphic components.
As a Web-Protégé plugin, the SWRL Editor uses
the Java language and the GWT development tool. It
consists of a tab and a portlet that interact, over the
network, with the Protégé API allowing the
manipulation of SWRL rules in a friendlier way
using a higher abstraction level of representation
than the SWRL language.
Unlike the SWRL Tab and Axiomé tools, which
are very coupled to the Protégé tool, the SWRL
Editor was developed applying appropriate design
patterns (such as MVP) to make it reusable and
decoupled from the Web-Protégé platform.
At the Web-Protégé side, the server allows
access to its services through the Ontology API, to
read/write ontologies, and the Collaboration API, to
support collaboration services, such as ontology
term annotation and change control (Tudorache et
al., 2008a). SWRL Editor users can apply these
collaboration services to annotate components used
in their rules. The CHAO (Changes and Annotations
Ontology) (Noy, Chugh, Liu, and Musen, 2006) has
classes to define different annotation types, such as
comments, or changes, such as class created
(Tudorache et al., 2008a).
In the Web-Protégé client side, there are the user
GUI, a ontology model and a RPC module (to
communicate with the server). The ontology model
has a partial representation of the server ontology
that is updated as needed by the client.
The SWRL Editor plug-in has its own rule
representation model, generated by the SWRL
Manager from the SWRL rules it gets using the
Ontology API. It also has the SWRL Collaboration
module to manage the versioning of rule changes
and the Plug-in Manager to load code (in jar files)
with different algorithms for rule Grouping and
Decision Tree view generation. The client side has a
MVP (Model-view-presenter) architecture that is
similar to the Protégé client.
4.2 Visualization
The solutions created to enhance visualization and
rule understanding consist of visual representations
for rules (Figure 1, 2 and 3), organization techniques
and resources to present rule sets. Lets use a rule set
form the Ontology for Breast Cancer Grading
(Bulzan, 2010) to show our tool features. This rule
set is composed of 12 rules, which are used to assign
a note to a tumor from the three criteria from NGS
(Next-Generation Sequencing). We show the same
rule using three different visual representations:
The SWRL highlight visual representation
(Figure 1) displays the rule atoms and adds
color to the arguments according to their type;

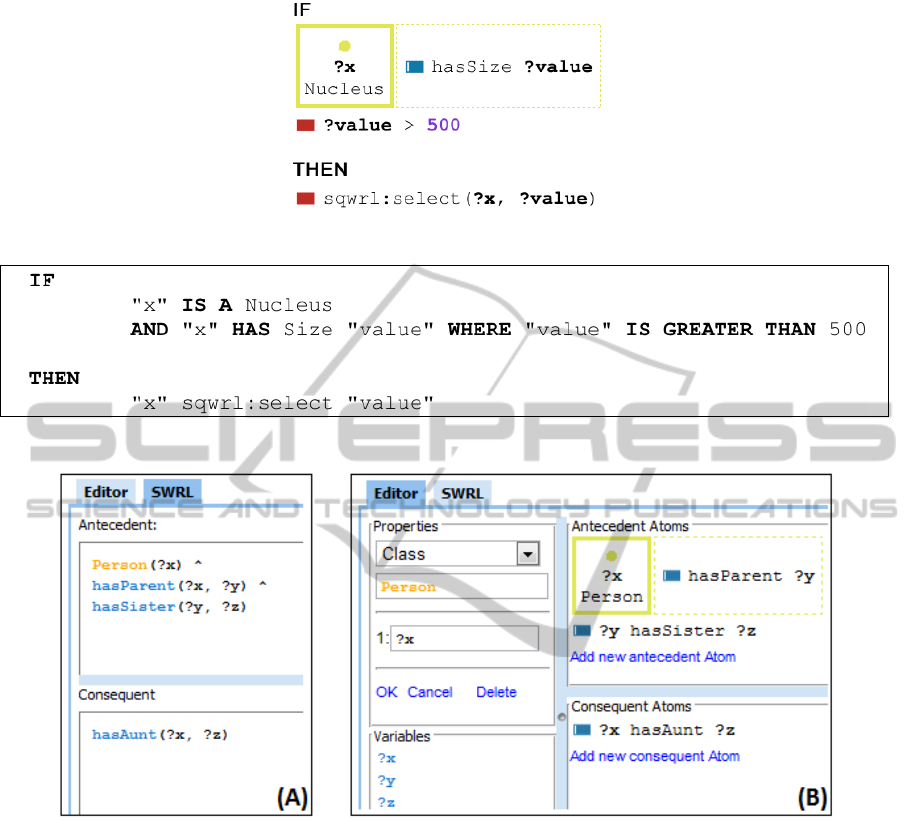

Figure 1: Visual representations for rules - Highlight.
The hierarchical view (Figure 2) abstracts rule
syntax and presents rules in a hierarchical tree
related to their meaning and type of atoms;
Figure 2: Visual representations for SWRL rules - Hierarchical View.
Figure 3: Visual representations for SWRL rules - View in Paraphrase.
Figure 4: Family Ontology (Peace, 2008) – (A) SWRL Editor with textual Highlight; (B) Hierarchical SWRL Editor.
Paraphrase visualization (Figure 3) shows a
paraphrase of the rule axioms using a technique
developed for Axiomé (Hassanpour et al.,
2009). We added bold characters to mark
connection terms;
All three representations make the rule
presentation clearer and enrich its meaning with
colors and symbols.
These visualization techniques allow the user to
better manage and understand the rule sets.
In addition, the tool has the following features:
Automatic procedures for extracting
information and generating views for each
visual representation, without user intervention;
The capability of listing rules in any of the
visual representations: there is a tab for each
representation and users can switch them at
These features add functionality for the use of
rule developers, allowing them to easily locate and
understand specific rules.
4.3 Rule Creation and Edition
The SWRL Editor has two rule edition modes to
assist users:
Editor with textual Highlight (Figure 4 (A));
SWRL hierarchical editor (Figure 4 (B));
The textual editor with highlight is similar to the
standard type of editor normally used in tools, such
as Eclipse or Netbeans, to edit C or Java programs.
Its color scheme is related to the syntactic elements
and can be changed by users (antecedents and
consequents are also separated).
The SWRL hierarchical graphic editor, shown in
figure 4 (B), has boxes that change according to the
selected atoms and icons to separate different atom
types. It has separate boxes for consequents and
antecedents. The editor also suggests terms from the
ontologies being used, based on atom types and
Users can freely switch between the two editors,
what can be a very good tool to teach rule structure
to novices. In addition, both editors offer the
following features:
Detection of lexical and syntactic errors;
Identification of similar rules;
Hierarchical navigation into otology classes,
properties and bultins using a tree (on the editor
left side), with the possibility of their inclusion
in a new rule.
In this section, we present a comparison between the
features of the SWRL Tab, Axiomé and our tool,
SWRL Editor, as the other tools in the review do not
work with SWRL. The Axiomé and SWRL Tab
tools have resources coupled to the Protégé 3 API.
They are also not available for the Web-Protégé
version (only the desktop version) and, for that
reason, cannot benefit of some of the collaboration
tools available for the web. The SWRL Editor
manipulates rules using an internal logical
representation that can be easily mapped to other
APIs, such as the OWL-API (and, in the future, even
to SPARQL Rules).
To make this comparison, we used the main
features that we found in more traditional rule based
desktop tools (developed mainly for business users)
(Rivolli et al., 2011) and (Zacharias, 2008). Table 1
shows the comparison between the three tools:
We can see that the SWRL Editor has an
overwhelming advantage over the other tools as it
implements most of the traditional rule based tools
Compared to the SWRL Editor, the other two
tools either lack most of its capabilities or have a
more restricted implementation. The SWRL Editor
is an evolution of them. We determined, after input
from some users, that a more sophisticated usability
test, comparing the three tools, would not be very
informative due to the lack of features to compare.
We tested the tool using three ontologies (with
SWRL rule sets). When using the Autism ontology,
we were able to easily find problems, like repeated
rules, that had escaped their developers using the
other two tools.
Table 1: Comparing the features of the tools.
Feature SWRL
Desktop Desktop
Decision tables
Decision trees
Graphic diagram
Text editor
9 9
Text editor with
Rule templates
Natural language
Visual representation
Term suggestions
Error Detection
9 9
9 9
Customization Tool
Add new algorithms
It is also important to mention the fact that the
SWRL Editor is available on the Web and integrates
its various resources (and enhancements) with Web-
Protégé collaboration features into a single tool.
Users can annotate components used in their rules,
adding comments, proposals etc, and discuss online
(in real time) about them using the Notes and
Discussion Tab. As big rule sets are likely to be
developed by groups of distributed users, that
resulting single tool can more effectively support the
work of these groups. That is one of SWRL Editor
important contributions as none of the tools in the
literature (including more general tools for rule
editing) support that.
Rule sets in SWRL have the fundamental role of
being the inference engine to create new knowledge
inside the Semantic Web. But SWRL lacked a rule-
editing tool that was more than a simple text editor
and incorporated the best techniques for rule
creation/management, available in tools for other
rule domains.
After we conducted an extensive survey of
business rule systems and compiled their most
important features and interfaces, we designed the
SWRL Editor tool to use, what we considered, the
key features to offer a SWRL rule editor with the
same capabilities as the best editors available to
other communities.
But we went a step further and implemented this
tool as a Web-Protégé plugin (using GWT/AJAX
technology) to create a desktop like tool running on
the web, so we could add to it: zero footprint
installation, automatic updates, easy cooperation
among user groups, operating system independency,
and other well known advantages of web
The SWRL Editor uses three approaches for
visualizing rules:
1. The SWRL Text Highlight.
2. The Hierarchical View.
3. Paraphrase Visualization.
For rule composition we created two editing tools:
1. Text Editor with Syntax Highlight
2. Hierarchical SWRL Editor
Both editors have error detection, warnings,
search (for similar rules), self-completion and
hierarchical navigation of terms in the ontology.
Our main contribution is to show, using the
SWRL Editor, that it is possible to make a tool for
SWRL rule edition that have the equivalent key
features and interfaces of more traditional rule based
desktop tools (developed mainly for business users)
as a “desktop like” web application. That would not
be possible a year ago; it is only possible now due to
new internet technologies, such as HTML 5. Such a
tool is far more advanced than the current state-of-
the-art for SWRL edition.
We also show that it is possible to add
collaboration to this tool by leveraging the fact that
it runs distributed over the web, it keeps information
about rule versioning and uses Web-Protégé tools
for cooperation. No other tools described in the
literature have such feature but that is important, as
big rule sets are likely to be developed by groups of
distributed users.
As future work, we intend to develop tools to
target redundancy errors, highlight relevant rules
(given some criteria) and ways to establish
connections among rules (so if you modify one the
others in the set are highlighted).
This work has been a collaborative project between
the Intermídia Lab – ICMC – University of São
Paulo and the Stanford Center for Biomedical
Informatics Research (BMIR) – Stanford University.
This project has been funded by the National
Institutes of Health, under grant R01MH87756. It
has also been funded by grants from the National
Council for Scientific and Technological
Development - CNPq, a Brazilian research agency.
Berners-Lee, T., Hendler, J., & Lassila, O. (2001). The
Semantic Web. Scientific American, 34-43. Retrieved
from http://www.scientificamerican.com/article.cfm?
Bulzan, A. (2010). Breast Cancer Grading Ontology.
Retrieved from http://bioportal.bioontology.org/ontolo
Hassanpour, S., O’Connor, M. J., & Das, A. K. (2009).
Exploration of SWRL Rule Bases through
Visualization, Paraphrasing, and Categorization of
Rules. International Symposium on Rules, 246–261.
doi: 10.1007/978-3-642-04985-9_23.
McGuinness, D. L., & van Harmelen, F. (2004). OWL
Web Ontology Language Overview. W3C Recommen-
dation 10 February 2004. Retrieved from http://www
Noy, N. F., Chugh, A., Liu, W., & Musen. M. A. (2006).
A framework for ontology evolution in collaborative
environments. ISWC. 544-558, Athens, Georgia. doi:
Peace, J. (2008). Family Health History Ontology.
Retrieved from http://bioportal.bioontology.org/ontolo
Rivolli, A., Orlando, J. P., & Moreira, D. A. (2011). An
Analysis of Rules-Based Systems to Improve SWRL
Tools. International Conference on Enterprise
Information Systems, 191-194 Beijing, China.
SWRLTab. (2012). SWRL Tab. Retrieved March 21, 2012,
from http://protege.cim3.net/cgi-bin/wiki.pl?SWRL
Tudorache, T., Noy, N. F., & Musen. M. (2008b).
Supporting collaborative ontology development in
protégé. International Semantic Web Conference, 17-
32, Karlsruhe, Germany, 17-32. doi: 10.1007/978-3-
Tudorache, T., Vendetti, J., & Noy, N. F. (2008a). Web-
Protégé: A Lightweight OWL Ontology Editor for the
Web. Workshop on OWL: Experiences and Directions,
collocated with the ISWC, Karlsruhe, Germany. doi:
World Wide Web Consortium. (2004). SWRL: A Semantic
Web Rule Language Combining OWL and RuleML.
W3C Recommendation 21 May 2004. Retrieved from
Zacharias, V. (2008). Development and verification of rule
based systems – a survey of developers. International
Symposium Rule Representation, Interchange and
Reasoning on the Web, 6-16, doi: 10.1007/978-3-540-
