A Temporal Search Engine to Improve Geographic Data Retrieval in

Spatial Data Infrastructures

Fabio Gomes de Andrade

, Cláudio de Souza Baptista

and Ulrich Schiel

Department of Informatic, Federal Institute of Education, Science and Technology of Paraíba, Cajazeiras, Brazil

Department of Systems and Computing, University of Campina Grande, Campina Grande, Paraíba, Brazil

Keywords: Geographical Information Retrieval, Spatial Data Infrastructures, Temporal Search Engine.

Abstract: Recently, spatial data infrastructures have become an important solution to ease the finding of geographical

data offered by different organizations. Nevertheless, the catalog services provided by these infrastructures

still have some important drawbacks that limit the geographic information retrieval based on temporal

constraints. Examples of these drawbacks include the lack of both a more detailed description of temporal

information, and ranking. Aiming to overcome these limitations, this paper describes a new temporal search

engine for solving feature type retrieval offered by catalog services. To reach this goal, our search engine is

based on a model that stores temporal information about each service and its respective feature types

described in the SDI catalog service. Moreover, the paper proposes a temporal ranking metric to evaluate

the relevance of each feature type retrieved for the user’s query.

1 INTRODUCTION

Recently, spatial data infrastructures (SDIs) have

become an important solution to ease the finding of

geographical data offered by different organizations

(Williamson et al., 2003). SDIs usually offer catalog

services, which can be used by both providers and

clients. Providers use this service to announce their

resources, while clients use it to find the data of their

interest.

The current catalog services improve geographic

data retrieval, but still have serious limitations. One

of these limitations is the low support to temporal

searches. The time-based searches offered by the

current catalogs are performed using attributes such

as temporal extension and creation/modification date

of the resources. Nevertheless, the values of these

attributes are often omitted; or contain imprecise

information. Such characteristic considerably

reduces the quality of temporal searches. Other

important drawback is the lack of mechanisms to

evaluate the importance of each resource retrieved

from a user’s query.

Aiming to overcome these limitations, in this

paper we propose a new search engine for solving

temporal queries in SDIs. The proposed solution

offers two contributions. The first one consists of a

model that improves the description of the temporal

features of the services described in the SDI catalog

service. The second contribution consists in the

development of a ranking mechanism that is based

on the temporal features of each feature type and

ideas from the classical information retrieval. Such

ranking is used to evaluate how relevant each feature

type is for the user’s query, considering only the

temporal dimension.

It is important to keep in mind that geographical

data are characterized by three dimensions: space,

theme and time. The solution described in this paper

approaches only the time dimension. However, this

solution has been integrated to a broader search

engine, which is able to solve queries with spatial,

thematic and temporal constraints. Details about the

semantic ranking implementation can be found in

(Andrade and Baptista, 2011).

The remaining of this paper is organized as

follows. Section 2 describes how the current SDIs

offer temporal information. Section 3 focuses on the

model used to represent temporal information.

Section 4 presents the temporal ranking

measurement. Section 5 discusses the

implementation and the experimental evaluation.

Section 6 summarizes the main related works.

Finally, in section 7, we conclude the paper.

Gomes de Andrade F., de Souza Baptista C. and Schiel U..

A Temporal Search Engine to Improve Geographic Data Retrieval in Spatial Data Infrastructures.

DOI: 10.5220/0004001800560065

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 56-65

ISBN: 978-989-8565-10-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 TEMPORAL INFORMATION IN

SDI

In order to ease the standardization and access to

their geographical data, many SDIs are being

implemented as a set of services (Bernard and

Craglia, 2005). In such infrastructures, the datasets

offered by a provider are commonly supplied as a set

of feature types. These feature types, in turn, are

encapsulated and delivered for the users through

services standardized by the Open Geospatial

Consortium [OGC], such as Web Map Service

(WMS) (OGC, 2004) and Web Feature Service

(WFS) (OGC, 2005).

When a provider registers a service in the SDI

catalog, it must provide metadata that describe

different features of the dataset offered by the

service. Part of this information is related to the

temporal extension, where the provider must inform

the time interval with respect to the dataset. The way

as this information is described depends on the

metadata standard adopted by the infrastructure. In

the ISO 19115 metadata standard, the temporal

reference of a resource is usually described through

a temporal interval. Such interval is defined by two

attributes called beginPosition and endPosition,

defining, respectively, the initial and final limits.

The value of these attributes is commonly described

in the ISO 8601 format.

One of the causes that limit the resolution of

temporal queries in the present SDIs is the fact that

the values of attributes that describe the temporal

extension of the data are often omitted by the

provider. In this case, the only information offered

that is related to time is the creation/modification

date of the metadata record, which do not describe

the temporal extension with precision.

Another limitation is related to the details

supplied during the registration. Presently, most

geographic data providers create a single metadata

record to describe their dataset. Hence, only one

temporal extension is defined to characterize all the

feature types offered by a service. Figure 1 shows

two metadata records from different providers,

called M

and M

. Each record describes the feature

types offered by a service

In the service described by M

, there are feature

types covering the periods of 2000, 2002 and 2005.

In this record, it was defined that the temporal

extension (TE) of the service is the interval between

2000 and 2005, which corresponds to the smallest

interval covering all of its feature types. Such a

situation leads to two kinds of disadvantages. In

order to understand the first one, let us consider a

query where the user looks for feature types

concerning the year of 2003. In this case, as the

extension of M

intersects the period defined in the

query, the record ends up being retrieved, though it

does not offer any feature type concerning the period

defined in the request. The second disadvantage

occurs because the catalog service always retrieves

the service as a whole. So, the user is in charge of

accessing the service and identifying the feature

types that satisfy the criteria defined in the query.

This task can be, often, tedious and time consuming,

since many services offer a large number of feature

types.

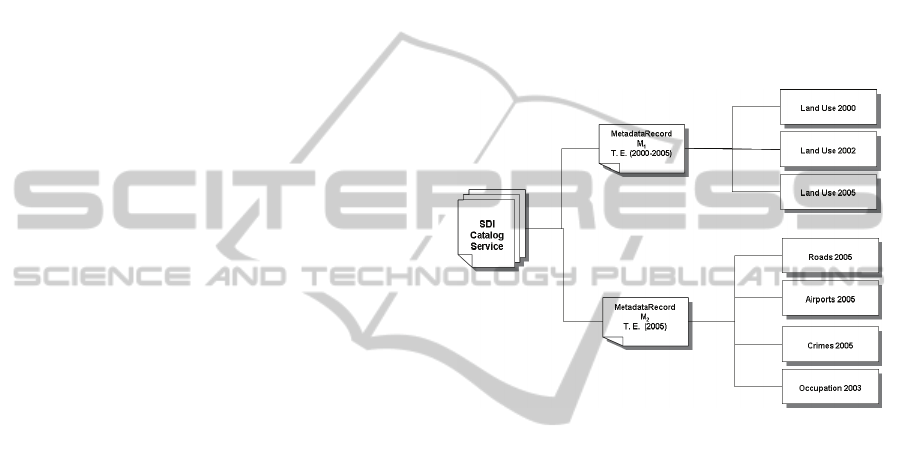

Figure 1: Example of services temporal description.

Other problems concerning the resolution of

temporal queries occur due to inconsistencies

between the temporal extension defined in the

metadata record and the temporal extensions

concerning the feature types. Observing Figure 1

again, it is possible to notice that the record M

defines the interval 2005 as its temporal extension,

though it also has a feature type concerning another

temporal interval. This kind of situation occurs

because many providers use as temporal extension

just the period associated to most of its feature types.

So, in the case the user performs a query for feature

types concerning the period of 2003, the catalog

service will not retrieve the service described by M

though the service has data which satisfy the criteria

defined in the request.

Besides the limitations previously described,

another problem of the present catalog services is

that they assume that all the resources that satisfy the

selection criterion defined in the query have the

same relevance for the user. So, a resource that

covers the whole interval requested by the user is

considered as relevant as one that covers only a part

of the requested interval. This makes the possibly

ATemporalSearchEnginetoImproveGeographicDataRetrievalinSpatialDataInfrastructures

more relevant services to be presented later to the

user. This is an undesired characteristic, especially

in queries which return a large number of results.

The main consequence is that, in these queries, the

user may lose time in trying to find the service

having the most relevant information or, in worse

cases, this user my end up not evaluating the

resource.

3 DESCRIBING TEMPORAL

INFORMATION

The first stage in the development of our search

engine consists in defining a model to represent

temporal information of the services offered by the

SDI. In order to fulfill requirement R

, the designed

schema stores the temporal information of each

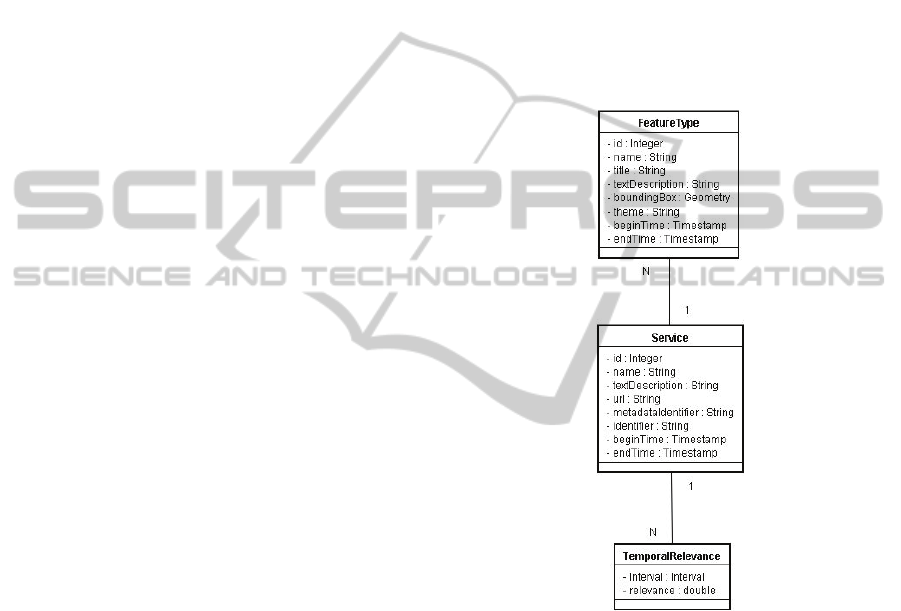

service and of each feature type that it offers. Figure

2 presents the conceptual schema.

It is important to have in mind that the simplicity

of the schema is due to the fact that most part of the

service information keeps being stored in the

metadata record. So, our schema stores just the

information needed to resolve the temporal queries.

The temporal extensions of a service and of its

feature types are defined through the attributes

beginTime and endTime, present in their respective

entities. Both attributes are represented as

timestamps. Moreover, the model stores some

descriptive attributes of each service and of each

feature type, such as name, title and textual

description. These attributes are shown to the user

during the exhibition of the query result. After

evaluating the information shown by these attributes,

the user may request a complete view of the record

that describes the service offering the feature type of

interest. Such retrieval is performed by the attribute

metadataIdentifier, which keeps a reference for the

service metadata record.

After defining the model to be used for data

representation, we created a methodology to extract

temporal information from the service and feature

types. In order to facilitate the reader’s

understanding, this process will be referred to as

temporal annotation throughout this paper.

3.1 Services Annotation

The first stage of the process of extracting temporal

information consists in identifying the temporal

interval covered by the service. The information is

obtained through the processing of information in

the metadata record of the service.

The service annotation is done through the value

of the attributes that define its temporal extension.

When the values of these attributes are provided by

the metadata record that describes the service, they

are retrieved and normalized to a temporal interval.

This interval is then defined as the service temporal

extension. Another attribute verifies the service

update frequency. The verification is intended to

check whether the service is continuously updated.

If so, the model considers the service persistent and,

consequently, it has no final limit. In our solution,

we consider persistent just the services with the

following values for update frequency: annually,

continually, daily, monthly and weekly.

Figure 2: Conceptual schema.

When the temporal extension of the service is not

present in its metadata, its temporal extension is

identified through the values of other attributes. The

attributes are queried in a priority order. In the case

an attribute contains temporal information, its value

is extracted, standardized and associated to the

service, ending the annotation process. In the

opposite case, the next attribute is queried and the

process is repeated until all attributes are checked.

Currently, the attributes queried in order to obtain

temporal information of a service, in priority order,

are: keywords, title and textual description. Finally,

in the case temporal information is not found in any

of these attributes, the creation date of the metadata

record is used as temporal reference for this service.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Among the attributes queried during the

annotation process, some are represented directly as

dates, as the temporal extension and the inclusion

date of the record. When the temporal information is

obtained through these attributes, it is necessary to

convert the attribute value into a temporal interval,

in the format used by the data schema.

The date standardization process depends on the

format of the temporal information. In the case the

attribute value is a simple date (for instance,

1/10/2010), its conversion to an interval can be done

in two forms, depending on its update frequency. If

the service is continuously updated, the date is

converted into a persistent interval, which means

that the final limit corresponds to the moment at

which the query is performed. Otherwise, the value

is standardized to an interval containing the limits of

the value found for the attribute. The granularity of

this interval (day, month, year) is identical to the

granularity of the attribute value. For example, if the

value represents a day, the generated interval will

represent a day too. The same occurs for attributes

that represent a month or a year.

While attributes concerning temporal extension

and inclusion date of the record already supply the

values in the form of dates, some of the queried

attributes, such as service name and textual

description, are offered as a set of strings. When

these attributes are queried, their text values must be

processed in order to extract temporal information.

This processing, which is occurs with use of

machine learning techniques, is performed in two

stages.

In the first step, the text corresponding to the

attribute value is processed for analysis of the parts

of the speech. This stage is intended to identify and

classify the radical of the elements that appear in the

text. This task is done by a framework called

TreeTagger.

In the second stage, the result of the previous

stage is processed in order to find temporal

expressions. This information can be found by both

numerical values, such as dates, and textual

elements, such as the words today, yesterday and

tomorrow. As the result of this stage, an XML file

containing all the temporal expressions identified in

the text is generated. This file is coded in the

TimeML standard (Pustejovsky et al., 2003), an

XML-based standard for specification of temporal

expressions in documents. This task is carried out by

a framework called Heideltime.

The processing made by Heideltime automates

the recognition of temporal expressions. However,

each identified expression is treated and annotated

individually, with no relationship among them. So,

the file generated by this framework must be

processed, and the temporal information that is

found must be converted into a temporal interval.

The standardization of temporal annotations found

in a text depends on the number of annotations

found. If the file has just one temporal annotation,

the feature type interval corresponds to the smallest

interval that covers all the temporal information

found. Finally, the absence of temporal annotations

means that no temporal element was found in the

analyzed text. This situation indicates that the

temporal reference cannot be obtained through this

attribute.

3.2 Feature Types Annotation

Differently from the annotation of services, the

temporal annotation of a feature type is performed

with basis on the information contained in the

document describing the capabilities of the service.

Such a document is obtained by invoking the

operation getCapabilities of the service being

annotated.

An important characteristic of the capabilities

document is that, differently from the metadata

record, it has no specific attribute to define temporal

information of the feature types offered by the

service. So, the temporal annotation of these

elements must be done through the identification of

temporal expressions present in the values of some

attributes. In order to perform this task, for each

feature type, their keywords, titles and textural

descriptions are queried following the priority order.

Since all attributes used for feature types

annotation are textual, the temporal information

contained in these elements must be extracted

through the processing of the text corresponding to

their values. The procedure adopted to perform this

task is the same used in the annotation of services.

The values obtained after this process are used as the

temporal extension of the feature type that is being

processed. In the case the temporal extension of the

feature type cannot be obtained from any of the

verified attributes, we assume that its value is the

same one obtained for its respective service.

4 TEMPORAL RANKING

After defining how the temporal information will be

retrieved from the services and stored in the

database, we developed a search engine for retrieval

of feature types that meet a certain temporal

ATemporalSearchEnginetoImproveGeographicDataRetrievalinSpatialDataInfrastructures

constraint. To implement it, we defined a metric that

evaluates how relevant each feature type is for the

query. Such a metric is computed from other two

measurements: the degrees of overlap and of

temporal relevance.

4.1 The Degree of Overlap

The first measurement used to evaluate the temporal

ranking is the degree of overlap, which evaluates the

similarity between the temporal interval requested in

the query and the temporal interval covered by the

feature type under evaluation. This metric is

computed by means of the Tversky equation

(Tversky, 1977). This equation was chosen because

it considers, during the evaluation of similarity

between objects, the characteristics that they may

have or not in common. Let t

be the temporal

interval defined in the user’s query and t

the

interval associated to the feature type under

evaluation. Then, the degree of overlap between

them is computed by equation 1.

()

122121

/1/

),(

tttttt

ttod

αα

−++∩

∩

(1)

where:

 | t

∩ t

| represents the extension, in

milliseconds, of the intersection between the

intervals t

and t

;

 | t

/ t

| represents the extension of the interval in

, but not in t

;

 | t

/ t

| represents the extension of the interval in

, but not in t

;

 The constant α represents the weight that the

complement of the interval t

has to the evaluation of

the overlap between the intervals. Presently, the

value 0.9 is used for this constant. To determinate

this value, we used a technique called weighting

(Fox and Shaw, 1993). To estimate the value of α we

used the Pearson correlation coefficient.

4.2 The Temporal Relevance

The second metric used to evaluate the temporal

ranking of a feature type is the degree of temporal

relevance. As in the classical information retrieval,

this metric evaluates how relevant a certain temporal

interval is to a certain service (Baeza-Yates and

Ribeiro-Neto, 1999). Hence, when two feature types

offered by different services have the same degree of

overlap (or close values) with respect to the user’s

query, the model prioritizes feature types offered by

services whose temporal extension has higher

relevance.

In order to compute the relevance of a temporal

interval to the service, it is necessary to evaluate first

the frequency in which this interval occurs in the

service. This metric is called raw frequency (temp_f)

and is computed by comparing the temporal interval

under evaluation with the temporal extension

covered by each feature type offered by the service.

During the development of this metric, we

evaluated three forms to compute the frequency of a

temporal interval t in a service S. The first solution

consisted in computing the number of associated

feature types whose temporal extension was

identical to t. Despite being easier to compute, this

kind of approach did not consider that the intervals

were different from t, but that they completely

contained that interval, and also did not consider that

some parts of the interval were present in intervals

that intersected it. In the second approach, the

frequency was computed with basis on the number

of intervals that were identical or totally covered the

interval under evaluation. The disadvantage of this

solution is that it does not consider the overlap

between the evaluated interval and the other

intervals that do not cover it totally.

In the third approach, which ended up being

adopted for the proposed metric, the frequency is

computed by summing the degree of overlap

between t and the temporal interval associated to

each feature type offered by the service. So, all the

presences (total or partial) on the interval t in the

temporal interval associated to each feature type are

considered when evaluating the frequency of this

interval. Equation 2 describes the computation of

this frequency. In this equation, t represents the

temporal interval under evaluation, while S is the

service to which the relevance of t is being

computed. Moreover, Ti

temp

represents the temporal

extension of a feature type T offered by the service,

and n represents the number of feature types offered

by the service.

∑

temp

tTioverlapStftemp

),(),(_

(2)

After computed, the value of the raw frequency of

the temporal interval is used to compute its

normalized frequency (temp_tf). This frequency is

computed by the proportion between the raw

frequency and the number of feature types offered

by the service (Equation 3). As in the previous

equation, t represents the temporal interval which is

under evaluation and S represents the service to

which the relevance will be computed.

Stftemp

Sttftemp

),(_

),(_ =

(3)

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Another variable used to evaluate the degree of

relevance of a temporal interval is the inverse

frequency (temp_isf). Its objective is to evaluate how

important a temporal interval is to the whole set of

services offered by the SDI. The value of the inverse

frequency (Equation 4) is computed by the

proportion between the number of services offered

and the number of services in which the interval is

totally covered by at least one feature type.

tisftemp log)(_ =

(4)

After computing the normalized frequency and the

inverse frequency, their values are used to determine

the degree of temporal relevance of an interval to the

service. This degree of relevance is computed

through the product of both frequencies, as in

Equation 5.

)(_),(_),( tisftempSttftempSttr ∗=

(5)

4.3 The Temporal Similarity

Once computed, the values of the degrees of overlap

and temporal relevance are combined to determine

the temporal ranking of a feature type. The value of

this metric is used to classify and sort the feature

types that are retrieved form a user’s query.

Given a temporal interval t defined in the user’s

query and a feature type T offered by the SDI, the

temporal ranking of T is obtained through Equation

6. In this equation, T

represents the temporal

interval covered by T, while S represents the service

that offers this feature type.

),(),(),(

STtrwTtodwTtranking

∗+∗=

(6)

where:

 ranking represents the temporal similarity

between a temporal interval t defined in the user’s

query and a feature type T being evaluated;

 od represents the degree of overlap between the

interval defined in the query (t) and the interval

covered by the feature type under evaluation (T

);

 tr represents the degree of relevance of the

temporal interval associated to the feature type under

evaluation to its respective service;

 w

and w

represent the weights that the degree

of overlap and the degree of temporal relevance has

for the calculation of the degree of temporal

similarity. Each weight must have a value between 0

and 1, and their sum must always be equal to 1.

Presently, we use values of 0.84 and 0.16,

respectively, for w

and w

. These values were

defined using the same statistical technique used to

determinate the weights in Equation 1.

5 IMPLEMENTATION AND

EVALUATION

Once defined the temporal ranking metric, our

temporal search engine was implemented. This

section first focuses on the implementation issues.

After, the results obtained from the experimental

evaluation are presented.

5.1 Implementation Issues

After defining the model used to represent

information and the metric used to retrieve this

information, we implemented a prototype for our

search engine. This engine was incorporated to a

tool called SESDI (Semantic-Enabled Spatial Data

Infrastructures) (Andrade and Baptista, 2011), used

for discovery of geographic data in SDIs. The

architecture used for its implementation is

comprised of two main subsystems: the data

acquisition module and the query resolution module.

The first module contains the components

responsible for the extraction of the temporal data

from the services registered in the SDI and from

their respective feature types. The query resolution

module, in turn, has the components that use the

temporal ranking, describe is the previous section, to

resolve temporal queries.

5.1.1 The Data Acquisition Process

The data acquisition process consists in collecting

temporal data that will be used during the query

resolution process. The data acquisition process is

performed periodically, in order to find new services

included and/or updated, keeping the database

updated.

The process consists in obtaining information

about new services. For this, the acquisition module

calls the getRecords operation of the registration

service of the infrastructure. This call has a filter that

selects only the services whose

inclusion/modification dates are more recent than

the last verification made by the module. Each

service retrieved in the first stage is then processed

in order to make its temporal annotation.

The processing of each service is subdivided into

several stages. The first one consists of extracting

the temporal extension covered by the service. After

obtaining this information, the module calls the

getCapabilities operation of the service to obtain a

document with information about the feature types

offered by this service. After this, each feature type

is processed to make its temporal annotation.

ATemporalSearchEnginetoImproveGeographicDataRetrievalinSpatialDataInfrastructures

After extracting the temporal information from

the service and from its feature types, the next stage

consists in using the obtained information to

generate the temporal relevance data of the service.

For this, the module computes the temporal

relevance of each temporal interval associated to at

least one of the feature types offered by the service.

In the last stage of the data acquisition process,

the information obtained after the extraction of

temporal information and generation of temporal

relevance of the service are made persistent in the

database of the prototype. In this process, occurs the

storage of the information about geographic data

services and their feature types, with their temporal

information, besides temporal relevance data

generated for each service. Presently, these data are

made persistent in a database implemented in the

DBMS PostgreSQL/PostGIS.

5.1.2 The Query Resolution Process

The query module is responsible for the resolution

of temporal queries. All queries are performed

through a set of dynamic web pages featured by the

tool. Each requisition received by the query module

has as input parameter a temporal interval of the

user’s interest. The processing of queries is divided

in four steps: temporal filtering, matchmaking,

relevance filtering and ordering.

In the temporal filtering step, the search tool

selects, among all the feature types recorded in the

database, those whose temporal expression intersects

the interval defined in the query. This task is done

through a simple query in the SQL database. The

result of this step is a set containing all the feature

types that meet this constraint.

The second step consists in using the temporal

ranking to compute the relevance of each feature

type retrieved in the first stage. During the

matchmaking process, persistent intervals end up

receiving as final limit the timestamp value

corresponding to the time at which the query was

requested. At the end of this step, for each retrieved

result, the result obtained for the temporal ranking is

associated.

In many situations, temporal queries may return

results with very low relevance for the query. This

characteristic, in some situations, may be undesired,

especially during the processing of queries that

return a large number of results. In order to avoid

such a situation, the user may define a minimum

threshold at the moment of the query. When this

happens, the third step in the processing of a query

consists in removing from the final result all feature

types whose relevance is below this threshold.

Finally, the last step consists in organizing the

remaining results according to their relevance

values. For this, a sorting algorithm is executed, in

order to list the retrieved feature types in descendant

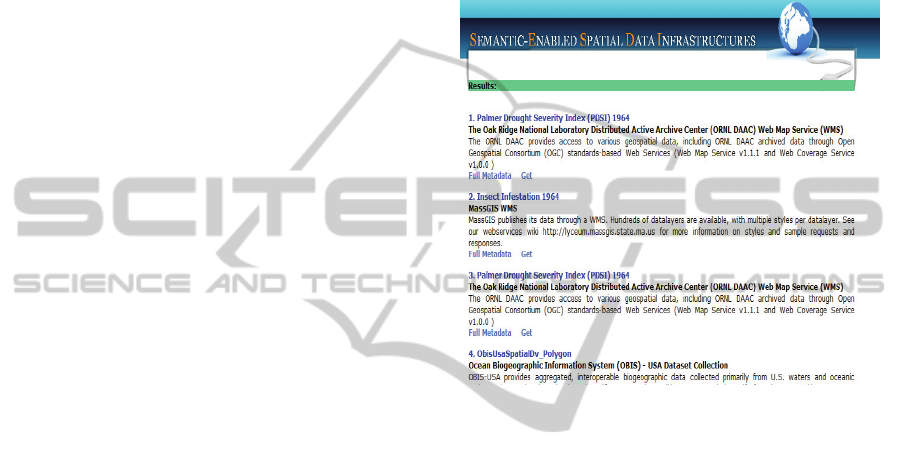

relevance order. Figure 3 shows the result of a

requisition for historic feature types concerning the

year of 1964.

Figure 3: Temporal query result.

5.2 Experimental Evaluation

After implementing our temporal search engine, an

experimental evaluation was performed, in order to

compare its performance to that of the present

catalog service. To make this validation, the catalog

service of the North-American SDI was used as case

study. The information of this service was collected

and processed to perform the temporal annotation of

each service and their respective feature types. The

results obtained after this processing were stored in

the database of the search engine. Presently, this

database has 103 services and 12,914 feature types.

During the validation process, several queries

were made for different time intervals. For each

temporal interval used, two queries were performed.

The first query was performed in the catalog service,

and retrieved any record whose temporal extension

intersected the interval defined in the query or

whose publication date intersected the query interval

(in the case of records with no temporal extension

value defined). The second query was performed

using the SESDI tool, which retrieved all the feature

types whose temporal extension was intersected by

the interval defined in the requisition. The results of

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

both queries were used to compare the performance

of these two approaches. This comparison was

performed according to recall and precision metrics.

Recall corresponds to the proportion between the

number of relevant results retrieved and the total of

existing relevant results. Precision, in turn, is

obtained through the proportion between the number

of relevant results retrieved and the total of retrieved

results.

5.2.1 Recall Evaluation

The experiments results were analyzed in two steps.

In the first one, we made the evaluation at service

level. This evaluation was intended to check the

impact of our solution with respect to the number of

different services retrieved by a query. This

verification allows us to observe the number of

services that have at least one feature type which is

relevant to the query, but which end up not being

retrieved by the catalog service. Figure 4 shows a

graphic obtained through the comparison of results

with respect to coverage. This graphic shows the

performance of both SESDI and catalog service

along the queries that have been executed during the

evaluation process. Moreover, axis x represents the

queries, while axis y represents the obtained

performance for each approach.

The analysis of Figure 4 allows us to see that the

model used by SESDI led to a big improvement in

the coverage of the queries. The model used by the

tool obtained a mean recall of 88.45%, while the

catalog service had a mean recall of 45.17%. This

difference can be explained by the fact that our

search engine stores temporal information of

services and feature types, while the catalog service

makes queries only on information stored at services

level. This difference allows our search engine to

retrieve any services that offer at least one feature

type whose temporal extension matches the

constraints defines in the query, even if the temporal

extension of the service does not meet the criteria

defined in the query. This characteristic is

impossible for the catalog service. Moreover, the

large number of services that do not have a defined

value for the temporal extension contribute to this

difference, since the creation and modification dates

of the metadata do not express this information

precisely.

In the second step of the validation process, the

two approaches were compared through the number

of retrieved feature types. This evaluation is

intended to obtain an overview of the number of

feature types that are not retrieved due to the

limitations of the present catalog services, as well as

measuring how much the model used by our search

engine improves the retrieval of this kind of

information. The recall comparison of the two

approaches with respect to the retrieval of feature

types is shown in the graphic of Figure 5.

Figure 5 shows that, when the recall of the

queries is compared at feature type level, the

performance difference between the two approaches

is still high. In this kind of evaluation, the model

used by our search engine presented a mean recall of

95.56%, while the catalog service obtained a mean

recall of 43.78%. The reasons that led to this

difference are the same that cause the recall

difference with respect to the retrieval of services.

However, the large number of feature types offered

by some services makes the difference between the

performances of both approaches to be still bigger

than what happens in the comparison at services

level.

Recall for services retrieval

20%

40%

60%

80%

100%

120%

SESDI

Catalog Service

Figure 4: Graph of recall for services retrieval.

Recall for feature types

20%

40%

60%

80%

100%

120%

SESDI

Catalog Service

Figure 5: Graph of recall for feature types retrieval.

5.2.2 Precision Evaluation

Besides recall, the approaches were compared with

respect to precision. Figure 6 shows the comparison

of precision between the two approaches with

respect to the number of services retrieved by each

solution. The results show that the model used by

SESDI had a better performance in some queries,

while the catalog service achieves more precise

ATemporalSearchEnginetoImproveGeographicDataRetrievalinSpatialDataInfrastructures

results in some requisitions. The mean precision of

the catalog service was of 93.72%, while SESDI

achieved a mean precision of 89.48%. The analysis

of the results shows that the precision loss of the

SESDI is not caused by the model used by its search

engine, but is due to the performance of the temporal

annotation process. While the catalog service

performs its searches with basis on information of

the catalog service, which are manually provided,

the temporal search engine used by SESDI performs

its queries with basis on information extracted

manually during the temporal annotation process.

This process is subject to errors, since some

temporal expressions may be misinterpreted when

extracted from textual attributes.

Precision for services retrieval

20%

40%

60%

80%

100%

120%

SESDI

Catalog Service

Figure 6: Graph of precision for services retrieval.

When the precision of the approaches is

compared at feature type level, the performance of

the two approaches is similar to the performance at

services level. The graphic obtained for this

comparison is shown in Figure 7. While the catalog

service had a mean precision of 92.14%, SESDI

achieved a mean precision of 88.95%.

Precision for feature type retrieval

20%

40%

60%

80%

100%

120%

SESDI

Catalog Service

Figure 7: Graph of precision for feature types retrieval.

In general, the results obtained through the

validation prove the feasibility of the model

proposed in this paper. The main element that leads

to this conclusion is that the model increases

considerably the coverage of temporal queries,

allowing the retrieval of many feature types even if

the temporal description of their respective service is

not supplied or not described in a consistent fashion.

6 RELATED WORK

The use of the temporal dimension to improve the

information retrieval has been addressed by many

studies over the years. Hübner and Visser (2003)

proposed a solution during the implementation of the

BUSTER project (Vögele et al., 2003). In that work,

the temporal extension of each resource is

represented through temporal periods. The limits of

these periods can be described in precise, persistent

or fuzzy forms, or can be defined with respect to

other periods. During the information retrieval

process, an algorithm based on Allen’s temporal

logic (Allen, 1998) is used to infer the semantic

relationships between each period. The use of logic

and inference allows the development of more

powerful search tools. Nevertheless, this kind of

approach does not offer a ranking. Moreover, the

high computational cost of this kind of solution

hinders its application to collections with a large

amount of data.

A ranking-based solution was developed by

Alonso, Gertz and Baeza-Yates (2006). In their

work, documents are grouped in clusters into a

timeline according to their temporal information.

Inside each cluster, the documents are organized by

a ranking, which is obtained through the metrics tf-

idf, with respect to the matching of the text in the

document and the text in the query. Manica et al.,

(2010) developed a search engine which enables the

retrieval of temporal information in XML

documents. In that work, the processing of queries is

performed in two stages: a keyword matching and a

temporal query, which is applied to the nodes that

are closer to those retrieved in the previous stage. In

both works, the ranking used to organize the

documents does not consider the temporal extension

of each resource.

Another ranking-based solution was developed

by Jin et al., (2010). In that work, the keywords that

form a document are associated to temporal

intervals, which are obtained from expressions

contained in the document. For each combination

formed by a keyword and a temporal interval, a

ranking value is computed through tf-idf techniques.

The disadvantage of that work is that its ranking

considers just the importance of the keywords, not

considering the relevance of each temporal

expression found in the document.

Another work that addresses temporal

information retrieval in documents was developed

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

by Strötgen and Gertz (2010). In that work,

spatiotemporal information of a document is

extracted through the processing of the text and can

be explored by users after a query. However, the

means to evaluate the temporal ranking of each

document are not supplied.

The analysis of the above studies shows that the

temporal information retrieval is still an open

problem. This analysis also shows that many studies

explore the temporal dimension during the

resolution of queries, but do not use (or use

superficially) this information to establish the

ranking of the retrieved results. This highlights the

need for a more specific ranking, generated from a

deeper analysis of this kind of information.

Moreover, we can notice the lack of effective

solutions to retrieve temporal data in the geospatial

domain. This limitation, allied to the key importance

that the time represents for this domain, highlights

the importance of the work presented in this paper.

7 CONCLUSIONS

The temporal dimension has great importance for the

retrieval of geographic data. However, the retrieval

of geographic data with basis on temporal criteria is

still a hard task for the present SDIs. The absence of

a detailed description of the temporal extension of

the services and the lack of a temporal ranking are

some of the characteristics that cause this limitation.

Aiming to overcome those limitations, this paper

described a new temporal search engine. The main

contributions consist in the development of a new

model that improves the description of the temporal

extension at service and feature type levels, and the

development of a ranking for the feature types

retrieved during a query.

Some future works still should be undertaken to

improve our research. An important task to be

developed consists of extending our approach to

handle others types of temporal information, such as

imprecise temporal information. Besides, we should

improve the integration of our temporal search

engine with the other similarity metrics. This task

will enable us to evaluate the performance of our

tool when solving queries concerning more then one

dimension. Finally, other important improvement to

be undertaken consists of integrating our solution to

the current catalog service interface.

REFERENCES

Allen, J. F., (1998). Maintaining Knowledge about

Temporal Intervals. Communications of the ACM,

26(11), 832-843.

Alonso, O., Gertz, M. and Baeza-Yates, R. A., (2006).

Clustering of search results using temporal attributes.

In 29th Annual International ACM SIGIR Conference

on Research and Development in Information

Retrieval. ACM Press.

Andrade, F.G. and Baptista, C. S., (2011). Using Semantic

Similarity to Improve Information Discovery in

Spatial Data Infrastructures. Journal of Information

and Data Management, 2(2), 181-194.

Baeza-Yates, R. and Ribeiro-Neto, B., (1999). Modern

information Retrieval. Wokingham: Addison-Wesley.

Bernard, L., and Craglia, M. (2005). SDI - From Spatial

Data Infrastructure to Service Driven Infrastructure. In

Workshop on Cross-learning between Spatial Data

Infrastructures, and Information Infrastructures.

Fox, E. A. and Shaw, J. A., (1993). Combination of

Multiple Searches. In Second Text Retrieval

Conference. NIST Special Publications.

Hübner, S. and Visser, U., (2003). Temporal

Representation and Reasoning for the Semantic Web.

In Twenty-First International Florida Artificial

Intelligence Research Society Conference. AAAI

Press.

Jin, P., Li, X., Chen, H., and Yue, L., (2010). CT-Rank: A

Time-aware Ranking Algorithm for Web Search.

Journal of Convergence Information Technology, 5(6),

99-111.

Manica, E., Dorneles, C. F., and Galante, R. M., (2010).

Supporting Temporal Queries on XML Keyword

Search Engines. Journal of Information and Data

Management, 1(3), 471-486.

Open Geospatial Consortium. (2004). OGC Web Map

Service Interface. Retrieved February 26, 2012, from:

http://portal.opengeospatial.org/files/?artifact_id=4756

Open Geospatial Consortium, (2005). Web Feature

Service implementation specification. Retrieved

February 26, 2012, from: https://portal.opengeospatial.

org/files/?artifact_id=8339.

Pustejovsky J., Castaño J., Ingria R., Saurí R., Gaizauskas

R., Setzer A. and Katz G., (2006). TimeML: Robust

Specification of Event and Temporal Expressions in

Text. In Fifth International Workshop on

Computational Semantics.

Strötgen, J. and Gertz, M., (2010). A System for Exploring

Spatio-Temporal Information in Documents.

Proceedings of the VLDB Endowment, 3(1), 1569-

1572.

Tversky A., (1977). Features of similarity. Psychological

Review, 84 (4), 327-352.

Vögele, T., Hübner, S. and Shuster, G., (2003). BUSTER -

An Information Broker for the Semantic Web.

Künstliche Intelligenz, 17(3), 31- 34.

Williamson I., Rajabifard, A. and Feeney, M. F., (2003).

Developing Spatial Data Infrastructures: From

Concept to Reality. London: Taylor & Francis.

ATemporalSearchEnginetoImproveGeographicDataRetrievalinSpatialDataInfrastructures
