MPEG-4/AVC versus MPEG-2 in IPTV

Stefan Paulsen

, Tadeus Uhl

and Krzysztof Nowicki

Flensburg University of Applied Sciences, Kanzleistr. 91-93, D-24943 Flensburg, Germany

Gdansk University of Technology, Narutowicza 11/12, PL 80952 Gdansk, Poland

Keywords: Communication Networks, Communication Services, Communication Protocols, Multimedia Applications,

IPTV, QoE, PEVQ, MPEG-4/AVC, MPEG-2, ISO/IEC 13818-1 Transport Stream.

Abstract: This paper is essentially a treatment of the theoretical and practical aspects of the new IPTV service. The

central part of the paper constitutes a detailed presentation of analysis scenarios and results, and addresses

the following issues in particular: What influence does the encoding rate have of on QoE values? What

effect does the most obtrusive impairment factor in a network, i.e. packet loss, have on QoE in IPTV? Is the

MPEG-2 Transport Stream suitable for encapsulation and transport of MPEG-4/AVC content? Are there

alternatives to the ISO/IEC 13818-1 Transport Stream? If so, how do they affect quality of service (QoE)?

1 INTRODUCTION

An ever increasing number of companies are

offering television broadcasting and interactive

video services such as video on demand (VoD)

using digital subscriber line (DSL) technology.

Before going any further, it should be pointed out

that we are talking about high-speed DSL

connections that use the simple metallic pair

normally associated with telephones to transmit

television programmes. A far better way to carry this

service over the last mile is passive optical network

(PON) technology. With PON it is possible to

achieve last-mile transmission rates in the range of

several Gbps. The good old Internet Protocol (with

all its drawbacks) is used in the core network and

over the last mile as well. The IPTV service itself is

supported in the upper layers by the User Datagram

Protocol (UDP) or the Real-time Transport Protocol

(RTP), or both. Content encoding using MPEG-2

(ISO/IEC 13818-2, 1995) or MPEG-4/AVC (ITU-T

H.264, 2007) is done in the highest layer where

encoded data is then encapsulated into the MPEG-2

Transport Stream in accordance with ISO/IEC

13818-1 (ISO/IEC 13818-1, 2000). The question

arises: Is the MPEG-2 Transport Stream at all

suitable for encapsulation and transport of MPEG-

4/AVC content? Further questions that need to be

answered are: What influence does the encoding rate

have of on QoE values? What effect does the most

disruptive impairment factor in a network, i.e.

packet loss, have on QoE in IPTV? Could the so-

called Native RTP technology of MPEG-4/AVC

perhaps be more suitable for transporting video

content across the networks? This paper describes

the search for answers to these questions.

2 MPEG-2 TRANSPORT STREAM

MPEG-2 transport streams according to Rec.

ISO/IEC 13818-1 (ISO/IEC 13818-1, 2000) are

composed of 188-byte TS packets, each with a 4-

byte header. Some TS packets contain an optional

Adaption Field, the size of which depends on flags

set in the packet header and which may contain

timing information, pad bytes, and other data. TS

packet payloads may contain program information

as well as Packetized Elementary Streams (PES),

typically video and audio streams. PES packets are

broken into 184-byte chunks to fit into the TS packet

payload. So, it is necessary to pad a TS packet that

carries the last chunk of a PES packet when there are

insufficient PES data to fill it.

A transport stream contains multiplexed data,

carrying program stream (PS) packets with payloads

from multiple PES packets – again, typically audio

and video – and associated program information

(PMT: Program Map Table) too. Because PES

packet headers contain both Adaption Fields and

timing information, no other signalling is necessary

to synchronise multiple streams for playback (see

Paulsen S., Uhl T. and Nowicki K..

MPEG-4/AVC versus MPEG-2 in IPTV.

DOI: 10.5220/0004013700270030

In Proceedings of the International Conference on Signal Processing and Multimedia Applications and Wireless Information Networks and Systems

(SIGMAP-2012), pages 27-30

ISBN: 978-989-8565-25-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Fig. 1).

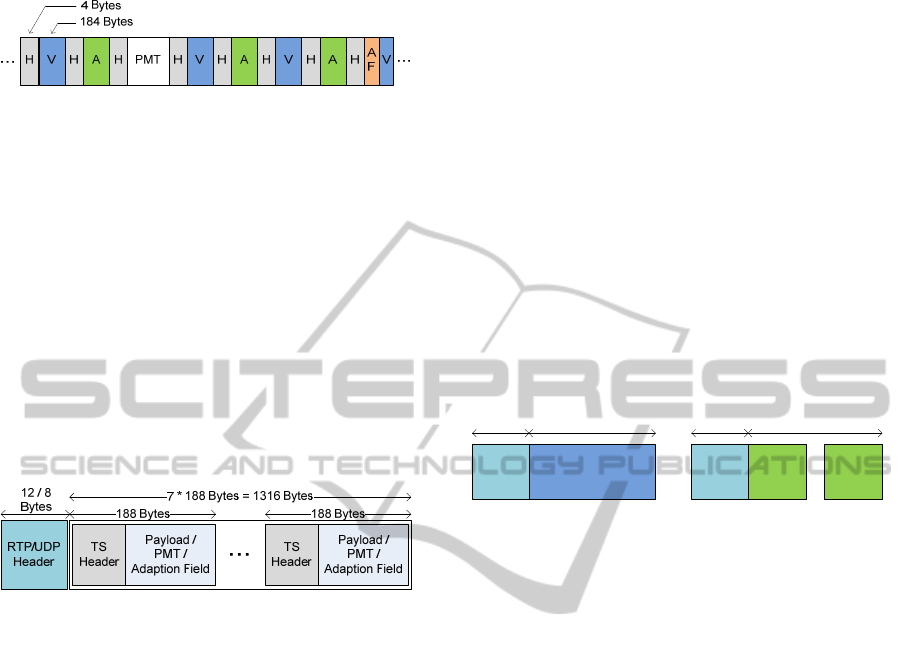

Figure 1: Format of the MPEG-2 Transport Stream

(H: TS header; V: video data; A: audio data; AF: adaption

field).

There are basically two ways of conveying

transport streams through IP networks. The TS

packets can either be encapsulated directly into the

payload of the UDP datagrams, or they can be

transported with the aid of the protocol RTP (IETF

RFC 2250, 1998 and IETF RFC 3984, 2005), which

supports the synchronisation of real-time services

such as IPTV. In either case exactly 7 sequential TS

packets are encapsulated in a UDP or RTP packet.

The number 7 results from the Maximum

Transmission Unit (MTU) in Ethernet-based

networks (

71881500 ≈÷ bytesbytes

) (see Fig. 2).

Figure 2: Format of the RTP/UDP packet carrying 7

MPEG-2 TS.

The software tool FFmpeg (FFmpeg, state 2012)

was used throughout the study described in this

paper to encode and decode and to create the

transport streams from the reference file. It is free to

use for any non-profit-making purposes and comes

with a large number of platform-independent

applications and libraries that can be used to record,

convert and stream audio and video material.

3 NATIVE RTP IN MPEG-4/AVC

Another way of sending video data over IP-based

networks is the native use of RTP packets (IETF

RFC 3640, 2003). This technology is very versatile

when it comes to mapping independently decodable

data blocks, so-called Network Abstraction Layer

(NAL) units, into the payloads of individual RTP

packets. The video codec MPEG-4/AVC can be

divided into a Video Coding Layer (VCL) and the

NAL. The VCL fulfils the signal processing tasks

such as transformation, quantisation, and motion

compensated prediction. The output consists of so-

called slices, that contain an integer number of

macroblocks. These are then encapsulated by the

NAL into corresponding units. Three different

packetisation modes can be used to transport these

units using RTP: the single NAL unit mode, the non-

interleaved mode and the interleaved mode. To

maintain conformity with the ITU-T Standard H.241

(ITU-T H.241, 2006), this study has been confined

to the single NAL unit mode in which all

macroblocks are transported in the decoding

sequence and each NAL unit is encapsulated in

exactly one RTP packet. Due to the size of the

MTU, which in Ethernet-based networks is usually

1500 bytes minus the header overhead, the size of

the NAL unit was confined to a maximum of 1400

bytes in this study. This information was passed on

to the encoder as a parameter. The transmission of

audio data using native RTP is explained in (IETF

RFC 3640, 2003) and will not be described here.

RTP

Header

NAL Unit

...

Audio

...

Audio

RTP

Header

12 Bytes ca. 1400 Bytes 12 Bytes ca. 1400 Bytes

Figure 3: Format of the RTP Packets using Native RTP to

carry audio and MPEG-4/AV-encoded video content

(single NAL unit mode).

The software tool FFmpeg mentioned in the

previous section is capable of encoding the reference

video in line with the corresponding maximum NAL

unit size and storing it as a byte stream. The

individual NAL units within this file can be

identified by a unique bit pattern.

4 ANALYSIS SCENARIOS AND

RESULTS

Figure 4 shows the numerical investigation

environment used in this research.

The AVI file from the company Opticom

(Company “Opticom”, state 2012), who act as

licence holder in Germany for PEVQ, was chosen as

the reference file. The file is 8 seconds long with a

resolution of 1280x720 (720p HDTV) and a frame

rate of 25 fps. As the measurement method for

determination of the QoE by IPTV the PEVQ

(Perceptual Evaluation of Video Quality) algorithm

(Company “Opticom”, state 2012) was used.

In the first analysis scenario a lossy IP

environment was assumed for the transport of video

signals. It was also assumed that packet losses are

subject to a binominal distribution and that the burst

SIGMAP2012-InternationalConferenceonSignalProcessingandMultimediaApplications

size is subject to a negative exponential distribution

with mean 1. So that the transport via this platform

is possible, the video signals are first encoded using

MPEG-2 and MPEG-4/AVC (using the default

settings of the encoder, i.e. unlimited NAL unit size)

and then mapped into the transport stream according

to Rec. ISO/IEC 13818-1 (corresponds to the so-

called MPEG-2 TS). Figures 5 and 6 show the

results obtained here. For all of the following

calculations 31 measurements for each determined

performance value were used. In this way, it was

possible to attain a confidence interval of less than

10 % of the estimated average (with a probability of

error of 5 %)

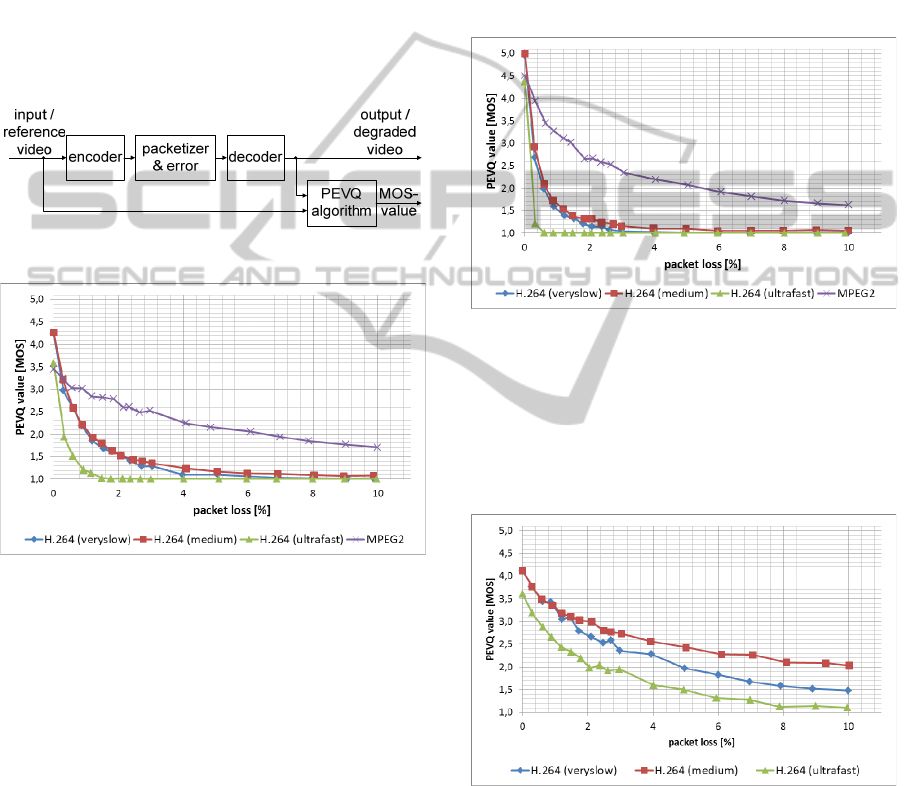

Figure 4: Numerical environment.

Figure 5: PEVQ values as a function of packet loss for

both codecs with MPEG-2 TS and an encoding rate of 5

Mbps.

The curves in Figures 5 and 6 show that the

quality of video signals in a loss-free environment

improves when the encoding rate is increased. As

packet losses increase, the QoE curves will fall more

steeply for higher encoding rates than for lower

ones. Here too, it could be confirmed that it is

perfectly adequate to work with the medium preset

in the case of the H.264 codec. The ultrafast preset is

extraordinarily sensitive to packet loss: even at a

level of packet loss as low as 0.4 % and at an

encoding rate of 10 Mbps quality of service drops

rapidly to the inacceptable and practically useless

value of approx. 1 MOS. It is also obvious that when

packet losses are present, the MPEG-2 encoding

delivers non-competitive QoE values. Although in a

loss-free environment lower QoE values are to be

expected in comparison with the MPEG-4/AVC

codec, this is very quickly offset when packet losses

increase. It is evident that the MPEG-2 TS has been

designed and optimised for the transport of video

signals encoded according to MPEG-2. The analyses

have shown that encapsulation is not to be

recommended for the codec H.264. In this case,

alternatives must be found. One possible alternative

is called Native RTP for MPEG-4/AVC. The

following analysis scenarios seek to assess the

effectiveness of this alternative.

Figure 6: PEVQ values as a function of packet loss for

both codecs with MPEG-2 TS and an encoding rate of 10

Mbps.

Figures 7 and 8 show the results obtained in the

analysis scenarios described above. For the reasons

given in Chapter 3 the single NAL unit mode was

used.

Figure 7: PEVQ values as a function of packet loss for the

MPEG-4/AVC codec with Native RTP, a maximum NAL

unit size of 1400 bytes and a coding rate of 5 Mbps.

The curves from Figures 7 and 8 show that in the

case of native encapsulation of MPEG-4/AVC video

content into RTP packets considerably higher QoE

values can be achieved than is the case with video

content that has been mapped into the MPEG-2 TS.

These values are comparable with the qualities

MPEG-4/AVCversusMPEG-2inIPTV

gained by using MPEG-2 encoding and mapping

into TS ISO 13818-1. These results confirm with

hard figures the first, general insights gained from

the work described in paper (MacAulay, Felts,

Fisher, 2005), in which encapsulation with Native

RTP was also investigated. Here too, it is clear that

for the codec MPEG-4/AVC it is perfectly adequate

to work with the medium preset. The ultrafast preset

delivers the worst results by far, and its use should

be avoided in practice.

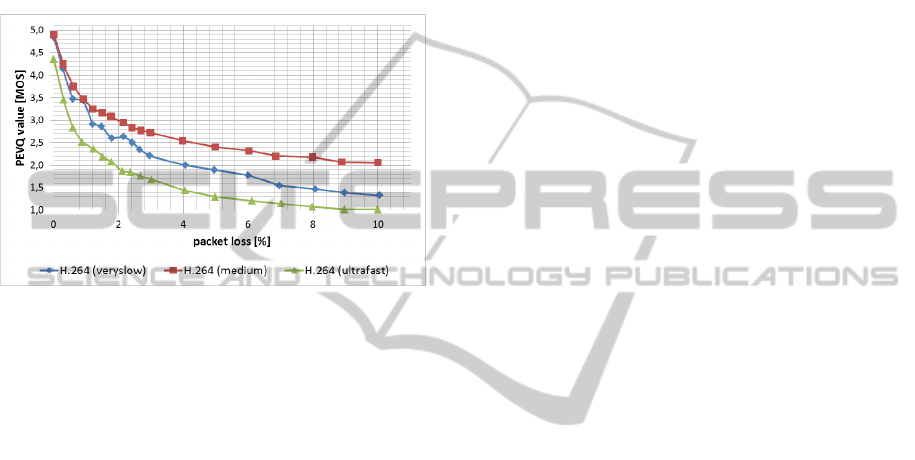

Figure 8: PEVQ values as a function of packet loss for the

MPEG-4/AVC codec with Native RTP, a maximum NAL

unit size of 1400 bytes and a coding rate of 10 Mbps.

The results gained so far in the course of this

study strongly suggest that when the codec MPEG-

4/AVC is used, the size of the NAL unit does indeed

have a significant influence on QoE. So it makes

sense not to use the default mode of the encoder

either when using the MPEG-2 TS for contents

encoded with MPEG-4/AVC. Instead, the NAL unit

size is set to 1400 bytes. All the following analysis

scenarios use this setting. For lack of space no

further figures are given in this paper. The results

obtained here show significantly better QoE values

than those gained using the default setting of the

codec MPEG-4/AVC (cf. Figs 5 and 6). Here again,

the medium preset returns the best QoE values. They

are comparable with the levels of quality attained for

the MPEG-2 codec. In a loss-free environment the

strengths of the MPEG-4/AVC encoder really

become evident. It delivers QoE values approx. 0.5

MOS better than the corresponding values for the

MPEG-2 codec. Quite clearly it is actually possible

to use the MPEG-2 TS to encapsulate MPEG-

4/AVC-encoded content as long as the encoder

settings have been properly adjusted. This is of

immense practical significance.

5 SUMMARY

The focus of this paper has been the subject of

quality of service in the service IPTV. A large-scale

investigation revealed the strengths and weaknesses

of both methods of encapsulating video streams. It

became clear that the ISO/IEC 13818-1-formatted

transport stream is perfectly suitable for the transport

of MPEG-2-encoded video signals. By contrast,

MPEG-4/AVC-encoded video signals (using the

default settings of the encoder) do have considerable

problems with this kind of encapsulation. The study

has shown that in this case it makes sense to work

either with the encapsulation type Native RTP or, in

the case of MPEG-2 TS, to adjust the settings of the

encoder (by limiting the size of the NAL unit).

REFERENCES

ISO/IEC 13818-2, 1995. Information technology --

Generic coding of moving pictures and associated

audio information, http://cutebugs.net/files/mpeg-

drafts/is138182.pdf, page last viewed Mai 2012.

ITU-T H.264, 2007. The Advanced Video Coding

Standard, http://www-ee.uta.edu/Dip/Courses/EE5359

/H.264%20Standard2007.pdf, page last viewed Mai

2012.

ISO/IEC 13818-1, 2000. Generic coding of moving

pictures and associated audio information: Systems,

http://mumudvb.braice.net/mumudrupal/sites/default/fi

les/iso13818-1.pdf, page last viewed Mai 2012.

IETF RFC 2250, 1998. RTP Payload Format for

MPEG1/MPEG2 Video, http://www.ietf.org/rfc/rfc

2250.txt, page last viewed Mai 2012.

IETF RFC 3984, 2005. RTP Payload Format for H.264

Video, http://www.ietf.org/rfc/rfc3984.txt, page last

viewed Mai 2012.

FFmpeg (current Window builds), http://ffmpeg.zeranoe.

com/builds, page last viewed March 2012.

IETF RFC 3640, 2003. RTP Payload Format for

Transport of MPEG-4 Elementary Streams,

http://www.faqs.org/rfcs/rfc3640.html, page last

viewed Mai 2012.

ITU-T H.241, 2006. Extended video procedures and

control signals for H.300-series terminals,

http://www.itu.int/rec/T-REC-H.241-200605-I/en¸

page last viewed Mai 2012.

Company “Opticom”, http://www.opticom.de, page last

viewed Mai 2012.

MacAulay, A., Felts, B., Fisher, Y., 2005. IP Streaming of

MPEG-4: Native RTP vs. MPEG-2 Transport Stream,

http://www.envivio.com/files/white-papers/RTPvsTS-

v4.pdf, page last viewed Mai 2012.

SIGMAP2012-InternationalConferenceonSignalProcessingandMultimediaApplications
