Metasearch Services Composition in WS-BPEL

An Application of Metamorphic Testing

M. del Carmen de Castro-Cabrera, Inmaculada Medina-Bulo and Azahara Camacho-Magri

Department of Computing Languages and System, University of C

adiz, C

adiz, Spain

Keywords:

Metamorphic Testing, Oracle, Testing Cases, Web Services Compositions, WS-BPEL.

Abstract:

Nowadays, the impact of Web Services is quickly increasing because of transactions through Internet. The

OASIS WS-BPEL 2.0 standard language allows to develop business processes by means of pre-existing Web

Services and to offer themselves as a new Web Service. This makes it necessary to pay special attention to

testing this type of software and presents a challenge for traditional testing techniques, due to the inclusion

of speciﬁc instructions for concurrency, fault and compensation handling, and dynamic service discovery and

invocation. Metamorphic Testing has proved useful to test and improve the quality of traditional imperative

programs. However, it has not been applied to languages for composing Web Services such a WS-BPEL. This

work presents an procedure for applying Metamorphic Testing to Web Services compositions, proposes an

architecture and analyzes a case study with promising results.

1 INTRODUCTION

Web Services Business Processes language, WS-

BPEL 2.0 (OASIS, 2007) was standardized at the re-

quest of some TIC companies (HP, IBM, Oracle, Mi-

crosoft, and so on.). This language allows us to de-

velop new Web Service (WS) designing more com-

plex business processes from pre-existing WS, and

there is a widely support software for them. However

its development has not gone along with improve on

testing techniques to this type of software (Bozkurt

et al., 2010). A deﬁcient testing in a system could

cause errors with negative consequences both eco-

nomical (IDC, 2008) and also humans (Leveson,

1995). Consequently, good testing methods to test

compositions for correctness are required. Progress

in this sense are described in (Palomo-Duarte, 2011).

Furthermore, in (Garc

ıa-Dom

ınguez et al., 2011) two

inference algorithms to reduce application cost of a

extended methodology based on SOA (with UML and

MARTE) are presented.

Metamorphic testing (MT) (Chen, 1998) is a soft-

ware testing technique that allows to generate test

cases automatically to prove programs. It is based

on Metamorphic Relations (MRs), that is, existing

or hope properties deﬁned over inputs and its corre-

sponding output set, to a program under testing. In-

deed, that technique has been proved with success in

programs written in imperative programming langua-

ges (Zhou et al., 2004). As for the efﬁciency, Zhang

in (Zhang et al., 2009) has conducted an experiment

in which compares the ability of detecting error and

time cost between MT and standard assertion check-

ing. The results reveal that MT detects more faults

than standard assertion checking.

This work presents an procedure for applying

Metamorphic Testing to compositions with WS-

BPEL and proposes an architecture. Furthermore, a

case study with encouraging results is added.

This paper is structured as follows. In the sec-

tion 2 fundamentals are explained. Section 3 presents

a general procedure for implementing MT. Section 4

exhibits a general architecture with the description of

steps to follow. Afterward, in the section 5 a case

study, the Metasearch composition, is described with

the MRs and the results obtained. Section 6 shows

some works related to testing compositions in WS-

BPEL and MT technique applications. Finally, in the

section 7 are conclusions and future works.

2 FUNDAMENTALS

Software Testing is a core activity in any software

development project. Detecting and correcting er-

rors are critical operations to ensure program reliabil-

ity. For this reason, diverse techniques have been de-

veloped based on different approaches, even though,

427

Castro C., Medina-Bulo I. and Camacho A..

Metasearch Services Composition in WS-BPEL - An Application of Metamorphic Testing.

DOI: 10.5220/0004026004270432

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 427-432

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

none has proved to be better than others (Beizer,

1990; Myers, G.J. et al., 2004).

2.1 Metamorphic Testing (MT)

MT relies on the notion of MR. In (Andrews et al.,

2005), MRs are deﬁned as ”existing properties over

a different inputs set and its corresponding results to

multiple evaluations of a target function”. In addition,

The use of MT to alleviate oracle problem (Chen,

1998; Chen, 2010).

When the implementation is correct, program in-

puts and outputs are expected to satisfy some neces-

sary properties that are relevant for underlying algo-

rithms. These properties are traditionally known as

assertions. In this sense, a MR is a type of assertion

that is expressed according to the test case values.

However, a MR should provide a way of generat-

ing new test cases from given ones previously. In or-

der to illustrate this, let us consider a sorting program,

sort, that sorts an input list of integers producing a list

with the same integers in ascending order.

For instance, when we have as input the list l

h4, 7, 2i, the expected result of sort(l

) is h2, 4, 7i.

Consequently, if a function perm that permutes ele-

ments from a given list to generate a new test case is

deployed, we claim that its result must be the same

(the condition over the output is the equal function).

Proceeding with the same example,

= perm(l

, h(1, 2)i) = h7, 4, 2i (there is only a

swap between the ﬁrst and the second elements), the

expected result of sort(l

) must be the same than

sort(l

). In other words, sort(l

) = sort(l

). We

could formalize this property, MR

, as follows:

≡ (∃x l

= perm(l

, x)) → sort(l

) = sort(l

)

where l

is the initial input and l

will be the follow-

up test case. Summing up, MT is a testing technique

using MRs (Chan et al., 2007). It begins with an ini-

tial test suite, which is produced with any test case

selection strategy, and a set of MRs. Once the pro-

gram is executed on the test suite, errors are ﬁxed un-

til a successful test suite (i.e., consisting of non-failing

test cases) is obtained. Then, MRs are used to gen-

erate follow-up test cases. These test cases form the

follow-up test suite and the process is iterated until the

speciﬁed test criteria are met.

3 MT IMPLEMENTATION

Test case generation can be automated as in traditional

techniques. Following with the example of the previ-

ous section, replacing the second parameter of perm

by a random permutation we would obtain the equiv-

alent to traditional random testing for this example.

Of course, a single MR is generally insufﬁcient. In

the above example, we could not detect certain faults

just with MR

, as correctness for sorting implies per-

mutation preservation (the result list must be a permu-

tation of the original) and an order constraint (it must

be ordered).

Then, MT is a testing technique that begins with

an initial test suite, which is produced with any test

case selection strategy, and a set of MRs. Once the

program is executed on the test suite, we obtain that

some test cases detect errors and others not. The ﬁrst

ones force that the program is revised and the errors

corrected and, the second ones, named successful test

cases, will be selected as input to our architecture.

Thereby, the MRs generate the follow-up test

cases from that successful set. These follow-up test

cases will compound the (initial) test suite of the fol-

lowing iteration and the procedure will be repeat.

Therefore, once a initial test suite has been gen-

erated (with a generation strategy), we have to follow

the next steps to apply successfully MT. First, choose

the successful test cases. These constitute the initial

test suite. Second, select adequate MRs taking into

account the problem to solve and the algorithm struc-

ture implemented in the program. Third, generate the

follow-up test suite applying MRs to initial test suite.

Fourth, execute the program with initial and follow-

up test cases. Fifth, compare the results. And, ﬁnally,

improve the program correcting the detected errors,

select new test cases and/or new MRs enhanced to

successive iterations. You can see more information

in (Castro-Cabrera and Medina-Bulo, 2011).

4 PROPOSED ARCHITECTURE

Once diverse aspects related with MT have been an-

alyzed, in this section an architecture for testing web

service compositions in WS-BPEL is presented.

The proposed architecture uses open-code sys-

tems: ActiveBPEL (ActiveVOS, 2009) as the BPEL

execution engine and BPELUnit (Mayer and L

ubke,

2006) as the unity testing library.

This approach intends to improve test suite, from

MRs, generating new test cases, which allow us to de-

tect a greater number of errors in compositions. Next

every steps of the proposed architecture are described:

1. Analysis and Property Obtainment Step. This step

analyzes the composition to obtain relevant prop-

erties and to specify MRs. One of the possibilities

is to deploy the free framework Takuan (Palomo-

Duarte et al., 2010), that detects properties in a

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

428

BPEL composition from test cases. Furthermore,

in this step, follow-up test cases are generated

through MRs. This phase receives as inputs: a

WS-BPEL composition and a test suite random-

ize generated or through an automatic application.

As result and as requirement to the next step, the

follow-up test suite (generated from MRs) and the

ActiveBPEL speciﬁc ﬁles to execute the composi-

tion are obtained. The main modules are an ana-

lyzer and a follow-up test cases generator.

2. Execution Step. In this step the composition is ex-

ecuted with initial and follow-up test cases. Every

test case encloses an initial message that triggers a

WS-BPEL process instance in the server, as well

as the responses that the external services will pro-

vide. As input speciﬁc ﬁles to ActiveBPEL engine

are received and initial and follow-up test cases

obtained from the previous step. As output the re-

sults from test cases execution are obtained. The

principal modules are a WS-BPEL engine and a

WS-BPEL unity testing library.

3. Comparison Step. This step receives the results

of test cases (initial and follow-up) execution. It

compares the results of initial and follow-up test

cases execution, with the target of detecting errors

in composition. Essentially, it is checking if MRs

hold, since these MRs are necessary properties.

In the case that another MR was not satisﬁed, an

error in the composition has been detected. The

comparison results allow to decide the number of

process iterations.

5 A CASE STUDY

In this section we apply the proposed architecture

to the MetaSearch composition deﬁned in (OASIS,

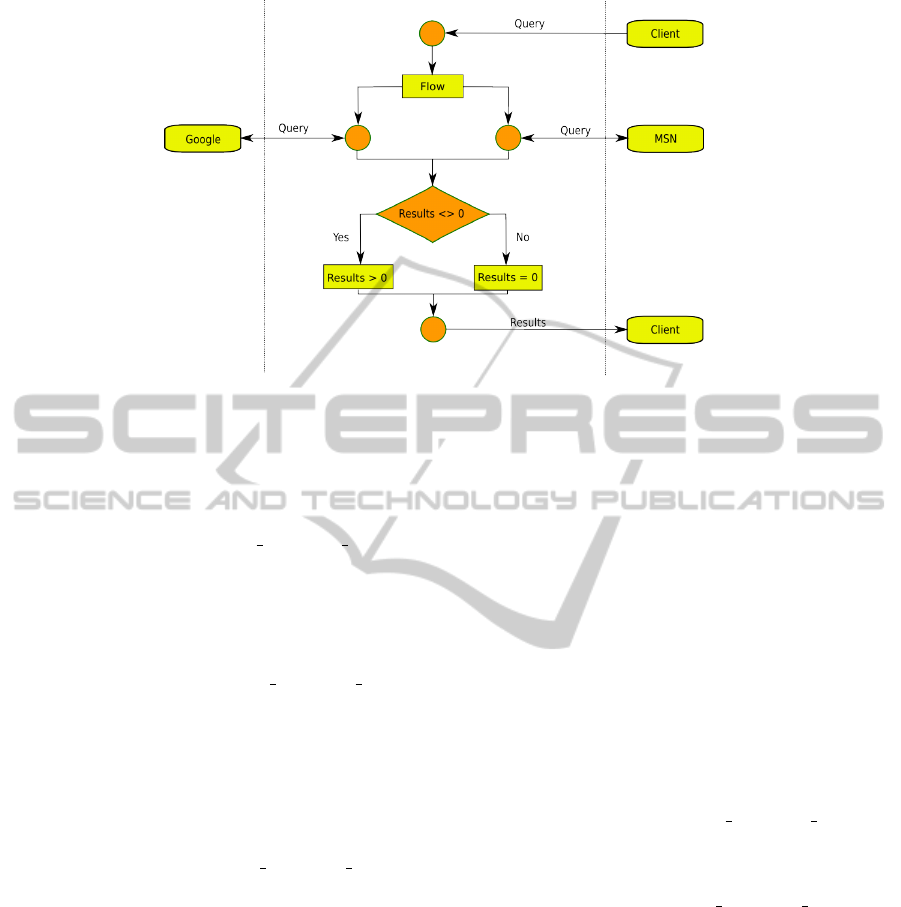

2007). Its behavior is in the ﬁgure 1. This consists

of the search done by a client in Google search and

MSN search. Each browser returns its results, ﬁrst all

the results of Google and then all the results of MSN.

If there are no results of Google, the client will only

see the results of MSN, and vice versa.

The ﬁrst phase consists of analyzing the composi-

tion and the original test cases to design suitable MRs:

study the original test cases and design and implement

adequate MRs to these test cases. We apply one of

these MRs to one of the original test cases and we ob-

tain a new test case. It should be noted that the test

cases extend to the responses of services, that is, we

have to consider not just inputs and outputs, but also

the responses of the involved services.

Now, we show the most important elements in-

volve in the test case that we study: Qury, keywords

of the client’s query; Lang, language that the client

uses for searching; C, country where the search is

done; Cult, string formed by the concatenation be-

tween Lang and C (if one of the elements is null (”),

the value of Cult will be ’en-US’); Max Res, max-

imum number of results that the client wants; N,

total number of results that the client obtains with

both browsers - this number has to be less or equal

than Max Res (N ⇐ Max Res); Google Res, this rep-

resents all of the results of Google; and, ﬁnally,

MSN Res, this represents all of the results of MSN.

There are other elements that is not relevant to the

study of this paper.

The structure of a theorical test case is this: (Qury,

Lang, C, M Res, N, Google Res, MSN Res)

• One of the original test cases that we have studied

is the following: Cult = de-De

(Philipp, de, DE, 3, 3, Google Res, MSN Res)

We do not consider the Google results and the

MSN results because the MRs only use the Lang

and C elements. This test case is a valid one be-

cause the client indicates a query to search, a max-

imum number of results and ﬁnally, the client ob-

tains a total result of the browsers that is less or

equal than this maximum.

We apply the following MR to the previous test

case where the elements that end with ’1’ are the

original elements, and the elements that end with

’2’ are the new elements:

Precondition: Lang1 6= ”” MR1:

Lang2 6= Lang1 ∧ Lang2 = ”” ⇒ Cult2 6= Cult1

The precondition of this MR indicates that the

original Language is no null. And as the origi-

nal test case satisﬁes this precondition, we obtain

the new follow-up test case: Cult = en-US

(Philipp, , DE, 3, 3, Google Res, MSN Res)

The new test case is valid because satisﬁes all

the requirements of the composition that we have

commented before.

Another original test case that we have studied is

the following: Cult = de-De

(Philipp, de, DE, 4, 4, Google Res, MSN Res)

The structure is similar as the previous original

test case, but in this case the client wants to obtain

one more result.

We apply this MR to the test case:

Precondition: C1 6= ””

MR2: C2 6= C1 ∧ C2 = ”” ⇒ Cult2 6= Cult1

MetasearchServicesCompositioninWS-BPEL-AnApplicationofMetamorphicTesting

429

Figure 1: The MetaSearch composition.

The precondition of this MR indicates that the

original Country is no null. And as the original

test case satisﬁes this precondition, we obtain the

new follow-up test case: Cult = en-US

(Philipp, de, , 4, 4, Google Res, MSN Res)

The new test case is valid because satisﬁes all the

requirements of the composition.

And one last original test case that we have stud-

ied is the following: Cult = en-De

(Philipp, en, DE, 3, 3, Google Res, MSN Res)

The structure is the same as the ﬁrst original test

case, but in this case the Lang is English. There-

fore, the value of the Cult element is ’en-De’.

We apply again the ﬁrst MR for this test case be-

cause it satisﬁes the precondition and we obtain

the new follow-up test case: Cult = en-US

(Philipp, , DE, 3, 3, Google Res, MSN Res)

It is the same test case that we obtained in the ﬁrst

example. Therefore, we can see that we not only

can obtain new test cases with these MRs, but also

we can obtain repeated test cases.

5.1 Follow-up Test Case Generation

We have implemented the previous MRs with oth-

ers that we have also obtained of the complete study.

These MRs allow us to obtain new test cases because

they apply logical and numerical relations to the orig-

inal test cases. This improves the initial test suite.

As we could see in the previous section, the appli-

cation of MRs to certain test cases can obtain repeated

test cases. To prevent this, we implemented an appli-

cation that automates the generation of follow-up test

cases from an original test suite, deletes the follow-up

test cases that are repeated and writes all the follow-

up test cases in a ﬁle with BPELUnit format.

But this effort is rewarded because the application

generates new valid test cases. This saves us the hard

work of generating follow-up test cases by hand. In

fact, we could iterate this process if we run it to these

follow-up test cases improving the test suite.

5.2 Result Evaluation

An overall result of this study is that we have im-

proved the error detection technique completing the

initial test suite and detecting new errors. A particular

test case is the following, one of the test cases that we

have studied in this section: Cult = de-De

(Philipp, de, DE, 3, 3, Google Res, MSN Res)

And the new test case generated by the MR1 is:

Cult = en-US

(Philipp, , DE, 3, 3, Google Res, MSN Res)

Based on the MetaSearch composition logic, the

source code fragment that evaluates the ﬁnal value of

the Cult element is the following:

<bpel:condition>

(($inputVariable.payload/client:country != ’’)

and

($inputVariable.payload/client:language != ’’))

</bpel:condition>

As we explained at the beginning of this section,

if the Lang and C elements are different to null (”)

the value of Cult will be the string formed by the con-

catenation between both elements. In other case, the

value will be ’en-US’.

If there are an error in the source code of the com-

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

430

position, like replacing the relation ’and’ by the rela-

tion ’or’, the source code fragment of this error com-

position is the following:

<bpel:condition>

(($inputVariable.payload/client:country != ’’)

($inputVariable.payload/client:language != ’’))

</bpel:condition>

With the original test case we do not detect the

invalid composition because it satisﬁes the condition

too. But, if we use the new test case generated by the

MR1, we will detect the invalid composition because

it does not satisfy the condition.

In the valid composition the value of the Cult el-

ement of the new test case is ’en-US’ because one of

the elements (in this case, the Lang element) is equal

to null. However, in the invalid composition the value

of Cult is ’-DE’ because the test case satisﬁes the con-

dition that one of the elements is different to null. The

values are different therefore, the error is detected.

This new test case allows us to detect an error that

the original test case did not detect. In addition to gen-

erating a signiﬁcant number of follow-up test cases

automatically, some of these test cases allow us to de-

tect new errors and to improve the initial test suite.

Besides, new MRs can be implemented that allow us

to generate another test cases to improve the results.

6 RELATED WORKS

In this section, we describe some tools and techniques

applied to test WS compositions. We focus in those

ones implemented in WS-BPEL and most of them are

referred to test case generation (Garc

ıa-Fanjul et al.,

2007; Zheng et al., 2007). GAmera (UCASE Re-

search Group, 2010) is based on mutation testing and

that uses genetic algorithms.

The ﬁrst documented work related with MT be-

longs to Weyuker (Weyuker, 1982). In this paper

Weyuker proposed a new perspective for software

testing based on using alternative programs to the

original one that deploys the same function. This idea

was later adopted by Chen in (Chen, 1998), where the

name metamorphic testing ﬁrstly appears. Since then,

numerous papers have been published with different

visions as (Gotlieb and Botella, 2003), where a possi-

ble automation of this technique is presented.

Chen and his colleagues in (Chen et al., 2004) de-

scribe how the adequate selection of MRs is a critical

issue in this technique. Alternatively, Chan and his

collaborators have some works related with this topic,

but the more interesting for our research is (Chan

et al., 2007), in that applies MT to SOA, however it

is only applied over services, not compositions. Re-

cently, other interesting work has been published to

obtain MRs and automatize test cases generation in-

tegrated into BeTTy (Segura et al., 2012).

A research group of Columbia University has im-

plemented in (Murphy et al., 2008) a framework that

automatize partly the testing process. Later, they have

implemented Corduroy, an application to automatize

the process (Murphy et al., 2009). Lately, advances

in this research have been published in (Xie et al.,

2011).

7 CONCLUSIONS

WS-BPEL business processes are considerably in-

creasing in last years. For this reason, it is impor-

tant the development of techniques that allow to test

this type of software. Due to the language nature, it

is necessary to adapt traditional testing techniques to

test compositions implemented by those languages.

In addition, MT has been implemented in differ-

ent languages efﬁciently and it is being actually under

consideration by some research groups. Selection of

adequate MRs is an important issue to this technique,

so we ought to consider the problem context and the

structure of the program under test.

A testing framework architecture to apply MT

in WS-BPEL compositions has been proposed. The

steps and design of this have been speciﬁed supported

by open software systems. Further, a test case study

over an speciﬁc composition, Metasearch, has been

included. Its speciﬁcation, design and implementa-

tion description, as well as results have also been pre-

sented. This indicates how it is possible to improve a

test suite detecting errors in the composition.

As future work, the complete development of the

architecture proposed is considered. Once the system

was implemented, it could be compared these results

with other obtained through different techniques us-

ing diverse compositions. However, unfortunately it

does not exist up to now, any standardized testing

suite to WS-BPEL (Palomo-Duarte, 2011), anyhow

the results could be depending on the cases study.

ACKNOWLEDGEMENTS

This work is supported by the MoDSOA project

(TIN2011-27242) under the National Program for

Research, Development and Innovation of the Min-

istry of Science and Innovation (Spain) and by the

PR2011-004 project of the University of C

adiz.

MetasearchServicesCompositioninWS-BPEL-AnApplicationofMetamorphicTesting

431

REFERENCES

ActiveVOS (2009). ActiveBPEL WS-BPEL engine.

http://sourceforge.net/search/?q=ActiveBPEL.

Andrews, J. H., Briand, L. C., and Labiche, Y. (2005). Is

mutation an appropriate tool for testing experiments?

In Proceedings of the 27th International Conference

on Software Engineering (ICSE 2005), pages 402–

411. ACM Press.

Beizer, B. (1990). Software Testing Techniques, 2nd Edi-

tion. International Thomson Computer Press, 2 sub

edition.

Bozkurt, M., Harman, M., and Hassoun, Y. (2010). TR-10-

01: testing web services: A survey. Technical Report

TR-10-01, King’s College, London.

Castro-Cabrera, C. and Medina-Bulo, I. (2011). An ap-

proach to metamorphic testing for ws-bpel composi-

tions. In Proceedings of the International Conference

on e-Business (ICE-B 2011).

Chan, W. K., Cheung, S. C., and Leung, K. R. (2007).

A metamorphic testing approach for online testing of

service-oriented software applications. International

Journal of Web Services Research, 4(2):61–81.

Chen, T. Y. (1998). Metamorphic testing: A new approach

for generating next test cases. HKUSTCS98-01.

Chen, T. Y. (2010). Metamorphic testing: A simple ap-

proach to alleviate the oracle problem. In Proceedings

of the 5th IEEE International Symposium on Service

Oriented System Engineering. IEEE Computer Soci-

ety.

Chen, T. Y., Huang, D. H., Tse, T. H., and Zhou, Z. Q.

(2004). Case studies on the selection of useful re-

lations in metamorphic testing. In Proceedings of

the 4th Ibero-American Symposium on Software En-

gineering and Knowledge Engineering (JIISIC 2004),

pages 569–583.

Garc

ıa-Dom

ınguez, A., Medina-Bulo, I., and Marcos-

arcena, M. (2011). Model-driven design of perfor-

mance requirements with UML and MARTE. In Pro-

ceedings of the 6th International Conference on Soft-

ware and Data Technologies, Seville, Spain.

Garc

ıa-Fanjul, J., Tuya, J., and de la Riva, C. (2007). Gen-

eraci

on sistem

atica de pruebas para composiciones de

servicios utilizando criterios de suﬁciencia basados en

transiciones. In JISBD 2007: Actas de las XII Jor-

nadas de Ingenier

ıa del Software y Bases de Datos.

Gotlieb, A. and Botella, B. (2003). Automated metamor-

phic testing. Computer Software and Applications

Conference, Annual International, 0:34–40.

IDC (2008). Research reports. http://www.idc.com.

Leveson, N. G. (1995). Safeware: system safety and com-

puters. ACM.

Mayer, P. and L

ubke, D. (2006). Towards a BPEL unit

testing framework. In TAV-WEB’06: Proceedings of

the 2006 workshop on Testing, Analysis, and Veriﬁca-

tion of Web Services and Applications, pages 33–42.

ACM.

Murphy, C., Kaiser, G., Hu, L., and Wu, L. (2008). Proper-

ties of machine learning applications for use in meta-

morphic testing. In Proc. of the 20th international

conference on software engineering and knowledge

engineering (SEKE), pages 867–872.

Murphy, C., Shen, K., and Kaiser, G. (2009). Using

JML runtime assertion checking to automate meta-

morphic testing in applications without test oracles.

In Software Testing Veriﬁcation and Validation, 2009.

ICST’09. International Conference on, pages 436–

445.

Myers, G.J., Sandler, C., Badgett, T., and Thomas, T. M.

(2004). The Art of Software Testing, 2nd ed. Wiley -

Interscience.

OASIS (2007). Web Services Business Process

Execution Language 2.0. http://docs.oasis-

open.org/wsbpel/2.0/OS/wsbpel-v2.0-OS.html.

Organization for the Advancement of Structured

Information Standards.

Palomo-Duarte, M. (2011). Service composition veriﬁca-

tion and validation. In Jonathan Lee, S.-P. M. and

Liu, A., editors, Service Life Cycle Tools and Tech-

nologies: Methods, Trends and Advances, pages 200–

219. IGI Global.

Palomo-Duarte, M., Garc

ıa-Dom

ınguez, A., Medina-Bulo,

I.,

Alvarez-Ayll

on, A., and Santacruz, J. (2010).

Takuan: a tool for WS-BPEL composition testing us-

ing dynamic invariant generation. In et al., B. B., edi-

tor, ICWE, volume 6189 of Lecture Notes in Computer

Science, pages 532–535. Springer.

Segura, S., Galindo, J., Benavides, D., Parejo, J., and Ruiz-

Corts, A. (2012). Betty: Benchmarking and testing

on the automated analysis of feature models. In Eise-

necker, U., Apel, S., and Gnesi, S., editors, Sixth

International Workshop on Variability Modelling of

Software-intensive Systems (VaMoS’12), pages 63–71,

Leipzig, Germany. ACM.

UCASE Research Group (2010). GAmera home site.

http://neptuno.uca.es/˜gamera.

Weyuker, E. (1982). On testing Non-Testable programs.

The Computer Journal, 25(4):465–470.

Xie, X., Ho, J. W. K., Murphy, C., Kaiser, G., Xu, B., and

Chen, T. Y. (2011). Testing and validating machine

learning classiﬁers by metamorphic testing. J. Syst.

Softw., 84:544–558.

Zhang, Z.-Y., Chan, W. K., Tse, T. H., and Hu, P.-F. (2009).

An experimental study to compare the use of meta-

morphic testing and assertion checking. Journal of

Software, 20(10):2637–2654.

Zheng, Y., Zhou, J., and Krause, P. (2007). An automatic

test case generation framework for web services. Jour-

nal of software, 2(3):64–77.

Zhou, Z. Q., Huang, D. H., Tse, T. H., Yang, Z., Huang,

H., and Chen, T. Y. (2004). Metamorphic testing and

its applications. In Proceedings of the 8th Interna-

tional Symposium on Future Software Technology (IS-

FST 2004). Software Engineers Association.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

432
