EMF Components

Filling the Gap between Models and UI

∗

Lorenzo Bettini

Dipartimento di Informatica, Universit

a di Torino, Torino, Italy

Keywords:

EMF, Modeling, Eclipse, User Interface.

Abstract:

The Eclipse Modeling Framework (EMF) provides code generation facilities for building tools and applica-

tions based on structured data models. Most of the Eclipse projects which somehow have to deal with modeling

data are based on EMF since it simpliﬁes the development of complex software applications with its modeling

mechanisms. However, we argue that from the user interface point of view, the development of applications

based on EMF could be made simpler, with more code reuse, and without having to deal with too many inter-

nal details. For this reason, in this paper, we propose Emf Components, a lightweight framework that allows

easy and quick development of applications based on EMF and it can be conﬁgured to use all kinds of EMF

persistence implementations (e.g., XMI, Teneo, CDO). It aims at providing a set of reusable components like

trees, tables and detail forms that manage the model with the introspective EMF capabilities. The framework

provides basic UI implementations which are customizable in a declarative way and with dependency injection

mechanisms.

1 INTRODUCTION

The Eclipse Modeling Framework (EMF) (Steinberg

et al., 2008) provides code generation facilities for

building tools and applications based on structured

data models. The model speciﬁcation can be de-

scribed in XMI, UML or annotated Java, and from

this speciﬁcation EMF produces a set of Java classes

for the model, along with a set of adapter classes for

editing facilities.

EMF simpliﬁes the development of complex soft-

ware applications with its modeling mechanisms.

However, we argue that from the user interface point

of view, the development of applications based on

EMF could be made simpler, with more code reuse,

and without having to deal with too many internal de-

tails. For this reason, in this paper, we propose the

Emf Components framework.

Emf Components is a lightweight framework that

allows easy and quick development of applications

based on EMF. It can be conﬁgured to use all

kinds of EMF persistence implementations (e.g.,

XMI, Teneo, CDO). It aims at providing a set of

reusable components like trees, tables and detail

∗

The paper was partly supported by RCP Vision,

www.rcp-vision.com, and by MIUR (Project PRIN 2008

DISCO).

forms that manage the model with the introspec-

tive EMF capabilities. Using these components

one can easily build more complex widgets, ed-

itors and applications. The framework provides

basic UI implementations which are customiz-

able with injection mechanisms (based on Google

Guice (Google, 2012), a Dependency Injection

framework (Fowler, 2004)). The Emf Components

framework is available as an open source project

at http://code.google.com/a/eclipselabs.org/p/emf-

components.

EMF already provides some mechanisms for

generating user interface code, in particular, it can

also generate an editor (based on a tree viewer) for

an EMF metamodel. Indeed, besides the classes for

the model, EMF can generate an additional plugin

with an editing framework, i.e., classes not directly

dealing with UI functionalities, but that can be used

for generic editing features; then, it generates a

plugin which directly deals with the UI part, in the

shape of an editor and some wizards, which rely on

the generated editing framework for the metamodel.

In particular, EMF.Edit (EMF.Edit, 2004; Stein-

berg et al., 2008) is a framework which is part of EMF

that includes generic reusable classes for building

editors for EMF models. In particular, it provides the

content and label provider classes, property source

Bettini L..

EMF Components - Filling the Gap between Models and UI.

DOI: 10.5220/0004027100340043

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 34-43

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

support, and other convenience classes that allow

EMF models to be displayed using standard desktop

(JFace) viewers and property sheets. Moreover,

it also provides a command framework, with a

set of generic command implementation classes for

building editors that support fully automatic undo and

redo. These functionalities are dealt with by relying

on an editing domain which manages a self-contained

set of interrelated EMF models and the commands

that modify them.

Most of these functionalities can be tied together

by using adapter factories which can transparently

bind the mechanisms of the EMF.Edit framework to-

gether with the UI functionalities, so that, for in-

stance, labels for the viewer’s elements can be re-

trieved automatically. The main problem for the pro-

grammer is still that all these mechanisms have to be

setup and initialized correctly in order to achieve the

desired functionalities; and this initialization might

still be a burden for the programmer since it requires

many lines of code, which are recurrent, require some

deeper knowledge, and tend to ﬁll the code with too

many distracting details. In Listing 1 we show the

typical Java code which is very recurrent in appli-

cations that use EMF models and UI functionalities

(based on the above describe EMF.Edit framework).

We note that such code is full of too many recurrent

code with many internal details. As we will show in

the next sections, our goal is to factor out this recur-

rent code in such a way that UI components (such as

the viewer in the Listing) can be setup with only a

few lines of code (see Listing 6, Section 3.1). Note

that from Listing 1 we intentionally omitted all the

instructions to load the actual resource of the EMF

model, which requires some additional (and recur-

rent) effort. Finally, while the code presented in List-

ing 1 deals with a viewer with editing functionalities,

still, even in the case of a viewer in read-only mode,

many instructions would be required.

EMF standard generation mechanisms are based

on speciﬁc Javadoc comments, i.e., @generated, for

ﬁelds, methods and classes. The idea behind these

generation mechanisms is that future generation will

overwrite all the previously generated Java code ele-

ments unless the user removes that @generated from

speciﬁc declarations (or replaces it with @generated

NOT); thus, for instance, if in a generated Java class

we want to modify a speciﬁc generated method with

a custom implementation, we can remove that @gen-

erated from the method’s Javadoc, and the next time

we run EMF generation, that method will not be over-

written.

An example of customization of labeling in a class

generated by EMF into the edit plugin (related to the

1 adapterFactory = new ComposedAdapterFactory(

ComposedAdapterFactory.Descriptor.Registry.

INSTANCE);

adapterFactory.addAdapterFactory(new

ResourceItemProviderAdapterFactory());

3 adapterFactory.addAdapterFactory(new

MyModelItemProviderAdapterFactory());

adapterFactory.addAdapterFactory(new

ReﬂectiveItemProviderAdapterFactory());

BasicCommandStack commandStack = new

BasicCommandStack();

7 commandStack.addCommandStackListener

(new CommandStackListener() {...});

editingDomain = new AdapterFactoryEditingDomain(

adapterFactory, commandStack, ...);

Tree tree = new Tree(composite, SWT.MULTI);

13 TreeViewer viewer = new TreeViewer(tree);

15 viewer.setContentProvider(new

AdapterFactoryContentProvider(adapterFactory)

);

viewer.setLabelProvider(new

AdapterFactoryLabelProvider(adapterFactory));

17 viewer.setInput(editingDomain.getResourceSet());

19 new AdapterFactoryTreeEditor(viewer.getTree(),

adapterFactory);

Listing 1: An example of typical recurrent use of EMF

functionalities.

classic EMF Library example) is shown in Listing 2.

We observe that even for specifying the image for

instances of Book we need to go into the generated

ItemProvider class, and specify the path of the im-

age, but also other distracting details (like overlay-

Image, ResourceLocator, etc.). Furthermore, if we

want to customize the images for all the EClasses of

our model, we need to modify every generated Item-

Provider classes. Instead, we would like to have a

more direct mechanisms to specify these customiza-

tions, and possibly grouped in one place, easier to

maintain. We will show our customization strategies

in Section 3.2.

Concerning the code generated for the model in-

terfaces and classes, instead of using this technique

for replacing generated code, we could use speciﬁc

annotation in the ecore metamodel so that we can also

specify the implementation of speciﬁc methods for

the classes of the metamodel.

However, this is not easily applicable to code

generated for the UI classes, thus one should use

the @generated mechanism described above for cus-

tomizing the generated editor.

Another problem with this @generated and

EMFComponents-FillingtheGapbetweenModelsandUI

1 public class BookItemProvider extends ... {

/∗∗ @generated NOT ∗/

3 @Override

public Object getImage(Object object) {

5 return overlayImage(object,

getResourceLocator().getImage("mypath/

custom_book.png"));

7 }

9 /∗∗ @generated NOT ∗/

@Override

11 public String getText(Object object) {

return "Book: " + " " + ((Book)object).

getTitle();

13 }

Listing 2: An example of typical customization of

EMF labeling.

@generated NOT mechanism is that it might easily

get difﬁcult to keep track of custom modiﬁcations to

the generated code. Moreover, the editor generated

by EMF is not effectively designed to promote code

reuse: the generated editor is a monolithic class con-

sisting of more than two thousand lines of code, with

many inner classes. Indeed, if one compares the edi-

tors generated for two different metamodels, the dif-

ferences are really minimal, thus the classes gener-

ated by EMF for the UI components leads to a huge

amount of duplicated code.

A more appealing solution would be something

similar to the Generation Gap (Vlissides, 1996), a

pattern that solves the problem of maintainability of

coexisting generated and manual code by relying on

class inheritance: there will be a class that encapsu-

lates generated code and another one class that encap-

sulates modiﬁcations.

However, it is not our main goal to change the

mechanisms of code generation of EMF; instead we

want to provide new UI classes that are more modular:

we tried to split responsibilities into different classes

and to then to use delegation as much as possible,

following the Single Responsibility Principle (Martin,

2003).

The paper is structured as follows: in Section 2

we introduce our design choices, while in Section 3

we describe some components of our framework, with

some examples. Section 4 concludes the paper with

related work and hints for future directions.

2 DESIGN CHOICES

The main inspiration for dealing with customized

injected code in Emf Components comes from

XTEXT (Itemis, 2012), a framework for the devel-

opment of programming languages as well as other

domain-speciﬁc languages (DSLs): it provides high-

level mechanisms that generate all the typical and re-

current artifacts necessary for a fully-ﬂedged IDE on

top of Eclipse. All these mechanisms can be cus-

tomized by injection using Google Guice (Google,

2012).

As hinted in the previous section, our main de-

sign choice in developing Emf Components is to split

responsibilities into small classes, so that customiz-

ing a single aspect of UI components should not re-

quire to subclass the components themselves, but only

to customize the class that deal with that speciﬁc as-

pect. Then, our custom version of that speciﬁc aspect

will be injected in the framework, so that all com-

ponents relying on that aspect will be assured to use

our speciﬁc version. In order to deal with the consis-

tent use of customized behaviors, we rely on Google

Guice (Google, 2012), a dependency injection frame-

work.

The Dependency Injection pattern (Fowler, 2004)

is used to “inject” actual implementation classes into

a class hierarchy in a consistent way. This is useful

when classes delegate speciﬁc functionalities to other

classes: messages are simply forwarded to the objects

referenced in ﬁelds (which abstract the actual behav-

ior). These ﬁelds will then be instantiated through

injection mechanisms so that we do not have the im-

plementation classes’ names hardcoded in the code of

the classes that will use them, and we are sure that,

if we switch the implementation classes, we will do

that consistently throughout the code. Typically the

same goal can be achieved manually by implementing

factory method and abstract factory patterns (Gamma

et al., 1995), but with dependency injection frame-

works it is easier to keep the desired consistency, and

the programmer needs to write less code.

Google Guice (Google, 2012) provides a frame-

work for dependency injection that makes all the in-

jection mechanisms really easy to use, and relieves

the programmer from the most internal details of de-

pendency injection. For instance, Guice relies on Java

annotations (Sun Microsystems, Inc., 2007), in par-

ticular, @Inject, for specifying the ﬁelds that will be

injected, and on a module which conﬁgures the bind-

ings for the actual implementation classes; from the

module we can build an injector which will be used to

create the actual instances of classes of a framework,

where the ﬁelds will be actually injected according

to our bindings. An example is shown in Listing 3;

note that we do not need to create a custom subclass

of Service: we only need to provide custom imple-

mentations for classes that Service relies on. These

custom implementations will be consistently injected

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

1 class Service {

@Inject protected Log log;

3 @Inject protected Processor p;

...

5 }

7 class MyModule extends AbstractModule {

@Override

9 protected void conﬁgure() {

bind(Log.class).to(MyLog.class);

11 bind(Processor.class).to(MyProcessor.class);

}

13 }

15 Injector injector = Guice.createInjector(new

MyModule());

Service service = injector.getInstance(Service.class);

17 ...

Listing 3: An example of Google Guice usage.

1 <extension point="org.eclipse.ui.editors">

<editor

3 class="

EmfComponentsExecutableExtensionFactory:

5 EmfTreeEditor"

id="it.rcpvision.emf.components.editors.

treeEditor"

7 name="EMF Tree Editor">

</editor>

9 </extension>

Listing 4: An example of extension point using

Google Guice.

throughout the application with Google Guice injec-

tion mechanisms.

In the context of Eclipse plugins (Clayberg and

Rubel, 2008), these injection mechanisms cannot be

used directly, since in Eclipse, most UI components,

such as editors and views, are not usually instanti-

ated programmatically: they are declared as exten-

sion points, i.e., through XML elements. Thus, the

actual instantiation of UI components is done in-

ternally by Eclipse itself. However, when speci-

fying the Java class in an extension point, we can

preﬁx it with an IExecutableExtensionFactory,

which allows to customize the instantiation of that

class, and in our case, we can use Guice injection

mechanisms. We then provide a base implementa-

tion of IExecutableExtensionFactory, EmfCom-

ponentsExecutableExtensionFactory, which re-

lies on a Google Guice module that can be customized

by the programmer (an example of extension point us-

ing this mechanism is shown in Listing 4, where, for

simplicity, we omitted the Java packages names).

The programmer has to declare a subclass of Emf-

ComponentsExecutableExtensionFactory, a sub-

1 public class MyEmfComponentsModule extends

EmfComponentsGenericModule {

3 public Class<? extends ResourceLoader>

bindResourceLoader() {

return MyResourceLoader.class;

5 }

7 public Class<? extends EmfViewerMouseAdapter

> bindEmfViewerMouseAdapter() {

return MyEmfViewerMouseAdapter.class;

9 }

11 public Class<? extends FeatureLabelProvider>

bindFeatureLabelProvider() {

return MyFeatureLabelProvider.class;

13 }

}

Listing 5: A module with bindings.

class of EmfComponentsGenericModule with cus-

tom bindings, make the subclass of EmfComponent-

sExecutableExtensionFactory refer to the sub-

class of EmfComponentsGenericModule, and make

sure to preﬁx the classes of the Emf Components

framework with the custom executable extension fac-

tory, in the extension points. Indeed, the programmer

does not have to perform all these initial setup opera-

tions: we provide a wizard that creates a new plugin

project with all these classes, and the programmer will

only have to provide the custom injection bindings.

Emf Components relies on the enhancement that

Xtext added to Guice’s Module API: Xtext provides

an abstract base class, which reﬂectively looks for

certain methods in order to ﬁnd declared bindings.

The most common kind of method that we rely on

is of the shape bind<ClassName> where ClassName

is the name of the class for which we need to spec-

ify a binding. An example of custom bindings relying

on this reﬂective mechanisms is shown in Listing 5.

Of course, the programmer can also use the standard

Google Guice mechanisms for specifying the bind-

ings, if he prefers to.

3 EMF COMPONENTS

In this Section we present the most important UI

components provided by the Emf Components frame-

work; this project is still in the early stage, thus more

components will be provided in the future (see also

Section 4 for future work).

EMFComponents-FillingtheGapbetweenModelsandUI

public abstract class MyView extends ViewPart {

@Inject ViewerInitializer initializer;

@Override

6 public void createPartControl(Composite parent) {

...

8 viewer = new TreeViewer(parent, ...);

// initialize with an EMF Resource

10 initializer.initialize(viewer, resource);

// or alternatively, if you have an EObject

12 initializer.initialize(viewer, eObject);

}

Listing 6: Initialization of a viewer with Emf

Components.

3.1 Viewers

Eclipse JFace UI components often rely on view-

ers (e.g., tree viewers, table viewers, etc.). JFace

provides speciﬁc viewers for trees, tables, lists, etc.

These viewer classes, as speciﬁed in the Javadoc,

are not intended to be subclassed. Indeed, they are

parametrized over the content provider, which takes

care of providing the contents based on the input, and

other providers for the layout, for instance the label

provider, which provides a textual representation of

the elements to be shown by the viewer.

Thus, if one wants to create a viewer (e.g., a

tree viewer) and initialize it, we provide an View-

erInitializer, providing many overloaded meth-

ods, which can be used to initialize the viewer with

all the EMF mechanisms, but hiding the details from

the programmer. In Listing 6 we show an example

of a view with a viewer which relies on an injected

ViewerInitializer. It uses such instance to initial-

ize the tree viewer (it can initialize it based on an EMF

Resource, or an EObject).

We invite the reader to compare the initialization

code in Listing 6 with the one which is typically used

without using Emf Components, in Listing 1. All the

initialization details are carried on transparently by

Emf Components classes. As we said, there are sev-

eral initialization methods available, and if the pro-

grammer needs it, he can also specify all the providers

for the viewers. In particular, if the programmer needs

access to the EditingDomain, he can create it and

pass it to the initialization; but also in this case, we

provide utility mechanisms for creating (and initial-

izing) an EditingDomain without having to worry

about initializing the adapter factories for the editing

domain itself (see the manual initialization in List-

ing 1).

3.2 Customizations

If one has used the EMF standard generation mech-

anisms to generate the edit plugin, and possibly cus-

tomized some behavior in the edit plugin, all these

customizations will be honored by Emf Components

UI widgets.

However, in Emf Components, we also rely on

the customization mechanisms (based on injection)

which aim at making the customization of edit-

ing functionalities easier than the standard EMF.Edit

framework.

The Xtext framework (on which we rely to im-

plement some internal mechanisms of Emf Compo-

nents) provides mechanisms, through the class Poly-

morphicDispatcher, for performing (overloaded)

method dispatching according to the runtime type of

arguments, a mechanism known as dynamic over-

loading (Castagna, 1997; Bettini et al., 2009)

. Note

that this polymorphic dispatching mechanism pro-

vided by Xtext does not require a visitor struc-

ture (Gamma et al., 1995) since it inspects the avail-

able methods in a class and selects the method using

reﬂection. By relying on this polymorphic dispatch

mechanism we can provide a declarative way of spec-

ifying custom behaviors according to the class of ob-

jects of an EMF model (though the internal details

about the use of PolymorphicDispatcher are hid-

den to the programmer).

For instance, by implementing a derived Compos-

iteLabelProvider (a label provider of our frame-

work), the programmer can specify the text and image

for labels of the objects of the model by simply deﬁn-

ing several methods text and image, respectively, us-

ing the classes of the model to be customized. An

example is shown in Listing 7 (applied to the clas-

sic EMF Library example). These methods will be

used internally by our label provider to implement

the LabelProvider’s methods getText and getIm-

age. Compare this code, which allows to customize

in only one place the representation of the elements

of a model, with the code in Listing 2, which refers

to one single customization. With respect to Listing 2

we would also like to observe the absence of inner

details (especially for the images).

Injecting this customization in the framework is

just a matter of deﬁning the binding in the Guice mod-

ule, as shown in Listing 8 (we also refer to Section 2).

Another thing that the programmer might want

to customize is the representation of the EStruc-

turalFeatures of the model, i.e., the descriptions of

While most compiled or statically-typed languages

(such as Java) determine which implementation to call at

compile-time.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

1 public class CustomLabelProvider extends

CompositeLabelProvider {

3 public String text(Book book) {

return "Book: " + book.getTitle();

5 }

7 public String image(Book book) {

return "book.png";

9 }

11 public String text(Borrower b) {

return "Borrower: " + b.getFirstName();

13 }

// other customizations

15 }

Listing 7: An example of customization of labeling in

Emf Components.

1 public class MyCustomModule extends

EmfComponentsGenericModule {

public Class<? extends CompositeLabelProvider

> bindCompositeLabelProvider() {

3 return CustomLabelProvider.class;

}

5 ...

}

Listing 8: An example of bindings of customization of

labeling.

the ﬁelds of the elements of the model. Again, we

provide a declarative way to do this, through a cus-

tom FeatureLabelProvider, as illustrated in List-

ing 9; note that this time, the name of the method for

customizing the text of the feature must contain the

name of the EClass and the name of the speciﬁc fea-

ture of such EClass.

Similarly, we might want to specify only a sub-

set of features to be shown in the UI components of

a model; for this task, the Emf Components frame-

work relies on EStructuralFeaturesProvider; the

public class CustomFeatureLabelProvider extends

FeatureLabelProvider {

public String text Person ﬁrstName() {

4 return "First name";

}

public String text Person lastName() {

8 return "Surname";

}

Listing 9: An example of customization of EStructur-

alFeatures label representations in Emf Components.

1 import static org.eclipse.emf.examples.extlibrary.

EXTLibraryPackage.Literals.∗;

3 public class CustomEStructuralFeaturesProvider

extends

EStructuralFeaturesProvider {

5 @Override

protected void buildMap(

EClassToEStructuralFeatureMap map) {

7 super.buildMap(map);

map.mapTo(LIBRARY,

9 LIBRARY NAME,

ADDRESSABLE ADDRESS);

11 map.mapTo(PERSON,

PERSON FIRST NAME,

13 PERSON LAST NAME,

ADDRESSABLE ADDRESS);

15 map.mapTo(WRITER,

PERSON FIRST NAME,

17 PERSON LAST NAME,

WRITER BOOKS);

19 }

}

Listing 10: An example of customization of EStructur-

alFeatures to be represented in Emf Components.

programmer can customize it and specify the features

to be shown for some of the classes of the model;

the customization shown in Listing 10 should be self-

explanatory

Note that the customizations are not limited to

classes belonging to a single EMF metamodel pack-

age: in one single place we can provide customization

for every EMF classes that we intend to use with Emf

Components widgets.

All these classes are used internally by the Emf

Framework to represent models in the widgets; thus a

custom injected implementation will be used consis-

tently throughout the application for all the UI com-

ponents created with the same IExecutableExten-

sionFactory. For instance, the custom implemen-

tations shown in Listing 9 and 10 will be used when

building the forms (described in Section 3.3) and the

column headers for table viewers (as shown later in

Figure 2).

3.3 Composites

The smallest components which Emf Components

provides as reusable units are Eclipse Composites.

We provide composites to be reused in views and ed-

Due to lack of space, we do not show here the cor-

responding mechanism dealing with the customization of

EMF generated code; the interested reader can compare our

solution with the typical example of EMF: the Library ex-

ample.

EMFComponents-FillingtheGapbetweenModelsandUI

itors based on several viewers. Also in this case, the

setup instructions for these components is minimal.

The problem with SWT Composites is that they do

not expose a default constructor; this is crucial for de-

pendency injection to work. We think that this prob-

lem might disappear in the new version of Eclipse e4

(see also Section 4). However, for the moment, we

provide factories to be used to actually create these

composites; the idea is that you pass to the factory

methods the arguments for the constructor, and, in-

ternally, the factory will also setup all the injection

mechanisms, so the programmer will not have to deal

with these details.

We will not describe here all the composites pro-

vided by the Emf Components framework; we will

concentrate only on some of them. The ﬁrst com-

posite we describe is the form composite FormDe-

tailComposite which shows the details of an EOb-

ject in a SWT form, and allows to edit such details.

This is something that was currently missing in the

EMF framework itself: the EMF framework only pro-

vides mechanisms to edit details of an EObject in

the Eclipse standard Properties view, which might be

limited in its functionalities. The SWT form toolkit

instead provides richer UI features.

In Listing 11 we show a possible use of FormDe-

tailComposite: we create a view which reacts on

selections from other elements of the workbench, and

if the selected element is an EObject it shows its de-

tails in the form. We highlighted the two relevant lines

in the Listing which show how easy is to create this

composite and set it up. All the other code in List-

ing 11 has to do with Eclipse and SWT, not with Emf

Components itself. Indeed, we showed the code in

Listing 11 as an example of use of Emf Components;

however, this view class is already part of Emf Com-

ponents framework, and it can already be reused in

applications.

In Figure 1 we show a reusable editor provided by

Emf Components and the form view implemented in

Listing 11 (which shows the currently selected object

ﬁelds for editing). Note that in the form we modi-

ﬁed one feature of the selected writer, and the editor

sensed this change and went into “dirty” state (the

* in the editor title). This was possible thanks to

the internal use of an editing domain; however, the

programmer did not have to deal with this: every-

thing is handled by the Emf Components framework

itself. Moreover, any change to the model in any view

or editor which is connected to the same model re-

source will soon be reﬂected in all the components us-

ing that resource: this takes place transparently, since

the Emf Components widgets rely on EMF Databind-

ing (Schindl, 2009), which connects the model and

public abstract class MyView extends ViewPart

2 implements ISelectionChangedListener {

4 @Inject EmfFormCompositeFactory factory;

Composite detail;

6 FormDetailComposite detailForm;

8 @Override

public void createPartControl(Composite parent) {

10 ...

detail = new Composite(this, SWT.BORDER);

12 }

14 @Override

public void selectionChanged(

SelectionChangedEvent event) {

16 EObject selectedObject =

getFirstSelectedEObject(event.getSelection

());

if (selectedObject != null) {

18 if (detailForm != null)

detailForm.dispose();

// relevant lines

22 detailForm = factory.

createFormDetailComposite(

24 detail, SWT.BORDER);

detailForm.init(selectedObject);

26 }

}

28 ...

}

Listing 11: Using the FormDetailComposite.

the user interface.

In Figure 2 we show the same components, after

applying the customizations of Listing 9 and 10. The

changes of Listing 9 can be seen in the form where

the labels for the features firstName and lastName

have been changed; the changes of Listing 10 can

be seen again in the form: only the features first-

Name, lastName and books are represented (see the

last mapping in Listing 10). In Figure 2 we also show

a tabular view (another example of use of Emf Com-

ponents framework which we did not illustrate in this

paper); note that since the same customized EStruc-

turalFeaturesProvider was used, the headers of

the columns in the table for the selected writer respect

the customizations of Listing 9 and 10.

Finally, in Figure 3 we show how we can reuse

the tree editor and the form editor together in a sin-

gle view (in this case separated by a sash that al-

lows the user to drag the outline). Again, this can

be achieved with a minimal number of Java code,

since the components of the framework are already

implemented with compositionality in mind. Note

that all the components shown here come with pre-

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

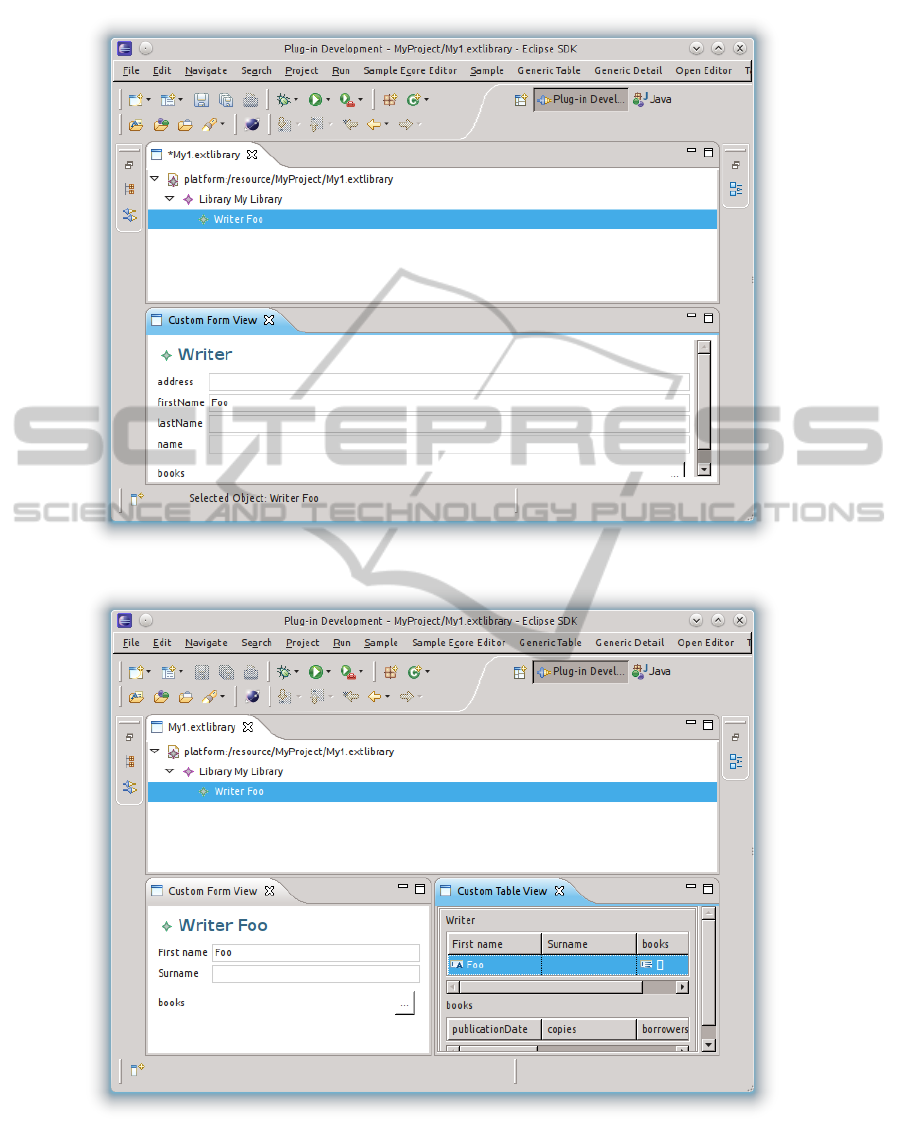

Figure 1: A tree editor and a form view.

Figure 2: A tree editor, a form view and a tabular view with customizations.

deﬁned SWT styles, but they can be conﬁgured later

with custom styles.

3.4 Databases

There are already existing technologies to persist

EMF models on databases. The most used ones are

EMFComponents-FillingtheGapbetweenModelsandUI

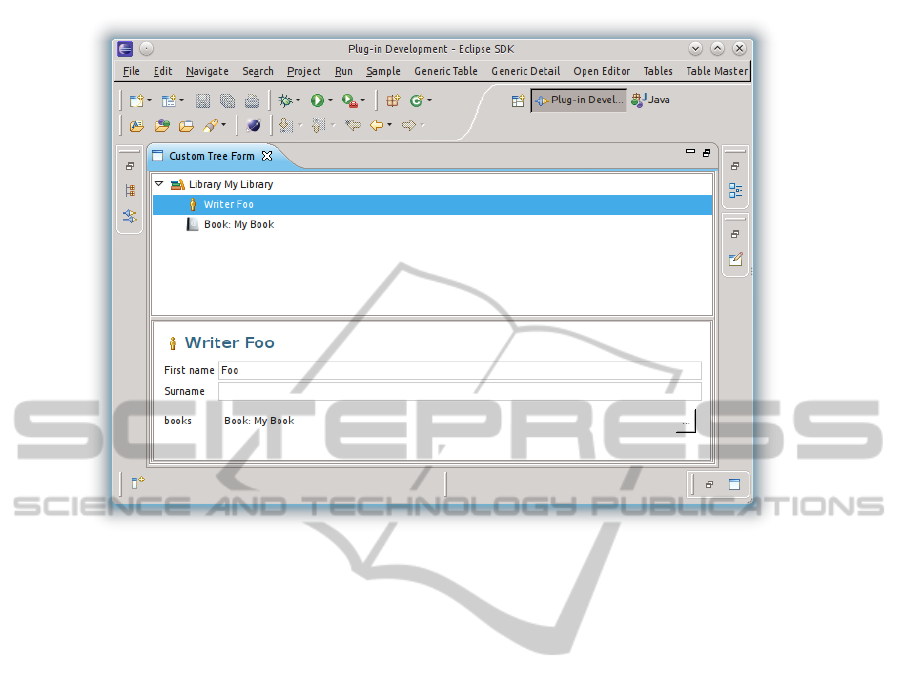

Figure 3: A view with a nested tree editor and a form.

Teneo and CDO. Teneo EMF resources can already

be used seamlessly with existing EMF editing and UI

technologies, thus, Teneo resources can be integrated

in Emf Components transparently as well.

Things are instead more complicated for CDO

resources. Indeed, CDO aims at scalability (CDO

also offers transactions capabilities, explicit lock-

ing, change notiﬁcation, and branching/merging over

models), thus being able to deal with models of arbi-

trary sizes, and for this reason setting up a CDO re-

source requires more work. In order to deal with this,

Emf Components internally recognizes CDO resource

URIs and uses a dedicated resource loader which au-

tomatically creates a transaction (or a view, in case

we use read-only widgets) and returns the associated

CDO resource. Thus, also CDO resources can be used

transparently inside Emf Components, relieving the

programmer from all the internal details.

Simply by using a CDO URI format for a re-

source, all existing code implemented using Emf

Components can already be reused for models stored

using CDO. Indeed Emf Components was designed

with test driven development (Beck, 2003) and agile

programming (Martin, 2003) in mind; thus, it must be

easy to switch from a development/testing environ-

ment to a production one. With the mechanism de-

scribed above to hide the details of the actual storage

of a model, it is straightforward to use, for instance,

an in memory model during development stage, and

an actual CDO model for the production.

4 RELATED WORK AND

CONCLUSIONS

Most of the projects that deal with customization in

the context of EMF are based on the generative ap-

proach. Indeed, EMF itself relies on JET (a template

system) for code generation. Thus, the programmer

could also provide custom templates to drive the gen-

eration of Java code performed by EMF. Other simi-

lar technologies (like EEF and EGF), which are avail-

able from Eclipse Modeling Framework Technology

(EMFT) (Eclipse Modeling Framework Technology,

2012) are based on the generative approach. The Emf

Components framework can be seen as complemen-

tary to the generative approaches. Our framework is

also orthogonal to GUI builders, since Emf Compo-

nents is more related to bridging the models to the ab-

stract editing parts, and not to the actual GUI frame-

work.

The work that is closest to our proposal is the EMF

Client Platform (ECP) (EMF Client Platform, 2012),

a framework to build EMF-based client applications.

The goal of ECP is to provide a very quick mecha-

nism to create an application based on a given EMF

model. The main difference between our framework

and ECP is that Emf Components aims at providing

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

many ﬁne grain components to build an application

based on EMF, while ECP already provides an appli-

cation ready to use. With this respect, our customiza-

tions, and our components, are easier to reuse since

they are smaller. With Emf Components the program-

mer has the complete freedom on how to build the ap-

plication, while ECP provides a more rigid template.

Furthermore, the customizations inside ECP do not

rely on dependency injection and the declarative style

(based on polymorphic dispatching). We are currently

investigating about the reuse of our Emf Components

inside ECP, and also about the possibility of rewriting

some parts of ECP itself by relying on Emf Compo-

nents.

We believe the use of a dependency injection is

not an optional choice: the degree of reuse and cus-

tomization is achieved without sacriﬁcing consistency

throughout the instances of the application, since the

dependency injection framework itself will make sure

that the instances of classes will be created according

to the speciﬁed bindings. Furthermore, also the new

forthcoming version of Eclipse (e4) will rely on de-

pendency injection, thus, we are conﬁdent that some

drawbacks in usage of UI classes (like the Compos-

ite, as illustrated in Section 3.3) will be avoided.

We are currently developing in Xtext (Itemis,

2012) a DSL for the customization aspects of Emf

Components. The idea is that writing a single con-

ﬁguration ﬁle with this DSL the programmer can

customize all the aspects of Emf Components ap-

plications (presented in Section 3); then, the frame-

work will generate the corresponding Java ﬁles, Guice

module bindings and the executable extension fac-

tory. This should speed even more the development of

EMF applications using the Emf Components frame-

work.

We are also planning to integrate other EMF tech-

nologies in the Emf Components framework, like

queries, transactions and advanced validation mech-

anisms (though the standard EMF validation mecha-

nisms are already handled inside Emf Components).

ACKNOWLEDGEMENTS

The author is grateful to all the people from RCP Vi-

sion for their help, support and contribution to the de-

velopment of Emf Components.

REFERENCES

Beck, K. (2003). Test Driven Development: By Example.

Addison-Wesley.

Bettini, L., Capecchi, S., and Venneri, B. (2009). Feath-

erweight Java with Dynamic and Static Overloading.

Science of Computer Programming, 74(5-6):261–278.

Castagna, G. (1997). Object-Oriented Programming: A

Uniﬁed Foundation. Progress in Theoretical Com-

puter Science. Birkhauser.

Clayberg, E. and Rubel, D. (2008). Eclipse Plug-ins.

Addison-Wesley, 3rd edition.

Eclipse Modeling Framework Technology (2012).

Eclipse Modeling Framework Technology (EMFT).

http://www.eclipse.org/modeling/emft/.

EMF Client Platform (2012). EMF Client Platform.

http://www.eclipse.org/emfclient.

EMF.Edit (2004). EMF.Edit.

http://help.eclipse.org/galileo/index.jsp?topic=/org.ec

lipse.emf.doc/references/overview/EMF.Edit.html.

Fowler, M. (2004). Inversion of Control Con-

tainers and the Dependency Injection pattern.

http://www.martinfowler.com/articles/injection.html.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Google (2012). Google Guice.

http://code.google.com/p/google-guice.

Itemis (2012). Xtext. http://www.eclipse.org/Xtext.

Martin, R. (2003). Agile Software Development: Principles,

Patterns, and Practices. Prentice Hall.

Schindl, T. (2009). EMF Databinding.

http://www.eclipse.org/resources/resource.php?id=511.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2008). EMF: Eclipse Modeling Framework.

Addison-Wesley, 2nd edition.

Sun Microsystems, Inc. (2007). JSR 308: Annotations on

java types. http://jcp.org/en/jsr/detail?id=308).

Vlissides, J. (1996). Generation Gap [software design pat-

tern]. C++ Report, 8(10):12, 14–18.

EMFComponents-FillingtheGapbetweenModelsandUI
