Inference in Hierarchical Multidimensional Space

Alexandr Savinov

SAP Research, Chemnitzerstr. 48, 01187 Dresden, Germany

Keywords: Multidimensional Data Models, Data Analytics, Concept-oriented Model, Inference, Query Languages.

Abstract: In spite of its fundamental importance, inference has not been an inherent function of multidimensional

models and analytical applications. These models are mainly aimed at numeric analysis where the notion of

inference is not well defined. In this paper we define inference using only multidimensional terms like axes

and coordinates as opposed to using logic-based approaches. We propose an inference procedure which is

based on a novel formal setting of nested partially ordered sets with operations of projection and de-

projection.

1 INTRODUCTION

Euclidean geometry is an axiomatic system which

dominated for more than 2000 years until René

Descartes revolutionized mathematics by developing

Cartesian geometry also known as analytic

geometry. The astounding success of analytical

geometry was due to its ability to reason about

geometric objects numerically which turned out to

be more practical and intuitive in comparison with

the logic-based Euclidean geometry.

The area of data modeling and analysis can also

be characterized as having two branches or patterns

of thought. The first one follows the Euclidean

axiomatic approach where data is described using

propositions, predicates, axioms, inference rules and

other formal logic constructs. For example,

deductive data models and the relational model are

based on the first-order logic where the database is

represented as a number of predicates. The second

major branch in data modeling relies on the

Cartesian conception where data is thought of as a

set of points in a multidimensional space with

properties represented as coordinates along its axes.

The multidimensional approach has been proven to

be extremely successful in analytical applications,

data warehousing and OLAP.

Although multidimensional data models have

been around for a long time (Pedersen and Jensen,

2001); (Pedersen, 2009), all of them have one

serious drawback in comparison with logic-based

models: they do not have a mechanism of inference.

Yet it is an essential function which allows for

automatically deriving relevant data in one part of

the model given constraints in another part without

the need to specify how it has to be done. For

example, if we need to retrieve a set of writers by

specifying only a set of publishers then this could be

represented by the following query:

GIVEN (Publishers WHERE name == 'XYZ')

GET(Writers)

Importantly, this query does not have any indication

of what is the schema and how Publishers are

connected with Writers.

Answering such queries especially in the case of

complex schemas is a highly non-trivial task because

multidimensional data modeling has been

traditionally aimed at numeric analysis rather than

reasoning. Currently existing solutions rely on data

semantics (Peckham and Maryanski, 1988),

inference rules in deductive databases (Ullman and

Zaniolo, 1990), and structural assumptions as it is

done in the universal relation model (URM) (Fagin

et al., 1982); (Vardi, 1988). Yet, to the best of our

knowledge, no concrete attempts to exploit

multidimensional space for inference have been

reported in the literature, apart from some

preliminary results described in (Savinov, 2006a);

(Savinov, 2006b).

In this paper we present a solution to the problem

of inference which relies on the multidimensional

structure of the database. More specifically, the

paper makes the following contributions: 1) We

introduce a novel formal setting for describing

multidimensional spaces which is based on nested

partially ordered sets. 2) We define operations of

Savinov A..

Inference in Hierarchical Multidimensional Space.

DOI: 10.5220/0004039000700076

In Proceedings of the International Conference on Data Technologies and Applications (DATA-2012), pages 70-76

ISBN: 978-989-8565-18-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

projection and de-projections which serve as a basis

for inference. 3) We define procedures of constraint

propagation and inference as well as describe how

they are supported by the query language.

The paper has the following layout. Section 2

describes the formal setting by defining the notion of

nested partially ordered set and how it is used to

represent hierarchical multidimensional spaces.

Section 3 defines main operations on nested posets

and how they are used for inference. Section 4

makes concluding remarks.

2 CONCEPT-ORIENTED MODEL

The approach to inference described in this paper

relies on a novel unified model, called the concept-

oriented model (COM) (Savinov, 2011a); (Savinov,

2011b); (Savinov, 2012). One of the main principles

of COM is that an element consists of two tuples:

one identity tuple and one entity tuple. These

identity-entity couples are modeled by a novel data

modeling construct, called concept (hence the name

of the model), which generalizes classes. Concept

fields are referred to as dimensions. Yet, in this

paper we will not distinguish between identities and

entities by assuming that an element is one tuple.

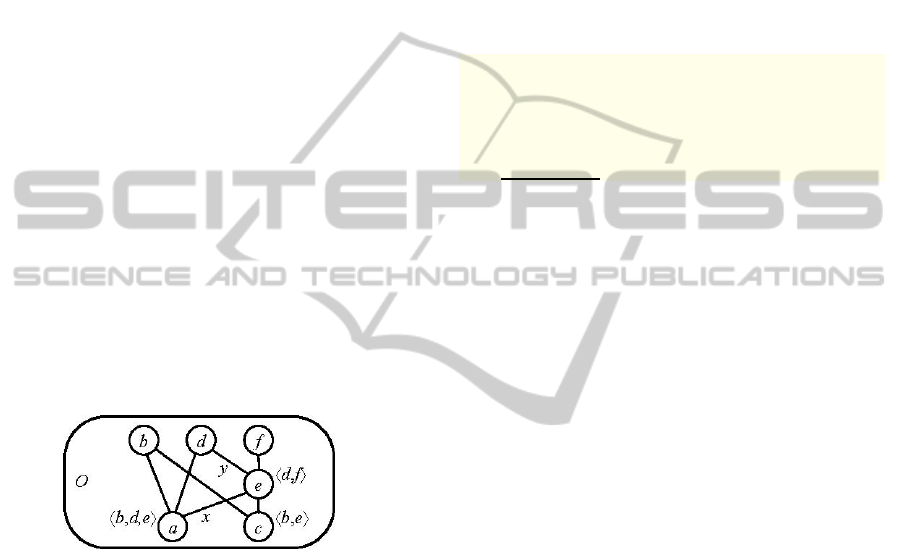

Figure 1: Database is a partially ordered set.

For this paper, another COM major principle is

important which postulates that a set of data

elements is a partially ordered set (poset). Another

approach where posets are used for data modeling is

described in (Raymond, 1996). In COM, posets are

represented by tuples themselves, that is, tuple

membership relation induces partial order relation

‘<’ (less than):

,, <〉〈 KK . Here <

means

‘immediately less than’ relation (‘less than’ of

rank 1). If

ba < then a is referred to as a lesser

element and b is referred to as a greater element.

Thus tuple members are supposed to be immediately

greater than the tuples they are included in. And

conversely, a tuple is immediately less than any of

its member tuples it is composed of. Since tuple

membership is implemented via references (which

are identity tuples), this principle essentially means

that an element references its greater elements.

Fig. 1 is an example of a poset graphically

represented using a Hasse diagram where an element

is drawn under its immediate greater elements and is

connected with them by edges.

At the level of concepts, tuple order principle

means that dimension types specify greater concepts.

Then a set of concepts is a poset where each concept

has a number of greater concepts represented by its

dimension types and a number of lesser concepts

which use this concept in its dimensions. For

example, assume that each book has one publisher:

CONCEPTBooks//Books<Publishers

IDENTITY

CHAR(10)isbn

ENTITY

CHAR(256)title

Publisherspublisher//Greaterconcept

According to this principle, Publishers is a

greater concept because it is specified as a type

(underlined) of the dimension publisher.

The main benefit of using partial order is that it

has many semantic interpretations: attribute-value

(greater elements are values characterizing lesser

elements), containment (greater elements are sets

consisting of lesser elements), specific-general

(greater elements are more general than lesser

elements), entity-relationship (lesser elements are

relationships for greater elements), and

multidimensional (greater elements are coordinates

for lesser elements). These interpretations allow us

to use COM as a unified model.

In the context of this paper, the most important

property of partial order is that it can be used for

representing multidimensional hierarchical spaces.

The basic idea is that greater elements are

interpreted as coordinates with respect to their lesser

elements which are interpreted as points. Thus an

element is a point for its greater elements and a

coordinate for its lesser elements. In Fig. 1, e is a

point with coordinates d and f (its greater elements)

and at the same time it is a coordinate for two points

a and c (its lesser elements).

In multidimensional space, any coordinate

belongs to some axis and any point belongs to some

set. The question is how the notions of axes and sets

can be formally represented within the order-

theoretic setting. To solve this problem we assume

that a poset consists of a number of subsets, called

domains:

XXXO ∪∪∪

, 0

∩

XX ,

≠

∀

. Domains are interpreted as either sets of

coordinates (axes) or sets of points (spaces), and any

element is included in some domain:

OXe

⊂∈ .

InferenceinHierarchicalMultidimensionalSpace

Domains are also

partially ordered and represented

by tuples so that a domain is defined as a tuple

consisting of its immediate greater domains:

〉〈=

XXXX ,,,

K ,

Any element participates in two structures

simultaneously: (i) it is included in some domain via

the membership relation ‘

∈

’, and (ii) it has some

greater and lesser elements via the partial order

relation ‘<’. In addition, the two structures are

connected via the type constraint:

ODe ⊂∈ ⇒ xDxe .. ∈

Here e.x is a greater element of e along dimension x

and D.x is a greater domain of D along the same

dimension x. This constraint means that an element

may take its greater elements only from the greater

domains. Such a set is referred to as a nested poset.

An example of a nested poset representing a 2-

dimensional space is shown in Fig. 2. This set

consists of 3 domains X, Y and Z where

〉

〈

YXZ ,

which means that Z has two greater domains X and

Y. Element

z is defined as a tuple 〉〈

, yx , that is,

x and

y are greater elements for

z . Therefore,

Zz ∈

is interpreted as a point while Xx

∈

and

Yy ∈

are its coordinates. According to the type

constraint, elements from Z may take their greater

elements only in X and Y.

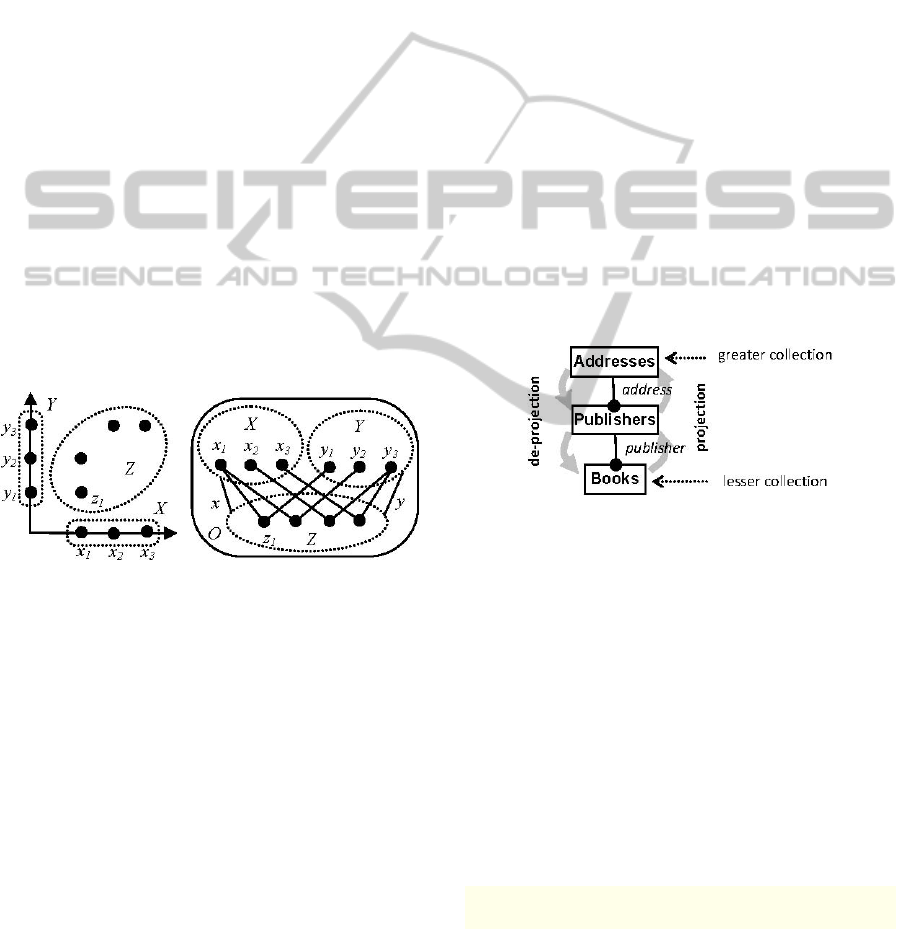

Figure 2: Nested poset representing 2-dimensional space.

A schema is defined as a partially ordered set of

concepts where greater concepts are types of this

concept dimensions. A database schema is defined

as a partially ordered set of domains (collections)

where elements within each domain have a type of

some concept from the schema. A database is a

partially ordered set of elements each belonging to

one collection and having a number of greater

elements referenced from its dimensions.

3 INFERENCE

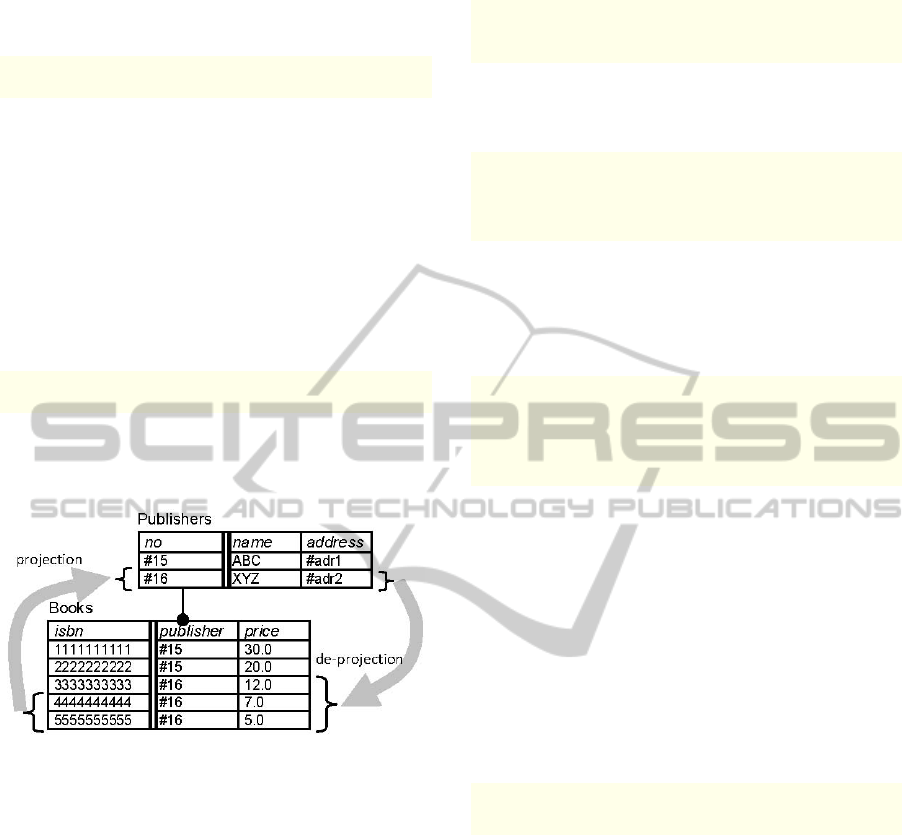

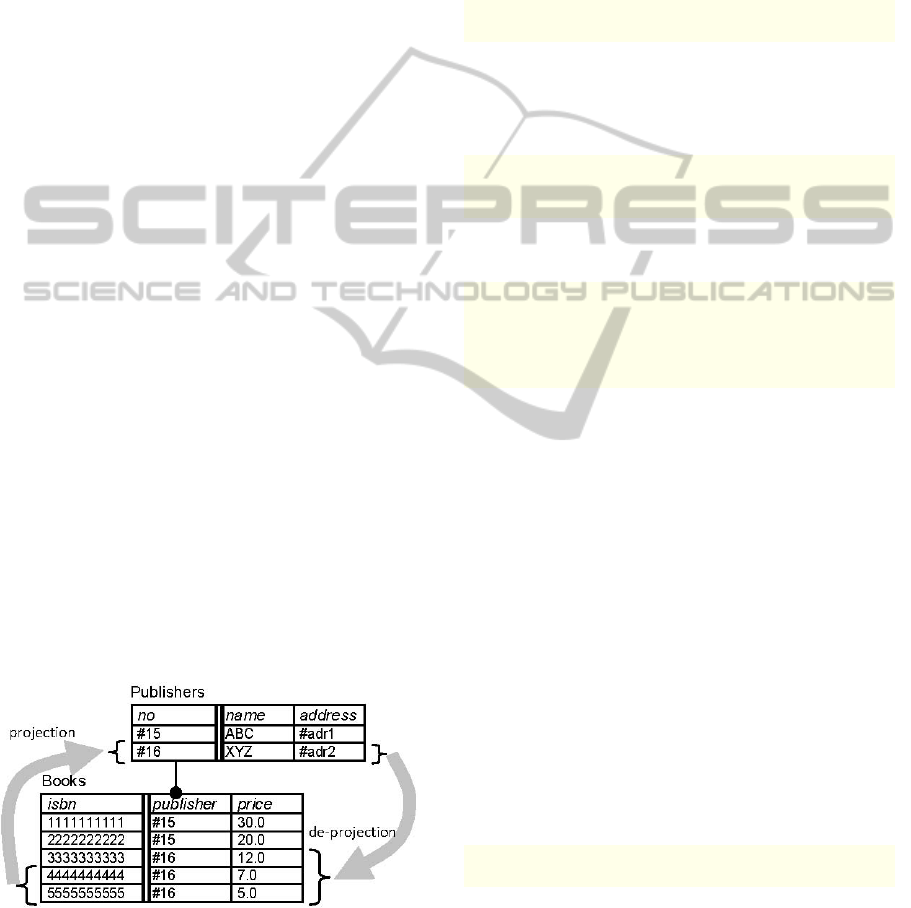

3.1 Projection and De-projection

Geometrically, projection of a set of points is a set of

their coordinates. De-projection is the opposite

operation which returns all points with the selected

coordinates. In terms of partial order, projection

means finding all greater elements and de-projection

means finding all lesser elements for the selected of

elements. Taking into account that greater elements

are represented by references, projection is a set of

elements referenced by the selected elements and de-

projection is a set of elements which reference the

selected elements.

To formally describe these two operation we

need to select a subset

of points from the source

domain,

⊂' , and then choose some dimension x

with the destination in the target greater domain

D > . Then projection, denoted as DxZ →→' ,

returns a subset of elements

DD ⊂'

which are

greater than elements from

along dimension x:

DZzdzDdDDxZ

⊂∈<

∈

→→ }',|{''

Note that any element can be included in projection

only one time even if it has many lesser elements.

De-projection is the opposite operation. It returns

all points from the target lesser domain F which are

less than the elements from the source subset

FZzzfFfFFxZ

⊂∈<

∈

←

}',|{''

Figure 3: Projection and de-projection in schema.

In the concept-oriented query language (COQL),

a set of elements is written in parentheses with

constraints separated by bar symbol. For example,

(Books|price<10) is a set of all cheap

books. Projection operation is denoted by right

arrow

'‐>' followed by a dimension name which is

followed by the target collection. In the database

schema, projection means moving up to the domain

of the specified dimension (Fig. 3). It returns all

(greater) elements which are referenced by the

selected elements. For example (Fig. 4), all

publishers of cheap books can be found by

projecting them up to the

Publishers collection

along the

publisher dimension:

(Books|price<10)

‐>publisher‐>(Publishers)

De-projection is the opposite operation denoted by

left arrow

'<‐'. It returns all (lesser) elements

which reference elements from the selected source

DATA2012-InternationalConferenceonDataTechnologiesandApplications

collection. For example, all books published by a

selected publisher can be found as follows (Fig. 4):

(Publishers|name=="XYZ")

<‐purchase<‐(Books)

Projection and de-projection operations have two

direct benefits: they eliminate the need in join and

group-by operations. Joins are not needed because

sets are connected using multidimensional

hierarchical structure of the model. Group-by is not

needed because any element is interpreted as a group

consisting of its lesser elements. Given an element

(group) we can get its members by applying de-

projection operation. For example, if it is necessary

to select only publishers with more than 10 books

then it can be done it as follows:

(Publishers|

COUNT(publisher<‐(Books))>10)

Here de-projection publisher<‐(Books)

returns all books of this publisher and then their

count is compared with 10.

Figure 4: Example of projection and de-projection.

3.2 Constraint Propagation

A query can be defined as consisting of constraints

and propagation rules. Constraints specify

conditions for selecting elements from one domain.

Propagation rules indicate how constraints imposed

on one domain are used to select elements from

another domain. For example, we can select a book

title, publishing date or price while the task is to find

all publishers which satisfy these selected values.

Since source constraints and target elements belong

to different parts of the model, propagation rules are

needed to connect them.

The main benefit of having projection and de-

projection operations is that they allow us to easily

propagate arbitrary constraints through the model by

moving up (projection) and down (de-projection).

For example, given a collection of

Books we can

find all related addresses by projecting it up to the

Addresses collection (Fig. 3):

(Books|price<10)

‐>publisher‐>(Publishers)

‐>address‐>(Addresses)

In most cases either intermediate dimensions or

collections can be omitted by allowing for more

concise queries:

(Books|price<10)

‐>publisher‐>address

(Books|price<10)

‐>(Publishers)‐>(Addresses)

De-projection allows us to move down through the

partially ordered structure of the model which is

interpreted as finding group members. For example,

given a country code we can find all related

Books

using the following query (Fig. 3):

(Addresses|country=='DE')

<‐address<‐(Publishers)

<‐publisher<‐(Books)

(Addresses|country=='DE')

<‐(Publishers)<‐(Books)

Note that such queries are very useful for nested

grouping which are rather difficult to describe using

the conventional group-by operator.

Constraint propagation can be further simplified

if instead of a concrete dimension path we specify

only source and target collections. The system then

reconstructs the propagation path itself. Such

projection and de-projection with an undefined

dimension path will be denoted by

'*‐>' and

'<‐*' (with star symbol interpreted as any

dimension path). The previous two queries can be

then rewritten as follows:

(Books|price<10)*‐>(Addresses)

(Addresses|country=='DE')<‐*(Books)

3.3 Inference

Automatically propagating constraints only up or

down is a restricted version of inference because

only more general (projection) or more specific (de-

projection) data can be derived. If source and target

collections have arbitrary positions in the schema

then this approach does not work because they do

not belong to one dimension path that can be used

for projecting or de-projecting. In the general case,

constraint propagation path consists of more than

one projection and de-projection steps. Of course,

this propagation path can be specified explicitly as

part of the query but our goal is to develop an

automatic procedure for finding related items in the

database which is called inference.

InferenceinHierarchicalMultidimensionalSpace

The main idea of the proposed solution is that

source and target collections have some common

lesser collection which is treated as dependency

between them. Such common lesser collections are

also used to represent relationships between their

greater collections as opposed to the explicit use of

relationships in the entity-relationship model

(Savinov, 2012). Constraints imposed on the source

collection can be used to select a subset of elements

from this lesser collection using de-projection. And

then the selected elements are used to constrain the

target elements using projection. In OLAP terms, we

impose constraints on dimension tables, propagate

them down to the fact table, and then finally use

these facts to select values from the target dimension

table. In terms of multidimensional space this

procedure means that we select points along one

axis, then de-project them to the plane by selecting a

subset of points, and finally project these points to

the target axis by using these coordinates as the

result of inference.

If X and Y are two greater collections, and Z is

their common lesser collection then the proposed

inference procedure consists of two steps:

[De-projection] Source constraints

⊂' are

propagated down to the set Z using de-projection:

ZZXZ ⊂←←= *''

[Projection] The constrained set

⊂' is

propagated up to the target set Y using projection:

YYZY ⊂→→= *''

Here by star symbol we denote an arbitrary

dimension path. In the case of n independent source

constraints

,,,

XXX K imposed on sets

XXX ,,,

K the de-projection step is computed as

an intersection of individual de-projections:

ZXZ

←←= *'

Figure 5: Inference via de-projection and projection.

In COQL, inference operator is denoted as

'<‐*‐>' (de-projection step followed by projection

step via an arbitrary dimension path). It connects

two collections from the database and finds elements

of the second collection which are related to the first

one. To infer the result, the system chooses their

common lesser collection and then builds de-

projection and projection dimensions paths. After

that, inference is performed by propagating source

constraints to the target along this path. For example

(Fig. 5a), given a set of young writers we can easily

find related countries by using only one operator:

(Writers|age<30)

<‐*‐>(Addresses)‐>countries

To answer this query, the system first chooses a

common lesser collection, which is

WriterBooks

in this example, and then transforms this query to

two operations of de-projection and projection:

(Writers|age<30)

<‐*(WriterBooks)//De‐project

*‐>(Addresses)‐>countries//Project

After that, the system reconstructs the complete

constraint propagation path:

(Writers|age<30)

<‐writer<‐(WriterBooks)

‐>book‐>(Books)

‐>publisher‐>(Publishers)

‐>address‐>(Addresses)‐>countries

In the case of many dependencies (common lesser

collections) or many de-projection/projection paths

between them, the system propagates constraints

using all of them. This means that all source

constraints are first propagated down along all paths

to all lesser collections using de-projection. After

that, all the results are propagated up to the target

collection using all existing dimension paths.

If the user wants to customize inference and use

only specific dimensions or collections then they can

be provided as part of the query. For example,

assume that both

Publishers and Writers have

addresses (Fig. 5b). Accordingly, there are two

alternative paths from the source to the target and

two alternative interpretations of the relationship:

writers living in some country or writers publishing

in this country. This ambiguity can be explicitly

resolved in the query by specifying the required

common collection to be used for inference:

(Addresses|country=='DE')

<‐*(WriterBooks)*‐>(Writers)

In this way, we can solve the problem of having

multiple propagation paths. In the next section we

consider the problem of having no propagation path

between source and target collections.

DATA2012-InternationalConferenceonDataTechnologiesandApplications

3.4 Use of Background Knowledge

If the model has a bottom collection which is less

than any other collection then inference is always

possible because it connects any pair of source and

target collections. The question is how to carry out

inference in the case the bottom collection is absent.

Formally, collections which do not have a common

lesser collection are independent, that is, their

elements are unrelated.

For example (Fig. 6), if books are being sold in

different shops then the model has two bottom

collections:

WriterBooks and Sellers. Assume

now that it is necessary to find all shops related to a

set of writers:

(Writers|age<30)<‐*‐>(Shops)

The propagation path should go through a common

lesser collection which is absent in this example and

therefore inference is not possible.

One solution to this problem is to formally

introduce a bottom collection which is equal to the

Cartesian product of its immediate greater

collections. In COQL, this operation is written as a

sequence of collections in parentheses separated by

comma:

Bottom=(WriterBooks,Sellers)

However, this artificial bottom collection (shown as

a dashed rectangle in Fig. 6) does not impose any

constraints and hence

Writers and Shops are still

independent.

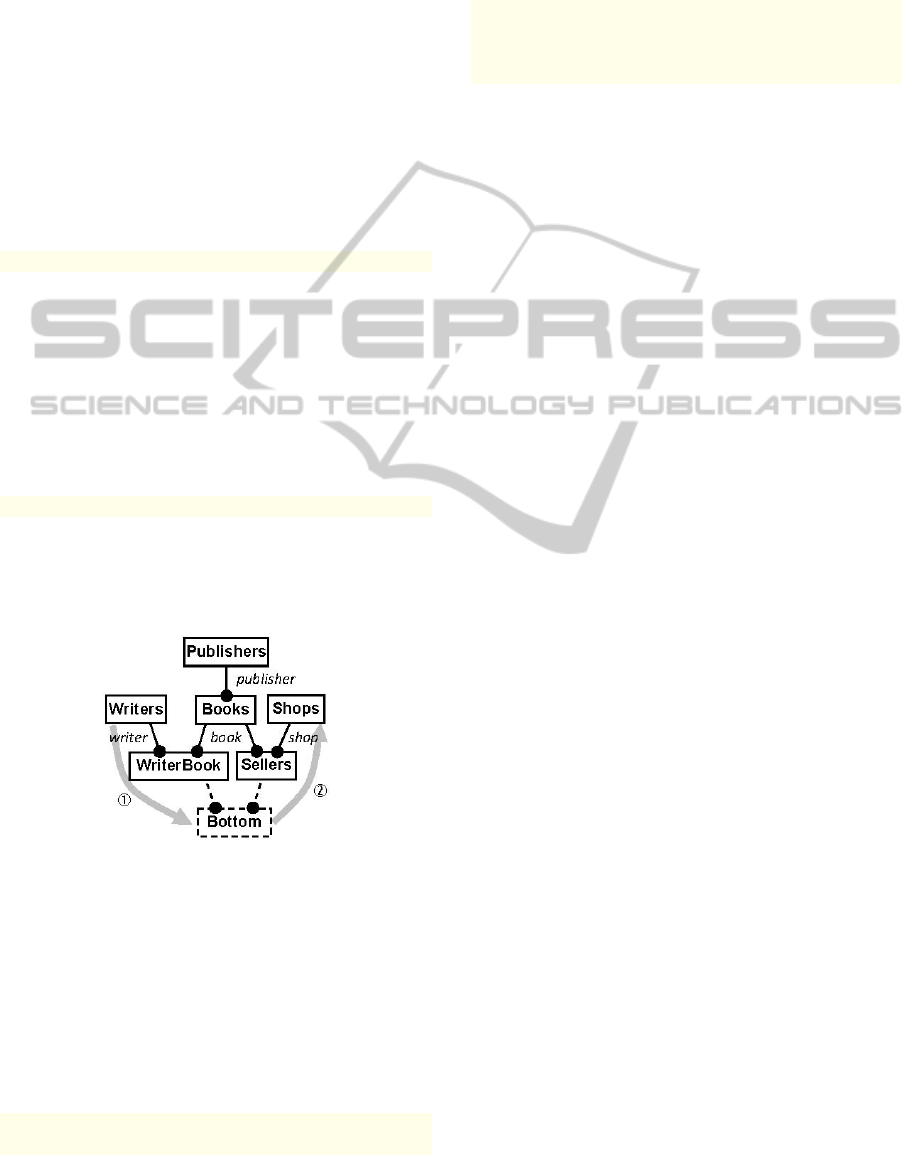

Figure 6: Use of background knowledge.

To get meaningful results we have to impose

additional constraints on the bottom collection.

These constraints represent implicit dependencies

between data elements, called background

knowledge. They can be expressed via any condition

which selects a subset of elements from the bottom

collection, for instance, as a dependency between its

attributes. In our example, we assume that a written

book is the same as a sold book:

Bottom=(WriterBookswb,Sellerss|

wb.book==s.book)

Now the Bottom collection contains only a subset

of the Cartesian product of its two greater

collections and can be used for inference. We simply

specify this bottom collection as part of the query:

(Writers|age<30)

<‐*(WriterBooksbw,Sellerss|

bw.book==s.book)

*‐>(Shops)

Here the selected writers are de-projected down to

the bottom collection. Then this constrained bottom

collection is propagated up to the target. As a result,

we will get all shops selling books written by the

selected authors. Note how simple this query is

especially in comparison with its SQL equivalent

which has to contains many joins and explicit

intermediate tables. What is more important, it is

very natural because we specify what we want to get

rather than how the result set has to be built.

4 CONCLUSIONS

In this paper we have described the idea of having

inference capabilities as an inherent part of

multidimensional data models and analytical query

languages. The proposed approach is very simple

and natural in comparison to logic-based approaches

because it relies on only what is already in the

database: dimensions and data. Its main benefit is

that now inference can be made integral part of

multidimensional databases by allowing not only

doing complex numeric analysis but also performing

tasks which have always been a prerogative of logic-

based models.

REFERENCES

Fagin, R., Mendelzon, A. O. and Ullman, J. D., (1982). A

Simplified Universal Relation Assumption and Its

Properties. ACM Transactions on Database Systems

(TODS), 7(3), 343-360.

Peckham, J. and Maryanski, F., (1988). Semantic data

models. ACM Computing Surveys (CSUR), 20(3),

153–189.

Pedersen, T. B. and Jensen, C. S., (2001).

Multidimensional database technology, Computer,

34(12), 40–46.

Pedersen, T. B., (2009). Multidimensional Modeling.

Encyclopedia of Database Systems. L. Liu, M.T. Özsu

(Eds.). Springer, NY., 1777–1784.

Raymond, D., (1996). Partial order databases. Ph.D.

Thesis, University of Waterloo, Canada.

Savinov, A., (2006a). Grouping and Aggregation in the

InferenceinHierarchicalMultidimensionalSpace

Concept-Oriented Data Model. In Proc. 21st Annual

ACM Symposium on Applied Computing (SAC’06),

482–486.

Savinov, A., (2006b). Query by Constraint Propagation in

the Concept-Oriented Data Model. Computer Science

Journal of Moldova, 14(2), 219–238.

Savinov, A., (2011a) Concept-Oriented Query Language

for Data Modeling and Analysis, In L. Yan and Z. Ma

(Eds.), Advanced Database Query Systems:

Techniques, Applications and Technologies, IGI

Global, 85–101.

Savinov A., (2011b) Concept-Oriented Model: Extending

Objects with Identity, Hierarchies and Semantics,

Computer Science Journal of Moldova, 19(3), 254–

287.

Savinov A., (2012) Concept-Oriented Model: Classes,

Hierarchies and References Revisited, Journal of

Emerging Trends in Computing and Information

Sciences.

Ullman, J. D. and Zaniolo, C., (1990). Deductive

databases: achievements and future directions. ACM

SIGMOD Record 19(4), 75-82.

Vardi, M. Y., (1988). The Universal-Relation Data Model

for Logical Independence. IEEE Software, 5(2), 80–

85.

DATA2012-InternationalConferenceonDataTechnologiesandApplications
