Global Optimal Solution to SLAM Problem with Unknown Initial

Estimates

Usman Qayyum and Jonghyuk Kim

School of Engineering, Australian National University, Canberra, ACT 0200, Australia

Keywords:

Greedy Random Adaptive Search Procedure, Gauss-Newton Optimization, Optimal Solution, Map-joining.

Abstract:

The paper presents a practical approach for ﬁnding the globally optimal solution to SLAM. Traditional meth-

ods are based upon local optimization based strategies and are highly susceptible to local minima due to

non-convex nature of the SLAM problem. We employed the nonlinear global optimization based approach to

SLAM by exploiting the theoretical limit on the numbers of local minima. Our work is not reliant on good

initial guess, whereas existing approaches in SLAM literature assume good starting point to avoid local min-

ima problem. The paper presents experimental results on different datasets to validate the robustness of the

approach, ﬁnding the global basin of attraction with unknown initial guess.

1 INTRODUCTION

Simultaneous Localization and Mapping (SLAM)

has drawn signiﬁcant interests in robotics commu-

nities, as it enables the robotic vehicles to be de-

ployed in a fully autonomous way for various applica-

tions. SLAM literature is mostly categorized into two

main streams: Filtering based (Bailey and Durrant-

Whyte, 2006) and Maximum likelihood based (Lu

and Milios, 1997) approaches. The ﬁrst stream con-

sists of Extended Kalman ﬁlter and Information ﬁlter

(S. Huang and Dissanayake, 2008) which requires lin-

earization of process and measurement models with a

cost of potential divergence and inconsistency. Fast-

SLAM (A. Doucet and Russel, 2002) is based upon

factorization of posterior but, due to limited numbers

of particles, it is unable to represent the trajectory pos-

terior in the long run.

In graph-based SLAM approaches measurements

acquired during robot motions are modeled as con-

straints. The goal of these approaches is to esti-

mate the conﬁguration of parameters that maximally

explain a set of measurements affected by Gaussian

noise (minimizes the nonlinear least square error).

The pioneering work in graph-based SLAM is by

(Lu and Milios, 1997) in which brute force tech-

nique for range scan alignment was proposed. With

the assumption of known rotation (T. Duckett and

Shapiro, 2002) introduced a Gauss-Seidel relaxation.

The work was improved by (U. Frese and Duckett,

2005) solving a network at different level of resolu-

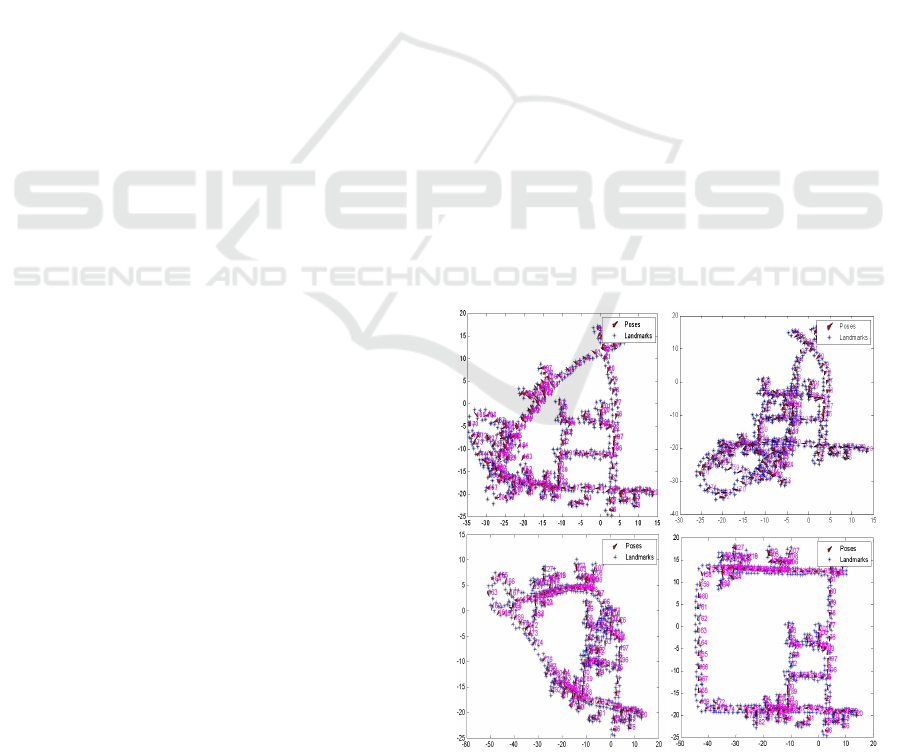

Figure 1: Examples of local solution for DLR dataset

(J. Kurlbaum, 2010) with different random initial guess.

tion. (Dellaert and Kaess, 2006) came up with QR

factorization of information matrix to solve the full

SLAM problem.

(E. Olson and Teller, 2006) uses stochastic gra-

dient descent (SGD) algorithm (E. Olson and Teller,

2006) to solve the pose only SLAM problem by ad-

dressing each constraint individually and surprises

many researcher as the algorithm can converge to the

correct solution with poor initial values. Recent re-

76

Qayyum U. and Kim J..

Global Optimal Solution to SLAM Problem with Unknown Initial Estimates.

DOI: 10.5220/0004040100760083

In Proceedings of the 9th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2012), pages 76-83

ISBN: 978-989-8565-21-1

Copyright

c

2012 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 2: SLAM is recasted as a map-joining problem: One is a growing global map (navigation coordinate with solid

lines) and the other is a new local map L (represented with ellipses). The dashed lines indicate the odometry and feature

observations.

search (R. Kummerle and Burgard, 2011) has focused

on making these algorithms more efﬁcient and ro-

bust showing that its online implementation is feasi-

ble. Although these approaches perform efﬁciently in

practice, very little attention has been paid on the con-

vergence condition and none of them can guarantee a

global minimum over different initial guesses. Fig.

1 shows the results of a Gauss-Newton approach on

publicly available dataset (J. Kurlbaum, 2010) with

different random initial guesses, resulting in different

local solutions.

Global optimal solutions to highly nonlinear prob-

lems has been shown to NP-hard (Freund and Jarr,

2001). In structure from motion research, the guar-

anteed global optimal solution is investigated with

known rotation framework for L

∞

(K. Astrom and

Hartley., 2007) and branch and bound based ap-

proaches (C. Olsson and Oskarsson, 2008) whereas

in our work no such assumption of known rotation

is considered (typically the nonlinearity in measure-

ments of mobile robot applications is due to robot

orientation). In recent work (Iser and Wahl, 2010)

proposed a swarm optimization based approach to es-

timate (almost) optimal maps. Their work is based

upon meta-heuristic optimization approach which is

similar to our work but they present map as a tree of

fragments/maps with particle ﬁltered based sampling

approach and ﬁnally conducted an ant colony search

to obtain (almost) optimal solution.

In this paper we provide an approach to get global

optimal solution for SLAM problem, which has never

been proposed before to the best of author’s knowl-

edge. Feature based SLAM problem is decomposed

as a problem of joining submaps. Necessary and suf-

ﬁcient condition for the existence of at most two lo-

cal optimal (S. Huang and Dissanayake, 2012) is ex-

ploited by a meta-heuristic approach called GRASP

(greedy randomized adaptive search procedure) (Re-

sende and Ribeiro., 2003) which is combinatorial op-

timization to obtain global optimal solution. Meta-

heuristic approaches optimize by iteratively reﬁning

the candidate solution by combining randomness with

local search methods (C.Blum and A.Roli, 2003).

Unknown landmark positions and vehicle pose are

considered as initial guess in a planar environment

(3DOF case).

The outline of this paper is as follows: Section 2

and 3 will provide nonlinear least square formulation

and number of local minima in SLAM problem. Sec-

tion 4 and 5 will provide detailed discussions on non-

linear global optimization based approach and greedy

search strategy. Section 6 will brieﬂy explain global

optimal approach to map-joining. Results and discus-

sions will be presented in Section 7 followed by Con-

clusion.

2 NONLINEAR LEAST SQUARE

FORMULATION

The dimension of the SLAM problem is very high

when it is formulated as a nonlinear least square

(K. Ni, 2007) because all vehicle poses and feature

locations are considered as parameters to be deter-

mined. The decomposition of SLAM problem into

submaps not only helps to reduce the computational

complexity but also helps to improve consistency by

decreasing the nonlinearity of the system (S. Huang

GlobalOptimalSolutiontoSLAMProblemwithUnknownInitialEstimates

77

and Dissanayake, 2008; S. Huang and Frese, 2008).

The assumption we undertake in this research is that,

every SLAM problem can be decomposed into lo-

cal maps and then solved for global optimal solution.

The relative relation of local maps has ﬂuid behav-

ior whereas the internal structure of each local map is

well known and can be optimized independently with

respect to local coordinate (K. Ni, 2007). The nonlin-

ear least square formulation for local map joining is

to minimize an objective function as follows:

F(x) = arg min

x

∑

(||E

p

||

2

U

+ ||E

f

||

2

V

), (1)

where the state vector is x =

{

X,M

}

with X being the

poses (position and orientation) of local maps and M

the features positions in absolute coordinate frame. U

and V are corresponding covariance matrices of pose

and feature observations respectively. The poses are

composed of

{

p

1

,ϕ

1

,.. . , p

t

,ϕ

t

}

where the end pose

of each local map is the start pose of next local map.

The N map features are deﬁned as M =

{

f

1

,.. . , f

N

}

.

SLAM recasted as a map-joining problem is shown in

Fig. 2.

Let there be a local map l deﬁned as X

l

=

p

l

,ϕ

l

with n features M

l

=

f

l

1

... , f

l

n

present in the local

coordinate frame. The local map pose X

l

is the obser-

vation of relative pose of p

l

,ϕ

l

from the global state

vector X pose p

l−1

,ϕ

l−1

as

E

p

= X

l

− H

odo

(X), (2)

and the observation model for odometry is deﬁned as

H

odo

(X) =

R(ϕ

l−1

)

T

(p

l

− p

l−1

)

ϕ

l−1

− ϕ

l

. (3)

The SO(2) rotation matrix is deﬁned as

R(ϕ) =

cos(ϕ) − sin(ϕ)

sin(ϕ) cos(ϕ)

. (4)

The feature positions M

l

=

f

l

1

... , f

l

n

in local map l

are observation of relative position of features and are

related (assumed data association) to global state vec-

tor. The relative feature position error E

f

is deﬁned

as

E

f

= M

l

− H

f eat

(X,M), (5)

whereas the observation model for relative position of

features is a function of M and X

H

f eat

(X,M) =

R(ϕ

l−1

)

T

( f

l1

− p

l−1

)

...

R(ϕ

l−1

)

T

( f

ln

− p

l−1

)

. (6)

The Mahalanobis distance for both relative errors in

the cost function with zero-mean Gaussian noise with

covariance U,V can be written as

F(x) =

∑

(X

l

− H

odo

(X))

T

U

−1

(X

l

− H

odo

(X)) + (7)

∑

(M

l

− H

f eat

(X,M))

T

V

−1

(M

l

− H

f eat

(X,M)).

The measurement and process models are both

nonlinear functions, and thus the nonlinear objective

function is linearized multiple times to reach local

minima. Generally local approaches solve the objec-

tive function F(x) as

F(x + δx) = F(x) + Jδx, (8)

where J = ∂F(x)/∂(x). Let ϖ = (F(x + δx) − F(x)),

then it becomes

Jδx = ϖ, (9)

The solution can be found using pseudo-inverse of J

J

T

Jδx = J

T

ϖ

δx = (J

T

J)

−1

J

T

ϖ (10)

By including the covariance estimates (U,V ) as ξ, eq.

10 becomes

δx = (J

T

ξ

−1

J)

−1

(J

T

ξ

−1

)ϖ. (11)

When the eq. 11 is solved only ones by an optimiza-

tion based approach i.e. (Dellaert and Kaess, 2006), it

yields a similar result like the EKF or Extended infor-

mation ﬁlter (Bailey and Durrant-Whyte, 2006). The

advantage in optimization based approach comes with

repeatability of solution for eq. 11 with different lin-

earization points.

3 NUMBER OF LOCAL MINIMA

IN MAP JOINING SLAM

The SLAM formulation as linearized version of non-

linear objective function assumes local convexity, that

is with a reasonable initial estimate (near the global

basin of attraction), the algorithm will converge to

global minima. SLAM is an incremental process and

at each step, small number of new parameters need to

be estimated. However when the odometry and fea-

ture observation are not consistent with each other,

then the local optimizer can struck in local minima.

A close lookup at the observation model in equa-

tion 3 and 6 reveals that nonlinearity is only due to ori-

entation. Recently (S. Huang and Dissanayake, 2012)

provides a theoretical bound on local minima in map-

joining SLAM problem, by deriving a nonlinear equa-

tion depending only on orientation error under the as-

sumption that covariance matrices are spherical ma-

trices. The research ﬁndings in their work suggest

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

78

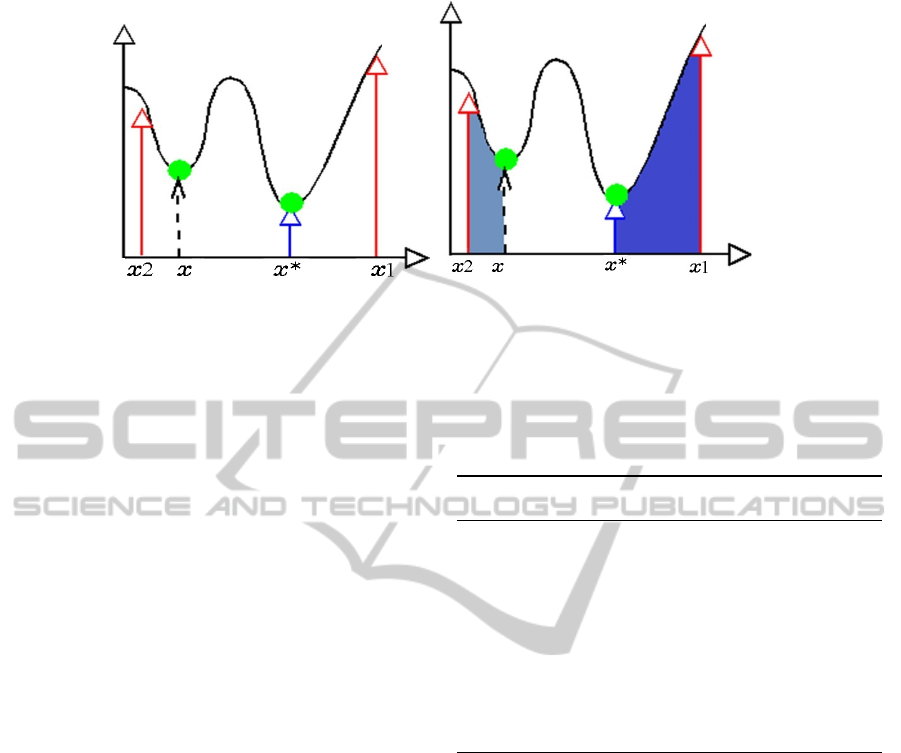

Figure 3: 1D problem with 2 local minima revealing possible feasible solutions from local optimization.

at most two and at least one local minima can occur.

The approach, proposed in this paper, exploits the up-

per theoretical bound under noisy observations to ob-

tain global minima by a meta-heuristic approach (dis-

cussed in following section) hence obtaining a global

optimal solution.

4 GREEDY RANDOM ADAPTIVE

SEARCH PROCEDURE

GRASP is a multi-start meta-heuristic approach to

solve combinatorial problems (Resende and Ribeiro.,

2003). Previously, it has been successfully deployed

in traveling sales man problem and ﬁrstly proposed

here for SLAM problem. GRASP basically consist of

two phases: local search and feasible solution con-

struction. The construction phase builds a feasible

solutions (using greedy approach), whose neighbor-

hood is searched by a local search phase to ﬁnd local

optima. By using different feasible solutions as start-

ing points for local search in a multi-start procedure

will usually lead to good, though, most often, subop-

timal solutions. While in our problem at worst case,

we encountered two local minima when joining two

local maps, so the upper bound is searched by multi-

start until global optimal solution is returned, which

is the optimal solution.

The pseudo code in algorithm 1, details the work-

ing of GRASP approach, where local search is per-

formed by the gauss-newton formulation of eq.11.

5 RANDOMIZED GREEDY

ALGORITHM

We proposed long-term memory based greedy algo-

rithm to determine a feasible solution. Fig. 3 (left)

details a simple example on 1D in which at most two

local minima are considered.The two feasible solu-

tions (x

1

,x

2

) are generated by GRASP approach and

among them two minima are found whereas x

1

reveals

the global optimal solution x

∗

.

Algorithm 1: GRASP-Algorithm: Determination of Opti-

mal Solution.

inputs : observations =

X

l

,M

l

,x =

{

pose,landmark

}

x

∗

=

{

EMPTY

}

while two local minima or max iteration are not reached

do

x ← RandomizedGreedyAlgo(.) → Algo2

x ← LocalSearch(x,observations)

if (f(x) < f(x*)) then

x

∗

= x

end if

end while

return x

∗

The generation of feasible solution is the key to

obtain the optimal solution, in timely manner from

a high dimensional search space of parameters. Fig.

3 (right) describes a search space reduction mecha-

nism in which the initial guess x

1

is ﬁrst hypothe-

sized, which determines a local optimal x

∗

(the inter-

mediate traversal solution of the local optimizer are

stored in long-term memory for search space x

1

to

x

∗

). The next hypothesis of initial guess is being made

by greedy algorithm in consideration with the already

traversed solution space in long-term memory (the

goal is to avoid making an initial guess from already

traversed space). The selection of new initial guess

is based upon absolute distance criteria (greedy ap-

proach), in which the new initial guess for local opti-

mizer is not from the already considered search space.

The greedy algorithm helps to reduce the search space

and improves the time efﬁciency as against the ex-

haustive brute force search in solution space.

The pseudo code in algorithm 2, describes the

greedy algorithm, in which the long-term memory of

GlobalOptimalSolutiontoSLAMProblemwithUnknownInitialEstimates

79

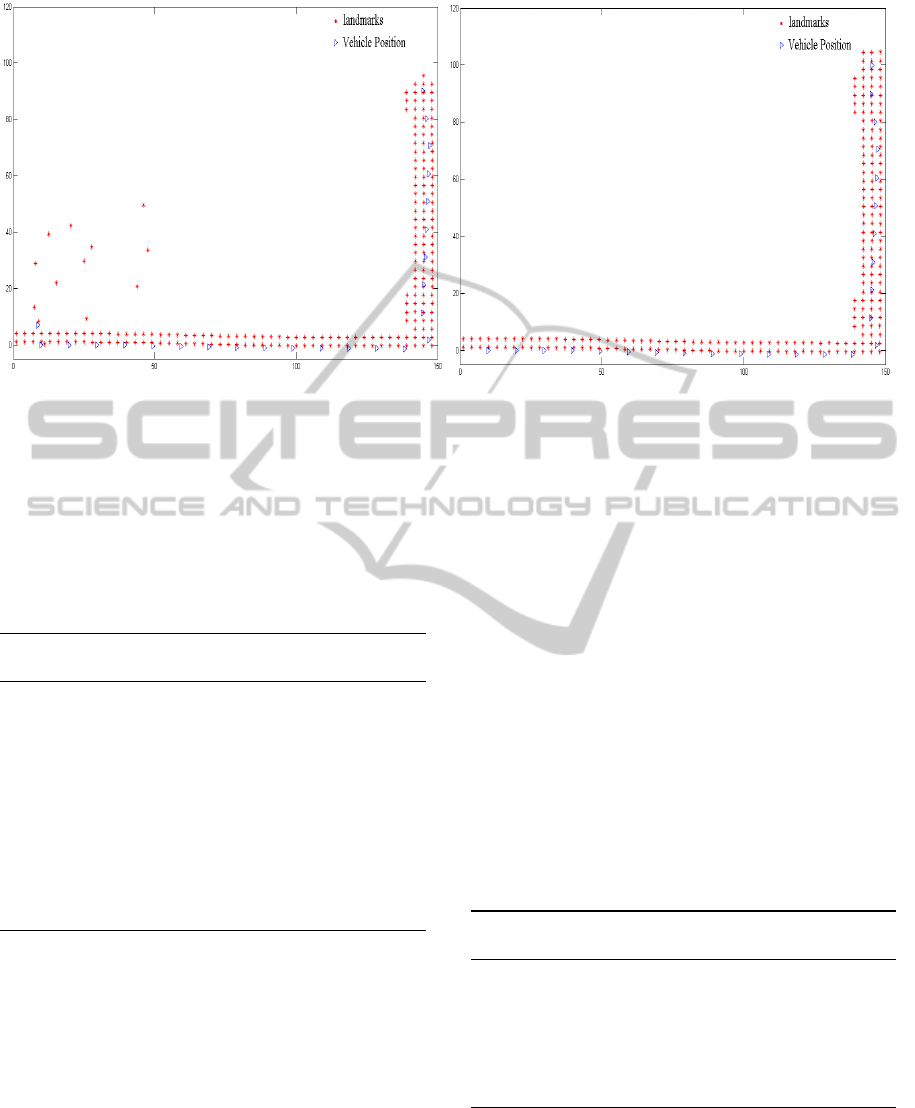

(a) Before joining (b) After joining

Figure 4: Intermediate results of simulation dataset (S. Huang and Frese, 2008) with 50 local maps.

all the solution space is maintained. The selection

of new feasible solution is determined similar to 1D

explained approach on orientation space (as vehicle

and feature positions are linear with respect to orien-

tation). Selection of ε in radians decides the selection

of new hypothesis for initial guess to boot the local

optimizer.

Algorithm 2: GRASP-Algorithm: Randomized greedy al-

gorithm.

while Initial guess not found | Max iter not reached do

x = random(.)

f ound = 1

for i=1:num of elements in LTmemoryX do

Oldx = LTmemoryX[i]

if |(x − Oldx)| < ε then

found = 0

Break → select another x

end if

end for

end while

return x

An appealing characteristic of GRASP approach

is the ease of implementation by setting and tuning

few parameters. The computation time of the ap-

proach does not vary much from iteration to iteration

and increases linearly with the number of iterations

whereas the time increases combinatorially with the

increase of searched spaced parameters.

6 GLOBAL OPTIMAL SOLUTION

TO MAP-JOINING

Most of the map joining approaches start with linear

approximation of map states and do optimization as

a post processing step to estimate the local solu-

tion (S. Huang and Frese, 2008; S. Huang and Dis-

sanayake, 2008; K. Ni, 2007). Our approach is not

dependent upon the initial guess and bound to search

the optimal results by modiﬁed GRASP approach. We

initialized each map randomly (unknown feature and

vehicle pose) and solve the map joining problem as

illustrated in pseudo code algorithm 3. The data asso-

ciation is assumed to be known. Two maps are consid-

ered at each time and provided to GRASP algorithm,

which returns the optimal solution for those two sets

of maps observation. The sequential joining is not

necessary and parallel algorithm can be employed for

faster computation, if the running time is bottleneck

in a large scale environment. The input to algorithm 1

will be set of observations (relative feature and odom-

etry information of local maps l) and global map state

vector X,M to obtain x

∗

.

Algorithm 3: MAP Joining Optimal: GRASP variant for

Map Joining.

x* = ﬁrst local map

while Fuse local map k+1(l) into x* do

Data Association assumed to be known

Initialize random pose/landmark for l into x*

x*= GRASP-Algorithm (x*, Local Map l)

end while

return x*

7 RESULTS AND DISCUSSION

The performance of the proposed algorithm is tested

on simulated (S. Huang and Frese, 2008) as well on

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

80

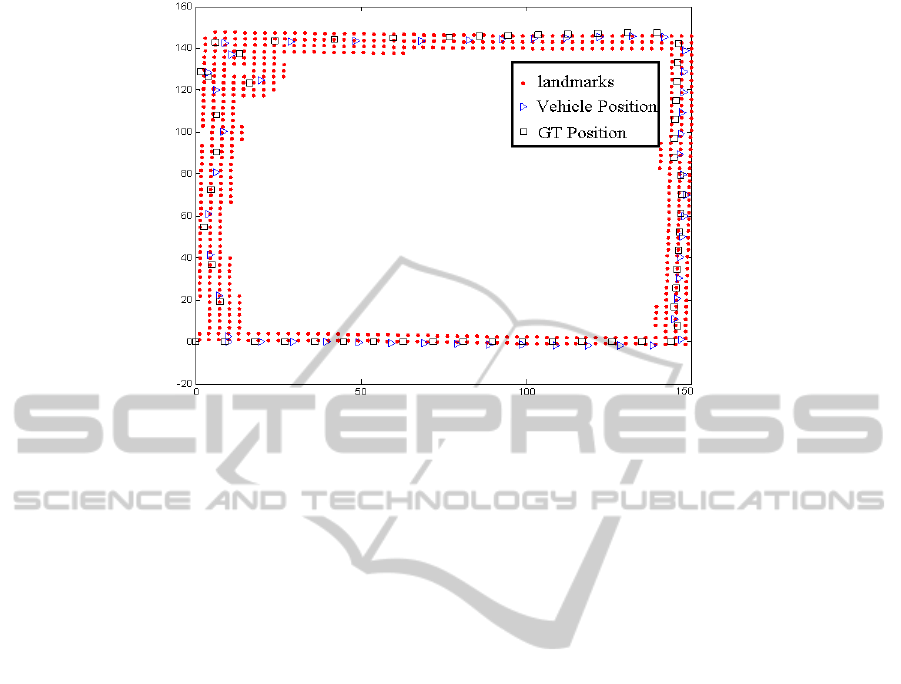

Figure 5: Ground truth and estimated vehicle/landmark positions for simulation dataset (S. Huang and Frese, 2008) with 50

local maps.

real dataset (J. Kurlbaum, 2010), which are both avail-

able publicly. The 150 × 150m

2

simulation environ-

ment (S. Huang and Frese, 2008) containing 2500 fea-

tures uniformly space in rows and columns is tested

ﬁrst. The robot started from the left bottom corner

of the square and followed a big loop. A sensor

with a ﬁeld of view of 180 degrees and a range of

6 meters was simulated to generate relative range and

bearing measurements between the robot and the fea-

tures. There were 50 local maps in total with 612

observed features and 1374 odometry/feature mea-

surements were made from the robot poses. Fig.

4(a) shows the intermediate results of 25

th

local map

where new local map with random initial guesses

of landmark position and pose. The GRASP based

smoothing is performed and optimal results obtained

is shown in Fig. 4(b). Final results with ground truth

result is shown in Fig. 5, showing estimated position

against the interpolated ground truth positions.

The GRASP based approach with unknown initial

guess is tested on DLR dataset (J. Kurlbaum, 2010)

and compared with the state of the art map-joining

approach (S. Huang and Frese, 2008). DLR dataset is

acquired with a camera attached on a wheeled robot

and odometry. The robot moved around a building

detecting scattered artiﬁcial white/black landmarks,

placed on the ground. Odometry measurements and

relative position of the observed landmarks are being

provided. 200 local maps with 540 observed features

and 1680 odometry/feature observations is considered

with known data association. Fig. 6 (a) shows the

random initial guess for vehicle pose and feature po-

sitions in global frame of reference, to be processed

by GRASP approach. Fig. 6 (b and c) shows a visual

comparison of proposed approach with (S. Huang and

Frese, 2008) whereas (S. Huang and Frese, 2008) ap-

proach is booted with linear initialization and our pro-

posed approach is not dependent upon known initial

guess. Gaussian noise is introduced into the odome-

try observations (which makes inconsistency between

odometry and feature observations) to gauge the per-

formance of proposed approach, hence we are able to

get a global solution each time, which is optimum in

Maximum likelihood sense whereas local optimiza-

tion based approaches results in local solution similar

to Fig. 1. The performance of the experimental results

validates the proposed idea and makes the SLAM

problem solvable by global optimization based ap-

proach without initial guess.

8 CONCLUSIONS AND FUTURE

WORKS

A practical approach for ﬁnding the globally optimal

solution to SLAM is presented. Local optimization

based strategies which are mostly adopted for SLAM

problem are highly susceptible to local minima prob-

lem due to non-convex structure of the problem. By

exploiting the theoretical limit on the number of lo-

cal minima, we proposed a framework to estimate

a global optima. The proposed approach is not re-

liant on good initial guess which is the primary condi-

tion of local optimization based approaches for global

convergence. Experimental results are provided on

different datasets available online to validate the ro-

bustness of approach.

GlobalOptimalSolutiontoSLAMProblemwithUnknownInitialEstimates

81

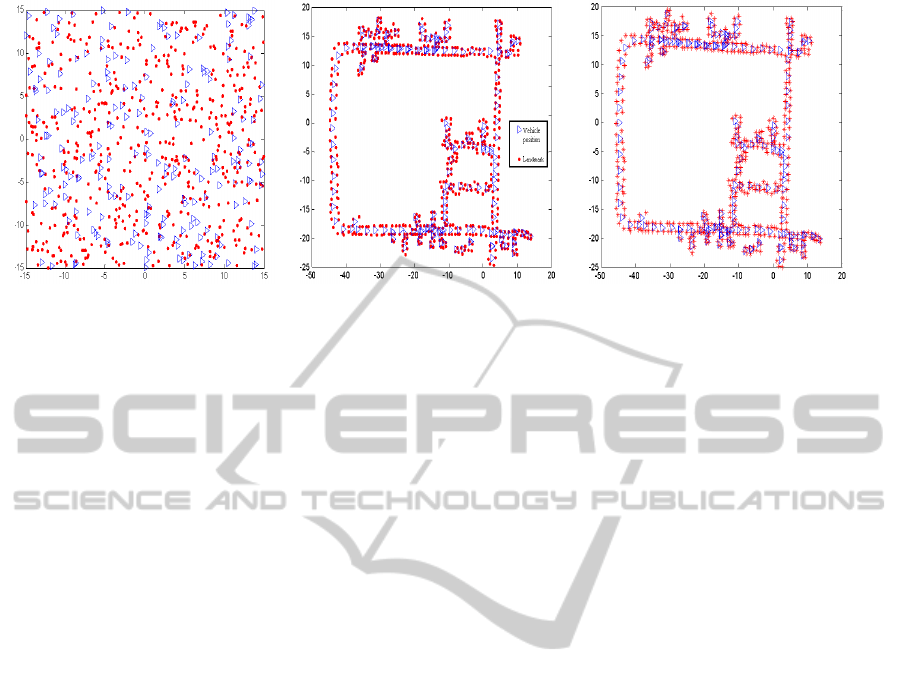

(a) Random initial guess for local maps (b) GRASP based vehicle/landmark position

estimates

(c) I-SLSJF with EIF based initialization

(S. Huang and Frese, 2008)

Figure 6: DLR dataset results using GRASP with 200 local maps, showing global convergence (b) with random initial guesses

(a).

Future work will provide the time/memory com-

parison of the proposed approach and possible exten-

sion to 6DOF SLAM problem.

ACKNOWLEDGEMENTS

This work is supported by the ARC DP Project

(DP0987829) funded by the Australian Research

Council (ARC). We are also thankful to (J. Kurlbaum,

2010) and (S. Huang and Frese, 2008) for open source

implementation and datasets.

REFERENCES

A. Doucet, N. Freitas, K. M. and Russel, S. (2002). Black-

wellized particle ﬁltering for dynamic bayesian net-

works. In International Conference on Uncertainty in

Artiﬁcial Intelligence, pp. 17618.

Bailey, T. and Durrant-Whyte, H. (2006). Simultaneous

localization and mapping (slam): part ii. In IEEE

Robotics and Automation Magazine, vol. 13, issue 3,

pp. 108-117.

C. Olsson, F. K. and Oskarsson, M. (2008). Branch and

bound methods for euclidean registration problems. In

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

C.Blum and A.Roli (2003). Metaheuristics in combinatorial

optimization: Overview and conceptual comparison.

In ACM Computing Surveys, vol.35, no. 3.

Dellaert, F. and Kaess, M. (2006). Square root sam: si-

multaneous localization and mapping via square root

information smoothing. In Journal of Robotics Re-

search, vol. 25, no. 12, pp. 1181-1203.

E. Olson, J. L. and Teller, S. (2006). Fast iterative opti-

mization of pose graphs with poor initial estimates. In

IEEE International Conference on Robotics and Au-

tomation (ICRA), pp. 2262-2269.

Freund, R. and Jarr, F. (2001). Solving the sum-of-ratios

problem by an interior-point method. In Journal of

Global Optimization.

Iser, R. and Wahl, F. (2010). Antslam: global map optimiza-

tion using swarm intelligence. In IEEE International

Conference on Robotics and Automation (ICRA), pp.

265-272.

J. Kurlbaum, U. F. (2010). A benchmark data

set for data association. In Technical Re-

port, University of Bremen, Data Available on

http://cres.usc.edu/radishrepository/.

K. Astrom, O. Enqvist, C. O. F. K. and Hartley., R. (2007).

An l∞ approach to structure and motion problems in

1d-vision. In International Conference on Computer

Vision (ICCV).

K. Ni, D. Steedly, F. D. (2007). Tectonic sam: ex-

act, out-of-core, submap-based slam. In IEEE In-

ternational Conference on Robotics and Automation

(ICRA), pp.16781685.

Lu, F. and Milios, E. (1997). Globally consistent range scan

alignment for environment mapping. In Journal of Au-

tonomous Robots, pp.333349.

R. Kummerle, G. Grisetti, H. S. K. K. and Burgard, W.

(2011). g2o: A general framework for graph optimiza-

tion. In IEEE International Conference on Robotics

and Automation (ICRA).

Resende, M. and Ribeiro., C. (2003). Greedy randomized

adaptive search procedures. In Handbook of Meta-

heuristics, pp. 219249.

S. Huang, Z. Wang, G. D. and Frese, U. (2008). Iterated

slsjf: A sparse local submap joining algorithm with

improved consistency. In Australiasan Conference on

Robotics and Automation (ACRA).

S. Huang, H. Wang, U. F. and Dissanayake, G. (2012). On

the number of local minima to the point feature based

slam problem. In IEEE International Conference on

Robotics and Automation (ICRA), pp. 265-272.

S. Huang, Z. W. and Dissanayake, G. (2008). Sparse lo-

cal submap joining ﬁlter for building large-scale maps.

In IEEE Transactions on Robotics, vol. 24, no. 5, pp.

1121-1130.

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

82

T. Duckett, S. M. and Shapiro, J. (2002). Fast, on-line learn-

ing of globally consistent map. In Journal of Global

Optimization, pp. 287300.

U. Frese, P. L. and Duckett, T. (2005). A multilevel re-

laxation algorithm for simultaneous localization and

mapping. In IEEE Transactions on Robotics, vol. 21,

no. 2, pp. 196-207.

GlobalOptimalSolutiontoSLAMProblemwithUnknownInitialEstimates

83
