Tukra: An Abstract Program Slicing Tool

Raju Halder and Agostino Cortesi

DAIS, Universit

a Ca’ Foscari Venezia, Venezia, Italy

Keywords:

Program Slicing Tool, Dependence Graph, Abstract Interpretation.

Abstract:

We introduce Tukra, a tool that allows the practical evaluation of abstract program slicing algorithms. The

tool exploits the notions of statement relevancy, semantic data dependences and conditional dependences.

The combination of these three notions allows Tukra to reﬁne traditional syntax-based program dependence

graphs, generating more accurate slices. We provide the architecture of the tool, some snapshots describing

how it works, and some preliminary experimental results giving evidence of the accuracy improvements it

supports.

1 INTRODUCTION

Program slicing emerged a useful technique that ex-

tracts from programs the statements which are rel-

evant to a given behavior. It is a fundamental

operation for addressing many software-engineering

problems, e.g. program understanding, debugging,

maintenance, testing, parallelization, integration, etc.

The original static slicing algorithm by Mark Weiser

(Weiser, 1984) is expressed as a sequence of data-

ﬂow analysis problems and the inﬂuence of predi-

cates on statement execution, while Korel and Lasky

(Korel and Laski, 1988) extended it to the dynamic

context and proposed an iterative dynamic slicing al-

gorithm based on dynamic data ﬂow and control in-

ﬂuence. Over the last 3 decades, several works on

program slicing have been proposed based on the de-

pendence graph representation (Agrawal and Horgan,

1990; Horwitz et al., 1990; Sarkar, 1991; Sinha et al.,

1999).

Program slicing can be deﬁned in concrete as well

as in an abstract domain, where in the former case we

consider exact values of the program variables, while

in the latter case we consider some properties instead

of their exact values. The notion of Abstract Program

Slicing was ﬁrst introduced by Hong, Lee and Sokol-

sky (Seok Hong et al., 2005). Mastroeni and Nicoli

(Mastroeni and Nikolic, 2010) recently extended the

theoretical framework of slicing proposed by Binkley

(Binkley et al., 2006) to an abstract domain in order

to deﬁne abstract slicing, and to represent and com-

pare different forms of slicing in the abstract domain.

Other remarkable works on abstract program slicing

include (Cortesi and Halder, 2010; Mastroeni and Za-

nardini, 2008; Zanardini, 2008; Bhattacharya, 2011).

In (Cortesi and Halder, 2010), the authors ap-

plied the notion of semantic relevancy of statements,

and proposed a slicing reﬁnement for imperative pro-

grams by combining with statement relevancy the no-

tions of semantic data dependences (Mastroeni and

Zanardini, 2008) and conditional dependences (Suku-

maran et al., 2010). The combination of these three

notions allows us to reﬁne traditional syntax-based

dependence graphs into more precise semantics-based

dependence graphs, leading to an abstract program

slicing algorithm that produces more accurate abstract

slices.

In this paper, we introduce Tukra

., a tool based

on the theoretical proposal in (Cortesi and Halder,

2010) that allows the practical evaluation of abstract

program slicing algorithms. The tool performs static

intraprocedural slicing of a program in an abstract

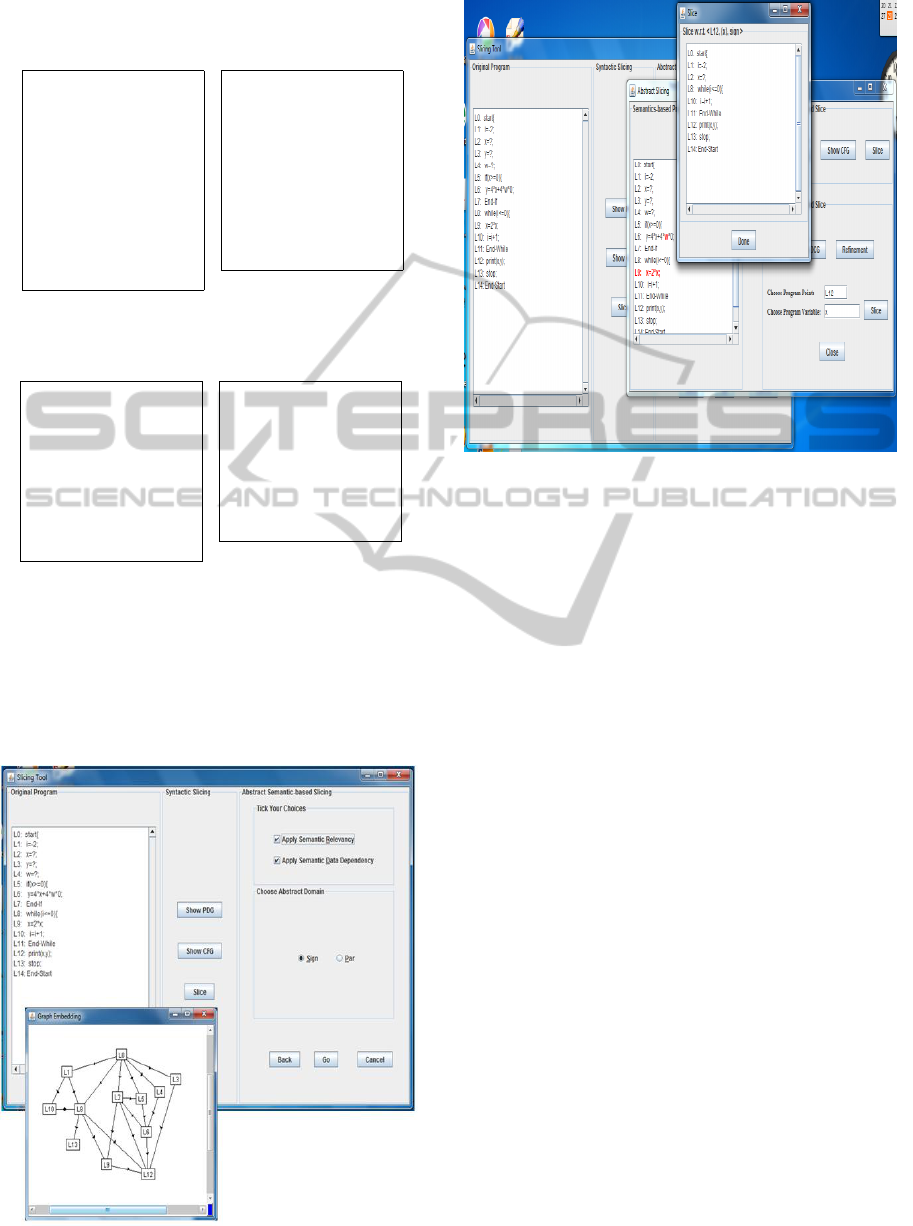

domain of interest. We provide the architecture of

the tool, some snapshots describing how it works

and some preliminary experimental results giving ev-

idence of the accuracy improvements it supports. As

far as we know, there is no other similar public tool

available.

The rest of the paper is organized as follows: Sec-

tion 2 presents a short introduction of the existing ab-

stract program slicing algorithm that supports Tukra.

Section 3 describes Tukra’s architecture, some snap-

shots describing how it works and an experimental re-

“Tukra” is a hindi word which means “Slice”.

The source code of Tukra can be downloaded from

www.dsi.unive.it/∼avp/Tukra/

178

Halder R. and Cortesi A..

Tukra: An Abstract Program Slicing Tool.

DOI: 10.5220/0004069801780183

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 178-183

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

sult on a test program. Section 4 concludes the work.

2 BACKGROUND

The algorithm behind our slicing tool is proposed in

(Cortesi and Halder, 2010) that combines the notions

of statement relevancy, semantic data dependences

and conditional dependences. Let us discuss these

three notions and the slicing algorithm in brief.

In traditional Program Dependence Graphs

(PDGs), the notion of dependences between state-

ments is based on the syntactic presence of a variable

in the deﬁnition of another variable or in a condi-

tional expression. Therefore, the deﬁnition of slices

at semantic level creates a gap between slicing and

dependences. Mastroeni and Zanardini (Mastroeni

and Zanardini, 2008) ﬁrst introduced the notion

of semantic data dependences which ﬁlls up the

existing gap between syntax and semantics. The

semantic data dependences which are computed

for all expressions in the program over the states

possibly reaching the associated program points,

help in obtaining more precise semantics-based

PDGs by removing some false dependences from the

traditional syntactic PDGs. For instance, although

the expression “e = x

+ 4w mod 2 + z” syntactically

depends on w, but semantically there is no depen-

dence as the evaluation of “4w mod 2” is always zero.

This can also be lifted to an abstract setting where

dependences are computed with respect to some

speciﬁc properties of interest rather than the concrete

values. For instance, if we consider the abstract

domain SIGN={>, pos, neg, ⊥}, the expression e

does not semantically depend on x w.r.t. SIGN, as

the abstract evaluation of x

always yields to pos for

all atomic values of x ∈ {pos, neg}. This is the basis

to design abstract semantics-based slicing algorithms

aimed at identifying the part of the programs which

is relevant with respect to a property (not necessarily

the exact values) of the variables at a given program

point.

Sukumaran et al. (Sukumaran et al., 2010) pre-

sented a reﬁnement of the traditional PDGs into De-

pendence Condition Graphs (DCGs) based on the no-

tion of conditional dependences. A DCG is built from

the PDG by annotating each edge e = e.src → e.tgt

in the PDG with information e

= he

, e

i that cap-

tures the conditions under which the dependence rep-

resented by that edge is manifest. The ﬁrst compo-

nent e

refers to Reach Sequences, whereas the sec-

ond component e

refers to Avoid Sequences. The

informal interpretation of e

is that the conditions

represented by it should be true for an execution to

ensure that e.tgt is reached from e.src. The Avoid

Sequences e

captures the possible conditions under

which the assignment at e.src can get over-written be-

fore it reaches e.tgt. The interpretation of e

is that

the conditions represented by it must not hold in an

execution to ensure that the variable being assigned at

e.src is used at e.tgt. It is worthwhile to note that e

is relevant only for DDG edges and it is

0 for CDG

edges.

Cortesi and Halder (Cortesi and Halder, 2010) ap-

plied the notion of semantic relevancy of statements.

It determines whether an imperative statement is rele-

vant w.r.t. a property of interest, and is computed over

all concrete (or abstract) states possibly reaching the

statement. For instance, consider the following code

fragment: {(1) x = input; (2) x = x+2; (3) print x;}.

If we consider an abstract domain of parity repre-

sented by PAR={>, odd, even, ⊥}, we see that the

variable x at program point 1 may have any parity

from the set {odd, even}, and the execution of the

statement at program point 2 does not change the par-

ity of x at all. Therefore, the statement at 2 is seman-

tically irrelevant w.r.t. PAR. By disregarding all the

nodes that correspond to irrelevant statements w.r.t.

concrete (or abstract) property from a syntax-based

PDG, we obtain a more precise semantics-based (ab-

stract) PDG.

The combined effort of semantic relevancy of

statements with the expression-level semantic data

dependences by Mastroeni and Zanardini (Mastroeni

and Zanardini, 2008) guarantees a more precise

semantics-based (abstract) PDG. A further reﬁnement

of it can be achieved by applying the notion of condi-

tional dependences by Sukumaran et al. (Sukumaran

et al., 2010) that allows us to transform PDGs into

DCGs and to identify unrealizable dependneces in

them under the trace semantics of the programs. The

removal of such unrealizable dependences yields to

more reﬁned semantics-based (abstract) DCGs.

The slicing algorithm GEN-SLICE makes use of

two auxiliary algorithms. Given a program P and an

abstract domain ρ, the algorithm REFINE-PDG gen-

erates semantics-based abstract PDG w.r.t. ρ. The

algorithm REFINE-DCG converts the PDG (which

is reﬁned by the algorithm REFINE-PDG) into a

DCG by computing the annotation over all depen-

dence edges, and then again reﬁnes it into more pre-

cise one by removing some unrealizable dependence

paths. Finally, GEN-SLICE performs slicing based

on the dependence graphs obtained this way.

Tukra:AnAbstractProgramSlicingTool

179

3 Tukra

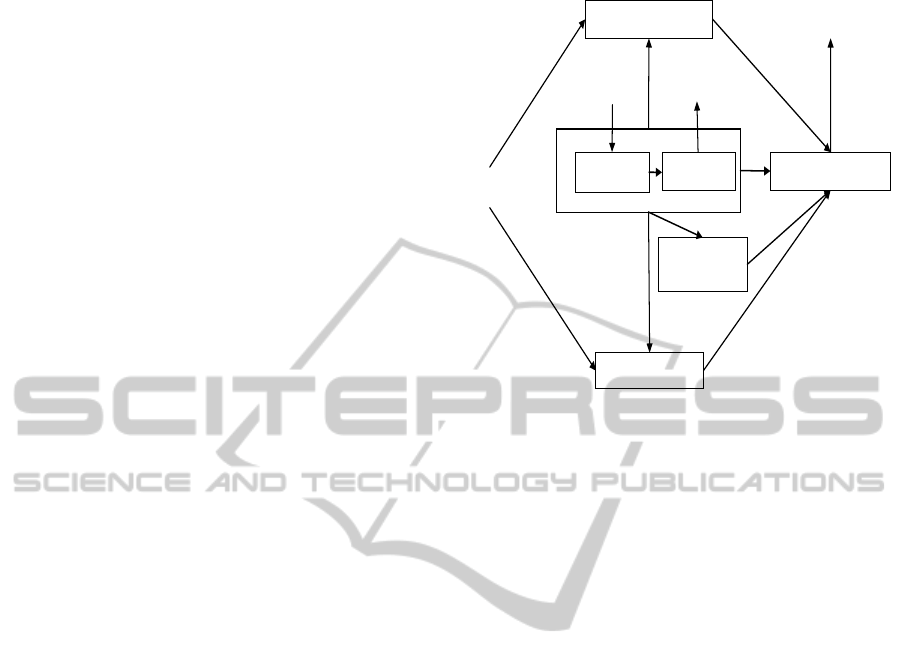

In this section, we identify the possible inputs ex-

pected from the users, and the basic functional mod-

ules required to perform the slicing computations over

the abstract domains.

The aim of designing Tukra is to provide user-

friendly interfaces accelerating users to slice impera-

tive programs in various abstract domains of interest.

When performing abstract slicing of programs, users

must provide the following inputs to Tukra:

1. Program to be Sliced: Tukra is able to perform

slicing of programs covering a subset of impera-

tive language constructs. At this preliminary stage

of implementation, we do not focus on any spe-

ciﬁc programming language. We consider the fol-

lowing assumptions on the syntax of the input pro-

grams as below:

• All control blocks should be enclosed with “{}”

irrespective of the number of statements in it.

• Empty control block must have “skip;” state-

ment in it.

• Run-time input for any statement is denoted by

“?”, e.g. “var =?;”.

• The syntax of the statement displaying vari-

ables’ values is “print(x, y, z);” where x, y, z are

the program variables.

Observe that the assumptions above do not cause

severe limitations for Tukra: an improvement of

the tool to support other language constructs can

easily be achieved.

2. Abstract Domain of Interest: We provide two

abstract domains in Tukra at this preliminary

stage of implementation. The ﬁrst one is SIGN=h

>, pos, neg, zero, ⊥ i that represents the sign

property of variables, and the second one is

PAR=h >, odd, even, ⊥ i that represents the par-

ity property of the variables. However, additional

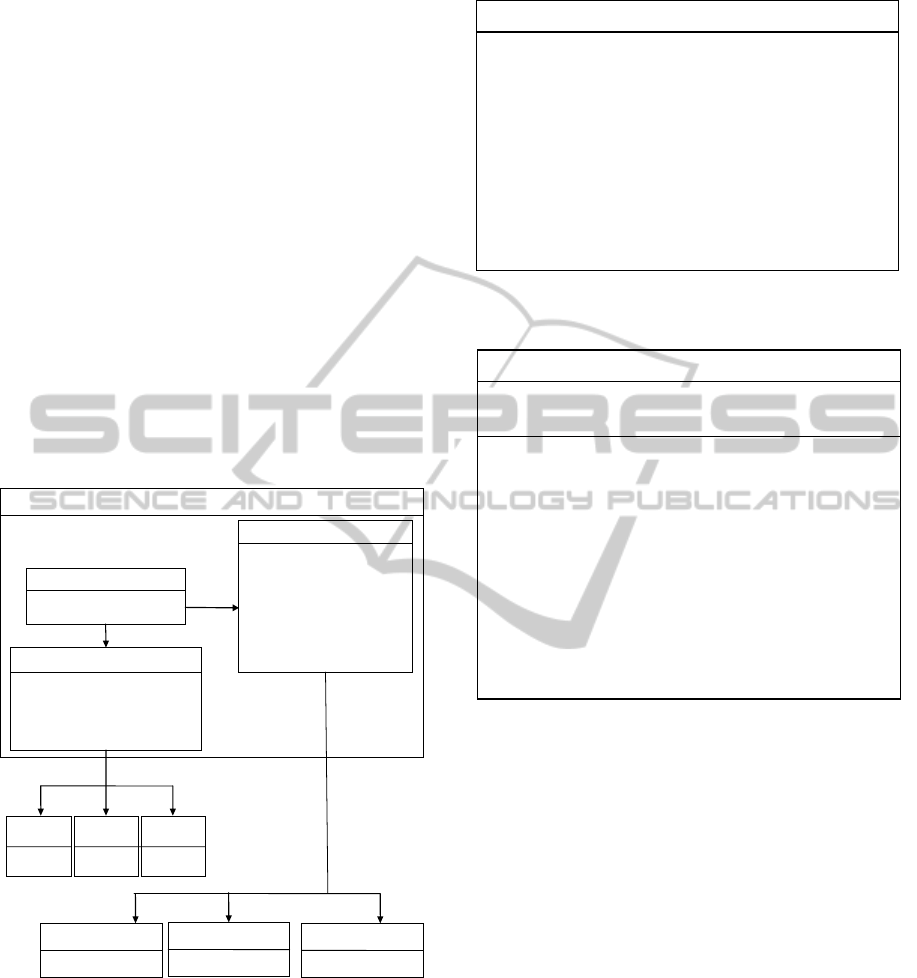

abstract domains can be integrated by implement-

ing the corresponding interfaces designed for the

abstract domains.

3. Types of Semantic Computations: Tukra can

perform three types of semantic computations:

statement relevancy, semantic data dependences

and conditional dependences in the abstract do-

main chosen before. Users are provided options

to choose either single or combination of multiple

types of semantic computations.

4. Slicing Criterion: A slicing criterion is com-

posed of two components: a program variable v

and a program point p. Observe that in Tukra,

slicing is performed based on the dependence

Program

ExtractInfo

FormMatrix

ComputeSemanticDep

GenTraceSemantics

GenCollectingSemantics

ComputeDCG

annotations

AbstractDomain

Refined Semantics-

based PDG

Syntactic PDG

Figure 1: Tukra’s architecture.

graphs. Therefore, v must be deﬁned or used at

3.1 Tukra’s Architecture

The slicing tool consists of packages for building and

reﬁning dependence graphs, as well as a parser that

translates the input program into an internal represen-

tations convenient for the future computations. We

identify the following key modules for Tukra:

1. ExtractInfo: The module “ExtractInfo” extracts

detail information about the input programs, i.e.

the type of program statements, the controlling

statements, the deﬁned variables, the used vari-

ables, etc for all statements in the program and

store them in a ﬁle as an intermediate representa-

tion.

2. FormMatrix: The module “FormMatrix” gen-

erates incidence matrix for Control Flow Graphs

(CFGs) and Program Dependence Graphs (PDGs)

of the input programs based on the information

extracted by the module “ExtractInfo”.

3. GenCollectingSemantics and GenTraceSeman-

tics: Given an abstract domain, these modules

compute the abstract collecting Semantics and ab-

stract trace semantics of the input programs based

on the information extracted by “ExtractInfo” and

the CFG generated by “FormMatrix”.

4. ComputeDCGannotations: This module com-

putes the DCG annotations (Reach Sequences and

Avoid Sequences) for all CDG and DDG edges of

the PDG based on the information extracted by

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

180

“ExtractInfo” and the PDG generated by “Form-

Matrix”.

5. ComputeSemanticDep: It computes statements

relevancy, semantic data dependences and condi-

tional dependences of the programs under all pos-

sible states reaching each program points of the

program (collecting semantics) and by computing

the satisﬁability of DCG annotations under its ab-

stract trace semantics.

The interaction between various modules mentioned

above is depicted in Figure 1. Observe that “FormMa-

trix” generates a syntactic PDG based on which we

can perform syntax-driven slicing w.r.t. a criterion,

whereas “ComputeSemanticDep” reﬁnes the syntac-

tic PDG into a semantics-based abstract PDG by com-

puting statement relevancy and semantic data depen-

dences under its abstract collecting semantics, and the

conditional dependences based on the satisﬁability of

DCG annotations under its abstract trace semantics.

interface AbstractElement

boolean isOperator();

boolean isValue();

Class AbstractComponent

interface AbstractOperator

String getOperator();

boolean isArithBinaryOperator();

boolean isArithUnaryOperator();

boolean isRelOperator();

boolean isBoolBinaryOperator();

boolean isBoolUnaryOperator();

boolean equals(AbstractOperator op);

void display();

interface AbstractValue

String[] getProperty();

boolean isBottom();

boolean isAtomicValue();

boolean equals(AbstractValue val);

void display();

extends

BoolValue

String val

SignValue

String Val

ParValue

String val

implements

AbstractArithOperator

String op

AbstractBoolOperator

String op

AbstractRelOperator

String op

implements

Figure 2: Designing abstract values and operators.

The design of abstract values, abstract operators,

abstract domains and abstract environments are de-

picted in Figures 2, 3 and 4 respectively. Any ab-

stract value such as sign value, parity value, boolean

value, and any abstract operator such as arithmetic,

relational, boolean operator implement the speciﬁ-

cations represented by the interfaces “AbstractEle-

ment”, “AbstractValue” and “AbstractOperator”. The

abstract domain implements the speciﬁcations repre-

interface AbstractDomain

AbstractValue getTop();

AbstractValue getBottom();

AbstractValue getLUB(AbstractValue[] list);

AbstractValue getGLB(AbstractValue[] list);

AbstractValue[] getAtoms(AbstractValue val);

AbstractValue[] getSubValues(AbstractValue val);

AbstractValue evaluate(AbstractArithOperator ArithUnaryOp, AbstractValue val);

AbstractValue evaluate(AbstractArithOperator ArithBinaryOp, AbstractValue val1, AbstractValue val2);

String evaluate(AbstractRelOperator RelOp, AbstractValue val1, AbstractValue val2);

AbstractValue evaluate(AbstractBoolOperator BoolUnaryOp, AbstractValue val);

AbstractValue evaluate(AbstractBoolOperator BoolBinaryOp, AbstractValue val1, AbstractValue val2);

void getAbstractExpressionList(String PostfixExpr, AbstractEnvironment absEnv, LinkedList ExprList);

Figure 3: Interface abstract domain.

class AbstractEnvironment

void setEnvironment(String[] ProgVars, AbstractValue[] val);

void setEnvironment(AbstractValue[] val);

String[] getVariables();

AbstractValue[] getEnvironment();

AbstractEnvironment getModifiedEnvironment(String Variable, AbstractValue newVal);

AbstractValue getVariableValue(String Variable);

AbstractEnvironment getRestrictedEnvironment(String[] ProgVars);

boolean equals(AbstractEnvironment obj);

void display();

AbstractEnvironment getLUB(AbstractEnvironment obj, AbstractDomain ADobj);

boolean isAtomicEnvironment();

LinkedList getAtomicCovering(AbstractDomain ADobj);

LinkedList getXAtomicCovering(String[] X_Vars, AbstractDomain ADobj);

LinkedList getXSubCovering(String[] X_Vars, AbstractDomain ADobj);

String[] vars;

AbstractValue[] env;

Figure 4: Class abstract environment.

sented by the interface “AbstractDomain”. The ab-

stract states at each program point in a program is de-

ﬁned by an abstract environment associated with the

corresponding program point. The abstract environ-

ment is deﬁned by the class “AbstractEnvironment”.

This design allows us to add any new abstract domain

to Tukra by implementing the interfaces correspond-

ing to the new abstract domain.

Tukra is implemented in Java. In Figures 5 and 6,

we show some of the snapshots of the system.

We executed Tukra on a PC running with

2.27GHz Processor, Windows 7 Professional 64-

bit Operating System and 4 GB RAM. Table 1(a)

depicts a test program. Tables 1(b), 1(c) and

1(d) depict syntax-based, semantic data dependence-

based (Mastroeni-Zanadini’s approach) and Cortesi-

Halder’s algorithm-based slicing of the test program

w.r.t. hL11, y, SIGNi.

Tukra:AnAbstractProgramSlicingTool

181

Table 1: A test program and its various slicing.

(a) A test program.

L1 i = −2;

L2 x =?;

L3 y =?;

L4 w =?;

L5 i f (x ≥ 0){

L6 x = x + w;

L7 y = 4 ∗ w ∗ 0; }

L8 while(i ≤ 0){

L9 y = y ∗ 2;

L10 i = i + 1; }

L11 print(x, y);

(b) Syntactic slicing w.r.t.

hL11, yi.

L1 i = −2;

L2 x =?;

L3 y =?;

L4 w =?;

L5 i f (x ≥ 0){

L7 y = 4 ∗ w ∗ 0; }

L8 while(i ≤ 0){

L9 y = y ∗ 2;

L10 i = i + 1; }

L11 print(x, y);

y, SIGNi (Mastroeni-

Zanadini).

L1 i = −2;

L2 x =?;

L3 y =?;

L5 i f (x ≥ 0){

L7 y = 4 ∗ w ∗ 0; }

L8 while(i ≤ 0){

L9 y = y ∗ 2;

L10 i = i + 1; }

L11 print(x, y);

(d) Slicing w.r.t. hL11, y,

SIGNi (Cortesi-Halder).

L1 i = −2;

L2 x =?;

L3 y =?;

L5 i f (x ≥ 0){

L7 y = 4 ∗ w ∗ 0; }

L8 while(i ≤ 0){

L10 i = i + 1; }

L11 print(x, y);

4 CONCLUSIONS

The sound, efﬁcient and effective theoretical support

behind Tukra may make it more attractive to the prac-

Figure 5: Syntactic slicing and PDG generation.

Figure 6: DCG-based slicing.

tical ﬁeld, as it is able to generate more precise slice

w.r.t. the literature. At present, Tukra can be re-

garded as a ﬁrst generation system, in that it is mainly

developed to support research. It is now in a prelimi-

nary stage and there are a lot of scopes to improve it

in terms of algorithmic efﬁciency and generality.

ACKNOWLEDGEMENTS

Work partially supported by RAS L.R. 7/2007 Project

TESLA.

REFERENCES

Agrawal, H. and Horgan, J. R. (1990). Dynamic program

slicing. In Proceedings of the ACM SIGPLAN Confer-

ence on Programming Language Design and Imple-

mentation (PLDI ’90), pages 246–256, White Plains,

New York. ACM Press.

Bhattacharya, S. (2011). Property Driven Program Slic-

ing and Watermarking in the Abstract Interpreta-

tion Framework. PhD thesis, Universit

a Ca’ Foscari

Venezia.

Binkley, D., Danicic, S., Gyim

othy, T., Harman, M., Kiss,

A., and Korel, B. (2006). A formalisation of the rela-

tionship between forms of program slicing. Science of

Computer Programming, 62(3):228–252.

Cortesi, A. and Halder, R. (2010). Dependence condition

graph for semantics-based abstract program slicing.

In Proceedings of the 10th International Workshop on

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

182

Language Descriptions Tools and Applications (LDTA

’10), pages 4:1–4:6, Paphos, Cyprus. ACM Press.

Horwitz, S., Reps, T., and Binkley, D. (1990). Inter-

procedural slicing using dependence graphs. ACM

Transactions on Programming Languages and Sys-

tems, 12(1):26–60.

Korel, B. and Laski, J. (1988). Dynamic program slicing.

Information Processing Letters, 29(3):155–163.

Mastroeni, I. and Nikolic, D. (2010). Abstract program

slicing: From theory towards an implementation. In

Proceedings of the 12th International Conference on

Formal Engineering Methods, pages 452–467, China.

Springer LNCS, Volume 6447.

Mastroeni, I. and Zanardini, D. (2008). Data dependencies

and program slicing: from syntax to abstract seman-

tics. In Proceedings of the ACM SIGPLAN symposium

on Partial evaluation and semantics-based program

manipulation, pages 125–134, San Francisco, Califor-

nia, USA. ACM Press.

Sarkar, V. (1991). Automatic partitioning of a program de-

pendence graph into parallel tasks. IBM Journal of

Research and Development, 35(5–6):779–804.

Seok Hong, H., Lee, I., and Sokolsky, O. (2005). Abstract

slicing: A new approach to program slicing based on

abstract interpretation and model checking. In Pro-

ceedings of the 5th International Workshop on Source

Code Analysis and Manipulation, pages 25–34, Hun-

gary. IEEE CS.

Sinha, S., Harrold, M. J., and Rothermel, G. (1999).

System-dependence-graph-based slicing of programs

with arbitrary interprocedural control ﬂow. In Pro-

ceedings of the 21st International Conference on Soft-

ware Engineering (ICSE ’99), pages 432–441, Los

Angeles, CA, USA. ACM Press.

Sukumaran, S., Sreenivas, A., and Metta, R. (2010). The

dependence condition graph: Precise conditions for

dependence between program points. Computer Lan-

guages, Systems & Structures, 36(1):96–121.

Weiser, M. (1984). Program slicing. IEEE Transactions on

Software Engineering, SE-10(4):352–357.

Zanardini, D. (2008). The semantics of abstract program

slicing. In Proceedings of the International Working

Conference on Source Code Analysis and Manipula-

tion, pages 89–100, Beijing, China. IEEE Press.

Tukra:AnAbstractProgramSlicingTool

183
