Collaborative Security Management Services for Port Information

Systems

Theodoros Ntouskas and Nineta Polemi

Department of Informatics, University of Piraeus, Karaoli & Dimitriou str 80, 18534 Piraeus, Greece

Keywords:

Security Management, Commercial Ports, Critical Infrastructures, Collaboration, S-Port project.

Abstract:

Ports Information and Communication Technology (PICT) systems offer critical services and host sensitive

data. However the current maritime legislation, standardization and technological efforts do not sufﬁciently

cover the PICT security. Identifying these needs, we propose the collaborative environment S-Port offering

security management services.

1 INTRODUCTION

Commercial ports play an important role in the Eu-

ropean trade and economy, since 52% of the Euro-

pean Union (EU) goods trafﬁc in 2010 was carried by

maritime transport and the 90% of EU external trade

take place through maritime sector (ENISA, 2011).

Additionally, they are among the transportation criti-

cal infrastructures (Transportation Security Adminis-

tration, 2007), (Brunner and Suter, 2008) since they

are large-scale infrastructures that their degradation,

interruption or impairment of their ICT Systems has

serious consequences on national security, health,

safety, economy and welfare of citizens and nations

characterized with multiplicity of interdependencies

between them and the other entities in the maritime

environment.

The normal functionality of any critical infrastruc-

ture such as the commercial ports depends largely on

the proper operation of their ICT systems. The large

amount of critical and sensitive data, the information

and services that are managed on a daily basis, the

large number of entities called to be served, and the

interdependencies with the other infrastructures re-

quire effective security management.

However the current maritime legislation or stan-

dardization efforts do not sufﬁciently cover the ICT

security of the commercial ports. In particular the

commercial ports are not treated as independent criti-

cal infrastructures hosting critical ICT systems inter-

acting with many entities and their security is not as-

sessed or managed in a holistic, effectivemanner. The

fact that ports are critical infrastructures raises spe-

ciﬁc threats (e.g. strikes, terrorist attacks, weather co-

nditions etc), that their identiﬁcations and impacts

(e.g. in national economy, national security, disrup-

tion of public order) are ignored yielding to inaccurate

risk evaluations.

The existing maritime security standards, method-

ologies and tools concentrate only on the physical

security of the ports (safety) especially in the ac-

cess control of the ports’ infrastructures in relation

to the safety of the ships. For example: the Inter-

national Maritime Organization (IMO) (International

Maritime Organization, 2011) has published a series

of directives that fall in two categories: SOLAS and

MARPOL. The SOLAS directivesfor the safety of the

ships, passengers and cargo and the MARPOL direc-

tives for the environmental (sea) protection. The 2002

IMO directive ISPS (International Ships and Port Fa-

cilities Security Code) that all commercial ports need

to be complied with, address mostly safety require-

ments for the ports including: Secure access, Audit,

Secure handling of cargo, Availability of telecommu-

nication infrastructure, Incident reporting, Creation of

security team Risk Assessment and Training. ISPS

does not address either cyber threats or security mea-

sures for the PICT systems.

Targeted methodologies for risk assessment of

ports like MSRAM (Maritime Security Risk Analy-

sis Model) (U.S. Department of Energy, 2002), (Adler

and Fuller, 2007) address only physical security and

they are compatible with the ISPS. Similarly the avail-

able maritime risk assessment systems like MARISA

(Balmat et al., 2009) concentrate on the safe naviga-

tion of ships during their presence in the port. The risk

assessment system CMA (Kang et al., 2009) detects

abnormal behavior of ships and identiﬁes respecting

305

Ntouskas T. and Polemi N..

Collaborative Security Management Services for Port Information Systems.

DOI: 10.5220/0004076503050308

In Proceedings of the International Conference on Data Communication Networking, e-Business and Optical Communication Systems (ICE-B-2012),

pages 305-308

ISBN: 978-989-8565-23-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

threats.

To conclude, the available maritime security man-

agement directives, methodologies and systems only

consider safety (physical security) and not security.

A holistic approach to security management of

the Ports Information and Communication Technol-

ogy (PICT) systems that the authors propose is

the creation/enhancement of maritime targeted secu-

rity management methodologies which are compliant

with the: ISPS code, modiﬁed ICT and CCIP security

management standards.

2 S- PORT: A NATIONAL

PROJECT

In the national S-PORT project (S-PORT Project,

2011) we have identiﬁed the above mentioned issues,

searched the previously mentioned efforts, identiﬁed

the PICT-security management needs with the guid-

ance of the involved national ports (Piraeus Port Au-

thority, Thessaloniki Port Authority, Municipal Port

Fund of Mykonos). S-PORT views the ports as

critical infrastructures and addresses the following

two main security management needs: The develop-

ment of a targeted security management collaborative

methodology for the PICT-systems based on IT se-

curity management standards and the ISPS code in-

volving all PICT users viewing the port infrastruc-

tures as critical infrastructures; The promotion of col-

laboration and interaction among PICT users in the

security management of the PICT-systems in an auto-

mated used friendly approach.

2.1 S-PORT Risk Management

Methodology for the PICT Systems

S-PORT-RM is the proposed Risk Management

methodology which is based on STORM-RM

(Ntouskas and Polemi, 2012), (Ntouskas et al.,

2011a). STORM-RM combines the Analytic Hierar-

chy Process (AHP) (Saaty, 2008) and security man-

agement standards ISO27001 (ISO/IEC 27001, 2005)

and AS/NZS 4360 (AS/NZS 4360, 1999) and has

been modiﬁed in order to address the speciﬁc needs

of PICT and the requirements of the ISPS code. The

basic goal of S-PORT-RM methodology is the col-

lection of knowledge and experience from all port’s

users (i.e. managers, administrators, security team,

local users, cooperate users) in order to evaluate the

impacts, threats, vulnerabilities and risks more accu-

rately.

In order to have the S-PORT-RM methodology

as service that will be provided by the S-PORT col-

laborative environment, each Phase of S-PORT-RM

methodology has been implemented as a distinct

module in the S-PORT environment.

2.2 S-PORT Collaborative Security

Management Environment

S-PORT environment is a parameterization of

the STORM security management environment

(Ntouskas et al., 2011b) addressing the speciﬁc needs

of PICT and involving all PICT users in the security

management procedures.

The overall architecture of the S-PORT collab-

orative environment is depicted in the above ﬁgure

(Fig. 1) and consists of four (4) main entities: the

S-PORT main Platform, the Middleware System, the

Identity & Access Management System (IAM) and the

Business Process Management System (BPM). The S-

PORT entities and their functionalities are described

in detail in the following paragraphs.

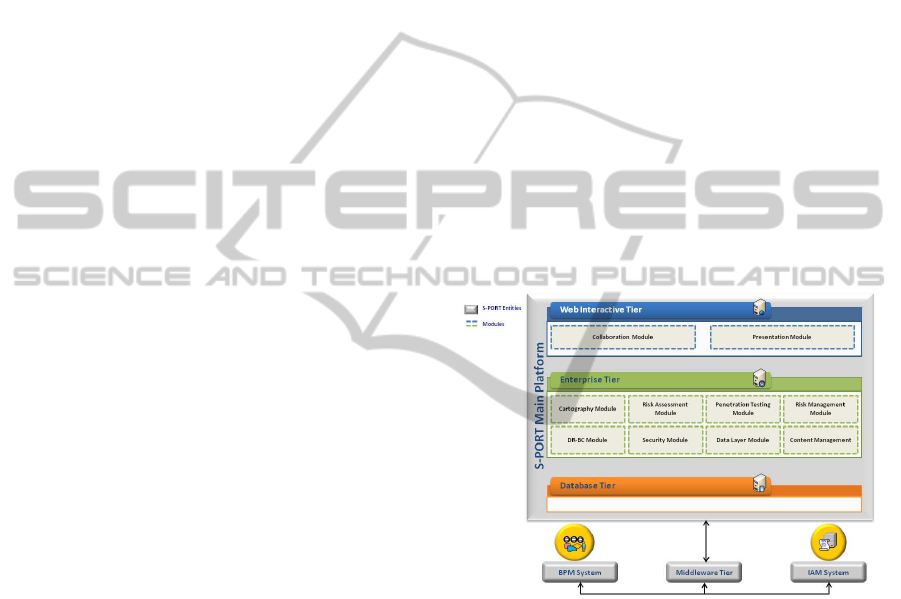

Figure 1: S-PORT collaborative environment - architecture.

More speciﬁcally, the S-PORT main Platform

consists of:

• The Web Interactive Tier which is based on Web

2.0 technologies and open source solutions (i.e.

Ajax forms, popup help menus, charts etc.), is re-

sponsible for the graphical and user-friendly rep-

resentation and also the provision of collabora-

tion among the S-PORT users. It is enriched

with the Collaboration Module (enhanced with

Forum, Wiki, Blog and Chat room) in order to

achieve the communication between all users and

also with the Presentation Module responsible for

the collection and representation of the assets and

the results of S-PORT-RM procedures with user-

friendly manner.

ICE-B2012-InternationalConferenceone-Business

306

• The Enterprise Tier which is composed by eight

(8) modules, is responsible for creating and han-

dling all S-PORT primary assets (e.g. cartogra-

phy assets, risk assessment assets, risk manage-

ment assets, S-PORT growing documents). The

ﬁrst module is the Content Management Module

which is responsible for creating, edit-ing, updat-

ing and publishing all S-PORT primary and pro-

cessed content in a consistent and structured way.

The main modules (Cartography, Risk Assess-

ment, Penetration Testing and Risk Management

modules) are responsible for the implementation

of the S-PORT-RM methodology and they handle

and calculate all the basic entities and results of

risk management procedures (i.e. impact / threat

/ vulnerability/risk values of all ICT assets). The

DR-BC Module communicates with Risk Assess-

ment and Risk Management modules in order to

provide the required functionality for the design,

creation and maintenance of Business Continuity

(BC) and Disaster Recovery (DR) plans, accord-

ing to the SPORT-RM results. The Security Mod-

ule provides the essential communicationbetween

the S-PORT main Platform and the Middleware

System in order to ensure the secure access of the

S-PORT content. Finally the Data Layer Module

contains all the necessary functionalities and re-

quired mechanisms in order to achieve the com-

munication and inter-connection among all the

modules of the Enterprise Tier with the Database

Tier.

• the Database Tier hosts all S-PORT assets (such

as ICT assets, impact categories, possible threats,

vulnerabilities etc.) with their attributes and spe-

ciﬁc characteristics.

The second S-PORT entity is the Business Pro-

cess Management System (BPMS), which undertakes

the accountability to identify and depict the business

procedures of critical e-services of PICT, in order to

have graphical representation of them and their pri-

mary assets. BPMS communicates through Middle-

ware System with the Cartography module in order

to have the asset identiﬁcation and asset interconnec-

tions reporting.

The IAM System is responsible for the identity

and access management, incorporates security mech-

anisms and policies that enhance the S-PORT envi-

ronment with proper authentication and authorization

properties enclosing end-user’s preferences and re-

quirements. Based on the above security procedures,

different S-PORT user roles (i.e. administrators, man-

agers, security team, internal, external users of ports)

have access to speciﬁc S-PORT services according to

their business role and requirements.

The ﬁnal S-PORT entity is the Middleware Sys-

tem (an enterprise service bus - ESB) which is a

lightweight messaging framework, ensuring that the

different S-PORT entities, Main Platform, IAM Sys-

tem and BPM System, communicate through a com-

mon channel and the information exchanged is accu-

rate and in standardised format. Additionally, the use

of the Middleware System enables upgrading / expan-

sion or interconnection to any external entity (service

or system) if deemed necessary by future upgrades of

the environment S-PORT.

S-PORT environment offers a bundle of targeted

services to the PICT users in order to guide them to

securely manage their PICT, according to the PDCA

model (i.e. Plan -establish the ISMS, Do - implement

and operate the ISMS, Check - monitor and review

the ISMS, Act - maintain and improve the ISMS) of

the ISO27001 security standard for the design, im-

plementation and monitoring an Information Security

Management System (ISMS).

Speciﬁcally the Risk Assessment Services which

consist of the S-PORT-RM Phases responsible for the

Risk Assessment (i.e. Cartography, Impact Assess-

ment, Threat Assessment, Vulnerability Assessment,

Risk Evaluation Phases) will help PICT users to iden-

tify and evaluate the impacts, threats and vulnerabili-

ties of their IT assets. Each of the above Risk Assess-

ment service are conformed with the ISO27001and

guide PICT users to: identify the values of assets and

their owners, identify users and responsibilities, iden-

tify the threats and vulnerabilities to the IT assets,

evaluate business impacts taking into account the con-

sequences in case of loss of Conﬁdentiality, Integrity

or Availability, estimate the risk level, assess the like-

lihood of a threat, esti-mate the risks level of each It

asset, deﬁne the criteria accepting risks.

In addition with these services the Practical Vul-

nerability Assessment Service will help them to iden-

tify the practical vulnerabilities with the use of appro-

priate tools. There exists a pool of different penetra-

tion testing tools appropriate for each asset in order to

ﬁnd their vulnerabilities.

Furthermore the PICT users will be able to select

the appropriate control / countermeasure according to

the S-PORT-RM algorithm in order to protect their IT

assets (with the use of the Risk Management Service)

ensuring that all security requirements are met.

More speciﬁcally with the use of the Security Pol-

icy / BCP Service, the PICT users will be able to de-

sign and keep updated the security policy, business

continuity plan and all the necessary documented pro-

cedures (i.e. control of documents, control of records,

internal audits, corrective actions, preventive actions)

of their Information System.

CollaborativeSecurityManagementServicesforPortInformationSystems

307

Finally, the Collaborative Services (Forum, wiki,

Chat Rooms, Blog, Document Library) are responsi-

ble for the communication of the users in order to ﬁnd

details about the risk assessment/management proce-

dures, discuss about security issues, ﬁnd solutions

about daily IT problems, report a security incident,

provide training and awareness programmes in order

to all PICT user are aware of the Security policy and

procedures.

3 CONCLUSIONS

The fact that commercial ports are critical infrastruc-

tures and their Information Systems offer critical ser-

vices and host sensitive data, makes security manage-

ment a necessary concern for their business continuity

and productivity. A holistic approach to security man-

agement of the PICT systems that the authors pro-

pose is the creation/enhancementof maritime targeted

security management methodologies, compliant with

the: ISPS code, modiﬁed ICT and CCIP security man-

agement standards.

In this context, S-Port environment is expected to

become a prototype of the next generation, collabo-

rative, Security Managements Systems, being capa-

ble of providing high levels of conﬁdentiality, relia-

bility, interactivity and interoperability, for the crit-

ical infrastructures of the commercial ports imple-

menting a targeted security management methodol-

ogy compliant with the ISPS and ISO27001. In ad-

dition, S-Port services hosted in the S-PORT envi-

ronment guide PICT users to identify impacts, threats

and vulnerabilities, ﬁnd the appropriate countermea-

sures and maximize ports’ operations efﬁciency and

productivity.

ACKNOWLEDGEMENTS

The authors would like to thank the GSRT (General

Secretariat for Research and Technology Develop-

ment Department) for funding the S-Port project and

the S-Port partners for their contribution. Also the

authors would like to thank ENISA for organising the

Workshop on Cyber Security Aspects in the Maritime

Sector.

REFERENCES

Adler, R. and Fuller, J. (2007). An integrated framework

for assessing and mitigating risks to maritime critical

infrastructure. In IEEE Conference on Technologies

for Homeland Security, pages 252–257.

AS/NZS 4360 (1999). Risk management standards aus-

tralia.

Balmat, J., Lafont, F., Maifret, R., and Pessel, N. (2009).

MAritime RISk Assessment (MARISA), a fuzzy ap-

proach to deﬁne an individual ship risk factor. In

Ocean Engineering, volume 36, pages 1278–1286.

Brunner, E. and Suter, M. (2008). International CIIP Hand-

book 2008/2009: An Inventory of 25 National and

7 International Critical Infrastructure Protection Poli-

cies. Technical report, Center for Security Studies,

ETH Zurich, Switzerland.

ENISA (2011). workshop on cyber security as-

pects in the maritime sector. available at

http://www.enisa.europa.eu/act/res/workshops-

1/2011/cyber-security-aspects-in-the-maritime-sector.

International Maritime Organization (Accessed

at 7 December 2011). available at

http://www.imo.org/Pages/home.aspx.

ISO/IEC 27001 (2005). Information technology - security

techniques - information security management system

- requirements. http://www.iso.org.

Kang, M., Li, M., Montrose, B., Khashnobish, A., Elliott,

S., Bell, M., and Pieper, S. (2009). Overview of the

security architecture of the comprehensive maritime

awareness system. In Military Communications Con-

ference (MILCOM 2009), pages 1–7. IEEE.

Ntouskas, T., Kotzanikolaou, P., and Polemi, N. (2011a).

Impact Assessment through Collaborative Asset Mod-

eling: The STORM-RM approach. In 1st Interna-

tional Symposium & 10th Balkan Conference on Op-

erational Research (to appear), Thessaloniki, Greece.

Ntouskas, T., Pentafronimos, G., and Papastergiou, S.

(2011b). Storm - collaborative security management

environment. In Ardagna, C. and Zhou, J., editors,

WISTP 2011, pages 320–335. LNCS 6633.

Ntouskas, T. and Polemi, N. (2012). STORM-RM: A col-

laborative and multicriteria risk management method-

ology. In Int. J. Multicriteria Decision Making (IJM-

CDM). Inderscience Publishers (to appear).

S-PORT Project (2011). available at http://s-port.unipi.gr/.

Saaty, T. L. (2008). Decision making with the analytic hi-

erarchy process. In Int. J. Service Sciences, volume 1,

pages 83–98.

Transportation Security Administration (2007). Critical in-

frastructure and key resources sector-specifc plan as

input to the national infrastructure protection plan.

Technical report, Dept. of Homeland Security, USA.

U.S. Department of Energy (2002). Resource Hand-

book on DOE Transportation Risk Assessment. Re-

port DOE/EM/NTP/HB-01. Technical report, Na-

tional Transportation Program, Ofﬁce of Environmen-

tal Management, USA.

ICE-B2012-InternationalConferenceone-Business

308
