iSATS: Leveraging Identity based Sender Authentication for Spam

Mitigation

Suﬁan Hameed, Tobias Kloht and Xiaoming Fu

Computer Network Group, University of G¨ottingen, G¨ottingen, Germany

Keywords:

Email Sender Authentication, Spam Prevention, Identity based Cryptography.

Abstract:

A vast majority of spam emails today are sent from botnets with forged sender addresses. This has attracted

researchers over the years to develop email sender authentication mechanism as a promising way to verify

identity of the senders. In this paper we introduce iSATS, a new email sender authentication system based

on Identity-based public key cryptography. iSATS leverages an identity based signature scheme to provide

a reliable and easy way to bind the identity of legitimate sender to an email. Unlike the popular existing

solutions like SPF and DKIM, it is hard for the spammer to adopt iSATS.

1 INTRODUCTION

Spam is still a largely unsolved problem that has out-

numbered legitimate emails with big scores. Spam

has already reached around 89.1% of total emails

(Pingdom, 2011) i.e. 262 billion spam emails/day,

increasing from 65% (MessageLabs, 2005) in 2005

and it is projected to cost $338 billion by 2013 (Red-

Condor, 2011). Email infrastructure was originally

not designed to verify the authenticity of a sender

address/identity. This weakness is greatly exploited

by zombie networks or botnets to send spam/phishing

messages with forged addresses. It is well-known fact

that the majority of spam messages today - 88.2%

(Symantec, 2010) of the total spam according to some

estimates - are sent by botnets using forged addresses.

Email sender authentication mechanisms enable

receivers to automatically distinguish forgeries from

authentic messages. Over the years several sender

authentication protocols have been proposed, out of

which Sender Policy Framework (SPF) and Domain

Keys Identiﬁed Mail (DKIM) are the most adopted

ones.

SPF (Wong and Schlitt, 2006) is an IP-based

sender authentication scheme that operates on SMTP

envelope (MAIL FROM) to block forgeries at SMTP

time. SPF allows the domain administrators to pub-

lish the IPs or range of IPs for their valid server(s) on

DNS in simple text format referred to as SPF record.

When the email exchange begins, the receiving side

can query the DNS for sender’s SPF record to validate

if sender’s IP is listed in the address range speciﬁed

by the sender’s domain. According to (Mori et al.,

2011), SPF is the most adopted sender authentication

scheme and over 60% of the prominent domains have

published their SPF record as of July 2011. However,

due to its simplicity, SPF is also easily adopted by

spammers. According to (Mori et al., 2011) 20+% of

spamming domains have already adopted SPF. If the

majority of spamming domains will adopt SPF over

time, SPF would become useless. (Mori et al., 2011)

also show that signiﬁcant amount of spams are suc-

cessfully authenticated by SPF and on the other hand

around 5+% of legitimate messages can potentially

fail SPF tests. Message forwarding is also a limitation

for IP-based SPF. Unless the return path is edited dur-

ing forwarding, the receiver will treat the message as

forgery for not coming directly from its listed sender.

DKIM (Allman et al., 2007) signs the email head-

ers and body using public-key cryptography, and ap-

pend the signature in a DomainKey-Signature header.

The signature keys are bind to a domain name and the

domain admins publish the public-key in the DNS.

The receiver can query the DNS to extract the public-

key of the sender and verify the signature. A suc-

cessful veriﬁcation implicates that the message con-

tent was not forged during the transmission and the

message is actually from the sender responsible for it.

In DKIM, the signature can only be evaluated af-

ter the entire message content is received, thus, it is

not possible to reject spam at earlier stages or during

SMTP time. DKIM is prone to content munging and

if the message content is altered during transit, DKIM

will fail. DKIM cannot evaluate the trustworthiness

408

Hameed S., Kloht T. and Fu X..

iSATS: Leveraging Identity based Sender Authentication for Spam Mitigation.

DOI: 10.5220/0004078404080411

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 408-411

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

of a sender and the spammers can also adopt it to sign

their own messages. However, (Taylor, 2006) shows

that only 2% of spam received are authenticated by

DKIM, which is signiﬁcantly less than the spam au-

thenticated by SPF.

In iSATS, we introduce a new email sender authen-

tication system that is based on identity based public

key cryptography (IBC) (Shamir, 1985). With IBC

a private key generator (PKG) or a trusted authority

(TA) is responsible for generating a secret key (SK)

against the identity of the domain used as public key

i.e. the TA is also responsible to thoroughly verify the

identity of a domain before issuing SK. This veriﬁca-

tion strongly binds the identity of the domain owner

to its domain and makes it hard for the spammer to

adopt iSATS, unless they are willing to give away their

identity.

iSATS requires the sender’s Mail Transfer Agent

(MTA) to generate a signature using SK of the do-

main and append it along with SMTP envelop (MAIL

FROM). This enables the recipient’s MTA to quickly

authenticate the sender by verifying the appended sig-

nature. Any invalid connection is terminated right

away, saving valuable resources both at the MTA and

in the network. Finally, email forwarding and mung-

ing of message along the transit is not a problem in

iSATS.

2 iSATS DESIGN

iSATS is a crypto-based email sender authentication

system that operates on the SMTP envelop, in par-

ticular on MAIL FROM command, to perform do-

main level authentication during the SMTP time.

iSATS leverages identity based signature (IBS) using

identity-based public key cryptography (IBC) (Cocks,

2001; Boneh and Franklin, 2001) to authenticate the

identity of an email sender. Compared to tradi-

tional public key cryptography, IBC saves the burden

of managing and distributing the public keys, since

publicly available unique identities are used as pub-

lic keys. iSATS requires establishment of a trusted

authority (TA) also known as private key generator

(PKG), responsible for issuing secret key (SK) and

system parameters. The TA is also responsible to ver-

ify the identity of a domain before issuing the SK.

2.1 Basic Requirement

At the outset, we seek a solution that works well with

the current, entrenched system. This means that the

system should:

• Work as an optional addition to standard

mail clients or servers, and continue to sup-

port popular means of accessing mail (e.g.

IMAP/POP/Webmail).

• Be incrementally deployable.

• Remains transparent to end users.

The functionality of iSATS can be divided into four

steps: 1) setup, 2) identity veriﬁcation and secret key

extraction, 3) signature generation and 4) signature

veriﬁcation, discussed in the upcoming sections.

2.2 Setup

This step is executed once in the beginning and marks

the creation of a whole IBC environment by a TA. The

setup results in generation of Master Key and System

Parameters. Master key is kept secret by the TA and it

is used to generate SK for the domain based on their

identity. System parameters are publicly available.

2.3 Identity Veriﬁcation and Secret Key

Extraction

This step is initiated when any domain wants to be-

come part of iSATS and requests a SK (see Figure 1).

iSATS represents a closed system, in a sense that do-

mains are not automatically added to the system but

the TA veriﬁes their identity ﬁrst. iSATS is envi-

sioned to provide extended validation of the domain’s

identity. Identity veriﬁcation with Extended Valida-

tion (EVC, 2009) provides high-security information

to clearly identify a domain’s organizational identity.

This will help bind the owner’s identity to the iden-

tity of the domain and will make misbehaving do-

mains visible. Most well-known webmail providers

and websites tend to have SSL certiﬁcates with ex-

tended veriﬁcation, so this requirement is not exces-

sive.

After identity veriﬁcation, the TA will issue sys-

tem parameters and a SK corresponding to the do-

main name which is also its identity. This meets the

requirements of the system, as the domain name is a

unique identity for the domain and is publicly avail-

able to all parties.

2.4 Signature Generation

This step is executed when a user wishes to send

an email. The MTA will generate a signature

on the sending user’s email address (e.g. al-

ice@example.com) using the SK and system param-

eters of the domain. After doing this, the signature is

appended to MAIL FROM command as an additional

iSATS:LeveragingIdentitybasedSenderAuthenticationforSpamMitigation

409

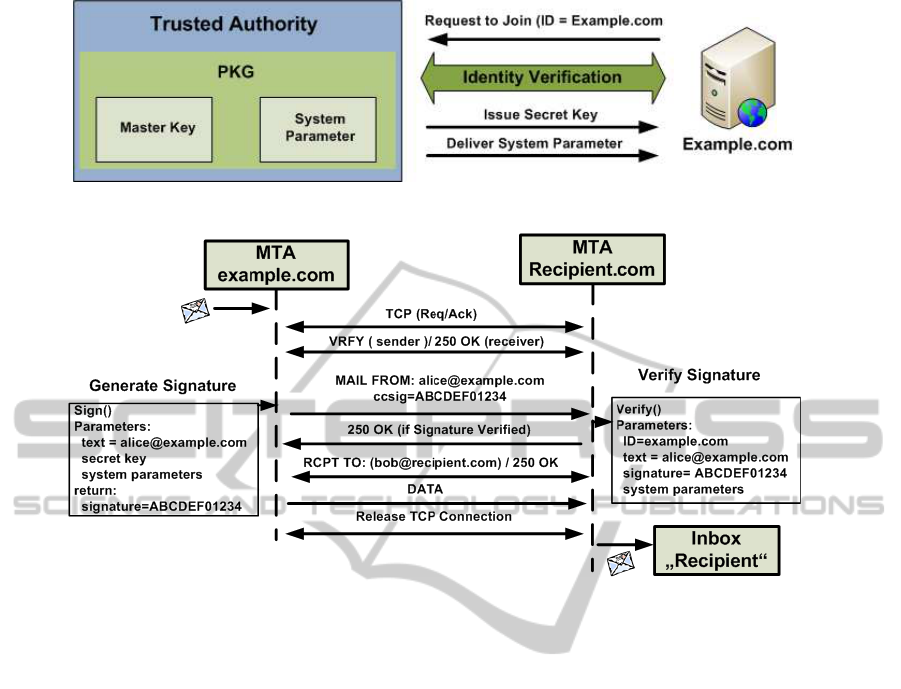

Figure 1: The process of domain joining iSATS.

Figure 2: Email Processing with iSATS.

parameter (see Figure 2). The use of additional pa-

rameters in MAIL FROM is allowed and in line with

the current SMTP speciﬁcations (Klensin, 2008).

2.5 Signature Veriﬁcation

On receivingthe MAIL FROM command, the MTA on

the receiving side will verify the signature. For veriﬁ-

cation the MTA will use the public system parameters,

signature (extracted from MAIL FROM), signed text

i.e. sending users email address from MAIL FROM

and the domain name of the sender as the public key

(see Figure 2). The entire veriﬁcation process is com-

pleted before replying to MAIL FROM, which give

recipients the option to reject the message before its

content is sent.

2.6 Discussion

2.6.1 Email Forwarding

In email forwarding, it is a common practice not

to change the return path or MAIL FROM message

envelop. This is an Achilles heel in IP-based SPF

(Wong, 2005), but for iSATS message forwarding is

not a problem as long as MAIL FROM command re-

mains intact.

2.6.2 Message Munging

iSATS does not operate on the content of an email.

If the content of the message is altered during transit

by a mailing list (which is a common practice) it will

have no effect on iSATS, unlike DKIM (Wong, 2005).

2.6.3 Security of TA

In iSATS, the security of the TA is very crucial and if

an attacker is able to obtain the TA’s master key, he

would be able to issue SKs and generate valid signa-

tures. It is synonymous to securing any Certiﬁcation

Authority (like VeriSign) for the legitimacy of the is-

sued certiﬁcates. In order to secure central TA, Boneh

and Franklin (Boneh and Franklin, 2001) introduce a

concept for distributing the TA (PKG) in such a man-

ner that the master key is distributed over a set of

nodes, so that each node has no information over the

key itself. Domains can extract their SK by obtaining

partial keys from a subset of these nodes, where the

subset must be bigger than a certain threshold. This

kind of distribution will also help in minimizing the

effect of DDoS attacks, which is still an open prob-

lem. Further discussion of the security of the TA is

beyond the scope of this paper and we will consider it

as part of future work.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

410

2.6.4 Attack on Secret Key of Domain

Protection of SK is the responsibility of the MTA or

Domain. Attacks related to key thefts are synony-

mous to hacking the domain and the corresponding

defense mechanisms are beyond the scope of this pa-

per. Hence we have left the discussion on key theft

and revocation mechanisms as future work.

2.6.5 Signature Reuse or Misuse

In order to avoid reuse or misuse of signature by

a potential attacker we recommend using a unique

signature for each message. This can be done eas-

ily by using a nonce (a unique number used only

once) and instead of just signing the sender’s email

id the MTA can sign email ID + nonce. The

nonce can be composed of time stamp value, mes-

sage ID or a combination of both. With this the

new MAIL FROM will be something like this, MAIL

FROM: <alice@example.com>, ccsig = Sign ( al-

ice@example.com + nonce ), nonce.

2.6.6 Sender Reputation

Email sender authentication systems only authenti-

cate the identity of the email senders at the domain

level. For the legitimacy of the domain it is recom-

mended that each domain maintain local reputation

for the domains sending emails. As part of future

work, sender reputation can also be centralized at the

TA level, based on the feedback of individual legiti-

mate domains.

Nowadays, it is also a common practice in legit-

imate domains, ISPs and major web-mail providers

to run bot detectors against non-human automatic ac-

count creation and impose an email sending limit be-

tween 100 to 1000 recipients/day (EmailLimit, 2010).

3 CONCLUSIONS

We introduce iSATS, a new email sender authentica-

tion system that leverages identity based signatures

for stronger sender authenticity than existing solu-

tions. With the help of a trusted authority, iSATS

forms a closed system that provides a reliable and

easy way to bind the identity of a legitimate sender to

an email. On the other hand, it is hard for the spam-

mer to adopt the system without getting noticed. Fur-

ther, iSATS operates on email envelope, speciﬁcally

on MAIL FROM command, which makes it easy to

reject spam before receiving the actual content.

REFERENCES

Allman, E., Callas, J., Delany, M., Libbey, M., Fenton, J.,

and Thomas, M. (2007). Domainkeys identiﬁed mail

(dkim). RFC 4871.

Boneh, D. and Franklin, M. (2001). Identity-based encryp-

tion from the weil pairing. In Advances in Cryptology

- CRYPTO 2001, Lecture Notes in Computer Science,

pages 213–229. Springer Berlin / Heidelberg.

Cocks, C. (2001). An identity based encryption scheme

based on quadratic residues. In Cryptography and

Coding, Lecture Notes in Computer Science, pages

360–363. Springer Berlin / Heidelberg.

EmailLimit (2010). Email address limit in webmail

by providers. http://www.emailaddressmanager.com/

tips/email-address-limit.html.

EVC (2009). Guidelines for the issuance and management

of extended validation certiﬁcates. CA/Browser Fo-

rum Version 1.2.

Klensin, J. (2008). Simple mail transfer protocol. The In-

ternet Society, RFC 5321.

MessageLabs (2005). Messagelabs intelligence

report: Spam intercepts timeline. http://

www.messagelabs.co.uk/.

Mori, T., Sato, K., Takahashi, Y., and Ishibashi, K. (2011).

How is e-mail sender authentication used and mis-

used? In Proceedings of CEAS ’11.

Pingdom (2011). Internet 2010 in numbers. http://royal.

pingdom.com/2011/01/12/internet-2010-in-numbers/.

RedCondor (2011). Tracking the high cost of spam. http://

www.redcondor.com/company/.

Shamir, A. (1985). Identity-based cryptosystems and signa-

ture schemes. In Advances in cryptology, pages 47–

53. Springer.

Symantec (2010). 2010 annual security report.

Taylor, B. (2006). Sender reputation in a large webmail

service. In CEAS.

Wong, M. and Schlitt, W. (2006). Sender policy framework

(spf). RFC 4408.

Wong, M. W. (2005). Sender authentication: What to do.

http://spf.pobox.com/whitepaper.pdf.

iSATS:LeveragingIdentitybasedSenderAuthenticationforSpamMitigation

411
