Enterprise Ontology Driven Software Engineering

Steven J. H. van Kervel

, Jan L. G. Dietz

, John Hintzen

, Tycho van Meeuwen

and Bob Zijlstra

Delft University of Technology, Delft, The Netherlands

Formetis Consultants BV, Hemelrijk 12 C, Boxtel, The Netherlands

Keywords: Model Driven Software Engineering, Enterprise Ontology, Demo, Adaptive Case Management Systems.

Abstract: Model Driven Engineering (MDE) has been with us for quite some time, the most well known MDE

approach being OMG’s Model Driven Architecture. Current MDE approaches suffer from two major

shortcomings. First, they are unable to deliver domain models that comprise all functional requirements.

Second, the models to be produced during the system development process, are not formally defined. One

of the theoretical pillars of Enterprise Engineering (EE) is the Generic System Development Process

(GSDP). It distinguishes between the using system and the object system, and it states that any software

development process should start from the ontological construction model of the using system. In addition,

EE’s systemic notion of Enterprise Ontology provides us with a formalized ontological model of an

organization that satisfies the C4E quality criteria (Coherent, Consistent, Comprehensive, Concise, and

Essential). An operational application software generator is presented that takes this ontological model,

with some extensions, as source code input and executes the model as a professional software application.

Changes in the software, as required by any agile enterprise, are brought about ‘on the fly’, through re-

generation, based on the modified ontological model of the enterprise’s organization.

1 INTRODUCTION

In this paper, the scope of interest is enterprises;

cooperatives of human beings for delivering

valuable results to other human beings, and their

supporting IT systems. Enterprises are social

systems, i.e. the elements are social individuals

(human beings). The operating principle of

enterprises is that these individuals, commonly

called actors, make commitments and communicate

regarding the bringing about of products for the

benefits of actors in the environment of the

enterprise. This notion of enterprises is based on the

theory of enterprise ontology (Dietz, 2006).

Enterprise ontology is a “formal, explicit

specification of a conceptualization shared between

stakeholders” (Gruber, 1993). It provides a shared

vocabulary represented as a set (of limited size) of

symbols of objects, used to model enterprises.

Enterprise ontology is also an ontology with

empirical evidence of a high degree of ontological

appropriate and truthfulness (Mulder, 2008), notions

that are describes by Guizzardi (2005).

Enterprise Information systems (EIS) are those

information systems that support the operation of an

enterprise. There are other information systems in

organizations that are not an EIS, for example

accounting systems, CRM systems, etc.

Current state of the art engineering

methodologies that should result into high quality IT

systems, fail too often. We focus on three major

problems but ignore management, political and

strategic problem sources.

The first problem is the mismatch between the

specified functionality of IT systems and the

expectations of the stakeholders; a lack of business-

IT alignment [ITGI]. Empirical evidence of the

Standish Group (2009), Tata and others confirms

this. We are obviously unable to produce high

quality IT system functional specifications.

The second problem is that IT projects do not

deliver IT systems within controllable financial

budgets and resources (Sauer and Cuthbertson,

2003). Delivered software components need often

overhaul cycles and programming is too demanding.

The third problem is that the costs of

maintaining IT systems grow exponentially over

time (Lehman, 1985). This problem is clarified and

addressed by the theory of Normalized Systems

(Mannaert and Verelst, 2008).

205

J. H. van Kervel S., L. G. Dietz J., Hintzen J., van Meeuwen T. and Zijlstra B..

Enterprise Ontology Driven Software Engineering.

DOI: 10.5220/0004080902050210

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 205-210

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ontology

reverse engineering

engineering

using system

construction

o b j e c t s y s t e m

construction

o b j e c t

system

function

f u n c t i o n a l

p r i n c i p l e s

a r c h i t e c t u r e

construction

d e s i g n

function

d e s i g n

f u n c t i o n a l

requirements

constructional

requirements

t e c h n o l o g y

constructional

p r i n c i p l e s

implementation

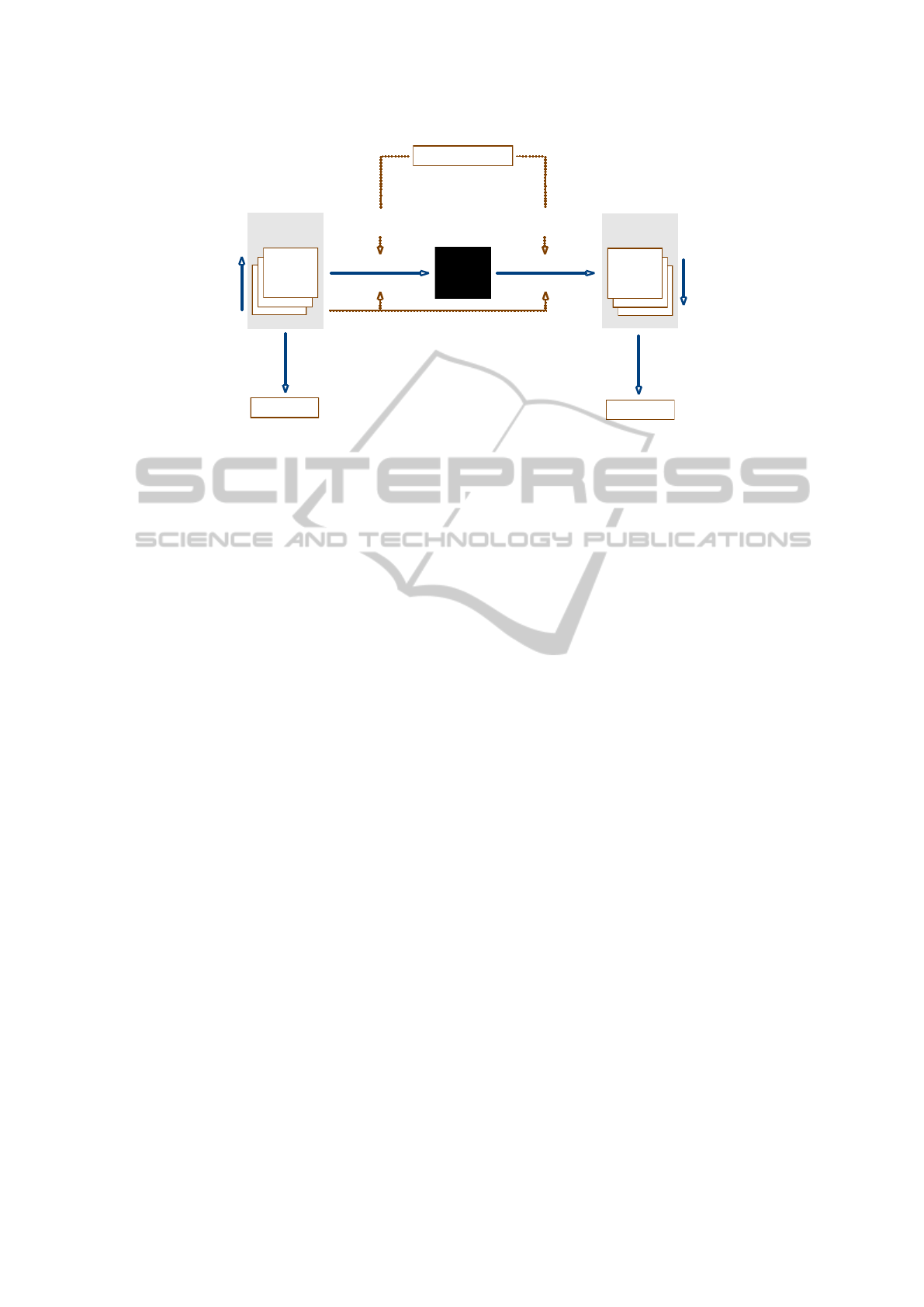

Figure 1: The generic System Development Process (GSDP).

If software engineers are provided with high

quality specifications, they are usually able to

construct high quality software systems for complex

domains, for example GPS systems, cell phone

systems and the Internet. EIS specifications

apparently lack quality. Consequently, programmers

have to take design and implementation decisions

they should not take because they are not qualified

to do this. There is unwanted design freedom and

ambiguity.

In general, EIS specifications lack

comprehensiveness: “everything” that should be

included must be there. Other shortcomings are

irrelevant information or lacking conciseness;

hidden anomalies and inconsistencies or lacking

consistency; and specifications that do not match

semantically, lacking coherence. Programmers need

software specifications matching the four quality

criteria, comprehensiveness, conciseness,

consistency and coherence (C4-ness) to deliver high

quality IT systems.

2 SOFTWARE ENGINEERING

PROBLEMS AND

CHALLENGES

As a framework for discussing the problems

mentioned above, we adopt the Generic Systems

Development Process (GSDP) (Dietz, 2008). The

GSDP is a generic model for developing any kind of

artifact. It comprises all basic steps that need to be

taken in a development process. The GSDP supports

two distinctive perspectives on systems, the

construction perspective and design principles,

represented by white box models, and the function

perspective and design principles, represented by

black box models. This is especially important for

software engineering.

Fig. 1 exhibits the basic steps in a system

development process. The starting point is the need

by some system, called the using system (US), of a

supporting system, called the object system (OS). By

nature, this need stems from the construction of the

US, so one starts with a white-box model of the US.

Ideally, this starting model is a purely ontological

model of the US. This includes that the model is an

instance of an appropriate metamodel, and that it is

fully implementation independent. The first

development step is function design, resulting in the

functional specifications of the OS. By nature, these

specifications constitute a black-box model of the

OS, expressed in ‘the language’ of the US, i.e. in

terms of the construction and operation of the US.

We consider them to include the so-called non-

functional requirements, regarding various

performance and quality aspects.

The next step is construction design, resulting in

the constructional model of the OS. It can usefully

be divided into ontological design and

implementation design (engineering in Fig. 1). By

the ontological design we mean the highest level

white-box model of the OS; ideally it is purely

ontological, meaning that it does not contain

implementation choices.

A thorough analysis of this white-box model must

guarantee that building the OS is feasible, given the

available technology. There is the important

recognition that designing is an iterative process,

which is, however, not indicated in the figure. The

end result of a design process is a balanced

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

206

compromise between (reasonable) requirements and

(feasible) specifications. Regarding IT systems, this

model is the source code of the system. This

understanding of engineering is fully compliant with

MDE. Both function design and construction design

are ‘fed’ by requirements and principles.

An important advantage of applying ontological

models, both of the US and of the OS, is that these

models possess C4-ness quality. An ontological

specification that is completely implementation

independent may be used at an early stage for

validation and assessment. This helps to avoid

expensive re-implementation cycles.

3 ONTOLOGY BASED MODEL

DRIVEN ENGINEERING

Model driven engineering (MDE) (OMG, 2001) is

generally considered to address the problems we

have discussed above. In MDE, software is

developed in a series of model transformations. The

process starts from the functional specifications and

ends with the ‘source code’ in some formal

language. However, a major cause of problems is

still present. Projected on the GSDP, MDE proceeds

in three phases: function design, construction

design, and implementation design (engineering in

Fig. 1). Each of these phases is prone to errors.

Regarding the first one, it means that the functional

specifications (the black-box model of the OS) are

different from the user expectations. Regarding the

second phase, it means that the ontological

construction specifications do not fully match the

functional specifications. Regarding the third phase,

it means that the resulting implementation model

does not fully match the ontological model of the

OS. Another major cause of failures in applying

MDE seems to be the lack of rigor in (formally)

defining the distinct kinds of models, including the

ignorance of the fundamental differences between

functional and constructional models. One cannot

just ‘transform’ a functional model into a

constructional one.

In the MDE approach we propose, these

drawbacks are excluded. This is achieved first by

noting that any complete and correct implementation

of the ontological model of a US, makes the US

‘alive’, once put into operation. Therefore we will

consider any EIS, which is completely supporting

some enterprise, as a possible implementation of the

ontological model of the enterprise. By this,

obviously correct, observation, we actually make the

ontological model of the OS (our EIS) isomorphic to

the ontological model of the US (the enterprise).

Informally stated: everything in the US ontology

exists also in the OS ontology, and everything in the

OS ontology exists also in the US ontology.

By doing this, we skip the function design phase

and the construction design phase.

Second, we consider the operating EIS as a real-

time simulation of its ontological model. By doing

this, we skip the engineering phase (implementation

design) in the GSDP. For the MDE approach we

have in mind, it means that we need a software

system that executes ontological enterprise models.

We call this system the DEMO processor.

Concluding, we have fully addressed the first major

cause of problems in applying MDE, as discussed

above.

The second major cause (the lack of

formalization) is also fully eliminated, by basing our

MDE approach on the quality criteria as developed

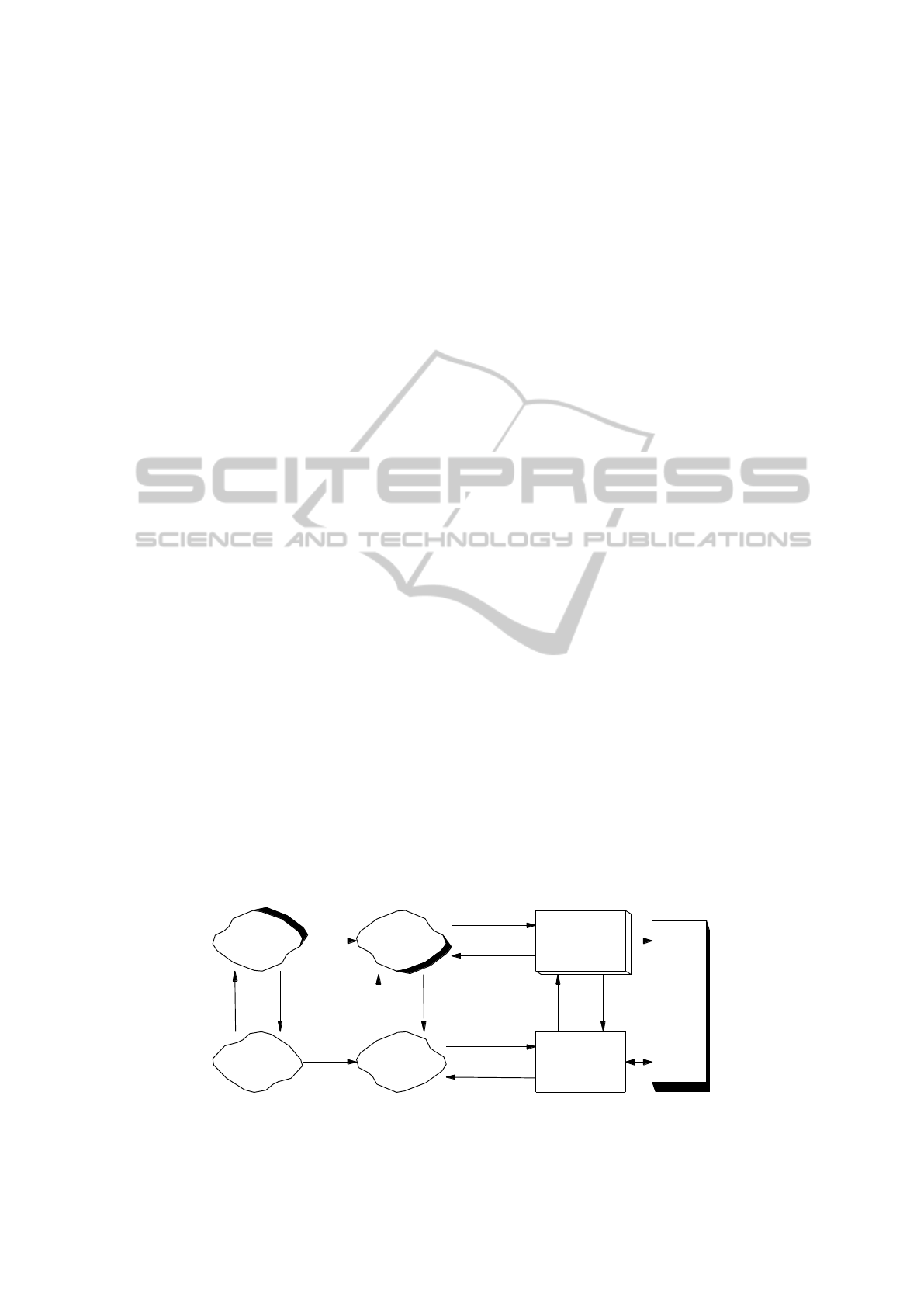

by Guizzardi (2005). Fig 2 exhibits Guizzardi’s

conceptual framework, slightly adapted to our

purposes. Guizzardi distinguishes between a

collection of real world phenomena R and a

collection of real world phenomena m, which are

Model

Specification

expressed

in language L

Modeling

Language

used to

compose

instance

represented by

interpreted as

represented by

interpreted as

used to

compose

instance

US ontology

Real World

Phenomena

Real World

Phenomenon

abstracts

used to

compose

abstracts

truthfulness &

appropriateness

qualities

C4-ness quality

model specifications

Ontology

software

engine

instance

Figure 2: The GSDP MDE approach in Guizzardi’s framework.

Enterprise Ontology Driven Software Engineering

207

instances of the things in R. Applied to our

purposes, R is the collection of all enterprises, and

actors, transactions etc. from R. A conceptual model

of an R is called a C. In our case, C is the notion of

enterprise ontology, as defined by the -theory

(Dietz, 2006). Thus, such a model consists of

transaction kinds, actor roles, and the connections

between them. Next, every M is a conceptual model

of a particular enterprise m, as well as an instance of

C (by definition). In our case, this means that every

M is an ontological enterprise model according to

the -theory. Guizzardi requires that the mapping

from R to C, and consequently, from every m to its

corresponding M, satisfies the qualities of

truthfulness and appropriateness. Truthfulness refers

to the extent to which the concepts of the ontology

are able to represent phenomena in reality in a

truthful way for all stakeholders (Krogstie, 2000).

The ontological appropriateness quality (Krogstie,

2000) refers to how well and useful the ontology

supports understanding and shared reasoning

between stakeholders. A lack of truthfulness renders

a model expressed in the ontology useless. A lack of

appropriateness renders a model less valuable.

Because we know that our US ontology (which

is the notion of enterprise ontology according to the

-theory) has the C4-ness qualities, it is possible to

design a high quality modeling language L, in which

enterprise ontological models can be expressed. So,

L comprises the diagrams, tables, and other model

representations of DEMO. The specification (S) of

the ontological model of an enterprise (M) in L is

called the DEMO model of the enterprise. For every

(DEMO) model M there is one and only one

specification S in L. Every specification S is

interpreted as one and only one (DEMO model) M.

Put differently, S is equivalent to one and only one

specific DEMO model, and vice versa.

We have also developed an XML-based

language, called DMOL (DEMO Modeling

Language) of which the metamodel is isomorphic to

the metamodel of L. Specifications in our L are

automatically transformed into DMOL

specifications, after a specification S in L has been

input into the DEMO processor. This process is

model translation, not programming. Subsequently,

the DEMO processor (Section 4) can execute the

specification and make it operational.

In order to arrive at high quality specification

languages, Guizzardi (2005) postulates a cardinality

law that guarantees that anomalies such as construct

excess and construct overload are eliminated:

m : M : S = 1 : 1 : 1 [Cardinality law]

It states that for every phenomenon m (in our

case: an enterprise), there is one and only one model

M (in our case: the enterprise ontological, i.e. the

DEMO, model of the enterprise). Next, every model

M is represented by one and only one specification S

in L (in our case: the specification of the DEMO

model in the DEMO language, later on transformed

into DMOL). Conversely, every model specification

in L represents one and only one model M (in our

case: one DEMO model). Guizzardi states that if the

cardinality law applies to the US ontology C and the

language L, then there are valuable advantages;

lucidity, ontological clarity and the elimination of

construct overload and construct excess. Every

model M can directly be mapped to a specification

S, which is a straightforward process. This applies

also to the atomic model elements and relations of C

and the language primitives and constructs of L.

4 THE DEMO PROCESSOR

The DEMO processor (the OS software engine in fig

2), executes (reads, writes, constructs, destroys)

DMOL (XML DEMO Modeling Language)

representations of the four DEMO aspect models

;

the Construction Model, the Process Model, the

Action Model, and the State Model (cf. (Dietz,

2006)).

The DEMO model that executes a model is an

EIS. The implementation is precisely in line with

section 3, meaning that any DEMO model is

equivalent - isomorphic to the software of the EIS of

the enterprise and also isomorphic to the enterprise

producing a production instance. The essence is that

the ontological model is the executable software.

4.1 Operation

The DEMO processor executes the enterprise model

dynamically and delivers simulation results for

model validation and production. Dynamic

simulation means that any changes of the dynamic

state of the enterprise over time are immediately

reflected in equivalent dynamic state changes of the

model under execution, vice versa.

At any moment the model under execution can

be rendered as an DMOL XML file with full state

information and temporarily stored in a model

Here we use the term ‘model’ also for a ‘specification

expressed in a language’. From the context is clear what is

meant.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

208

model rendering

==>

<--

parsing &

model building

Simulation

results

Validation

Results

DEMO

Processor

DEMO

4 aspect models

Actor 1

Communication

& Control

Actor n

Communication

& Control

1 .. n

Edit

model

DMOL XML models

Repository

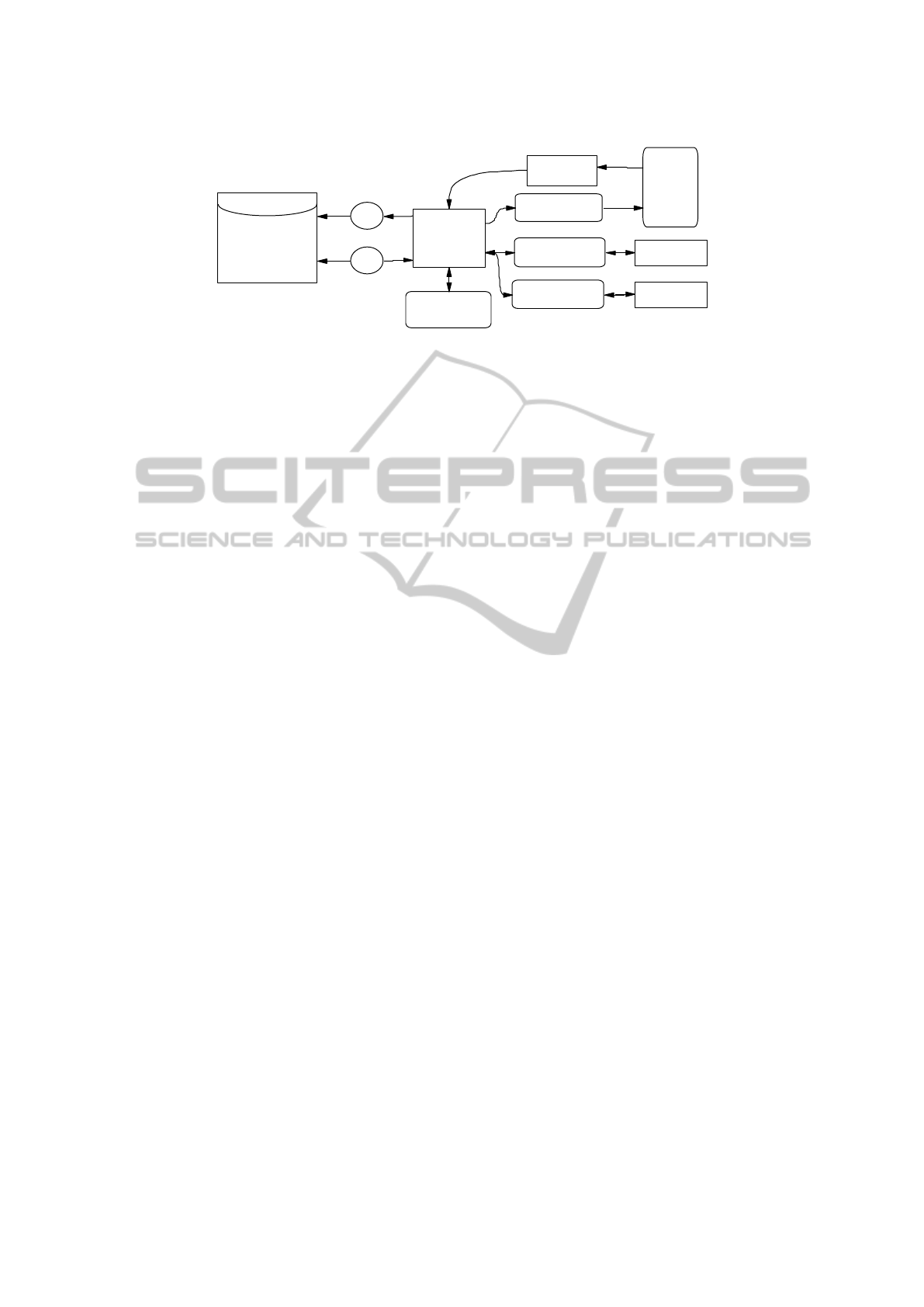

Figure 3: DEMO processor simulation and validation of an enterprise model.

instance repository. DEMO models under execution

can be linked / aggregated at runtime into

aggregated models that represent production chains

of enterprises of unlimited size.

4.2 Enterprise Model Compliance En-

forcement

Model execution delivers also a prescriptive

specification of all allowed actor actions and

prevents not allowed actor actions for each

individual actor. DEMO models under execution are

hence also a BPM (Business Process Model)

execution machine, similar to a workflow system.

Guerreiro (2011) investigated the DEMO processor

as a role-based access control (RBAC) system. This

is a control system enforcing model compliance of

the enterprise to the model; the operaton of the

enterprise cannot deviate from the model under

execution. The workflow capability is completely

calculated from the DEMO models, any BPM(-like)

modeling is obsolete. At early development stages

the models can be simulated for model validation,

which supports a better business-IT alignment.

4.3 Model Instance Driven Case Man-

agement Systems

The EISs are characterized by the fact that the

DEMO processor executes a model instance that is

precisely related to a specific production instance.

The model instance under execution represents in a

truthful way the current production instance; any

changes of the production instance, which is a state

change of the production instance, is precisely

calculated for the model instance under execution.

In a large enterprise with many production

instances, each of these production instances is in a

unique state, more or less further advanced in

production. The DEMO processor supports therefor

model instance driven IT systems, also described as

“adaptive case management systems”.

4.4 Support for the Agile Enterprise

and Evolving Information Systems

An agile enterprise is defined as an enterprise that

continuously scans its environment and adapts itself

whenever the need occurs. Enterprise agility is

supported by the adaptation of the EIS through

redesigned enterprise models, enabled by this

approach.

5 CONCLUSIONS

The first DEMO processor application in full

production is an adaptive case management system

for a public utility company. The production

consists of complex document-based contracts,

subjected to business rules. This casus shows

feasibility as a production IT system.

The business-IT alignment problem is addressed

using an ontology with evidence of appropriateness.

Direct execution of ontological models provides

therefor a good degree of business-IT alignment of

the EIS.

The possibility of subjecting models to

validation at a very early project stage supports also

a good degree of business-IT alignment.

The problem of uncontrolled software

programming costs is addressed by the direct

execution of DEMO models as the executable

source code of the DEMO processor. In the first

professional DEMO processor application, software

programming is limited to interfaces with legacy

systems etc; the core application is generated from

models.

The deterioration of software quality during

ongoing modifications is eliminated since the

Enterprise Ontology Driven Software Engineering

209

DEMO processor is strict Normalized Systems

(Mannaert, Verelst, 2008) compliant.

The DEMO processor offers also full workflow

capabilities, elimination of anomalies such as

deadlocks (Nuffel, 2009), and any BPM(-like)

modeling is obsolete.

ACKNOWLEDGEMENTS

The authors thank the Endinet staff, especially Mrs.

Marjolein Sigmans, for their cooperation in the first

professional DEMO processor based IT project.

REFERENCES

Ciao Consortium; online: www.ciaonetwork.org

DEMO Knowledge Centre, Enterprise Engineering insti-

tute; http://www.demo.nl.

Dietz J.L.G. Enterprise Ontology. 2006, ISBN-10 3-540-

29169-5, Springer Berlin Heidelberg New York.

Gruber, T. R ‘A Translation approach to portable Ontolo-

gy Specifications’, 1993, Knowledge Acquisition,

5(2): 199-220, 1993. Knowledge Systems Laboratori-

um, Computer Science Department, Stanford Univer-

sity.

Guerreiro, S. Vasconcelos, A. Tribolet, J. Adaptive Ac-

cess Control Modes enforcement in Organizations.

Proceedings CENTERIS 2010, Springer-Verlag Berlin

Heidelberg, Part II, CCIS 110, pp. 283–294, 2010.

Guizzardi, G. Ontological Foundations for Structural

Conceptual Models. 2005, PhD thesis, University of

Twente, The Netherlands. ISBN 90-75176-81-3.

ITGI, The IT Governance Institute. (URL: http://

www.itgi.org/).

Krogstie, J. ‘Evaluating UML: A practical Application of

a Framework for the understanding of Quality in Re-

quirements Specifications and Conceptual Modeling’.

Norwegian Informatics Conference (NIK) 2000.

Lehman M, ‘Program Evolution – Processes of Software

Change’. 1985. MM Lehman LA Belady,

Mulder, J. B. F. Rapid Enterprise Design. PhD thesis,

2008. ISBN 90-810480-1-5.

Mannaert H, and Verelst J, ‘Normalized Systems’, 2008.

ISBN: 978 90 77160 008. J. Koppa, Kermt Belgium.

Nuffel van D, Mulder H, van Kervel, S. 2009. ‘Enhancing

the formal foundations of BPMN using Enterprise On-

tology.’ CAiSE CIAO 2009.

Object Management Group Inc, 2009. Business Process

Modeling Notation ( BPMN) Specifications. http://

www.omg.org/spec/BPMN/1.2/PDF/ (2009)

Sauer, C., and Cuthbertson, C., November 2003, “The

state of IT project management in the UK.” Templeton

College, Oxford University.

Standish Group, CHAOS Summary 2009, (http:// www1.

standishgroup.com/newsroom/chaos_2009.php)

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

210
