Medi SPICE and the Development of a Process Reference Model for
Inclusion in IEC 62304
Valentine Casey and Fergal McCaffery
Dundalk Institute of Technology, Dublin Rd, Dundalk, Co. Louth, Ireland
Keywords: Medical Device Software, Software Development, Software Process Assessment, Software Process
Improvement, Medi SPICE, IEC 62304, ISO/IEC 15504-5, ISO 14971, ISO 13485, ISO/IEC 15504-2.
Abstract: The demand for medical device software continues to grow and there is an associated increase in its
importance and complexity. This paper discusses medical device software process assessment and
improvement. It outlines Medi SPICE, a software process assessment and improvement model which is
being developed to meet the specific safety-critical and regulatory requirements of the medical device
domain. It also details the development of a subset of the Medi SPICE process reference model for inclusion
in the next release of the IEC 62304 standard: Medical device software - Software life cycle processes. IEC
62304 is a key standard for medical device software development and is approved by many national
regulatory bodies including the Food and Drug Administration in the United States and the European Union.
This paper also outlines 3 lightweight software process assessment methods which have been developed in
tandem with Medi SPICE. Finally the timeline for the release of the full Medi SPICE model is provided.
1 INTRODUCTION
Today Information Technology (IT) increasingly
performs an essential role in the provision of
healthcare services (Abraham et al., 2011). This is
particularly reflected in the importance that IT now
plays in medical diagnoses and treatment (Hanna et
al., 2011). To facilitate this development the level of
software functionality in medical devices and the
complexity of that software has substantially
increased (Rakitin, 2006). The importance that
software now plays in medical devices has been
acknowledged by the European Union (EU). This is
demonstrated in the latest amendment to the Medical
Device Directive (MDD) 2007/47/EC (European
Council, 2007), which now recognizes that
standalone software can be classified as an active
medical device in its own right. Likewise in the
United States (US) the Food and Drug
Administration (FDA) have recently provided
guidance in relation to medical device data systems
(US FDA, 2011a) and draft guidance in relation to
mobile applications for medical use (US FDA,
2011b).
While the importance that medical device
software plays is now recognized, it is also realized
that it can be difficult to both successfully develop
and achieve regulatory approval for its placement on
the market (Mc Caffery et al., 2010a). This is due to
the safety-critical nature of medical device software
which must be developed to comply with numerous
specific regulations and international standards.
These are dictated by the regulatory requirements of
the geographical location where the medical device
is to be marketed (Burton et al., 2006).
Although guidance is available from regulatory
bodies in terms of what software activities must be
performed, no specific methods for performing these
activities are provided. As a result, medical device
software development organizations have been
compliance centric in their approach. This has
therefore resulted in very limited adoption of
software process improvement in the medical device
domain (Denger et al., 2007). Until relatively
recently, this was not such an important issue due to
the limited proportion of software in medical
devices. This is no longer the case and there is now a
particular requirement for highly effective and
efficient software development processes to be in
place. These processes need to be defined in a
regulatory compliant manner and then adopted to
produce the required deliverables in order to achieve
approval from the relevant body (Mc Caffery et al.,
2010a).
237
Casey V. and Mc Caffery F..
Medi SPICE and the Development of a Process Reference Model for Inclusion in IEC 62304.
DOI: 10.5220/0004082102370246
In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 237-246
ISBN: 978-989-8565-19-8
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
To address the requirement to identify, assess,
and assist with the implementation of these
processes Medi SPICE is currently under
development. The objective of Medi SPICE is to
provide a software process assessment and
improvement model that meets the specific
requirements of the medical device industry (Mc
Caffery and Dorling, 2010). The development of
Medi SPICE is being undertaken by the Regulated
Software Research Group (RSRG) at Dundalk
Institute of Technology (DkIT) in association with
the SPICE User Group, international standards
bodies and representatives from the medical device
software industry. This collaborative process is a
key aspect of the development of Medi SPICE.
While a Medi SPICE assessment can be used to
evaluate and initiate software process improvement,
it may also be used for supplier selection. In this
context, the results from an assessment may be used
as criteria for selecting a supplier, when an
organization wishes to outsource or offshore part or
all of its medical device software development (Mc
Caffery and Dorling, 2009). This is important, as
today software has truly become a globally sourced
commodity (Casey, 2010). As a result the level of
globally distributed software medical device
development continues to increase (Sudershana et
al., 2007) (Klein et al., 2010). Given the mission
critical nature of medical device software and the
need for regulatory compliance, supplier selection is
a key activity for medical device organizations and
Medi SPICE can be utilized to help address this
need.
The rest of this paper is structured as follows: In
section 2, we discuss the regulatory requirements for
medical device software development. In particular
we focus on IEC 62304:2006 (IEC 62304:2006,
2006) and the important role it plays. We also
consider the requirements for the next release of the
IEC 62304 standard. In section 3, we provide an
overview of Medi SPICE which includes its
development, structure and processes. In section 4,
we outline the development of the IEC 62304 Medi
SPICE Process Reference Model (PRM). This is
based on the structure of ISO/IEC 12207:2008
(ISO/IEC 12207:2008, 2008) and is a subset of the
Medi SPICE PRM. It is planned that this PRM will
be included in the appendix of the next release of the
IEC 62304 standard. In section 5, we discuss the
lightweight process assessment methods we have
developed in tandem with Medi SPICE. We also
briefly outline our findings from undertaking a
lightweight Medi SPICE-Adept assessment in
Ireland and Australia. Finally in sections 6, we
provide our conclusions and future work including
the timeline for the release of the full Medi SPICE
process assessment and improvement model.
2 MEDICAL DEVICE SOFTWARE
REGULATION
Regulations, international standards, technical
reports and guidance documents play a key role in
medical device software development. As stated this
is due to the safety-critical nature of medical device
software and the need for organizations developing
such software to minimize the risk of failure and the
prevention of harm to patients, clinicians and third
parties. To address this, governments have defined
regulatory requirements and established auditing
bodies to ensure that only safe medical devices are
placed on the market (Burton, 2009).
The FDA is responsible for medical device
regulation and approval in the US. To provide
assistance in achieving regulatory approval, the FDA
have published a number of guidance documents
which outline essential activities to be performed
during software validation (US FDA Center for
Devices and Radiological Health, 2002), pre-market
submission (US FDA Center for Devices and
Radiological Health, 2005) and when using off-the-
shelf software in a medical device (US FDA Center
for Devices and Radiological Health, 1999).
Although the FDA guidance documents provide
general information on which software activities
should be performed, they do not provide specific
details on how they should be undertaken.
In the EU the CE mark is required to market a
medical device. The requirements for the
achievement of the CE mark are outlined in the
Medical Device Directive (MDD) 1993/42/EE
(European Council, 1993) and its latest amendment
MDD 2007/47/EC (European Council, 2007), the
Active Implantable Medical Device Directive
(AIMDD) 90/385/EEC (European Council, 1990)
and the In-Vitro Diagnostic Directive (IVDD)
98/79/EC (European Council, 1998). The applicable
directive(s) depend on the type of medical device
being developed.
While these directives must be adhered to, they
provide very limited information regarding the
specific requirements for medical device software
development. This is exemplified by the latest
amendment MDD 2007/47/EC which states: For
devices which incorporate software or which are
medical software in themselves, the software must be
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
238
validated according to the state of the art taking into
account the principles of development lifecycle, risk
management, validation and verification”. The term
state of the artis not defined and as a result many
organizations developing medical device software
for sale in the EU rely on the regulatory guidance
documents provided by the FDA (Mc Caffery et al.,
2010a).
In order to market a medical device in China,
approval must be obtained from the State Food and
Drug Administration (SFDA). In Australia, approval
and registration is provided by the Therapeutic
Goods Administration (TGA) and in Canada, by
Health Canada. Auditing bodies performing similar
roles exist in other countries including Brazil, Japan,
India, South Korea, Singapore, Mexico and New
Zealand.
To achieve compliance with national and
regional regulatory requirements, conformance with
a number of international standards and technical
reports are recommended by auditing bodies, these
include: IEC 62304:2006 (IEC 62304:2006, 2006),
ISO 14971:2007 (ISO 14971:2007, 2007), ISO
13485:2003 (ISO 13485:2003, 2003), EN 60601-
4:2000 (BS EN 60601-1-4:2000, 2000), IEC/TR
80002-1:2009 (IEC/TR 80002-1:2009, 2009) , IEC
62366:2007 (IEC 62366:2007, 2007), IEC/TR
61508:2005 (IEC/TR 61508:2005, 2005), and IEC
60812:2006 (IEC 60812:2006, 2006). A number of
these standards are harmonized with the European
MDD and approved by the FDA. These include ISO
14971:2007, ISO 13485:2003, and IEC 62304:2006.
2.1 Risk Management
To determine the level of regulatory compliance that
is required for medical devices, auditing bodies have
adopted predefined classification schemes based on
hazard/risk posed by the medical device. The FDA
has 3 levels of concern and in the EU the MDD has
4 classes based on perceived potential hazard,
ranging from low risk to high risk. Medical devices
are evaluated against the relevant scheme and
classified. The manufacturer of the device is then
required to establish design controls in line with the
medical device’s classification level. The higher the
classification of the device, the more stringent the
design controls and constraints that must be
complied with (Mc Caffery et al., 2010a).
ISO 14971:2007 Medical Devices - Application
of risk management to medical devices is the de
facto standard for medical device risk management
(Burton, 2009). The FDA recognizes ISO
14971:2007 as an approved standard and considers
compliance with it acceptable for meeting the risk
management requirements for medical device
premarket submissions. The FDA also provide their
regulators with training in the standard as part of
their software risk management training (Mc Caffery
et al., 2010a). The EU also consider ISO 14971:2007
as a harmonized standard and conformance with the
standard is acceptable for meeting the risk
management requirements of the MDD (Harvey,
2003). In Canada, ISO 14971:2007 is a recognized
standard by Health Canada. In both Japan and
Australia, it has also become the industry standard
for managing medical device risk.
While ISO 14971:2007 is the standard that
medical device software organizations must conform
to, it was developed to address the requirements of
developing a medical device as a whole. Until
relatively recently medical devices were mostly
hardware with only a small level of software
content. As a result there is a lack of specific
information as to how ISO 14971:2007 should be
applied for medical device software development.
To address this a technical information report
IEC/TR 80002-1:2009 was released to provide
specific guidance on how ISO 14971:2007 should be
applied when developing medical device software
(Vogel, 2010).
2.2 Quality Management System
A key requirement for medical device development
is that a quality management system is in place. The
FDA define a quality system as the organizational
structure, responsibilities, procedures, processes,
and resources for implementing quality
management(US FDA, Revised April 1, 2011). By
ensuring conformance to the requirements of a
quality management system, medical device
organizations have the structure and support in place
to facilitate a controlled development environment.
With the objective of providing greater reliability,
safety, and the effectiveness of the devices they
produce (Mc Caffery et al., 2010a). Conformance
with the requirements of 21 CFR Part 820 Quality
System Regulations (US FDA, Revised April 1,
2011) is central to achieving FDA approval in the
US. ISO 13485:2003 Medical device - Quality
management systems- Requirements for regulatory
purpose is the international standard used for and
audited against for medical device development.
This standard is harmonized with the European
MDD and recognized by the FDA.
Medi SPICE and the Development of a Process Reference Model for Inclusion in IEC 62304
239
2.3 Medical Device Software Life Cycle
Processes
As software components were added to medical
devices, manufacturers had to consider how software
could be developed to ensure that it minimized risk
and the possibility of failure. The medical device
industry took the decision to recognize ISO/IEC
12207:1995 Information Technology - Software life
Cycle Processes (ISO/IEC 12207:1995, 1995) (a
general software engineering life cycle processes
standard) to address this situation. Subsequently, the
Association for the Advancement of Medical
Instrumentation (AAMI) software committee
reviewed ISO/IEC 12207:1995 and identified a
number of shortcomings due to the fact that it was a
generic standard.
As a result a decision was taken to create a new
standard which was domain specific to medical
device software development. When developing this
standard the AAMI did not discard the work done
with ISO/IEC 12207:1995 and used it as the
foundation for AAMI SW68:2001 (ANSI/AAMI
SW68:2001, 2001). In 2006, a new standard IEC
62304:2006 Medical device software - Software life
cycle processes, was released which was based on
the AAMI SW68:2001 standard.
IEC 62304:2006 is approved by the FDA and is
harmonized with the European MDD. It provides
coverage of the key medical device software
development processes. Software developed using
the IEC 62304:2006 standard is based on the
assumption that it is developed and maintained in
accordance with a quality management standard
(e.g. ISO 13485:2003), and the risk management
standard ISO/IEC 14971:2007. Both ISO
13485:2003 and ISO/IEC 14971:2007 are
considered to be aligned standards with IEC
62304:2006 and their relationship is documented in
(IEC 62304:2006, 2006).
IEC 62304:2006 is software specific in focus and
does not address system level processes which
include Requirements Elicitation and Validation.
These are addressed by its aligned standards and
ISO/IEC 15288: 2002 (ISO/IEC 15288:2002, 2002).
ISO/IEC 12207:1995 AMD 1:2002 (ISO/IEC
12207:1995/Amd.1, 2002) and AMD 2:2004
(ISO/IEC 12207:1995/Amd.2, 2004). These are the
foundations on which IEC 62304:2006 was
developed and their relationship is documented in
Annex C of the IEC 62304:2006 standard.
2.4 The Release of ISO/IEC 12207:2008
ISO/IEC 12207:1995 AMD 1 and AMD 2 was
recognized as comprehensive in its approach to
general software development and a number of
standards in addition to IEC 62304:2006 were
derived from it. These include ISO 15504-2:2003
(ISO/IEC 15504-2:2003, 2003), ISO/IEC 15504-
5:2006 (ISO/IEC 15504-5:2006, 2006) and ISO/IEC
90003:2004 (ISO/IEC 90003:2004, 2004). The
importance the standard plays is reflected in the fact
ISO/IEC 15504-2:2003 and the ISO/IEC 15504-
5:2006 PRM are derived directly from ISO/IEC
12207:1995 AMD 1 and AMD 2.
An extensive revision of the ISO/IEC 12207
standard took place. This was undertaken in parallel
with the revision of ISO/IEC 15288:2002. This
resulted in the release in 2008 of ISO/IEC
12207:2008 Systems and software engineering -
Software life cycle processes. The focus of the new
standard is no longer just the software engineering
life cycle processes; it now addresses the system
engineering processes as well. The structure of the
standard has been amended to reflect this change.
As a result, standards which are derived from
ISO/IEC 12207:1995 AMD 1 and AMD 2 are being
updated to conform to the new structure of ISO/IEC
12207:2008. These include the next release of
ISO/IEC 15504-5 and IEC 62304 which are
currently under review. Medi SPICE will also
conform to the new structure of ISO/IEC
12207:2008.
3 MEDI SPICE
As outlined in section 1, Medi SPICE is a software
process assessment and improvement model which
is being developed to meet the specific requirements
of the medical device industry (Mc Caffery et al.,
2010b). The results of a Medi SPICE assessment
may be used to indicate the state of a medical device
suppliers software practices in relation to the
regulatory requirements of the industry, and identify
areas for process improvement (Mc Caffery and
Dorling, 2010). The results of an assessment may
also be used as criteria for supplier selection (Mc
Caffery and Dorling, 2009). The overall objective of
Medi SPICE is to provide a conformity assessment
scheme to support first, second or third party
assessment results that may be recognized by the
regulatory bodies.
Medi SPICE is based upon ISO/IEC 15504-5 and
provides coverage of the medical device regulations,
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
240
and standards. These include the FDA regulations
and guidelines, the European MDD and the
associated approved and harmonized standards and
technical reports (Mc Caffery et al., 2010a). Medi
SPICE contains a PRM and a Process Assessment
Model (PAM)
The development of Medi SPICE commenced in
2008 with an extensive literature review and a
number of preliminary studies. This phase of the
research culminated in the identification of the
context and strategy for the development of Medi
SPICE. This aspect of the research has been
published in Medi SPICE: An Overview (Mc
Caffery and Dorling, 2009), Medi SPICE
Development (Mc Caffery and Dorling, 2010) and
Software Process Improvement in the Medical
Device Industry (Mc Caffery et al., 2010a). In 2010
work commenced on the development of a
preliminary PRM and PAM (Mc Caffery et al.,
2010b). The preliminary PRM & PAM contained 11
processes:
Software Requirements Elicitation
System Architectural design
System Requirements Analysis
Software Requirements Analysis
Software Construction
Software Integration
Software Testing
Configuration Management
Change Request Management
Software Verification
Software Validation
These processes were based on the structure of
ISO/IEC 15504-5:2006 and ISO/IEC 12207:1995
AMD 1 and AMD 2. They were developed to meet
the specific requirements of the relevant medical
device regulations, standards and guidance
documents. In addition, they also conformed to the
requirements of ISO/IEC 15504-2:2003 for a PRM
and PAM. On completion, these processes were
released for review by the ISO/IEC 15504
community and representatives from the medical
device software industry. These processes have been
subsequently updated and amended to bring them in
line with ISO/IEC 12207:2008 and the latest version
of ISO/IEC 15504-5 (currently under ballot). In
addition the number of processes has been increased.
3.1 The Medi Spice Process Reference
Model (PRM)
The Medi SPICE PRM contains the set of medical
device software lifecycle processes that are
fundamental to the development of good quality
medical device systems. The PRM outlines the
purpose of each process and the outcomes that must
be accomplished to achieve that purpose.
The Medi SPICE PRM contains 2 sets of life
cycle processes. These are the Systems Life Cycle
Processes and the Software Life Cycle Processes.
These consist of 42 processes and 15 subprocesses
which are structured as follows:
The System Life Cycle Processes (contains)
3 Agreement Processes and 7 Subprocesses;
6 Organizational Project - Enabling Processes
and 6 Subprocesses;
7 Project Processes;
10 Technical Processes and 2 Subprocesses.
The Software Life Cycle Processes (contains)
6 Software Implementation Processes;
9 Software Support Processes which includes a
medical device specific process Hazard
Mitigation;
1 Supplementary Process
3.2 The Medi SPICE Process
Assessment Model (PAM)
The Medi SPICE PAM is related to the Medi SPICE
PRM and forms the basis for collecting evidence and
the rating of process capability. To achieve this it
provides a two-dimensional view of process
capability. In one dimension, it describes a set of
process specific practices that allow the achievement
of the process outcomes defined in the PRM; this is
termed the process dimension.
In the other dimension, the PAM describes
capabilities that relate to the process capability
levels and process attributes, this is termed the
capability dimension. Indicators for process
capability are generic practices that are applicable to
any process and associated with process attributes,
generic work products and generic resources that can
be observed when a particular process attribute is
achieved (ISO/IEC 15504-2:2003, 2003). In line
with ISO/IEC 15504 the Medi SPICE process
capability is defined over 6 levels:
Level 0 Incomplete;
Level 1 Performed;
Level 2 Managed;
Level 3 Established;
Level 4 Predictable;
Level 5 Optimizing.
Medi SPICE and the Development of a Process Reference Model for Inclusion in IEC 62304
241
The Medi SPICE PRM and PAM are being released
in stages and each stage is extensively reviewed
prior to release.
3.3 The Medi SPICE and IEC
62304:2006
Given the importance of IEC 62304:2006 to medical
device software development, conformance to this
standard plays a key role in the development of
Medi SPICE along with its aligned standards. As
discussed in section 2, IEC 62304:2006 is currently
being revised. As part of this revision, it is being
aligned with ISO 12207:2008; it therefore requires
that IEC 62304 should contain a PRM. As stated it is
proposed the IEC 62304 revision will contain a
subset of the Medi SPICE PRM (the Medi SPICE
processes that will be included in the revision of IEC
62304). This will enable the relevant IEC 62304
processes to be comparable with those of ISO
12207:2008. It will also provide IEC 62304 with a
PRM that may be used as the foundation for a
process assessment model specifically for
compliance with this standard.
4 DEVELOPMENT OF THE IEC
62304 MEDI SPICE PRM
The first step in the development of the IEC 62304
Medi SPICE PRM was the identification of the
ISO/IEC 12207:2008 processes which were directly
relevant to IEC 62304:2006. This was facilitated by
the fact that IEC 62304:2006 documents its
relationship to ISO/IEC 12207:1995 AMD 1 and
AMD 2 at the process, activity and task level in
Table C.5 of the standard.
Utilizing this information all the relevant IEC
62304:2006 processes, activities and tasks were
identified and mapped against ISO/IEC 12207:2008.
To achieve this a document was produced based on
Table C.5 in the IEC 62304:2006 standard, but it
was extended to include full details of the ISO/IEC
12207:1995 AMD 1 and AMD 2 tasks upon which
the IEC 62304:2006 activities and tasks were based.
In Table C.5 (within IEC 62304:2006) these tasks
were only referenced. Analyzing this information
and comparing it against ISO/IEC 12207:2008
allowed a direct mapping to be made between the
processes and activities. The tasks were also
analyzed in detail and any differences highlighted
and evaluated.
Due to the restructuring that took place in
ISO/IEC 12207:2008 and the changes required to
facilitate this, the names and locations of a number
of processes, activities and tasks changed from the
previous release of the standard. While at the task
level only cosmetic adjustments had been made i.e.
the use of the term implementer instead of
developer and the addition of brief notes to a
limited number of tasks. The only relevant task
omitted from ISO/IEC 12207:2008 which had been
in ISO/IEC 12207:1995 AMD 1 and AMD 2 and
referenced by IEC 62304:2006 was 6.4.2.2 Process
Verification. This task had been used as the basis for
the Verify Integration Tests Procedures task in IEC
62304:2006. While this task is absent from ISO/IEC
12207:2008 this is a requirement of IEC 62304:2006
and it was therefore retained in the Medi SPICE
PRM.
Having identified the relevant ISO/IEC
12207:2008 processes these were compared with the
Medi SPICE PRM processes and the next release of
ISO/IEC 15504-5. This resulted in the selection of
13 processes for inclusion in the IEC 62304 Medi
SPICE PRM. This included an extra process Hazard
Mitigation which is not an ISO/IEC 12207:2008
process as it is medical device software specific.
The processes which were identified as suitable
for inclusion in the IEC 62304 PRM are as follows:
Software Implementation
Software Operation
Software Maintenance
Software Requirements Analysis
Software Architectural Design
Software Detailed Design
Software Construction
Software Integration
Software Qualification Testing
Software Configuration Management
Software Problem Resolution
Hazard Mitigation
Software Change Request Management
The relationship between these processes and IEC
62304:2006 are detailed in figure 1.
The set of processes were then reviewed by both
members of the IEC SC62A JWG3 Standards
Working Group (the IEC 62304 development team)
and the ISO/IEC 15504 community. Having agreed
the processes, development of the IEC 62304 Medi
SPICE PRM commenced. Each process was
developed in line with the requirements of a PRM as
defined in ISO/IEC 15504-2:2003 (ISO/IEC 15504-
2:2003, 2003). This included assigning a process ID,
a process name and defining a process purpose.
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
242

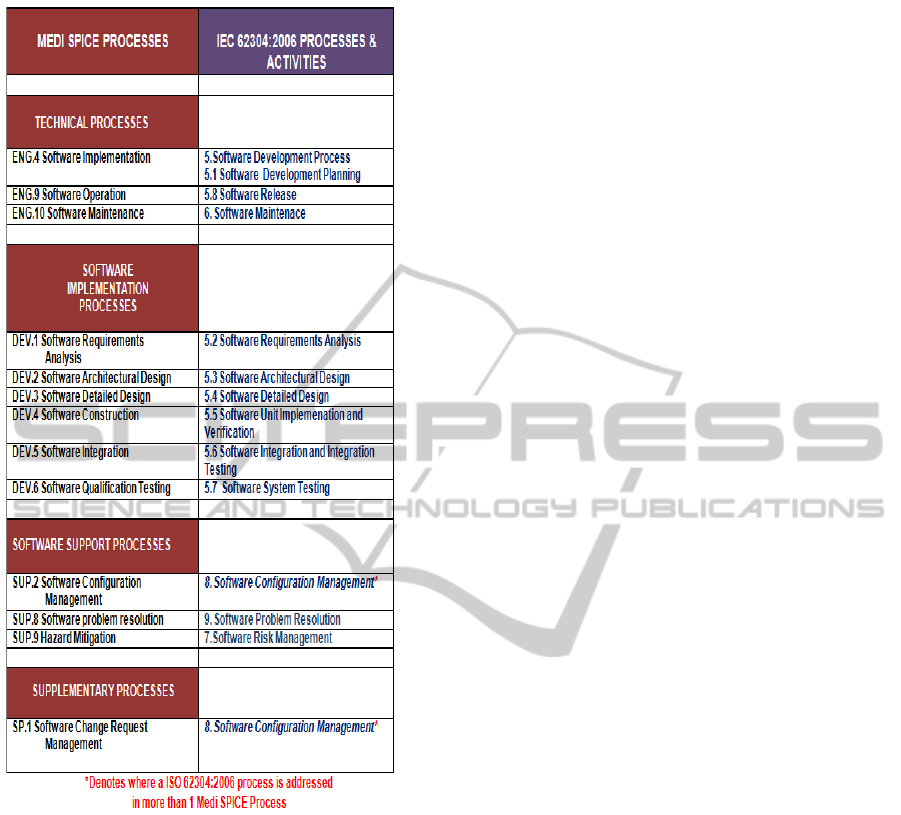

Figure 1: The IEC 62304 Medi SPICE PRM processes for
inclusion in the IEC 62304 PRM and their relationship to
IEC 62304:2006.
Based on the process purpose outcomes were
identified. The objective of each outcome was to
contribute to the achievement of the process
purpose. While the purpose and outcomes addressed
the requirements of medical device software
development and IEC 62304:2006 they were also
inclusive of the requirements of the aligned, medical
device standards and regulations. These included the
FDA regulations and guidance documents, the
requirements of the European MDD, ISO
14971:2007, ISO 13485:2003 and IEC/TR 80002-
1:2009. The PRM recorded the source of each
outcome and where relevant each outcome received
an IEC 62304 safety classification. Once the IEC
62304 Medi SPICE PRM was complete it was sent
for review and evaluation by the ISO/IEC 15504
community and the IEC SC62A JWG3 Standards
Working Group. Based on the successful completion
of these reviews and receipt of approval from the
Standards Working Group it is now planned to
include the IEC 62304 Medi SPICE PRM in the
Appendix of the forthcoming release of IEC 62304.
5 THE DEVELOPMENT OF
LIGHTWEIGHT ASSESSMENT
METHODS
An important part of this ongoing research has been
the development of 3 lightweight medical device
software process centric assessment methods. The
first was Med-Adept (Mc Caffery and Casey, 2010)
which is a lightweight assessment method that
provides a means of assessing the software
engineering capability of processes in relation to
medical device software development. The goal of a
Med-Adept assessment is to provide organizations
who may be considering developing medical device
software with an understanding of what they would
need to have in place before embarking on such a
strategy. To date a total of 8 Med-Adept assessments
have taken place.
Traceability plays a key role in the development
of regulatory compliant medical device software
(Mc Caffery and Casey, 2011). MedTrace was
developed as an assessment method specifically to
assist companies to adhere to the traceability aspects
of the medical device software standards (Casey and
Mc Caffery, 2011). The objective of Med-Trace is to
enable software development organizations to gain
an appreciation of fundamental traceability best
practices, based on the software engineering
traceability literature, software engineering process
models, and the medical device software guidelines
and standards. To achieve this, Med-Trace may be
used to diagnose an organization’s weaknesses and
strengths with relation to their medical device
software development traceability practices. Med-
Trace assessments have taken place in 4 companies
and another 1 is currently in the planning stage.
The third lightweight assessment method is Medi
SPICE-Adept (Mc Caffery et al., 2011). This
method was initially based on the assessment of the
11 processes which made up the preliminary Medi
SPICE PRM and PAM. While these were the initial
processes selected for Medi SPICE-Adept. These
have been updated and will be expanded to provide
coverage of all the Medi SPICE processes and
Medi SPICE and the Development of a Process Reference Model for Inclusion in IEC 62304
243
subprocesses.
Medi SPICE-Adept provides organizations with
a lightweight assessment of each of the processes
they select with the Medi SPICE Model. This covers
conformance to the specific requirements of the
medical device regulations, standards, and guidance
documents. It also provides a method for carrying
out an assessment, against the requirements for best
software engineering practice for each process. That
said, it is a lightweight method and the objective of
undertaking a Medi SPICE-Adept assessment, is not
to receive formal certification or a capability rating.
Rather it is to identify an organization’s strengths
and weaknesses and to initiate and facilitate process
improvement.
5.1 Implementation of Medi SPICE-
Adept
The first Medi SPICE-Adept assessment took place
in an Irish based medical device company Western
Medical (a pseudonym). The company selected 10
processes and these were assessed over a two day
period. Based on the results of the assessment, a
findings report was prepared and presented. Process
improvement objectives and a process improvement
plan were collaboratively defined and developed
with the company, based on the findings report. The
improvement plan is currently being implemented
and when this is complete the processes will be
reassessed. A final detailed report will then be
prepared and an updated improvement plan will also
be provided.
The findings report and improvement plan were
very positively received by Western Medical as was
the whole assessment procedure. A Medi SPICE-
Adept assessment has also recently been
successfully implemented in Australia by colleagues
in Griffith University. The Australian assessment
provided similar positive feedback. Given the level
of demand the RSRG will continue to carry out
additional Medi SPICE-Adept assessments both in
Ireland and in collaboration with international
colleagues.
5.2 The Rationale for Developing
Lightweight Assessment Methods
There was a specific demand in the industry for the
development of each of these lightweight assessment
methods and their introduction has been welcomed.
While this was the case, the purpose of their
development was not solely to address these
requirements. The implementation of each of these
methods has allowed key aspects of Medi SPICE to
be tested and refined in an industrial setting. It has
also provided relevant feedback which has been
documented and incorporated into subsequent
iterations of the Medi SPICE model. This is seen as
a key element in the development of Medi SPICE.
This was also the rationale for the development of
the lightweight assessment methods in tandem with
the development of Medi SPICE.
6 CONCLUSIONS
It was decided in 2011 that Medi SPICE would
conform to the structure of ISO/IEC 12207:2008 and
the latest version of ISO/IEC 15504-5 (currently
under ballot). As outlined in section 3 the structure
and processes which make up the current version of
the Medi SPICE PRM were selected and agreed.
Work on the detailed development of the PRM
commenced.
Following the invitation to add a subset of the
Medi SPICE PRM to the next release of the IEC
62304 standard, work commenced on the production
of the IEC 62304 Medi SPICE PRM. As outlined in
Section 4 this work is now complete. The
development of the remaining Medi SPICE PRM
and PAM processes is currently under way. The full
Medi SPICE PRM is scheduled for release in
September 2012. This will be followed by the
release of the Medi SPICE PAM by the end of
December 2012. This will see the release of the full
Medi SPICE process assessment and improvement
model by January 2013. At that stage additonal
research will be undertaken on its implementation
and to facilitate continued improvement.
ACKNOWLEDGEMENTS
This research is supported by the Science
Foundation Ireland (SFI) Stokes Lectureship
Programme, grant number 07/SK/I1299, the SFI
Principal Investigator Programme, grant number
08/IN.1/I2030 (the funding of this project was
awarded by Science Foundation Ireland under a co-
funding initiative by the Irish Government and
European Regional Development Fund), and
supported in part by Lero - the Irish Software
Engineering Research Centre (http://www.lero.ie)
grant 10/CE/I1855.
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
244
REFERENCES
Abraham, C., Nishiharas, E. & Akiyama, M. (2011)
Transforming healthcare with information technology
in Japan: A review of policy, people, and progress.
International Journal of Medical Informatics, 80, 157-
170.
ANSI/AAMI SW68:2001 (2001) Medical device software
- Software life cycle processes. Arlington, AMMI.
BS EN 60601-1-4:2000 (2000) Medical Electrical
Equipment, Part 1 - General requirements for safety.
London, BSI.
Burton, J. (2009) The Medical Device Industry:
Development in Software Risk Management,
Newcastle upon Tyne, Cambridge Scholars
Publishing.
Burton, J., Mc Caffery, F. & Richardson, I. (2006) A risk
management capability model for use in medical
device companies. International Workshop on
Software quality (WoSQ '06). Shanghai, China, ACM.
Casey, V. (2010) Virtual Software Team Project
Management. Journal of the Brazilian Computer
Society, 16, 83 96.
Casey, V. & Mc Caffery, F. (2011) Med-Trace:
Traceability Assessment Method for Medical Device
Software Development. IN 2011 (Ed.) European
Systems and Software Process Improvement and
Innovation Conference. Roskilde University,
Denmark.
Denger, C., Feldmann, R., Host, M., Lindholm, C. &
Shull, F. (2007) A Snapshot of the State of Practice in
Software Development for Medical Devices. First
International Symposium on Empirical Software
Engineering and Measurement. Madrid, Spain.
European Council (1990) Council Directive 90/385/EEC
On the approximation of the laws of the Members
States relating to active implantable medical devices.
Luxembourg, Official Journal of The European
Communities].
European Council (1993) Council Directive 93/42/EEC
Concerning Medical Devices. Luxembourg, Official
Journal of The European Communities.
European Council (1998) Council Directive 98/79/EC On
in vitro diagnostic medical devices. Official Journal of
The European Communities, Luxembourg.
European Council (2007) Council Directive 2007/47/EC
(Amendment). Luxembourg, Official Journal of The
European Union.
Hanna, S., Rolf, R., Molina-Markham, A., Poosankam, P.,
Fu, K. & Song, D. (2011) Take two software updates
and see me in the morning: the case for software
security evaluations of medical devices. The 2nd
USENIX conference on Health security and privacy.
San Francisco, CA, USA.
Harvey, R. (2003) Do We Need Medical Device Risk
Management Certification? Medical Device &
Diagnostic Industry, 25, 44 49.
IEC 60812:2006 (2006) Analysis technique for system
reliability - Procedure for failure modes and effects
analysis (FMEA). Second ed. Geneva, Switzerland,
IEC.
IEC 62304:2006 (2006) Medical device software
Software life cycle processes. Geneva, Switzerland,
IEC.
IEC 62366:2007 (2007) Medical devices - Application of
usability engineering to medical devices. Geneva,
Switzerland, IEC.
IEC/TR 61508:2005 (2005) Functional safety of
electrical/electronic/ programmable electronic safety
related systems. London, BSI.
IEC/TR 80002-1:2009 (2009) Medical device software
Part 1: Guidance on the application of ISO 14971 to
medical device software. London, BSI.
ISO 13485:2003 (2003) Medical devices Quality
management systems Requirements for regulatory
purposes. Second ed. Geneva, Switzerland, ISO.
ISO 14971:2007 (2007) Medical Devices Application
of risk management to medical devices. Second ed.
Geneva, ISO.
ISO/IEC 12207:1995 (1995) Information Technology
Software life Cycle Processes. Geneva, Switzerland,
ISO.
ISO/IEC 12207:1995/AMD.1 (2002) Information
Technology Software life Cycle Processes
Amendment 1. Geneva, Switzerland, ISO.
ISO/IEC 12207:1995/AMD.2 (2004) Information
Technology Software life Cycle Processes
Amendment 2. Geneva, Switzerland, ISO.
ISO/IEC 12207:2008 (2008) Systems and software
engineering - Software life cycle processes. Geneva,
Switzerland, ISO.
ISO/IEC 15288:2002 (2002) Systems Engineering
System life cycle processes. Geneva, Switzerland,
ISO.
ISO/IEC 15504-2:2003 (2003) Software engineering -
Process assessment - Part 2: Performing an
assessment. Geneva, Switzerland, ISO.
ISO/IEC 15504-5:2006 (2006) Information technology -
Process Assessment - Part 5: An Exemplar Process
Assessment Model. Geneva, Switzerland, ISO.
ISO/IEC 90003:2004 (2004) Software engineering --
Guidelines for the application of ISO 9001:2000 to
computer software. Geneva, Switzerland, ISO.
Klein, H., Rausch, A., Kunzle, M. & Fischer, E. (2010)
Application of Collaborative Scenarios in a Process-
Based Industrial Environment. 36th EUROMICRO
Conference on Software Engineering and Advanced
Applications (SEAA). Lille, France.
Mc Caffery, F., Burton, J., Casey, V. & Dorling, A.
(2010a) Software Process Improvement in the Medical
Device Industry. IN LAPLANTE, P. (Ed.)
Encyclopedia of Software Engineering. New York,
CRC Press Francis Taylor Group.
Mc Caffery, F. & Casey, V. (2010) Med-Adept: A
Lightweight Assessment Method for the Irish Medical
Device Software Industry. European Systems &
Software Process Improvement and Innovation
Conference, (EuroSPI). Grenoble, France.
Medi SPICE and the Development of a Process Reference Model for Inclusion in IEC 62304
245
Mc Caffery, F. & Casey, V. (2011) Med-Trace. 11th
International SPICE Conference on Process
Improvement and Capability dEtermination. Dublin
City University, Ireland.
Mc Caffery, F., Casey, V. & Mc Hugh, M. (2011) How
Can Software SMEs become Medical Device Software
SMEs. IN O'CONNOR, R. V., PRIES-HEJE, J. & R.,
M. (Eds.) European Systems & Software Process
Improvement and Innovation Conference, (EuroSPI).
Copenhagen, CCIS.
Mc Caffery, F. & Dorling, A. (2009) Medi SPICE: An
Overview. International Conference on Software
Process Improvement and Capability Determinations
(SPICE). Turku, Finland.
Mc Caffery, F. & Dorling, A. (2010) Medi SPICE
Development. Software Process Maintenance and
Evolution: Improvement and Practice Journal, 22, 255
268.
Mc Caffery, F., Dorling, A. & Casey, V. (2010b) Medi
SPICE: An Update. International Conference on
Software Process Improvement and Capability
Determinations (SPICE). Pisa, Italy, Edizioni ETS.
Rakitin, R. (2006) Coping with defective software in
medical devices. Computer, 39, 40 - 45.
Sudershana, S., Villca-Roque, A. & Baldanza, J. (2007)
Successful Collaborative Software Projects for
Medical Devices in an FDA Regulated Environment:
Myth or Reality. International Converence on Global
Software Engineering. Brazil.
US FDA (2011a) 21 CFR Part 880 Medical Devices;
Medical Device Data Systems Final Rule. Federal
Register, 76, 8637 - 8649.
US FDA (2011b) Draft Guidance for Industry and Food
and Drug Administration Staff Mobile Medical
Applications, July 21.
http://www.fda.gov/downloads/MedicalDevices/Devic
eRegulationandGuidance/GuidanceDocuments/UCM2
63366.pdf, Accessed 20th February 2012.
US FDA (Revised April 1, 2011) 21 CFR Part 820 Quality
System Regulations. Code of Federal Regulations,
Title 21, 8.
US FDA Center For Devices And Radiological Health
(1999) Off-The-Shelf Software Use in Medical
Devices; Guidance for Industry, medical device
Reviewers and Compliance. Rockville, CDRH.
US FDA Center For Devices And Radiological Health
(2002) General Principles of Software Validation;
Final Guidance for Industry and FDA Staff. Rockville,
CDRH.
US FDA Center For Devices And Radiological Health
(2005) Guidance for the Content of Premarket
Submissions for Software Contained in Medical
Devices. Rockville, CDRH.
Vogel, D. A. (2010) Medical Device Software
Verification, Validation and Compliance, Norwood
MA, Artech House.
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
246
