On Operative Creation of Lexical Resources in Different

Languages

Svetlana Sheremetyeva

LanA Consulting ApS, Møllekrog, 4, Vejby 3210 Copenhagen, Denmark

Abstract. Cognitive modeling is to a large extent mediated by lexicons thus

bringing in focus operative creation of high quality lexical resources. This pa-

per presents a methodology and tool for automatic extraction of lexical data

from textual sources. The methodology combines n-gram extraction and a fil-

tering algorithm, which operates blocs of shallow linguistic knowledge. The

specificity of the approach is three-fold, - (i) it allows dynamic extraction of

lexical resources and does not rely on a pre-constructed corpus; (ii) it does not

miss low frequency units; (iii) it is portable between different lexical types,

domains and languages. The methodology has been implemented into a tool

that can be used in a wide range of text processing tasks useful for cognitive

modeling from ontology acquisition, to automatic annotation, multilingual in-

formation retrieval, machine translation, etc.

1 Introduction

There is more and more evidence today that cognitive paradigms can complement

computational models and boost natural language technology. NLP, in its turn, is one

of the major vehicles that provides cognitive science with knowledge coded in the

natural language, - indispensable source of all kinds of information [1]. Integration of

NLP and cognitive modeling is to a large extent mediated by lexicons thus bringing

in focus the issues of quality and operative creation of lexical data.

High quality linguistic resources are mostly handcrafted and their creation is cost-

ly and time-consuming. Much effort has been made to overcome this problem by

automatically inducing grammars and lexicons from corpora. Among these efforts of

great importance for cognitive modelling are the works that have concentrated on

methodologies and techniques for automatic extraction of typed lexical units, such as

noun, verbal, etc., phrases; they reflect different types of cognition processes.

There is an ongoing work to save development effort by suggesting language-

independent extraction methodologies and tools [2], [3], [4], [5].

Another issue which matters a lot for using knowledge acquisition tools in practi-

cal applications (e.g., cognitive modelling) is the speed of extraction process as it

directly affects the applicability potential and costs of system development.

The range of the work in automatic lexical acquisition is very wide and covers

single- and multiword expression, collocation and keyphrase extraction, as, e.g. (in

addition to those cited above) [6], [7].

Sheremetyeva S..

On Operative Creation of Lexical Resources in Different Languages.

DOI: 10.5220/0004089300440052

In Proceedings of the 9th International Workshop on Natural Language Processing and Cognitive Science (NLPCS-2012), pages 44-52

ISBN: 978-989-8565-16-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Typed lexical unit is a grammatical notion and the most correct extraction results

can be expected with full-fledged NLP (symbolic) procedures, which while unques-

tionable under the assumption of perfect NLP parsing in reality will immediately lead

to the problems of coverage, hence robustness and correctness. Pure NLP parsing can

be very time consuming and is normally not portable. An ultimate example of sym-

bolic approach to extraction is a semantic tagger which annotates English corpora

with semantic category information and is capable of detecting and semantically clas-

sifying many multiword expressions but can suffer from low recall [8].

In an attempt to raise recall and extraction speed current approaches to extraction

involve statistical techniques where phrases are determined as word sequences with

no intention to limit the meaning in a linguistic sense. Pure statistical methods are

based on n-gram extraction and may include such preprocessing steps as stop list

words removal and stemming. Phrases are further selected based on various statistical

collocation/phraseness metrics, e.g., binomial log likelihood ratio test (BLRT) [9], or

“unithood” [10] to mention just a few.

On the one hand, statistical techniques offer some clear advantages, such as speed,

robustness and portability, over linguistically-informed methods. On the other hand,

the results obtained statistically are not always "good" phrases, and basic statistical

systems may suffer from combinatorial explosion if calculations are made on a large

search space.

Most successful are hybrid approaches that in different proportions combine sta-

tistical metrics with linguistic knowledge, such as morphology, syntax and even se-

mantics. Practically all researchers mentioned above use hybrid techniques.

While working quite well on English and other low inflecting languages, well de-

veloped extraction techniques are often rendered useless by rich morphology, case

syncretism and relatively free word order of highly inflecting languages.

We attempt to contribute to the studies in the field and suggest a novel hybrid ex-

traction methodology for typed lexical units, which could work well for both low and

highly inflecting languages.

The specificity of our approach

is three-fold, - (i) it allows operative dynamic ex-

traction of lexical resources and does not rely on a pre-constructed corpus; (ii) it does

not miss low frequency units; (iii) it is

portable between different types of lexical

units, domains and languages. The

methodology was tested on English, French, Span-

ish and such highly inflecting language as Russian. It was implemented in a tool,

which is intended to assist researches, translators, lexicographers, language teachers,

professionals, analysts and system developers in dealing with different types of lan-

guage processing. By means of the tool the end user can fulfill most of portability

tasks her/himself.

The paper is structured as follows. Section 2 gives an overview of the extraction

methodology. Section 3 describes its portability potential. Section 4 outlines possible

shortcomings and ways to overcome them. Section 5 presents evaluation results. The

paper concludes with methodology summarization and outlines its possible fields of

application.

2 Methodology Overview

2.1 Approach

Our ultimate goal was to develop a possibly universal methodology for extracting

typed lexical resources targeted to

• Intelligent results accounting for the specificity of input texts/corpora

• Reliable extraction of both high and low frequency typed lexical units

• No preconstructed corpus

• Multilingual and multipurpose use

• Computationally attractive properties.

By intelligibility we mean that our extraction results should be grammatically correct

(not truncated) and thus can be comfortable both for human use, and for porting into

other applications. To account for input specificity we aim to avoid extracting lexical

units, which are included into longer candidates but do not function individually in

the input document/corpus. We further provide a mechanism for relevancy calcula-

tion based of statistical distribution. Relevancy is to be user-defined depending upon

the extraction purpose. We pay special attention to the reliable extraction of not only

high frequency units but low frequency units as well. By multipurpose use we mean

that the extraction results can be output in different “shapes” as exhaustive lemma-

tized/not lemmatized lists or user-defined-relevancy keywords. The last but not least

goal is to let the end user be able to fulfill most of portability tasks her/himself.

We will describe our methodology on the example of single- and multiword noun

phrase (NP) extraction. NPs describe objects and concepts and are considered closely

connected to the content of utterances. They are most frequent in a text while extrac-

tion of NPs is especially problematic. It normally involves parsing and is often very

expensive computationally [11]. Our extraction methodology combines statistical

techniques, linguistic knowledge and heuristics. It starts with n-gram calculation. But

unlike many extraction procedures ours skips stop words removal at the prepro-

cessing stage. We discovered that it might “spoil” extraction results. For example, if

the task is to extract NPs, the removal of traditionally used stop words (boldfaced) at

the preprocessing stage from the fragment below:

…a table in which the wireless location system continuously maintains a copy

of the status of transmitters…

will lead to the extraction of phrases, which do not exist in the input, such as

*table wireless location system

*copy status transmitters.

We also decided against morphological normalization as preprocessing. Heuristic

stemming algorithms, may fail to identify inflectional variants and lead to the extrac-

tion of wrongly combined and/or truncated character strings which are impossible to

understand. Proper NLP lemmatization is very expensive computationally. We there-

fore postponed lemmatization to the last stage of processing.

We further avoided using regular statistical metrics for extraction proper and used

linguistic filters only. This was done to be able to reliably extract low frequency units

and make the methodology portable to highly inflecting languages where exact

matches of n-grams are much less frequent than in English. For the same reason lin-

guistic filters in our methodology use very shallow linguistic knowledge.

2.2 Knowledge

The linguistic knowledge is very shallow and includes

(i) partial knowledge about the constraints on a typed unit structure in terms of

parts-of speech (POS) for a particular language

(ii) a number of shallow lexicons each referenced to a particular (first, middle

last) position in the typed unit to be extracted

(iii) specific rules of a strongly lexicalized constraint grammar. The rules are very

simple and are as follows:

Rule 1

IF the first word in an n-gram belongs to Lexicon 1

THEN delete n-gram

Rule 2

IF the last word in an n-gram belongs to Lexicon 2

THEN delete n-gram

Rule 3

IF the middle word belongs to Lexicon 3

THEN delete n-gram

The rules are language–independent. They find and delete those n-grams which can-

not be NPs, without determining n-gram full part-of-speech structures. The lexicons

are of course language-dependent and contain lists of wordforms of relevant parts-of-

speech in a particular language. For example, for the English language in the NP

extractor Lexicon 1 contains explicitly listed wordforms of verbs, determiners, wh-

words and prepositions. The specificity of these lexicons is that they only include

POS-unambiguous wordforms. The advantage of using such lexicons is in avoiding a

computationally (and resource) expensive procedure of POS disambiguation. The

optional part of knowledge includes language-dependent lemmatizers.

2.3 Workflow

The extraction workflow is divided into a basic procedure which outputs a list of

grammatically correct typed lexical units, and optional procedures that can be run on

the output of the basic procedure and do not influence the extraction quality.

The basic extraction procedure consists of the following 3 steps:

• Calculation of n-grams (n = 1, 2, 3, 4) from a raw corpus/document.

• Selecting the initial set of NP candidates (singular and plural) using a strongly

lexicalized constraint-based grammar as the major filtering mechanism.

Here “middle” means “not first and not last”.

• Filtering out partial n-grams, i.e. n-grams which do not occur individually but

only as parts of longer n-grams.

To select the initial set of NP candidates the grammar rules try to match the first, last

and middle word of every n-gram against its position referenced lexicons. In case a

lexical match is found the n-gram is discarded; otherwise it is added to a candidate

set.

Every rule taken separately might let pass some of the ill-formed NP candidates

for which no match in the lexicon was found. This happens because a lot of words

which are POS-ambiguous are simply not included in the application lexicons. How-

ever, successive application of the grammar rules to different words of the same n-

gram compensates for this lack of the lexicon coverage. A “bad” NP that was not

identified by one rule will be identified by another and thus discarded.

The “good” candidates are then checked on functioning isolated in the input text.

This is done using a count-based criterion “Uniqueness” (U) which we define as the

difference between an n-gram frequency and the sum of the frequencies of its (n+1)-

gram extensions. A low U-value shows that the candidate is unlikely to be used indi-

vidually. We experimentally selected the U=0 or U< 0 values as thresholds for filter-

ing out undesired candidates. Extraction can stop at this point if no lemmatization or

scoring are needed like, e.g., in case our extraction procedure is to be included in a

concordance or parser.

The optional procedures include

• Lemmatization and count summing

• Wordform merge and count summing

•

Ranking and filtering based on statistical criteria

If cumulative counts are needed to calculate a lexical unit relevancy, e.g., to identify

keywords, these counts can be obtained after lemmatization or wordforms merge, - a

much simpler procedure than lemmatization. Word merge differs from stemming in

that it outputs grammatically correct wordforms rather than truncated strings of char-

acters. A heuristic algorithm automatically merges inflected forms of the same lexical

unit into one (not necessarily a lemma) with cumulative counts. This procedure is

based on character match and is language-independent. In general our extraction

methodology works equally well for high frequency and low frequency units (see

Figure 1).

3 Portability

A universal algorithm realizing deletion rules trigged by cascade matches of the lexi-

cons against n-grams and extremely shallow linguistic knowledge give our methodo-

logy a high portability potential.

The processing algorithm being universal, a generic portability procedure consists

in creating shallow language- and application-dependent linguistic knowledge, which

includes.

• Acquisition of syntactic configurations for a typed phrase of interest

• Acquisition of the stop lexicons

• Creation of a lemmatizer (optional).

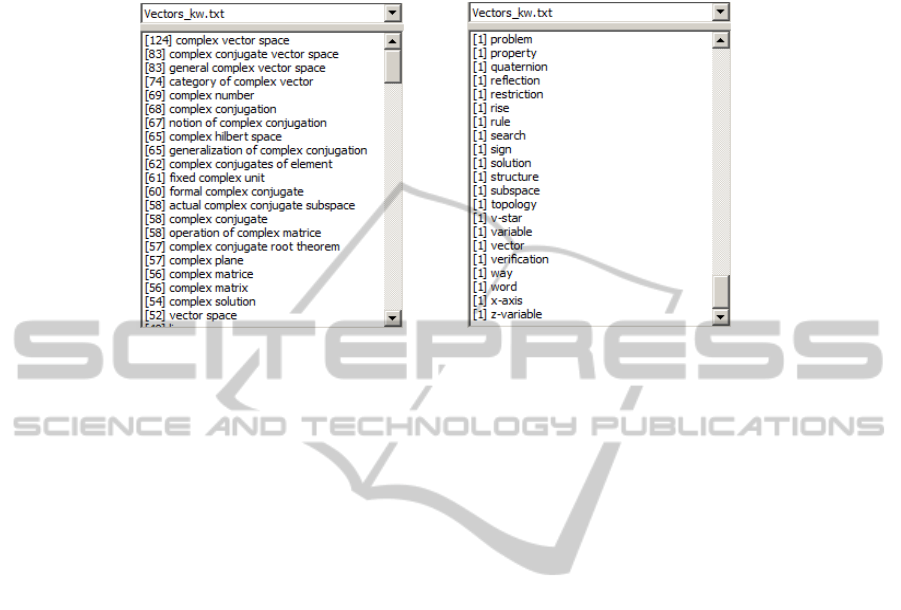

Fig. 1. Top and bottom fragments of the NP extraction results from an English scientific paper

on mathematical modeling.

Acquisition of syntactic knowledge is reduced to the identification of those part-of

speech classes that are forbidden or not desirable in the first, middle and last positions

in a phrase structure. Acquisition of the stop lexicons is reduced to the acquisition of

wordforms sorted into POS classes and then combining these lists according to the

syntactic configuration of a unit to be extracted. The fist and second tasks are pretty

straightforward and can be fulfilled by the end user. The development of a merge

module and lemmatizer is the responsibility of the developers.

4 Possible Shortcomings

The straightforward shortcoming is due to POS ambiguity, which can cause undesira-

ble noise. To bypass this problem we restricted the content of the stop list lexicons to

unambiguous wordforms only, which of course relaxes filtering. However, our exper-

iments showed that the successive application of different stop lexicons to the same

n-gram compensates for this drawback. Shortcomings can also be expected if the

methodology is applied to a highly inflecting language, such as Russian, where a

typical word has from 9 (for nouns) up to 50 forms (for verbs) [12] and exact n-grams

are much less frequent than in English. This can lead to the U criterion failure in

identifying NP extensions. For example, the Russian NP “средства контроля

колес» («wheel control means») will not be recognized as an extension of the NP

«средствам контроля» («control means») because of the not matching case strings

of «средства» (means_N_nom) and «средствам» (means_N_dat). Both short and

long NPs will in such a case be included in the final output. Since such “leaked” can-

didates are still “good” this shortcoming can be neglected. The shallow filter can also

pass some noun combinations forbidden by the Russian grammar. Evaluation (see

Section 5) showed a small number of this kind of mistakes and they could be either

neglected or filtered out by a human.

5 Testing and Evaluation

For testing and evaluation we have implemented our methodology into a tool, which,

the knowledge changed as described in section 3, can be used for different extraction

tasks in multiple domains and languages. The tool has flexible settings and lets the

user administer both the linguistic knowledge, and scoring parameters through the

interface. We passed the tool with the knowledge tuned to the extraction of English

patent domain key phrases (NPs) to the end-users (researchers, translators and teach-

ers) at ESC SUSU (Educational and Scientific Center of Innovative Language Tech-

nology at South Ural State University, Russia).

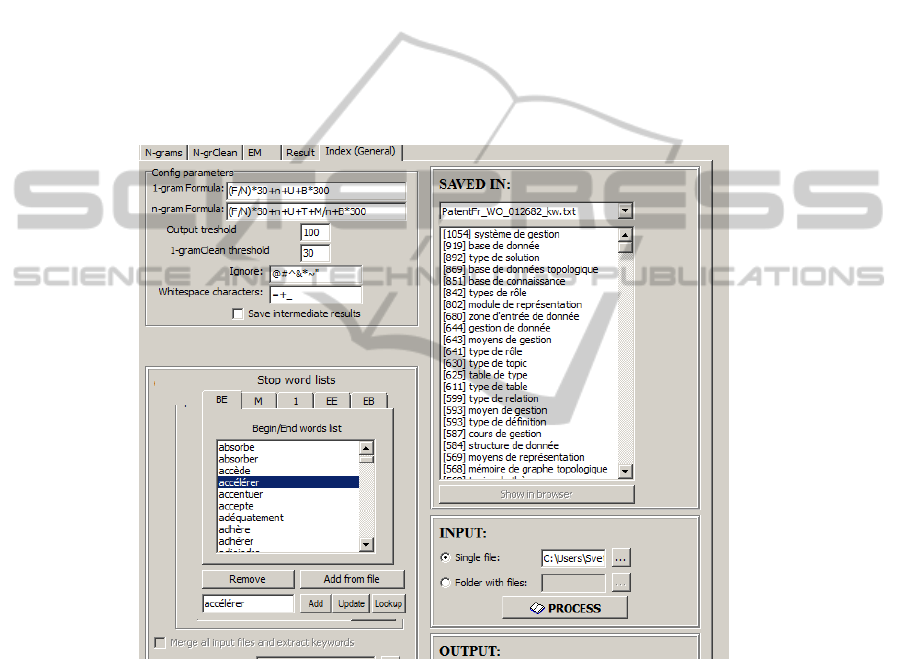

Fig. 2. A screenshot of the keyword (NP) extractor interface for the French patent domain,

which is created based on the described methodology and resources. Numbers in square brack-

ets show relevancy scores which are set as a logical combination of statistical parameters such

as n-gram frequency (F), average n-gram frequency (N), the number of most frequent 1-gram

components of an n-gram (T), summed frequency of these components (M), n-gram length (n),

uniqueness (U), etc. In the left bottom corner shown is the knowledge administration interface.

After a half-day training session the users were able to port the tool to English,

French, Spanish and Russian. Figure 2 shows the interface of the tool ported to the

French patent domain with a fragment of extraction results. The tool has been used at

ESC for more than two years. The tasks include mostly the extraction of noun and

verbal phrases from both single documents and open corpora from patent, economy,

mathematical modeling and programming domains. The purposes of the extraction

tasks were collecting resources for bilingual dictionaries, selecting foreign language

teaching material, on-the-fly terminology look-up in the original papers on the Inter-

net (used by translators), and domain specificity analysis for different research.

The evaluation results presented in this paper are based both on developer testing,

and end-users feedback. The quality evaluation method for every language consisted

in comparing the results of the basic extraction procedure (see Section 2) with gold

reference lists from randomly selected patent domain corpora. The test corpora con-

sisted of 20 000 wordforms for each language. The gold lists were built semi-

automatically by calculating n-grams (n = 1, 2, 3, 4) with an off-the-shelf tool and

their subsequent manual cleaning. It was not feasible to account for the uniqueness

factor with gold lists thus constructed. We therefore considered all units, which were

grammatically correct to be relevant results. The gold and result lists were further

automatically compared by means of another tool, which produced difference lists

that, in turn, were analyzed by humans. We used recall and precision measures for

quantitative estimates. Evaluation results for a major extraction tasks, - NPs are given

in Table 1.

Table 1. Evaluation results for the major typed lexical unit - NP, showing the quality of

extraction based on the described methodology.

English French Spanish Russian

Recall 97,5 % 96,3% 96,0% 98,4%

Precision 94,8% 92,5% 91,8% 93,4%

It was not feasible to compare the results and portability potential of our method-

ology to those of other reported works. Few exhaustive evaluations of the extraction

results have been carried out and no evaluation reports on methodologies portability

potential are available.

The end-users who participated in testing reported high satisfaction with the ex-

traction results and the simplicity of knowledge administration/porting. On average

one person/day was spent to acquire linguistic knowledge (as described in section 3)

for a new language. It took even less time to port the tool to a new type of linguistic

unit (e.g., from NP to VP) within one language. It required only a small brush up of

stop lexicons when porting the tool to a new domain within the same language and

unit type. Low frequency units are extracted as reliably as high frequency units.

6 Conclusions

The paper described a hybrid extraction methodology and illustrated its portability poten-

tial across domains, applications and languages.

The key proposals are:

• to calculate n-grams from a raw text

• to use “deletion rules” rather than POS-pattern “search” rules

• to use the knowledge related to the typed unit word order constraints rather than

full-fledged POS patterns

• to apply constraint rules through direct lexical (word string) match of an n-gram

component against position-referenced lexicons (avoid tagging and syntactic parsing)

The methodology features intelligent output and computationally attractive properties.

An overall testing and evaluation showed that the methodology stays robust for

English, French, Spanish, as well as for Russian. The basic extraction procedure out-

puts all inflected forms of proper types of lexical units.

Different applications can benefit from the techniques proposed here, ranging

from knowledge acquisition for cognitive modeling to indexing, unilingual and multi-

lingual information retrieval, extraction, summarization, machine translation, lan-

guage learning/teaching and the like.

References

1. Motivation in Grammar and the Lexicon (Human Cognitive Processing), .Ed. Panther KU.,

G. Radden. John Benjamin’s publishing Company (2011) 313.

2. Cholakov K, Kordoni, V., Zhang, Y.: Towards domain-independent deep linguistic pro-

cessing: Ensuring portability and re-usability of lexicalized grammars. In: Proceedings of

COLING 2008 Workshop on Grammar Engineering Across Frameworks (GEAF08), Man-

chester, UK (2008).

3. Lefever E., Macken, L., Hoste, V.: Language-independent bilingual terminology extraction

from a multilingual parallel corpus. In: Proceedings of the 12th Conference of the Europe-

an Chapter of the ACL, Athens, Greece (2009) 496–504.

4. Valderrabanos V. A. S., Belskis, A., Iraola L.: TExtractor: a multilingual terminology

extraction tool. In: Proceedings of the second international conference on Human Language

Technology Research, San Diego, California (2002) 393-398

5. Seretan, V., Wehrli, E. Multilingual collocation extraction with a syntactic parser. In:

Language Resources and Evaluation, 43(1) (2009) 71–85.7.

6. Daille B., E. Morin. An effective compositional model for lexical alignment. IJCNLP 2008:

Third International Joint Conference on Natural Language Processing, January 7-12, Hy-

derabad, India (2008) 95-102.

7. Michou A., Seretan, V.: Tool for Multi-Word Expression Extraction in Modern Greek

Using Syntactic Parsing. In: Proceedings of the EACL Demonstrations Sessions. Athens,

Greece (2009).

8. Rayson, P., Archer, D., Piao, S., and McEnery, T.The UCREL semantic analysis system.

In: Proceedings of the LREC-04 Workshop, beyond Named Entity Recognition Semantic

Labelling for NLP Tasks, Lisbon, Portugal, (2004) 7–12.

9. Dunning, T.: Accurate methods for the statistics of surprise and coincidence. Computation-

al Linguistics, 19(1) (1993) 61–74.

10. Thuy, V., Aw, A., Zhang, Min.: Term extraction through unithood and termhood unifica-

tion. In: Proceedings of the 3rd International Joint Conference on Natural Language Pro-

cessing (IJCNLP-08), Hyderabad, India (2008).

11. Piao, S. L., Rayson, P., Archer, D., McEnery, T.: Comparing and Combining A Semantic

Tagger and A Statistical Tool for MWE Extraction. Computer Speech & Language Volume

19, Issue 4, (2005) 378-39715.

12. Sharoff, S.: What is at stake: a case study of Russian expressions starting with a preposi-

tion. In: Proceedings of the Second ACL Workshop on Multiword Expressions Integrating

Processing, July (2004).
