Towards Online Data Mining System for Enterprises

Jan Kupˇc´ık

and Tom´aˇs Hruˇska

1,2

Faculty of Information Technology, Brno University of Technology, Boˇzetˇechova 1/2, 612 66 Brno, Czech Republic

IT4Innovations Centre of Excellence, Boˇzetˇechova 1/2, 612 66 Brno, Czech Republic

Keywords:

Data Mining System, Knowledge Discovery, Data Stream, OLAP.

Abstract:

As the amount of generated and stored data in enterprises increases, the signiﬁcance of fast analyzing of this

data rises. This paper introduces data mining system designed for high performance analyses of very large

data sets, and presents its principles. The system supports processing of data stored in relational databases and

data warehouses as well as processing of data streams, and discovering knowledge from these sources with

data mining algorithms. To update the set of installed algorithms the system does not need a restart, so high

availability can be achieved. Data analytic tasks are deﬁned in a programming language of the Microsoft .NET

platform with libraries provided by the system. Thus, experienced users are not limited by graphical designers

and their features and are able to create complex intelligent analytic tasks. For storing and querying results a

special storage system is outlined.

1 INTRODUCTION

Nowadays, in our modern, computerized world the

vast majority of companies use information technolo-

gies to support their activities. Various systems con-

tinuously produce, process or store large amount of

data that represents messages sent between employ-

ees, accounting information, purchases of business

clients, log messages from enterprise applications

and systems, measurements produced by sensors and

much more. Although this data comes from differ-

ent systems and represents a variety of information,

it has one thing in common – it may contain poten-

tially interesting and useful patterns and relationships.

The process of revealing new knowledge represented

by these discovered patterns from raw data is called

data mining or knowledge discovery from databases

(KDD) (Han et al., 2011). Understanding relation-

ships that are hidden in the data can contribute to

increasing the efﬁciency of business processes, im-

proving the quality of offered services or discovering

new market opportunities and thus increasing com-

pany proﬁts.

In the ﬁeld of data mining a large number of al-

gorithms, techniques and approaches has been cre-

ated since its beginning in the late 1980s. These

new ﬁndings have been implemented and formed into

many libraries, tools and software suites. In 2011, the

overview of existing data mining tools was published

(Mikut and Reischl, 2011) – authors identiﬁed more

than 50 commercial and more than 30 free and open-

source software. The lists contain well-known prod-

ucts for corporate usage, research activities and ed-

ucation, for example, IBM SPSS Statistics, MAT-

LAB, Oracle Data Mining, SAS Enterprise Miner and

Microsoft SQL Server Analysis Services. From the

group of free and open-source tools it can be men-

tioned Orange, R, RapidMiner or WEKA.

To analyze enterprise data and mine in it, proper

software needs to be chosen. One of the most com-

mon tasks is to reveal patterns in gathered histor-

ical data that is already stored in various types of

storages like relational or object-relational databases,

OLAP cubes, multimedia documents and other het-

erogeneous and legacy databases. For that purpose a

lot of software exists, but it differs in supported data

sources, available mining algorithms, the amount of

data it can handle, features related to results visual-

ization, capabilities to export results for further exter-

nal processing and others. For example, the Rapid-

Miner offers many features, however, it does not sup-

port connection to OLAP servers and thus it is not

very suitable for repeated mining in these multidi-

mensional sources. Mostly classic mining algorithms,

which require multiple passes over the data sets, are

present in these tools.

The approach ’store then analyze’, which is em-

ployed in common data mining algorithms, is not suit-

187

Kup

cík J. and Hruška T..

Towards Online Data Mining System for Enterprises.

DOI: 10.5220/0004098101870192

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 187-192

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

able for all data. Some data that is continuously arriv-

ing in potentially high ﬂuctuating data rates like net-

work logs or stock prices must be often analyzed as

soon as it emerges and knowledge models must be

immediately updated (Chandramouli et al., 2010). In

such a case we speak about data streams that can be

deﬁned as a real-time, continuous, ordered (implicitly

by arrival time or explicitly by timestamp) sequence

of items (Golab and

Ozsu, 2003). For data stream

mining a number of algorithms and techniques has

been proposed (Gaber et al., 2005). From the point of

view of software solutions designed for stream pro-

cessing and analysis, we have identiﬁed two groups.

The ﬁrst one is represented by research projects like

Stream Mill Miner (Thakkar et al., 2011) or Debellor

(Wojnarski, 2008) that focus on data stream mining.

In the second group there are so called Data Stream

Management Systems (DSMSs) which are designed

for receiving data streams from external sources, their

processing and pushing results to the output. They

primarily enables transforming, ﬁltering and joining

data streams from multiple sources, managing sliding

windows and processing continuous queries over data

streams (Chandramouli et al., 2010). This group in-

cludes research projects like STREAM (Arasu et al.,

2004) or Borealis (Abadi et al., 2005), as well as

commercial products, e.g., Oracle CEP, Microsoft

StreamInsight, IBM InfoSphere Streams and many

others (F¨ul¨op et al., 2010; Chandramouli et al., 2010;

H´ebrail, 2008).

We believe that a data mining system for enter-

prises should be robust, extensible, high performance

system which natively supports not only knowledge

discovery from both stored data and data streams but

also other features like deﬁnition of intelligent pro-

cesses or advanced storage for data mining results.

However, to the best of our knowledge, there has been

no such a system presented so far. Existing software

rather focuses on a subset of these features. In this pa-

per, we brieﬂy introduce our solution that is focused

on satisfying all these requirements.

This paper is organized as follows. In the next

section the key requirements for our system are de-

scribed. Section 3 outlines architecture of the sys-

tem and its components and presents important con-

ceptions. The ﬁnal section summarizes our work and

brieﬂy discuss future plans and challenges.

2 SYSTEM REQUIREMENTS

With respect to the primary purpose of the system we

have identiﬁed a set of key requirements that our sys-

tem must fulﬁll.

Support for Various Data Sources. The system

should be able to read and process data from vari-

ous sources. Support for operating on data stored in

relational databases and data warehouses is essential.

Next, the system must allow processing of continuous

data streams. Thus, the environment will be also pre-

pared for incremental data mining algorithms. More-

over, it should be able to work with other supplemen-

tary information that is obtained by transformation of

received data, or ask for data from other sources, e.g.,

web services.

Besides, it is unacceptable to noticeably increase

load of data sources related to data querying. The im-

pact to these sources must be minimized.

Advanced Analytic Processes. An analytic process

describes what steps the system shall perform to ac-

quire desired results. For example, these steps can

represent data loading, data transformations, statisti-

cal characteristics computation, execution of mining

algorithms, results exploring, storing or further pro-

cessing. The majority of systems for mining knowl-

edge from data have some kind of a graphic designer

to design such processes. They have very broad pos-

sibilities to deﬁne the data ﬂow, however, means for

deﬁning the control ﬂow are very limited, if any. Our

system must support intelligent decision-making pro-

cesses with rich abilities to describe data and control

ﬂows. Conditions, cycles, variables and constants are

required as well as the possibility to create reusable

units, thereby user can perform the same advanced

analysis on different data sources without any neces-

sity to intervention.

For processes to be self-reliant one must think

about the moment of their execution. The system

should still support execution on a user demand, but

there must exist a way to start a process as a result

of the occurrence of an event. Such an event could

emerge when a speciﬁed condition is met or a peri-

odic timer rings. This feature guarantees that reports

with discovered knowledge may be automatically cre-

ated.

A Storage for Data Mining Results. A result of

a data mining can be a learned knowledge model, re-

vealed patterns and prediction/classiﬁcation results. It

should be possible to store these results to a storage

and track history of results. This allows users to view

not only recently stored results but also older ones,

compare them and study their evolution.

System as a Service. The system must consist of a

server and a client part. The server part will run as a

service on the server with a sufﬁcient performance for

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

188

handling awaited load. A client access to the server

will be ensured by a web application that offers func-

tions for processes managing, results exploring and

system administration. Moreover, the system must be

constructed in such a way that another external ap-

plication can easily connect and consume offered ser-

vices. Thus, the system should expose a set of ser-

vices with a well-deﬁned interface available through

open multiplatform technologies like web services.

Extensibility. The data mining ﬁeld is constantly

in a progress. New data mining algorithms, tech-

niques and tools are developed and existing ones are

improved. To employ new ﬁndings from this area,

the system must be able to evolve. The aim of our

project is to create system whose set of algorithmsand

tools for visual presentations is easily extensible and

upgradable. This system should offer to programmers

the API not only for developing new data mining al-

gorithms but also for linking external mining libraries

implemented in C/C++.

24/7. One of the most important criteria is suitabil-

ity for environments where a very high availability

and reliability is required. The system can process

high number of concurrently running data mining pro-

cesses whose time necessary for completion may sig-

niﬁcantly differ and the situation where in every mo-

ment a process is running may arise. In many exist-

ing data mining systems, if an algorithm should be

installed or upgraded, it must be restarted or – in the

worst case – recompiled. However, in this system

such an approach is unsuitable. All modiﬁcations in

the set of data mining algorithms must be realizable

during system operation. Even if an algorithm is cur-

rently running, it must be possible to upgrade it.

3 SYSTEM ARCHITECTURE

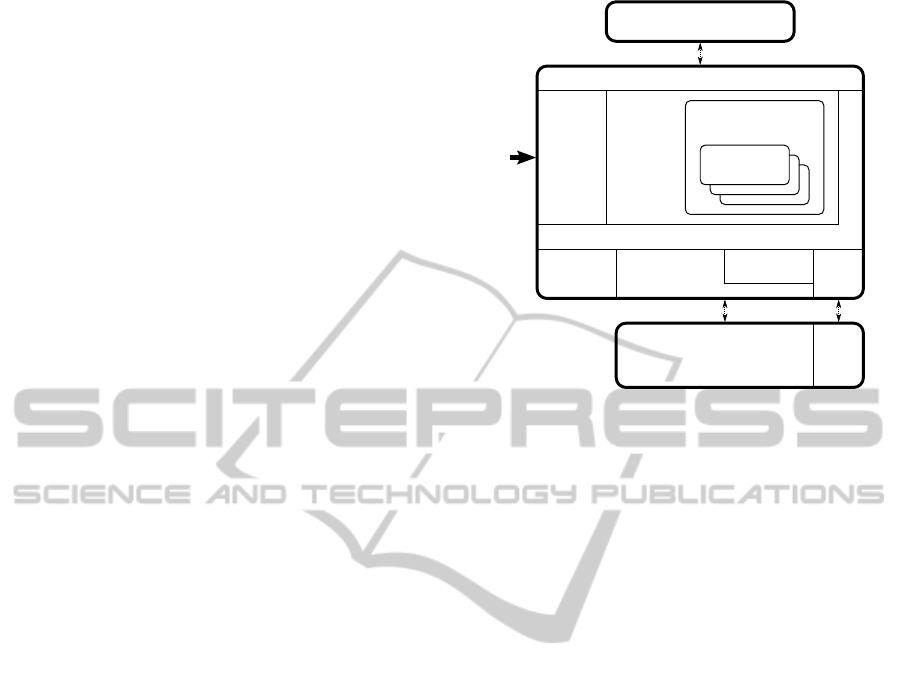

The discussed system, whose architecture is pre-

sented in Figure 1, is based on a client–server ar-

chitecture where the server part provides services to

many clients. Separation of the client and server parts

allows to achieve higher performance, scalability and

reliability, because the server part can be operated on

a remote high performance machine whereas client

applications can run on common personal computers

without any special requirements.

The server part consists of several components

and layers. In the middle layer there is a compo-

nent Data collector responsible for receiving, trans-

forming and passing data streams from external envi-

ronment to other system parts. There is also a sub-

Persistent storage

OLAP

cubes

SQL query queue(s)

Knowledge base

manager

- Relational data tables

- Knowledge base

- Algorithms data

- Configuration

In-memory

data tables

Data

collector

Process

manager

Data mining algorithm

manager

Algorithm

implementation

Data connector

SQL

MDX/XMLA

Application server

SOAP

External

data

stream

sources

Service providers

Web server

Figure 1: The architecture of the online data mining system.

system Process manager that manages and executes

analytic processes. Access to data is ensured by a ser-

vice layer Data connector. It offers a uniﬁed interface

for accessing data stored in the memory and persis-

tent storages like SQL databases and OLAP cubes.

Knowledge base manager for analysis results man-

aging is also accessible through this layer. Querying

SQL data sources is controlled by the set of intelligent

SQL query queues which enable user and system de-

ﬁned priority of queries and ensure optimal loading

of database storages. This part is mainly important in

environments with limited hardware resources where

storages are heavily shared. The objective of the layer

called Service providers is enabling to external appli-

cations and systems to use services of the mentioned

components. For example, an external application

for system managing should be able to restart system

components or show currently running processes.

The server uses services of persistent storages.

Data to mine in is read from relational databases and

OLAP cubes. Relational databases are also used in-

ternally for reading and writing temporary data, con-

ﬁguration and analysis results.

Entire system is being developed on the .NET

platform 4.0 in C# programming language. Compo-

nents of the system are realized as services and com-

munication between them and external systems is en-

sured by Windows Communication Foundation.

3.1 Analytic Processes

An analytic process deﬁnes what actions should the

system perform and what data should be employed

during the actions. In other words, it represents the

TowardsOnlineDataMiningSystemforEnterprises

189

data ﬂow and the control ﬂow that lead to desired re-

sults.

Processes can be represented in three ways – by an

XML-based language, by a special language and by a

programming language. For instance, a process deﬁ-

nition in a form of an XML document is used in the

MSMiner project focusing on cooperating with the

OLAP (Shi et al., 2007). As a representative of a spe-

cial language the Mining Model Deﬁnition Language

used in the Stream Mill Miner system (Thakkar et al.,

2011) can be emphasized. It is also possible to create

an analytic process as an self-executable application

that uses a library with data mining algorithms, e.g.,

LIBSVM offering C++ and JAVA implementation of

support vector machines (Chang and Lin, 2011).

In most data mining systems complexities of an

internal language describing actions to perform are

hidden. Users deﬁne a process visually by building

an oriented graph where nodes are functional compo-

nents from a predeﬁned set and interconnections be-

tween them specify the data ﬂow. The components

realize various actions like data loading, transform-

ing, ﬁltering, partitioning, execution of a selected data

mining algorithm or showing of results.

Our goal is to provide analysts and process devel-

opers as much power and freedom as possible. In our

solution, processes are expressed by a common pro-

gramming language of the .NET platform, for exam-

ple, by a well-known C# or VB.NET. Thus, experi-

enced users are not limited by visual designers and

their features. On the other hand, we realize that not

every analyst prefers this level of abstraction of pro-

cess description. To deal with this situation, we also

plan to develop a designer that will enable to deﬁne

processes visually. Such processes will be automati-

cally convertible to the source code and it depends on

users if they need to further edit the source code or

directly send it to the system. This tool can also help

developersto quickly generate a skeleton of a process.

Each process is represented by a class inherited

from the base class common for all processes. This

base class exposes an abstract method

Run()

that cor-

responds to the entry point of the process. The ab-

stract base class is situated in the detachable assem-

bly as well as other classes for data mining algorithm

parameters managing, algorithms executing, provid-

ing access to the data source services and environ-

ment monitoring. To construct a process, two other

groups of assemblies are necessary – the ﬁrst one con-

tains shared interfaces and the second one brings def-

initions of supported mining models. These assem-

blies do not have any other references to the system

parts and can be easily moved to a process developer’s

computer.

A developer builds a process with classes from

provided assemblies and programming constructs of

chosen programming language. Generic classes of the

.NET platform can be also involved, however, they

must not directly interact with any SQL or OLAP

server used by this system. A trivial example of

a process can look as follows. An instance of the

class representing a data mining algorithm is cre-

ated, a data mining parameters are added through the

Parameters

property, data sources are deﬁned in a

similar way and the algorithm is started by a calling

a single method. Then a condition determining if a

result should be stored to the knowledge base may be

added.

When a process development is ﬁnished, it must

be deployed to the server. A process may be deployed

as a source code that is automatically remotely com-

piled by the system. The result of compilation is re-

turned to the user and if it is successful, the created

assembly and the source code are stored. Later, the

source code may be downloaded, modiﬁed and de-

ployed again. It is also possible to deploy a process

assembly that was compiled with the detachable as-

semblies. However, in this case the source code is not

tracked by the system.

Once a process assembly is obtained, the process

manager reads the settings of process activation from

the process metadata. Based on the type of activation,

the process is placed into a priority process queue or-

dered by time of a process start or appended to a list

of processes activated by the data collector. If the pro-

cess shall be executed immediately, it is inserted to the

beginning of the process queue. The process can be

also scheduled for periodic starting, so it is inserted

into the process queue to the correct position. The

process may be also executed if a condition related

to an input data is satisﬁed. In this case, the condition

and the process to be executed is registered in the data

collector. As soon as the process manager detects that

a process prepared to execution is ready in the pro-

cess queue or the data collector marks a process as

runnable, the entry point of the process is started.

Because a process code is directly executed, a se-

vere bug in it might cause a crash of the process man-

ager and other processes. To deal with this problem,

each process is loaded into its own application do-

main and executed in it. Thus, a domain can be torn

down without any impact to other parts of the system.

This solution also allows to kill processes in an inﬁ-

nite loop.

3.2 Data Sources

For performing data analysis and mining, data sources

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

190

need to be deﬁned. There exist two cases depend-

ing on the character of data. In the ﬁrst one, data to

process is already stored in some relational databases

or OLAP cubes and can be obtained by a SQL or

MDX/XMLA query. In this case the system will con-

nect to requested data source, cache data if requested

and execute a chosen algorithm for data mining in

large data sets.

The second case corresponds to the situation

where data is continuously generated by the environ-

ment outside the system boundaries and it is not suit-

able to store them all before mining. To be able to

process data streams, the data collector component

must be employed. An external system produces data

records consisting of an identiﬁer characterizing car-

ried informationand data itself and passes them to this

component. For each unique identiﬁer the system ad-

ministrators can set a series of actions that describes

transformations and ﬁltering over the data. Each ac-

tion is tied up with any number of processes which

will be executed or notiﬁed with output data as a pa-

rameter as soon as all steps in the action are ﬁnished.

The data collector enables only simple operations

over the data. It also supports sliding windows that

can hold a ﬁxed number of elements or elements from

a time period with certain duration. However, the

need for more advanced data stream processing can

arise. In such a situation the data collector can be sim-

ply extended to cooperate with a Data Stream Man-

agement System.

3.3 Knowledge Base

In this system there is a detachable subsystem for stor-

ing and managing analysis results called the knowl-

edge base. It consists of a controller labeled as

knowledge base manager in Figure 1 and a relational

database in which knowledge base data is stored. The

controller is the only component that can directly ac-

cess knowledge base database, the other parts of the

system uses services of the controller to write and

query information.

The knowledge base storage can preserve vari-

ous results of data analyses which may be in form of

learned knowledge models and sets of revealed pat-

terns obtained by data mining algorithms. It can also

store smaller data sets including their schema, so it is

possible to hold statistics about source data, for ex-

ample, sum of all purchases in selected countries in

a time period. Each result, which can be referred to

as knowledge, is placed into a container within the

knowledge base. A container can contain other con-

tainers, so hierarchical structures of knowledge may

exist.

This subsystem can attach metadata to new knowl-

edge. Currently, there are supported two types of such

additional information. In case the knowledge repre-

sents the result of a data mining algorithm, the unique

name of the algorithm and current values of all its pa-

rameters are automatically added. The second type of

supported information is a time mark and a time pe-

riod that can express a range of analyzed data. This

time information is optional and it is stored only on

user request.

Retrieval of stored entities can be realized in sev-

eral ways. The API of the knowledge base enables

accessing all stored data structures within requested

knowledge, their ﬁltering by algorithms, parameters

or validity time. For instance, this feature can be help-

ful to ﬁnd best settings of the parameters of a selected

mining algorithm. It can also simplify the analysis

of input data evolution – it may be used in case of

market basket analysis with association rules mining

where the evolution model can reveal ﬂuctuations in

customer preferences.

4 CONCLUSIONS AND FUTURE

WORK

There are many software solutions related to knowl-

edge discovery process. They vary in features, capa-

bilities, supported data sources and other aspects. We

have explored the set of existing products and found

out an uncovered space between them. Our system,

which was introduced in this paper, ﬁlls this gap by

offering a combination of features packaged in one

software that is missing so far.

The presented system is designed for analyses of

great amounts of data which may be stored in a re-

lational or multidimensional storage or may come on

sample-by-sample basis as data streams. The set of

data mining algorithms in the system is not ﬁxed, it

can be modiﬁed or extended, even at run-time. The

combination of these features enables to employ this

system in time demanding analysis tasks. Results of

tasks may be stored into a detachable knowledge base

that is able to track their evolution in time. Last but

not least important attribute of this system is the way

how the analysis processes are deﬁned. They are ex-

pressed by a code written in a programming language

of the .NET platform in conjunction with a set of li-

braries provided by the system. All these features

were outlined in this paper.

Although this system is functional, there is a lot of

space for improvements. The system supports read-

ing from relational databases, OLAP cubes and in-

memory tables, but does not enable to combine them

TowardsOnlineDataMiningSystemforEnterprises

191

freely on the process deﬁnition level. The aim will be

to allow it to users. The second improvement area re-

lates to the way of processing data. Parts of analytic

process deﬁnitions might be transferable to database

servers that would be able to perform some actions

on data without necessity of immediate transfer to

the central server. An attention can be also paid to

improvements of the knowledge base to increase its

querying capabilities.

The system will be also thoroughly evaluated in

terms of performance and compared to selected data

mining systems. At this moment, preliminary tests

indicate that presented approaches are correct. For

instance, they have showed the system is capable of

obtaining data mining results in shorter time than Mi-

crosoft SQL Server 2008 R2 Analysis Services. Other

tests will be focused on capability to cope with fail-

ures of processes and algorithms that might cause a

system crash or affect the system availability.

ACKNOWLEDGEMENTS

This work has been supported by the research pro-

gramme TA

CR TA01010858, BUT FIT grant FIT-

S-11-2, by the research plan MSM 0021630528

and the European Regional Development Fund in

the IT4Innovations Centre of Excellence project

(CZ.1.05/1.1.00/02.0070).

REFERENCES

Abadi, D. J., Ahmad, Y., Balazinska, M., Cherniack, M.,

Hwang, J.-h., Lindner, W., Maskey, A. S., Rasin, E.,

Ryvkina, E., Tatbul, N., Xing, Y., and Zdonik, S.

(2005). The design of the borealis stream processing

engine. In In CIDR, pages 277–289.

Arasu, A., Babcock, B., Babu, S., Cieslewicz, J., Datar, M.,

Ito, K., Motwani, R., Srivastava, U., and Widom, J.

(2004). STREAM: The stanford data stream manage-

ment system. Technical Report 2004-20, Stanford In-

foLab.

Chandramouli, B., Ali, M., Goldstein, J., Sezgin, B., and

Raman, B. S. (2010). Data stream management sys-

tems for computational ﬁnance. Computer, 43:45–52.

Chang, C.-C. and Lin, C.-J. (2011). LIBSVM: A library

for support vector machines. ACM Transactions on

Intelligent Systems and Technology, 2:27:1–27:27.

F¨ul¨op, L. J., T´oth, G., R´acz, R., P´anczl, J., Gergely, T.,

Besz´edes, A., and Farkas, L. (2010). Survey on com-

plex event processing and predictive analytics. Tech-

nical report, University of Szeged, Department of

Software Engineering.

Gaber, M. M., Zaslavsky, A., and Krishnaswamy, S. (2005).

Mining data streams: A review. SIGMOD Rec.,

34:18–26.

Golab, L. and

Ozsu, M. T. (2003). Issues in data stream

management. SIGMOD Rec., 32:5–14.

Han, J., Kamber, M., and Pei, J. (2011). Data Mining: Con-

cepts and Techniques. Morgan Kaufmann Publishers

Inc., Waltham, MA, USA, third edition.

H´ebrail, G. (2008). In Fogelman-Souli, F., Perrotta, D.,

Piskorski, J., and Steinberger, R., editors, Mining

Massive Data Sets for Security, Advances in Data

Mining, Search, Social Networks and Text Mining,

and their Applications to Security, volume 19, chapter

Data stream management and mining, pages 89–102.

IOS Press.

Mikut, R. and Reischl, M. (2011). Data mining tools. Wiley

Interdisciplinary Reviews: Data Mining and Knowl-

edge Discovery, 1(5):431–443.

Shi, Z., Huang, Y., He, Q., Xu, L., Liu, S., Qin, L., Jia, Z.,

Li, J., Huang, H., and Zhao, L. (2007). MSMiner—a

developing platform for OLAP. Decis. Support Syst.,

42:2016–2028.

Thakkar, H., Laptev, N., Mousavi, H., Mozafari, B., Russo,

V., and Zaniolo, C. (2011). SMM: A data stream man-

agement system for knowledge discovery. In Abite-

boul, S., B¨ohm, K., Koch, C., and Tan, K.-L., edi-

tors, Proceedings of the 27th International Conference

on Data Engineering, ICDE 2011, April 11-16, 2011,

Hannover, Germany, pages 757–768. IEEE Computer

Society.

Wojnarski, M. (2008). Transactions on rough sets IX. chap-

ter Debellor: A Data Mining Platform with Stream

Architecture, pages 405–427. Springer-Verlag, Berlin,

Heidelberg.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

192
