Unsupervised Discovery of Significant Candlestick Patterns for
Forecasting Security Price Movements
Karsten Martiny
Institute for Software Systems (STS), Hamburg University of Technology, Hamburg, Germany
Keywords:
Candlestick Patterns, Time Series Analysis, Market Forecasting, Pattern Discovery, Information Extraction,
Unsupervised Learning, Hierarchical Clustering.
Abstract:
Candlestick charts are a visually appealing method of presenting price movements of securities. It has been
developed in Japan centuries ago. The depiction of movements as candlesticks tends to exhibit recognizable
patterns that allow for predicting future price movements. Common approaches of employing candlestick anal-
ysis in automatic systems rely on a manual a-priori specification of well-known patterns and infer prognoses
upon detection of such a pattern in the input data. A major drawback of this approach is that the performance
of such a system is limited by the quality and quantity of the predefined patterns. This paper describes a
novel method of automatically discovering significant candlestick patterns from a time series of price data and
thereby allows for an unsupervised machine-learning task of predicting future price movements.
1 INTRODUCTION
Candlestick charts are a visually appealing method of
presenting price movements. The method of analyz-
ing candlestick charts in order to predict price move-
ments of a security has been developed in Japan cen-
turies ago. In fact, the use of candlesticks amongst an-
cient Japanese rice traders dates back to the early 18th
century and thereby, this method is established signif-
icantly longer than modern financial markets themself
exist. However, this technique remained unknown to
the western world until the early 1990s, when it was
first made accessible in (Nison, 1991). It has gained
popularity amongst western analysts ever since.
Due to the increasing importance of machine-
driven trading systems some approaches (as ex-
plained below) have been developedto exploit candle-
stick patterns in algorithmic trading systems. How-
ever, previously proposed methods depend on an ini-
tial manual definition of significant candlestick pat-
terns. This paper describes an unsupervised learn-
ing method that is able to identify significant patterns
without any a-priori knowledge and can therefore be
used to develop an adaptive trading system.
This paper is structured as follows. Section 2
provides the preliminaries for analyzing candlestick
charts. In Section 3, a method for an unsupervised
learning process of inferring significant candlestick
patterns is described and it is shown how these re-
sults can be used to infer price movement prognoses.
Section 4 presents an evaluation of the proposed tech-
niques’ prediction performance. The paper finishes
with a summary in Section 5.
2 CANDLESTICK ANALYSIS
To create a candlestick chart, the key points of every
day are used to construct a candle. A day’s key points
consist of its opening, highest, lowest, and closing
price. These data sets are sometimes also referred to
as OHLC-data and will form the actual machine input
subsequently.
As depicted in Figure 1, the construction of a can-
dle works as follows: a rectangle is drawn between
opening and closing price (called the candle’s body),
a line is drawn from the body’s upper edge to the high-
est value (called upper shadow or upper wick) and,
accordingly, another line is drawn from the bodys
lower edge to the lowest value (called lower shadow
or lower wick). Additionally, the candle’s body is col-
ored according to the situation: “rising days” (i.e.,
the closing price is above the opening price) are de-
picted with hollow white bodies, while “falling days”
are marked through solid black bodies.
Note that a candle does not necessarily have to ex-
hibit all of these features: since the opening or closing
values may coincide with a day’s high or low values,
145
Martiny K..
Unsupervised Discovery of Significant Candlestick Patterns for Forecasting Security Price Movements.
DOI: 10.5220/0004107701450150
In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 145-150
ISBN: 978-989-8565-29-7
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
rising candle falling candle
body
upper shadow
lower shadow
C
H
L
O
O
H
L
C

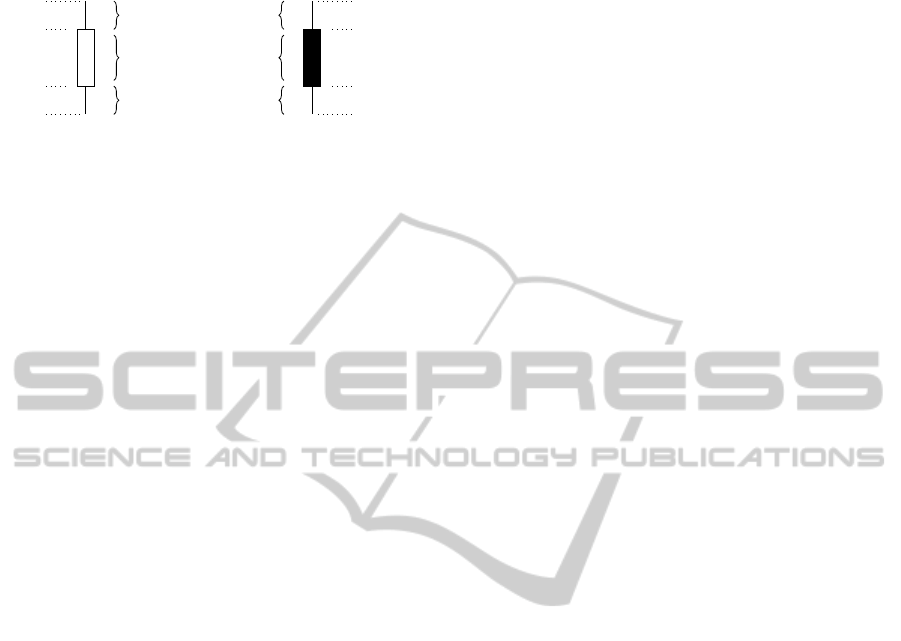

Figure 1: Depiction of time intervals as candles: O = open-
ing price, H = highest price, L = lowest price, C = closing
price; if the closing price is above the opening price, the
candle’s body is white, otherwise it is colored black.
there can be candles with only one or even no shadow
at all. The candlestick’s main advantage is that it al-
lows for an instant perception of the market partici-
pants’ attitude. For instance, as explained in (Nison,
2003), large shadows indicate significant movements
in both directions and are therefore usually associated
with uncertainty. This could give hints that no direc-
tion is currently in favor or that a turning point is im-
minent.
While candlesticks are able to provide valuable in-
sight into a market’s situation, single candlesticks are
usually regarded as too fragile to allow for a progno-
sis of required reliability. Hence, instead of relying
only on a single candle’s shape, forecasts are based
upon constellations of successive candlesticks. These
so-called Candlestick Patterns usually consist of a se-
ries of three candlesticks with certain properties. In
addition to the candles’ shapes, their positions rela-
tive to each other, as well as the prevailing direction
of movement,are taken into consideration. For a thor-
ough guide to candlestick patterns see (Nison, 1991)
or (Morris, 2006).
In general, candlestick patterns can be classified
into two categories: reversal patterns indicate an im-
minent turning of the current movement’s direction
while continuation patterns confirm the current move-
ment. Opposed to other established analysis methods,
candlestick patterns only require a succinct time pe-
riod to form a characteristic pattern and thereby emit
a signal. Consequently, it is only natural to utilize
these patterns for short-term forecasts. In fact, dis-
tinguished patterns have the means to forecast the fol-
lowing day’s direction with a rather high certainty, but
by extending the forecast further into the future, its
reliability will quickly diminish. In (Morris, 2006),
statistical correlations between a forecast’s length and
its quality have been analyzed and it was shown that
a feasible hit ratio can be achieved for a maximum
of three days, while after a maximum of seven days
a pattern’s prognosis is hardly able to outperform a
random guess.
Due to their short-term nature, candlestick pat-
terns may be employed to facilitate strategies with
a rather high trading frequency. Also, since other
analyzing methods tend to forecast movements on a
larger scale, they can be augmented with a candle-
stick pattern analysis to pinpoint the exact positions
of turning points and thereby result in an increased
quality of the inferred predictions.
3 UNSUPERVISED DETECTION
OF CANDLESTICK PATTERNS
Previous research in the field of candlestick pat-
tern analysis aimed at an automatic detection of pre-
defined significant patterns. This task can be seen as
a form of stream-based query answering. Several ap-
proaches of inferring future price prognoses, based
on querying streams for candlestick patterns and in-
corporating a variety of machine learning techniques,
have been proposed: In (Chou et al., 1997) fuzzy
membership functions are combined with induction
trees to infer predictions, (Lee and Jo, 1999) employs
a rule-based expert-system to produce trading recom-
mendations. (Ng et al., 2011) proposes to train a ra-
dial basis function neural network in order to derive
investment decisions. In (Lee et al., 2011) descrip-
tions of candlestick patterns through fuzzy linguis-
tic variables are combined with genetic algorithms in
order to obtain investment decisions. In (Lin et al.,
2011), an autonomous trading system is described,
which learns a trading strategy based on candlestick
patterns and other technical indicators through an
echo state network.
While these works differ in the proposed data min-
ing techniques, all of them share the same basic ap-
proach to the task: before any of these systems are
able to infer predictions, they rely on an initial defi-
nition of significant candlestick patterns provided by
a domain expert. These manual definitions are then
used to obtain training data sets. Though all works
were able to show that their respective approach leads
to the obtainment of valuable analysis results, their
dependencies on a domain expert bear a major draw-
back. The potential performance of all of these sys-
tems is strictly limited by the quality and quantity of
the predefined set of significant patterns. It is espe-
cially not possible that these approaches are able to
find any supplementary significant patterns that may
be contained in training data sets but are unknown to
the domain expert. This work describes an alterna-
tive approach of classifying candlestick patterns that
facilitates an unsupervised learning task. Hence this
approach has the means of discovering all significant
latent patterns contained in the training data set with-
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
146
out having to rely on the (possibly limited) knowledge
of a domain expert and thus enables the development
of truly adaptive trading systems.
3.1 Domain Model
3.1.1 Evidence
As explained before, a particular candlestick is de-
scribed through its OHLC-data and thus these val-
ues are used to form the observation space. In or-
der to prevent the system from inferring dependencies
of certain price levels, it is necessary to avoid abso-
lute values. Instead of directly using the OHLC-data,
the values are scaled such that they denote a relative
change with respect to the opening value. In addition
to resulting in universally applicable descriptions of
candlesticks’ shapes, this normalization has the con-
venient side effect that the evidence space is reduced
because the opening value can be omitted. Conse-
quently, the observation of a particular candlestick
CS
t
for a time interval at t is described by:
CS
t
=
H
O
,
L
O
,
C
O
= (H
t
, L
t
,C
t
) (1)
Next to the included candlestick shapes within each
pattern, it is also necessary to provide information
about the candlestick’s positions relative to each
other. This information is based on the midpoint M
t
of a candlestick:
M
t
=
H
t
L
t
2
+ L
t
Using these midpoints, the relative position of a can-
dle j with respect to a preceding candle i is defined as
the relative change
ij
of their respective midpoints:
ij
=
M
j
M
i
M
i
(2)
A candlestick pattern comprises three consecutive
candlesticks and therefore, by using Equations 1 and
2, a particular instance of the evidence e
T
t
formed by
a complete candlestick pattern in a certain trend state
T (as explained below) is described by
e
T
t
=
CS
t2
, CS
t1
, CS
t
,
t2,t1
,
t1,t
) (3)
To complete the description of a particular pattern
it is also required to provide information about the
pattern’s context (i.e., the current trend state). In or-
der to identify this trend state, a very short weighted
moving average (denoted by MA) is used. This indi-
cator calculates the average of the last three candles’
closing values. An upward movement is assumed if
this moving average has been strictly monotonically
increasing for at least two days before a pattern was
formed. Accordingly, a downward movement is as-
sumed for a strictly monotonically decreasing aver-
age. If neither condition is fulfilled the context does
not exhibit a clear trend. Thus the trend state T
t
for a
certain pattern CP
t
is defined as
T
t
=
1 if MA
t4
< MA
t3
< MA
t2
1 if MA
t4
> MA
t3
> MA
t2
0 otherwise
(4)
3.1.2 Prognosis
The prognosis model employed in this work predicts
the direction of price movements for a short time pe-
riod. For a prediction period of p days into the future,
the prediction (also called hypothesis) h
p
t
is defined
as
1
h
p
t
= sgn
t, t+p
. (5)
3.2 Pattern Detection
The central goal of this work is the automatic detec-
tion of significant patterns (i.e., patterns that tend to
indicate similar subsequent price movements) solely
from training data without any manually defined a-
priori information. While the task of inferring predic-
tions based on unknown pattern memberships resem-
bles the process of learning memberships of unknown
Gaussian mixture components, this domain bears the
additional challenge that the number of mixture com-
ponents (i.e., the number of significant patterns) is
unknown a-priori, too. Thus, conventional clustering
procedures such as EM-clustering, SVM-clustering,
or k-means clustering are not applicable for this task
as all of these methods require an a-priori definition
of the number of clusters. Since the feature values
of observed candle instances are distributed roughly
evenly, density-based clustering methods are neither
applicable because although they are able to cope with
an unknown number of clusters, the feature distribu-
tion would result in a single large cluster (with the
exception of occasional outliers), provided that the
training set is sufficiently large. In order to cope with
1
Strictly speaking, this definition would yield three dif-
ferent forecasting states because next to rising and falling
days it may also happen that midpoint positions are ex-
actly equal. However, since a pair of candles virtually
never exhibits exactly the same midpoint values in prac-
tice, the hypothesis space is modeled in a binary way. In
order to achieve an exhaustive definition, the forecast is im-
plemented with the assumption sgn(0) = 1. Due to the
practical irrelevance one could also keep the third unneeded
state or use other assumptions as well without impairing the
results.
UnsupervisedDiscoveryofSignificantCandlestickPatternsforForecastingSecurityPriceMovements
147
4
7
3
1 12
9
11 2
5 10 6 8
data points
distance
Figure 2: Schematic depiction of a hierarchical cluster
structure (this type of graph is called dendogram)
both the unknown shapes and numbers of significant
patterns, a hierarchical clustering structure is used in
this work that allows to query for significant patterns
based on characteristic properties.
3.2.1 Hierarchical Clustering
Hierarchical clustering methods construct an ordered
structure of clusters such that the distance according
to some distance measure between respective cluster
members increases with the hierarchical order of a
cluster. To illustrate this, Figure 2 depicts an example
of a hierarchical cluster structure: in a complete struc-
ture, the topmost cluster contains all elements of the
data set and its children are split such that they form
two clusters with a minimal distance between all re-
spective cluster elements. This work uses agglomera-
tive hierarchical clustering (“bottom-up clustering”),
as explained in (Ma; and Wu, 2007) to construct the
required cluster hierarchy.
A useful distance measure to define similarities
between different observations in this context is the
euclidean distance. Hence, the distance between two
patterns x and y (of the form described in Equation 3,
containing 11 properties) is defined as:
d(x, y) = kx yk
2
=
s
11
i=1
(x
i
y
i
)
2
After merging two observations into a cluster, the fea-
ture values of the resulting cluster are set to the re-
spective average values of both merging candidates.
Applying agglomerative hierarchical clustering with
this distance measure to the training set of input
patterns results in a structure that provides informa-
tion about the similarity of different observations and
therefore can be used to identify recurring patterns.
Once this structure has been constructed, it can
easily be used to query for significant patterns. To
identify significant patterns, two properties for each
cluster (i.e., each possible pattern) are defined: First,
it is necessary to ensure that a cluster indeed repre-
sents a recurring pattern and not only some random
effect. In order to ensure recurrence, a cluster must
contain at least a certain minimum number of mem-
bers (representing instances of a particular pattern).
This is denoted by the instance count I
P
of a pattern P
and is defined as
I
P
= # instances for a pattern P
= # elements in the corresponding cluster.
Also, a pattern should exhibit a certain reliability R
P
,
i.e., a certain ratio of all cluster members need to be
succeeded by the same directional development. The
reliability of a pattern P is defined as
R
P
=
max # instances with the same outcome
I
P
.
This stresses the importance of considering the in-
stance count: each of the initial clusters only con-
tains a single instance and thus exhibits a reliability
of 100%. Without requiring a certain number of oc-
currences, all of these clusters would be considered
significant. By adjusting this parameter, the general-
ization capabilities of the system can be tuned: a low
value will lead to a high amount of discovered distinct
patterns with only few instances each, while increas-
ing this value will result in fewer, but more general,
descriptions of significant patterns.
Based upon these properties a pattern is consid-
ered significant if both values exceed a certain thresh-
old (i.e., I
P
I
min
and R
P
R
min
). Search for these
pattern starts at the bottom of the hierarchical struc-
ture. As soon as a cluster is found that meets the
specified criteria, it is added to the set of significant
patterns and its parents are omitted from the search.
The rationale of this can be understood as follows. If
a pattern is already considered as significant, an addi-
tion of further instances bears the danger of diluting
the pattern’s properties by considering auxiliary in-
significant instances.
As a result of this procedure, one obtains an
emergent set of significant pattern descriptions. This
knowledge is elicited solely from latent information
of the training data and therefore transcends the lim-
itations imposed by relying on the knowledge of a
domain expert. Once the descriptions of significant
patterns have been obtained, they can be incorporated
in various analysis approaches in order to infer pre-
dictions of future price movements. To evaluate the
quality of detected patterns, a naive Bayesian classi-
fier is used in the following.
3.3 Inferring Prognoses from
Candlestick Patterns
Once the descriptions of significant candlestick pat-
terns have been obtained through agglomerative hier-
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
148
E
P
H

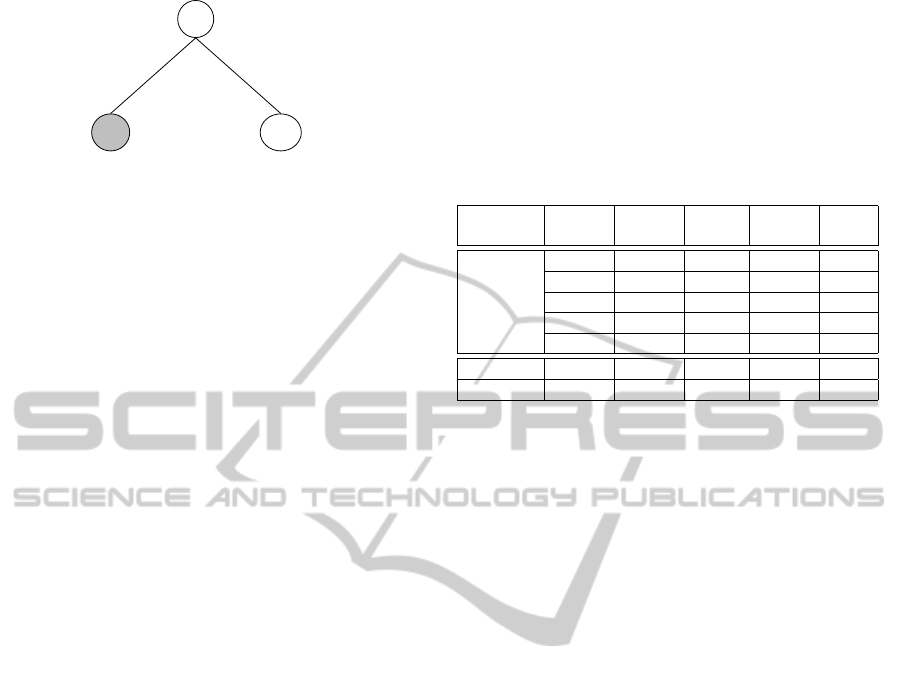

Figure 3: Bayesian classifier for candlestick pattern match-
ing: The evidence node E (shaded) denotes the actually ob-
served pattern, P denotes the unknown pattern assignment
and H the inferred hypothesis (i.e., the predicted movement
according to Equation 5).
archical clustering, this information can be used with
a naive Bayesian classifier in order to infer predic-
tions regarding future price movements and thereby
evaluate the quality of the previously discovered pat-
terns. The Bayesian network used for this purpose is
depicted in Figure 3. The evidence node in this net-
work represents a random variable for a particular ob-
servation as described in Equation 3. This evidence
is first used to determine whether the observation re-
sembles an instance of some known significant pat-
tern. Thus, node P is a discrete node that indicates
the cluster membership of the observation. Note that
obviously not every observation can be assigned to a
known pattern. Hence, in addition to the set of known
patterns, an additional “absorbing pattern” is intro-
duced, which indicates that an observation is not an
instance of a known pattern. Once the pattern mem-
bership is determined, this information is used to pre-
dict the direction of future price movements.
The conditional probabilities P(e|p), denoting
that a particular observation e is due to a certain pat-
tern p, are modeled as Gaussians. Hence, the proba-
bility of this observation is a mixture of Gaussians:
P(e) =
n+1
p=1
P(p)P(e|p) =
n+1
p=1
w
p
· N (µ
p
, σ
2
p
)
w
p
denotes the mixing weight for each component
and can be determined by the prior P(p) which in
turn is determined by the ratio of ps number of oc-
currences and the size of the training set. Since both
the pattern membership and the associated forecast
are discrete variables, the corresponding conditional
probability p(h|p) is defined through a conditional
distribution table. The values of these probabilities
are acquired automatically as described in the follow-
ing.
4 EVALUATION
In order to to evaluate the performance of the pro-
Table 1: Results for a one-day forecast with I
min
= 30 and
varying R
min
parameters. For each R
min
the number of iden-
tified patterns, the number of observations that could be
matched to one of the patterns, the corresponding match-
ing ratio and the resulting success ratio of the forecasts are
listed.
To compare these results to conventional approaches, the ta-
ble also lists the forecasting results for applying the static
rule descriptions and using supervised learning, respec-
tively.
method
reliability
(R
min
)
#
patterns
#
matches
matching
ratio
success
rate
60% 162 6387 0.43 0.66
unsuper- 70% 103 3961 0.26 0.70
vised 80% 70 2690 0.18 0.72
90% 26 1044 0.07 0.81
100% 3 105 0.01 0.90
supervised N/A 27 989 0.07 0.67
static N/A 27 202 0.01 0.53
posed techniques, a training scenario has been set up
with historical data from the Dow Jones Industrial
Average comprising OHLC-data from February 26,
1932 until October 12, 2011, thus containing 20000
pattern instances. This large data set hast been se-
lected to ensure that the results are not influenced by
an overfitting to short-term effects. To cope with this
large amount of data, the system has been evaluated
with a rolling forecasting procedure (as described for
example in (Tsay, 2010)): initially, the first 5000 data
sets including the subsequent directionaldevelopment
have been used to detect latent patterns and to esti-
mate the unknown parameters of the Bayesian clas-
sifier afterwards. After this initialization, the system
is used for inferring forecasts for the following 1000
data sets (the “rolling forecasting window”, this time
without subsequent developments). The inferred fore-
casts are then compared to the actual developments
so that a hit ratio of the prognoses can be determined.
Upon completing this test procedure, the tested data is
added to the training set, the system is retrained and
the rolling forecasting window is advanced to the next
1000 datasets. This procedure allows for both a long-
term performance evaluation with the available data
and an adherence to possible additional latent patterns
in the test sets.
Evaluations with varying minimum instance count
values have shown that requiring a minimum of 30
observed instances of any pattern in order to consider
it as significant provides a feasible compromise be-
tween an accurate fitting and appropriate generaliza-
tion capabilities. The corresponding results for a one-
day directional forecast with varying R
min
parameters
are listed in Table 1. A comparison of the used reli-
ability thresholds and the according success rates of
the forecasts shows that the resulting success rate re-
UnsupervisedDiscoveryofSignificantCandlestickPatternsforForecastingSecurityPriceMovements
149
flects a rather close tracking of the respective relia-
bility parameter. Thus, by deciding upon a certain
R
min
, one can tune the success rate to the extreme.
However, there is a clear trade-off between success
rate and matching ratio: e.g., configuring the system
such that it yields a 90% success rate significantly de-
creases the matching ratio to 0.01. Consequently, a
signal is generated only approximately twice per year
and is concerned with only forecasting movements of
the following day. Obviously such a sparse existence
of very short-term signals renders this result virtually
useless in practice, although its quality is outstand-
ing. If instead one would for example use a relia-
bility of 70% (i.e., intentionally accepting occasional
false signals), the resulting success rate would still be
highly satisfactory but, on average, signals are gener-
ated more than once per week. Thus, assuming that
a correct prediction yields profits, the overall gain of
any trading strategy employing this parameter setting
would result in significantly higher gains.
To compare these results to conventional ap-
proaches, the table also lists the results of applying
the pattern descriptions from (Morris, 2006) to the
test data set (i.e., static pattern matching without any
adaptive component) as well as the results of using
these manual descriptions for training the network
(i.e., a supervised learning task). A comparison of
these results clearly shows that the proposed unsuper-
vised method is able to outperform conventional ap-
proaches with respect to both the number of detected
patterns as well as the resulting success rate.
Tests with forecasts of various durations were able
to confirm the statements from (Morris, 2006) regard-
ing the forecasting ability: a forecast three days into
the future with R
min
= 0.7 resulted in a success rate
of roughly 60% while the success rate of a four-day
forecast was not able to exceed 50% significantly and
therefore can hardly be of any use in practice.
5 SUMMARY
For candlestick-based prognoses, well-defined
knowledge regarding significant patterns is required,
as discussed in Section 2. In accordance with
previous work, a probabilistic learning approach is
used to infer prognoses based on a set of known
significant patterns. Rather than merely using the
inference procedures for computing prognoses
based on predefined patterns, the learning process is
extended to an earlier stage of the data processing.
By pursuing the approach of unsupervised pattern
detection, a self-contained knowledge base can be
created which allows for truly adaptive forecasting
systems. Through the ability of directly identifying
latent patterns from training data, the resulting
system is able to cope with securities that may exhibit
varying behavior. Most importantly, the system’s
performance is independent of any manually spec-
ified knowledge and is therefore insusceptible to
any knowledge deficiencies in both quantity and
precision, which are virtually inevitable if a human
domain expert is tasked with specifying his expertise
in a machine-readable form. By replacing the manu-
ally specified pattern sets of the approaches discussed
in Section 3, the presented procedure of identifying
significant candlestick patterns can be combined with
various methods of inferring the actual forecasts
and thus can be used as a an extension for existing
systems. Additionally, it is interesting to note that the
feature selection used by human analysts is obviously
a suitable choice for a machine-learning approach as
well.
REFERENCES
Chou, S., Hsu, H., Yang, C., and Lai, F. (1997). A stock
selection DSS combining AI and Technical Analysis.
Annals of Operations Research, 75:335–353.
Lee, C.-H. L., Liaw, Y.-C., and Hsu, L. (2011). Invest-
ment decision making by using fuzzy candlestick pat-
tern and genetic algorithm. In Fuzzy Systems (FUZZ),
2011 IEEE International Conference on, pages 2696
–2701.
Lee, K. and Jo, G. (1999). Expert system for predicting
stock market timing using a candlestick chart. Expert
Systems with Applications, 16(4):357 – 364.
Lin, X., Yang, Z., and Song, Y. (2011). Intelligent stock
trading system based on improved technical analysis
and Echo State Network. Expert Systems with Appli-
cations, 38(9):11347 – 11354.
Ma;, G. G. C. and Wu, J. (2007). Data Clustering: The-
ory, Algorithms, and Applications. SIAM, Society for
Industrial and Applied Mathematics.
Morris, G. L. (2006). Candlestick Charting Explained:
Timeless Techniques for Trading Stocks and Futures.
McGraw-Hill Professional, 3rd edition.
Ng, W. W. Y., Liang, X.-L., Chan, P. P. K., and Yeung, D. S.
(2011). Stock investment decision support for Hong
Kong market using RBFNN based candlestick mod-
els. In Machine Learning and Cybernetics (ICMLC),
2011 International Conference on, volume 2, pages
538 –543.
Nison, S. (1991). Japanese Candlestick Charting Tech-
niques: A Contemporary Guide to the Ancient Invest-
ment Techniques of the Far East. New York Institute
of Finance.
Nison, S. (2003). The Candlestick Course. Wiley & Sons.
Tsay, R. S. (2010). Analysis of Financial Time Series (Wi-
ley Series in Probability and Statistics). Wiley, 3rd
edition.
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
150
