An Ontology-based Data Acquisition Infrastructure

Using Ontologies to Create Domain-independent Software Systems

Dominic Girardi

, Klaus Arthofer

and Michael Giretzlehner

Research Unit Medical-Informatics, RISC Software GmbH, Hagenberg, Austria

Department for Process Management in Health Care, Upper Austria University of Applied Sciences, Steyr, Austria

Keywords:

Ontology, Meta Modelling, Data Acquisition.

Abstract:

We created an ontology-based data acquisition infrastructure which is able to store data of almost arbitrary

structure and can be set up for a certain domain of application within hours. An ontology editor helps the

domain expert to deﬁne and maintain the domain speciﬁc ontology. Based on the user-deﬁned ontology, a

web-based data acquisition system and an ETL data import interface are automatically created at runtime.

Furthermore, rules for semantic data plausibility can be established in the ontology to provide semantic data

quality for subsequent processing of the collected data. After a comprehensive requirement analysis we de-

cided to use a special meta model instead of standard OWL ontologies. In this paper, we describe our meta-

model and the reason for not using OWL in our case in detail as well as we present the infrastructure and the

project it is currently used for.

1 INTRODUCTION

Research in common and medical research in partic-

ular is grounded on a vast amount of data. This pre-

cious data, which is often yielded by expensive stud-

ies or experiments, needs to be stored in a structured

and save way. Since data structures are often com-

plex, a professional data acquisition system is needed

to acquire and store the data. Due to the fact that

every ﬁeld of study requires its own individual data

structure, these data acquisition systems are hardly

reusable and need to be developed individually for

each new domain, which is elaborate and expensive.

For that reason study authors tend to use sub-optimal

data storage solutions like excel sheets.

In order to encounter this drawback, we developed

an ontology-based data acquisition and storage infras-

tructure including a generic web-based data acquisi-

tion system, an ontology-guided ETL module, an easy

to use ontology editor, and a powerful rule checking

mechanism to ensure semantic data quality. It is able

to store data of almost arbitrary structure and ready to

be used for a certain domain within a few hours.

In Section 3 we describe the technical background

of the system in detail including the ontology format

we use. In Section 4 we motivate, why we did not use

the standard ontology format OWL for our system and

oppose OWL to our meta model. Section 5 contains

the practical results of the projects are presented in-

cluding screen shots and key numbers of the running

system. In Section 6 we summarize our results.

2 RELATED RESEARCH

The most related work to ours is described in (Zavaliy

and Nikolski, 2010). In their paper - that only con-

tains 1 page - the authors describe the use of an on-

tology for data acquisition, motivated by the demand

of adaptive data structures. They used an OWL on-

tology to model their domain, which consists of four

concepts (Person, Hospital, Diagnosis and Medica-

tion). There is no information given on user inter-

faces or semantic data checks. Asides from this work,

it was very hard to ﬁnd any publications on ontology

based data acquisition systems. In most publications

ontologies are used for information extraction from

text (Tran and Kameyama, 2007) or to enrich the ex-

isting data with structural and semantic information

or to build a cross-institutional knowledge base. In

(Kataria et al., 2008) the authors describe the usage

of ontologies for inter-hospital data extraction to im-

prove patient care and safety by analyzing hospital ac-

tivities, procedures, and policies. Here, the ontology

is strongly connected to the project. In (Kiong et al.,

2011) e.g. the authors describe an ontology based sys-

155

Girardi D., Arthofer K. and Giretzlehner M..

An Ontology-based Data Acquisition Infrastructure - Using Ontologies to Create Domain-independent Software Systems.

DOI: 10.5220/0004108101550160

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2012), pages 155-160

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tem for extracting research relevant data out of het-

erogeneous hospital information systems. Here again,

the purpose is to ﬁnd a superior common data model

to compare data of different medical institutions. In

contrast to our system, the ontology is strongly con-

nected to the project.

3 META MODEL-BASED DATA

ACQUISITION SYSTEMS

State-of-the-art data storage and acquisition systems

are logically organized in multiple layers (Balzert,

2010). This multi-tier architecture - mostly com-

mon is a three tier architecture with a data layer, a

logical layer and a user interface layer - helps to re-

duce the technical dependencies among the particular

layers and makes them exchangeable as long as the

interfaces between the layers remain constant. Still,

the semantic dependency of the whole system from

the data structure of the ﬁeld of application - the real

world problem - cannot be resolved by using multi-

tier-architectures. Changes to the data model, caused

by changing requirements, cause transitive changes to

the whole application. This makes the whole system

rigid, inﬂexible and only adaptable at high costs and

personal effort. In order to resolve this dependency

a special data model is needed. It must be indepen-

dent from the ﬁeld of application, which sounds self-

defeating at a ﬁrst glance. How should a data model

store data for a real world domain, without being in-

ﬂuenced by it? Meta models are data models of higher

level of abstraction and can be used to solve this issue.

3.1 Meta Models

The Object Management Group OMG (MOF, 1997)

deﬁnes four levels (M

- M

) of meta modeling. Each

model at level M

is an instance of a model at level

i+1

. Level M

contains the real world transactional

data. Each object at M

is an instance of a model

deﬁned in M

, which is called the model layer. Each

model at level M

can be seen as an instance of a meta

model at level M

- the meta model layer. Level M

contains meta meta models.

Conventional data storage systems use M

data

models, which directly describe the ﬁeld of applica-

tion. M

meta models describe M

data models. We

developed a meta model which is able to store M

data

models as well as their M

transactional data. This al-

lows replacing the conventional M

data model by the

meta model. As a consequence the logical layer

cannot be implemented directly anymore, but serves

as an execution enviroment for the logic rules, which

are stored in the meta model. Furthermore, the user

interface(s) can be created automatically based on the

meta information stored in the meta model.

3.2 Meta ER Model

Since most M

data models are relational models

stored in a relations database, they can be described

using an Entity Relationship model (ER model),

which was introduced by Peter Chen in 1976 (Chen,

1976). Consequently a meta model, which is able

to describe an ER model can be used to store data

structures that are stored in a relational database. Our

meta ER model consists of six main entities which are

shown in Figure 1.

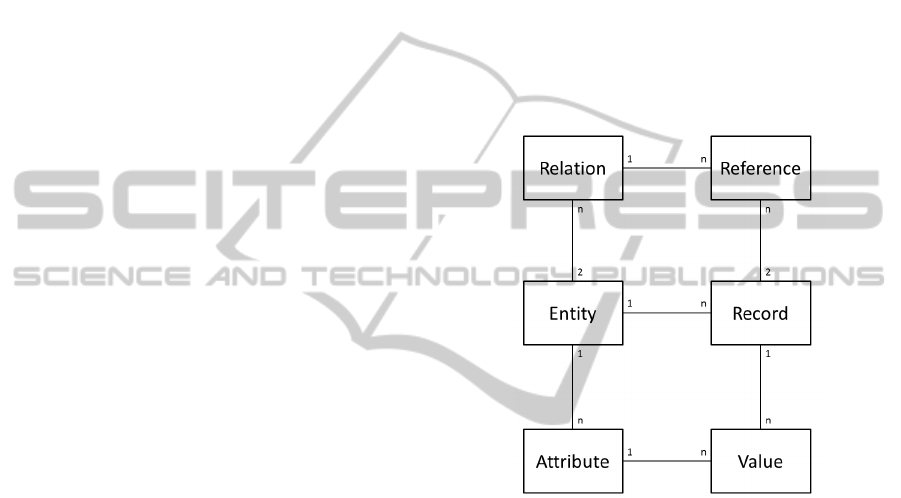

Figure 1: ER Diagram of our Meta ER data model.

The central entity class is Entity. It corresponds

to a table in a relational database. So, for each table

that is needed in the M

data model a row in the En-

tity table is created. Thus, the independence of the

data model from the real world is achieved. Chang-

ing entities do not cause changes to the data model

any more, but only to its content. The same mecha-

nism applies to attributes and relations. If an attribute

is needed, it is simply added to the Attribute table in-

stead of creating a new attribute to a table and chang-

ing the data model itself. While the entity classes

on the left hand side describe structural elements, the

transactional data is stored in the three entity classes

on the right hand side: Record, Value, and Reference.

A table in a relational database consists of columns

(attributes) and rows. Each row is a single record of

a certain entity. Each single cell in a table contains a

value which can be uniquely assigned to exactly one

record and one attribute of an entity. In addition to

these basic entities the whole meta data-model con-

sist of 19 more entity classes, which are responsible

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

156

for, auditing, user management, GUI customization,

and semantic plausibility checks.

4 WHY WE DID NOT USE OWL

ONTOLOGIES

So far, our basic meta model does not provide any

feature that cannot be covered by classical OWL on-

tologies. According to (Chandrasekaran et al., 1999)

”Ontologies are content theories about the

sorts of objects, properties of objects, and re-

lations between objects that are possible in a

speciﬁed domain of knowledge.”

(Gruber, 1993) provides a more general deﬁnition:

”An ontology is a speciﬁcation of a conceptu-

alization.”

Their original purpose is to share a common knowl-

edge of a domain across multiple institutions. An as-

pect which is meant to be used as a backbone for the

semantic web (Ding, 2001) and (Berners-Lee et al.,

2001). Furthermore, ontologies are very popular for

knowledge representation and organization in many

scientiﬁc domains like the Gene Ontology (Smith

et al., 2003) in bioinformatics. According to the deﬁ-

nitions above, meta models can be seen as equivalent

to ontologies. Consequently the question arises, why

we did use our own meta model instead of the stan-

dard ontology format OWL, since there exist numer-

ous ontology editors like Protege project (Knublauch

et al., 2004) and reasoning engines.

4.1 OWL

The Web Ontology Language OWL is a XML based

description language for ontologies (McGuinness and

van Harmelen, 2004). It is based up the Resource

Description Framework (RDF) (Manola and Mille,

2004) and part of the Semantic Web Stack. The main

concepts of OWL are classes, properties and individ-

uals (Horridge et al., 2004).

Individuals represent objects in the real world

domain this ontology models. They correspond to

records in our meta model, with the difference that

OWL individuals can be part of more than one OWL

class, which is not possible in our meta model, where

each record is an instance of exactly one entity class.

OWL properties are binary relations which connect

two individuals (or values), which corresponds to re-

lations in the ER model or to a data type which can be

expressed using attributes in the ER model. Classes,

comparable to entity classes in the ER world and in

our meta model, are interpreted as sets containing in-

dividuals. They encapsulate all properties that can be

applied to these individuals. Basically, all concepts

in the ontology can be mapped to a corresponding

concept in our meta model, whereas their behavior

is sometimes different. For our purpose the tradition

restricted behavior of the ER world is the more sufﬁ-

cient one. The degree of freedom in OWL is gener-

ally higher than in our meta model. Still, this degree

of freedom doesn’t always make sense for a data ac-

quisition system e.g. individuals should only belong

to one well deﬁned entity; otherwise they would be

mixed up during subsequent data processing.

4.2 Purpose

OWL Ontologies were not designed to build the back-

bone of generic data acquisition systems. In our sys-

tem the ontology is not just used for data deﬁnition

but also as a base for automatic GUI generation. The

information that can be stored in an OWL ontology

would only be sufﬁcient for a very simple GUI design.

For a more customizable GUI more data ﬁelds like the

text color, background color, formats, and many more

are needed for each attribute, which are not available

in OWL.

4.3 Reasoning vs. Semantic Plausibility

For OWL ontologies, a variety of reasoners are avail-

able such as Pellet (Sirin et al., 2007), Racer, or

FaCT++. They basically perform inference and rule

consistency checking on the ontology itself. They

check if there is a contradiction within the ontology,

produced by restrictions that are set to the classes of

the ontology. Furthermore, they perform the assign-

ment of individuals to classes. Functionalities which

are indisputably useful, but for our system we needed

something else.

The semantic plausibility rules in our system can

show a structure like this: if a patient is female

and there is at least one treatment for this patient

where the procedure was either an appendectomy (re-

moval of the appendix) or a cholecystectomy (re-

moval of the gallbladder) than the complication of

the type violation of the uterus is plausible, other-

wise it is not. Restrictions like this can hardly be

formulated with OWL syntax. The premise of these

kinds of restriction can only be modeled with deﬁned

classes, whereas for each possible conﬁguration of the

premise-attribute a single deﬁned class has to be mod-

eled - a tasks that seems feasible for the attribute

gender with only two values: male and female, but

hardly doable for an attribute like diagnose with pos-

AnOntology-basedDataAcquisitionInfrastructure-UsingOntologiestoCreateDomain-independentSoftwareSystems

157

sible several thousands of diagnoses. Furthermore, in

OWL, restrictions can only be made to classes and

their properties. Restrictions to transitively connected

classes are not possible. Given a data structure like

this: A patient can contain several treatments and for

each treatment there exist several complications, so

an 1:n relation from patient to treatment and an 1:n

relation from treatment to complication. In OWL it is

very complicated to restrict the possible values in an

individual of the class complication due to the conﬁg-

uration of an individual of the class patient. In our

system any attribute of any class can be set into a

dependency relationship to any other attribute of any

other class even if there is no direct connection be-

tween the two classes. This requirement is hardy re-

alizable using OWL syntax and was the main reason

why we decided to use our own meta model instead

of OWL.

4.4 Open World vs. Closed World

OWL ontologies are built upon the Open World As-

sumption. In contrary to the Closed World Assump-

tion, where everything is false, that is not explicitly

deﬁned, the Open World Assumption allows a big de-

gree of freedom in data deﬁnition. Although there

are surely good arguments for open world assumption

based software (Baresi et al., 2006) for our applica-

tion the close world assumption is deﬁnitely more re-

alistic.

4.5 Storage

While ontologies are usually stored in OWL ﬁles, our

system is a database based solution. As mentioned in

Section 3.2 on page 2, aside from the core meta model

entities there exist 19 more entities. Hence, storing

the 19 additional tables in a relation database, while

keeping the ontology information in a ﬁle, is a very

inefﬁcient storing strategy. Of course, it is possible to

store an OWL ontology in a relational database (As-

trova et al., 2007), but creating a relation model for

an OWL based ontology is a mix of two concepts that

unnecessarily complicates the system.

5 THE OBIK INFRASTRUCTURE

In 2010 the OBIK project was started with the goal to

create an ontology-based data acquisition system that

is able to store data of almost arbitrary structure. Fur-

thermore, the system should provide a web interface,

which is automatically created based on the ontology

information which allows viewing, entering and edit-

ing the data. Aside from manual data input, electron-

ically stored data should be able to be imported from

heterogeneous data sources by an ontology guided

ETL process. The abbreviation OBIK stands for On-

tology based Benchmarking Infrastructure for Hospi-

tals (German: Krankenanstalten). Although the title

implies a restriction to the ﬁeld of medicine there is

no such restriction. Since the user is free to design

ontologies for any ﬁeld of application, this infrastruc-

ture can also be used to collect data for e.g. economic

research or business applications.

The system consists of four main modules OBIK

Management Tool, Web Interface, ETL Plug-In, and

Plausibility Engine.

5.1 OBIK Management Tool

The OBIK Management Tool is a Java-based software.

The main feature is the Ontology Editor (see Fig-

ure 2), which allows the administrator to create and

maintain the ontology. There are no predeﬁned enti-

ties or relations in an empty ontology. So, the admin-

istrator is absolutely free to model the ontology after

the demands of his domain of application. Usabil-

ity had priority to the development of the system, be-

cause the users are experts on their domain, which is

not necessarily ontology design or computer science.

Most operations - such as creation and manipulation

of entities, relations and attributes or the administra-

tion of the plausibility rules - can be done by drag

and drop or by the use of intuitive wizard dialogs.

Furthermore, the administrator can view, manipulate

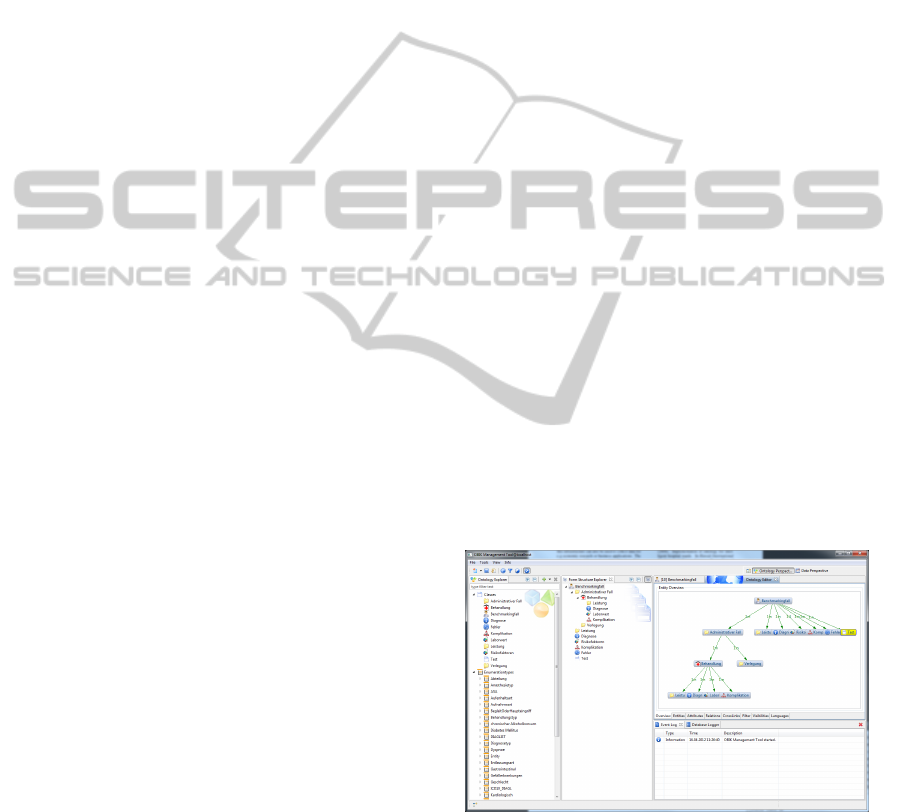

Figure 2: OBIK Management Tool - Ontology Editor.

and download the stored data. Since the structure of

the presented data depends on the stored ontology, the

structure of the user interface (tables, editors, search

forms) is created dynamically at runtime, based on

the ontology deﬁnitions. Changes to the ontology,

have immediate effects on these elements. Numerous

search and ﬁlter functions help to extract the desired

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

158

data sets for further processing. The check of plausi-

bility rules can be run from this perspective. Selected

datasets can be downloaded in multiple formats in-

cluding CSV, PDF and XML for subsequent data pro-

cessing. A complete download of the whole ontology

including all data into a relational M

data model, ex-

ported as DDL and SQL scripts, is also available.

5.2 Web Interface

The web interface allows the users to enter and edit

data. The interface is primarily used to manually

complement electronically imported data with addi-

tion information. If no electronic sources are avail-

able the whole data need to be entered via the web

interface. Due to the web technology data from dis-

tributed institutions can be brought together in one

central ontology.

The whole structure of the web interface (input

ﬁelds, tables, search forms) is derived from the ontol-

ogy and created at runtime. So, changes to the ontol-

ogy have immediate effects to the web forms. Green

and red colored message boxes indicate the result of

the plausibility check for a given data set.

5.3 ETL Plug-in

For importing electronically stored data into the on-

tology the Pentaho Kettle Extraction, Transform,

Load (ETL) tool is used. The powerful ETL tool al-

lows the integration of numerous input sources and

the deﬁnition of complex ETL processes. For the last

step, the import of the extracted and rehashed data ta-

bles into the ontology respectively meta model, we

developed a Kettle plug-in. It maps the data ﬁelds of

the Kettle data tables onto the structures of our meta

model according to the user’s deﬁnitions.

5.4 Plausibility Engine

The Plausibility Engine is responsible for checking

the semantic data integrity. It applies the dependency

rules to each data set and evaluates if the current data

violates any of these. As stated above, dependencies

work on attribute level and set two attributes (master

and slave) in a dependency relation, whereas the cur-

rent value of the slave attribute depends on the cur-

rent value(s) of the master attribute(s). If one slave

depends on more than one master attribute the two de-

pendencies have to be connected using logical opera-

tors AND or OR. Thus, a tree of dependency rules can

be set up for each slave attribute. A visualization of

such a tree can be seen in Figure 3. For the evaluation

process the dependency tree is processed bottom-up

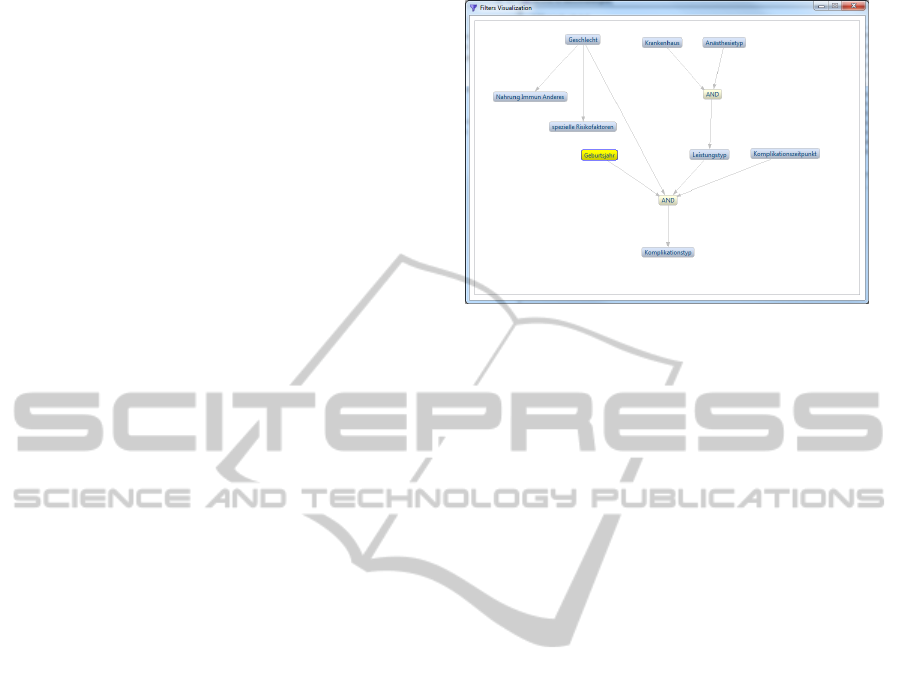

Figure 3: Dependency structure.

from the leaves to the root of the tree. Since one cer-

tain attribute can be the slave of one dependency(tree)

and master for the next dependency(tree) a chain of

transitive dependencies can be created which will be

processed following the constraint propagation pat-

tern (Rossi et al., 2006).

5.5 Results

The OBIK infrastructure is currently being used to

perform comparative benchmarking of hospitals in

Upper Austria. It contains more than 2,000 pa-

tient records including medical parameters like pre-

existing illnesses, risk factors, diagnoses, treatments,

procedures and other administrative data. Talking in

meta model terms, the ontology including data set

consists of 43 entities with 120 attributes and 49 rela-

tions. There are about 40,000 records with more than

188,000 values and about 107,000 references.

First runs of the plausibility checks on the data

yielded tremendous inconsistencies concerning the

semantic data quality - far beyond simple syntactic

and numeric errors; drawbacks that either cause de-

creased usefulness of the statistical outcome or time

and costs on identiﬁcation and correction. To be more

precise: one of the semantic checks veriﬁes the plau-

sibility of a complication depending on the foregone

medical procedure. It is run at data-input time, which

means the study nurse gets alerted immediately when

she enters implausible data. This check fails in 15

cases out of 2000. Experiences showed that identi-

ﬁcation and correction (contacting the study nurse in

the hospital, re-checking the data, ...) takes about 10

minutes on average for each error; resulting in 150

minutes time savings for this check. Currently there

are more than 100 checks implemented, showing sim-

ilar error rates.

AnOntology-basedDataAcquisitionInfrastructure-UsingOntologiestoCreateDomain-independentSoftwareSystems

159

6 CONCLUSIONS

We could show, that ontologies are not only a power-

ful tool for data modeling and knowledge sharing but

also applicable for highly generic software systems.

For this purpose, which was not the origin purpose,

the standard ontology format OWL could not fulﬁll

all our requirements, which brought us to use a meta

model instead. Aside this format issue, the usage of

ontologies helped to create an absolutely generic data

acquisition and storage system, which can be set up

and maintained by the people who use it, without any

database or programming skills. The intuitive on-

tology editor helps domain experts to manifest their

knowledge into their ontology and the rest of the ap-

plication (data input forms, overview tables, search

and ﬁlter functions, export and import interface) are

created automatically on the ﬂy.

REFERENCES

(1997). Meta object facility (mof) speciﬁcation.

OMG-Document ad/97-08-14.

Astrova, I., Korda, A., and Kalja, A. (2007). Storing owl on-

tologies in sql relational databases. Engineering and

Technology, 29.

Balzert, H. (2010). Java: objektorientiert programmieren:

Vom objektorientierten Analysemodell bis zum objek-

torientierten Programm. W3L-Verl, Herdecke and

Witten, 2 edition.

Baresi, D. L., Nitto, E., and Ghezzi, C. (2006). Toward

open-world software: Issues and challenges. Com-

puter, (06):36–43.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

semantic web a new form of web content that is mean-

ingful to computers will unleash a revolution of new

possibilities.

Chandrasekaran, B., Josephson, J., and Benjamins, V.

(1999). What are ontologies, and why do we need

them? Intelligent Systems and their Applications,

IEEE, 14(1):20–26.

Chen, P. P. S. (1976). The entity relationship model - to-

ward a uniﬁed view of data. ACM Transactions on

Database Systems, 1(1):9 – 36.

Ding, Y. (2001). A review of ontologies with the seman-

tic web in view. Journal of Information Science,

27(6):377–384.

Gruber, T. R. (1993). A translation approach to portable on-

tology speciﬁcations. Knowl. Acquis., 5(2):199–220.

Horridge, M., Knublauch, H., Rector, A., Stevens, R., and

Wroe, C. (2004). A practical guide to building owl on-

tologies using the protege-owl plugin and co-ode tools

edition 1.0.

Kataria, P., Juric, R., Paurobally, S., and Madani, K. (2008).

Implementation of ontology for intelligent hospital

wards. In Hawaii International Conference on Sys-

tem Sciences, Proceedings of the 41st Annual, ti-

tle=Implementation of Ontology for Intelligent Hos-

pital Wards, page 253.

Kiong, Y. C., Palaniappan, S., and Yahaya, N. A. (2011).

Health ontology system. In Information Technology

in Asia (CITA 11), 2011 7th International Conference

on, pages 1–4.

Knublauch, H., Fergerson, R. W., Noy, N. F., and Musen,

M. A. (2004). 17: The prot

e owl plugin: An open

development environment for semantic web applica-

tions. In McIlraith, S. ., Plexousakis, D., and van, H.

r. a. n. k., editors, The Semantic Web – ISWC 2004,

volume 3298 of Lecture Notes in Computer Science,

pages 229–243. Springer Berlin / Heidelberg, Berlin

and Heidelberg.

Manola, F. and Mille, E. (2004). Rdf primer, w3c recom-

mendation 10 february 2004.

McGuinness, D. L. and van Harmelen, F. (10 February

2004). Owl web ontology language overview: W3c

recommendation.

Rossi, F., van Beek, P., and Walsh, T. (2006). Handbook

of constraint programming. Elsevier, Amsterdam and

and Boston, 1 edition.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., and Katz,

Y. (2007). Pellet: A practical owl-dl reasoner. Web

Semantics: Science, Services and Agents on the World

Wide Web, 5(2):51–53.

Smith, B., Williams, J., and Kremer, S. S. (2003). The on-

tology of the gene ontology.

Tran, Q. D. and Kameyama, W. (2007). A proposal

of ontology-based health care information extraction

system: Vnhies. In Research, Innovation and Vision

for the Future, 2007 IEEE International Conference

on, pages 1–7.

Zavaliy, T. and Nikolski, I. (2010). Ontology-based in-

formation system for collecting electronic medical

records data. In Modern Problems of Radio Engineer-

ing, Telecommunications and Computer Science (TC-

SET), 2010 International Conference on, page 125.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

160
