A Metamodel for Functional Dependencies

Towards a Functional Dependency Model Transformation

Manuel Enciso, Carlos Rossi and Antonio Guevara

Dpto. Lenguajes y CC de la Computaci´on, Universidad de M´alaga, M´alaga, Spain

Keywords:

Model Driven Engineering, Metamodel, Model Transformation, Functional Dependencies, Logic.

Abstract:

Model driven engineering has been shown to be a useful framework to enrich the quality of software. Meta-

modeling and model transformation have opened the door to specifying data models and manage it in a formal

and solid way. These favourable features are particularly welcome in collaborative development, where we

need a data model suitable for specifying information from different sources, and which can also facilitate

the integration of this heterogeneous information to a global data model. In this paper we introduce a meta-

model based on the notion of functional dependencies and we propose to use model driven engineering for the

development of model transformation based on the SLFD logic.

1 INTRODUCTION

Our work aims to improve the quality of real-world

software projects. More speciﬁcally, we optimize

models using formal techniques, but decreasing the

development cost by means of automatization. In this

sense, we also reduce the usual rejection that soft-

ware developers have to these techniques due to their

complexity and high development time and cost. We

achieve these advantages by applying Model Driven

Engineering (MDE). Within this overall objective,

this paper focuses on the optimization of data mod-

els.

The Uniﬁed Modeling Language (UML) (OMG,

2001) provides a standard for expressing data models.

It has been used in databases to specify the two main

approaches in data modeling (conceptual and logical

modeling): the entity/relationship model (Gogolla,

2005) and the relational model (Akehurst et al., 2002),

(Laleau and Polack, 2001). Nevertheless, the intro-

duction of model driven engineering and the use of

metamodels and model transformations has opened

the door to the incorporation of several languages and

techniques to software engineering. Particularly we

are interested in the use of logic as a frameworkwhich

provides formal speciﬁcation and solid inference.

In this work we propose to incorporate the good

result provided by the Simpliﬁcation Logic for Func-

tional Dependencies (SLFD Logic (Cordero et al.,

2002)) and use this logic as the basis for model trans-

formation. SLFD enables building speciﬁcations usi-

ng the functional dependency concept as its main ele-

ment. As usual, we consider a table as a subset of the

cartesian product of a set of attributes. The functional

dependency X → Y is deﬁned between two sets of at-

tributes (X and Y) and it is fulﬁlled in a relation if for

every two tuples, if they agree in X, they also agree in

Functional dependency is a main issue in the def-

inition of the relational model. It is the basis for the

Primary Key and Unique Constraint deﬁnitions. The

functional dependency also allows the speciﬁcation of

a dependency relationship among attributes of a rela-

tional schema. This dependency information is used

to optimize relational database models using the nor-

malization theory.

Normalization was introduced to depurate rela-

tional schemas (Garcia-Molina et al., 2008). We will

focus on the normalizationbased on functional depen-

dencies. It provides a set of normal form deﬁnitions

(second, third and Boyce-Codd normal form) and

their corresponding decomposition processes. Each

normal form is deﬁned to avoid some update anoma-

lies and its decomposition splits the table to two new

tables preserving the functional dependencies. There

is in the literature a great number of works which fo-

cus on the automatization of the normalization pro-

cess and, more speciﬁcally, there are some propos-

als in the framework of the model-driven engineer-

ing (Akehurst et al., 2002). In these papers, the au-

thors deﬁne a metamodel for the relational model

which incorporates functional dependencies speciﬁ-

291

Enciso M., Rossi C. and Guevara A..

A Metamodel for Functional Dependencies - Towards a Functional Dependency Model Transformation.

DOI: 10.5220/0004129002910296

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 291-296

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

cation. The authors use the Object Constraint Lan-

guage (OCL) (OMG, 2001) to express functional de-

pendencies between attributes and the normal form

deﬁnitions given above on classes at a metalevel.

In this work we propose the use of a metamodel

which incorporates functional dependencies consid-

ered among the whole set of attributes, even if they

appear in different relational tables. This feature al-

lows us to use the metamodel as a framework for inte-

gration. Our main goal, as we will describe presently,

is the incorporation of this metamodel into the col-

laborative tool CBD

(Cordero et al., 2010), in the

context of a general redesign of CBD guided by the

principles of MDE. The functional dependency meta-

model and its model transformations will be a pow-

erful tool to manage the heterogeneous information

provided by the collaborative use of CBD.

For the implementation of the metamodel and

model transformations we use well-known frame-

works and languages such as EMF (Steinberg et al.,

2009) and ATL (Jouault and Kurtev, 2006).

Therefore, the results of this work provides the

following usage context: the user intuitively designs

with CBD the forms he needs.Then CBD generates

models that conform to a metamodel including the

concept of functional dependency. By means of

model transformations (based on logic SLFD) CBD

obtains optimized data models and generates the

scripts of the database of the ﬁnal application. This

usage context is depicted in ﬁgure 1.

This paper is organized as follows: ﬁrst we present

the background about CBD and the SLFD Logic. In

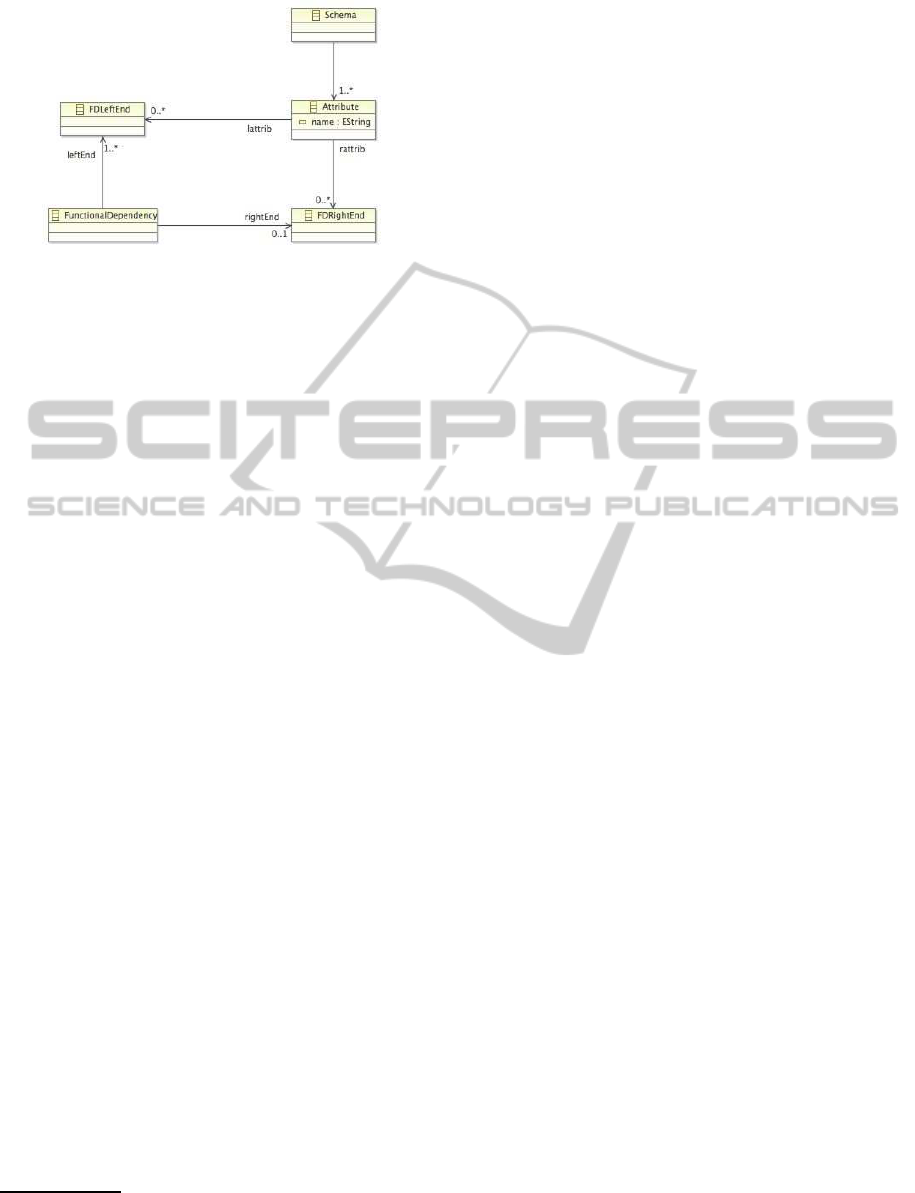

Section 3 we present the metamodel for functional

dependencies. The model transformation induced by

the functional dependency algorithms based on SLFD

will be presented in Section 4, where we will provide

a speciﬁcation of the main inference rule of SLFD us-

ing ATL (Jouault and Kurtev, 2006). The paper ends

with a conclusion and future work section.

2 BACKGROUND

In this section we present some results that may be

considered as preliminaries for the development we

present in this paper. We introduce CBD (Cordero

et al., 2010) and the Simpliﬁcaction Logic for Func-

tional Dependencies (Cordero et al., 2002).

2.1 SLFD Logic

The use of logic to manage functional dependencies is

not new. Since the introduction of the so called Arm-

Spanish acronym for Cooperation in Databases.

strong’s Axioms (Armstrong, 1974) in the mid 70’s,

there has been a lot of works which have followed

this logic approach (see (Cordero et al., 2002) for fur-

ther details). Nevertheless, none of this work has been

incorporated to software engineering tools. As pre-

sented in (Enciso et al., 2011), the use of functional

dependencies is only a matter of research and no com-

mercial development tool or DBMS make much use

of them. As the authors cited in that paper “Classi-

cal FDs logics, based on Armstrong’s axioms (Arm-

strong, 1974) provide a good formal basis but it can-

not be considered a real approach, because it does

not have an executable orientation”.

This situation has induced the use of indirect

methods to solvethe main problemsrelated with func-

tional dependencies. Thus, there is in the literature

a lot of work which introduced ad hoc algorithms

focussed on different functional dependencies prob-

lems. We would like to address these problems in an

uniform framework, without sacriﬁcing a good per-

formance.

SLFD logic provides a formal basis to deal with

functional dependencies with an extra beneﬁt in the

efﬁciency. As (Mora et al., 2012) shows, algorithms

based on SLFD operators are even faster than those

proposed in previous work in the literature. The rea-

son is that the inference system of the SLFD logic is

not based on the transitivity rule (as is the other clas-

sical functional dependencies logic). The intrinsic be-

havior of transitivity avoids its use in real problems,

but it is the core of all these logics. SLFD provides

a new simpliﬁcation rule as the kernel of its novel in-

ference system (Cordero et al., 2002).

The core of the classical axiomatic system is the

transitivity rule:

⌊Trans⌋

X → Y Y → Z

X → Z

SLFD avoids this rule and it is substituted by a

new simpliﬁcation rule:

⌊Simp⌋

X → Y, U → V, X ⊆ U

(U −Y) → (V − Y)

⌊Simp⌋ allows the use of logic to manage func-

tional dependencies. It does not consider two func-

tional dependencies and produces a new one (like

⌊Trans⌋ does). It reduces an existing functional de-

pendency (U → V) by simplifying some of their re-

dundant attributes. Thus, the axiomatic system works

by reducing the original problem to a simpler one with

no redundancy. This new orientation has a direct im-

pact in the efﬁciency of the methods designed on the

new logic.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

292

CBD

Prototype

Requirements

elicitation

pila de páginas

MODELS

pila de páginas

OPTIMIZED

MODELS

MODEL

TRANSFORMATION

Application

developer

Software

Engineer

Users

SLFD

operators

(ATL)

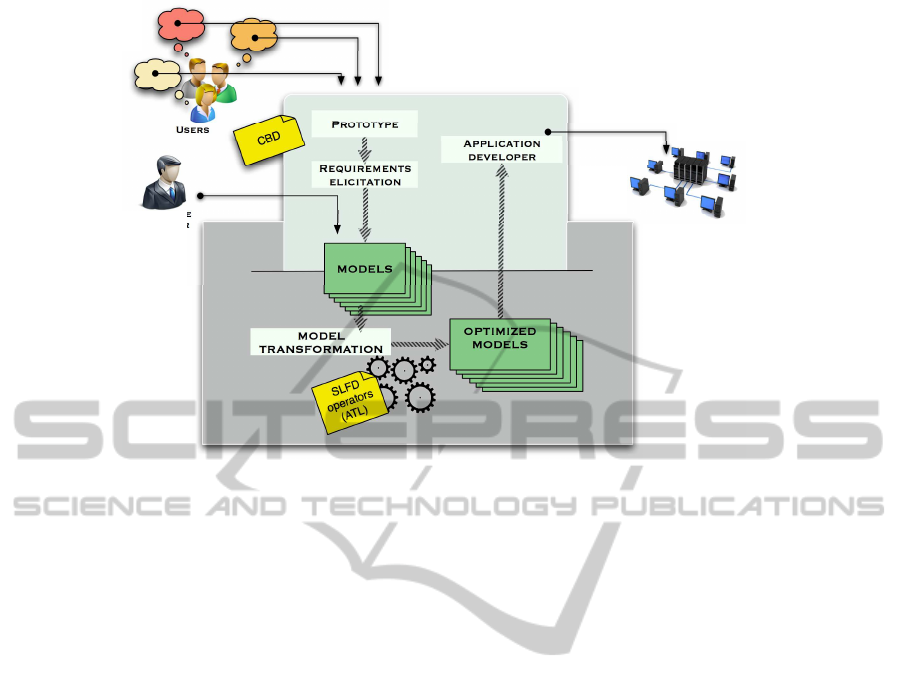

Figure 1: FD-based model driven architecture of CBD.

2.2 CBD

CBD was created to provide an improvement in one

of the critical points in software development: user re-

quirements elicitation. This process has several well-

known problems associated with it, as described in

most Software Engineering books (Pressman, 2010;

Sommerville, 2011). These problems have tradition-

ally been tackled by means of new modeling tech-

niques or new software process models (e.g. iterative

processes (Jacobson et al., 1999) or agile methodolo-

gies (Martin, 2003)). These process models increase

user participation, but ﬁnally an analyst must “trans-

late” the information gathered to requirements and

models. In most real-word projects, analysts intro-

duce “noise” and a deviation from real user needs. So,

this translation usually introduces inaccuracies that

spread throughout the development process and re-

duce software quality.

CBD’s approach to this problem tries to avoid the

main role of the analyst in requirements elicitation.

In CBD the ﬁnal user speciﬁes its requirements di-

rectly by means of collaborative techniques. More

concretely, the user intuitively designs in CBD the

user interface (forms containing UI components and

controls) that he wishes. Then CBD executes an en-

gineering process (Cordero et al., 2010) that gener-

ates a model (that conforms to a CBD metamodel)

of functional and information requirements. This

model is processed by the CBD engine generating

use case, structure (class) and behavioral (sequence)

UML models (in XMI format). Furthermore, CBD

generates a relational database (to be used in the user

application). It is in this last step where the results of

this work will be applied.

CBD is designed with a web application architec-

ture. At http://www.cbd.uma.es the reader can see a

video illustrating the workﬂow of CBD.

The metamodel of CBD is expressed in XSD and

all the information managed by CBD is stored in

XML format, using the XML native database man-

agement system eXist-db. So, the metadata related to

the information and functional requirements, as well

as the speciﬁcations of user interface are expressed in

XML documents. The metamodel includes the con-

cept of functional dependency.

In an evolution still in development, CBD

will have a web-application generation functionality.

From the requirements given by the user and the gen-

erated models, it will be possible to generate a ﬁnal

application for the user. In the current version gener-

ation of applications is done with ad hoc techniques,

which will be redesigned to use MDE techniques, par-

ticularly model-to-text transfomations.

Though generation of applications by the user is

a service offered by other solutions (Zoho or Google

Forms, for example), as far as we know, none of them

offer the power of CBD in the generation of databases

with a great wealth of tables and relations, or the

generation of UML models in XMI format (Cordero

et al., 2010).

AMetamodelforFunctionalDependencies-TowardsaFunctionalDependencyModelTransformation

293

3 METAMODEL FOR

FUNCTIONAL DEPENDENCIES

In this work we propose to combine our theoretical re-

sults about functional dependencies with CBD, under

the MDE paradigm. In this sense we use the modeling

framework EMF (Steinberg et al., 2009), to adjust to

the standard. CBD generates models that conformto a

XSD metamodel. So, our ﬁrst step is to transform this

metamodel to Ecore. We use the XSD2Ecore trans-

formation of EMF.

There exists in the literature some work which

introduces a metamodel for the relational data

model (Akehurst et al., 2002; Laleau and Polack,

2001). They introduce a class to deﬁne relational

tables and it also allows the encoding of constraints

(primary key, unique and functional dependency).

In (Akehurst et al., 2002) the authors provide an OCL

speciﬁcation of the functional dependencies normal

forms and they design a tool which supports the nor-

malization process. This solution may be considered

a top-down approach, because we consider a rough re-

lational model with (probably) some great degree of

redundancy, and the normalization model transforma-

tion renders, by table decomposition, a depurated re-

lational model with no redundancyand a greater num-

ber of smaller tables. This work provides a very in-

teresting framework in the model-driven engineering

area to deal with functional dependencies. Neverthe-

less, this approach is not suitable for use in our col-

laborative scenario.

CBD collects the information from different users

and integrates it into a uniﬁed model. All the infor-

mation stored in the CBD model needs to be ﬂexible

in order to allow further integration. So, it does not

use tables until the design process is concluded and

CBD generates a database and the code to manage it.

In this paper we present a metamodel oriented to

the speciﬁcation of functional dependencies, without

any table reference. This metamodel considers the

whole set of attributes involved in a system and re-

lates them using functional dependencies. This new

approach is suitable for bottom-up processes, like that

used by CBD. It considers the atomic information

about attributes and dependencies, builds a model that

conforms to a functional dependency metamodel and

transforms it (using SLFD model transformations)

rendering a set of functional dependencies. This func-

tional dependency model may be transformed into a

depurated relational model.

The use of our functional dependency metamodel

provides both a bottom-up approach suitable for a col-

laborative environment and a greater capability of re-

dundancy removal. In the normalization theory, only

the interaction among the functional dependencies of

the same table are considered. Thus, the informa-

tion used to remove redundancy in a table is lim-

ited to the intra-table functional dependencies. In our

metamodel, the functional dependencies do not be-

long to any table and they are part of a global meta-

model which represents all the information from dif-

ferent users. The Simpliﬁcation rule may be used in

the whole set of functional dependencies, providing a

greater level of interaction among functional depen-

dencies.

To illustrate the advantage of the inclusion of the

functional dependencies among all the attributes of

the system, we present the following example:

Example 1. We consider that in our company

we have the following table to store the details

of each employee

EMPLOYEE(Emp#,Teleph#, Room,

Employee

Name)

. Its primary key is

Emp#

. We also

have another table to store the location of each IP:

NETWORK(IP, Room)

. Its primary key is

. Note that

these tables are fully normalized up to 3

Normal

Form. Suppose the company decides to save money

and it adopts the VoIP protocol. Thus, we have to

store the following information

VOIP(Teleph#,IP)

where

Teleph#

is the primary key.

In the relational model, the three tables are fully

normalized. But if you consider a set of all the func-

tional dependencies fulﬁlled in the whole set of at-

tributes (apart from the table they belongs to), we

obtain the following set: {

Emp#

→

Teleph# Room

Employee

Name

→

Room

Teleph#

→

}. This

set may be simpliﬁed to the following set of func-

tional dependencieshaving less redundancy {

Emp#

→

Teleph# Employee Name

→

Room

Teleph#

→

We will focus on the subset of the CBD meta-

model relative to functional dependencies. In ﬁgure 2

we show that fragment. The metamodel includes the

concepts of Schema, Attribute and Functional Depen-

dency, with their usual interpretations. We would re-

mark that in this metamodel, a functional dependency

may have more than one attribute both on its left and

right sides. So, two classes are required to model the

functional dependency “ends”.

4 MODEL TRANSFORMATION

BASED ON SLFD

As we have mentioned in the preceding sections, we

propose the use of SLFD logic as a basis for the devel-

opment of some model transformations. There can be

found in the literature a set of works which show that

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

294

Figure 2: FD model-driven architecture.

the SLFD inference system may be used to produce

efﬁcient algorithms which solve several of the prob-

lems of functional dependencies. In all these methods

the simpliﬁcation rule plays an outstanding role.

To tackle each functional dependencies problem,

in each approach the authors have designed a spe-

ciﬁc operator which transforms the set of functional

dependencies and renders a proper solution. In all

these logic operators the simpliﬁcation rule is the

atomic component in the reasoning and inference. We

present here some of these algorithms, referring the

reader to the original work for a detailed explana-

tion

• In (Cordero et al., 2002; Mora et al., 2003) the

simpliﬁcation rule is directly used to design a cou-

ple of transformations which reduce the redun-

dancy in the functional dependencies set looking

for a more optimal speciﬁcation. These transfor-

mations are similar to the normalization process.

• In (Mora et al., 2012) a closure method is pre-

sented. It introduces a SLFD operator which car-

ries out the simpliﬁcation of each element in the

set of functional dependencies up to getting the

closure for the input set of attributes. It introduces

the use of a seed, built as a functional dependency

with the empty set on the left side. This seed will

play the role of the ﬁrst functional dependency of

the Simpliﬁcation rule. In the paper the authors

show that this approach is evenmore efﬁcient than

the rest in the literature.

• In (Cordero et al., 2012) the authors introduce an-

other SLFD operator heavily based on the simpli-

ﬁcation rule. The operator is used to introduce

a depurated method which ﬁnds all the minimal

keys. The operator is used in the branching pro-

cess to reduce the search space, providing a pow-

erful pruning and a great beneﬁt in the efﬁciency

of the method.

On the site http://www.slfd.uma.es/WebFDTools/ the

reader will ﬁnd an executable web prototype of some of

these algorithms.

We propose to use these algorithms to deﬁne a set

of model transformation the objective of which is to

produce a depurated set of functional dependencies

with no redundancy. This set of transformations will

render a new functional dependencies model which

will be transformed into an optimal relational model.

Then, the use of model-to-text transformations allows

the generation of DDL scripts.

The transformations will be deﬁned in

ATL (Jouault and Kurtev, 2006), a language

properly integrated into the EMF framework.

In this paper we only show the key piece of all

the transformations we propose, which is the simpli-

ﬁcation rule. Since this rule will be applied in the

implementation of the operators mentioned above, it

is deﬁned as a ATL helper.

helper context

MMFunctionalDependency!FunctionalDependency def :

simplifRule(pivot:FunctionalDependency) :

FunctionalDependency =

leftEnd <- leftEnd - pivot.rightEnd,

rightEnd <- rightEnd - pivot.rightEnd;

This helper will be included in a transformation

controlled by an iterator that will only apply it to a

functional dependency

when the expression

fd.leftEnd.contains(pivot.leftEnd)

evaluates to true.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we have presented a metamodel that al-

lows us to optimize data models through the applica-

tion of MDE techniques. The metamodel is based on

the concept of functional dependency, and considers

the full set of attributes in the schema, with no rela-

tional table structure.

This fact, together with the deﬁnition of a set of

model transformations with a solid formal basis (the

SLFD logic) provides an appropriate mechanism for

the elimination of redundancy. In addition, our ap-

proach allows a process of bottom-up integration suit-

able for collaborative developments.

The functional dependency metamodel has al-

ready been incorporated into the collaborative tool

CBD. This tool allows end users to design the forms

and UI components they need in their application.

This information is collected in models that conform

to the metamodel we have presented. From all these

models CBD generates a uniﬁed database for the end

application, as well as UML models in XMI format.

AMetamodelforFunctionalDependencies-TowardsaFunctionalDependencyModelTransformation

295

Our work in progress is the implementation of

model transformations based on the operators of the

SLFD logic. These operators are based on the simpli-

ﬁcation rule, that provides better results than the usual

classical algorithms based on the transitivity rule. We

use EMF framework and ATL to deﬁne the meta-

model and the model transformations.

Regarding future work, one of our goals is to com-

plete the redesign of CBD by applying MDE tech-

niques. In this sense, we will use model transfor-

mations to generate UML models, and model-to-text

transformations for code generation.

ACKNOWLEDGEMENTS

Supported by grant TIN2011-28084 of the Science

and Innovation Ministry of Spain, co-funded by the

European Regional Development Fund (ERDF).

REFERENCES

Akehurst, D., Bordbar, B., Rodgers, P., and Dalgliesh, N.

(2002). Automatic Normalisation via Metamodelling.

In ASE 2002 Workshop on Declarative Meta Program-

ming to Support Software Development.

Armstrong, W. W. (1974). Dependency structures of data

base relationships. In IFIP Congress, pages 580–583.

Cordero, P., Enciso, M., Guevara, A., Caro, J. L., Mora, A.,

and Rossi, C. (2010). A tool for user-guided database

application development. Automatic design of XML

models using CBD. In 5th International Conference

on Software and Data Technologies. ICSOFT 2010,

pages 195–200.

Cordero, P., Enciso, M., and Mora, A. (Apr, 2012). Auto-

mated reasoning to infer all minimal keys. Submitted

to Information Processing Letters.

Cordero, P., Enciso, M., Mora, A., and de Guzm´an, I. P.

(2002). SL

logic: Elimination of data redun-

dancy in knowledge representation. In 8th Ibero-

American Conference on Artiﬁcial Intelligence, IB-

ERAMIA 2002, pages 141–150.

Enciso, M., Mora, A., Cordero, P., and Baena, R. (2011). A

claim to incorporate functional dependencies in devel-

opment tools. Benchmarking and checking functional

dependencies algorithms. In 6th International Con-

ference on Software and Data Technologies. ICSOFT

2011, pages 313–316.

Garcia-Molina, H., Ullman, J., and Widom, J. (2008).

Database Systems: The Complete Book. Pearson.

Gogolla, M. (2005). Exploring ER and RE syntax and se-

mantics with metamodel object diagrams. In Metain-

formatics 2005, pages 61–72.

Jacobson, I., Booch, G., and Rumbaugh, J. (1999). The Uni-

ﬁed Software Development Process. Addison Wesley.

Jouault, F. and Kurtev, I. (2006). Transforming models with

ATL. In Satellite Events at the MoDELS 2005 Con-

ference, volume 3844 of Lecture Notes in Computer

Science, pages 128–138, Berlin. Springer Verlag.

Laleau, R. and Polack, F. (2001). A rigorous metamodel

for UML static conceptual modelling of information

systems. In 13th International Conference on Ad-

vanced Information Systems Engineering, CAiSE’01,

pages 402–416.

Martin, R. (2003). Agile software development : principles,

patterns, and practices. Prentice Hall.

Mora, A., Cordero, P., Enciso, M., Fortes, I., and Aguilera,

G. (2012). Closure via functional dependence simpli-

ﬁcation. International Journal of Computer Mathe-

matics, 89(4):510–526.

Mora, A., Enciso, M., Cordero, P., and de Guzm´an, I. P.

(2003). An efﬁcient preprocessing transformation for

functional dependencies sets based on the substitution

paradigm. In 10th Conference of the Spanish Associ-

ation for Artiﬁcial Intelligence, CAEPIA 2003, pages

136–146.

OMG (2001). The Uniﬁed Modeling Language Version 1.4.

Object Management Group formal//01-09-67.

Pressman, R. S. (2010). Software Engineering: A Practi-

tioner’s Approach, 7/e. McGraw-Hill.

Sommerville, I. (2011). Software Engineering, 9/e. Pear-

son.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

296
