Infinite Topic Modelling for Trend Tracking
Hierarchical Dirichlet Process Approaches with Wikipedia Semantic based Method
Yishu Miao
1
, Chunping Li
1
, Hui Wang
2
and Lu Zhang
1
1
School of Software, Tsinghua University, Beijing, China
2
School of Computing and Mathematics, University of Ulster, Jordanstown, U.K.
Keywords:
Hierarchical Dirichlet Process, Topic Modelling, Wikipedia, Temporal Analysis, News.
Abstract:
The current affairs people concern closely vary in different periods and the evolution of trends corresponds
to the reports of medias. This paper considers tracking trends by incorporating non-parametric Bayesian ap-
proaches with temporal information and presents two topic modelling methods. One utilizes an infinite tem-
poral topic model which obtains the topic distribution over time by placing a time prior when discovering
topics dynamically. In order to better organize the event trend, we present another progressive superposed
topic model which simulates the whole evolutionary processes of topics, including new topics’ generation,
stable topics’ evolution and old topics’ vanishment, via a series of superposed topics distribution generated by
hierarchical Dirichlet process. Both of the two approaches aim at solving the real-world task while avoiding
Markov assumption and breaking the number limitation of topics. Meanwhile, we employ Wikipedia based
semantic background knowledge to improve the discovered topics and their readability. The experiments are
carried out on the corpus of BBC news about American Forum. The results demonstrate better organized
topics, evolutionary processes of topics over time and model effectiveness.
1 INTRODUCTION
At the outset of this work lies the observation that in
the analysis of time stamped documents, such as news
corpus, people are concerned about what events have
taken place and their entire evolutionary processes.
As we can see from Figure 1, each colour represents a
trend that accords with the timestamp on the timeline
above. Correspondingly,there exist several articles re-
lated to each trend, such as “Media condemn N Korea
nuclear test” in May.26th, “North Korea increases its
leverage” in Jun.8th, “Obama ‘prepared’ for N Ko-
rea test” in Jun.21st and “Clinton’s high drama Ko-
rean mission” in Aug.6th. The successive articles in-
dicate a period of attention paid by Americans wor-
rying about Korea nuclear issue. Despite each arti-
cle differs in the title, they are concerning the same
topic. Hence, we attempt to discover the latent topic
via topic modelling on the content of these articles .
Topic modelling (Landauer, 1997) (Hofmann,
1999) has been a prevailing method on text analy-
sis and feature reduction. The topics are called “re-
duced description”(Blei et al., 2003) associated with
the documents. Thus, we extract the trend via bunches
of words with probability represented by topic. As
time elapses, some topics which drew people’s atten-
tion will fade away from public view, while some new
topics may raise a great awareness conversely accom-
panying with the occurrence of big events. Moreover,
there also exist several topics which attract persis-
tent attention and become significant parts of people’s
daily life. All of these topics are crucial to trend track-
ing.
The purpose of trend tracking focuses on tempo-
ral information and related entities. (Blei and Laf-
ferty, ), (Wang et al., 2008), (XueruiWang and Mc-
Callum, 2006) and (AlSumait et al., 2008), etc. are
those topic models extracting the temporal infor-
mation while modelling topic distribution. However,
considering the compatibility of Markov assumption
and Dirichlet distribution, it is not amenable to use se-
quential modelling method in traditional topic models
with Dirichlet prior. After deliberating the generation
of topics when applying non-parameter Bayesian ap-
proach, we find that there exists significant temporal
information not only in the words of documents, but
also in the generative process of topics. Hence, we
associate the models with the time information and
35
Miao Y., Li C., Wang H. and Zhang L..
Infinite Topic Modelling for Trend Tracking - Hierarchical Dirichlet Process Approaches with Wikipedia Semantic based Method.
DOI: 10.5220/0004133300350044
In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 35-44
ISBN: 978-989-8565-29-7
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)

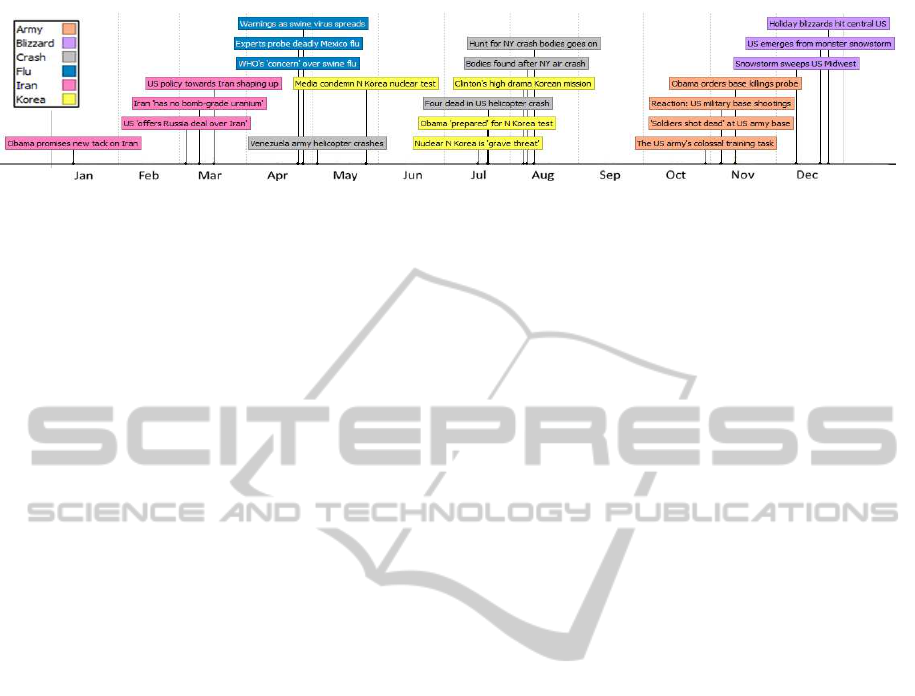

Figure 1: Articles on timeline of year 2009.
no Markov assumption in two approaches: to model a
distribution over time, or to make use of the dynamic
feature of Hierarchical Dirichlet process(Teh et al.,
2006) alternatively. When applied to tackle the real-
world task such as trend tracking, the models without
Markov assumption are much easier not only when
building a succinct graphic model but also to depress
the complexity of inference algorithm.
Firstly, we employ a time variable in the first ap-
proach to model the evolutionary process of topic
based upon the publishing time of documents while
discovering topics. As an infinite topic model, it is
more likely to generate a new topic at the timestamp
where the texts congregate together. From the Chi-
nese restaurant process perspective(Sudderth, 2006),
a man prefers to sit on a new table if he knows that
at 12:00, there will be many clients coming in, for he
doesn’t want to have dinner with too many strangers.
Then, we present a superposition topic model
which generates new topics progressively. In this
model, at first, we divide the corpus into several parts
in the time order. After we achieve the topic distri-
bution over terms on the first sub-corpus, it has al-
ready generated corresponding topics without setting
the number of the topics beforehand. Based on the
previous distributions, this model assigns the terms to
join the preceding topics or hold together in groups as
new topics. Besides, those topics, seldom discussed
in the following corpus, will vanish after several it-
erations as vanished topics. While a majority of top-
ics will be stable topics in their whole evolutionary
processes due to persistent attention of public such as
Obama and Military in American news.
After introducing the two infinite topic modelling
approaches, we consider incorporating a semantic
method to improve the experiment results. Even the
conventional media, i.e. newspaper, incline to illus-
trate an event via hackneyed way which leads to a
small moiety of trivial words and exaggerate rhetoric.
In order to tackle the impediment, we attempt to em-
ploy Wikipedia semantic background knowledge to
improve the readability of discovered topics. By map-
ping the terms in the articles to Wikipedia concepts,
we will achieve a majority of entities from the corpus
to improve the granularity of extracted topic distribu-
tion. Hence, we build an entity model to analyze the
event trend based on the means mentioned above. In
this model, we will not discard the words after map-
ping them to entities, but sample every one during
Gibbs Sampling process and it will contribute to the
generation of topic distribution over entities.
The experiments and evaluation are mainly on the
BBC news of American forum which contains nor-
mative articles and precise publishing time. In Sec-
tion 2, we review some related developments of infi-
nite topic models and temporal information analysis.
Then, we introduce two non-parametric Bayesian ap-
proaches and the entity model based on Wikipedia se-
mantic method in Section 3.In Section 4, we present
the experiment result analysis according to the com-
parison of different models. Finally, we have the con-
cluding remarks and future work in Section 5.
2 RELATED WORK
In this section, we briefly introduce related work
including non-parametric topic modelling methods,
temporal information analysis and semantic knowl-
edge based method.
Basically, hierarchical Dirichlet process(HDP)
(Teh et al., 2006) as an extended Dirichlet pro-
cess(DP)(Ferguson, 1973) is a typical implementation
of non-parametric Bayesian approach. Such as infi-
nite LDA(Heinrich, 2011), it achieves a relative sat-
isfactory result with a low level of complexity. Be-
sides, dHDP(Ren et al., 2008) assumed that each para-
graph of one document is associated with a particu-
lar topic, and the probability of a given topic being
manifested in a specific document evolves dynami-
cally between contiguous time-stamped documents.
But it only presents the infinity of time-stamp number,
while the topic number is still a limitation in the topic
evolutionary scenario. Evo-HDP(Zhang et al., 2010)
and infinite Dynamic topic models(Ahmed and Xing,
2010) can automatically determine the topic number,
but both are based on Markov assumption. (Balasub-
ramanyan et al., 2009) is similar to our first approach,
which combines HDP and TOT model simply, but
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
36
makes no use of time information when generating
new topic. Besides, there also exist an approach about
trend tracking via a combination of Dynamic topic
models and time series methods without HDP(Hong
et al., 2011).
Semantic based methods are usually used for the
purpose of analysing short textual data or eliminat-
ing multilingual and ambiguous problems. There ex-
ist several approaches incorporating topic modelling.
For example, (Kataria et al., 2011) uses Wikipedia an-
notations to label the entities and learn word-entity
associations. (Ni et al., 2009) takes advantage of
multilingual corpus of Wikipedia to extract the uni-
versal topics and cluster the terms of different lan-
guages. Besides, the plentiful context information of
Wiki concepts is profitable to automatic topics la-
belling. (Lau et al., 2011) presents a typical approach
to tackle the topic comprehension problem caused
by unsupervised topic modelling. However, we em-
ploy Wikipedia as background knowledge in this sce-
nario aiming at improving the quality of topic cluster-
ing which is different from these models mentioned
above. Based on CorrLDA(Newman et al., 2006), we
discover the topics distribution over entities extracted
by Wikipedia without discarding words when sam-
pled in inference step and improves the readability of
topics entirely.
Without Markov assumption, our approach is con-
sidered more succinct and easy to be employed on
the real-world task when compared to other existing
methods. In this paper, we also make a comparison of
these two approaches and have discovered the differ-
ent features between them, which will be presented in
the experiment part.
3 INFINITE TOPIC MODELLING
FOR TREND TRACKING
At the beginning of this section, we briefly introduce
Dirichlet process mixtures and HDP. Then the two
infinite topic modelling approaches, including basic
instruction, graphic representation and inference pro-
cess, are discussed in the following part. Afterwards,
we present the Wikipedia based semantic approach
and its implementation method.
3.1 Hierarchical Dirichlet Process and
Non-parametric Graphic Model
DP have been used as non-parameter Bayesian ap-
proach to estimate the number of components which
define a distribution over distributions. We use G

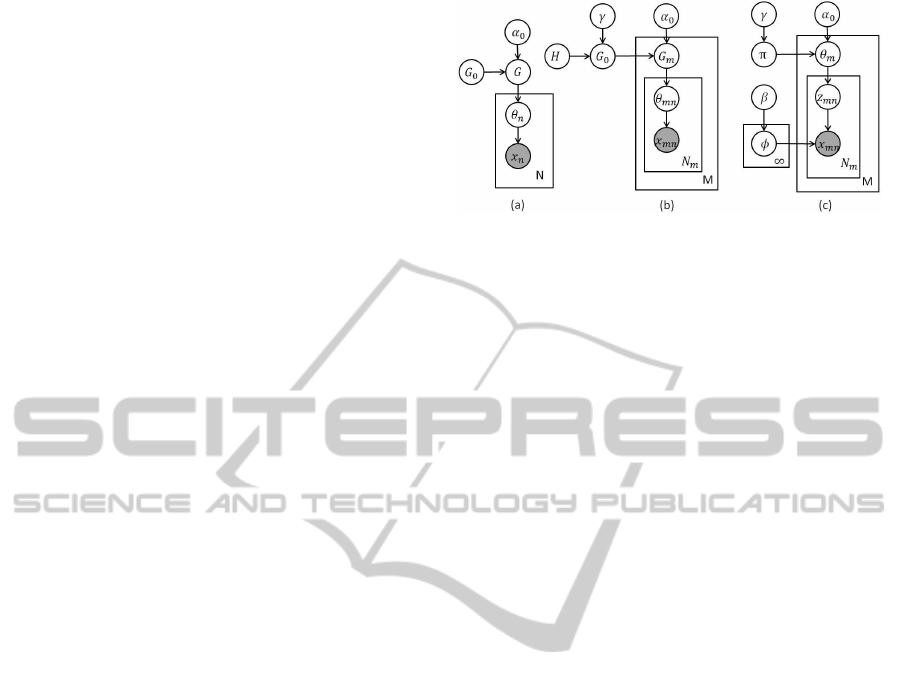

Figure 2: (a) Dirichlet process, (b) Hierarchical Dirichlet
process, (c) Stick-breaking representation of HDP.
DP(α
0
,G
0
) to represent a DP, where G
0
is base mea-
sure, and α
0
as the concentration parameter is a posi-
tive real number. Dirichlet mixture model, employ DP
as a non-parameter prior on the latent parameter dis-
tribution, is one of the most significant applications of
DP. In Dirichlet process mixtures, we suppose:
θ
m
|G G
x
m
|θ
m
F(θ
m
) (1)
θ
m
denotes the parameter of mth component, while
F(θ
m
) denotes the distribution when given θ
m
and Fig-
ure 2(a) shows the graphic representation. From the
perspectiveof Stick-breakingconstruction, we place a
Dirichlet process prior on the latent parameter distri-
bution G DP(α,H). Hence the other representation
of a Dirichlet process mixture is presented as follows:
π
π
π|α
0
GEM(α
0
) z
n
|π
π
π π
π
π
θ
k
|G
0
G
0
x
n
|θ
z
n
F(θ
z
n
) (2)
The random probability distribution G on θ satisfies
G(θ) = Σ
k=1
π
k
δ(θ,θ
k
). In this formula, π, as a ran-
dom probability measure on positive integers, satis-
fies Σ
k=1
π
k
= 1. GEM stands for Griffiths, Engen and
McCloskey and the construction of π|α
0
GEM(α
0
)
can be presented in the Stick-beaking construction as
follows:
π
k
|α
0
Beta(1,α
0
)
φ
k
|G
0
G
0
(3)
Then we define a random measure G as:
π
k
= π
k
k1
l1
(1 π
l
)
G = Σ
k=1
π
k
δ
φ
k
(4)
Hence, it is an alternative way to express Dirichlet
mixture model.
Nevertheless, no sharing can occur between
groups of data if a single Dirichlet process is applied.
In order to link these mixture models, the base distri-
bution can be itself distributed as a Dirichlet process,
InfiniteTopicModellingforTrendTracking-HierarchicalDirichletProcessApproacheswithWikipediaSemanticbased
Method
37
and then it allows groups share statistical strength.
This non-parameter Bayesian approach is hierarchical
Dirichlet process(Teh et al., 2006). A HDP defines a
set of random probability measures G
j
for group j and
each of them is drawn from a DP(α
0
,G
0
). Moreover,
the global measure G
0
is also drawn from a DP(γ,H).
The definition can be presented as follows, and Figure
2(b) shows the graphical model:
G
0
|γ,H DP(γ,H) G
m
|α
0
,G
0
DP(α
0
,G
0
)
θ
mn
|G
m
G
m
x
mn
|θ
mn
F(θ
mn
) (5)
The base measure H is drawn from a DP, hence ev-
ery child shares the measure and is conditionally in-
dependent with each other. Correspondingly, we give
the Stick-breaking construction perspective and the
graphic model in Figure 2(c).
π
π
π|γ GEM(γ)
θ
m
|α
0
,π
π
π DP(α
0
,π
π
π) z
mn
|θ
m
θ
m
φ
k
|H H x
mn
|φ
z
mn
F(φ
z
mn
) (6)
As illustrated above, all the measures are drawn from
the base DP, which means that the discrete base distri-
bution is shared by every document in the corpus. The
global cluster weighs π
π
π GEM(γ) follow a Stick-
breaking process and denote the Dirichlet prior of in-
finite topic distribution over terms.
3.2 Infinite Temporal Topic Model
In this section, we present infinite temporal topic
model(ITTM) to incorporate time information dur-
ing the topic discovering based on the infinite
model(Heinrich, 2011).
Ordinarily, HDP is used as prior in the mixture
models to create infinite topic model and limited in a
specific time period. Virtually, the universal time as-
signment on documents could be taken advantage of,
and used as a time prior on probability measures when
be drawn from global measure via DP. To put it an-
other way, it obtains a higher probability to generate a
new topic when the words congregate together at this
timestamp in Dirichlet Process. Similar to Topics over
(a) Bayesian network (b) Stick-Breaking representation
Figure 3: Infinite Temporal Topic Model.
Time model, ITTM avoids discretization by associ-
ating continuous time distributions with topics. The
time range is normalized between 0 and 1 so that the
Beta distribution can easily form the peaks of every
time distribution of topics based on the time variable.
As illustrated in Figure 3, the ITTM can be repre-
sented in two perspectives. λ is the parameter of Beta
distribution on time prior. t
mn
represents the times-
tamp associated with word n in document m and ψ
denotes its parameter of Beta distribution. The gener-
ative process is described as follows:
1. Draw an infinite dimension multinomial π
π
π,
π
π
π|γ GEM(γ)
2. For each toic z, draw a multinomial φ
z
,
φ
z
mn
|β Dirichlet(β)
3. For each document m,
3.1 Draw a time prior ξ Beta(λ),
3.2 Update probability measures,
µ = N(t
m
|ξ,Σ) and π
π
π = (π
π
π
1
,µπ
k
),
where π
π
π = (π
π
π
1
,π
k
)
3.3 Draw an infinite multinomial θ
m
θ
m
|α
0
,π
π
π Dirichlet(α
0
π
π
π)
3.4 For each word n in the document,
i. Draw a topic z
mn
Multinomial(θ
m
)
ii. Draw a word w
mn
|z
mn
Multinomial(φ
z
mn
)
iii. Draw a time t
mn
|z
mn
Beta(ψ
z
mn
)
In order to implement the model, we use Gibbs
sampling as the inference algorithm. Similar to infi-
nite LDA, this model employs Dirichlet as the base
distribution, where π
π
π Dirichlet(γ/K). Note that, we
acquire the hyper-parameter via the topics global dis-
tribution over time. When updating the measures, we
set π
k
= ξπ
k
, where π = (π
π
π
1
,π
k
), in which time prior
is drawn from ξ Beta(λ). In this process, we con-
sider K as an infinite variable.
If there exists no time prior to control the probabil-
ity of generating new topic by DP, the new topics may
be distributed averagely over time. But it does not ac-
cord with the real topics distribution. With the itera-
tion accumulates, the probability of the topic assign-
ment of everyword will be manipulatedby time factor
gradually. For the Beta distribution will be sharper af-
ter updating the posterior distribution. Hence, we ex-
pect more topics generated in the timestamp where
they congregate in reality and the beta distribution of
each topic will be a little smoother relatively. So that
we would have a balance between content relevance
and time information.
Sampling z. Since the Stick-breaking represen-
tation models the topic distribution over terms by
Dirichlet distribution which is the same as LDA. The
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
38
conditional probability is:
p(z
mn
|•) (n
m,z
mn
+απ
z
mn
)·
(1 t
mn
)
ψ
z
mn
1
1
t
mn
ψ
z
mn
2
1
B(ψ
z
mn
1
,ψ
z
mn
2
)
·
n
z
mn
w
mn
+ β
w
mn
1
Σ
V
i=1
(n
z
mn
i
+ β
i
) 1
(7)
As there will be new topic being generated, the mea-
sures π
π
π should be updated. Thus, its posterior proba-
bility is:
π
π
π Dirichlet(u
1
,u
2
,...,u
k1
,γ) (8)
where the u
j
is the sum number of words assigned
to the jth topic in all documents, and parameter γ
manipulate the probability of generating a new topic.
The n
m,z
mn
represents the number of words assigned
to topic z
mn
in document m. Besides, the parameters
of Beta distribution associated to every topic illustrate
the spikes of the trends, and they will be updated as:
ψ
z1
= t
z
(
t
z
(1t
z
)
s
2
z
1)
ψ
z2
= (1 t
z
)(
t
z
(1t
z
)
s
2
z
1) (9)
3.3 Superposition Topic Model
In HDP, topic number is determined by the corpus it-
self and the hyper-parameters associated with Dirich-
let process. Scilicet it finds a most suitable number of
the components on the basis of their internal aggre-
gation and discrimination between each other. A new
component will be generated when it seems that no
component fits the preceding ones. As it mentioned
above, the generation of new component via HDP is
limited in specific time period. It means that the whole
process of clustering is solely based on content rele-
vance. Hence, we present a superposition topic model
Figure 4: Superposition Topic Model.
(STM) to make use of the dynamic feature of HDP in
another perspective.
In the beginning, we discretize the corpus by time
beforehand. The STM discovers the topics on the ini-
tial part of the corpus without setting number of top-
ics normally. After achieving the initial distributions,
the STM proceeds on the following part of corpus,
and it is more likely to generate new topics by HDP
due to the focal point of documents differs as the
time elapses. Likewise, if the contents of new arti-
cles are nearly the same as the previous, the topics
will retain their old number. From the perspective of
Chinese restaurant process, a group of new comers
would rather hold together in a new table than join
the previous tables with unfamiliar dishes. Hence, ev-
ery new part of corpus is processed upon the pre-
ceding topic distribution and the STM is updated si-
multaneously. When we employ the STM on news
dataset, the progressivelygenerated topics will unfold
the diversion of public provenance correspondingly.
Its graphic representation is shown in Figure 4, and
the generative process is described as follows:
1. Draw an infinite dimension multinomial π
π
π,
π
π
π|γ GEM(γ)
2. For each toic z, draw a multinomial φ
z
,
φ
z
mn
|β Dirichlet(β)
3. For each part d of the corpus,
3.1 If d 6= 1, update the measures π
π
π,
π
π
π Dirichlet(u
1
,u
2
,...,u
k1
,γ)
3.2 Draw an infinite multinomial θ
m
θ
m
|α
0
,π
π
π Dirichlet(α
0
π
π
π),
3.3 For each word n in the document,
i. Draw a topic z
mn
Multinomial(θ
m
)
ii. Draw a word w
mn
|z
mn
Multinomial(φ
z
mn
)
Since the global measures π
π
π is updated by time
order, the content relevance between preceding docu-
ments and new arrival ones are the most significant
inducement of generating a new topic. Hence, it is
no necessary for us to get entangled in subjoining
temporal information while increasing the complex-
ity of model structure, which has been explained by
Occam’s razor primely. The HDP will automatically
determine the sampled term to join the previous top-
ics or to be a new one. Apparently, the judgements are
effected by time to some big extent.
Sampling z. The conditional probability when
sampling z can be achieved via:
p(z
mn
|•) ·(n
m,z
mn
+ α
0
π
z
mn
) ·
n
z
mn
w
mn
+ β
w
mn
1
Σ
V
i=1
(n
z
mn
i
+ β
i
) 1
(10)
which is similar to traditional LDA. The updating step
of hyper-parameters is vital in the gradual inference
InfiniteTopicModellingforTrendTracking-HierarchicalDirichletProcessApproacheswithWikipediaSemanticbased
Method
39
Table 1: A comparison of topic distribution.
Original healthcare bill insurance health reform coverage americans option applause committee finance secretary
Topic 0.0480 0.0452 0.0396 0.0387 0.0347 0.0179 0.0168 0.0128 0.0088 0.0078 0.0072 0.0070
Wiki Healthcare Bill Insurance Reform Health Coverage Americans Option Debate Secretary Applause House
Topic 0.0607 0.0568 0.0476 0.0439 0.0423 0.0205 0.0203 0.0155 0.0111 0.0104 0.0101 0.0101
process. Even though all the topics in the corpus are
still exchangeable, the words in preceding documents
will not be sampled in the following inference process
any more. Documents in every part of the corpus are
only sampled in the unique sub-corpus which belongs
to a specific epoch. The previous sampled words in
other epoch will no longer be associated to another
topic in case of topic drifting. Hence, the global clus-
ter weighs will be progressively updated and deter-
mine the topic assignment of every term in the subse-
quent documents.
3.3.1 Wikipedia Semantic Knowledge
Wikipedia concepts are commonly employed to over-
come the drawback of bag of words(BOW) in text
analysis. However, in this paper, we exploit the
Wikipedia concepts as an approach to extract entities
from specific document due to its ontology property.
Besides, we also extract capitalized words for auxil-
iary, as there exist a minority of abbreviations and hu-
man names which Wikipedia is yet incapable to inter-
pret. Hence, we integrate those words with Wikipedia
concepts as our entity volume.
For the sake of briefness, we solely extract the part
of document in the graphic model representation so
that the approach becomes much easier to compre-
hend and expand. In this model, we employ two vari-
ables to model the entities when discovering topics.
e
mc
and z
mc
represent the cth entity in document m
Figure 5: Graphic Model of Wikipedia Semantic Approach
from Documental Perspective.
and the assigned topic associated with the entity re-
spectively. According to the graphic model in Figure
5, entity e is an observed variable which depends on
assigned topic z
mc
and its topic distribution parame-
ter φ. Besides, z
mc
depends on the topic assignment of
the word in the document m. The generative process
is described as follows:
1. Draw Hierarchical Dirichlet Process prior
2. For each topic z, draw a multinomial φ
z
,
φ
z
mn
|β Dirichlet(β)
3. For each topic z, draw a multinomial φ
z
,
φ
z
mc
|β Dirichlet(β)
4. For each document m,
4.1 Draw an infinite multinomial θ
m
θ
m
|α
0
,π
π
π Dirichlet(α
0
π
π
π),
4.2 For each word n in the document,
i. Draw a topic z
mn
Multinomial(θ
m
)
ii. Draw a word w
mn
|z
mn
Multinomial(φ
z
mn
)
4.3 For each entity c in the document,
i. Draw a topic z
mc
,
z
mc
|Z
Z
Z
m
m
m
,N
m
Multinomial(Z
Z
Z
m
m
m
/N
m
)
ii. Draw a entity e
mc
,
e
mc
|z
mc
Multinomial(φ
z
mn
)
Theoretically, after the sampling process, the topic
distribution over terms is different from the distribu-
tion over entities. And they may differ in the num-
ber of topics because of the dynamic property of infi-
nite model. However, after Gibbs sampling process,
the representative meanings of them turn out to be
extraordinary similar. Moreover, topics over entities
achieve better readability and lower perplexity (as il-
lustrated in Table 1). When employed in the scenario
of trend tracking, the Wikipedia semantic based ap-
proach discovers more trend-specific topical entities,
while the increased complexity of inference algorithm
is limited in a linear magnitude.
Sampling z. The z sampling process remains the
same as the original form (7) or (10). While, the con-
ditional probability of z is:
p(z
mn
|•) ·
S
m,z
mc
N
m
·
n
z
mc
e
mc
+ β
e
mc
1
Σ
V
i=1
(n
z
mc
i
+ β
i
) 1
(11)
Where S
m,z
mc
denotes the sum of words in docu-
ment m which have been assigned to topic z
mc
and
S
m,z
mc
/N
m
represents the prior of generating topic z
mc
in document m and V denotes the volume of entities.
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
40
4 EXPERIMENT
4.1 BBC News
In this section, we present the discovered topics
and their evolutionary processes on 3500 BBC news
which is shown in Table 2. We also follow the dif-
ference between ITTM and STM with interest. In the
experiment, ITTM discovered 90 topics by 1000 iter-
ations, while STM discovered 80 topics by 2400 it-
erations (200 iterations in every epoch-specified sub-
corpus). For the purpose of interpreting model effec-
tiveness, we analyzed the raw corpus by key word
matching based on discovered topics. Then we can
evaluate the matching degree between tracked trend
and reality.
Table 2: Details of BBC news corpus.
Month Jan Feb Mar Apr May Jun Jul
Articles 309 284 279 285 279 255 309
Aug Sep Oct Nov Dec
273 318 260 310 339
4.1.1 ITTM
As illustrated in Figure 6(a), there exist about 20 top-
ics with higher heat score while the others stay in a
low level respectively. Most of the 20 topics are re-
garding politics or society, such as Obama, Military
and Government. It illustrates the vane of news trend
is focused on politics. In Figure 6(b), we find that
the general heat score rises sharply from June to July
and August. After looking back to the raw news ar-
ticles, we are aware of several booming news hap-
pened around July and August, such as Helicopter
crash, Michael Jackson’s death, Dugard kidnapping
case and so on. But unfortunately, ITTM didn’t or-
ganize them as single topics, because these topics are
more likely to be assigned to the topics with wide cov-
erage like Topic Society or Topic Criminal.
4.1.2 STM
STM discovered 80 topics in the experiment and
we recorded the result in every sub-corpus which is
shown in Table 3. In the first month, STM generates
34 topics, while the number rises gradually to the end
of 80. Since the global probabilitymeasure θ is shared
in everysub-corpus,we could extract the evolutionary
process by tracing the transformation of topic distri-
bution over terms which is represented by φ. By cal-
culating the KL divergence between every two topics,
we achieve an evolutionary process(shown in Table 4
(a) Vertex of every topic distribution
(b) General topic heat assigned to every month
Figure 6: Topics of ITTM in 2009.
partly). We conclude all the topics into 3 categories,
including stable topics, new topics and vanished top-
ics. In Table 4, the topics with grey ground colour
change slightly during the whole lifetime and their
KL divergence remain below 1.0, so we name them
stable topics. Correspondingly, we call the generated
topics by STM of every epoch as new topics. More-
over, when an old topic vanishes, a new topic will
also be generated concomitantly. The bolded numbers
which exceed 1.0 in Table 4 divide the topic into 2
parts, hence the latter ones are taken into account as
new topics too, and the formers are perceived van-
ished topics. Table 5 illustrates the evolution of topics
from vanished ones to new ones.
As a whole, the stable topics, new topics and van-
ished topics contain 50, 49 and 19 respectively. In or-

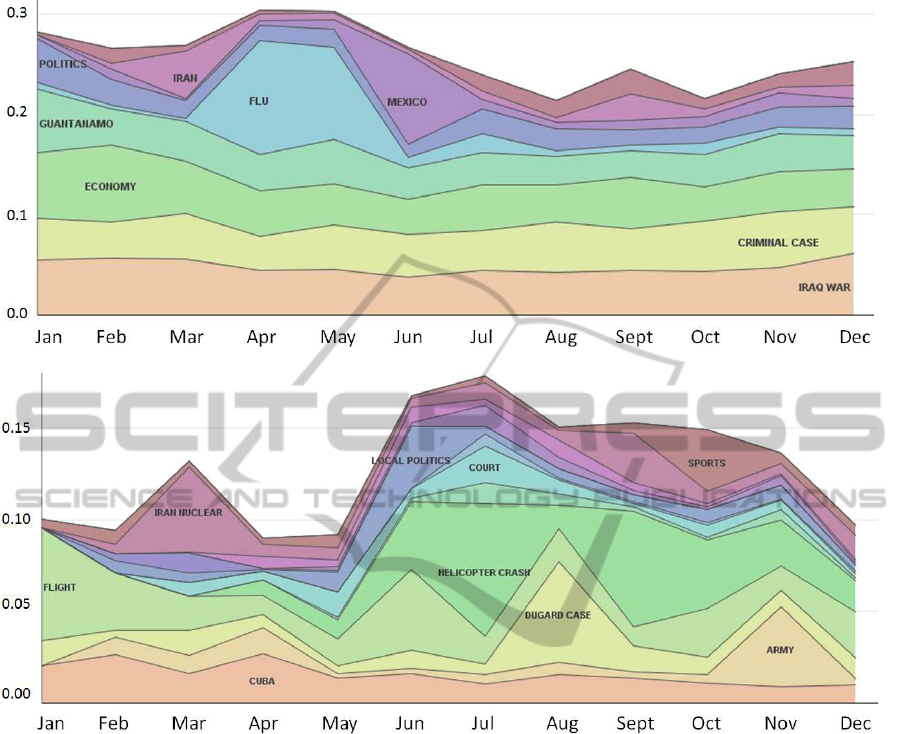

der to exhibit the evolutionary processes of topics, we
present 23 topics in two parts with their heat score in
Figure 10. Most topics of Figure 7(a) are stable ones,
while in Figure 7(b) most of them are new boom-
ing topics. The peaks of broken lines show the trend
primely. It is easy for us to demonstrate the causa-
tion by big events in 2009, for instance, “Flu pan-
demic” in April, “Enough bomb-grade uranium of
Iran” in April, “Helicopter crash of Maryland in
July, “Jaycee Lee Dugard abduction case” in Au-
gust and “Fort Hood shootings at US army base”
in November. Meanwhile, the stable topics such as
Topic Politics, Guantanamo, economy, criminal and
InfiniteTopicModellingforTrendTracking-HierarchicalDirichletProcessApproacheswithWikipediaSemanticbased
Method
41
(a)
(b)
Figure 7: Topic trends of STM.
Iraq war receive persistent public attention by peo-
ple.
Afterwards, we employed the Wikipedia semantic
based approach on STM and achieved better readabil-
ity and distinctly organized topics. Table 3 shows a
significant decline in perplexity and Table 1 presents
more topic-representative entities with higher proba-
bility, which demonstrate that it contributes to track-
ing the event to some extent.
4.2 Trend Tracking Analysis
For the purpose of better exhibiting trend tracking re-
sult, we draw a curve via key words matching which
we consider generally reflects the real trend of each
topics. Hence, we obtain Figure 8, including four top-
ics, ‘Flu’, ‘Healthcare’, ‘Gay’ and Train’. As it is
shown in the figure, ITTM matches the spikes of heat
trends precisely, but is incapable to simulate multi-
spikes trend of the reality. For instance, in Figure
8(c), the curve drops from June and fails to match the
peak in September. Relatively, STM simulates the real
trend primely, even though the multi-spikes and a bit
fluctuation somewhere in the whole year.
In general, ITTM generates a series of smoothing
curves to fit the real trends and extracts the spikes
of every topic distribution over time when discover-
ing topics. Nevertheless, STM simulates the trends
via topic distributions transformation, for the topics
are dominated by global probability measures. Even
though these two approaches are based on different
assumptions, both of them generally model the whole
evolutionary processes of topics.
4.3 Model Effectiveness
On the basis of the experiments above, these findings
suggest the models are capable of tracking trends and
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
42
Table 3: Experimental results of STM.
Month Jan Feb Mar Apr May Jun Jul Aug Sept Oct Nov Dec
Sum topics 34 48 58 63 67 69 72 74 78 80 80 80
Generated New Topics 34 14 10 7 4 2 3 2 4 2 0 0
Perplexity over Terms 2817 2744 3132 2922 3172 2892 3358 3321 3427 3719 3676 3723
Perplexity over Entities 1465 1668 2102 1910 2100 1899 2139 2157 2187 2414 2368 2342
Table 4: KL Divergence between one topic and its preceding one.
No Topic Jan Feb Mar Apr May Jun Jul Aug Sept Oct Nov Dec
Topic2 Politics - 0.170 0.056 0.036 0.030 0.027 0.043 0.027 0.012 0.008 0.013 0.013
Topic4 Guantanamo - 0.119 0.071 0.030 0.070 0.016 0.017 0.013 0.012 0.009 0.019 0.010
Topic7 Weather - 0.217 1.027 0.341 0.058 0.276 0.076 1.994 0.081 0.017 0.033 0.006
Topic11 Economy - 0.258 0.056 0.025 0.018 0.011 0.015 0.008 0.012 0.005 0.007 0.006
Topic12 Obama - 0.058 0.021 0.014 0.008 0.004 0.004 0.003 0.004 0.003 0.003 0.003
Topic13 Criminal - 0.275 0.147 0.047 0.052 0.021 0.019 0.018 0.015 0.013 0.014 0.008
Topic21 Flu - 0.631 0.259 4.143 0.401 0.008 0.025 0.003 0.005 0.007 0.006 0.005
Topic29 Healthcare - 2.998 0.373 0.072 0.043 0.039 1.008 0.227 0.352 0.048 0.094 0.213
Topic36 Army - - 1.338 1.585 0.027 0.061 0.250 0.155 0.061 0.066 1.890 0.015
Topic43 Local Politics - - 0.777 0.062 1.345 2.559 0.040 0.045 0.041 0.060 0.157 0.037
Topic44 Neoconservatism - - 1.993 0.055 0.154 0.001 1.060 0.041 0.031 0.116 0.014 0.122
Topic51 Court - - - 0.640 2.025 0.215 0.932 0.062 0.039 0.083 0.049 0.014
Topic56 Train - - - 1.120 0.427 2.431 0.280 0.030 0.074 0.033 0.123 0.013
Topic60 UN - - - - 1.357 2.755 1.346 0.027 0.451 0.050 0.040 0.018
Topic63 Helicopter Crash - - - - - 0.475 2.010 0.722 0.264 0.099 0.435 0.074
Table 5: Two examples of topic diversion.
Topic May ‘Train’ British Trains Rail Travel Gordon Services Brown Sexual Peruvian Gdp Runs Minister Sort Position
56th Jun Accident’ Bermuda Uighurs Train British China Trains Palau London Accident Foreign Government Four
Topic Jul ‘Weather’ Weather Service Sheriff Myers Project Died Police County Storm Brother Snow Ms Couple
7th Aug ‘Criminal’ Garrido Ms Weather Dugard Police County Service Sheriff Project Myers Jaycee Phillip Probyn
(a) Topic ‘Flu’ (b) Topic ‘Healthcare’
(c) Topic ‘Gay’ (d) Topic ‘Train’
Figure 8: Evolutionary processes of topics simulated by ITTM and STM.
Table 6: Topic Perplexity.
Num.of Articles 100 500 1000 2000 3500
ITTM 1493 2852 4288 4454 4514
STM 1435 2138 2640 3068 3551
STM&Wiki 1023 1336 1629 1779 2249
infiniteLDA 1432 2008 2386 2718 3098
receive a series of desirable results. Likewise, we did
further experiment on different magnitude corpus to
reveal the effectiveness of each model.
From the data in Table 6, we employ ITTM, STM,
Table 7: Experiment Results on Jan. 2010 corpus.
Model ITTM STM STM&Wiki infiniteLDA
Sum topics 63 85 85 66
Perplexity
2365 2385 1461 2295
STM&Wiki and infinite LDA on those corpuses. The
results indicate that STM&Wiki obtain the best per-
formance, while the perplexity of ITTM is slightly
bigger than others. Furthermore, we prepared a cor-
pus of Jan. 2010 which contains 344 articles for trend
prediction. Table 7 indicates the perplexity compari-
InfiniteTopicModellingforTrendTracking-HierarchicalDirichletProcessApproacheswithWikipediaSemanticbased
Method
43
Table 8: Trend Prediction.
Model Number of Articles in each Trend
ITTM Articles 6 11 17 10 15 13 19 19 12 129 7 6 9 8 7
Related 5 4 8 5 8 8 12 3 8 60 4 4 3 5 4
STM Articles 7 9 16 6 85 8 15 96 17 13 6 6
Related 3 5 6 3 48 5 6 42 10 9 4 3
iLDA Articles 19 7 9 8 6 7 11 183 44 18
Related 8 4 3 3 3 3 5 83 18 11
son on topic inference between these models.
Then we organized clustered articles by the mod-
els, and made a manual evaluation (based on arti-
cle title and news description) as shown in Table 8.
We got the sum precision about trend prediction of
these models. Each of ITTM, STM and infinite LDA
is 0.4896, 0.5070 and 0.4519. Interestingly, we find
some trends contain much more articles than the other
ones. The reason is that in the middle of Jan. 2010,
a powerful earthquake rocks Haiti which triggered a
series of news reports on this disaster. Most articles
in these trends are concerning this event. After all,
both of ITTM and STM can predict a real world trend
successfully, even though on the booming event like
“Haiti earthquake”.
5 CONCLUSIONS AND FUTURE
WORK
In this paper, we present two approaches incorporat-
ing HDP and temporal information on real-world task
without Markov assumption. Meanwhile, a Wikipedia
semantic based approach has been exploited to im-
prove the results of topic modelling. Namely, the
models hold the complexity in a low level with suc-
cinct graphic representation. The experimental results
indicate the capability of tracking trend from news
media. As a significant finding, the ITTM simulates
the peak of event trend precisely but fails to handle
the multi-spikes situation. While the STM is capable
of tracking the trends with fluctuations and discov-
ering new topics, stable topics and vanished topics.
Because of the flexibility and no number limitation of
topics, the models can be easily extended to other sce-
narios. Our future work might focus on tracking the
user interest by incorporating propagation algorithms
based on proposed models. The combination of infi-
nite topic modelling and location factor is also under
our consideration.
REFERENCES
Ahmed, A. and Xing, E. P. (2010). Timeline: A dynamic
hierarchical dirichlet process model for recovering
birth/death and evolution of topics in text stream. In
UAI ’10.
AlSumait, L., Barbara, D., and Domeniconi, C. (2008).
On-line lda: Adaptive topic models for mining text
streams with applications to topic detection and track-
ing. In ICDM ’08, pages 3–12.
Balasubramanyan, R., Cohen, W. W., and Hurst, M. (2009).
Modeling corpora of timestamped documents using
semisupervised nonparametric topic models. In NIPS.
Blei, D., Ng, A., Jordan, M., and Lafferty, J. (2003). La-
tent dirichlet allocation. Journal of Machine Learning
Research, 3(993-1022).
Blei, D. M. and Lafferty, J. D. Dynamic topic models. In
ICML.
Ferguson, T. (1973). Bayesian analysis of some nonpara-
metric problems. Annals of Statistics, 1:209–230.
Heinrich, G. (2011). ”infinite lda”-implementing the hdp
with minimum code complexity. Tecnical Note.
Hofmann, T. (1999). Probabilistic latent semantic indexing.
In SIGIR.
Hong, L., Yin, D., Guo, J., and Davison, B. D. (2011).
Tracking trends: Incorporating term volume into tem-
poral topic models. In KDD.
Kataria, S. S., Kumar, K. S., Rastogi, R., Sen, P., and Sen-
gamedu, S. H. (2011). Entity disambiguation with hi-
erarchical topic models. In KDD.
Landauer, T. K.and Dumais, S. T. (1997). A solution to
plato’s problem: the latent semantic analysis theory
of acquisition, induction, and representation of knowl-
edge. Psychological Review, 104(211-240).
Lau, J. H., Grieser, K., Newman, D., and Baldwin, T.
(2011). Automatic labelling of topic models. In Pro-
ceedings of the 49th Annual Meeting of the Associa-
tion for Computational Linguistics, pages 1536–1545.
Newman, D., Chemudugunta, C., and Smyth, P. (2006). Sta-
tistical entitytopic models. In KDD.
Ni, X., Sun, J.-T., Hu, J., and Chen, Z. (2009). Mining mul-
tilingual topics from wikipedia. In WWW.
Ren, L., Dunson, D. B., and Carin, L. (2008). The dynamic
hierarchical dirichlet process. In ICML.
Sudderth, E. B. (2006). Graphical models for visual ob-
ject recognition and tracking. Doctoral Thesis, Mas-
sachusetts Institute of Technology.
Teh, Y., Jordan, M., Beal, M., and Blei, D. (2006). Hier-
archical dirichlet processes. Journal of the American
Statistical Association, 101(1566-1581).
Wang, C., Blei, D. M., and Heckerman, D. (2008). Contin-
uous time dynamic topic models. In UAI ’08, pages
579–586.
XueruiWang and McCallum, A. (2006). Topics over time: a
non-markov continuous-time model of topical trends.
In KDD.
Zhang, J., Song, Y., Zhang, C., and Liu, S. (2010). Evo-
lutionary hierarchical dirichlet processes for multiple
correlated time-varying corpora. In KDD.
KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
44
