Automated Generation of User Interfaces

Based on Use Case or Interaction Design Speciﬁcations?

Hermann Kaindl, Roman Popp and David Raneburger

Institute of Computer Technology, Vienna University of Technology, Gusshausstrasse 27-29, 1040 Vienna, Austria

Keywords:

Modeling Languages, Model Transformation.

Abstract:

Instead of manually creating (graphical) user interfaces (UIs), automatically generating them is desirable, espe-

cially since UIs are needed today for diverse devices like PCs and smartphones. The basis for such automated

generation can be a UI speciﬁcation, but most of the related research takes task models as input, which are on

a higher level of abstraction. More recently, another modeling language employing discourse-based models

for specifying communicative interaction has been proposed, which completely abstracts from speciﬁcs of a

particular UI and even its type. From such models, UIs can be generated automatically through model trans-

formations. Some research, however, claims that UIs can be generated from use cases. While it would be

desirable to utilize such a form of requirements deﬁnition without having to create another speciﬁcation, we

found that these approaches actually use additional information attached to the use cases, usually UI-related

attachments. In addition to contrasting different kinds of speciﬁcations, we propose a synthesis through a com-

bination. In fact, we found that discourse-based models can be also viewed as specifying classes of scenarios,

i.e., use cases more precisely than the main-stream approach using UML and use-case reports.

1 INTRODUCTION

Automated generation of user interfaces (UIs) needs

to be based on some input speciﬁcation. This can be

a UI speciﬁcation that abstracts from the peculiari-

ties of a real UI, but speciﬁes already the kind of

UI (e.g., a graphical UI), and possibly also the kinds

of widgets. A higher abstraction can be achieved

with so-called task models, e.g., see (Costa et al.,

2007; van den Bergh and Coninx, 2007; Pastor et al.,

2008; Mori et al., 2002; Patern

o et al., 2009; Van-

derdonckt, 2008). A more recent approach employs

discourse-based models, e.g., see (Falb et al., 2006;

Falb et al., 2009). From higher-level models, usu-

ally model transformations lead to lower-level models

and, with the help of templates to ﬁnal code imple-

menting a UI. Alternatively, use cases are considered

as the basis for automated UI generation, see (Elk-

outbi et al., 2006; Fatolahi et al., 2008; Hennicker and

Koch, 2001; da Silva and Paton, 2003).

In this paper, we discuss these possibilities using

a simpliﬁed version of ﬂight-booking as a running ex-

ample. First, we elaborate on the question, whether

use cases are enough for automated generation of UIs.

Then we consider discourse-based models. Finally,

we propose a combination.

2 ARE USE CASES ENOUGH?

First, let us ﬁgure out whether the information avail-

able in use case speciﬁcations is sufﬁcient for auto-

mated generation of user interfaces. According to the

Uniﬁed Process (UP) and mainstream practice, use

case diagrams such as the one in Figure 1 are em-

ployed for providing an overview of the use cases of

a given application, their relations among each other

and with actors (e.g., human users of the application).

For our simple running example, this amounts to the

use case book ﬂight, which includes the use cases se-

lect ﬂight and buy ticket. Customer is the actor of

these use cases.

Such a use case often consists of a class of sce-

narios, in the sense of sequences of actions involving

Customer

book flight

select flight

buy ticket

«include»

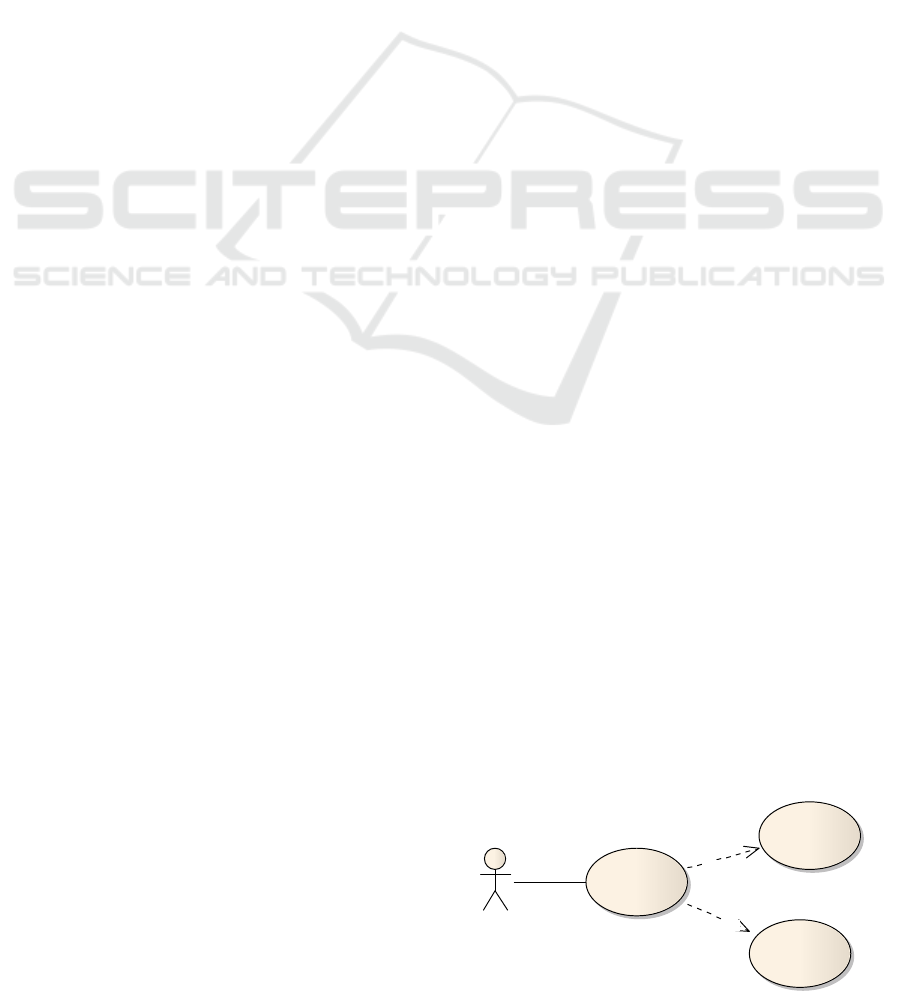

Figure 1: Flight-booking Use Case Diagram.

303

Kaindl H., Popp R. and Raneburger D..

Automated Generation of User Interfaces - Based on Use Case or Interaction Design Speciﬁcations?.

DOI: 10.5220/0004136203030308

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 303-308

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the actor and the system to be built. Such scenarios

are either described in (stylized) natural language text

or modeled in sequence diagrams such as the one in

Figure 2, or both. This example sequence diagram

speciﬁes the main scenario of the use case book ﬂight.

Note, that this is typically just an example of use and

not a general speciﬁcation of all the possible interac-

tions of a use case.

For a more comprehensive documentation of use

cases, the UP deﬁnes so-called use-case reports,

which consist of the following information:

1. Brief Description

2. Flow of Events

3. Special Requirements

4. Pre-conditions

5. Post-conditions

6. Extension Points

7. Relationships

8. Use-Case Diagrams

9. Other Diagrams

While a few variations of the main scenario are

usually given under Flow of Events, rarely a compre-

hensive speciﬁcation of all the possible interactions of

a use case is available. Even if, it is given informally

in natural language (with a few encodings), much as

the use-case report overall.

Is this sufﬁcient information for automated gener-

ation of a user interface?

We think that a major problem involved is that

the given scenarios are just examples. In early work

(Kaindl and Jezek, 2002), a systematic decomposition

of the overall task into tasks assigned to the steps in a

given scenario was proposed, their composition to in-

teraction tasks etc., and ﬁnally the assignment of wid-

get classes to such interaction tasks. In this way, all

the possible variations of performing the interaction

tasks are covered, but this approach has to be done

manually by a human instead of automated genera-

tion.

However, a few papers claim that user interfaces

can be generated automatically from use cases, see

(Elkoutbi et al., 2006; Fatolahi et al., 2008; Hennicker

and Koch, 2001; da Silva and Paton, 2003). We found

that use cases in these approaches actually have addi-

tional information attached, usually through annota-

tions with extra information on user interface aspects.

So, we conclude that use case speciﬁcations with-

out extra information are not enough for generating

user interfaces automatically.

Customer Airline

book flight()

present possible departure airports()

departure airport()

present possible destination airports()

destination airport()

request date()

date()

present possible flights()

flight to book()

request passenger details()

passenger details()

request payment information()

payment information()

ticket()

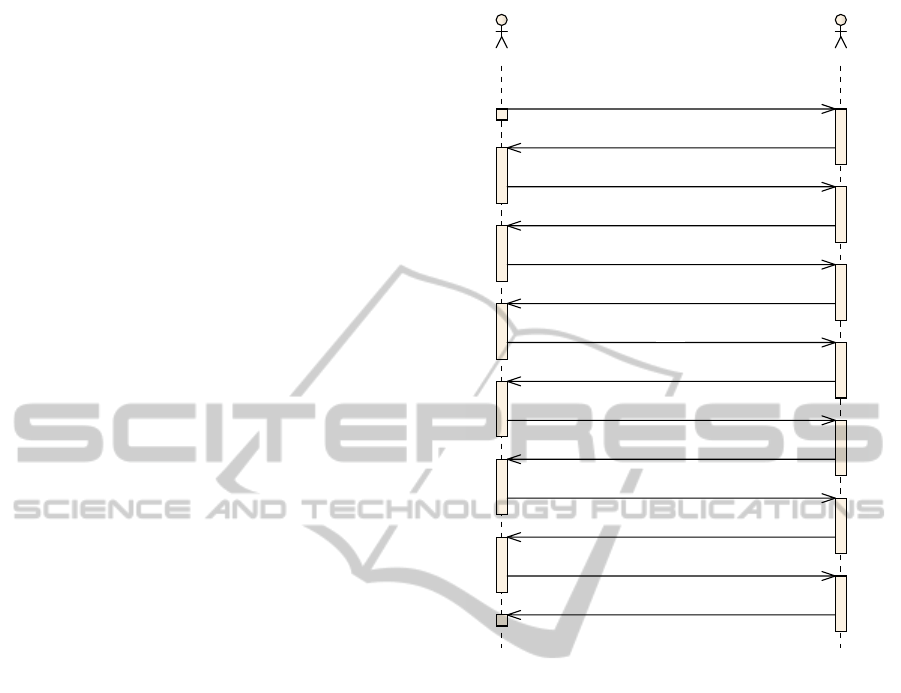

Figure 2: Flight-booking Sequence Diagram.

3 HOW ABOUT AN

INTERACTION DESIGN

SPECIFICATION?

Let us contrast this with our high-level speciﬁcation

of communicative interaction speciﬁcally developed

for automated generation of UIs, e.g., see (Falb et al.,

2006; Falb et al., 2009; Raneburger et al., 2011a).

This kind of speciﬁcation is on a high level of abstrac-

tion in the sense, that it is not (yet) a UI speciﬁcation,

as it does not contain any concrete clues for a real UI.

It does not even specify whether a graphical or, e.g., a

speech UI will be generated based on it.

The main part of such an interaction speciﬁcation

is a so-called Discourse Model, see the example in

Figure 3. It speciﬁes all possible (communicative)

interactions through discourses in the sense of dia-

logues in terms of Communicative Acts, Adjacency

Pairs (Luff et al., 1990), Rhetorical Structure The-

ory (RST) (Mann and Thompson, 1988) relations and

procedural constructs. The green and yellow rounded

boxes represent Communicative Acts (a generaliza-

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

304

Figure 3: Flight-booking Discourse Model.

AutomatedGenerationofUserInterfaces-BasedonUseCaseorInteractionDesignSpecifications?

305

tion of so-called Speech Acts (Searle, 1969)). There

are two colors for two dialogue partners. A ques-

tion is related with an answer through an Adjacency

Pair (represented through a diamond symbol). A tree

results from recursively connecting Adjacency Pairs

with RST relations (such as Joint in our example) or

procedural constructs (such as Sequence). The left-

most Joint in Figure 3 means that the related questions

may be asked concurrently and that both of them will

have to be answered. Sequence means that the con-

nected trees will have to be elaborated in this given

sequence.

Communicative Acts refer to a speciﬁcation of

what they “talk about” — the domain of discourse.

The Domain-of-Discourse Model for our running ex-

ample can be found in Figure 4. It contains, e.g.,

classes Airport, Flight, etc. Note the ontological

difference to a class model of a use-case realiza-

tion, which actually contains software design classes.

In contrast, a Domain-of-Discourse Model speciﬁes

those classes of objects in the real-world domain

that the application can communicate about in its

discourses with the human user through the UI. A

software design model may contain these or similar

classes, of course, but the exact model for the imple-

mentation in software may also be different for vari-

ous reasons.

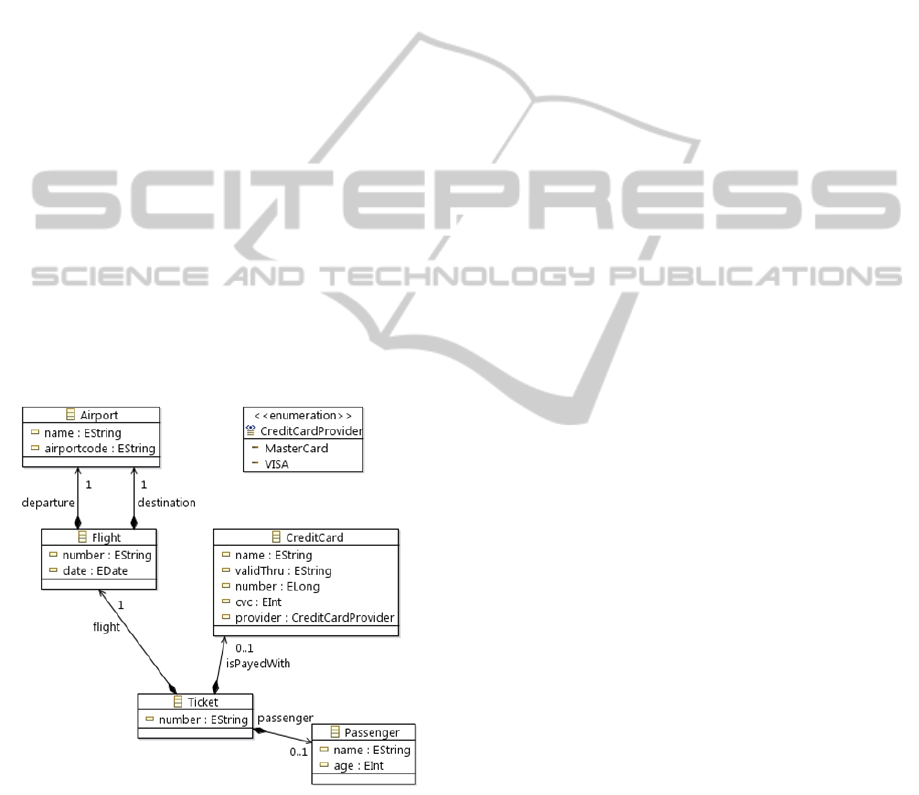

Figure 4: Flight-booking Domain-of-Discourse Model.

Finally, there needs to be a connection to the func-

tionality provided by the software application. So,

there is yet another model involved that speciﬁes the

interfaces of methods of the application logic, see

(Popp and Raneburger, 2011). Note the relation of

such a speciﬁcation with use cases.

From such models, it is possible to automatically

generate user interfaces through model transforma-

tions (Falb et al., 2009; Falb et al., 2011). They are

not necessarily always usable enough for practical ap-

plication when fully automatically generated for large

screens. For relatively small screens of todays smart-

phones, however, they can be speciﬁcally optimized,

see (Raneburger et al., 2011b). Figure 5 shows how

such automatically generated UIs look on an iPhone.

So, these models, e.g., contain enough informa-

tion for generating user interfaces based on them.

4 HOW ABOUT A

COMBINATION?

At least on the surface, such models look quite dif-

ferent from common use case / scenario models. So,

there may be a danger of separation of requirements

speciﬁcation from interaction design. Is there a useful

way of combining such models?

In fact, we found that the discourse-based mod-

els sketched above specify all the possible ﬂows of

communicative interaction in the course of such dia-

logues. This is missing in the common use case ap-

proach of a main scenario example with a few varia-

tions. We can view it as a speciﬁcation of the class

of all possible dialogues. These possible ﬂows are

well deﬁned and understandable in the sense that they

are speciﬁed using concepts common in human com-

munication (e.g., questions and answers). Moreover,

there is additional information in RST relations and

procedural constructs. So, combining such models

with common use-case reports results in a more com-

plete speciﬁcation of the use cases, and it facilitates

automated generation of user interfaces.

Application of this combined approach in a

project together with a company provided some em-

pirical evidence of its usefulness. This company pro-

vided requirements in a speciﬁcation based on the

common use-case approach. According to these,

we developed related discourse-based models, which

speciﬁed all possible communicative interactions /

scenarios. Our tools supporting this approach facil-

itated the editing of the models and their preliminary

veriﬁcation, and they generated optimized graphical

user interfaces for smartphones.

In future work, we plan to extend our tool support

and to investigate typical interaction patterns that can

be provided as templates for the interaction designer.

We also plan to work on the scalability of our Com-

munication Models. They capture all possible ﬂows

of events and, therefore, potentially encompass sev-

eral use cases. Sub-communication Models may fa-

cilitate a decomposition analogously to the one of use

cases. We plan to link these sub-models resulting in

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

306

Figure 5: Final UI for iPod Touch and iPhone.

the overall Communication Model. A hierarchically

structured model will be easier to manage and the sub-

models will also facilitate reuse.

Our Discourse-based Communication Models

provide a speciﬁcation of the communicative in-

teraction between two dialogue partners. We will

investigate Habermas’ Communicative Action The-

ory (Habermas, 1984; Habermas, 1987), especially

its application to understanding Information Systems

(Cecez-Kecmanovic and Janson, 1999), to develop

a workﬂow for the creation of our Communication

Models. Another interesting point based on Haber-

mas’ work may be the negotiated combination of

(Sub-)Communication Models to new Communica-

tion Models according to our modeling approach.

5 CONCLUSIONS

So, should automated generation of UIs be based on

use case or interaction design speciﬁcations? If this

was an alternative, it can realistically only be based on

interaction design speciﬁcations, such as task models

or discourse-based models.

The latter models can be also viewed as specifying

classes of scenarios, i.e., use cases. Therefore, these

models can be usefully combined with more common

use-case reports, in order to achieve a more complete

speciﬁcation of use cases, in particular of the possible

ﬂows of actions. This combination has the potential

to make applications both more useful and usable.

ACKNOWLEDGEMENTS

We thank Points Management GmbH for sponsoring

part of this research in the context of a project par-

tially funded by the Austrian FFG.

REFERENCES

Cecez-Kecmanovic, D. and Janson, M. (1999). Commu-

nicative action theory: An approach to understanding

the application of information systems. In Proceed-

ings of the Tenth Australasian Conference on Infor-

mation Systems (ACIS99), pages 183–195.

Costa, D., N

obrega, L., and Nunes, N. (2007). An MDA ap-

proach for generating web interfaces with UML Con-

curTaskTrees and canonical abstract prototypes. In

Coninx, K., Luyten, K., and Schneider, K., editors,

Task Models and Diagrams for Users Interface De-

sign, volume 4385 of Lecture Notes in Computer Sci-

ence, pages 137–152. Springer Berlin / Heidelberg.

10.1007/978-3-540-70816-2 11.

da Silva, P. and Paton, N. (2003). User interface modeling

in UMLi. IEEE Software, 20(4):62–69.

Elkoutbi, M., Khriss, I., and Keller, R. K. (2006). Auto-

mated prototyping of user interfaces based on UML

scenarios. Automated Software Engineering, 13(1):5–

40.

Falb, J., Kaindl, H., Horacek, H., Bogdan, C., Popp, R., and

Arnautovic, E. (2006). A discourse model for inter-

action design based on theories of human communi-

cation. In Extended Abstracts on Human Factors in

Computing Systems (CHI ’06), pages 754–759. ACM

Press: New York, NY.

AutomatedGenerationofUserInterfaces-BasedonUseCaseorInteractionDesignSpecifications?

307

Falb, J., Kaindl, H., Popp, R., and Raneburger, D. (2011).

Automated WIMP-UI generation based on communi-

cation models. i-com, 10(3):48–55.

Falb, J., Kavaldjian, S., Popp, R., Raneburger, D., Arnau-

tovic, E., and Kaindl, H. (2009). Fully automatic

user interface generation from discourse models. In

Proceedings of the 13th International Conference on

Intelligent User Interfaces (IUI ’09), pages 475–476.

ACM Press: New York, NY.

Fatolahi, A., Som, S. S., and Lethbridge, T. C. (2008). To-

wards a semi-automated model-driven method for the

generation of web-based applications from use cases.

In Proceedings of the workshop on Speech and Natu-

ral Language.

Habermas, J. (1984). The Theory of Communicative Action

- Reason and the Rationalisation of Society, volume I.

Boston, MA: Beacon Press.

Habermas, J. (1987). The Theory of Communicative Action

- the Critique of a Functionalist Reason, volume II.

Boston, MA: Beacon Press.

Hennicker, R. and Koch, N. (2001). Modeling the user

interface of web applications with UML. In Work-

shop of the pUML-Group held together with the

«UML»2001 on Practical UML-Based

Rigorous Development Methods - Countering or In-

tegrating the eXtremists, pages 158–172. GI.

Kaindl, H. and Jezek, R. (2002). From usage scenarios

to user interface elements in a few steps. In Kol-

ski, C. and Vanderdonckt, J., editors, Proceedings of

CADUI’02, pages 91–102. Kluwer.

Luff, P., Frohlich, D., and Gilbert, N. (1990). Computers

and Conversation. Academic Press, London, UK.

Mann, W. C. and Thompson, S. (1988). Rhetorical Structure

Theory: Toward a functional theory of text organiza-

tion. Text, 8(3):243–281.

Mori, G., Patern

o, F., and Santoro, C. (2002). CTTE: Sup-

port for developing and analyzing task models for in-

teractive system design. IEEE Transactions on Soft-

ware Engineering, 28:797–813.

Pastor, O., Espa

na, S., Panach, J. I., and Aquino, N.

(2008). Model-driven development. Informatik Spek-

trum, 31(5):394–407.

Patern

o, F., Santoro, C., and Spano, L. D. (2009). Maria: A

universal, declarative, multiple abstraction-level lan-

guage for service-oriented applications in ubiquitous

environments. ACM Trans. Comput.-Hum. Interact.,

16:19:1–19:30.

Popp, R. and Raneburger, D. (2011). A High-Level Agent

Interaction Protocol Based on a Communication On-

tology. In Huemer, C., Setzer, T., Aalst, W., Mylopou-

los, J., Sadeh, N. M., Shaw, M. J., and Szyperski,

C., editors, E-Commerce and Web Technologies, vol-

ume 85 of Lecture Notes in Business Information Pro-

cessing, pages 233–245. Springer Berlin Heidelberg.

10.1007/978-3-642-23014-1 20.

Raneburger, D., Popp, R., Kaindl, H., Falb, J., and Ertl, D.

(2011a). Automated Generation of Device-Speciﬁc

WIMP UIs: Weaving of Structural and Behavioral

Models. In Proceedings of the 3rd ACM SIGCHI Sym-

posium on Engineering Interactive Computing Sys-

tems, EICS ’11, pages 41–46, New York, NY, USA.

ACM.

Raneburger, D., Popp, R., Kavaldjian, S., Kaindl, H., and

Falb, J. (2011b). Optimized GUI generation for small

screens. In Hussmann, H., Meixner, G., and Zuehlke,

D., editors, Model-Driven Development of Advanced

User Interfaces, volume 340 of Studies in Computa-

tional Intelligence, pages 107–122. Springer Berlin /

Heidelberg.

Searle, J. R. (1969). Speech Acts: An Essay in the Phi-

losophy of Language. Cambridge University Press,

Cambridge, England.

van den Bergh, J. and Coninx, K. (2007). From task to dia-

log model in the UML. In Proceedings of the 6th In-

ternational Workshop on Task Models and Diagrams

for User Interface Design (TAMODIA 2007), LNCS

4849, pages 98–111, Toulouse, France. Springer.

Vanderdonckt, J. M. (2008). Model-driven engineering

of user interfaces: Promises, successes, and fail-

ures. In Proceedings of 5th Annual Romanian Conf.

on Human-Computer Interaction, pages 1–10. Matrix

ROM.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

308
