Automatically Extracting Complex Data Structures from the Web

Laura Fontán, Rafael López-García, Manuel Álvarez and Alberto Pan

Department of Information and Communication Technologies, University of A Coruña, Facultade de Informática,

Campus de Elviña S/N, A Coruña, Spain

Keywords: Information Retrieval, Automatic Web Data Extraction.

Abstract: This paper presents a new technique for detecting and extracting lists of structured records from Web pages.

With respect to most of the state-of-the-art systems, our approach is capable of detecting nested data

structures (sublists) and it also incorporates some heuristics to delete unwanted content such as banners and

navigation menus from the data region. This article also describes the experiments we have performed to

validate the system. The precision and recall we have obtained in our tests surpass 90%.

1 INTRODUCTION

Many websites provide an underlying database

containing structured data. However, in most of the

cases, this information is only offered in HTML

format, which makes it difficult for programs to

access it. Fortunately, the layout used by websites is

often regular, allowing us to infer the data structure

with an acceptable accuracy. An example of list with

structured records is shown in Figure 1.

Classic automatic Web data extraction systems

use the so-called supervised approach (Zhai and Liu,

2005; Raposo et al., 2007), in which a human

administrator configures a Web automation process

(‘wrapper’) for each data extraction process in every

target website. The process must also be updated

every time the website changes. Although this

approach can produce very accurate results, it does

not scale for a high number of websites.

On the other hand, we have the unsupervised

approach, in which the extraction process is fully

automatic. Although this approach tends to produce

less accurate results, it can scale to large numbers of

websites. Most systems using this approach present

two important problems:

1. Inability to deal with nested data structures.

2. Lack of measures to detect unwanted content

such as navigation menus and banners inside

the data region.

In this paper, we present an unsupervised Web

data extraction system capable of obtaining data

with high precission and recall even in pages

presenting the aforementioned complexities.

Sublist with 3records

Sublist with 1record

Sublist with 2records

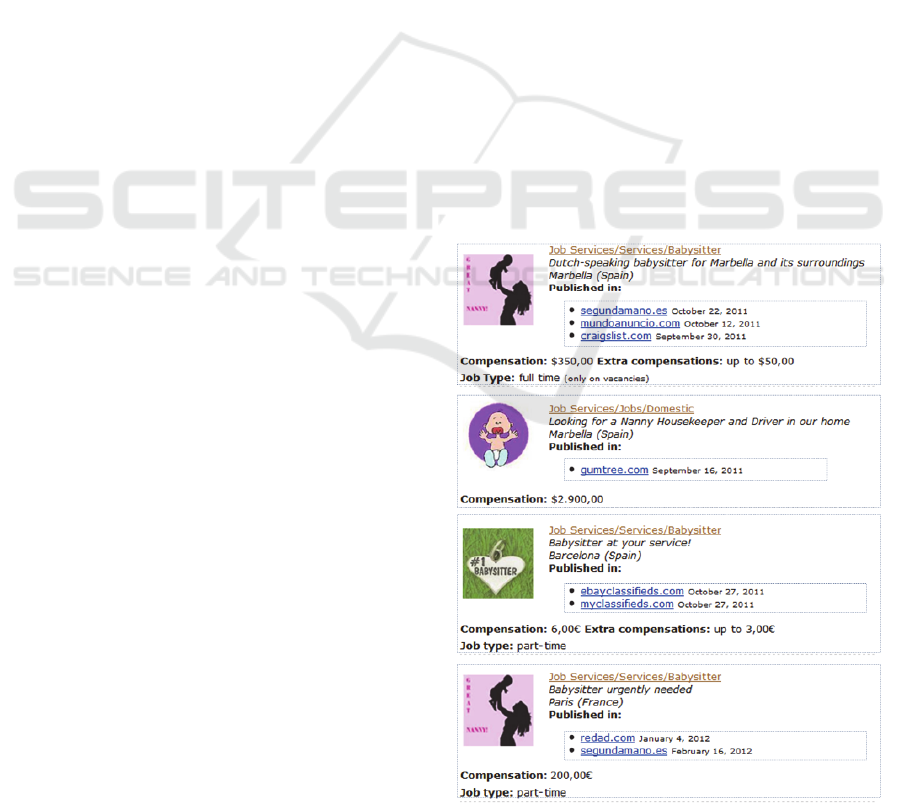

Figure 1: An HTML page with a list of nested records.

2 RELATED WORK

RoadRunner (Crescenzi et al., 2001) and ExAlg

(Arasu and Garcia-Molina, 2003) were some of the

first web data extraction systems using the

246

Fontán L., López-García R., Álvarez M. and Pan A..

Automatically Extracting Complex Data Structures from the Web.

DOI: 10.5220/0004140802460251

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 246-251

ISBN: 978-989-8565-29-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

unsupervised approach. They share an important

limitation: they need multiple pages with the same

template in order to infer the extraction rules to

obtain the data. In addition, RoadRunner does not

support disjunctions in the schema.

DEPTA (Zhai and Liu, 2006) needs only one

page to detect and extract its structured records. It

analyses the visual layout of the page and calculates

tree-edit distances between elements. However, it

assumes features that are not always verified in real

websites, such as that all the records are composed

by the same number of subtrees and the space that

separates two data records is bigger than the one that

separates two data values from the same record.

Álvarez et al. (2008) present a system that reuses

some of the models presented in ExAlg and extracts

data from a single page. Their method does not

present the limitations we have found in DEPTA.

However, neither this system nor DEPTA support

extracting data from nested structures. Their system

also addresses the problem of cleaning unwanted

data, but it shows important limitations. Our system

uses the one by Álvarez et al. (2008) as a starting

point, so section 3 studies it more thoroughly.

Miao et al. (2009) introduce a system that is

capable of detecting nested structures and non-

consecutive records, but it simply identifies the data

records without extracting the individual data fields

of each record.

G-STM (Jindal and Liu, 2010) is an extension to

the Simple Tree Matching algorithm. It is capable of

dealing with nested sublists, but their method may

identify non-lists as lists when subtrees are not deep

enough. In turn, our system includes additional

heuristics for these cases.

3 OVERVIEW OF THE EXISTING

SOLUTION

The purpose of our algorithm is to extract a list of

data records from an HTML page such as the one

shown in Figure 1. Our approach is based on a state-

of-the-art solution (Alvarez et al., 2008),

summarized in this section, and we have extended it

to process nested sublists and other complexities

(section 4).

The system is based on the DOM tree

representation of HTML pages. Starting from this

tree, a three-step algorithm is applied to extract the

data. Figure 2 shows an excerpt of the DOM tree

corresponding to our example page.

The first step is finding the dominant list of

records of the page. This is equivalent to finding the

common parent node of the sibling subtrees which

form the data records. In our example of Figure 2,

the node we should discover is n

. The subtree with

that node as root is called the data region.

The second step is dividing the data region into

records. We assume that each record is composed of

one or several consecutive subtrees of the root node

of the data region. For instance, in Figure 2, we need

to detect that the first record is formed by the

subtrees labelled as t0, t1 and t2, the second record

is formed by the subtrees labelled t3 and t4, etc.

TABLE

TR TR

TR TR TR TR TR

TABLE

SPAN I

TR TR

TABLE

DIV

BODY

HTML

…

……

… …

CATEGORY: Job Services/Services/Babysitter

TITLE: Dutch-speaking babysitter for Marbella and its surroundings

LOCATION: Marbella (Spain)

PUBLISHEDIN: { segundamano.es | October 22, 2011 }, { mundoanuncio.com | October 12, 2011 },

{ craigslist.com | September 30, 2012 }

COMPENSATION: $350.00

EXTRACOM PENSATION: up to $50.00

JOB TYPE: full time

… … … … …

#textDutch-speaking

babysitter for

Marbella and its

surroundings

Marbella

(Spain)

$350,00

$2,900.00

#text

IMG BR

Job Services/

Services/

Babysitter

up to $50,00

#text

SPAN

full time

#text

…

SPAN I

#text

Looking for a

Nanny

Housekeeper

and Driver in our home

Marbella

(Spain)


BRBR

Job Services/

Jobs/

Domestic

SPAN

gumtree.com

September

16, 2011

SPAN

segundamano.es

October

22, 2011

SPAN

mundoanuncio.com

October

12, 2011

SPAN

craiglist.com

September

30, 2012

CATEGORY: Job Services/Jobs/Domestic

TITLE: Looking for a Nanny Housekeeper and Driver in our home

LOCATION: Marbella (Spain)

PUBLISHEDIN: { gumtree.com | September 16, 2011 }

COMPENSATION: $2,900.00

#text

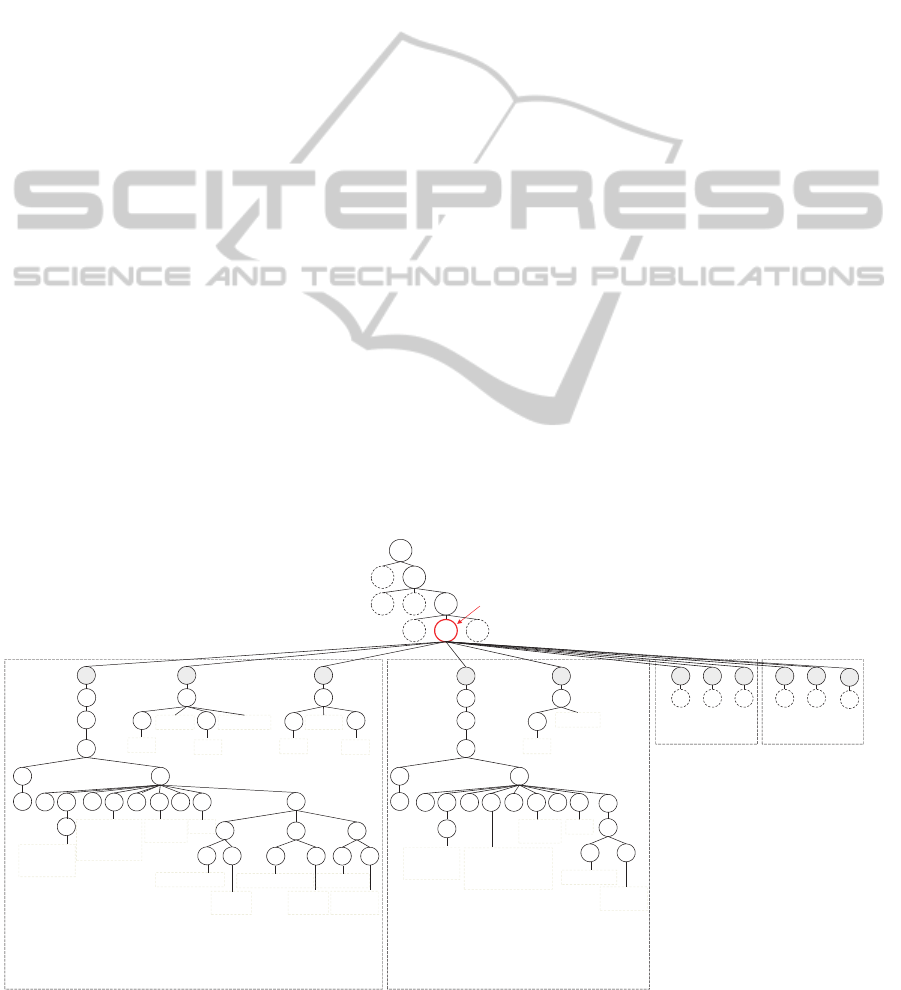

Figure 2: An excerpt of the DOM tree of the page in Figure 1.

AutomaticallyExtractingComplexDataStructuresfromtheWeb

247

The key idea in this step is to choose the record

division that maximizes the similarity between

records. The similarity measure used is based on

serializing the subtrees as strings and then applying

string edit-distance techniques (Levenstein, 1966).

The main problem to apply this idea is that the

number of candidate divisions is 2

n-1

, where n is the

number of subtrees. In most real Web pages, this

number is too high to compute the similarities for all

the possible divisions. Therefore, we first need to

generate a set of candidate divisions.

The method for choosing the candidate divisions

starts by clustering all the subtrees in the data region

according to their similarity. Then, we assign an

identifier to each cluster we have generated and we

build a sequence by listing the subtrees in the data

region in order, representing each subtree with the

identifier of the cluster it belongs to (see Figure 3).

The string will tend to be formed by a repetitive

sequence of cluster identifiers, with each repetition

corresponding to a data record. Since there may be

optional data fields in the extracted records, the

sequence for one record may be slightly different

from the sequence corresponding to another record.

Nevertheless, we will assume that all records either

start or end with a subtree belonging to the same

cluster (i.e. all the data records always either start or

end in a similar way). This is built on the heuristic

that in most Web sites, records are visually delimited

in an unambiguous manner to improve clarity.

This process reduces the number of candidate

divisions to 1+2k, where k is the number of clusters.

Figure 3 shows the subtrees of Figure 2 that have

been chosen for each record r

-r

of our example by

applying this process and choosing the subtree with

the highest similarity between records.

TABLE

TR TR TR TR TR TR TRTR TR TR

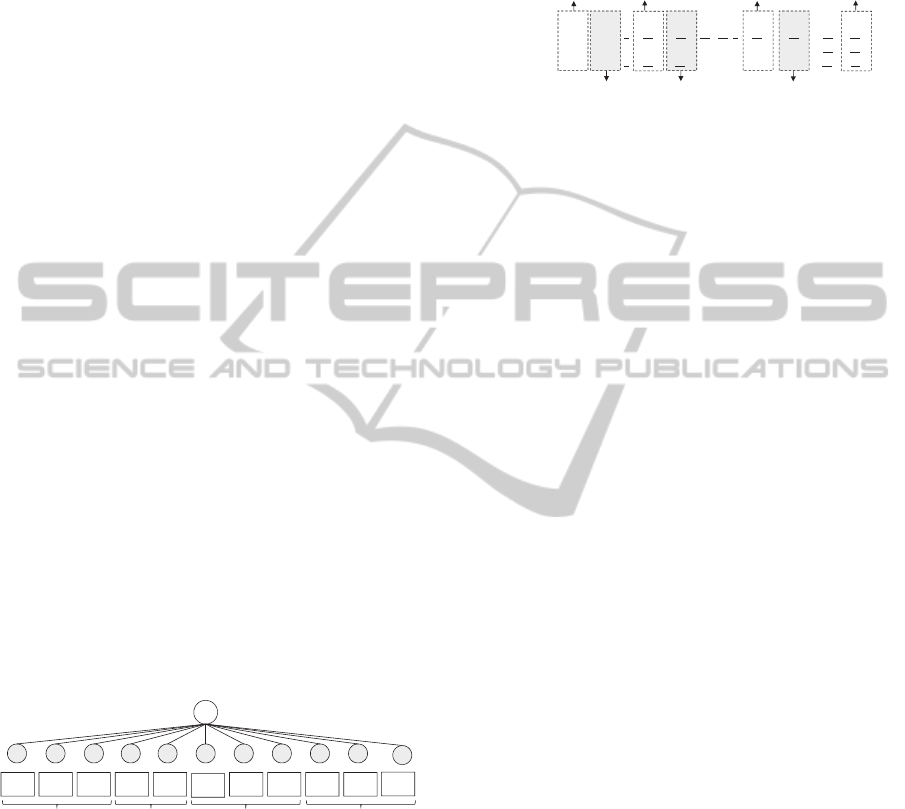

Figure 3: Record division for the page in Figure 1.

The third step is extracting the attributes of the

data records. This point involves two stages: (1)

transforming each record into a string and (2)

applying string alignment techniques to each record

in order to identify its attributes. Variations of the

“center star” algorithm (Gonnet et al., 1992) are

used to solve this problem. The key idea is that the

aligned variable values in several records represent

the different values of the same field in different

records. Figure 4 shows an excerpt of the alignment

between the strings that represent the records of our

example. In this excerpt, it can be seen how the last

data fields of each record are aligned (fields that

correspond to the attributes COMPENSATION,

EXTRACOMPENSATION and JOB_TYPE).

 … TR TD B TEXT TEXT B TEXT TEXT TR TD B TEXT TEXT SPAN TEXT

 … TR TD B TEXT TEXT

 … TR TD B TEXT TEXT B TEXT TEXT TR TD B TEXT TEXT

 … TR TD B TEXT TEXT TR TD B TEXT TEXT

COMPENSATION EXTRACOMPENSATION JOBTYPE

“Compensation:” “Extra compensations:” “Job Type:”

“(only on vacancies)”

Figure 4: Alignment between records of Figure 1.

4 IMPROVEMENTS TO THE

EXISTING SOLUTION

The method described in the previous section has

several limitations. For instance, it is unable to

identify the sublists marked in our example of

Figure 1. In this section, we will describe the

improvements we have incorporated to deal with

these limitations.

The main idea behind our algorithm is very

simple: each record from the list identified by the

above method can be considered as a reduced

HTML page by simply adding a root node to their

subtrees. Then we can simply execute the method

again on these “reduced pages” to find sublists

inside them. For instance, applying our algorithm on

the first record of Figure 1 (r0) will correctly

identify the 3-record sublist inside it. In the cases in

which sublists are found, we can keep applying the

method recursively for each record. Unfortunately,

this simple method has several important drawbacks:

1. Sublists with very few records will not be

identified. Our method for finding lists is based

on finding records with high inter-similarity,

but, for instance, in record r1 of Figure 1, the

sublist contains only one record, so the method

cannot work directly.

2. As the “pages” used to search for lists become

more and more reduced, lists tend to be shorter

and their elements tend to have fewer fields. In

this situation, the list identification process will

have less information, so we need additional

heuristics to maintain the accuracy.

Section 4.1 discusses these issues. The problem

of removing unwanted content (ads, pagination

controls, etc.) contained inside the data region is

discussed in section 4.2.

The results of the algorithm are stored in a

multilevel map due to the hierarchical nature of the

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

248

data model. Figure 5 shows the resulting multilevel

structure from applying our algorithm on the Figure

1 example.

4.1 Processing Nested Structures

The biggest challenge in detecting nested data

structures inside records is to distinguish sublists

from sequences of data fields. For instance, in the

Web page of Figure 1 the challenge is recognising

that the pairs (URL, date) present in each ad form a

sublist, while the remaining parts of the ad (title,

description, compensation, etc.) are individual data

fields of the top-level records.

Our method is based on the following

observations about the nature of lists and records:

1. By definition, the data records of a list are of the

same type, while the data fields of an individual

record may be of different types.

2. The number of elements in a list can be very

variable, while the number of data fields in

different records of the same type tends to be

fixed. The variability in the number of fields is

usually more limited than the variability in the

number of elements of a list.

From the first feature, we conjecture that the

different records of a list will be formatted in the

same (or very similar) way in the page, while data

fields of an individual record will tend to show some

formatting differences. Therefore, we set an inter-

record similarity threshold for candidate sublists.

From the second characteristic, we conjecture

that the corresponding sublists found in different

records of the top-level list should tend to have a

different number of elements.

These conjectures are combined to determine if a

candidate sublist should pass the filter. For instance,

in the page of Figure 1, we notice how the number

of pairs (url, date) is different among the records in

the main list (there are three pairs in r0, one in r1

and two in r2 and r3). In addition, the formatting of

all pairs is identical, and, therefore, it will result in a

very high inter-record similarity. Hence, this

candidate sublist will be considered as correct.

The way to combine these heuristics depends on

the average number of data fields in the records of

the candidate sublist. If this number is medium-high,

the inter-record similarity will be used as crucial

source of evidence. However, if this number is low

(e.g. below 2), variability will be more important.

The rationale behind this is that, on the one hand,

when the elements making up the candidate sublist

have many fields, inter-record similarity provides

enough evidence to conclude that the sublist is

correct. On the other hand, when the records of the

candidate sublist consist of very few elements (e.g.:

a single text or link), then the inter-record similarity

gives us less information and variability should also

be considered.

For instance, consider the case of a simple HTML

table representing one record in each row, one data

field in each column and where all the column

values are single text elements. Considering only

inter-record similarity would incorrectly identify the

sequence of columns in each row as a sublist, since

all the data fields are formatted identically.

However, the variability measure will discard those

candidate sublists, since all of them have exactly the

same number of records.

Some refinements are still needed by this method

in order to deal with some special cases. These cases

are studied in subsections 4.1.1 and 4.1.2.

4.1.1 Sublists that Contain a Low Number

of Elements

When sublists contain a low number of elements, the

… …

Records‐ level 1(for r

) Records– level 1(for r

)

... ...

Records–level0

0,0

0,1

0,2

1,0

…

DataExtraction List

Levels

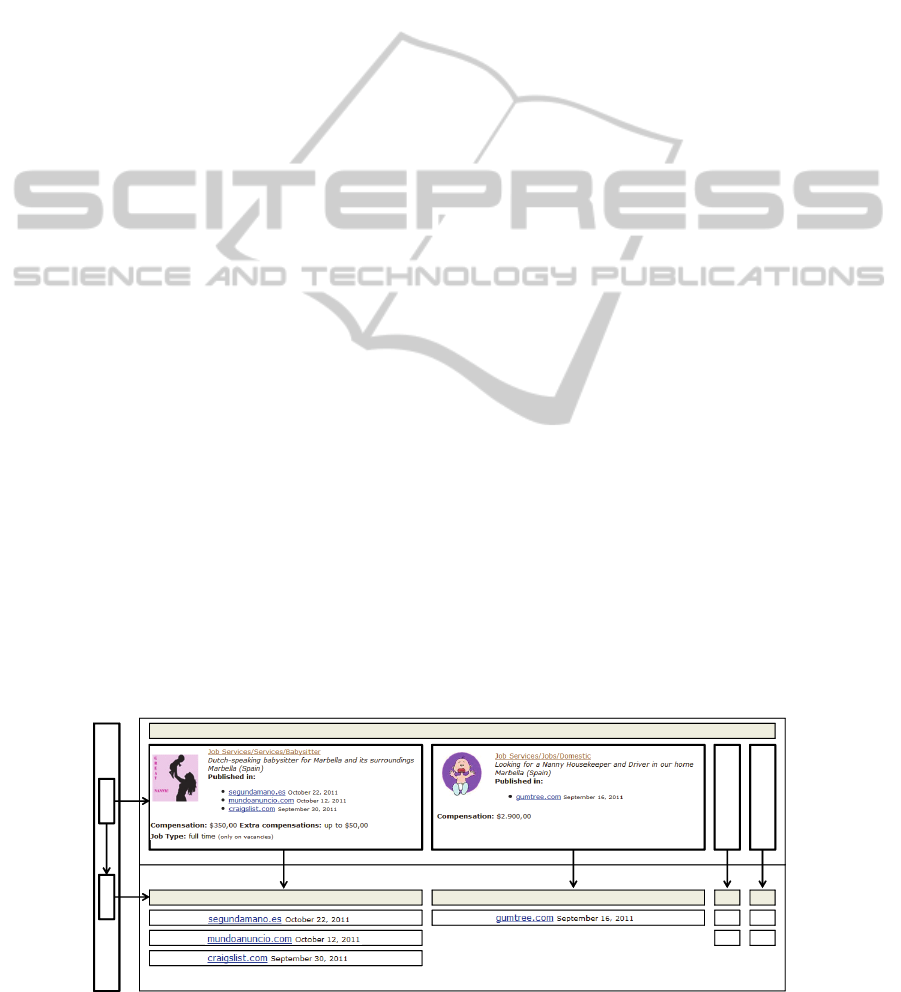

Figure 5: Result of the algorithm applied to the example.

AutomaticallyExtractingComplexDataStructuresfromtheWeb

249

method for finding lists will not detect them. For

instance, the record r1 of Figure 1 contains a sublist

with only one element, so it will not be detected.

However, the existence of a sublist in other

records of the same list (or in the records of another

list at the same level) can help to detect these

situations. In our example, finding sublists in records

r0, r2 and r3 suggests that r1 may also contain a

sublist of the same type. For this reason, when we

confirm the existence of sublists in a certain list, we

inspect again those records where no sublists have

been found and we align them with the remaining

ones using the alignment process which has been

described in section 3 and illustrated in Figure 4. If

one record in which sublists have not been found

does contain some portions aligning with the sublists

found in other records, those portions will be

considered sublists too.

4.1.2 Use of Label Information

As we have explained in the previous sections, one

of the assumptions of our approach is that the

records of a list will be formatted similarly in the

page, while the different data fields of a record will

tend to show some formatting differences.

However, there are also cases like the one shown

in Figure 6, in which all the data fields of a record

are formatted in the same way. This could cause the

system to incorrectly identify the sequence of data

fields called “title”, “location”, and “compensation”

as elements of a sublist.

Fortunately, it is very frequent in these cases that

some or all of the data fields are prefixed by labels

identifying them in order to avoid confusions. For

instance, in Figure 6, the data fields called “title”,

“location”, and “compensation” are prefixed by their

corresponding labels.

Labels

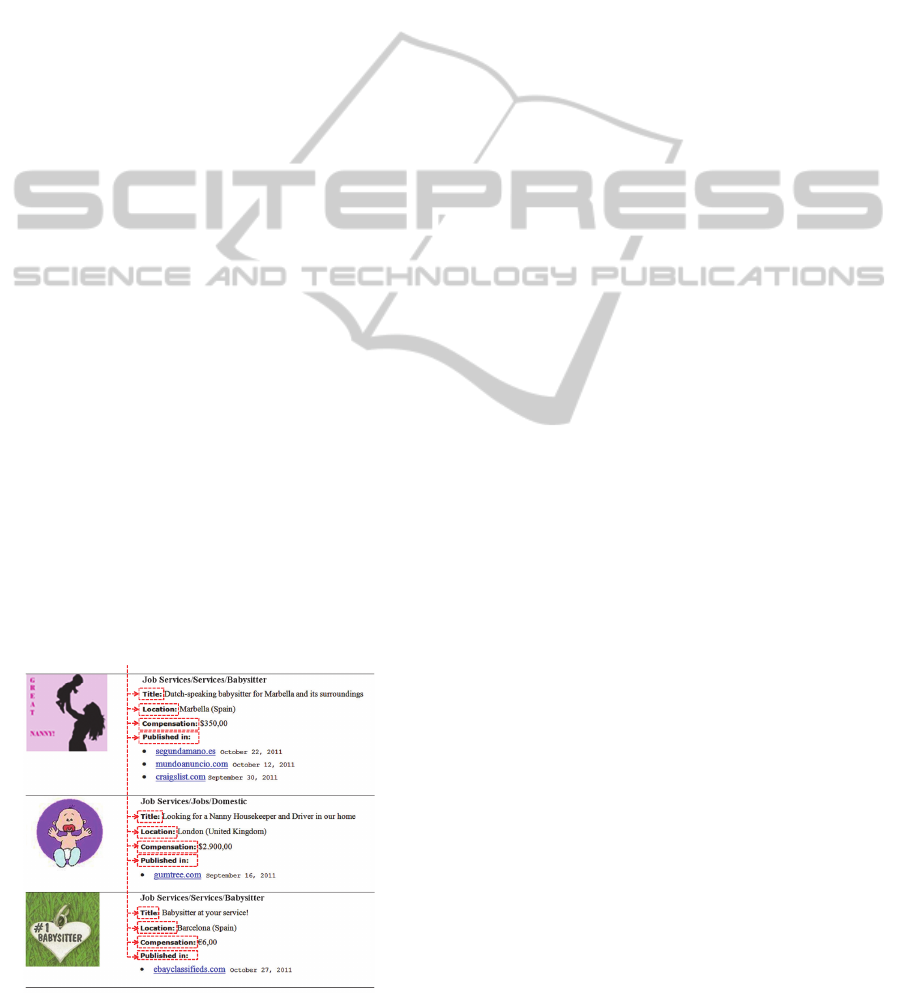

Figure 6: Using labels to identify data fields.

Labels can be easily detected by the aligning

process: when a data field always appears prefixed

by the same text in all records of the list, we

consider that text a label for the field.

Our hypothesis in this case is that labels are

indicative of the existence of data fields. A sequence

containing (label, value) pairs is very improbable to

be a list because all the elements of a list are of the

same type and, therefore, it is not needed any label

to distinguish between them.

4.2 Removing unwanted Data

The first step in extracting lists of data records is

finding the common parent node of the sibling

subtrees forming the data records.

In some websites, the data region also contains

other tokens that do not belong to the actual data.

Typical examples are banners, navigation links, etc.

These items are normally located at the beginning or

at the end of the data region. We use three heuristics

to deal with this problem, although the first one had

already been included in the system by Álvarez et al.

(2008):

1. Remove leading and trailing unaligned tokens:

since all the data records always either start or

end in the same way, we can conclude that

tokens at the beginning and at the end of the

data region that do not align with anything else

are candidates to be removed.

2. Remove tokens that only align in the first and

last data record: sometimes unwanted data is

repeated in the first and last records of the data

region. Navigation links to other result pages

are an example of this.

3. Remove leading and trailing records with low

similarity: if a record in the data region has low

similarity with the other records, it will likely

contain unwanted information.

5 ASSESSMENT

We have chosen 170 well-known websites in 5

different application domains for our experiments:

classified ads (40), job sites (31), social networks

(24), online shops (5) and bookstores (70).

We have executed one query in each website and

collected the first page containing the list of results.

We have manually selected the queries to guarantee

that the collection includes pages having a very

variable number of results (from two or three to

dozens).

We have calculated the precision and recall of

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

250

the system in two different ways: (1) considering

only the records that have been extracted perfectly

and (2) considering partially correct records too

(records where most of the data fields are correctly

identified, but where some attributes are missing).

As it can be seen in Table 1, our algorithm

achieves more than 86% for both precision and

recall. If we consider partially correct records, the

results are close to 93%.

Table 1: Results of the empirical evaluation.

With correct

records only

With partially

correct records

Records to extract 2,416 2,416

Extracted records 2,427 2,427

Correctly extracted 2,089 2,247

Precision 86.07% 92.58%

Recall 86.47% 93.00%

6 CONCLUSIONS

This paper has presented a system for automatic

Web data extraction. The system detects and extracts

lists of structured records in Web pages following an

unsupervised approach. It is capable of obtaining

data from nested structures (sublists) and it also

includes heuristics to remove unwanted and

unimportant data such as banners, navigation links

and menus.

The system has been tested in a high number of

real websites, reaching precision and recall values

higher than 86% when only correctly extracted

records are considered and values close to 93%

when partially correct records are considered too.

ACKNOWLEDGEMENTS

This paper has been supported by the SCIIMS

Project, financed by the 7th Framework Program of

the EU (code FP7-SEC-2007-1-218223).

REFERENCES

Álvarez, M. Pan, A., Raposo, J., Bellas, F., Cacheda, F.,

2008. Extracting lists of data records from semi-

structured web pages. In Data and Knowledge

Engineering, vol. 64, num 2.

Arasu, A., Garcia-Molina, H., 2003. Extracting structured

data from web pages. In Proceedings of the ACM

SIGMOD International Conference on Management

Data.

Crescenzi, V., Mecca, G., Merialdo, P., 2001.

ROADRUNNER: towards automatic data extraction

from large web sites. In Proceedings of the 2001

International VLDB Conference, pp. 109-118.

Gonnet, G. H., Baeza-Yates, R., Snider, T. 1992. New

Indices for Text Pat Trees and Pat Arrays. In

Information Retrieval: Data Structures and

Algorithms. Prentice Hall.

Jindal, N., Liu, B., 2010. A Generalizad Tree Matching

Algorithm Considering Nested Lists for Web Data

Extraction. In Proceedings of SIAM International

Conference on Data Mining 2010, pp.930-941.

Levenstein, V. I., 1966. Binary codes capable of

correcting deletions, insertions and reversals. In Soviet

Physics Doklady, 10, pp. 707-710.

Miao, G., Tatemura, J., Hsiung, W. P., Sawires, A.,

Moser, L., 2009. Extracting Data Records from the

Web Using Tag Path Clustering. In Proceedings of the

International Conference on World Wide Web

(WWW’09), pp. 981-990.

Raposo, J., Pan, A., Alvarez, M., Hidalgo, J., 2007.

Automatically maintaining wrappers for web sources.

In Data and Knowledge Engineering Journal, vol. 61,

num. 2, pp. 331-358.

Zhai, Y., Liu, B., 2005. Extracting web data using

instance-based learning. In Proceedings of Web

Information Systems Engineering Conference (WISE),

pp. 318-331.

Zhai, Y., Liu, B., 2006. Structured data extraction from the

web based on partial tree alignment. In IEEE

Transactions on Knowledge and Data Engineering,

vol. 18, num. 12, pp. 1614-1628.

AutomaticallyExtractingComplexDataStructuresfromtheWeb

251
