A Bayesian Approach for Constructing Ensemble Neural Network

Sai Hung Cheung, Yun Zhang and Zhiye Zhao

School of Civil and Environmental Engineering, Nanyang Technological University,

Nanyang Avenue, Singapore, Singapore

Keywords: Neural Network, Bayesian Approach.

Abstract: Ensemble neural networks (ENNs) are commonly used in many engineering applications due to its better

generalization properties compared with a single neural network (NN). As the NN architecture has a

significant influence on the generalization ability of an NN, it is crucial to develop a proper algorithm to

design the NN architecture. In this paper, an ENN which combines the component networks by using the

Bayesian approach and stochastic modelling is proposed. The cross validation data set is used not only to

stop the network training, but also to determine the weights of the component networks. The proposed ENN

searches the best structure of each component network first and employs the Bayesian approach as an

automating design tool to determine the best combining weights of the ENN. Peak function is used to assess

the accuracy of the proposed ensemble approach. The results show that the proposed ENN outperforms

ENN obtained by simple averaging and the single NN.

1 INTRODUCTION

The artificial neural network (NN) is a mathematical

or computational model for information processing

based on the biological neural networks (McCulloch

and Pitts, 1943). The ensemble neural network

(ENN) can be significantly improved through

ensembling a number of NNs (Hansen and Salamon,

1990). Since this approach behaves remarkably well,

nowadays it has been widely applied in many

engineering areas.

In Bayesian data analysis, all uncertain quantities

are quantified by probability distributions, and

inference is performed by constructing the posterior

conditional probabilities for the unobserved

variables of interest, given the observed data sample

and prior assumptions (Lampinen and Vehtari,

2001). The application of Bayesian theory to NNs

was started by Buntine and Weigend (1991).

Marwala (2007) proposed a Bayesian neural

network trained using Markov Chain Monte Carlo

(MCMC) and genetic programming (GP) in binary

space. Wang et al. (2010) proposed a sequential

Bayesian learning for ENNs. This paper proposes a

method based on a Bayesian approach and stochastic

modelling. One simulated example is used to

illustrate the performance of the proposed method.

2 PROPOSED BAYESIAN

APPROACH FOR DESIGNING

ENN

An ENN is a collection of a finite number of NNs

that are trained for the same task. Usually the

networks in the ensemble are trained independently

and then their predictions are combined (Sollich and

Krogh, 1996). The architecture of the ENN is shown

in Figure 1. The two main steps to construct an ENN

are: Step 1 - creating component networks; Step 2 -

combining these component networks in ENN.

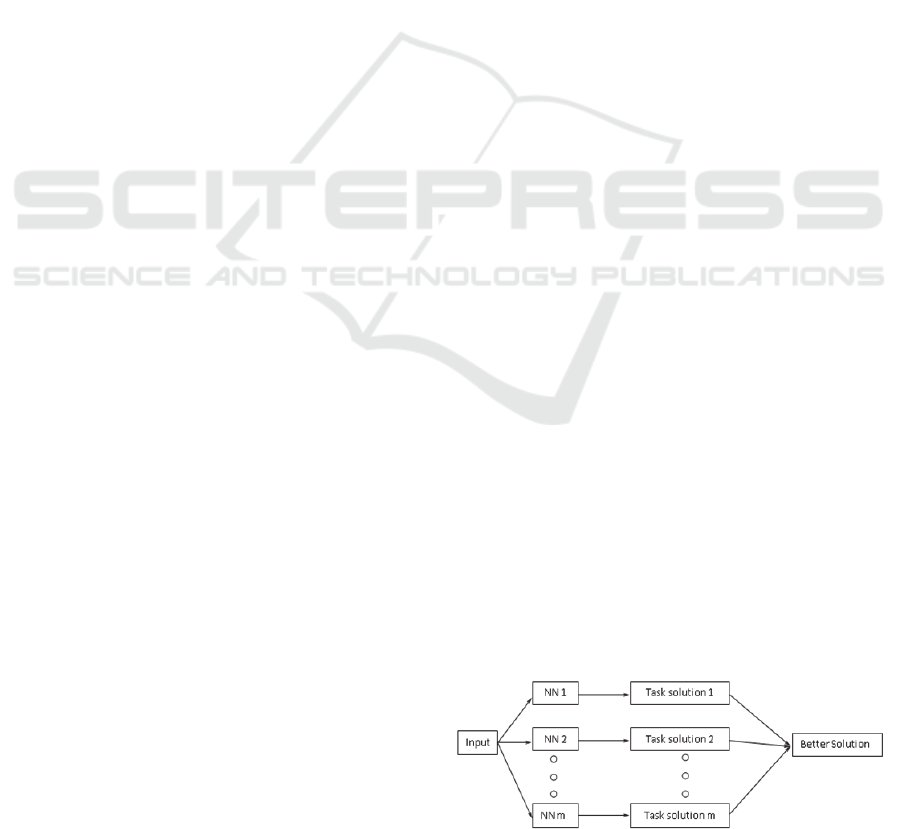

Figure 1: The architecture of the ENN.

In Step 1, Creation of the component network

can also be divided into two steps. The first step is to

create the training data, the test data and the cross

validation data sets, and the second step is to create

the component networks. For creating the training

data, the test data and the cross validation data sets,

374

Hung Cheung S., Zhang Y. and Zhao Z..

A Bayesian Approach for Constructing Ensemble Neural Network.

DOI: 10.5220/0004147103740377

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 374-377

ISBN: 978-989-8565-29-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

some common ratio of them will be used in the

analyses. All training data are used for each

component network. To avoid the overfitting of the

component network, the cross validation data set is

used to stop the training network. The test data set is

used to verify the performance of the network and

will not be used in network training. For creating

component networks, each component network is

created several times, but the best structure will be

used in the ENN. The procedure to define the

number of hidden nodes in each component network

is similar to the method presented in Zhao et al.

(2008). The best number of hidden nodes for a

single NN is chosen to achieve the smallest training

mean squared error (MSE) for sufficient training and

smallest test MSE to avoid network overfitting.

After a set of component networks has been

created, the method to combine these networks has

to be considered. The most widely used method is to

use the equal combination weights to combine the

members of an ensemble (Hashen, 1993). This set of

outputs combined by a uniform weighting is referred

to as the simple ensemble (or simple averaging

method).

The stochastic system based framework for

Bayesian model updating presented in Beck and

Katafygiotis (1998) and part of the methodology

presented in Cheung and Beck (2010, 2012) are used

as a basis for the proposed method presented here.

For the proposed ENN, the weight of each best

component network will be calculated using the

cross validation data set or by the training data set

for comparison purpose. Without loss of generality,

for illustration, only the case where the output

variable is a scalar is considered here. The output

y(x) of the ENN is modelled as a stochastic process

in continuous input variables x given as follows:

() () ()

yx f x w xe=+

(1)

where f(x) is a vector with components given by the

output of the component networks corresponding to

the input variables x; the error term 

is modelled

as a stochastic process in x which is chosen to be

Gaussian here with mean zero and covariance

function cov(



, 



; ,) which is a

function of x

(i)

and x

(j)

with parameters  and . The

weight of the component network  together with 

and 

are treated as uncertain parameters. Given the

measured input X=[x

(1)

... x

(N)

]

and output data

=[y

...y

]

, the probabilistic information about

these parameters is encapsulated in the posterior

probability density distribution (PDF) given as

follows by Bayes’ Theorem:

/2 1/2

(,,| ,)

exp[ ( ) ( , )( )]

(,,)

(2 ) | ( , ) |

pw l X y

yFw lyFw

pw l

-- å -

(2)

where

(,,)pw ls

is the prior PDF taken as uniform

here; F=[

(1)

()

x ...

()

fx ]

is a matrix with

entries given by the output or the predictor of the

component networks corresponding to the measured

inputs given in X; the (i,j) element of the covariance

matrix

(,)lså

=cov(



, 



; ,). In the

globally identifiable case (Beck and Katafygiotis,

1998) where there is only one optimal solution θ

(called the most probable solution) maximizing the

posterior PDF of the uncertain parameters θ, it can

be shown that given a sufficient amount of data, the

posterior PDF can be well approximated by a

Gaussian distribution with mean equal to θ

and

covariance matrix given by the inverse of the

Hessian matrix of the negative natural logarithm of

the posterior PDF evaluated at θ = θ

For the important special case where

cov(



, 



; ,) = σ

g(x

(i)

, x

(j)

;),

(,)lså

R(l) where the (i,j) element of the matrix R(l) =

g(x

(i)

, x

(j)

; l) and g(x

(i)

, x

(j)

;) takes the form such that

R(l) approaches an identity matrix if l approaches a

zero vector. For this case, θ

= [w

]

can be

determined by using the proposed iterative algorithm

as shown in Figure 2. The objective function



the sub-optimization problem as shown in the figure

is given by the negative natural logarithm of

(,,| ,)

wlXys as follows:



(, ,)

ln(2 ) ln | ( ) |

()()()ln(,,)

Jw l

Fw R l y Fw p w l

+- --

(3)

The solution of this optimization problem can be

obtained using Newton’s method because analytical

expression for the gradient and Hessian matrix of the

objective function can be derived. The algorithm can

be modified easily to tackle other forms of

covariance function. It is worth noting that when l

approaches a zero vector,  becomes a Gaussian

white noise implying there is no probabilistic

dependence between the outputs corresponding to

different inputs for given w and 

ABayesianApproachforConstructingEnsembleNeuralNetwork

375

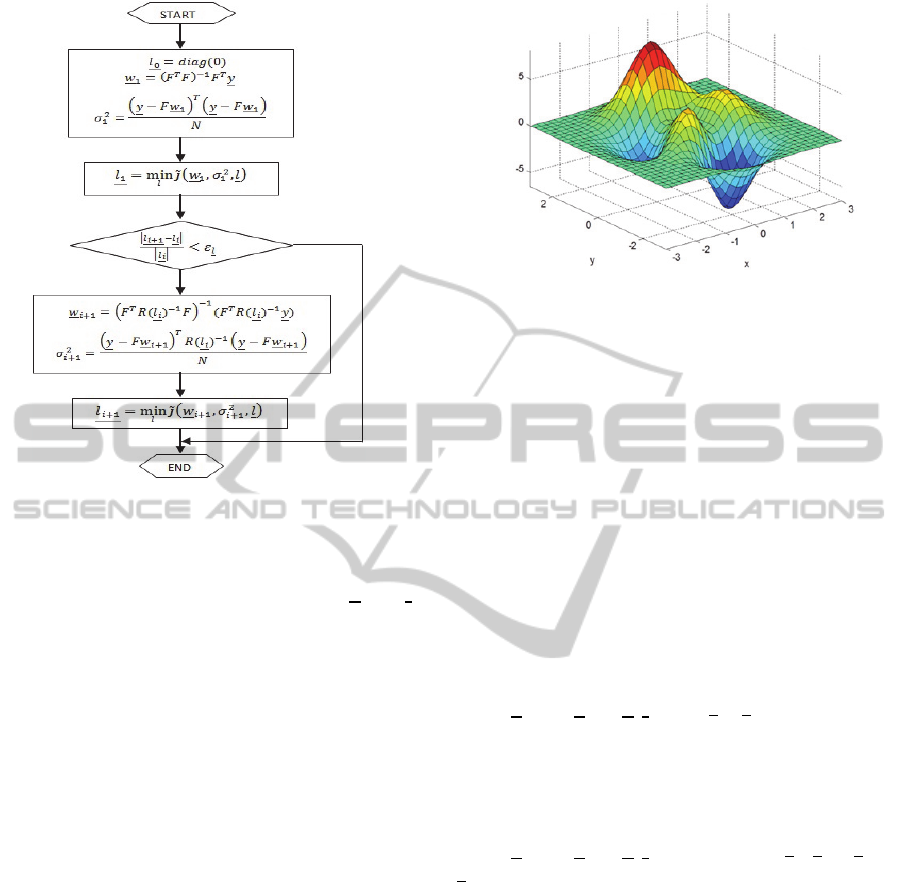

Figure 2: Iterative algorithm for determining the most

probable uncertain parameters.

Thus using the proposed method, the optimal

combined weights of component networks, 

and 

are given by the most probable solution and the

uncertainty in these parameters is quantified by the

corresponding posterior PDF.

3 COMPUTATIONAL

EXPERIMENTS

To verify the performance of the Bayesian based

ENN proposed in this paper, peak function is carried

out by an ENN program written in MATLAB. The

peak function, which is shown in Figure 3, is a

function of two variables and obtained by translating

and scaling Gaussian distributions. It is a typical

complex two-dimensional function as follows:

3/)5/(10)1(3

))1(()(53))1((2

222222

yxyxyx

eeyxxexZ





(4)

The peak function contaminated by additive

Gaussian white noise with mean 0 and variance 0.05

is used to generate the training data, the cross

validation data and the test data. First, 11



evenly distributed data along both the x-axis and the

y-axis are selected from the domain [-3, 3] as the

training data for the simulation. Two other 10



evenly distributed points from the same domain are

used as the cross validation data and the test data.

Figure 3: Peak function.

5 cases of ENNs will be investigated later. All

ENNs have the same input and output layers: the

number of the input nodes is 2 and the number of the

output nodes is 1. There are 3 component networks,

and the numbers of hidden nodes in the component

networks are 11, 14 and 17, respectively. Each

component network is trained 3 times randomly to

find the best weight configuration within the

network. The ENNs will then combine the

component networks with the best weight

configuration within each component network. For

the simple averaging ENN, the output of the ENNs

is combined with the simple averaging method

(denoted by Ave-ENN). The proposed Bayesian

based ENN constructed using the training data and

the error covariance function

cov(



, 



; ,) = σ

δ(x

(i)

- x

(j)

) is denoted by

Btr-ENN and the one using the cross validation data

with the same error covariance function is denoted

by Bcv-ENN. Btrdp_ENN and Bcvdp-ENN are the

same as Btr-ENN and Bcv-ENN, respectively except

that the error covariance function

cov(



, 



; ,) = σ

exp[-(x

(i)

-x

(j)

)

(i)

(j)

)/l

]. For a fair comparison, the results using

single NNs which are used as the component

networks in the ENN are also obtained.

The statistical results on the test data set for 20

runs are shown in Table 1, in which Single 11, 14

and 17 denote the single NNs with 11, 14 and 17

hidden nodes, respectively. It can be observed that

ENNs have better accuracy than the single NNs. For

the single networks, the network with higher number

of the hidden nodes has the better performance.

When these 3 component networks combined, the

performance of ENNs becomes better than any of

the single one. Among the ENNs, Bcvdp-ENN has

the smallest mean and standard deviation (S.D.) of

MSEs for the test data, indicating the best

generalization capability and the most stable

performance. From the mean and S.D. of MSEs for

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

376

the test data, it can be seen that the proposed

Bayesian ENN outperforms both the single NNs and

the simple averaging ENN.

Table 1: Test MSE of twenty runs on peak function with

three component networks.

MSE Minimum Mean S.D.

single 11 0.3418 0.5617 0.1361

single 14 0.2485 0.3683 0.1089

single 17 0.1989 0.3013 0.1049

Ave-ENN 0.2114 0.2726 0.0419

Btr-ENN 0.1756 0.2400 0.0484

Btrdp-ENN 0.1756 0.2397 0.0484

Bcv-ENN 0.1768 0.2331 0.0431

Bcvdp-ENN 0.1766 0.2323 0.0415

4 CONCLUSIONS

This paper improves the existing ENN by the

following ways: 1) instead of using component NN

directly, a preliminary selecting process is used to

get the best component NN; 2) the stochastic system

based Bayesian is adopted to construct a

methodology to determine the weights of the

component networks by using the cross validation

data set in the ENN with error term being modelled

as a stochastic process in network input variables.

Peak function is used to verify the performance

of the proposed ENN. The results show that the

proposed Bayesian based ENN outperforms the

single NNs and the simple averaging ENN. These

results also show the potential of the proposed ENN

can be applied to other kinds of problems.

Moreover, comparison with other ensemble

methodologies is currently under investigation and

experiments with additional data sets will be carried

out. Further improvements to the proposed method

by considering the dependence of measured output

with predicted output, multiple optimal models,

improving the stochastic modelling, using advanced

stochastic simulation algorithms and coupling the

construction and combination of component

networks for prediction improvement are currently

under investigation.

REFERENCES

Beck, J. L., Katafygiotis, L. S., 1998. Updating models

and their uncertainties. I: Bayesian statistical

framework. Journal of Engineering Mechanics 124(4),

455-461.

Buntine, W. L., Weigend, A.S.1991. Bayesian Back-

propagation. Complex Systems 5, 603-643.

Cheung, S. H., Beck, J. L., 2010. Calculation of posterior

probabilities for Bayesian model class assessment and

averaging from posterior samples based on dynamic

system data. Computer-Aided Civil and Infrastructure

Engineering 25, 304-321.

Cheung, S. H. and Beck, J. L., 2012. New Bayesian

updating methodology for model validation and robust

predictions of a target system based on hierarchical

subsystem tests. Computer Methods in Applied

Mechanics and Engineering, accepted for publication.

Friedman, J. H., 1991. Multivariate adaptive regression

splines. Ann Statist 19(1): 1-82.

Hansen, L. K., Salamon, P., 1990. Neural network

ensembles. IEEE Transactions on Pattern Analysis

Machine Intelligence 12 (10), 993-1001.

Hashem, S., 1993. Optimal Linear Combinations of

Neural Networks. PhD thesis, School of Industrial

Engineering, Purdue University.

Hippert, H. S., Taylor, J. W., 2010. An evalution of

Bayesian techniques for controlling model complexity

and selecting inputs in a neural network for short-term

load forecasting, Neural Networks 23, 386-395.

Lampinen, J., Vehtari, A., 2001. Bayesian approach for

neural networks—review and case studies. Neural

Networks 14, 257-274.

Marwala, T., 2007. Bayesian training of neural networks

using genetic programming. Pattern Recognition

Letters 28, 1452-1458.

McCulloch, W. S., Pitts, W., 1943. A logical calculus of

the ideas immanent in nervous activity. Bulletin of

Mathematical Biophysics 1943; 5, 115-133. Reprinted

in Anderson & Rosenfeld 1988, 18-28.

Posada, D., Buckley, T. P., 2004. Model selection and

model averaging in phylogenetics: advantages of

Akaike information criterion and Bayesian approaches

over likelihood ratio tests. Systematic Biology 53, 793-

808.

Sollich, P., Krogh, A., 1996. Learning with ensembles:

How over-fitting can be useful, in: Touretzky, D. S.,

Mozer, M. C., Hasselmo, M. E. (Eds.), Advances in

Neural Information Processing Systems 8, Denver,

CO, MIT press, Cambridge, MA, pp. 190-196.

Wang, P., Xu, L., Zhou, S., Fan, Z., Li, Y., Feng, S., 2010.

A novel Bayesian learning method for information

aggregation in modular neural networks. Expert

Systems with Applications 37, 1071-1074.

Zhao, Z. Y., Zhang, Y., Liao, H. J., 2008. Design of

ensemble neural network using the Akaike information

criterion. Engineering Applications of Artificial

Intelligence 21, 1182-1188.

ABayesianApproachforConstructingEnsembleNeuralNetwork

377
