Model Driven Engineering for Science Gateways

David Manset

, Richard McClatchey

and Hervé Verjus

GNUBILA France, Biomedical Applications, Argonay, France

University of the West of England, CCCS, Bristol, U.K.

University of Savoie, LISTIC, LS-LSE, Annecy-Le-Vieux, France

Keywords: MDE, SOA, ADL, Architecture-Centric, Grid, Cloud, Science Gateway, Biomedical Research.

Abstract: From n-Tier client/server applications, to more complex academic Grids, or even the most recent and

promising industrial Clouds, the last decade has witnessed significant developments in distributed

computing. In spite of this conceptual heterogeneity, Service-Oriented Architectures (SOA) seem to have

emerged as the common underlying abstraction paradigm. Suitable access to data and applications resident

in SOAs via so-called ‘Science Gateways’ has thus become a pressing need in various fields of science, in

order to realize the benefits of Grid and Cloud infrastructures. In this context, authors have consolidated

work from three complementary experiences in European projects, which have developed and deployed

large-scale production quality infrastructures as Science Gateways to support research in breast cancer,

paediatric diseases and neurodegenerative pathologies respectively. In analysing the requirements from

these biomedical applications the authors were able to elaborate on commonly faced Grid development

issues, while proposing an adaptable and extensible engineering framework for Science Gateways. This

paper thus proposes the application of an architecture-centric Model-Driven Engineering (MDE) approach

to service-oriented developments, making it possible to define Science Gateways that satisfy quality of

service requirements, execution platform and distribution criteria at design time. An novel investigation is

presented on the applicability of the resulting grid MDE (gMDE) to specific examples, and conclusions are

drawn on the benefits of this approach and its possible application to other areas, in particular that of

Distributed Computing Infrastructures (DCI) interoperability.

1 INTRODUCTION

Primarily developed by and for High Energy Physics

(HEP), the Grid has been realised since the late

1990s as the next generation of information and

communication technologies, after the Internet. Grid

computing (Foster et al., 2001) promises to resolve

many of the difficulties in facilitating massive data

analyses to allow communities of end-users to

collaborate without having to co-locate. Intrinsically

distributed and highly heterogeneous, the Grid is the

next logical step following the developments in high

performance, high throuput and supercomputing.

The Grid is the product of collaborative

developments worldwide. It often materializes as a

set functions arranged in a so-called “middleware”,

i.e. a stack of commodity software sitting in and

mediating between compute resources and user

applications. Grid middleware are made of various

types of services from low-level physical resources

management, to computing power and storage

capacity sharing, to more advanced information

system and application scheduling services. Thus

described, Grids are mostly implemented as Service

Oriented Architectures (SOA) (Service-Oriented

Architectures an Introduction). Given their

functional scope and nature, Grids thus result in

complex stratifications of software difficult to reuse,

evolve and maintain (Friese et al., 2006).

Consequently, not only is the development of Grid-

based applications a time-consuming, error prone

and expensive task, but also are the resulting

applications often hard-coded for specific

configurations, technological platforms and physical

infrastructures. The infrastructural functions offered

by the Grid therefore need adaptation. This is what

led research communities utilizing it to develop the

concept of “Science Gateways”.

Science Gateways represent an important

emerging paradigm for providing integrated

infrastructures. According to (Wilkins-Diehr et al.,

2008), a Science Gateway is a community-

421

Manset D., McClatchey R. and Verjus H..

Model Driven Engineering for Science Gateways.

DOI: 10.5220/0004160804210431

In Proceedings of the 14th International Conference on Enterprise Information Systems (MDDIS-2012), pages 421-431

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

developed set of tools, applications, and data that are

integrated via a portal or a suite of applications,

usually in a graphical user interface, that is further

customized to meet the needs of a specific

community. Gateways enable users to access

computing resources through a common and user-

friendly interface.

However, given the underlying distributed

computing infrastructures complexity, Science

Gateways reuse and evolution is increasingly

complex and the use of most classical engineering

practices reveals inappropriate as few exhibit the

necessary level of interoperability and flexibility

required to import, integrate and to pass on the

cumulated design data, information and knowledge

to next generations (Nanz, 2010). There however

exist engineering techniques such as architecture-

centric design (Medvidovic et al., 2000) which could

help managing accidental difficulties faced with

bridging conceptual gaps from abstraction to

implementation and better adapting developments to

evolving environments, such as Grids. Additionally,

Model-Driven Engineering (MDE) (Kent, 2002)

could help addressing models heterogeneity,

separation of concerns, integration and

interoperability.

The remainder of this paper thus attempts to

characterize the specificities of Grid-based Science

Gateway developments from practical examples in

biomedical sciences. Section 2 reports on

experiences carried out in three conceptually

complementary infrastructures that address a broad

spectrum of biomedical research requirements.

Section 3 identifies common design issues faced in

Science Gateways development, which section 4

then addresses by introducing a new MDE approach.

The paper finally concludes on the significance of

this research work and indicates experiments that

could elaborate on new potential areas of

application.

2 SCIENCE GATEWAYS IN

BIOMEDICAL RESEARCH

With its roots grounded in HEP, the Grid required

significant adaptation to be brought into and to serve

the biomedical environment. The following sections

report on three incremental Grid-based Science

Gateways development experiences.

2.1 Breast Cancer, the EU FP5

MammoGrid Project

MammoGrid (Amendolia et al., 2004) aimed at

utilizing the Grid as a digital repository to federate

mammographic images and medical data, thereby

allowing clinical researchers to store, share

anonymously and analyze sensitive information

acquired from various hospitals across Europe, in

the context of specialized breast cancer studies. By

doing so, MammoGrid made it possible for the first

time to accumulate rare data samples into a

common, secure and distributed repository needed to

validate new breast cancer Computer Aided

Detection (CAD) algorithms using the Standard

Mammogram Format or SMF (Highman et al.,

2006), while testing the actual feasibility and overall

impact of providing automated radiographer second

opinion in the cancer screening practice.

Developed between 2002 and 2005,

MammoGrid adopted and adapted the first official

release of the gLite Grid middleware (EGEE

Middleware Architecture), being issued by the

Enabling the Grid for E-sciencE (EGEE) European

project. At that time, the Grid resembled a Unix-like

operating system managing distributed computing

resources over a network, using specific command

line interfaces. As it was the implementation of a

new paradigm in computing carried out by large and

geographically distributed communities, the form of

the Grid used in MammoGrid was a rather complex,

slow and heterogeneous software stack, difficult to

install, configure and maintain. It was also not

functional for instantaneous user interaction and was

not regarded as sufficiently user-friendly by the

biomedical research community. Biomedical

researchers were thus hesitant in using it, as reported

in (McClatchey et al., 2006). Despite this,

MammoGrid demonstrated for the first time the

relevance of using this technology to support large-

scale and automated second opinion and to allow

clinical researchers to federate meaningful data into

one shared environment.

2.2 Paediatric Diseases, the EU FP6

Health-e-Child Project

Elaborating on the MammoGrid model, the Health-

e-Child project (Skaburkas et al., 2011) then

diversified Grid usage for biomedicine, by

developing Decision Support Systems (DSS) and

Knowledge Discovery tools supporting

paediatricians in their daily work with integrated

data in cardiology, especially in cardiomyopathies

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

422

follow-ups, in rheumatology with juvenile arthritis

diagnosis and in neuro-oncology with glioma

evolution.

Health-e-Child was developed between 2006 and

2010 and it acknowledged the need for users to

abstract from ongoing Grid developments in order to

lower the barriers of adoption. Health-e-Child thus

further developed the notion of a “Gateway” to the

Grid, inserting a thin layer of abstraction services

between the lower-level middleware and users,

which would confine the unstable Grid under well-

defined APIs. This thin Web services-based stack

significantly improved the integration between new

applications being developed in the project and the

underlying Grid legacy. It also helped to convince

non-IT users to adopt the technology, although

performance remained an issue, as was reported in

(Manset et al, 2009). The Grid indeed remained too

slow in manipulating data since it had been designed

for long and non-fragmented runtimes, complex and

highly versatile in nature. Deployed in five major

hospitals across Europe and the USA, the solution

however demonstrated significant reliability and

security results.

2.3 Neuroimaging Biomarkers, the EU

FP7 neuGRID Project

As a third generation infrastructure, the neuGRID

project (Manset et al., 2009), attempted to further

improve the Grid experience by pioneering a form of

virtual laboratory for neuroscientists to develop, test

and validate innovative new imaging biomarkers for

neurodegenerative diseases. NeuGRID extended the

idea of a “Science Gateway” to facilitate access to

massive computing capacities.

NeuGRID was developed between 2008 and

2011 (and has since then has received further

funding until 2015, under project name N4U).

neuGRID based its architecture on the latest secure,

reliable and performant Grid middleware products. It

deployed a large-scale production quality

infrastructure at specialized clinical centres,

interconnected with the European Grid Initiative

(EGI (EGI Project)), where it could access

additional computing resources from. Although

major improvements took place in the Grid, its

evolving and heterogeneous nature encouraged

neuGRID to further decouple its solution by adding

new abstraction layers to form its Science Gateway.

The latter relied on the following three pillars, as is

further detailed in (Manset et al., 2009): (1) Use of a

so-called generic “gluing service” as part of the

SOA to submit jobs to underlying Grids (see

JavaGAT/SAGA (SAGA) and neuGRID’s gluing

service (Anjum et al., vol147, pp283-288) for more

information). The gluing service abstracts upper

layers of the system from the Grid specificities and

is responsible for actual job submissions. (2) Use of

a generic Web service wrapper in charge of on-the-

fly orchestration and applying scheduling

optimization techniques according to specified

pipeline contents. (3) Instantiating a unique Web

service wrapper per algorithm/pipeline to be

published in the SOA, thus allowing (both atomic

and composite) processing tasks to be discovered,

composed and subsequently published in the system.

Each of these three substrates played a different

but key role. While (1) introduced abstraction from

Grids and thus allowed interacting with a wide

variety of middleware, (2) took care of appropriately

parameterizing (1), it also characterized

commonalities of algorithms/ pipelines and opened a

broad avenue to job scheduling optimization

techniques (e.g. jobs grouping). Pillar (3), on the

other hand, extended the parameterizing of (2) and

turned these virtualized neuro-utilities into a set of

standard services.

3 DESIGN ISSUES IN

GRID-BASED SCIENCE

GATEWAYS

Experiences over the last decade, a subset of which

was presented in the previous section, demonstrate

that the Grid has evolved from a very complex, slow

and heterogeneous stack, difficult to install,

configure and maintain into what is now regarded as

a secure, reliable and maintained software. However,

the Grid remains complex, evolving and

heterogeneous. This is why applications being

developed on top of, or integrating the Grid may risk

becoming unsustainable, may lack interoperability,

may remain complicated and can thus induce

reluctance in users to adopt them. This motivates the

case for Grid-based biomedical Science Gateways,

which moreover deal with potentially sensitive

medical data, which places more specific design

constraints onto Grid infrastructures, in particular in

terms of:

(a) Privacy, when sharing information that

potentially identifies individuals. For example

genetic profiles carrying DNA, unstructured data

such as diagnostic reports sometimes encompassing

patient’s name and more, Magnetic Resonance (MR)

ModelDrivenEngineeringforScienceGateways

423

images of patient brains allowing 3D reconstruction

of patient’s face etc.,

(b) Security, when sharing and storing data that

potentially identifies individuals. Identifying data

may be voluntarily shared for the sake of running for

instance a clinical trial needing information on

patients’ living places for solving a given

epidemiological question,

medical data or clinical applications. Assisting

physicians with decision support applications at the

point of care may require highly available services

in the infrastructure,

(d) Sustainability, when storing medical data as

this can imply in some countries the ability to

retrieve and make data accessible for 15 years or

more.

In addressing the findings from (Amendolia et

al., 2004), [10], (Manset et al, 2009) and (Manset et

al., 2009), the authors assert the hypothesis that

Grid-based biomedical Science Gateways should be

designed as (1) Service Oriented Architectures

(SOA), which (2) have specific Quality of Services

(QoS) requirements, and (3) can be built on several

technological platforms and physical resources. This

is what Figure 1 illustrates. Such SOA-based, QoS-

specific and multi-platform Science Gateways, are

made of services exhibiting particular functions and

properties in order to hide the Grid complexity and

to help address community-specific issues like (a),

(b), (c) and (d), formerly introduced.

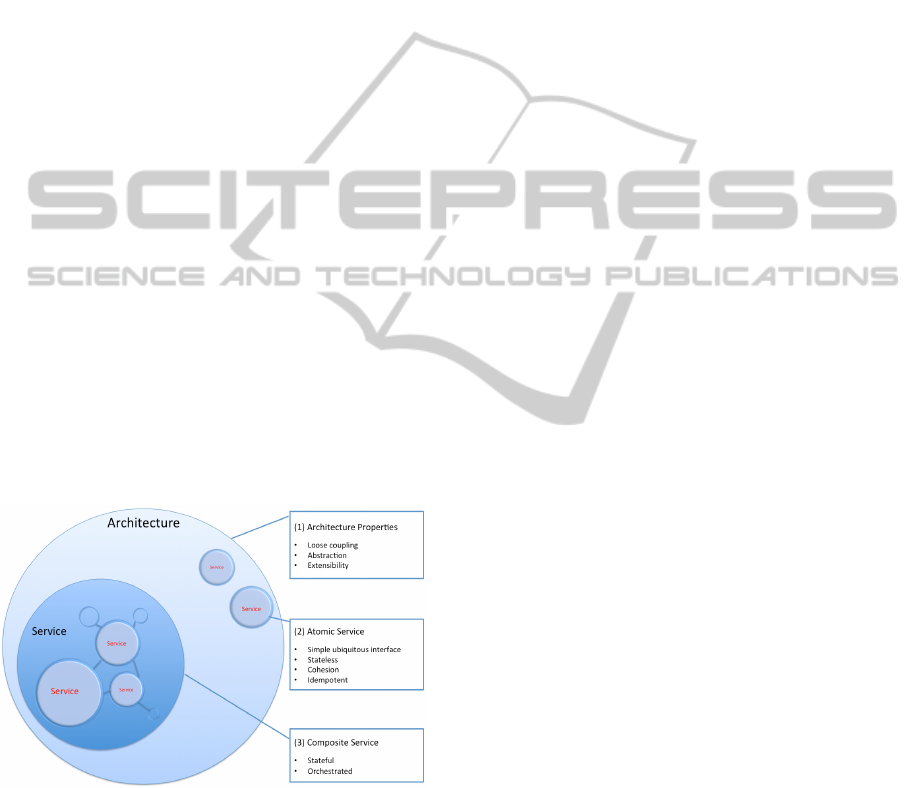

Figure 1: Science Gateway Architectural Style.

Science Gateways enable the decoupling of new

applications from evolving Grids, facilitate

integration and transition to it, promote better reuse

of software artefacts, and thereby potentially lower

the barriers of user adoption. Figure 1 summarizes

the basic architectural properties, which were

unveiled thus far. Indeed, starting from the

architecture level, i.e. (1), Science Gateways should

follow the SOA style, in promoting abstraction,

loose coupling and extensibility. Science Gateways

should encompass component services, which can be

specialized to target platforms, standards and

technologies. Inner Science Gateway atomic

services, i.e. wrapping low-level functions (2)

should exhibit simple ubiquitous interfaces, be

stateless, group coherent sets of functions and be

idempotent. Composite services (3) on the other

hand, (i.e. wrapping processes calling other

services), should be stateful, so to store persistently

important execution state information, and moreover

be orchestrated. Science Gateways should therefore

encompass mechanisms allowing the publication,

discovery and composition of integrated services.

3.1 Science Gateways Engineering

Science Gateways should be parameterized/

optimized according to non-functional requirements,

such as, for instance, the expected level of

reliability, security and privacy (i.e. QoS).

Component services as identified in the former

sections should therefore be assigned with QoS

descriptive information accordingly at design time

and the latter be mapped to architectural solutions, to

be satisfied at runtime. Science Gateway

architectures should be reusable, adaptable and

portable to different research groups, execution

platforms, technologies and physical infrastructures.

Moreover, the deployment of such architectures may

require taking into account distribution aspects,

especially when under privacy, security,

performance and/or reliability constraints. Thus,

gateway architectures, properties and associated

QoS, should be specified independently of any

execution platforms, computing paradigms and

programming languages.

3.2 Science Gateways Synthesis

From the MammoGrid, Health-e-Child and

neuGRID experiences, the unveiled characteristics

of Science Gateways indicate that a meta-model

describing their architectural commonalities and

properties could be designed, thereby allowing their

reuse, adaptation and specialization to different

fields of science. Science Gateways would thus

significantly benefit from platform independence

and their engineering should promote:

i. A high-level of abstraction, guaranteeing the

Science Gateway model independence from any

platform specificities,

ii. Models reuse, allowing the creation and use of

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

424

basic building blocs,

iii. QoS properties specification, translating various

types of non-functional requirements into design

properties,

iv. Multi-platform portability, making it possible to

port Science Gateways to different environments

and technologies and

v. Distribution strategy formulation, enabling

Science Gateways to have optimized

deployments over target infrastructures and QoS.

4 LITERATURE REVIEW

In current research infrastructures, where utilizing

the Grid implies its further adaptation, SOAs seem

to have become the common abstraction paradigm to

simplify access and developments, even though

different standards and technologies may be applied

across research projects and groups. SOA-based

Science Gateways are thus emerging in various

research fields and biomedical specialties, which

operate most of the time for fixed QoS and

execution platforms and are deployed over

predefined physical infrastructures. Some offer

customized Web-portals (Torterolo et al., 2009),

thus simplifying access to the Grid infrastructure.

Others focus more on scientific workflows (Farkas

et al., 2011), making the assumption that the

infrastructure provides a sufficiently user-friendly

access through which user applications can be

designed as workflows. For the most advanced

Science Gateways, a development framework

(Myers et al., 2008) is provided, which allows

developers to create and personalize new ones to

their own needs ranging from the security model, to

the privacy level, its reliability, the concrete Grid

infrastructure to interface with, or even to the actual

user interfaces.

The following synopsis table, Table 1, recalls the

main criteria, as were identified in the former

synthesis section, and which Science Gateway

engineering approaches shall satisfy. This table

allows comparing available approaches, while

understanding their underlying concepts. In Table 1

references to the analysed approaches are provided

in the left column, followed by a few keywords on

their foundational paradigms and the five main

comparison criteria.

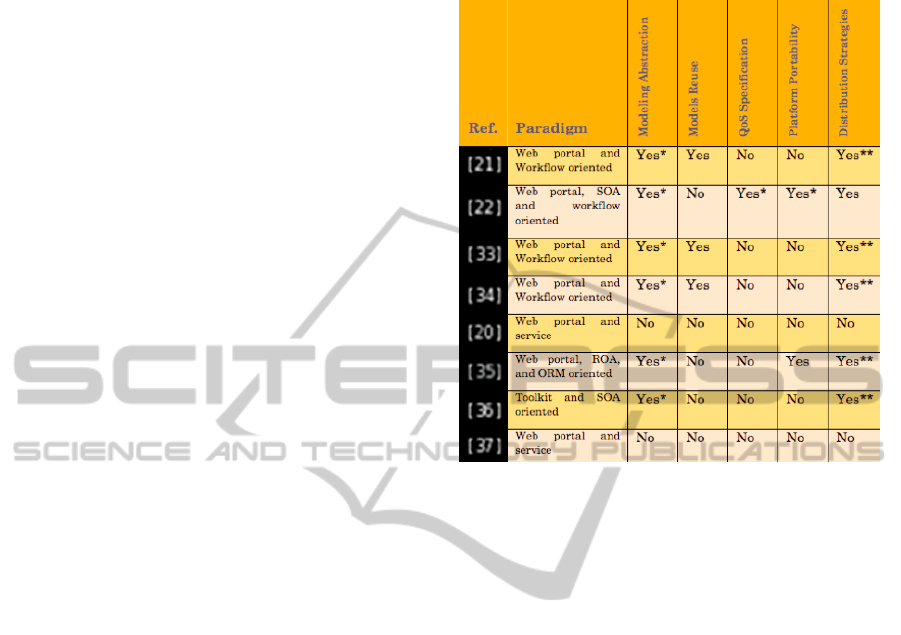

Table 1: Literature Review in Science Gateways

Engineering Approaches.

* Only partially achieved.

** Only made possible thanks to the workflow orientation.

Several conclusions can be drawn from this

comparison. Firstly, the literature review

demonstrates that simple service-based approaches

do not address the identified criteria. Indeed, these

approaches mainly facilitate the development of user

interfaces by hiding the complexity of the

underlying Grid, while they remain highly specific

to the targeted technologies. On the other hand,

Workflow-oriented solutions do exhibit interesting

characteristics since they introduce abstraction and

reuse of application models. They are consequently

close to satisfying the identified requirements,

although there is no approach yet tackling models

reuse and quality of services at the same time.

Finally, it is worth noting that approaches leveraging

on abstraction, loose coupling and extensibility, i.e.

utilizing SOAs, are the ones addressing best the

Science Gateways engineering needs.

Given the lack of engineering methods available

to address the identified criteria in a single and

unified design process, the authors have been

looking for candidate engineering techniques and

their possible application. In particular, the proposed

work has been motivated by the research carried out

in SOA engineering and more specifically in

architecture-based software developments (Bass et

al., 2003). Given that Science Gateways are sets of

interconnected component services, architecture-

centric software-based development applies

ModelDrivenEngineeringforScienceGateways

425

particularly well since it allows the definition of

distributed systems in terms of groups of

components at a high-level of abstraction

guaranteeing platform independence, enabling

models reuse and, for some architecture-based

approaches, expressing accompanying properties.

Additionally, the authors considered the more recent

Model Driven Engineering (MDE) (Kent, 2002) as a

possible means to supplement architecture-based

software development with a compositional

technique to manage multi-platform complexity and

thus automate adaptation/evolution. In the next

section, readers will gain deeper understanding of

the proposed combination of software engineering

methods and be presented with the resulting “grid

Model Driven Engineering” (gMDE) approach.

5 THE GRID MODEL DRIVEN

ENGINEERING (gMDE)

5.1 gMDE Foundations

This paper introduces and tests a model-based

engineering technique, which the authors propose to

address the identified requirements in Science

Gateways engineering. The first ingredient used is a

formal Architecture Description Language (ADL),

the ArchWare Refinement Language (ARL)

(Oquendo, 2004) to model and check Grid-based

Science Gateways. Utilizing a formal architecture-

centric method brings the necessary abstraction logic

and mathematical foundation (Maude Reflective

Language) to describe abstract software

architectures, to model and test their architectural

properties, and to ultimately transform these into

concrete applications, i.e. the so-called process of

refinement. The used formal Architecture-centric

approach relies on languages and styles to describe

applications, as well as tools for reasoning on

architectural properties. It also introduces a

development process that exploits and specializes

iteratively abstract architecture descriptions into

concrete applications, through stepwise refinement.

This dimension of the proposed works is aimed to

bring rigor and control into the Science Gateway

engineering process. It addresses criteria (i) platform

independence, and (ii) models reuse, while giving

the foundations to express and check accompanying

architectural properties (iii), such as QoS and target

platforms. As the second ingredient, a Model-Driven

Engineering (MDE) technique is proposed to

promote models reuse and, thanks to the separation

of concerns, to model transformations, to hide

platform complexity and to refine abstractions by

operating model transformations. MDE

consequently supplements the design process with a

compositional technique to manage complexity and

to automate adaptation, utilizing a repository of “off-

the-shelf” architectural constructs. It contributes to

the proposed approach in improving flexibility and

adaptability to changing environments, while

allowing the long-term capitalization of architectural

knowledge, thereby addressing the aspects of (iv)

portability and (v) distribution in Science Gateways

engineering.

Finally, a Domain Specific Language (DSL)

(van Deursen et al., 2000) is introduced that allows

modelling more specifically Grid-based Science

Gateway architectures in terms of services and their

interconnections. The DSL is encoded in the

graphical user interface of the gMDE environment

(gMDEnv), to facilitate the overall understanding

and graphical design of Science Gateway solutions.

5.2 gMDE Design Process and Models

The grid Model Driven Engineering approach

(gMDE) consists of a combination of existing and

well-tested engineering techniques. In particular,

gMDE builds on the work carried out by authors in

the European FP5-funded ArchWare project

(ArchWare Project), which developed a formal

architecture-centric engineering toolkit of ADL

(Oquendo et al., 2001) languages and accompanying

toolkit. gMDE leverages on architecture-centric

design to place the focus on coarse-grained system

architecture specification, rather than coping up-

front with implementation details. In doing so,

software architects can design Science Gateways in

terms of reusable and platform independent

components (i.e. basic building blocs) and their

interrelations. In paper (Manset et al., 2006), the

authors introduced the foundational architecture-

centric approach and toolset, which the novel gMDE

engineering technique extends. Authors then

presented the overall gMDE design process, with its

eight models from the platform independent

architecture specification (GEIM), to its

specialization according to QoS (GECM) and

platform (GETM) constraints, and finally to the

(semi)-automatically generated source code (GESA)

of the Science Gateway and its proposed distribution

(GEDM) over the physical Grid infrastructure.

gMDE leverages on the model driven

compositional dimension which it combines with

architecture-centric refinement to translate non-

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

426

functional concerns into architectural constructs, and

then integrate them into the application model. A

refinement step typically leads to a more detailed

architectural model that increases the determinism of

and preserves the properties associated with the

abstract model. The ArchWare ARL language is the

formal expression of these refinement operations

(Oquendo, 2004). ARL operates refinement

operations by formally rewriting ARL architectural

specifications using the Maude (Maude Reflective

Language) formal rewriting logic.

6 APPLYING GMDE

The formerly introduced application areas are here

explored successively in order to exemplify the

application of the gMDE design process to solve

identified engineering issues starting from a

platform independent specification, and evolving to

the concrete Science Gateway application. In order

to simplify understanding, the given demonstration

focuses on one stage of the design process per

application area. Thus, a running example is taken

from one end to the other.

6.1 Breast Cancer-Second Opinion

The MammoGrid Science Gateway encompasses a

key set of commodity services. Firstly,

authentication (Auth) and authorization (Authz)

services, to login and access distributed resources

uniformly, according to a security model derived

from the requirements and that rules access rights

and protects sensitive medical data. Secondly, a

Portal service is offered to simplify access to

complex workflows of underlying system functions,

such as automated second opinion in the present

case. Finally, a data staging service is included,

which conforms to medical data standards (DICOM

(DICOM) and HL7 (Health Level 7)), to enable

users to upload data to the system for subsequent

analyses. In MammoGrid, these legacy assets are

kept independent of target back-ends (i.e. databases,

Grid platform and execution environments) and

surrounding security thanks to abstraction services,

hereinafter referred to as “Proxies” in the Science

Gateway architecture.

In this context, the first use-case scenario

focuses on the biomedical research Science Gateway

model and its specialization to the quality of service

needs of MammoGrid, in the light of offering a

reliable automated second opinion service to

physicians at the point of care. Figure 2 describes

gatewayArchitectureRef is style SOAScienceGateway where {

structure is {

Portal is style serviceTypeRef where {

structure is {… service internal structure

description … }

connection is { … service connections

descriptions … }

constraint is { … QoS and / or platform

constraints mappings … }

} …

Auth is style serviceTypeRef where {

structure is {… service internal structure

description … }

connection is { … service connections

descriptions … }

constraint is { … QoS and / or platform

constraints mappings … }

} …

Authz is style serviceTypeRef where {

structure is {… service internal structure

description … }

connection is { … service connections

descriptions … }

constraint is { … QoS and / or platform

constraints mappings … }

} …

GridProxy is style serviceTypeRef where {

structure is {… service internal structure

description … }

connection is { … service connections

descriptions … }

constraint is { … QoS and / or platform

constraints mappings … }

} …

DataProxy is style serviceTypeRef where {

structure is {… service internal structure

description … }

connection is { … service connections

descriptions … }

constraint is { … QoS and / or platform constraints

mappings … }

} …

DataStaging is style serviceTypeRef where {

structure is {… service internal structure description …

}

connection is { … service connections descriptions … }

constraint is { … QoS and / or platform constraints

mappings … }

} …

}

link is {

attach Portal to GridProxy .

attach Portal to DataProxy .

attach Portal to DataStaging .

attach Auth to Authz .

attach Auth to Portal

}}

Figure 2: MammoGrid Science Gateway Model.

the MammoGrid platform independent Science

Gateway model in the gMDE DSL formalism. The

ModelDrivenEngineeringforScienceGateways

427

latter is automatically produced by the gMDENv

interface (note that these descriptions are only partial

extracts in order to simplify understanding). As can

be noted, the gMDE DSL allows users to simply and

quickly define a Science Gateway in terms of

coarse-grained services. The gMDE DSL is the

language used by the gMDEnv environment to assist

and simplify the graphical creation of Science

Gateway architectures and their specialization, until

the concrete application source code can be

produced. The gMDE DSL allows users to describe

Science Gateway architectural styles, for reuse “off-

the-shelf”, with predefined sets of components and

accompanying requirements, and then to instantiate

them as a new GEIM model. The GEIM is then

translated into regular ARL for applying model

transformations. Like the GEIM, the GECM and

GETM constraint models reflecting QoS and target

platforms are expressed in the gMDE DSL.

constraintName is constraintTypeRef {

on a:architecture actions {

actionRef elemRef is typeRef

{… element description … }

on b:architecturalElement actions {

actionRef c .

actionRef d

…}}…

Figure 3: Constraint Meta-model.

FT_reliability is qualityOfServiceProperty {

on mammogridGateway:architecture actions {

include FTConnector is connector {

… connector architectural description …}

on mammogridDataProxy

:architecturalElement actions{

replicate mammogridDataProxy to

mammogridDataProxyClone0;

unify

mammogridDataProxy::ComsP0::Coms

OutC0 with

FTConnector::

mammogridGridProxyComsP0::mammogridGridProxyIncC0

unify

mammogridDataProxyClone0::ComsP0:

:ComsOutC0 with

FTConnector::

mammogridGridProxyComsP0::

mammogridGridProxyIncC0

}}…

Figure 4: QoS Architectural Pattern – GECM.

Figure 3 illustrates the meta-model of a non-

functional constraint architectural construct. The

latter describes how to redefine the concerned

component(s) and its surroundings in order to solve

the indicated requirement. This specification is in

fact a simplified formalism for grouping relevant

ARL refinement operations to be applied onto a

given Science Gateway architecture to integrate the

architectural construct. Once the GEIM model has

been translated into ARL by gMDEnv, the first

conceptual difference, which can be noted, is that

the model no longer refers to services, but now

manipulates components and connectors (i.e. the

“C&C” style) onto which refinement operations can

be applied.

behaviour is {

archetype mammogridPortal is component {…} .

archetype mammogridGridProxy is component{…}.

archetype mammogridDataProxy is component {…}.

archetype mammogridDataProxyClone0 is component

{…}.

archetype FTConnector is connector {

behaviour is {

recursive value availabilityChecking is

abstraction();

{

if (serviceDown) value

serviceRedirectionURL :=

mammogridDataProxyClone0;

availabilityChecking();

};

compose { availabilityChecking() }

} .

recursive value readGridDBEntries is

abstraction(); {…};

recursive value clientDataRequest is

abstraction(); {…}; ...

compose {readGridDB() and

clientDataRequest()}... }}} …

Figure 5: Refined Gateway Architecture - GEIM’.

From the quality of service constraint indicated in

the GEIM model, here “--<reliability::level::3>--“,

the corresponding architectural construct is selected

from the framework library. In the present case, the

framework selects the “FT_Reliability” connector,

as illustrated in Figure 4. This construct is then read

by the framework and turned into lower-level ARL

refinement operations, which are applied by

rewriting logic onto the original GEIM model. The

“FT_Reliability” construct is thus “weaved” in the

Science Gateway architecture, resulting in the

GEIM’ description, reported in Figure 5, where the

“mammogridDataProxy” service is replicated and

made reliable with a load-balancing and fault-

tolerant connector, acting as a switchtender to user

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

428

requests. The construct thus applied, turns the

automated second opinion application into a reliable

service, supporting physicians in the screening

process. In this first use-case scenario, a

demonstration is given of how platform independent

models (i) can be reused (ii), as well as how QoS

constraints can be expressed and then solved by

transformation (iii), thanks to the gMDE engineering

technique, and using the gMDEnv framework.

gLite3Proxy is executionPlatformProperty {

on health-e-childGateway:architecture actions {

on health-e-childGridProxy

:architecturalElement actions{

include gLiteGlueing is component {

… component architectural description

}

unify

health-e-childGridProxy::ComsP0::ComsOutC0 with

gLiteGlueing::ProxyComsP0::ProxyComsIncC0 .

unify

health-e-childGridProxy::ComsP0::ComsInC0 with

gLiteGlueing::ProxyComsP0::ProxyComsOutC0 }}…

Figure 6: Execution Platform Construct – GETM.

6.2 Paediatric Cardiology – Similarity

Search and Decision Support

In Health-e-Child, the Patient Browser interface

allows physicians to run a similarity search over the

entire database, along with customized clinical

criteria to identify patients with similar conditions

and access their treatments outcome. To do so, the

Grid analyses all patient records throughout the

connected databases and builds a similarity distance

matrix based on the clinical weight attributed to

discriminating medical variables. The result is sent

back to the physician and displayed in specialized

user interfaces, highlighting the patient population

statistical distribution and potential clusters of

identified similarities. In this second use-case, the

objective is to adapt the Science Gateway

architecture to a specific Grid middleware, making it

possible to migrate existing Health-e-Child

applications to the latest version of the Grid, without

reengineering. Thus, starting from the Health-e-

Child GEIM model, the execution platform

constraint specified by the architect is extracted, i.e.

“archetype health-e-childGridProxy is component {-

-<gridBackend::gLite::3.0>--" and the corresponding

construct picked from the library, see Figure 6.

Again, the construct is weaved into the GEIM

Science Gateway architecture by transformation,

resulting in a more specific GESM model. Thus, the

“health-e-childGridProxy” architectural element is

refined into a gLite v3.0 proxy, by integrating the

“gLite3Proxy” component and connecting it to other

existing elements’ ports and connections as is

dictated by the construct. Here, criteria (iv) multi-

platform portability is partly demonstrated with

adaptation of the Science Gateway to multiple Grids,

thanks to the integration of platform specific

constructs by successive refinement operations.

6.3 Neurodegenerative Disease

- Disease Markers Validation

In neuGRID, neuroscientists can select datasets and

specify new research hypotheses under the form of

scientific workflows. Workflows are translated into

a series of finer-grained tasks, which are sent for

processing in the Grid. The latter orchestrates the

workflow until its completion. The resulting outputs

are stored in the Grid and pointers are sent back to

the users. In this last scenario, authors assume that

the neuGRID platform specific Science Gateway

GESM model is finalised.

Thus entering the last stage of the gMDE design

process, the GESM specification is turned into

concrete source code by a mapping translation. This

is achieved by specific parsers, which were

developed to map the ARL concepts to different

execution environments and programming

languages. The translation is operated by a dedicated

service in the gMDEnv framework. In the present

case, the parsing granularity level is set to “Complex

Objects”, which indicates that first order

components of the architecture are to be translated

into software services, whereas subsequent order

components correspond to simpler programming

objects. In neuGRID, the targeted environment is the

Globus 4.0 software. Thus, the GEMM parser

produces corresponding service classes and

accompanying Web services descriptors for

deployment. The Science Gateway GESA source

code is thus generated according to the target

execution environment, to be further compiled and

deployed. Compilation and deployment finally takes

place thanks to the Grabber service, of the gMDEnv

framework. The latter utilizes an ARL representation

of the physical infrastructure (i.e. the GERM model)

to understand its distribution and to deploy the

Science Gateway according to what the architect has

specified in the GEDM deployment model.

In this concluding use-case scenario, criteria (iv)

multi-platform portability is demonstrated with

Science Gateway code generation according to

target execution environment, and (v) distribution is

addressed (but not demonstrated) utilizing the

GERM infrastructure representation.

ModelDrivenEngineeringforScienceGateways

429

7 CONCLUSIONS

The research work reported in this paper

demonstrates the formulated approach to

engineering Science Gateways. It showed from

experimentation the feasibility of combining two

existing and complementary engineering techniques

towards the creation of gMDE (Manset et al., 2006).

Since this approach is based on the concepts of re-

use and execution platform independence, the

engineering framework is not limited to the Grid-

based biomedical research domain. Indeed, the same

approach can tackle other SOA-based developments.

Thus, the benefits of using the gMDE are

substantial. Formal application models designed

under the presented framework are persistent and re-

usable. One can use libraries of previously stored

models (as templates) to design new applications.

Furthermore the approach is scalable; one can

extend the scope of the framework by providing new

constraint and mapping models. Application of the

presented technique is being foreseen in the area of

self-adaptive systems, in particular on how

computational applications can benefit from

autonomic computing concepts and where (g)MDE

can be used to impact on running architectures to

reconfigure by themselves. In (Collet et al., 2010),

self-adaptive capabilities were introduced in the

Grid middleware itself, regardless of executed

applications, in order to make it self-reconfigurable

to QoS failure scenarios.

An interesting area of future research is the

development of Cloud deployment strategies, based

on step (4) of the gMDE process, in particular

utilizing the GEDM deployment model. Indeed,

similar to what was done with GridProxy services to

abstract from Grid middleware specificities, Cloud

Proxies could be defined as architectural design

constructs and the QoS attributes turned into

concrete deployment strategies brokering towards

different Cloud (IaaS and PaaS) providers.

REFERENCES

Foster, I. et al.: The Anatomy of the Grid – Enabling

Scalable Virtual Organisations. International Journal

of Supercomputer Applications, 15(3), 2001.

Service-Oriented Architectures an Introduction. See http://

www.developer.com/design/article.php/101045, http://

www.developer.com/services/article.php/1014371,

Accessed April 2

2012.

Friese, T. et al.: GDT: A Toolkit for Grid Service

Development. Proc of the 3rd Int. Conf. on Grid

Service Engineering and Management (2006) Lecture

Notes in Informatics Vol 88, Pages: 131–148

Wilkins-Diehr, N. et al.: TeraGrid Science Gateways and

Their Impact on Science. In Computer (Nov. 2008).

Volume: 41 Issue: 11 pp 32-41

Nanz, S The Future of Software Engineering. Springer, 21

Oct. 2010

Medvidovic, N. et al.: A Classification and Comparison

Framework for Software Architecture Description

Languages. In IEEE Transactions on Software

Engineering, Vol. 26, No. 1, pp. 70-93, 2000.

Kent, S.: Model Driven Engineering. In IFM 2002, volume

2335 of LNCS. Springer-Verlag.

Amendolia, S. R. et al.: MammoGrid: A Service Oriented

Architecture based Medical Grid Application. Lecture

Notes in Computer Science Vol 3251 pp 939-942

Springer-Verlag, 2004.

Highnam, R. et al.: Breast Composition Measurements

Using Retrospective Standard Mammogram Form

(SMF). Lecture Notes in Computer Science, 2006,

Volume 4046/2006, 243-250

EGEE Middleware Architecture, Document identifier:

EGEE-DJRA1/1-476451-v1.0, Available from http://

public.eu-egee.org/

McClatchey, R. et al.: Lessons Learned from MammoGrid

for Integrated Biomedical Solutions. Proc of the 19th

IEEE Symposium on Computer-Based Medical

Systems (CBMS 2006) pp 745-750 IEEE Press. Salt

Lake City, USA. June 2006

Skaburkas, K. et al.: Health-e-Child : A Grid-enabled

Platform for European Paediatrics. Journal of Physics

Conference Series Vol 119 Paper 082011

Manset, D. et al.: Gridifying Biomedical Applications in

the Health-e-Child Project. Chapter XXIV of the

Handbook of Research on Computational Grid

Technologies for Life Sciences, Biomedicine and

Healthcare. IGI Global Publishers, May 2009.

EGI Project, http://web.eu-egi.eu/

Manset, D. et al.: Gridifying Neuroscientific Pipelines, a

SOA Recipe and Experience from the neuGRID

Project. Chapter VII of Grid Technologies for E-

Health: Applications for Telemedicine Services and

Delivery. IGI Global Publishers, May 2009.

SAGA, The Simple Grid API http://saga.cct.lsu.edu/

Anjum, A. et al.: Reusable Services from the neuGRID

Project for Grid-Based Health Applications. Studies in

Health Technology & Informatics Vol 147, pp 283-

288 IOS Press.

Torterolo, L. et al.: Building Science Gateways with

EnginFrame: a Life Science example. Int Workshop on

Portals for Life Sciences, Sept. 2009

Farkas, Z. et al.: P-GRADE Portal: A generic workflow

system to support user communities. Future

Generation Computer Systems journal, Volume: 27,

Issue: 5, 2011, pp. 454-465

Myers, J. et al.: MAEviz: Bridging the Time-from-

discovery Gap between Seismic Research and

Decision Making. U.K. e-Science AHM. Edinburgh,

U.K. Sept 8-11, 2008.

Bass, L. et al.: Software architecture in practice, Second

Edition, Addison-Wesley, 2003

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

430

Oquendo, F.: π-ARL: An Architecture Refinement

Language for Formally Modelling the Stepwise

Refinement of Software Architecture. In ACM

SIGSOFT Software Engineering Notes archive

Volume 29, Issue 5, ACM Press 2004.

Maude Reflective Language, http://maude.cs.uiuc.edu/

van Deursen, A. et al.: Domain-specific languages: an

annotated bibliography. SIGPLAN Not. 35, 6 (June

2000), 26-36.

ArchWare Project. http://www-valoria.univ-ubs.fr/

ARCHLOG/ArchWare-IST/

Oquendo, F. et al.: The ArchWare ADL: Definition of the

Abstract Syntax and Formal Semantics”.

ARCHWARE EU RTD Project IST-2001-32360.

Manset, D. et al.: A Formal Architecture-Centric Model-

Driven Approach for the Automatic Generation of

Grid Applications. Proc of the 8th ICEIS06 Intl.

Conference, pp 322-330. Paphos, Cyprus. May 2006.

DICOM Digital Imaging and Communications in

Medicine. http://medical.nema.org

Health Level 7 (HL7), Standard http://www.hl7.org/

Collet, P. et al.: Issues and Scenarios for Self-Managing

Grid Middleware. Proc of the 2nd workshop on Grids

Meets Autonomic Computing (GMAC’10).ACM

Publishers, Washington USA 2010.

Creating the CIPRES Science Gateway for inference of

large phylogenetic trees Miller, M. A. Pfeiffer, W. ;

Schwartz, T. Gateway Computing Environments

Workshop (GCE), 2010 Date of Conference

Wenjun Wu, Thomas Uram, Michael Wilde, Mark Hereld,

and Michael E. Papka. 2010. Accelerating science

gateway development with Web 2.0 and Swift. In

Proceedings of the 2010. TeraGrid Conference (TG

'10). ACM, New York, NY, USA, Article 23, 7 pages.

DOI=10.1145/1838574.1838597, http://doi.acm.org/

10.1145/1838574.1838597

The QuakeSim Portal and Services: New Approaches to

Science Gateway Development Techniques Marlon E.

Pierce , Xiaoming Gao , Sangmi L. Pallickara ,

Zhenhua Guo , Geoffrey C. Fox

SimpleGrid Toolkit: Enabling Efficient Learning and

Development of TeraGrid Science Gateway Shaowen

Wang, Yan Liu, Nancy Wilkins-Diehr, Stuart Martin

International Workshop on Grid Computing

Environments

AstroPortal: A Science Gateway for Large-scale

Astronomy Data Analysis”, TeraGrid Conference Ioan

Raicu, Ian Foster, Alex Szalay, Gabriela Turcu

TeraGrid Conference 2006. 23, 2008 NASA GSRP

Final Report Page 5 of 5 Ioan Raicu

ModelDrivenEngineeringforScienceGateways

431
