ONTOTracED: A Framework to Capture and Trace Ontology

Development Processes

Marcela Vegetti

, Luciana Roldán

, Silvio Gonnet

, Gabriela Henning

and Horacio Leone

Ingar (CONICET/UTN), Avellaneda 3657, Santa Fe, Argentina

Intec (CONICET/UNL), Güemes 3450, Santa Fe, Argentina

Keywords: Ontology Development Processes, Ontology Engineering, Support Tools, Design Processes, Design

Rationale.

Abstract: In the last two decades several methodologies to assist the ontology development process have been

reported in the literature. However, despite important advances, there are no computational tools supporting

them yet. Thus, when an ontology development process ends, the things that remain are just design products

(e.g., competency questions, class diagrams, implementations, etc.), without an explicit representation of

how they were obtained. This paper presents a framework meant to explicitly capture and trace ontology

development processes (the activities carried out, the actors executing them, etc.), along with their

associated products.

1 INTRODUCTION

In the last decade, many ontology development

processes have changed from the traditional ones,

performed by isolated knowledge engineers or

domain experts, into collaborative processes

executed by mixed teams. In such teams, experts in

knowledge acquisition and modeling, domain

specialists, and experts in the ontology

implementation languages collaborate to build

ontologies, according to well-established

methodologies. The expertise and background of

each team member, as well as the executed

activities, and the decisions made during the

development process might be of great importance

in future ontology development processes. However,

current tools supporting ontology development

processes do not capture such information; thus, the

process trace is lost, and any new ontology

development process would start from scratch. In

fact, once a given ontology development process is

finished, the things that remain are mainly design

products (e.g., requirement specifications,

competency questions, ontology class diagrams,

implementations in specific languages, etc.), without

an explicit representation of how these products

were obtained, and with no capture of the rationale

behind the process. In addition, ontology building is

turning into a more professional engineering process

that needs to be managed and measured in order to

obtain high quality results. All these characteristics

constitute essential challenges that require to be

addressed by the ontology engineering field.

In order to tackle these issues, this contribution

proposes ONTOTracED, a framework to represent,

capture and trace ontology development processes.

The following section presents the framework

components. Finally, Section 3 concludes the paper

and offers paths to future work.

2 ONTOTracED

Once an ontology development process is

concluded, those things that remain are mainly

design products (e.g. the requirements specification,

competency questions, ontology class diagrams, the

ontology implementation in an specific language,

etc.) without an explicit representation of how these

products were obtained, and lacking the capture of

the history and rationale behind the development

process. More specifically, there is no trace of the

activities that have originated any of the products,

the requirements that have been imposed, the actors

that have performed each of the activities, and the

underlying rationale behind each decision that was

made. In order to overcome these drawbacks, this

contribution proposes a comprehensive framework

419

Vegetti M., Roldán L., Gonnet S., Henning G. and Leone H..

ONTOTracED: A Framework to Capture and Trace Ontology Development Processes.

DOI: 10.5220/0004173304190422

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2012), pages 419-422

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

to represent, capture and trace the ontology

development process.

Fig. 1 shows the main components of the

proposed framework, including: (i) a Conceptual

Model that is able to represent generic design

processes; (ii) an Ontological Engineering Domain

Model (OEDM), which specifies the concepts that

are required to describe ontology development

processes, and (iii) a support computational

environment, named TracOED (Tracking Ontology

Engineering Designs), that implements both the

conceptual model and the OEDM to enable the

capture of specific ontology design processes, along

with their associated products.

Ontological

Engineering

Domain Model

(OEDM)

ONTOTracED framewor

TracOED

Version Mana

Domain Editor

Product Representation Space

implements

Conce

tual Model

Process Representation Space

Specification Space

Activity

Version

Repository

Domain Operation

specifiedBy

Ontology Development Process

capture and tracing

Figure 1: Components of the proposed framework.

The supporting Conceptual Model is based on an

operational-oriented approach that envisions the

ontology development process – as any engineering

design process – as a sequence of activities that

operates on the products of the development process.

The proposal defines two representation spaces to

model generic design process concepts: the Process

and Product spaces. In addition, a third component

(the Specification Space in Fig. 1) is included to

fully specify a flexible model that is able to

represent and capture design processes pertaining to

specific engineering fields.

The Process representation space models the

activities being performed during an ontology

development process. Each basic activity performed

by an actor during an ontology development process

is represented by the execution of a sequence of

operations, which transforms the design objects

causing their evolution. In order to represent this

evolution, each design object is specified at two

levels: the Repository and the Version ones, which

constitute the Product Representation Space.

The operations that can be applied are domain

dependent. Therefore, the Specification Space allows

specifying the building blocks and operations of

particular engineering design domains. In the

context of the OntoTracED framework, this space

has allowed specifying the ontological engineering

domain model.

The Ontological Engineering Domain Model

component can represent and capture particular

ontology development projects, based on building-

blocks that define the products obtained, as well as

the activities carried out during such process. This

representation includes those modeling elements that

are most commonly used in the methodologies that

nowadays guide ontology development projects.

There are several methodologies for building

ontologies and no one is yet emerging as a clear

reference. In spite of their diversity, most

methodologies share structural similarities and have

comparable modeling elements. In this proposal, the

components that are considered to be part of the

proposed domain model are shown in Table 1.

Additionally, in order to show how this proposal

may be applied when ontologists want to stick to

specific methodologies and/or approaches, the

ontological categories proposed by the Unified

Foundational Ontology (UFO) (Guizzardi, 2005)

have been added to the Ontological Engineering

Domain Model. UFO is a language to build domain

ontologies that preserves the ontological

commitment of the domain being modeled. It

distinguishes between conceptual entities called

universals and individuals. In particular, due to

space limitations, this work focuses on the

subsumption hierarchy of sortal universals. Table 1

presents the meanings of the concrete object types

Kind, SubKind, Phase and Role, which are the leave

classes of the mentioned hierarchy. UFO is

considered as a Pattern Language; i.e., in this

language the choice of a particular design object

type causes a whole pattern to be manifested

(Guizzardi y colab., 2011). For example, a phase is

always defined as part of a partition; a role is always

played in relation to another sortal. So, the adopted

domain model also includes the following design

patterns proposed by UFO: SubKind Partition,

PhasePartition and RolePattern (Guizzardi y colab.,

2011).

The OEDM also defines the operations required

to capture and manage the included design objects.

Some of these operations are shown in Table 1.

TracOED

is the computational environment that

implements the conceptual model and incorporates

the OEDM. It is based on TracED (Roldán y colab.,

2010), which was conceived for capturing and

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

420

Table 1: Ontological Engineering Design Domain.

Design objects

Competency

question

A Competency question plays the role of a type of requirement specification against which a given ontology can

be evaluated.

Concept A Concept represents a collection of entities that share a common set of characteristics.

Relation A Relation symbolizes interrelations between concepts.

Individual An Individual is an entity that belongs to a particular concept.

Assumption and

Constraint

They represent natural language expressions that restrict the interpretation of concepts and relationships.

Formal

Competency

Question

A Formal Competency Question is a specification in a formal language of an informal competency question that

was initially identified.

Axiom and rule

They represent formal expressions that allow ontologists to (i) explicitly define the semantics of an ontological

concept by imposing constraints on its value and/or its interactions with other concepts; (ii) verify the consistency

of the knowledge represented in the ontology, and/or (iii) infer new knowledge from the explicitly stated facts

UFO Ontological Categories (Adapted from (Guizzardi, 2005)

Kind

A Kind represents rigid, relationally independent object universals that supply a principle of identity for their

instances. Examples include instances of Natural Kinds (such as Person, Dog, Tree) and of artifacts (Chair, Car,

Television).

SubKind

A SubKind is a rigid, relationally independent restriction of a substance sortal that carries the principle of identity

supplied by it. An example could be the SubKind MalePerson of the Kind Person.

Phase

A Phase represents anti-rigid and relationally independent universals defined as part of a partition of a sortal. For

instance, [Child, Teenager, Adult] is a partition of the kind Person. A Phase is always defined as part of a partition.

Role

A Role represents an anti-rigid and relationally dependent universal. For instance, the role student is played by an

instance of the kind Person.

Proposed Operations

Basic Pattern related

addKind

addSubKind

addPhase

addRole

toKind

toSubKind

toRole

toPhase

remKind

remSubKind

remPhase

remRole

addConcept

addRelation

addIndividual

addICQ

addFCQ

formalizeICQ

addConstraint

addAssumption

remConcept

remRelation

remFCQ

remICQ

addPhasePartition

addRolePattern

addSubkindPartition

remPhasePartition

remRolePattern

remSubkindPartition

addPhase2Partition

addSubkind2Partition

remPhaseFromPartition

remRoleFromPartition

remSubkindFromPartition

tracing engineering designs.

The major components of TracOED are the

Domain Editor and Versions Manager. By using the

Domain Editor, the OEDM has been specified in

TracOED. Furthermore, the editor allows this model

to be further specialized, if required. On the other

hand, the Versions Manager enables the execution

of each ontology development project, and captures

its evolution based on operations that are

accomplished and the instantiation of those design

object types that have been specified in the

Ontological Engineering Domain Model by means

of the Domain Editor tool.

The Versions Manager enables the execution of

a design project. When a new design project is

created, an existing design domain has to be

selected. Therefore, the evolution of a project is

based on the execution of domain-specific

operations and the instantiation of the design object

types pertaining to the selected design domain.

Additionally, TracOED includes in its Versions

Manager features that allow to keep information

about: (i) predecessor and successor model versions

(if any exists) of each model version; (ii) history

links which save traces of the applied operation

sequences (basic activities), which have originated

new model versions; (iii) references to the set of

object versions that arose as the result of each

operation execution. Thus, it is possible to

reconstruct the history of a given model version by

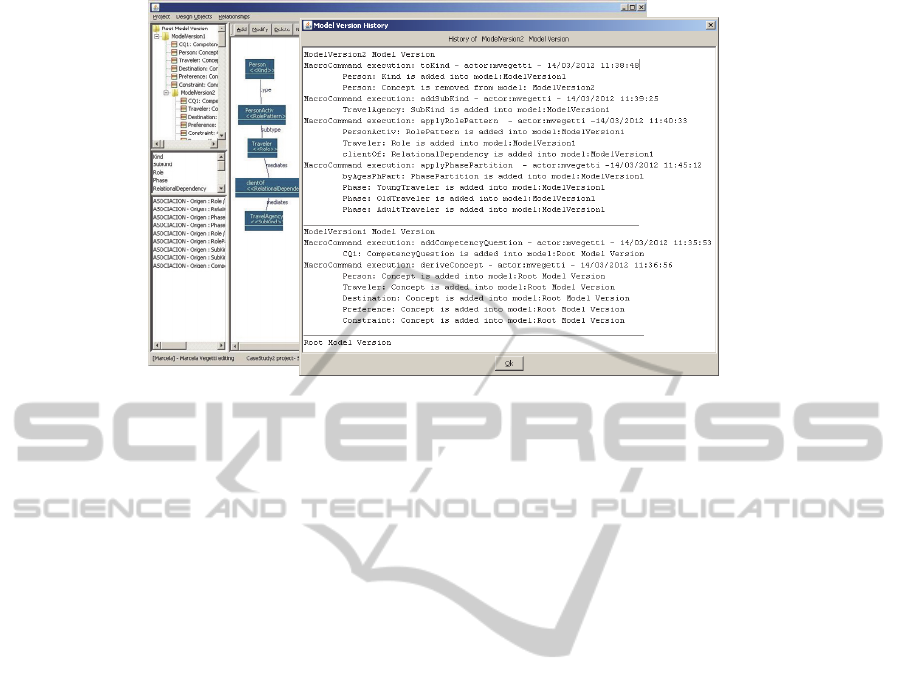

beginning the trace from the initial operation. Fig. 2

presents the Version Manager History Window,

which depicts all the operations that have been

applied to evolve from an initial model version to

the current one. It is possible to see detailed data

about each applied operation. For instance, this

panel presents information about the time point at

which a given operation was applied, who the

ONTOTracED:AFrameworktoCaptureandTraceOntologyDevelopmentProcesses

421

TracOED -

ersion Manager

Figure 2: TracOED history window.

involved actor was, and the identification of the

successor object versions. In this example, the

history window shows that an applyRolePattern

operation was executed at ModelVersion2 by

mvegetti at time 11:40 -14/03/2012.

It is important to remark that TracOED was

developed with the aim of proving the proposed

ideas and materializing the ONTOTracED

framework. Therefore, this tool is not meant to

replace traditional support environments currently

used in the ontology domain. On the contrary, in the

future TracOED should be integrated with existing

ontology development tools, such as the OntoUML

editor. In this way, TracOED would perform the

capture of all the applied operations by working in a

background mode, without being noticed by

ontologists.

3 CONCLUSIONS

This contribution presents ONTOTracED, which is a

framework aimed at capturing and tracing ontology

development processes. The framework is based on

a conceptual model of generic engineering design

projects, an Ontological Engineering Domain

Model, which specifies design objects and

operations that are specific to ontology development

processes, and a computational environment, named

TracOED, which implements these models. The

capabilities of TracOED allow the ontologist to keep

track of the ontology development process along

with its associated products, to store its history,

allowing for the future retrieval of knowledge and

experience. The proposal is flexible enough to be

used in the development of ontologies that rely on

particular methodologies and/or approaches, or that

address particular fields. If needed, the TracOED

domain editor can be used to extend the proposed

Ontological Engineering Domain Model or to create

a new one.

To further validate the proposal, future work will

be oriented to integrate TracOED with existing

ontology development tools, like Protégé, the Neon

Toolkit or the ontoUML editor, in such a way that it

execution takes place in a background mode.

ACKNOWLEDGEMENTS

The authors wish to acknowledge the financial

support received from ANPCyT (PAE-PICT-2315

and PAE-PICT-51), CONICET (PIP 2754), UTN

(PID 25-O117 and PID 25-0118), and UNL (CAI+D

R4 N12).

REFERENCES

Guizzardi, G. 2005. Ontological Foundations for

Structural Conceptual Models. PhD with Cum Laude,

Telematica Instituut Fundamental Research Series,

015, Enschede, the Netherlands.

Guizzardi, G., Pinheiro das Graça, A., Guizzardi, R. 2011.

Design Patterns and Inductive Modelling Rules to

Support the Construction of Ontologically Well-

Founded Conceptual Models in OntoUML. In: 3rd In-

ternational Workshop on Ontology-Driven Informa-

tion Systems (ODISE 2011).

Roldán M. L., Gonnet S., Leone H. 2010. TracED: A Tool

for Capturing and Tracing Engineering Design

Processes. Advances in Engineering Software. 41,

1087-1109.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

422
