An Ontology Approach in Designing Security Information Systems

to Support Organizational Security Risk Knowledge

Teresa Pereira

and Henrique Santos

Polytechnic Institute of Viana do Castelo, Viana do Castelo, Portugal

University of Minho, School of Engineering, Department of Information Systems, Guimarães, Portugal

Keywords: Information Security, Information Systems Security, Information Security Risk Management, Ontology,

ISO/IEC 27001.

Abstract: Organizations increasingly demand faster and flexible operations promoted by information and

communication technologies, particularly on the Internet and the newer technologies, such as the internet-

enabled services, mobile and wireless devices and networks, with a complete disregard of their security

vulnerabilities and underestimating risks that this new technologies impose. A proper information security

risk management is difficult and becomes crucial to ensure the daily operational activities of organizations

as well as to promote competition and to create new business opportunities. Moreover there is a lack of

formal and flexible models to support a proper information security risk management process. This paper

presents an ontology developed in the security domain aimed to support organizations to deal with huge

security information issues and therefore implement a proper management to facilitate the decision-making

regarding their security needs.

1 INTRODUCTION

Organizations heavily rely their activity on the

performance of their information systems. Besides

their information systems, organizations rapidly

adopt new services based on Internet, mobile and

wireless devices, with complete disregard of their

vulnerabilities and their risks’ exposition. With

security mechanisms adopted such as firewalls, IDS,

IPS et cetera, organizations have to deal every day

with new security information that needs to be

properly managed. The security standards ISO/IEC

and NIST are an important reference in the security

information domain. However, most of the security

experts follow their own interpretation of the

standards, according to their experience and their

perceptions about security, which certainly leaves

overlooked flaws in the organization information

system security. This fact has imposed new demands

and challenges to the information security risk

management process, evidencing a serious problem

of lack of knowledge about the practical solutions to

implement in order to objectively improve security

within an organization. In fact, it is observed that

each organization follows its own approach to

security management, resulting sometimes in

misusing concepts, implementation of improper

controls and even in unbalanced risk assessment.

In this context, it is proposed an ontology

approach based on a conceptual model defined

according to the security standard ISO/IEC 27001,

with flexible capability, which enable its adoption

by any organization, regardless their business

activity, to support their information security risk

management process.

The paper is structured as follows: in section 2 it

is presented an overview of information security

management. In section 3 it is presented an approach

to the security risk analysis. In section 4 it is

presented an example of a security risk assessment

method, OCTAVE. In section 5 it is presented the

ontology developed and conclusions will be

presented in section 6.

2 INFORMATION SECURITY

MANAGEMENT

Managing information security in particular the

information systems security is increasingly

concerning organizations, due to the continuous

461

Pereira T. and Santos H..

An Ontology Approach in Designing Security Information Systems to Support Organizational Security Risk Knowledge.

DOI: 10.5220/0004180004610466

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (SSEO-2012), pages 461-466

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

growing dependence of organizations on technologies

to conduct their businesses, to create a competitive

advantage and achieving higher ROI. Organizations

must consider how they are going to succeed to the

continuous changing risk environment, since the

technical controls mechanisms alone are no longer

guaranteed, but mainly dependent on other security

requirements such as legislation, culture or

environment (Onwubiko and Lenaghan, 2009).

Recognized organizations such as ENISA (European

Network and Information Security Agency) and

OECD (Organization for Economic Cooperation and

Development) are making strong efforts to promote a

culture of security, focusing in the development of

information systems security and improve security

communications and the adoption of new ways of

thinking and behaving by all participants when using

information systems and communicating

technologies.

According to ENISA and OECD raising

information awareness is the first and huge

challenge to any organization (OECD, 2009).

Organizations need to evolve security management

strategies according to the evolvement of

information security management strategies in

response to emerge of new information security

requirements. A properly security strategy demands

for a rigorous process, where every agent interacting

with critical resources need to be aware and

participate in security management, both adopting

secure behaviours and continuous evaluating

security control’s performance (CCMB, 2006).

The Information Security Management Systems

(ISMS) is a concept introduced in the security

standard ISO/IEC 27000 and provides a model,

named PDCA (Plan-Do-Check-Act), to establish,

implement, operate, monitor, review, maintain and

improve the protection of information assets, which

are critical to the operational activity of the

organization and requires adequate protection

against the loss of relevant properties such as

confidentiality, integrity and availability, to achieve

business objectives based on a risk assessment and

risk acceptance levels of the organization, designed

to effectively deal with and manage risks (ISO/IEC,

2009). In other words, the ISMS reflects the

organization’s approach to risk assessment and risk

management, the level of risk that an organization is

willing to accept and the controls to be implemented.

An adequate information security risk management

process requires a security planning in order to

collect information for awareness, followed by the

implementation of the necessary mechanism

required in a risk analysis process.

In following section it will be introduced an

overview of the information security risk analysis.

3 SECURITY RISK ANALYSIS

Information security risks analysis is an integral part

of information security management activities and

consists in the systematic use of information to

identify sources and to estimate risks

(ISO/IEC_JTC1, 2008). This activity is especially

important when the organization heavily depends on

IT-based systems to remain viable. These decisions

are performed based on the cost-benefit evaluation

of applying controls and assessments of acceptable

risk of the secured systems.

In all organizations, regardless of their business

activity, the security risk management process

should comprise the following actions:

• Identification of critical assets of the

organization;

• Investigation of the vulnerabilities inherent to

the assets;

• Identification of threats the assets;

• Evaluation of the implemented controls;

• Identification of the impacts that losses of

confidentiality, integrity and availability may have

on the assets.

The identification of the assets should address a

substantial level of detail in order to provide enough

information for the risk assessment. The result

should be a list of assets to be risk-managed, and a

list of business process related to the assets and their

importance (or value) to the organization.

The threats identification results from incident

reviewing and surveying users, as well as other

sources including external threat references. The

collected information will enable to produce a list of

threats with identification of threat type and source.

The investigated vulnerabilities consist in

finding the assets’ weaknesses, which can be

exploited by a threat. The vulnerabilities should be

continually monitored and reviewed. Concerning

information technologies there are a lot of automatic

scanning tools, which are good in discovering

known vulnerabilities. However, concerning new

technologies and in particularly the human

interaction and misbehaviour (a very important

source of vulnerabilities), a lot of specific and

reflexive work needs to be done.

The identification of implemented controls

intends to evaluate the organization defence

capacity, analysing if the controls putted in practice

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

462

are working correctly and know exactly what is

protected. A special analysis should be considered

when a selected control or a strategy fails in

operation and therefore an auditing is required to

find fails causes. A procedure to estimate the effect

of the control is through the analysis of how the

control reduces a threat.

An incident impact consists in the analysis of the

consequences that an attack has over an asset and the

global loss it imposes to the organization. A security

incident can address a loss of effectiveness, adverse

operating conditions, business loss, reputation and

physical damage. An incident can affect one or more

assets or part of an asset. Therefore assets should

have assigned both financial cost values and

business impact values.

Nevertheless, many organizations do not follow

these actions. Actually, it is observed that

organizations mainly follow their own security risk

management practices. Some of them more focused

on the efficiency of their controls, disregarding the

critical assets of organizations. Others are

exclusively focused on asset’s value, which can

result in either over-securing or under-securing

assets (Hoo, 2002). Others estimate a value to the

risk by enumerating all assets including their value

and determining all the threats to them, estimating

the impacts of the threats (Ekelhart et al., 2009).

Nevertheless, organizations that started

implementing these approaches are taking the first

step to improve their corporate information security.

In the next section will be presented an overview

of the OCTAVE approach, which is not a formal

model, but a method to support the security risk

assessment process.

4 OCTAVE A SECURITY RISK

ASSESSMENT APPROACH

OCTAVE (Operationally Critical Threat, Asset and

Vulnerability Evaluation) was developed by SEI

(Software Engineering Institute), Carnegie Mellon

University, and includes a set of tools and

techniques for risk based information security

strategic assessment and planning (Alberts and

Dorofee, 2001).

The OCTAVE focuses on organizational risk

and strategic management and settles operation risk

and security practices. It defines a set of self-

directed activities to enable organizations to identify

and manage their information security risks. This

means that OCTAVE follows a workshop-based

approach that requires the participation of staff

members from key operational areas from both

business department and information technology

department, since information security includes also

both business and technology related issues. The

final goal is to provide a global understanding with

different perspectives about the organizational view

of the information security risk. This way it is

assured that the evaluation is scoped properly, that

the organization’s senior managers participate in the

evaluation, and that everyone participating in the

process understands his or her role promoting

responsible behaviour and awareness.

The involvement of persons from different

business departments, proposed in OCTAVE

approach is the main strategy followed by this

method, contributing to promote awareness and

compliance with best practices. However OCTAVE

is mostly used by a few numbers of organizations,

especially larger organizations than medium and

small organizations.

Despite the aforementioned aspects, OCTAVE

presents some issues, which not play a favourable

role in the security risk analysis process. Namely:

• it requires a long process and thus too time

consuming;

• it demands experts on the key areas of the

organization, with skills to identify assets,

vulnerabilities, threats as well as security policies

and practices to support the decision-making.

Furthermore, most organizations don’t have those

key experts from different organizational levels with

knowledge to identify all the security information,

which in turn imposes limitations to a continuous

and reliable risk evaluation;

• OCTAVE does not promote a formal model,

which makes it harder to get normalization or

generalization. This is one of the greatest battles of

ENISA and OECD organizations that are developing

efforts to achieve a formal model in order to reduce

the ad-hoc approach to security risk analysis process

that is followed by most organizations.

In the following section will be presented the

ontology defined.

5 THE ONTOLOGY DEVELOPED

The ontology developed represents the conceptual

model derived from the established security standard

ISO/IEC_JTC1 (International Organization for

Standardization (ISO)/International Electrotechnical

Commission (IEC), Joint Technical Committee (JTC

AnOntologyApproachinDesigningSecurityInformationSystemstoSupportOrganizationalSecurityRiskKnowledge

463

1)), and its application to some supporting tools

(Santos, 2006).

The purpose of the developed ontology is to

establish a conceptual model to structure

information by introducing semantics, in order to

enable organizations to firm up and unify the

concepts and terminology defined in information

security domain, based on the ISO/IEC_JTC1. The

establishment of those concepts and their

relationships enables to perform an effective security

risk analysis and consequently improves information

security management within organizations. Through

the conceptual model each organization should be

able to respond to the following action items: (1)

properly identify the valuable or critical assets; (2)

properly identify the vulnerabilities of assets; (3)

identify and mitigate potential threats; (4) evaluate

the risks; (5) evaluate the efficiency and

effectiveness of the countermeasures defined and

therefore analyse and implement the necessary

adjustments to the security policy adopted. Such

understanding can assist organizations in

implementing the right combination of protection

controls to mitigate security risks related with asset’s

vulnerabilities. An ontology approach with

capabilities to jointly model all the integrated

concepts and their relationships to other security

concepts stands an important advance, challenging

the information systems security management

process.

The defined conceptual model comprises 8

concepts and 16 relationships, based on the security

standards ISO/IEC_JCT1 and are represented in the

ontology structure, as illustrated in Fig. 1.

These concepts are described as following:

Incident – A single or series of unwanted or

unexpected events that might have significant

probability to compromise the information system

security.

(Security) Event – An identified occurrence of a

particular set of circumstances that changed the

status of the information system security.

Asset – Any resource that has value and

importance to the owner of the organization, which

includes information, programs, network and

communications infra-structures, software, operating

systems, data and people.

CIA – The information properties to be ensured,

namely: confidentiality, integrity and availability;

besides these main security properties, and

depending on the context, other security properties

may need to the addressed, such as: authenticity,

accountability and reliability.

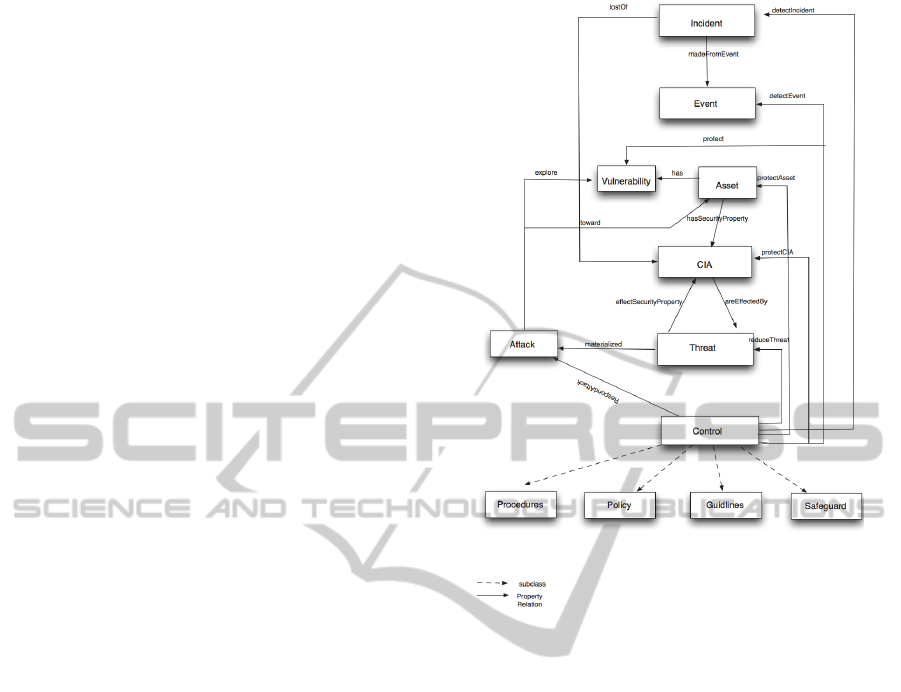

Figure 1: Concepts and relationships defined in the

conceptual model.

Threat – Represents the types of dangers against

a given set of properties (security properties). The

attributes defined in this concept follow the Pfleeger

approach (Pfleeger et al, 2007), which include an

attacker actions or position to perform an

interception, fabrication, modification and

interruption, over a resource.

Attack – A sequence of actions executed by

some agent (automatic or manual) that explore any

vulnerability and produce one or more security

events. Instances of this concept are based on the

Bishop taxonomy to classify attacks (Bishop 2004).

Control – A mechanisms used to detect an

incident or an event, to protect an asset and their

security properties, to reduce a threat and to detect

or prevent the effects of an attack. Instances of this

concept are based on the ISO/IEC FDIS

27001:2005(E) (ISO/IEC_JTC1 2008).

Vulnerability – Represents any weakness of the

system. Instances of this concept are based on the

vulnerability taxonomy provided by the CVE

(Common Vulnerabilities Exposures).

The use of taxonomies facilitates the

identification of different instances of each concept

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

464

and even more important is that establish relations

between concepts, which enables to infer

information from those relations. These taxonomies

were selected since they are an important reference

in the security domain.

The rationale behind the ontology is structured

as follows: an incident is made from –

madeFromEvent- one or more events; the

occurrence of an incident can lead to a loss of -

lostOf - a set of security properties (CIA); an asset

has security properties - hasSecurityProperties - and

each one can be affected by a threat; on the other

hand, a threat can affectSecurityProperty one or

more security properties; and finally, an asset has

vulnerabilities. A threat is materialized into an

attack, while the attacks exploit one or more

vulnerabilities; an attack is also triggered towards an

asset. Furthermore, the implementation of control

mechanisms helps to reduce threats, to respond an

attack, to protect security properties; to protect

assets and vulnerabilities, as well to detect events, in

order to protect assets.

All these concepts and their relationships were

formalized through the use of the W3C standard

language for modelling ontologies Web Ontology

Language (OWL). This web language has been

developed by the Web Ontology Working Group as

a part of the W3C Semantic Web Activity (Smith et

al, 2004). This language was selected because it is a

W3C recommendation since February of 2004 and

due to its expressiveness with superior machine

interpretability. The OWL vocabulary is an

extension of RDF and uses RDF/XML syntax. The

formalization of this ontology in OWL is a step

forward to promote its interoperability among

different information security systems.

6 CONCLUSIONS

The use of ontologies in the information security

management process is a solution to succeed, since

they clearly enable to define, classify and link the

related concepts and relations shared by the

community and formally defined. Several authors

have indicated that security community needs

ontologies (Donner, 2003) (Tsoumas et al, 2006)

and they have considered this need as an important

challenge and a research branch (Blanco et al,

2007).

The conceptual model based on the security

standards ISO/IEC 27001, formally represents

security concepts and their relationships in terms of

threats, attacks, vulnerabilities and countermeasures.

Apart from promoting the standardization of the

concepts defined in the information security domain,

the simplicity and flexibility of the model, enables

its adoption by any organization, regardless, their

business activity, but embedding its own view and

assumed risk exposition. It also contributes

organizations to evolve their security information

according to their needs, without having to redo the

information. This is possible since one of the main

features of the ontologies is the ability to create a

dynamic, structured and formal knowledge base.

Additionally, the relationships established between

concepts allow the security experts to have different

perspectives about security in a consistent and

structured way. Managing all these information can

assist organizations in implementing the right

combination of protection controls to mitigate

security risks related with the asset’s vulnerabilities,

providing an overall view of the organization

security business activity and making the decision-

process much more accurate.

Finally the formalization of the ontology in

OWL is an important resource to promote its

interoperability among different information security

systems, as well as its integration in other

knowledge representation system in the security

domain.

ACKNOWLEDGEMENTS

This work was funded by FEDER through Programa

Operacional Fatores de Competitividade –

COMPETE, and by national founds through FCT –

Fundação para a Ciência e Tecnologia, under

project: FCOMP-01-0124-FEDER-

022674.References

REFERENCES

Alberts, C., Dorofee, A., Managing Information Security

Risks: The OCTAVE (SM) Approach. 1st ed. Addison

Wesley.

Bishop, M., 2004. Introduction to Computer Security. 2nd

ed. Addison-Wesley Professional.

Blanco, C., Lasheras, J., Fernández-Medina, E., Valencia-

García, R., Toval, A. “Basis for an integrated security

ontology according to a systematic review of existing

proposals”, Computer Standards & Interfaces, 33 (4),

2007, pp. 372-388.

Common criteria for information technology security

evaluation, Part I: introduction and general model,

version 3.1, revision 1, CCMB-2006-09-001,

September 2006.

AnOntologyApproachinDesigningSecurityInformationSystemstoSupportOrganizationalSecurityRiskKnowledge

465

Donner, M. “Toward a security ontology”. IEEE

Computer Society, 1(3), 2003, pp. 6–7.

Ekelhart, A., Fenz, S., Neubauer, T. “Ontology-based

decision support for information security risk

management”, In: R. Ege, W. Quattrociocchi, D.

Dragomirescu, O. Dini, eds. Proc. The Fourth

International Conference on Systems (ICONS 2009),

Gosier, Guadeloupe/France. IEEE Computer Society,

1-6 March 2009, pp. 80–85.

Hoo, K. J. S. “How much is enough? A risk-management

approach to computer security”, Workshop on

Economics and Information Security, 16-17 May 2002

University of California, Berkeley.

ISO/IEC, 2009. ISO/IEC 2nd WD 27002 (revision) -

Information technology - Security techniques – Code

of practice for information security management. ISO

ISO/IEC_JTC1, 2008. ISO/IEC FDIS 27005 Information

Technology - Security Techniques - Information

Security Risk Management. ISO copyright office:

Geneva, Switzerland.

Onwubiko, C., Lenaghan, A. P. “Challenges and

complexities of managing information security”,

International Journal of Electronic Security and

Digital Forensics, 2(3), 2009, pp. 306–321.

OECD, OECD Guidelines for the security of information

systems and networks: Towards a culture of security.

2002, Paris.

Pfleeger, C., Shari, L. Security in Computing, 4th ed.

Prentice Hall PTR, 2007.

Santos, H. ISO/IEC 27001. A norma das norma em

Segurança da informação, 2006.

Smith, M. K., Welty, C., McGuinness, D. L., “OWL Web

Ontology Language Guide. W3C Recommendation 10

February 2004” [on-line], W3C, 2004. Available

from: http://www.w3.org/TR/owl-guide/. [Accessed

20 May 2010].

Tsoumas, B. and Gritzalis, D. “Towards an Ontology-

based security management”. Proc. 20th International

Conference on Advanced Information Networking and

Applications, IEEE Computer Society, 18-20 April

2006 Vienna. Vienna University of Technology.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

466
