Discovering Data Quality Issues in Service-oriented Architectures

A Framework and Case Study

Plamen Petkov, Markus Helfert and Thoa Pham

School of Computing, Dublin City University,

Glasnevin, Dublin 9, Ireland

{ppetkov, markus.helfert, thoa.pham}@computing.dcu.ie

Keywords: Service Oriented Architectures, Service Composition, Data Quality, Data Monitor, Business Rules,

Business Process, Quality of Service.

Abstract: In this paper we examine web services from a data quality perspective. Based on a data quality management

approach, we propose a framework for analysing data produced by the composite service execution. Apart

from other monitoring tools available which targeting the technical aspect of service composition – service

time response, service throughput and etc., we propose data consistency and accuracy monitoring, focusing

on the business value of the data produces by the services. We developed framework that will store business

rules into a rules repository. By analysing service data against the rules we will be able to identify problems

in service composition and execution. Moreover taking into account the Quality of Service (QoS) we are

able to provide an approximate location of the error.

1 INTRODUCTION

As a result of the global networks, information

systems progress, and the need for flexibility,

traditional closed, static and centralized architectures

have evolved to dynamic and heterogeneous. The

tasks of developing completely new applications,

making certain adaptors for legacy systems, or

rewriting present applications are now outdated.

Principally boosted by Web services connectivity,

service-oriented architectures (SOA) are now

considered the preferred way to designing an

information system. SOA endeavours to provide

existing functions of an information system as

"services" that can be accessed in a loosely coupled

way (Papazoglou, 2007), independently from the

technical platform. The architecture is seen as an

orchestration of requests for those services.

Generally, In SOA, workflow or orchestration

processes are fundamental.

However in more complex architectures

orchestrating the services can be difficult to handle.

There is no efficient way to managing such

architectures without having the awareness of the

data, processes and events running within the

enterprise environment. To support the process of

orchestrating, as well as development and evolving

progress, a monitor tool(s) must be integrated. These

tools, of course, must comply with business

requirements, in order to achieve adequate

surveillance result.

In other words, management tools and

techniques are inadequate without using an

appropriate monitoring. Thus why, crucial assistant

for proficient and effective deployment and

operation of an SOA-based net-centric system is a

comprehensive monitoring capability. Nevertheless,

present monitoring solutions fall short with respect

to such systems because they do not hold the

capabilities to implicitly aggregate metrics,

effectively detect inconsistent or inaccurate data, and

so to provide comprehensive shared situational

perception.

In this paper we propose data quality monitoring

approach by developing framework that will be able

to identify data quality problems.

The remainder of the paper will be structured as

follows: Section 2 describes the importance of

Quality of service (QoS) for service selection. In this

section we also present some data quality issues

related with service composition. In Section 3 we

propose framework that will identify and localize the

data related problems. In section 4 deals with simple

case study and discussion of our framework.

Finally, conclusions are presented along with

suggestions for future work.

Helfert M., Petkov P. and Pham T.

Discovering Data Quality Issues in Service-oriented ArchitecturesA Framework and Case Study.

DOI: 10.5220/0004461300720080

In Proceedings of the Second International Symposium on Business Modeling and Software Design (BMSD 2012), pages 72-80

ISBN: 978-989-8565-26-6

2 TOWARD TO MONITORING

UTILIY IN SOA

2.1 Importance of Service Selection

Web services are the key technology in SOA, in

which services are considered as “autonomous,

platform-independent entities that can be described,

published, discovered, and loosely couple in novel

ways” (Papazoglou, 2007). A service oriented

application includes a service provider and a service

requester. A service discovery agency (e.g.

Universal Description Discovery and Integration

UDDI)) may act as intermediate between provider

and requester and provides functionality to promote

available services. The service provider defines a

service description and publishes it (to the agency).

After retrieving a suitable service, the service

requester is able to invoke that service (The SoA

Open Group). In this regard, service composition

encompasses the process of searching and

discovering relevant services, selecting suitable web

services of best quality and finally composing these

services to achieve an overall goal that usually in a

business context aims to support an underlying

business process.

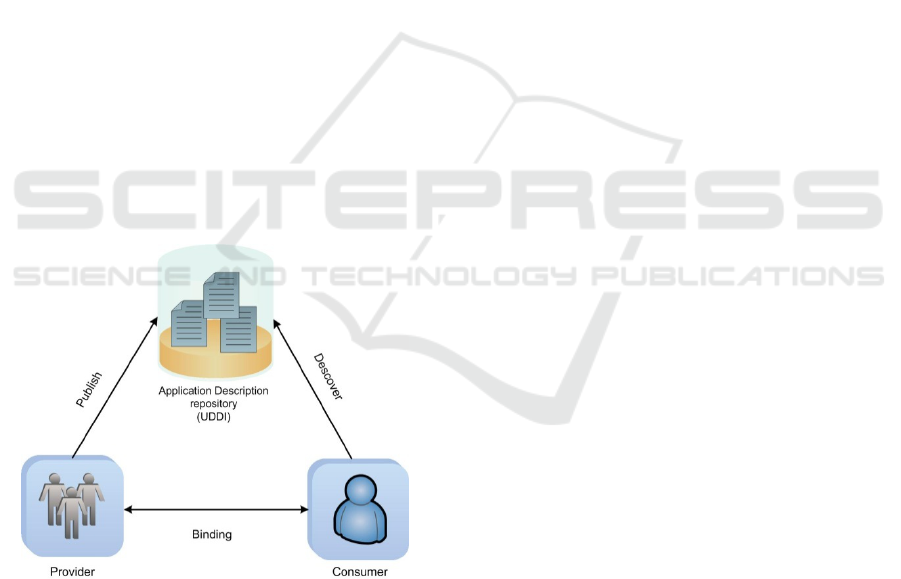

The Publish – Discover – Binding schema is

depicted below.

Figure 1: Publish – Discover – Binding.

On reviewing prominent approaches for service

discovery, it appears they mainly involve functional

attributes of service advertised in the service

description. These include service type, operation

name, input/output data format and semantics (Zeng,

2003). In order to select suitable services, quality of

service (QoS) evaluation is usually used as approach

for service selection among many services of similar

functionality. In literature, many approaches have

been proposed to measure QoS with non-functional

quality criteria. QoS dimensions often refer to non-

functional criteria that include execution price,

execution duration, reputation, reliability and

availability (Jeong, 2009).

Meanwhile the functional quality of a set of

composed services receives little attention. Often, it

is assumed that the service functions execute

according to the stated and published service

description. However, as with any execution and

operation of applications, this may not be the case.

Indeed, discussions with practitioners show, web

services often do not fulfil the functional quality and

thus the expected output is not achieved. In contrast

to other research, we consider this problem and

provide a framework that can help to detect some of

the problems during the execution of the services.

Service selection is crucial stage in service

composition and QoS act as blueprint of SoA

reliability. QoS could also play significant role into

service composition monitoring as we will show

later in this paper.

2.2 Data Quality Issues in Web Service

Composition

Data can be considered as output/input product of

service orientated composition and execution. The

product quality is key factor for entrepreneurs and

customers. Therefore the quality of data component

is the most important in a SoA project. Moreover,

data can be manipulated by different parties like

portals, devices or even orchestration engine. This

means that data quality is mirror reflection of the

quality of overall SoA implementation. Many

researchers have been done investigations about

defining Data Dimensions (Wand 1996), Data

Quality Requirements Analysis and Modelling

(Wang, 1998). However most of these studies apply

to monolithic information systems. Since the

introduction of the composite architecture few

researcher take into account data quality issues

(Thoa and Helfert, 2011).

Incorporating quality issues into web service

composition and execution (WSCE), is a major

problem regarding the application integrity.

(Fishman, 2009) represented the problem with bad

data quality in SoA by comparing the different

services with animals and human – they are different

by nature but share the same diseases. In other

words, integrating an application into SoA, which

does not comply with the business rules and thus

provides inaccurate or inconsistent data, can affect

Discovering Data Quality Issues in Service-oriented Architectures - A Framework and Case Study

all other applications and cause cumulative effect of

errors typical for system development lifecycle.

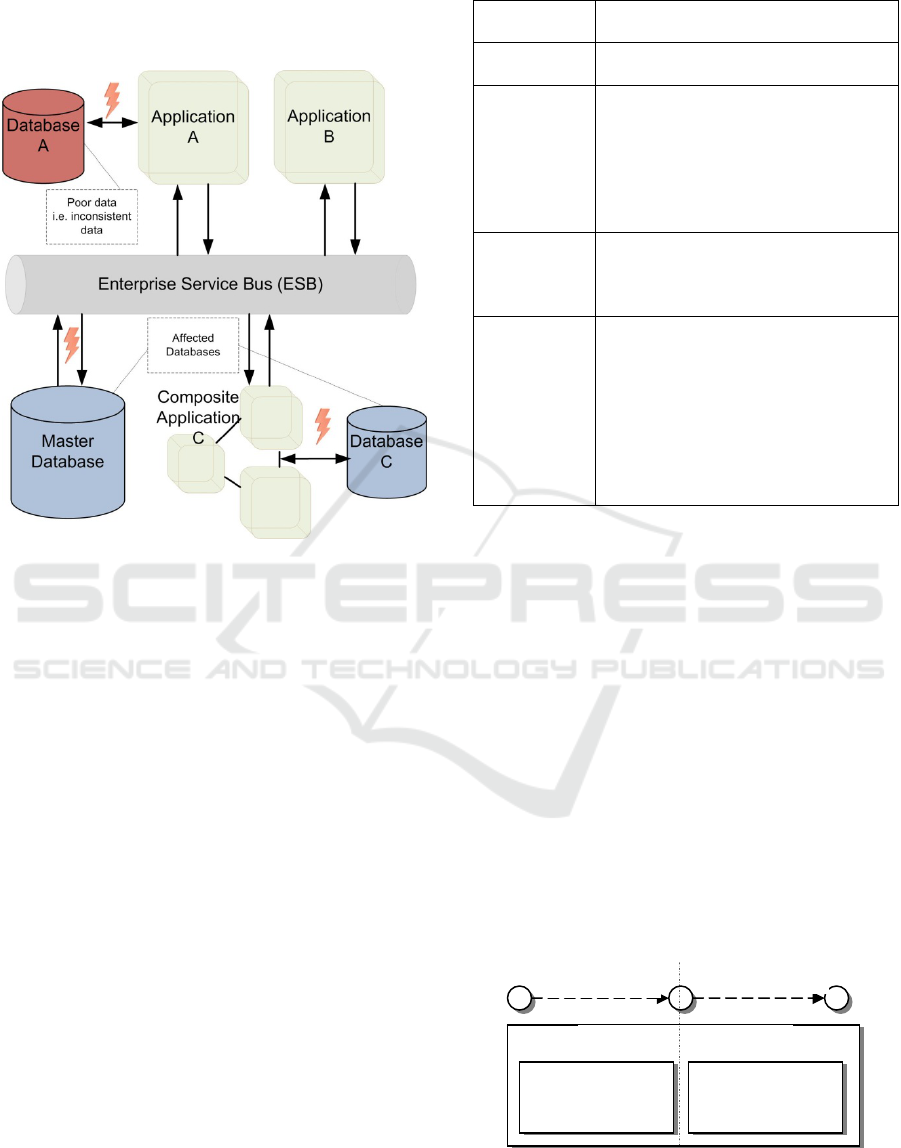

Figure 2 illustrates the service composition and

service incompliance.

Figure 2: Data incorporation in SoA framework.

As it can be seen from the diagram,

incompliance at service level (Application A) can

‘spread’ all irrelevant data through the Service

Enterprise Bus to all other application and its

databases (Master enterprise data, Composite

Application C and its database D). Note that

Application B has not its own database but it

supplies the whole infrastructure with functionalities

and thus it has been involved indirectly in the

process of distributing poor data – e.g. affecting

master enterprise database.

The data quality literature explored the most four

dimensions of data quality which are accuracy,

completeness, consistency, and timeliness (Wand,

1996).Corresponding to the functional quality of

WSCE, in this paper we will explore these

dimensions of data quality (Table 1). Analysing

those dimensions help to clarify the causes of poor

data quality in WSCE.

Taking into account quality issues in WSCE,

many approaches for static or dynamic web service

composition and execution have been developed

(Agarwal, Narendra, Silva, Zhang). However,

quality issues of mapping functional requirements to

service composition and execution are current.

Table 1: Quality Dimensions and problem description.

Quality

Dimension

Problem description

Accuracy

The data value does not correctly

reflect the real-world condition.

Consistency

The data values persist from a

particular data element of the data

source to another data element in a

second data source.

Consistency can also reflect the

regular use of standardized values,

particularly in descriptive elements

Completeness

Data element is always required to be

populated and not defaulted

Data element required based on the

condition of another data element

Timeliness

When two source data systems are

synchronized outside of a shared

transaction boundary, there exists a

timing window during which a service

accessing both systems may encounter

mismatched data.

The entity represents the most current

information resulting from the output

of a business event.

3 FRAMEWORK FOR

ANALYSING DATA QUALITY

The data quality analysing process will be separated

in two stages – problem discovery stage (1) and

problem localization stage (2).

In order to execute the process above, our

proposed framework is spitted into two modules.

The first module will be able to detect a data quality

issues. It follows a business rules-based approach to

data quality. Based on detected problem by the first

module and the QoS properties of the services, the

second module will be able to recommend a

particular service where the problem stems from. A

simple block schema along with the analysing

process is given on the Figure 3.

Figure 3: Data Analysing Framework.

(1)Discovery (2)Localization

Data Analyzing Framework

Detecting

module

Localizing

module

Analyzing process

Second International Symposium on Business Modeling and Software Design

3.1 Data Quality Issue Detecting

Framework

The proposed framework follows a business rules-

based approach to data quality. Business rules are

“statements that defines or constrains some aspects

of a business” A business rule is normally described

by the natural language, which can be reconstructed

in form of Event-Condition-Action (Bubenko and

Herbst), in form of If-Then expression, or in form of

<Subject> Must <constraints> (Morgan, 2002).

Based on our earlier work (Thoa and Helfert, 2011)

and the approach above, we developed a framework

for service composition that is presented in Figure 4.

In the next few paragraphs we will give more

detailed overview of our detecting module.

Business Process:

This block represents the conceptual business

process (BP) model that a service composition must

comply with. A BP model can be described with

BPMN, UML or EPC model. In our framework, we

are interested in the input and output of data of

activities/tasks in the BP. A part of the meta-data of

the BP model is stored in the Service Mapping and

Rule Repository (Figure 3).

Business Rules Specification:

This component concerns specifying business rules.

A business rule is related to one or many

activities/tasks in a business process and/or data

objects (1 and 2). The specified rules then are stored

in a Rule repository which could be relational

databases or XML files (3). The rule is usually in

form of If <Boolean logic expression>* Then

<Boolean logic expression>*, or an assertion of

aforementioned. <Boolean logic expression>* can

be composed of one or many Boolean logic

expressions combined together with logical

operators i.e. <Boolean logic expression> = <left

expression> <comparison operator> <Right

expression>. The left and right expression can be

mathematical formula, including data values, data

attributes, mathematical operations or aggregation

functions. Moreover logic expression consisting of

more logic expressions can be presented as binary

tree.

Service Mapping Repository:

This repository captures the mapping between

services to be composed to tasks/activities defined in

the underlying business process. A task corresponds

usually to a service, and a service can correspond to

one or many tasks. However in the case that a task

corresponds to many services, the service

composition is significantly more complex and is

currently not subject of this study. The information

is usually stored within the service composition

phase (8).

Service Log:

The service log captures specific events occurred

during the service execution. In our framework we

are particularly interested in events related to data

updates and changes. It is necessary to detect what

service instance in what composite service instance

writes what data to the database. Since in the most

service compositions the access to the service

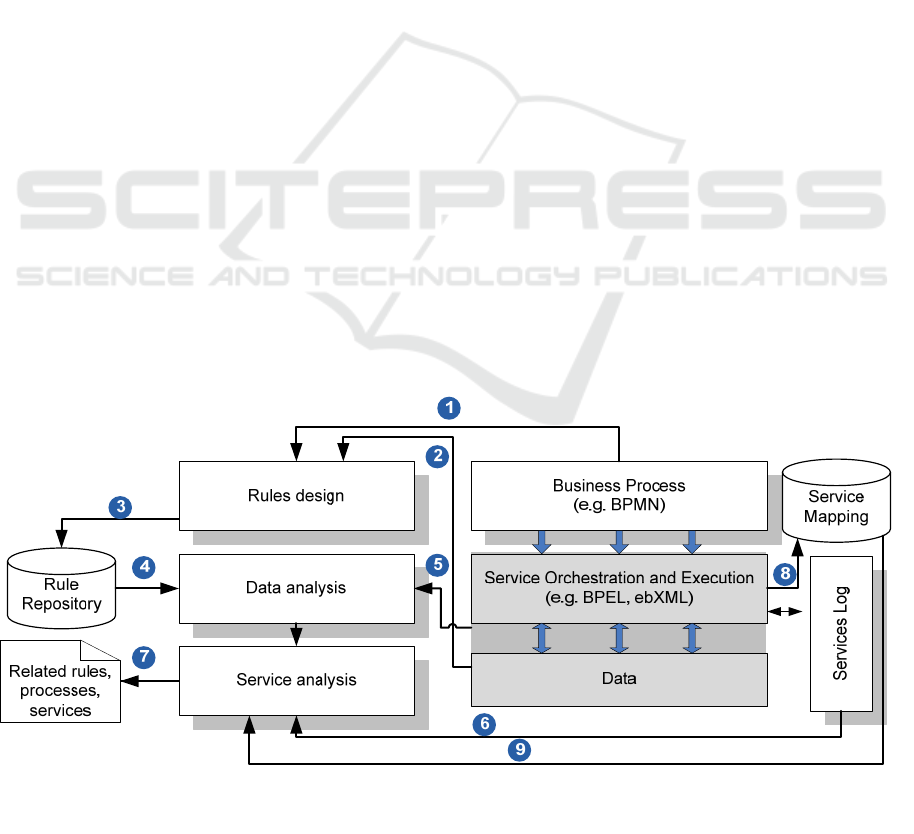

Figure 4: Data problem discovery framework.

Discovering Data Quality Issues in Service-oriented Architectures - A Framework and Case Study

database is indirect, we cannot mine the data directly

Therefore our framework will work with the already

‘digested; data from service interface described with

WSDL. All these information should be stored in the

service log (9).

Although there are approaches to specify log

formats (Gaaloul, 2008), current approaches such as

the Common Log Format and Combined Log

Format of W3C are not sufficient for our approach

as they are not directly able to represent the required

information. Therefore, we propose a practical

oriented log file. The log file entries contain

following information:

<Entry>

<srv_location> …</Srv_location>

<Service_ID>… </Service_ID>

<instance_ID>… </ instance_ID>

</Entry>

The XML template can handle all data needed

for recording a problem.

<endPointName> tag will

store the interface name of the service, while

<operationName> tag will store the function

delivering the error.

Data and Service Analysing

This component analyses the data produces by the

endpoint of the service against the rule repository.

Information about the service and data content

produced is reported using Service log template.

3.2 Problem Localization Framework

Problem localization process (figure 3 (2)) is a part

of overall data quality analysing process. This

process aims to provide approximate problem

location, since the problem can involve two or more

services. In fact, in service orientation environments

it is very likely that the problem is either in one or

another service.

In order to localize the potential error giving

service, we will propose localization framework will

provides us with estimate solution. To do so, we will

use the service log delivered by the problem

detection framework during the data issues

discoverer stage (figure 3 (1)). Moreover we will use

the Quality of Service (QoS) properties of the

‘infected’ services to decide which one is more

likely to be the source of the problem.

Base on approach above, we developed a

framework that is represented in Figure 5.

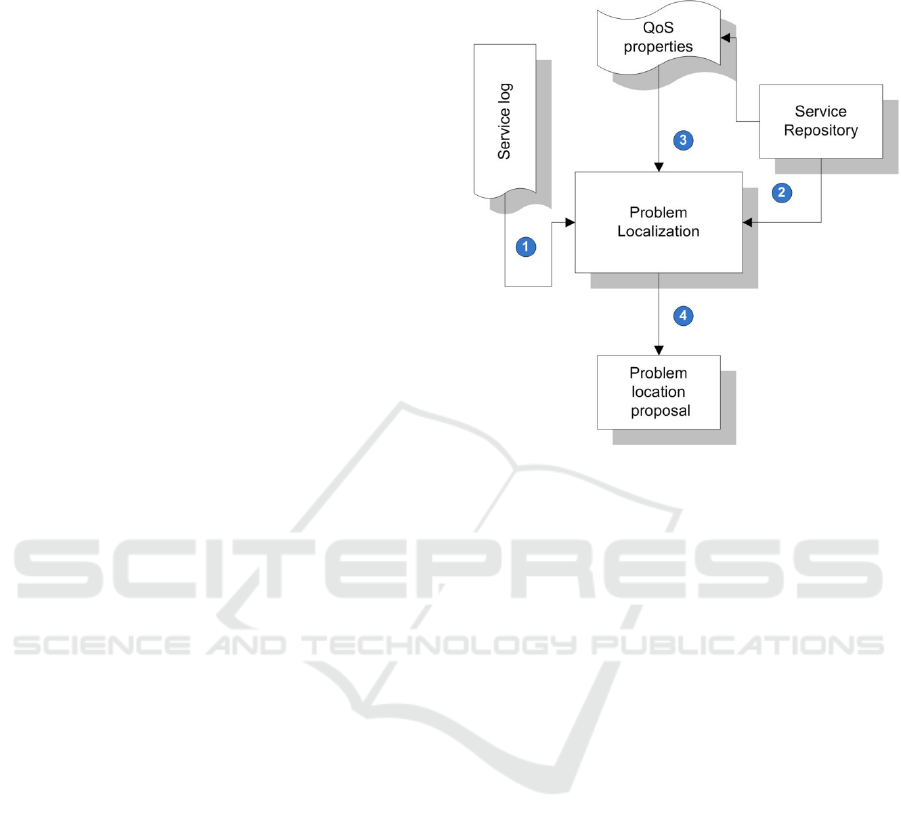

Figure 5: Framework for data problem localization.

The following paragraphs describe the main

elements of our framework.

Service Log

In section 3.1 we proposed a framework for

detecting quality issues and notating the services that

produce data into a XML log file. We also proposed

exhaustive log format that provides our localization

module with needed information.

The service log is been generated during the first

stage (discovery stage) of analysing process and acts

as a starting point for this framework. Logged data

then is passed to the ‘Problem localization’ element

(1) to be processed.

Service Repository and QoS Properties

Service Repository in a place where services

descriptions are store. Usually this repository is

called Universal Description Discovery and

Integration (UDDI) and supplies the ‘Problem

localization’ with service information (2).

Quality of Service block is vital in this

framework. This element contains all list with all

QoS properties concerning given Service(s). QoS

dimensions often refer different criteria but most of

them include execution price, execution duration,

availability and reliability. Reliability criteria are

maybe one of the most important one, in order to

localize objectively the problem. By reliability we

mean, least error productivity and least time that

Second International Symposium on Business Modeling and Software Design

service is out-of-order. For the sake of brevity, we

will not discuss QoS criteria further.

The QoS criteria are granted (3) to the

localization element for further treatment.

Problem Localization

Problem localization is the core element in our

structure. It provides the framework with the

following functionalities:

• collects the necessary data from the Service log

and Service repository along with appropriate

Quality of Service properties i.e. out-of-order

delivery

• performing a comparison (based on QoS

criteria) of the problematic services.

• prioritise the services using ‘the least reliable,

the more likely to be problematic’ method.

• ability to tracing a problem

• working up a detailed report and proposing

approximate problem location(4).

As you can perceive, because of the duality

nature of the problems, our methodology can

provide only rough solution of the problems.

Therefore we strongly recommend manually

examination on the generated by localisation

framework report and further investigation of

problems.

In the next chapter we will apply our data

analysing framework to given simple ‘package

booking’ study case.

4 CASE STUDY AND

DISCUSSION

The following case study illustrates the developed

framework with a common service that provides the

booking of travelling packages. The case study is

motivated by a real case study. Initially, customers

search information about available travel packages,

and then subsequently may book a flight and a hotel.

Once the booking is completed, the user pays the

total amount and confirms the booking.

Alternatively the user may cancel the booking. We

developed a service oriented application for Travel

package booking and analyzing data quality of the

application along the two phases: preparation and

analyzing.

Initially, a conceptual business process model for

the booking travelling package is modelled. Next,

the service composition process is realized; the

mapping information between the tasks of the BP

and individual services are stored. We suppose this

is a design time service composition. The service

composition can be described with BPEL based on

the orchestration depicted in Figure 6.

The composite service Booking package is

composed of a set of available services: Book Flight

service, Book Hotel service, and Payment service.

The flows of data/message between services are also

described in the orchestration.

Mapping services and tasks in BP are as

following table:

Table 2: Service mapping.

  

  



  





 



 

  



   





 



 

  



   





4.1 Analysing: Problem Discovery

Stage

Once the study case framework is deployed and all

service contacts are made we are ready to move to

analysing stage and problem discovery stage. Mind

that business rules sored into rule repository are

design according to the business model,

For our case scenario we propose the following

rules:

R1: If the booking is confirmed then the

payment must be fully paid. This rule relates to

Payment task and Confirm booking task (see Figure

6) and is described with pseudo logic predicate

language as follows:

If PackageBooking.Status =

‘confirmed’ then

Payment.Status=’Full_Paid’

R2 and R3 relate to the Booking task and

Payment task. These rules state that if the Flight or

Hotels is booked, it must be paid:

R2:

If Flight.Status = ‘booked’ then

Payment.Status=’Paid’

R3: If Hotel.Status = ‘booked’ then

Payment.Status=’Paid’

Once the rules are set up the needed data is ready

to be retrieved through services endpoints. Then this

data is analysed against the rules we composed.

If there is any data that violates a rule, then the

related operation will be identified based on

information stored in the rule repository. For

example, we will focus on R1 and suppose there are

incorrect data produced of the services it scope.

Discovering Data Quality Issues in Service-oriented Architectures - A Framework and Case Study

Table 3: Service Log Report.

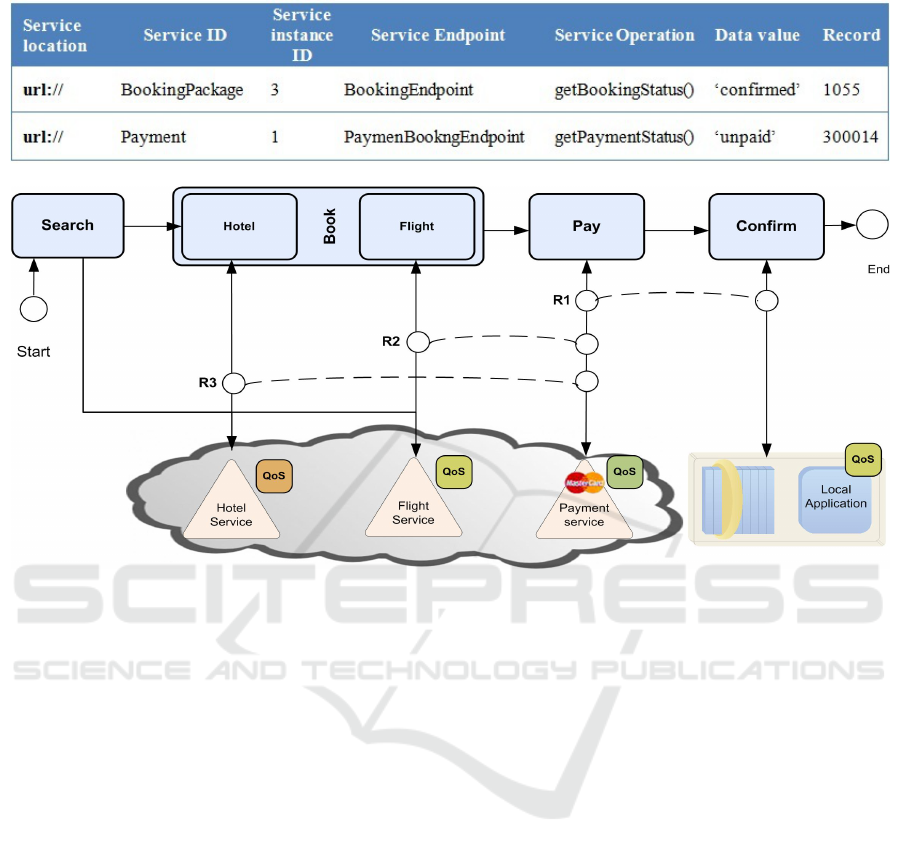

Figure 6: Booking package service composition.

Assume there is a confirmed Booking which is not

fully paid. This relates to two service operation; one

related to the Booking (the local one) service and the

other to the Payment service. The rule R1 is related

to the tasks Payment and Confirm booking. A log

extraction of the occurred problem discovery is

displayed in Table 3.

The service log file records that during the

discovery stage the service BookingPackage returns

through its endpoint booking status of ‘confirmed’

while Payment service returns value of ‘unpaid’.

From the above information, we can identify that

the cause of the incorrect data is related to the

Payment service and the BookingPackage composite

service.

Although this is not enough to identify which of

the listed services is the problematic one. That is

why we will put into further investigation our

generated log file in next stage – ‘Problem

localization’.

4.2 Analysing: Problem Localisation

Stage

In this stage we will examine produced XML log in

the discovery stage, while taking into account the

QoS criteria of involved services. Based on detected

problem by the first module and the QoS properties

of the services, the second module will be able to

recommend a particular service where the problem

stems from.

It is very important that Quality of Service

criteria apply to all services which are part of the

problem. It is also essential that QoS criteria are

chosen in the context of the services and the

business process. Failing to fulfil the latter

requirements will result in invalid estimation by the

error localization module.

In our framework we will adhere to service

reliability QoS criteria. Reliability property of a

service can be number of errors generated for certain

period of time or time that service is out-of-order.

In this study case scenario we will take into

account number of erroneous transactions per

10000 units.

We want to remark that this is only example

criteria and there are many other criteria that

services can be compared. This is very important in

cases where two services have similar indexes.

Bearing in mind the aforementioned QoS property

and the affected services we apply our problem

localization framework. Problem localization then

Second International Symposium on Business Modeling and Software Design

performs a comparison based on the selected criteria

and prioritise the services using ‘the least reliable,

the more likely to be problematic’ method. Applying

to ‘booking package’ scenario, it will generate a

report which is given in Table 4.

Table 4: QoS Report Chart.

Service name QoS* Priority

Booking

Package

107/10000 1

Payment

12/10000 2

As the QoS dimensions may differs, for every

QoS criteria a new chat will be generated. The table

above shows that QoS measured for booking

package service is 107 incorrect transactions per

10000 committed while payment service gives only

12 per 10000. This comparison makes payment

service more trustworthy than the booking package

service. Therefore the source of the problem is more

likely to be the Booking package Service.

Despite of our efforts to deliver approximate

location of the problem, we do not disregard the

chance that the error may occur in the more

trustworthy service. That is why we encourage for

manual investigation by the system analytic.

5 CONCLUSIONS

Inspired from research in the area of data quality and

service oriented architectures, in this paper we have

presented a framework for monitoring web service

composition and execution. More specifically, we

have separated the monitoring process into two sub

processes, namely ‘problem discovery’ and

‘problem localization’.

We have proposed a framework and illustrated

relevantly every sub-process. The framework was

demonstrated using a case study.

Our problem discovery framework follows a

data quality management approach and incorporates

business rules concept. The core of latter is based on

the comparison of the business rules and the data

output of the services. Problem localization

framework, on the other hand, uses the output of the

first framework and the functional Quality of

Service criteria to provide system analytic with

approximately location of the problem.

Our approach differs from others well known

approaches by inspecting data delivered by the

services and Quality of Service properties.

In future we aim to improve the service log

technique in the discovery module as well as expand

some quality of service criteria used in localization

stage. We also aim to apply the concept in further

case studies.

ACKNOWLEDGMENTS

This work was supported by the Irish Research

Council for Science, Engineering and Technology

(IRCSET) under the Postgraduate Scholarship

Scheme.

REFERENCES

Agarwal V, Chafle G, Mittal S, Sribastava B (2008)

Understanding Approaches for Web Service

Composition and Execution, COMPUTE '08

Proceedings of the 1st Bangalore Annual Compute

Conference, ACM

Bubenko J, Jr & Wangler B (1993) Objectives driven

capture of business rules and of information systems

requirements. Proceedings of the International

Conference on Systems, Man and Cybernetics, 670

Fishman, Neal A. Viral Data in SOA: An Enterprise

Pandemic. IBM Press, 2009.

Gaaloul W, Baїna K, Godart C (2008) Log-based mining

technique applied to web service composition

reengineering, Service Oriented Computing and

Applications 2, pp.93-110.

Herbst H (1995) A meta-model for specifying business

rules in system analysis. Proceedings of CaiSE’95,

186–199.

Jeong B, Cho H, Lee C (2009) On the functionality

quality of service (FQoS) to discover and compose

interoperable web services, Expert Systems with

Applications 36, pp.5411-5418.

Morgan T (2002) Business Rules and Information

Systems: Aligning IT with Business Goals, Addison-

Wesley, Boston, MA.

Narendra NC, Orriens B (2007) Modelling Web Service

Composition and Execution via a Requirement-Driven

Approach, ACM SAC’07, Korea.

Papazoglou M.P, Traverso P, Dustdar S, Leymann F

(2007) Service-Oriented Computing: State of the Art

and Research Challenges. IEEE Computer,

November, 64-71.

Silva E, Pires LF, Sinderen MV (2009) On the support of

Dynamic Service Composition at Runtime, Springer-

Verlag, ICSOC’09.

The Business Rules Group: www.thebusinessrules

group.org

* incorrect transactions per 10000 units

Discovering Data Quality Issues in Service-oriented Architectures - A Framework and Case Study

The Open Group: Service Oriented Architecture, http://

www.opengroup.org/projects/soa/

Thoa P., Helfert M. Monitoring Information Quality

within Web Service Composition and Execution.

Dublin City University, ISD 2011.

Zhang D (2004) Web Service Composition for Process

Management in E-Business. Journal of Computer

Information Systems pp.16-18.

Zeng L, Benatallah B, Dumas M, Kalagnanam J, Sheng

QZ (2003) Quality Driven Web Service Composition,

ACM WWW.

Wand Y, Wang R. (1996) Anchoring Data Quality

Dimensions in Ontological Foundations,

Communications of the ACM, November 1996. pp.

86–95

Wang R (1998) A product perspective on total data

quality management. Communication of ACM 41

Second International Symposium on Business Modeling and Software Design
