3D Interaction Assistance in Virtual Reality: A Semantic Reasoning

Engine for Context-awareness

From Interests and Objectives Detection to Adaptations

Yannick Dennemont, Guillaume Bouyer, Samir Otmane and Malik Mallem

IBISC Laboratory, Evry University, 40 rue du Pelvoux, 91020 Courcouronnes, France

Keywords:

Interaction Techniques, Virtual Reality, Context-awareness, Intelligent Systems, Knowledge Representations.

Abstract:

This work aims to provide 3D interaction assistance in virtual environments depending on context. We de-

signed and implemented a generic decision engine that can connect to our existing virtual reality applications

through a set of tools. It uses an ontology and Conceptual Graphs (CGs) to represent knowledge, and First

Order Logic to conduct semantic reasoning. Context information are gathered by virtual sensors in the ap-

plication and interpreted by the engine. Multimodal assistance is provided by virtual actuators. Our ﬁrst test

scenario is about assistance to selection of objects or navigation towards objects: the engine automatically

detects user’s interests and manages adaptations depending on user’s hand gestures, interactions history and

type of task.

1 INTRODUCTION

Tasks in immersive virtual environments are associ-

ated to 3D interaction (3DI) techniques and devices

(e.g. selection of 3D objects with a ﬂystick using

raycasting or virtual hand). As tasks and environ-

ments become more and more complex, these tech-

niques can no longer be the same for every applica-

tions. A solution can be to adapt the interaction (Bow-

man et al., 2006) to the needs and the context in order

to improve usability, for example:

• to choose other techniques (”speciﬁcity”) or make

techniques variations (”ﬂavor”)(Octavia et al.,

2010);

• to add or manage modalities(Irawati et al.,

2005)(Bouyer et al., 2007)(Octavia et al., 2010);

• to perform automatically parts of the task (Celen-

tano and Nodari, 2004).

These adaptations can be done manually by the devel-

oper or the user, or automatically by the system: this

is ”adaptive” or ”context-aware” 3DI. This open issue

enables to:

• speed up the interaction (Celentano and Nodari,

2004);

• diminish the cognitive load (as in ubiquitous com-

puting);

• tailor the interaction (Wingrave et al., 2002) (Oc-

tavia et al., 2010);

• add or manage interaction possibilities (Bouyer

et al., 2007).

In order to go beyond basic interaction (Fig. 1), adap-

tive systems can ﬁrst provide recognitions from raw

data. Usually they focus on the user and an activ-

ity recognition layer. But to achieve a better adaptiv-

ity, more content is needed: the context. The context

regroups information from potentially every entities

and can be used by the application to react and assist

the interaction. A formal and well recognized deﬁni-

tion is (Dey and Abowd, 2000): Context is any infor-

mation that can be used to characterize the situation

of an entity. An entity is a person, place, or object

that is considered relevant to the interaction between

a user and an application, including the user and ap-

plications themselves. Thus, an ideal system for 3DI

assistance is context-aware as it uses context to pro-

vide relevant information and/or services to the user,

where relevancy depends on the user’s task.

Figure 1: Different layers to reach adaptive interaction.

349

Dennemont Y., Bouyer G., Otmane S. and Mallem M..

3D Interaction Assistance in Virtual Reality: A Semantic Reasoning Engine for Context-awareness - From Interests and Objectives Detection to

Adaptations.

DOI: 10.5220/0004207503490358

In Proceedings of the International Conference on Computer Graphics Theory and Applications and International Conference on Information

Visualization Theory and Applications (GRAPP-2013), pages 349-358

ISBN: 978-989-8565-46-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Context-awareness emerged from intelligent systems

(Br

ezillon, 2011). Some drawbacks were due to fully

abstract reasoning or user exclusion. Intelligent assis-

tance systems can be split in two trends. Systems tend

to stress user assistance on well deﬁned context (e.g.

(Bouyer et al., 2007)) or to stress context identiﬁca-

tion that leads to direct adaptations for each situation

(e.g. (Coppola et al., 2009)(Frees, 2010)). Context-

awareness has different focuses (Fig. 2), though there

is a shared ideal list of properties to handle (Bettini

et al., 2010):

• Heterogeneity and mobility of context;

• Relationships and dependencies between context;

• Timeliness: access to past and future states;

• Imperfection: data can be uncertain or incorrect;

• Reasoning: to decide or to derive information;

• Usability of modelling formalisms;

• Efﬁcient context provisioning.

Figure 2: Different families of context-aware applications.

Our research is mainly in the adaptive 3D inter-

action ﬁeld. Yet, to achieve wider and better 3DI, a

richer context with semantic information and/or intel-

ligent agents is needed. Also reasoning needs grow

with the available information. So our approach is

generally part of the Intelligent Virtual Environments.

Adaptive 3DI can be implicit with adaptations

embedded in the interaction techniques (Poupyrev

et al., 1996)(Boudoin et al., 2008), or explicit by

using external processes (Lee et al., 2004)(Celen-

tano and Nodari, 2004)(Bouyer et al., 2007)(Oc-

tavia et al., 2010). Semantic virtual worlds can be

considered as a mixed form: explicit processes can

be applied but they are directly embedded into the

rendering loop for the speciﬁc semantic description

of the environment. Semantic virtual worlds as a

new paradigm is a discussed issue (Latoschik et al.,

2008). Several approaches offer to build full seman-

tic worlds (Latoschik et al., 2005)(Peters and Shrobe,

2003)(Lugrin and Cavazza, 2007)(Bonis et al., 2008).

Ubiquitous computing offers a lot of frameworks for

reaching context-awareness (Dey et al., 2001)(Ran-

ganathan and Campbell, 2003)(Gu et al., 2004)(Cop-

pola et al., 2009).

Finally how can we achieve a generic interaction

assistance for virtual reality? Firstly, we want to be

able to describe a generic assistance. Therefore we

can not base our project on works that focus on im-

plicit adaptations, on very speciﬁc assistances (com-

mand disambiguation (Irawati et al., 2005), recog-

nizing and doing part of the task for the user (Ce-

lentano and Nodari, 2004)), or on one emphasized

aspect of assistance (personalisation (Octavia et al.,

2010)). Secondly, we will not try to build a full se-

mantic world but to gather semantic information to

help the 3DI. This will allow the assistance to be used

by classic applications (which are the most common

for now). Thirdly, we want to be able to both iden-

tify a general context and to modulate our reasoning

(thus our assistance). That limits the reuse of previ-

ous work stressing strongly only one aspect ((Bouyer

et al., 2007)(Coppola et al., 2009)(Frees, 2010)). Fi-

nally, some frameworks are generic enough (exam-

ples and their comparison on Fig. 3) but not able

to describe any situations, to modify their reasoning

or difﬁcult to reuse/to expand (particularly when they

were thought for another domain). The choice of con-

text representation can be restrictive: low level key-

values (Dey et al., 2001); a ﬁxed list of data pairs (Lee

et al., 2004) or a ﬁrst order logic predicate with a tuple

argument (Ranganathan and Campbell, 2003) (which

Figure 3: Approaches comparisons.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

350

limits the ease to express complex relations and situa-

tions). Ontological approaches have richer and wider

range of representation but do not offer the same pos-

sibilities for reasoning modiﬁcation(Gu et al., 2004).

Thus, part of the reasoning is usually done by a sec-

ond method (often ﬁrst order logic).

To sum up, this research aims to model and de-

velop an explicit semantic context-aware engine for

common 3DI which:

• is generic; can represent any context and reactions;

• is usable, extensive and modiﬁable; performs se-

mantic reasoning with logical rules on an ontology;

• is pluggable; communicates with application tools:

sensors to retrieve the context, and actuators to

manage visual, audio and haptic modalities as well

as interaction modiﬁcations.

Users will beneﬁt from an automatic 3D

interaction assistance that can supply support

through modalities, interaction technique choice or

application-speciﬁc help depending on the current

situation. Besides, designers could reuse, rearrange

and modify this 3DI adaptivity to share reasoning be-

tween applications or to create application-speciﬁcity.

A good adaptive 3DI can also help to release the de-

signers from the prediction of every situations, thus it

should be able to deal with degree of unpredictability.

In the next section, we discuss our choices for

modelling context and reasoning to achieve these

goals. Afterwards the section 4 gives an overview of

the whole engine. The section 5 and 6 respectively

details the representations possibilities and the rea-

soning process to obtain automatic adaptations. The

section 7 presents a test scenario with examples of

adaptations and process parts. Finally the section 8

details our conclusion and perspectives.

3 REPRESENTATION

AND REASONING

We need to manage context and to decide how to re-

act, which is a form of Knowledge Representation and

Reasoning. Actually, our system needs ﬁrst to retrieve

and represent items of information, then to handle this

context and to deﬁne its effects on 3DI (discussed by

(Frees, 2010) for virtual reality). Several criteria led

our choice for the engine core: semantic degrees, ex-

pressiveness (vs efﬁciency) and usability.

We choose to base our representation on Concep-

tuals Graphs (CGs). They have a strong semantic

founding and are built on an ontology. They provide

a good expressiveness (a universal knowledge repre-

sentation (Sowa, 2008)(Chein and Mugnier, 2009))

equivalent to First Order Logic (FOL) but with a bet-

ter usability since they are also human readable. Se-

mantic networks are often picked to build the full se-

mantic world (Peters and Shrobe, 2003)(Lugrin and

Cavazza, 2007)(Bonis et al., 2008) which reinforces

our conviction for CGs.

The needed expressiveness is an open issue yet

You Can Only Learn What You Can Represent (Ot-

terlo, 2009). Thus, it is a fundamental question for

a sustainable use. FOL is usually the most expres-

sive choice made for context-awareness. Meantime,

semantic reasoning with an ontology is the most used

approach in context-awareness as it provides interop-

erability and a non-abstract representation. Moreover

coupled with the CGs usability, the model may al-

low at some point a welcomed direct users involve-

ment (Br

ezillon, 2011). Therefore using CGs, we ob-

tain re-usability and interoperability (ontological ap-

proach), sustainability and generality (FOL expres-

siveness) and the usability (graphs representation).

4 OVERVIEW OF THE ENGINE

The engine uses rules to take decisions regarding a

stored context (knowledge, events etc.). Context and

decisions concern the user, the interaction and the

environment, which communicates with the engine

through a set of tools (Fig. 4). Tools must have a

semantic description of their uses in order to be trig-

gered by the engine. They can be actuators with per-

ceivable effects (environment or interaction modiﬁca-

tions, services presentation etc.) or sensors that re-

trieve information (from the environment, by mon-

itoring the interaction or through direct information

from the user etc.). Those tools can embed other

forms of reasoning than the engine core (e.g Hid-

den Markov Models) to provide information. Fi-

nally, tools can also apply to the engine itself. Meta-

actuators, which have a perceivable effect on the en-

gine, are currently used (parameters or rules modiﬁ-

cations etc.). Meta-sensors could be used to call ex-

ternal reasoning possibilities ( e.g. data treatment).

Figure 4: An external engine - communication through se-

mantic tools.

3DInteractionAssistanceinVirtualReality:ASemanticReasoningEngineforContext-awareness-FromInterestsand

ObjectivesDetectiontoAdaptations

351

Thus the engine offers meta-adaptations possibilities

(it can modify itself depending on the context).

Context has various forms managed by the deci-

sion process (Fig. 13). First, the ontology lists con-

cepts and relations with underlying semantic, which

are used by CGs in order to describe rules and facts.

Available tools and the past events in history are spe-

cial facts. Events are newly integrated information

and trigger a decision request in an automatic mode.

The time manager checks the validity of the needed

facts. When a decision with an associated tool is true,

the engine aggregates its conﬁdence and impact from

facts, events’ timing and rules. An acceptable total

impact limits the decisions that can be made, which

induces a knapsack problem as a last classiﬁcation.

Figure 5: The engine - forms of context and reasoning.

We use Virtools as our scene graph manager and

the Amine platform (Kabbaj, 2006) (a Java open-

source multi-layer platform for intelligent systems)

for the engine. It offers an ontology manager and FOL

backward chaining that handles CGs: Prolog+CG

(PCG). Open Sound Control protocol (OSC) is used

for communication between the scene and the engine.

5 CONCEPTS USE IN THE

ENGINE

5.1 The Ontology

The speciﬁcation of the engine is to be easily modiﬁ-

able, reusable, and expanded by designers and users.

Therewith, we want to reason with ideas and situa-

tions rather than formulas. This is where the ontol-

ogy is important as it deﬁnes our semantic vocabulary

(written in italic afterwards). Next is a rough taxon-

omy of currently used concepts.

Reasoning Concepts. They are used to state what

is true (fact) and what is just a matter of discussion

(proposition); rules (effects depending on causes); de-

gree of conﬁdence in those concepts (e.g. Fig. 6 and

Fig. 7). But also what decisions can actually be made

(reactions like adaptations or questions, e.g. Fig. 8);

(a) CG fact (b) A general conﬁdence (c) Event with conﬁdence and time

Figure 6: Facts examples.

Figure 7: Rule example: the enhancement will of an interest.

(a) An adaptation to color an object

(b) A question to ask for a gesture direction

Figure 8: Reaction possibilities examples.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

352

Reiﬁcation Concepts. They are used to manage

tools, like sensors or actuators. Descriptions include

commands to be sent for speciﬁc uses and their im-

pacts (e.g. Fig. 9) depending on cases (e.g. Fig. 10);

3D Interaction Concepts. They are the main focus

of the overall generic engine. So we need to describe

various modalities, tasks etc.

Time Concepts. They are used to manage new

facts, events (fact with a date and a duration) (e.g.

Fig. 6), historyof previous events and reactions.

Spatial Concepts. They are used to manage posi-

tion, direction etc. In virtual environment, a lot of the

spatial issues are in fact handled by the scene graphs

manager. But zones like auras or focuses are useful to

understand the current activity.

General Concepts. They are a base vocabulary to

describe situations. For example to manipulate at-

tributes like identity or express active states.

Application Speciﬁc Concepts. Applications can

expand the knowledge base with their own concepts.

For example gestures that can be named (’Z’), and/or

classed (right and up are also rectilinear gestures).

Let focus more on two concepts used to classify

reactions (detailed in the section 6). We use conﬁ-

dence that represents the degree of sureness of an in-

formation. For a reaction, it thus reﬂects the degree

of certainty that this decision can be applied in the

current situation. Impact is speciﬁc to reactions and

represents the degree of their perceived repercussion

for the user. The initial value of impact is supplied by

the tool used to reify the reaction (an intrinsic degree

of repercussion). Then the actual impact can be mod-

iﬁed depending on the current situation, which leads

to the expression of inﬂuential cases.

5.2 Conceptual Graphs

Situations and reactions to situations can now both be

described using CGs, built on those concepts and clas-

siﬁed using CGs theory. In a ﬁnal form, every logical

combinations in a CG (that a user could enter) should

be handled. Next are some examples illustrating dif-

ferent categories of context and reasoning:

Facts. Fig. 6 represents different information re-

garding a similar situation, about an object of interest

with the identity ”table”. On ﬁgure 6a the situation is

currently true. Figure 6b is an expression of the gen-

eral conﬁdence about this type of situations (without

assuming its realization). Fig. 6c is an event (send by

a sensor) with a date and an initial conﬁdence.

Rules. Fig. 7 represents a general rule: if an object

is a known interest then the engine will try to enhance

(a) The color actuator

(b) The gesture direction sensor

Figure 9: Tools examples.

Figure 10: Impact increase case example: to avoid activation/reactivation cycle.

3DInteractionAssistanceinVirtualReality:ASemanticReasoningEngineforContext-awareness-FromInterestsand

ObjectivesDetectiontoAdaptations

353

this object. This rule is associated with a high conﬁ-

dence; the situation is most probably true regardless

of the remaining context.

Reactions. Fig. 8a is an example of general adapta-

tion describing the action of modifying the color of an

object, which is a type of visual modiﬁcation. Fig. 8b

is an application speciﬁc question to obtain the direc-

tion of a gesture.

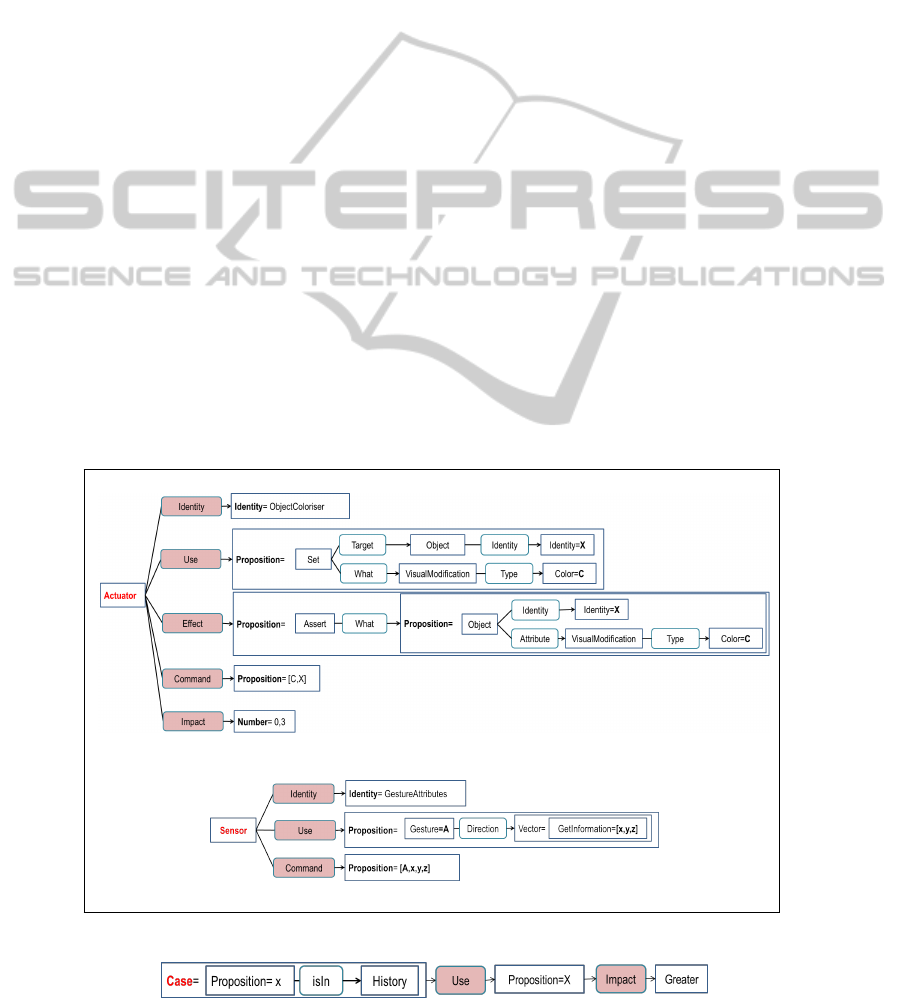

Tools. Fig. 9a and Fig. 9b are tools able to imple-

ment the previous reactions. In fact, their descriptions

of use are here exactly the reaction descriptions (they

are relatively general tools). Nevertheless they could

be more speciﬁc (e.g. a special tool to color a speciﬁc

subtype of objects etc.). Impact of the color actuator

is low (compared to an attraction for example) and the

impact of the sensors is null (as completely transpar-

ent for the user).

Cases E.g Fig. 10 shows a situation that can mod-

ify the impact of reactions: the impact of a decision

already in the history will increase. This will help to

avoid activation/deactivation cycles.

6 REACTIONS PROCESS

How are those concepts and conceptual graphs used

by the engine to obtain ﬁtting reactions? They are

handled by our Prolog meta-interpreter. It uses con-

cepts deﬁnitions to be able to deal with forms of truth

(as a PCG element, as a fact description, as a CG rules

effect etc.), degree of truth (conﬁdence) and times (du-

ration validity, history etc.). At any time, the engine

stores context elements (facts, events, etc.). When an

application needs a ﬁtting reaction (after a new event,

when ordered by the user, etc.), it sends a decision

request. The engine then uses the meta-interpreter to

seek eligible reactions. Those are true adaptations

and questions (e.g Fig. 8) with an available associated

tool (e.g. Fig 9).

In order to classify those decisions, we calculate

both the conﬁdence and the impact of each decision.

For any CGs, and thus also for reactions, a list of con-

ﬁdence is obtained by considering all paths leading to

them. Each path can combine different conﬁdence ex-

pressions:

• A direct corresponding PCG fact (e.g. Fig 6a) has

the maximum conﬁdence: 1;

• A CG with a supplied conﬁdence or expressing

generic knowledge conﬁdence (e.g. Fig. 6b);

• An event conﬁdence (e.g. Fig. 6c). Its conﬁdence

is time dependant as the initial conﬁdence is multi-

plied by the ratio of remaining validity.

• A CG rule induced conﬁdence (e.g. Fig. 7). If

true, the effects conﬁdence are the average causes

conﬁdences times the rule conﬁdence (0 instead).

It is an iterative process.

We use a conﬁdence fusion function to convert this

list into a single scalar. We consider that the more

facts and rules led to a reaction, the more the conﬁ-

dence in it should increase, while kept bounded be-

tween 0 and 1. So for n conﬁdences with Mean

as average value: Globalconﬁdence = (1 − Mean) ×

(1 −

) × Mean + Mean. The global conﬁdence

is still 0 (respectively 1) in case of absolute false

when Mean = 0 (respectively absolute true when

Mean = 1) and singletons are not modiﬁed.

Next, the engine aggregates the decisions im-

pact. Each tool has an initial impact which is mod-

iﬁed given speciﬁc cases. Initial impact equals to

0 (without any impacts) or 1 (with the most im-

pact) are not modiﬁed. Otherwise, at each n appli-

cable case, the impact is altered with a weight (W ,

25% if not valued in the CG) while kept bounded:

impact(n) = impact(n − 1) − W × impact(n − 1) for

a lower impact or impact(n) = impact(n − 1) +W ×

(1 − impact(n − 1)) for a greater impact . Thus

smaller steps are made for already extreme values

(e.g. keeping very effective adaptations reachable).

Finally, decisions with a conﬁdence on impact ra-

tio greater than a threshold (1 by default) are eligible.

Then, eligible decisions are selected to ﬁll the limit

of the total amount of impact usable. Thus this last

classiﬁcation is a knapsack problem. The available

impact is the initial user impact total (a ﬁrst step into

proﬁling the user) minus the active decisions impact.

7 CASE STUDY

7.1 Scenario Examples

We test the engine with a case study: to try to auto-

matically acquire some user’s interests and enhance

them. The interests are here linked to the user’s hand.

We use the ﬂy-over interaction technique (Boudoin

et al., 2008). It is an implicit adaptive technique

which offers a continuous interaction by detecting au-

tomatically the current task based on the cursor posi-

tion. We use it as our 3D interaction base conjunc-

tively to the engine. Besides, the task information

is retrieved from ﬂy-over which thus becomes a task

sensor for the engine. The application tools are pre-

sented in Fig 11. The engine uses general rules as to:

1. Deﬁne possible interests:

a) inside of a Zones Of Interest (ZOI);

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

354

b) a previous interest in history.

2. Deﬁne possible objectives :

a) selection of an object.

b) navigation towards an object.

3. Deﬁne the will to enhance interests:

a) a general will for all interests (Fig. 7 ).

b) exceptions when an interest is part of a accom-

plished objective (e.g object selected).

4. Deﬁne possible enhancements:

a) object visual modiﬁcations: color change.

b) interaction modiﬁcations: visual/haptic force.

5. Deﬁne possible objectives assistances :

a) select an object for a selection objective.

b) Move toward an object for a selection or a nav-

igation objective.

6. Manage adaptations states:

a) remove visual modiﬁcation for past interests;

b) remove a currently applied force if the move-

ment is abnormal (e.g local+high=the user is

”stuck”).

7. Manage decisions impacts:

a) increase impact for some concepts: haptic

impact> visual impact; interaction modiﬁca-

tion impact > visual modiﬁcation impact;

b) increase decision’s impact if present in history

(Fig. 10);

c) decrease interaction modiﬁcation’s impact for

local movement.

8. Deﬁne engine meta-adaptation:

a) switch between engine conﬁgurations on the

type of request (manual if the decision request

came from the user)

b) increase the total impact and decrease the de-

cisions threshold for manual conﬁguration.

c) decrease the total impact and increase the de-

cisions threshold for automatic conﬁguration.

Finally, the application speciﬁc rules are:

9. Monitor the hand movement;

10. Ask for detected gesture attributes ;

11. Activate or deactivate a ZOI around the hand if a

circular gesture occurred;

12. Activate a ZOI in the direction of the gesture if a

rectilinear gesture occurred;

13. Deactivate this direction ZOI after 3s.

14. Deactivate every adaptations if the ”Z” gesture is

detected.

7.2 Discussion

As a result, the rules combine themselves as expected

(adaptations examples Fig. 12), but with supplemen-

tary outcomes which were not fully planned. Those

Type Name Aims

Sensor ZOISens Add and report the con-

tent of 3D zones

PtFocus Report the current ob-

jects beneath the pointer

as interests

SelSens Report selected objects

FOTaskSens Report the current task

GestureSens Send recognized ges-

tures name and attributes

MvtSens Qualify movement

speed as high or low

and movement scope as

local or global

AutoSens Report if the decision is

requested by the user or

automatically

Actuator ColorActu Change the color of an

object

ForceActu Add a haptic or a visual

force to an object

ZoomActu Center the camera/zoom

on an object

SelActu Add an object to the ac-

tive selection

Meta-

Actuator

ConfUser Modify user attributes

(e.g the total impact

available, the conﬁdence

on impact ratio threshold

etc.)

Figure 11: Applications available tools.

results depend on the initial impact, conﬁdence and

total admissible impact values.

Interests and Objective Detection. In fact, there

are several interest types: explicit, by creating

voluntarily a ZOI (rules 1.a, 11, 12) or by centering

the pointer on an object (PtFocus sensor), or implicit,

either by moving rectilinearly toward an object (thus

creating a ZOI: rules 1.a, 12) or by considering

previous interest (rule 1.b). Conﬁdence fusion of

those information leads to the detection of the major

interests, which should be the ones enhanced (rules

3). Objectives are speciﬁc recognized activities

usually implicating an interest in a deﬁned situation

(rules 2). Objectives conﬁdence depends on interests

conﬁdence but they have their own adaptations (rules

5).

Reactive Adaptations: Interest Enhancements

A Single Interest: Movement Inﬂuence. With an

activated ZOI around the hand (rule 11), passing by

3DInteractionAssistanceinVirtualReality:ASemanticReasoningEngineforContext-awareness-FromInterestsand

ObjectivesDetectiontoAdaptations

355

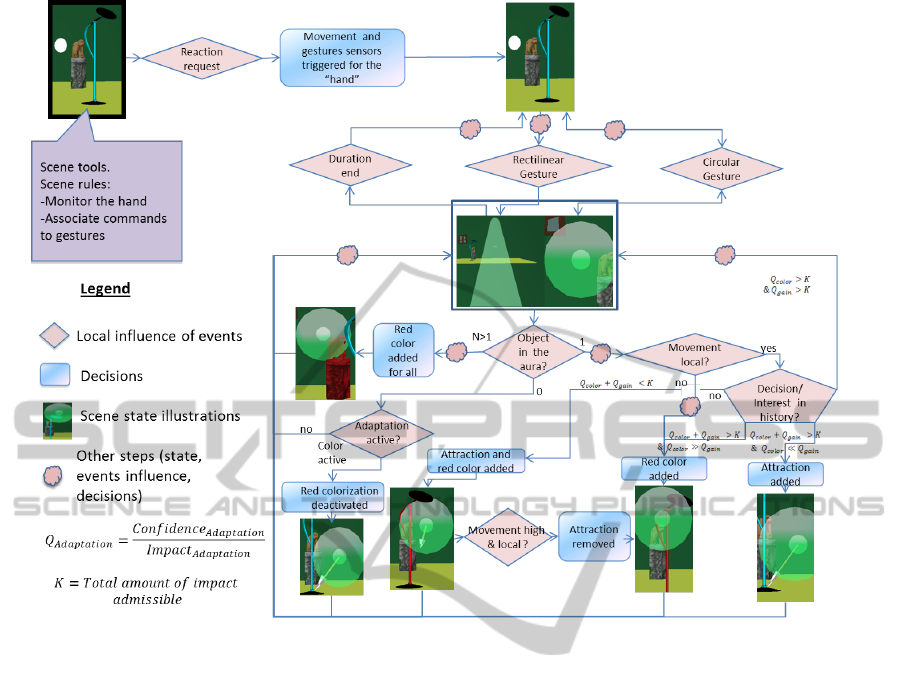

Figure 12: Illustration of some automatic adaptations depending on the context.

an object colors it red (rules 4.a, 7.a), while standing

next to it makes it also attractive (as movement is then

local, diminishing the attraction impact rules 4.b, 7.c).

Colors are reset when the user moves far away while

attraction is removed when the user tries to resist it

(rules 6). When pointing an object or when mov-

ing toward an object during a global movement (rule

12), the object is colored red (rules 4.a, 7.a). When

pointing an object from a rest position or starting a

new movement directly toward an object (rule 12), it

makes it also attractive (rules 4.b, 7.c: not intended at

ﬁrst, this primary intention can be highlighted due to

the latency of the movement scope sensor, which still

points the movement as local). Colors are reset after

this ZOI deactivation (rule 13).

History Inﬂuence. In both previous cases, when

pointed several times as an interest (thus present as

several current facts or history facts, rule 1.b) at-

traction can be activated regardless of the movement

scope (global or local). When it has been deactivated,

attraction usually cannot be reactivated for a time cor-

responding to history memory (rule 7.b). Some reacti-

vations occur for coloring as the decision has initially

less impact. Moreover depending on the color actu-

ator impact and the history, the coloration time can

vary and can even ﬂash for a while (not intended at

ﬁrst). Indeed an object can be simultaneously inter-

esting enough to trigger the coloring adaptation (rule

4.a) and not enough to avoid the color reset (rule 6.a).

In result, if an object has at a time a sufﬁcient inter-

est and then seems abandoned by the user, the ob-

ject ﬂickers for a while before its interest conﬁdence

reaches lower level. This is also a (unplanned) mean

to attract the user attention.

Several Interests. More complex situations occur

when several objects are close to the hand: e.g only

adaptation with the less impact (coloring, rule 4.a)

is applied to a maximum of objects (even if for now

there is no speciﬁc treatment for groups, the most ﬁt-

ting adaptations is applied until there is no more ad-

missible impact thus a group logic emerged). Situa-

tions are very various when several interests are spot-

ted with more different conﬁdences.

Pro-active Adaptations: Tasks Shortcuts. With

the current task known (e.g selection or navigation),

objects of interest can be interpreted as objectives (re-

spectively to select an object or to navigate toward

it, rules 2). Then if the interest conﬁdence is high

enough, a zoom on an object can occur (rule 5.b). In

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

356

the case of the selection task, the object automatic se-

lection can happen (rule 5.a). Those adaptations are

pro-active as parts of the supposed intended task is ac-

tually done for the user. But those decisions are scarce

since a lot of rules are involved. Thus the remaining

conﬁdence is usually low whereas the decisions im-

pact is relatively high. Finally, a selected object is no

longer the target of enhancement (as we can assume

that the user is then well aware of it or has achieved

this sub-objective, rule 3.b)

Meta-adaptations. The easiest way to obtain the

previous pro-active adaptations is to switch to the

manual mode. This reduces the engine requirement

for adaptation through the meta-actuators (rules 8).

Indeed if a user is the source of the adaptation re-

quest, the assistance need and a possible objective are

very likely. With lower requirement in this context,

a medium conﬁdence is enough to obtain those assis-

tances (a fulﬁlment of parts of the task, rules 5) .

Scenario Conclusion. Using the engine, we have

successfully obtained an adaptations manager. The

engine context and reasoning parts can also be

grouped by their current role for the adaptations (Fig-

ure 13). The situation progresses with two inter-

laced processes: decision and comprehension. The

decision process goes from representing the situation

to reasoning, and transforms simple facts conﬁdence

into the best reaction bet. The comprehension pro-

cess goes from identifying the situation to understand-

ing how to assist (thus managing the two context-

awareness trends) and transforms simple data to a po-

tential full plan of the situation. The decision set is

extended as the comprehension progresses. Based on

the current events and knowledge, more information

can be requested. Then adaptations are unlocked as

the situation identiﬁcation progresses. Reactive adap-

tations are available when an interest is acquired (e.g.

the enhancement reactions). While still progressing

Figure 13: The adaptations manager realized with the en-

gine (planning is not available yet).

through our reasoning and comprehension (e.g. fus-

ing the interest information), objectives can be de-

ducted and pro-active reactions obtained (e.g. the se-

lection of a speciﬁc object). Meta-adaptations can be

applied at each level (e.g. ease the reactions require-

ment based on the automatic mode information). All

those reactions choices, parametrisation and reiﬁca-

tion depend on the current activity context. By having

a semantic engine, it is easy to interfere on each con-

cept. For example, a tool to retrieve the interests and

their conﬁdence from the engine can be used in order

to beneﬁt directly from the identiﬁcation part. And

the user can specify his objective to the engine and

beneﬁt directly from the assistance (without using au-

tomatic interest sensors to identify his intention).

8 CONCLUSIONS

The engine aims to allow a semantic reasoning and

the reuse of tools in a non-semantic environment to

help the 3DI. We propose an engine core with a se-

mantic base to achieve adaptation, which could be

directly addressed by designers or users. Context-

awareness properties (page 2) are almost all tackled

but need deepening. The engine response delay is not

well suited for a full automatic mode yet, but rather

for punctual helps. This drawback can be lessened

but is an inherent part of our approach.

By adding a planning block later, we could reﬁne

the adaptations and allow more tools combinations.

Indeed active decisions could be replaced by better

ones in a new context. This currently can be done

by freeing the currently used ”impact” and rethinking

all adaptations at each decision process. However, it

is a particular case of a more complex resources and

world states planning.

Besides, we have started adding direct control

of the engine. This part emphasizes the engine tai-

lorability since changing the control from a gesture

to another, or to any events, can easily be done di-

rectly into the engine (rather that remodelling applica-

tion parts). And as a 3DI rules set can be reused, any

applications can add their own rules set and controls

possibilities. Also, the gestures recognition can be

used to monitor the user activity and to deduce hints

of intention. A possibility is to use our HMM recog-

nition module on other data (than the 3D position) in

order to learn and classify interesting situations.

Moreover, we can also enhance the task detection

based on more context information than the ﬂy-over

position information. In fact this is a reinterpretation

of this technique by splitting it in two and by insert-

ing the engine in the middle. We use the sensor part

3DInteractionAssistanceinVirtualReality:ASemanticReasoningEngineforContext-awareness-FromInterestsand

ObjectivesDetectiontoAdaptations

357

which deduces the task based on the cursors position

(within the control model) and the actuator part which

is the selection of the control model (based on the

task). Nevertheless, we will keep ﬂy-over fully func-

tional and allow the engine to force the control model

through a speciﬁc actuator. In this case we beneﬁt

from both side: the good response time of ﬂy-over

and the ability to detect and manage more complex

task recognition situations when needed.

Our next steps are: to continue to explore con-

text, to make better tools descriptions and to allow

more combinations (thus to further exploit the avail-

able context ) and ﬁnally to proceed to engine evalua-

tions.

REFERENCES

Bettini, C., Brdiczka, O., Henricksen, K., Indulska, J.,

Nicklas, D., Ranganathan, A., and Riboni, D. (2010).

Pervasive and Mobile Computing.

Bonis, B., Stamos, J., Vosinakis, S., Andreou, I., and

Panayiotopoulos, T. (2008). A platform for vir-

tual museums with personalized content. Multimedia

Tools and Applications, 42(2):139–159.

Boudoin, P., Otmane, S., and Mallem, M. (2008). Fly

Over , a 3D Interaction Technique for Navigation in

Virtual Environments Independent from Tracking De-

vices. Virtual Reality, (Vric).

Bouyer, G., Bourdot, P., and Ammi, M. (2007). Supervi-

sion of Task-Oriented Multimodal Rendering for VR

Applications. Communications.

Bowman, D. A., Chen, J., Wingrave, C. A., Lucas, J., Ray,

A., Polys, N. F., Li, Q., Haciahmetoglu, Y., Kim, J.-s.,

Kim, S., Boehringer, R., and Ni, T. (2006). New Di-

rections in 3D User Interfaces. International Journal,

ezillon, P. (2011). From expert systems to context-based

intelligent assistant systems : a testimony. Engineer-

ing, 26:19–24.

Celentano, A. and Nodari, M. (2004). Adaptive interac-

tion in Web3D virtual worlds. Proceedings of the

ninth international conference on 3D Web technology

- Web3D ’04, 1(212):41.

Chein, M. and Mugnier, M. (2009). Graph-bases Knowl-

edge Representation: Computational Foundations of

Conceptual Graphs. Springer.

Coppola, P., Mea, V. D., Gaspero, L. D., Lomuscio, R.,

Mischis, D., Mizzaro, S., Nazzi, E., Scagnetto, I., and

Vassena, L. (2009). AI Techniques in a Context-Aware

Ubiquitous Environment, pages 150–180.

Dey, A. and Abowd, G. (2000). Towards a better under-

standing of context and context-awareness. In CHI

2000 workshop on the what, who, where, when, and

how of context-awareness, volume 4.

Dey, A., Abowd, G., and Salber, D. (2001). A conceptual

framework and a toolkit for supporting the rapid pro-

totyping of context-aware applications. HumanCom-

puter Interaction, pages 1–67.

Frees, S. (2010). Context-driven interaction in immer-

sive virtual environments. Virtual Reality, Volume

14(4):1–14.

Gu, T., Wang, X., Pung, H., and Zhang, D. (2004). An

ontology-based context model in intelligent environ-

ments. In Proceedings of Communication Networks

and Distributed Systems Modeling and Simulation

Conference, volume 2004. Citeseer.

Irawati, S., Calder

on, D., and Ko, H. (2005). Seman-

tic 3D object manipulation using object ontology in

multimodal interaction framework. In Proceedings of

the 2005 international conference on Augmented tele-

existence, pages 35–39. ACM.

Kabbaj, A. (2006). Development of Intelligent Systems and

Multi-Agents Systems with Amine Platform. Intelli-

gence, pages 1–14.

Latoschik, M. E., Biermann, P., and Wachsmuth, I. (2005).

Knowledge in the Loop : Semantics Representa-

tion for Multimodal Simulative Environments (2005).

pages 25 – 39.

Latoschik, M. E., Blach, R., and Iao, F. (2008). Semantic

Modelling for Virtual Worlds A Novel Paradigm for

Realtime Interactive Systems ? In ACM symposium

on Virtual reality software and technology.

Lee, S., Lee, Y., Jang, S., and Woo, W. (2004). vr-UCAM:

Uniﬁed context-aware application module for virtual

reality. Conference on Artiﬁcial Reality.

Lugrin, J.-l. and Cavazza, M. (2007). Making Sense of Vir-

tual Environments : Action Representation , Ground-

ing and Common Sense. In 12th International confer-

ence on intelligent user interfaces.

Octavia, J., Coninx, K., and Raymaekers, C. (2010).

Enhancing User Interaction in Virtual Environments

through Adaptive Personalized 3D Interaction Tech-

niques. In UMAP.

Otterlo, M. (2009). The logic of adaptive behavior.

Peters, S. and Shrobe, H. E. (2003). Using Semantic Net-

works for Knowledge Representation in an Intelligent

Environment. In 1st International Conference on Per-

vasive Computing and Communications.

Poupyrev, I., Billinghurst, M., Weghorst, S., and Ichikawa,

T. (1996). The go-go interaction technique: non-linear

mapping for direct manipulation in VR. In Proceed-

ings of the 9th annual ACM symposium on User inter-

face software and technology, pages 79–80. ACM.

Ranganathan, A. and Campbell, R. H. (2003). An in-

frastructure for context-awareness based on ﬁrst order

logic. Personal and Ubiquitous Computing, 7(6):353–

364.

Sowa, J. F. (2008). Conceptual Graphs, pages 213–217.

Elsevier.

Wingrave, C. A., Bowman, D. A., and Ramakrishnan, N.

(2002). Towards Preferences in Virtual Environment

Interfaces. Interfaces.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

358
