Access and Usage Control Requirements for Patient Controlled Record

Type of Healthcare Information System

Annanda Thavymony Rath and Jean-No

el Colin

PReCISE Research Center, Faculty of Computer Science, University of Namur, Namur, Belgium

Keywords:

Access Control Requirement, e-Health, Usage Control Requirement, Patient Controlled Record.

Abstract:

This paper addresses the issue of access and usage control requirements in healthcare information system.

Our work aims at identifying the access and usage control requirements for a particular healthcare information

system where patients have pivotal right to grant or deny access to their health records. We term this system

”Patient Controlled Record type of Healthcare Information System or PCRHIS”. It is worth noting that the

requirements, presented in this paper, are the results of our studies from both user’s requirements and legal

issues (based on 95/46/EC Directive ) under the scope of Walloon Healthcare Network (WHN). The WHN

project aims at providing an electronic healthcare facility for patients in Walloon region, Belgium, that joins all

healthcare institutions, clinics, and physicians and allows sharing of patients’ health records when needed. The

main contribution of this work is that, with these requirements as a reference, one can identify an appropriate

access and usage control model. This applies not only to the proposed system under the scope of WHN project

but also to any system that has similar model.

1 INTRODUCTION

Access control (Hu et al., 2006) is about deﬁning

and enforcing the rules to ensure that only authorized

users get access to resources in a system while usage

control (Pretschner et al., 2008) refers to the actions

taken after data is granted access. From the data pro-

tection point of view, especially sensitive private data,

the enforcement of the two controlling steps is neces-

sary.

Concerning access control requirement, it is about

the required attributes to form the rules that need to

be enforced before data is granted access while usage

requirement is about the required attributes to form

the rules applied after data is granted access. The

study of access control requirements in e-health is

not new, some researches (Rath and Colin, 2012b)

(Rostad, 2008)(Reyneke et al., 2003)(Rostad and Eds-

berg, 2006) (Bandar and Colin, 2008) (DocuLiv EPR,

2003) (Rostad, 2008) have been contributed in this as-

pect; however, they focused on e-health in general and

particularly, system with a central control of access

policy while our focus is on patient controlled record

type of healthcare information system (PCRHIS), a

system where the control on access policy is decen-

tralized to patients.

As more and more people are interested in priva-

cy protection and get to know the risk that they may

have concerning their private health records (Rath and

Colin, 2012a), they increasingly willing to have more

level of control over their health record. This leads

to the emerge of the concept of Privacy Preference

and personal-control (HL7 PHR, 2011). A good ex-

ample of such system (similar in concept) is the HL7

Personal Health Record (HL7 PHR, 2011). However,

HL7 PHR system allows only patient to play with

their unofﬁcial health record. This means that the of-

ﬁcial record still works under the HL7 EHR (Elec-

tronic Health Record) system. The big question about

HL7 PHR is how much data and what type of data

(health information) should be made available for pa-

tient? How to ensure the transparency between the

ofﬁcial data under HL7 EHR and unofﬁcial data un-

der HL7 PHR. It seems that HL7 PHR poses more

questions for health record management.

To minimize the data management problem as ap-

peared in HL7 PHR and to maximize the right of the

patient in controlling their health record, in our work,

we intend to create a patient controlled-record health-

care information system that provides a full control

to patient. In our proposed system, patient can deﬁne

different policy for different type of user they consent.

Concerning usage control requirement, to the best

of our knowledge, although usage control has a signif-

331

Thavymony Rath A. and Colin J..

Access and Usage Control Requirements for Patient Controlled Record Type of Healthcare Information System.

DOI: 10.5220/0004223103310336

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 331-336

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

icant affect on security in protecting patient’s record,

there is no research so far in e-health, which focuses

on this aspect. Most of the researches focus on the

access control. This may be because of the feasibil-

ity study or the believe that usage control is just the

extended-access control. But in our view, we should

separate the two processes clearly cause they require

different method for handling, hence, different control

requirements.

The rest of the paper is organized as follows.

We provide the background in Section 2. Section 3

presents the user and data requirements. Section 4

talks about the access control requirements while Sec-

tion 5 presents usage control requirements. Section 6

is the discussion and we conclude in Section 7.

Figure 1: Simpliﬁed Schema of PCRHIS.

2 BACKGROUND

PCRHIS Architecture: As illustrated in Figure 1,

PCRHIS is a network of health institutions such as

hospitals, and clinics, but also of physicians, that

aims at supporting the exchange of patient’s medical

record between healthcare professionals, in a timely

and secure way. Two types of data are actually stored

centrally: access and usage policy deﬁned by pa-

tient and optionally patient’s medical record. In ad-

dition, PCRHIS also manages in a central way the

access and usage permissions that apply to the vari-

ous pieces of data it manages. Permissions are man-

aged by patient himself/herself, by his/her legal rep-

resentative (guardian), or by a trusted-person. In gen-

eral, PCRHIS central server is in charge of the over-

all authorization process; it receives the requests from

the nodes, checks them against the applicable access

policy (as deﬁned by the patient) and returns the re-

quested information. Then requested information is

viewed at client (or requester’s device) where the con-

trol of information usage is taken place.

Requirements Elicitation: The data require-

ments we identiﬁed in next section result from the

study of practical documents for treatment procedure

in different healthcare institutions, clinics, and hospi-

tals in French speaking region in Belgium under the

Walloon Healthcare Network Project. The user re-

quirements were identiﬁed based on two sources of

information. First, we studied the practical data pro-

cessing procedures at different healthcare institutions

under the WHN project. Second, we studied the EU

directive concerning the processing of sensitive pri-

vate data, particularly, the 95/46/EC Directive (EU-

directive, 1995). For Access and usage control, the

requirements were captured based on two important

sources of information, access and usage policies of

the existed healthcare institutions in Walloon region

and the 95/46/EC Directive.

3 USER AND DATA

REQUIREMENTS

In this section, we present different types of users who

are supposed to involve in processing of patient’s data

(or record) and different types of data considered to be

sensitive.

3.1 Patient Data

Two types of patient’s data are considered to be sen-

sitive: administrative and treatment data. Administra-

tive data is any data related to the administrative work

including patient personal information. The treatment

data is any data related to the treatment of the pa-

tient. Treatment data is categorized further into sub-

categories, as presented below.

“Treatment report” is a report of treatment con-

taining the information such as patient personal data,

type of illness, location, people involved, time, and

duration of the treatment. “Summary treatment re-

sult” is a short report describing the result of the treat-

ment. It can be a success operation, fail, or follow-up.

“Conclusion on state of patient health” describes the

condition or state of the patient’s health after the op-

eration or treatment. This type of report is generally

generated by a doctor who leads the treatment or a

consented-doctor. “Prescription” describes the types

of drug that patient needs to consume and also the in-

struction on when and how to consume it. “Follow-up

report“, for some illnesses, after treatment, follow-up

report is required. It allows doctor to follow the health

condition of patient.

HEALTHINF2013-InternationalConferenceonHealthInformatics

332

3.2 Type of User

In our study, we identiﬁed users by considering two

different circumstances. First, we consider a nor-

mal situation where patient is able to exercise his/her

rights. Second, we consider a situation where patient

loses his/her ability to exercise his/her rights phys-

ically or morally, for instance, in case patient be-

comes disabled. Following our study, we identiﬁed

six groups of users who can access patient’s record ei-

ther directly or indirectly. Those are: Patient, Health-

care professional, Legal-representative (or guardian),

Trusted-person, Administrative-personnel, and IT-

Technical-personnel.

“Patient”: the physical person who is the owner of

the health records. “Healthcare professional”: people

who work at the healthcare institution and are possi-

bly responsible for the treatment of patient. These

people are classiﬁed into sub-groups depending on

their skill or domain of expertise that ranges from

generalist-doctor, specialist-doctor, to nurse or phar-

macist. “Guardian”: people closed to patient who can

legally represent patient in case he/she can not ex-

ercise his/her rights. “Trusted-person”: is a user or

group of users, deﬁned explicitly by patient, who can

decide on behalf of patient when patient is in situa-

tion where he/she can not exercise his/her rights phys-

ically or morally. “Administrative-personnel”: people

who are responsible for the administrative work con-

cerning the patient treatment at healthcare institution.

“IT-Technical-personnel”: people who are responsi-

ble for maintaining the IT-infrastructure to ensure the

proper functioning of the e-health system.

4 ACCESS CONTROL

REQUIREMENTS

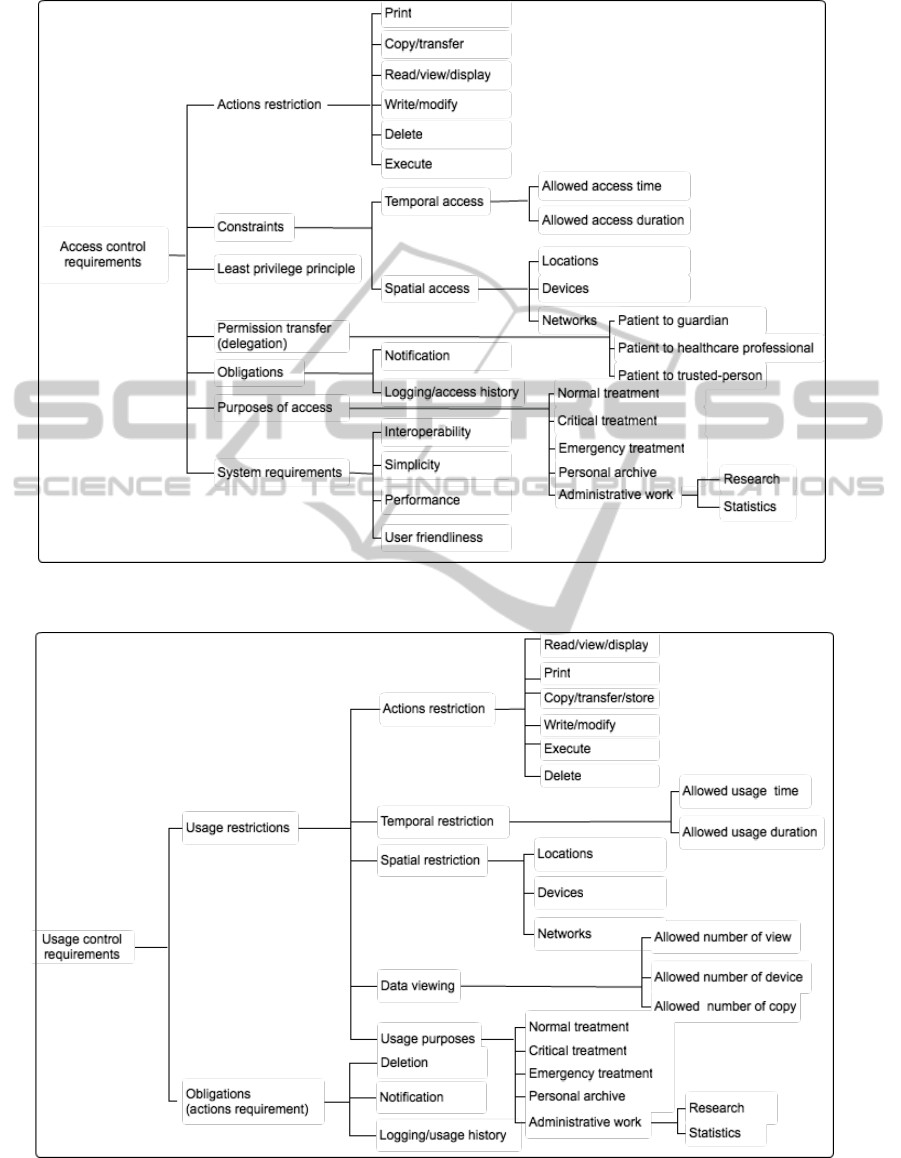

In this section, we present the access control require-

ments in PCRHIS. We classify access control require-

ments into different categories ranging from action re-

striction to system requirement. The detail informa-

tion is illustrated in Figure 2.

“Action restriction” is about the possible ac-

tions that can be used in processing patient’s

data. Those actions are: ”print”, ”copy/transfer”,

”read/write/display”, ”delete”, and ”execute”.

“Constraints: Temporal and Spatial”, “temporal

access” is the time related constraint. “Spatial access”

is the constraint based on geographical location. For

example, the policy that prohibits every access from

hospital ”B” to hospital ”C”.

“Least privilege principle”, in order for users to

do their job correctly, it is essential that concerned

users have the correct permissions allowing them to

gain access to the information they require. However,

these permissions should not allow users to gain ac-

cess to information that is not meant for them. Least

privileges allow us to ensure that there is no security

gap for user to intrude patient’s record.

“Permission transfer (delegation)” is important to

ensure the smooth management process in case the

responsible person is on mission and is not able to ex-

ercise his/her rights. In PCRHIS, it is also required

for permission or rights transfer. For instance, pa-

tient delegates their rights to guardian and trusted-

person in case patient is not able to exercise his/her

rights. There are three types of delegation: patient to

guardian, patient to trusted-person, patient to health-

care professional.

“Obligations” refers to the duty for user to fulﬁll

before or after access is granted. For example, notiﬁ-

cation of access to patient for traceability purpose.

“Purposes of access” allows patient to determine

precisely the access rights to content. It also con-

tributes in sharping the access control decision on the

requested content. There are six types of purpose:

Normal, Critical, Emergency, Personal archive, Re-

search, and Statistic.

“System Requirements”, there are three important

requirements: “Interoperability” (because we address

the data processing problem in distributed and hetero-

geneous environment), “Simplicity and User friendli-

ness” ( as patient is the one who administrates the ac-

cess policy. Thus, a simple system is required), and

“Performance” (a very good system performance is

required because in some case a fast decision is re-

quired, for instance, emergency case).

5 USAGE CONTROL

REQUIREMENTS

In this section, we discuss the usage control require-

ments applied to PCRHIS, ranging from usage restric-

tions to action requirements, the detail is illustrated in

Figure 3.

“Usage Restriction” deﬁnes the circumstances un-

der which the content can be viewed and also under

which content can not be viewed. “Action restriction”

refers to the allowed or not allowed actions to perform

on patient’s record.

“Temporal usage restriction” is the time related

usage refers to time within which user is allowed

to view patient’s record. “Spatial usage restriction”

refers to the place/location where data is allowed to

view, particularly, when data is moved out of its orig-

inal location. “Data viewing” refers to the number of

AccessandUsageControlRequirementsforPatientControlledRecordTypeofHealthcareInformationSystem

333

Figure 2: Classiﬁcation of different requirements for access control ranging from actions restriction to system requirements.

Figure 3: Classiﬁcation of different requirements for usage control differentiates between usage restrictions and Obligations

(actions requirement).

HEALTHINF2013-InternationalConferenceonHealthInformatics

334

times allowed to view data after it is liberated or the

number of devices allowed to view data, for instance,

allowing to view data two times.

“Usage purposes” is one of the most important

constraint that ensures patient’s record being used is

in the right direction. It is important to note that us-

age purpose should be continuously controlled during

usage session. Based on our analysis, six types of

purpose are identiﬁed, the same as that of access pur-

poses: normal, critical, emergency, personal archive,

research, and statistic.

“Obligations” refers to any duty that needs to be

performed by requester or system during the usage

session (before, during, or after the use of patient’s

record). For example, a ”delete” action is required to

be performed after the usage license is expired while

”notify” needs to be performed before and after the

use of data. Here are the possible obligations required

in usage control applied to PCRHIS: “Deletion and

store ”, “notiﬁcation”, and “logging”.

6 DISCUSSION

In this section, we discuss the issues that can be raised

when patient is given fully the rights to administrate

and control the access and usage policy. In system

where access control is based on rule/policy, it is re-

quired for rule/policy creator to have the knowledge

on how rule works and to be beware of what they are

doing and the consequence of doing so. In health in-

formation system, particularly in our proposed sys-

tem, it is understood that it is not possible to make

an assumption that all patients have sufﬁcient com-

puter skill or knowledge and can operate or set rule

by themselves. Thus, to solve this problem, we pro-

pose to use three possible groups of users as presented

below for rule creation and validation.

1) Patient: they can set up the rule through policy

administration point by themselves without the sup-

port from healthcare professional or other people such

as their trusted-person or guardian, but if the problem

occurs, for instance, patient mistakenly deﬁnes a rule

that is not like what he/she wishes, it is the responsi-

bility of patient themselves.

2) Patient’s Trusted-person and Guardian: as men-

tioned in the requirements in previous section, it is

required for a patient to assign their trusted-person

and/or guardian to represent them in case patient can

not exercise their rights. Those person can help pa-

tient in setting up and validating the rule if patient

wishes to do so.

3) Healthcare Professional: healthcare profes-

sional can also help patient to set the rule on their be-

half, but patient’s consent written in paper is required

in this case. This entity may be the most trusted entity

in the system in term of knowledge.

Although those three entities may be sufﬁcient to

solve the raising problem, we still need other mech-

anism to make sure that the data is safe for at least

a minimum required security as deﬁned in law. To

ﬁx the problem, a default access and usage policy is

required. This means that policy creator can set up

their own preference policy, if not the default policy

is applied.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we identiﬁed different types of users

and data applied to PCRHIS. We also identiﬁed ac-

cess and usage control requirements for the address-

ing system. It is important to note that although this

work links primarily to the WHN project, its result

can be applied to any other system that has a simi-

lar model. Our future work includes a thorough study

of the access and usage control models, then the con-

struction of the conﬁgurable access and usage control

system based on the requirements presented in this

paper.

REFERENCES

Bandar, A. and Colin, F. (2008). Access control require-

ments for processing electronic health records. In

Proceedings of the 2007 international conference on

Business process management, BPM’07, pages 371–

382, Berlin, Heidelberg. Springer-Verlag.

DocuLiv EPR (2003). DocuLive EPR: A hos-

pital Electronic health record system devel-

oped by Siemens Medical Systems Norway.

http://www.siemens.com/entry/cc/en/, latest ac-

cess: July 2011.

EUdirective (1995). Directive 95/46/EC of the Eu-

ropean Parliament and of the Council of 24

October 1995 on the protection of individu-

als with regard to the processing of personal

data and on the free movement of such data.

https://www.cdt.org/privacy/eudirective/EU.

HL7 PHR (2011). Health Level International Seven.

http://www.hl7.org. Latest access: July 2012.

Hu, V. H., Ferraiolo, D., and Kuhn, D. R. (2006). Assess-

ment of access control system. National Institute of

Standards and Technology.

Pretschner, A., Hilty, M., Sch, F., Schaefer, C., and Walter,

T. (2008). Usage control enforcement: Present and

future. IEEE Security and Privacy, 6:44–53.

AccessandUsageControlRequirementsforPatientControlledRecordTypeofHealthcareInformationSystem

335

Rath, A. and Colin, J.-N. (2012a). Analogue attacks in

e-health: Issues and solutions. CeHPSA - 2012

: 2nd IEEE International Workshop on Consumer

eHealth Platforms, Services and Applications (CeH-

PSA)(accepted but unpublished).

Rath, A. and Colin, J.-N. (2012b). Patient privacy preserva-

tion: P-RBAC vs OrBAC in patient controlled records

type of centralized healthcare information system.

case study of walloon healthcare network, belgium.

The Fourth International Conference on eHealth,

Telemedicine, and Social Medicine eTELEMED 2012,

4:111–118.

Reyneke, A., Botha, R. A., and Perelson, S. (2003). Ac-

cess control requirements for content management

systems. Department of Computer Science, School of

IT, University of Pretoria, South Africa.

Rostad, L. (2008). An initial model and a discussion of ac-

cess control in patient controlled health records. In

Proceedings of the 2008 Third International Confer-

ence on Availability, Reliability and Security, pages

935–942, Washington, DC, USA. IEEE Computer So-

ciety.

Rostad, L. and Edsberg, O. (2006). A study of access con-

trol requirements for healthcare systems based on au-

dit trails from access logs. In Proceedings of the 22nd

Annual Computer Security Applications Conference,

pages 175–186, Washington, DC, USA. IEEE Com-

puter Society.

HEALTHINF2013-InternationalConferenceonHealthInformatics

336
