Eigen Heartbeats for User Identification

Marta S. Santos

, Ana L. Fred

1,2

, Hugo Silva

1,2

and André Lourenço

2,3

Intituto Superior Técnico, Lisboa, Portugal

Instituto de Telecomunicações, Lisboa, Portugal

Instituto Superior de Engenharia de Lisboa, Lisboa, Portugal

Keywords: ECG, Principal Components Analysis, User Identification.

Abstract: Electrocardiographic (ECG) signals record the heart’s electrical activity over time. These signals have

typically been assessed for clinical purposes providing a fair evaluation of the heart’s condition. However, it

has been shown recently that they also convey distinctive information that can be used for user

identification. In this paper we explore these signals for user identification purposes, proposing two data

representation and processing techniques based on principal component analysis (PCA) and classification

based on the K-NN rule. We analyze and compare these techniques, showing experimentally that 100%

identification rates can be achieved. The analysis covers an outlier removal procedure and different

configurations of algorithmic and proposed system parameters.

1 INTRODUCTION

In this paper, we analyze the heartbeat as a biometric

modality. The heartbeat is a complex electric signal

produced by the heart; among other advantages, it is

difficult to forge and provides intrinsic aliveness

detection. Targeting increased usability and minimal

intrusiveness, we used a one-lead ECG acquisition

setup with dry electrodes (Lourenço et al., 2011).

Increased noise is inherent to this configuration

requiring adequate pre-processing.

There are two main approaches for template

representation: fiducial, and non-fiducial. The first

consists of finding points of interest within the

segmented ECG (fiducial points), and then

representing heartbeat waves as a set of extracted

features (Biel et al., 2001), (Silva et al., 2007). Non-

fiducial methods, on the other hand, consider the

signal’s shape as the templates (Chan et al., 2008).

We propose a partially fiducial approach. For the

segmentation of the ECG signal into heartbeats we

use a fiducial method, in which the R peak is

detected and used as alignment reference. Then, a

non-fiducial method, based on PCA, is applied for

representation of the heartbeats either describing a

prototypical heartbeat pattern for the overall

population as a global eigen-heartbeat, or expressing

prototypical patterns for each individual. Our work is

closely related with the proposals by (Irvine et al.,

2009) and (Israel et al., 2010), where PCA is also

used. However, while in previous works an eigen-

heartbeat is computed from the overall population,

we propose individualized eigen-heartbeats

computations to characterize each subject. This

methodology has the advantage of easier upgrade of

databases, not requiring the re-computation of new

base eigen-heartbeats as new users are included into

the database. Furthermore, we include an outlier

removal step in our pre-processing phase, aiming the

achievement of better templates and higher

recognition rates. Our work also stands out for using

a larger database than what is found in prior studies,

and ECG acquired at finger/palms.

2 USER IDENTIFICATION

Biometric identification systems typically comprise

two main phases (Jain et al., 2008): enrollment and

identification. At the enrollment phase, the user

provides both his / her identity (e.g. name) and the

biometric template (in our case, the ECG signal).

Afterwards, one or more templates of the acquired

modality are stored in a database for future reference.

The processing phase usually comprises a quality

evaluation procedure; if the acquired signals fail to

accomplish the quality check there is a failure to

enroll (FTE) error.

351

Santos M., Fred A., Silva H. and Lourenço A..

Eigen Heartbeats for User Identiﬁcation.

DOI: 10.5220/0004249503510355

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2013), pages 351-355

ISBN: 978-989-8565-36-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

At the identification phase, the user only needs to

present the biometric modality at the sensor level; the

system then validates this data against the templates

previously stored in the database. If the acquired

biometric data shows a match to the template of one

of the enrolled users, an identity will be recognized.

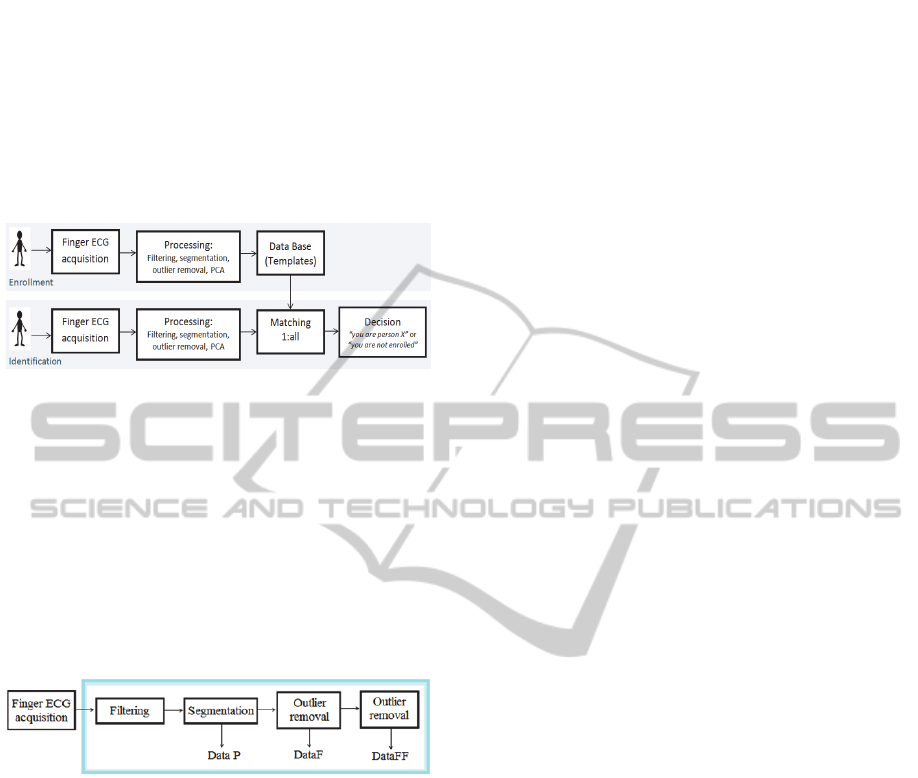

Figure 1 gives a schematic description of the

enrollment and identification phases for the proposed

ECG-based user identification system.

Figure 1: Enrolment and identification stages.

3 PROPOSED METHOD

3.1 Pre-Processing

To deal with the noise inherent to finger/palm

acquisition, we propose a sequence of pre-processing

steps, summarized in Figure 2. Each step is applied

both in the enrollment and identification stages (see

Figure 1) and is described next.

Figure 2: ECG pre-processing steps (framed).

3.1.1 Filtering and Segmentation

The ECG signals measured at hands or palms can be

affected by multiple noise sources. We designed a

FIR band-pass filter (order 301, using a Hamming

window), with 5-20Hz cutoff frequencies. For

segmentation we built on the work by (Engelse et al.,

1979) for offline QRS detection, adapting their

algorithm for real-time operation. Details of the

algorithm and comparison with offline approaches

can be found in (Lourenço et al., 2012).

3.1.2 Outlier Removal

After segmentation, there was a clear need to remove

outliers from the signal (due to excessive noise or

segmentation errors). For that purpose, we created a

simple outlier removal heuristic. Considering the

expected stability of P-QRS complex, we compute

amplitude statistics around certain fiducial points,

considering as outliers segments that present

considerable deviations from the median statistics.

The points chosen were: time instant 75, P wave

neighborhood; 150, just before the Q wave, where

most of the signals show a small amplitude; 200,

where the segments are centered; and 300, just after

the end of the repolarization.

For the ECG recording of each individual, after

signal segmentation, the median of signal amplitudes

at each of the above fiducial points is computed; if, at

least at one of the fiducial points, the absolute

difference between the segments’ amplitude value at

the point and the median is larger than the median

value multiplied by a factor α, the segment is

eliminated; the tuning of this parameter value is

described in the experimental results section. The

outlier removal procedure is applied once or twice in

sequence; the corresponding remaining (clean) data

after the one or two step approach is hereafter

referred as DataF and DataFF, respectively.

3.2 PCA-based Feature Extraction

By applying the PCA technique, each ECG segment

is described as a linear combination of eigen-vectors,

herein referred as eigen-heartbeats. By storing these

eigen-heartbeats and the mean wave, each ECG

segment is described by the coefficients in the linear

combination, forming the set of features that

describes it. The PCA was applied: (a) to the data of

the whole population, leading to an eigen

representation of the average ECG segments pattern;

(b) individually to each person’s ECG segments.

The first method, hereafter referred as the Overall

Population Eigen-Heartbeat (OEigHB) approach,

leads to a database formed by the mean and

eigenvectors corresponding to the whole population

data. Each enrolling ID will be represented by the

coefficients resulting from the projection of their HB

segments into the database eigenvectors and stored as

template for that individual. The second method,

hereafter referred as the Individualized Eigen-

Heartbeat (IEigHB) approach, will have, for each

individual, as template, the mean ECG segment,

eigenvectors and coefficients referent to each

individual, which will be stored in the database.

3.3 Decision

User identification is performed based on the

comparison of the presented biometric modality with

the stored templates for each individual. The

BIOSIGNALS2013-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

352

proposed decision algorithm is different for the two

approaches. In the OEigHB identification process,

the newly presented ECG segments (after pre-

processing) are projected into the eigenvectors taken

from the whole population (see Figure 4), and the

obtained feature vectors are matched with the

templates of each enrolled user. According to the

IEigHB approach, the new ECG segments are

projected into each enrolled user’s eigen-heartbeats,

and these projection vectors are compared with the

several users’ templates (see Figure 3). We use

template matching with the Euclidean distance, and

the K-NN algorithm to correspond each new segment

with a user ID. The identity of a given segment is

decided using majority voting, choosing the most

represented identities among the K-NNs templates.

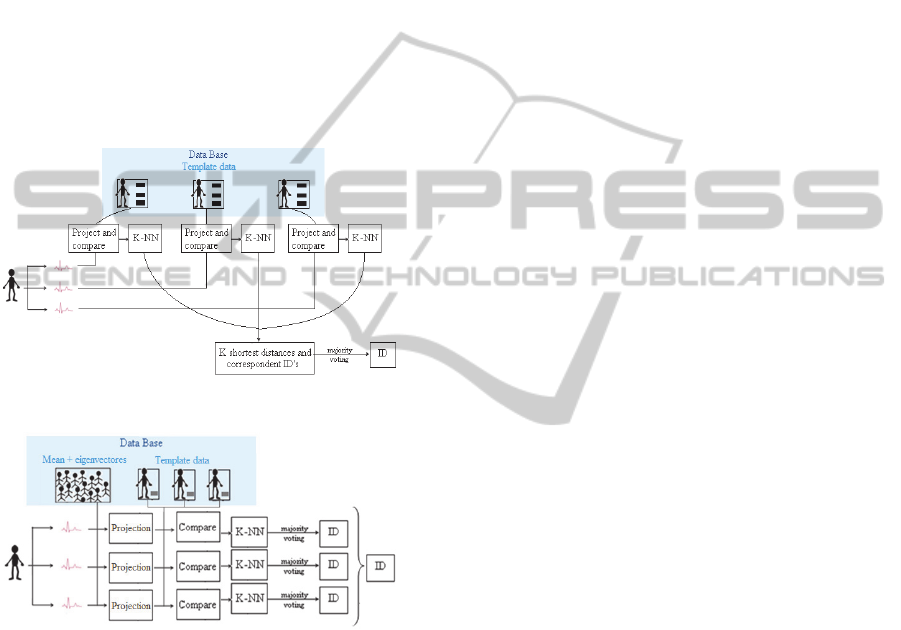

Figure 3: IEigHB identification scheme.

Figure 4: OEigHB identification scheme.

4 EXPERIMENTAL RESULTS

4.1 Datasets

The ECG datasets used in our experimental

evaluation were provided by the Check Your

Biosignals Here initiative (Silva et al., 2011). The

dataset comprises a single session of acquisition of

different physiological signals, including the ECG,

over a population of 65 volunteering individuals, in a

physically unconstrained setup. The experiment

consisted of two distinct moments: an introductory

phase, during which a staff member would explain

the goal and details of the experiment; and an

emotion inducing phase triggered by the visualization

a video sequence. The acquisition time was thus

variable, depending on the duration of the interaction

between the user and the staff member that described

the test. ECG signals were collected from fingers and

palms using dry Ag/AgCl electrodes. It is worth

noting that the video sequence presented triggered

different emotions, which are a source of variability.

4.2 Outlier Removal Procedure

Due to variable acquisition times, the total number of

segments varies for different individuals. Also, there

are a different number of outliers for each individual.

As a result, the α-value, that controls the level of

outlier removal, will lead to different number of

segments kept per user. To standardize the number of

segments used as templates per individual (NS), this

parameter was made constant. Two values were

tested: 20 and 30. In order to evaluate the error

probability of the identification system, we used

independent training and test sets, randomly chosen

from the available data. By training set we denote the

segments used as templates; the remaining segments

per individual, after outlier removal, were used to

assess the identification accuracy (test data).

Error estimates were performed by averaging

over 25 runs of the classification procedure using

randomly selected training and test sets. However,

for some individuals and α-values combinations, the

minimum NS established was not reached. Those

were counted as individuals that “failed to enroll”

(FTE). The value of α will also influence the

identification rates. The lower the value of α, the

higher the number of segments that are kept, leading

to a smaller FTE rates; however, with the

corresponding larger amount of outliers left in the

data with these lower α values, lower identification

error rates are obtained. Considering the two

identification methods, IEigHB and OEigHB, the

lowest identification error rates, with acceptable FTE

rates, were obtained using the outlier removal

procedure with α = 0,4 (which was ultimately,

chosen, and used hereafter in our studies). However,

for large values of NS and k, it is possible to obtain

similar identification errors with lower FTE errors.



4.3 Segments for Enrollment (NS)

We evaluated the influence of the number of

templates per user used on the identification accuracy

of the system. The next plot shows the average and

standard deviation (SD) of the identification error

EigenHeartbeatsforUserIdentification

353

rates using both methods and obtained over 25 runs

using a 1-NN classifier and different values for k, the

number of ECG segments presented for accessing the

system. We tested the situations of NS=20 and

NS=30 for the three setups of: no outlier removal;

outlier removal in one step; and using twice the

outlier removal procedure.

As shown, the higher the NS the lower the error

probability is, and so, longer enrolment times are

preferable. The OEigHB seems to be less sensitive to

the various configurations, having lower ranges on

error rates than the IEigHB approach. More template

segments capture better the variability of the

subject’s heartbeat so new segments are more likely

to mach correctly the ones of the database.

4.4 Segments for Identification (K)

The number of segments required for accessing the

system is closely related with the acquisition time

when trying to identify a subject in a post-enrolment

phase. It is the number of heartbeats that the user

provides to the system in order to be identified.

From Figure 5, for this parameter the larger the

amount of segments, k, the lower the error

probability. However, values of k between 9 and 15

lead to similar error probability. For large k and NS it

can be observed a 0% error probability.

(a)

(b)

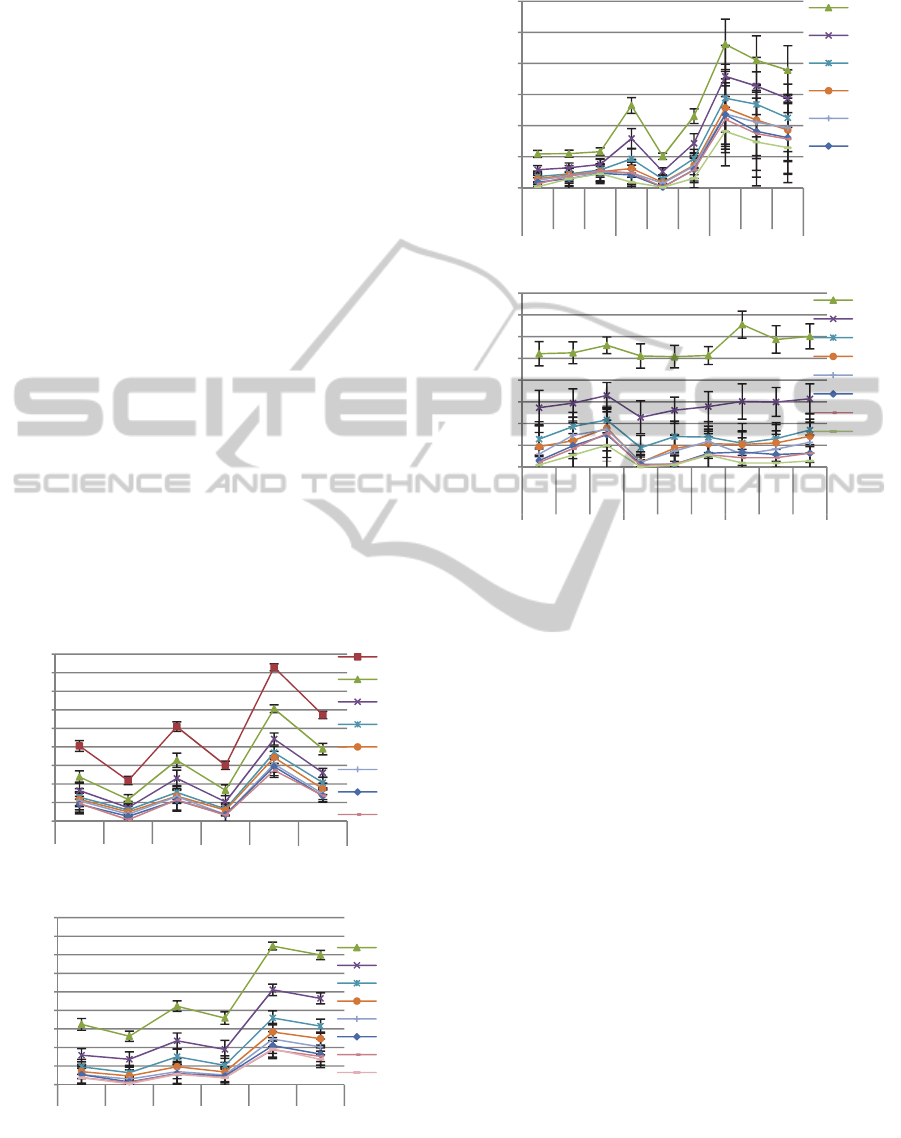

Figure 5: (a) IEigHB approach; (b) OEigHB approach. 1-

NN. Each line represents the k parameter. In the x-axis the

NS parameter and the data used are represented.

(a)

(b)

Figure 6: Error probability variation in (a) IEigHB and (b)

OEigHB identification methods, obtained with dataFF and

NS=30, for different energies and K-NN values.

4.5 Outlier Sensibility

From Figure 5 it is apparent that the identification

error decreases with the decrease of the number of

outliers among the data (compare results with DataP

vs DataF). However, the gain is not so impressive for

the second time one applies the procedure – DataFF

results. Both methods (OEigHB and IEigHB) lead to

error probabilities lower than 5% without outlier

removal (DataP). However, with DataFF both

methods can achieve 0% error rate with small SD.

4.6 Energy

The reduction of the data energy is associated with

the data compression that is obtained by eliminating

some eigenvectors that represent weakly the data

variance. In this dataset, a 5% energy reduction

corresponds approximately, to a 50% data reduction,

and a 10% energy reduction to a 60% data reduction.

Figure 6 plots identification errors for different

scenarios with different compression levels. The

OEigHB method is less prone to error coming from

the data compression, keeping both the mean error

and SD similar with the decrease of the data energy.

0,025

0,05

0,075

0,1

0,125

0,15

0,175

0,2

0,225

20 30 20 30 20 30

Data filtered Data filtered Data without

Error probability

IEigenHB KNN =1

0,02

0,04

0,06

0,08

0,1

0,12

0,14

0,16

0,18

20 30 20 30 20 30

Data filtered Data filtered Data without

Error probability

OEigenHB KNN =1

0,05

0,1

0,15

0,2

0,25

0,3

KNN=

Error probability

Individualized Eigen-HB

0,01

0,02

0,03

0,04

0,05

0,06

0,07

0,08

KNN=1

KNN=3

KNN=5

KNN=1

KNN=3

KNN=5

KNN=1

KNN=3

KNN=5

Error probability

Population Eigen-HB

DataP

DataF

DataFF

DataP

DataF DataFF

BIOSIGNALS2013-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

354

On the other hand, for the IEigHB method, both the

mean and SD increase with lower energy values.

4.7 K- Nearest Neighbours (K-NN)

As depicted in Figure 6, the number of K-Nearest

Neighbors used in the decision method does not seem

to influence significantly the error probability’s

mean. However, there is a general tendency that for

lower energys and low values of k, the better results

are obtained by increasing the KNN. This indicates

that when the data is poorer (less segments, less

energy) it is advisable to use a higher number of

neighbours in the decision process in order to lower

the identification error.

5 CONCLUSION

In this paper we presented a framework and

methodology for user identification from ECG

signals exploring PCA and K-NN classification,

combined with outlier removal. Two main

approaches were proposed, either using eigen-

heartbeats that model the overall population, or using

individualized eigen-heartbeats per user. Overall,

both methods have the potential of successfully

identifying individuals using their finger/hands ECG

signal. Using 30 heartbeat segments as templates,

and 10 segments for accessing the system, both

methods lead to a 0% identification error. However,

the OEigHB method has shown, in general, lower

sensitivity to the design parameters, presenting the

lowest error values. Emotional and pathological

states may create intra subject variability through

time, lowering the accuracies obtained. This topic

has not been thoroughly studied in the context of

biometrics; however some work is already trying to

account for these factors (Agrafioti, 2011).

The down side of ECG-based biometric methods

is that longer enrolment and identification time is

needed to achieve better accuracies (around 30 sec.

of enrollment and 10 sec. of access time for a 0%

error). However, this biometric modality is less

prone to forging than more conventional modalities,

such as the fingerprint, and can verify aliveness and

stress level, which can be useful to prevent

unwillingly identification. Ongoing work includes a

further enlargement of the database, and extending

this study to situations of multiple acquisitions at

distinct time instants.

ACKNOWLEDGEMENTS

This work was partially funded by Fundação para a

Ciência e Tecnologia (FCT) under grants SFRH/

BD/65248/2009 and SFRH/PROTEC/49512/2009.

REFERENCES

Agrafioti, Foteini (2011). PhD thesis. Univ. of Toronto.

Biel, L.; Pettersson, O.; Philipson, L. and Wide, P. (2001)

ECG analysis – a new approach in human

identification. IEEE Transactions on Instrumentation

and Measurement, 50(3):808–812.

Chan, A.; Hamdy, M.; Badre, A. and Badee, V. (2008).

Wavelet distance measure for person identification

using electrocardiograms. IEEE Transactions on

Instrumentation and Measurement, 57(2):248–253,

Engelse, W. A. H.; and Zeelenberg, C. (1979). “A single

scan algorithm for QRS-detection and feature

extraction,” Comp.in Card., vol. 6, pp. 37–42.

Irvine, J.; A., S. (2009). eigenPulse: Robust Human

Identification from Cardiovascular Function. The

Draper Technology Digest , pp. 50-59.

Israel, S., M., J. (2010). The Heartbeat: the Living

Biometric. Chapter in Biometrics: theory, Methods and

Applications, pp. 429-459. Wiley

Jain, A. and Flynn, P. and Ross, A. (2008). Handbook of

Biometrics. Springer.

Lourenço, A.; Silva, H.; Fred, A. (2011). Unveiling the

Biometric Potential of Finger-Based ECG Signals.

Computational Intelligence and Neuroscience

Lourenço, A.; Silva, H.; Leite, P.; Lourenco, R., and Fred,

A. (2011). “Real time electrocardiogram segmentation

for finger based ECG biometric,” in Proc. of

BIOSIGNALS 2012, pp. 49–54.

Silva, H., Fred, A. L., and Lourenço, A. (2011). Check

Your Biosignals Here: Experiments on Affective

Computing and Behavioral Biometrics. RecPad.

Silva, H.; Gamboa, H. and Fred, A. (2007). One lead ECG

based personal identification with feature subspace

ensembles. In Proc. of the MLDM ‘07, pp. 770–783.

EigenHeartbeatsforUserIdentification

355
