Entropy based Biometric Template Clustering

Michele Nappi

, Daniel Riccio

and Maria De Marsico

Biometric and Image Processing Laboratory, University of Salerno, Via Ponte don Melillo, Fisciano, Italy

Department of Computer Science, Sapienza University of Rome, Rome, Italy

Keywords: Biometrics, Clustering, Entropy.

Abstract: Though speed and accuracy are two competing requirements for large scale biometric recognition, they both

suffer from large database size. Clustering seems promising to reduce the search space. This can improve

accuracy, but may even contrarily affect it by a poor selection of the candidate cluster for the search. We

present a novel technique that exploits gallery entropy for clustering. The comparison with K-Means

demonstrates that we achieve a better clustering result, yet without fixing the number of clusters a-priori.

1 INTRODUCTION

Most research results on biometric identification rely

on relatively small datasets. However, in massive

applications not only accuracy but also scalability

and response time are important. Low response

times and high accuracy seldom agree. Moreover,

researches have shown that false positives increase

geometrically with database size (Maltoni et al.,

2003). False Acceptance Rate (FAR) depends on

algorithms, and on a trade-off with False Rejection

Rate (FRR), so it is impossible to reduce it

indefinitely. Different possibilities of performance

improvement are rather related to the database, and

to the size of the search space. Feature space

reduction aims at faster matching operations (e.g.

see (Singh, 2009)). On the other hand, clustering (or

binning) aims at reducing the search space.

Unfortunately, biometric databases do not lend

themselves to a natural grouping/ordering of

templates, so that the latter is a challenging problem.

2 ENTROPY AND BIOMETRICS

Some recent works (Bhatnagar and Kumar, 2009)

demonstrate that biometrics can exploit models from

Information Theory. Capture and feature extraction

modules can be modeled as signal noisy sources,

while a matcher /classifier can be considered as a

decoder on a noisy channel. In the specific case of a

biometric system, Shannon entropy can measure the

difference of a subject from a population using

features extracted by a Feature Extraction Technique

(FET). The easiest way to integrate entropy into a

biometric systems, is to use it as an estimate of the

degree of randomness of pixels in the image I of a

single sample. However, a more profitable entropy-

based analysis can allow relating the discriminant

power of the templates of a subject with those of

other subjects (De Marsico et al., 2012), or to find

subsets with low informative variation, which in our

approach correspond to clusters of similar templates.

We consider a gallery G of templates, a feature

extraction technique F, a template similarity

measure d. F takes a sample image I as input, and

produces a template v as output, i.e. v=F(I). The

similarity measure d associates a real scalar value to

a pair of templates. We first compare a probe

template v with a gallery template g

. We get d(v, g

)

and denote it as s

i,v

. After a possible score

normalization, s

i,v

is a real value in the interval [0,1].

We assume that an oracle (e.g. a matching

algorithm) has already decided that the template v

belongs to a specific subject k. Therefore, we can

assume a probability distribution over the sub-

gallery G

such that the score s

i,v

can be interpreted

as the probability that template v conforms to g





gvp 

vi,

(1)

In order to represent such a probability, s

i,v

must

range in [0,1], and is normalized with respect to



i,v

) so that the sum over G

is 1.

The entropy definition can be now applied to the

gallery G

with respect to probe v as follows:

560

Nappi M., Riccio D. and De Marsico M..

Entropy based Biometric Template Clustering.

DOI: 10.5220/0004266205600563

In Proceedings of the 2nd International Conference on Pattern Recognition Applications and Methods (ICPRAM-2013), pages 560-563

ISBN: 978-989-8565-41-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)









,2,

log

||log

vivik

vGH

(2)

We can next compute a measure of entropy for the

whole gallery G, by considering each gallery

template g

in turn as a probe. Given Q the set of

pairs q

i,j

=(g

, g

) of elements in G such that s

i,j

>0:









,2,

ji,

log

||log

jiji

(3)

The proposed formulation provides values in the

range [0,1] irrespective of the size of the gallery.

H(G) represents a measure of heterogeneity for

G that can be used to order the gallery according to

the informative power of the samples. The proposed

procedure takes a gallery G as input; it computes an

all-against-all similarity matrix M, where

M(i,j)=d(g

, g

),  g

and g

 G, and the value for

H(G). For each g

 G, M is used to compute H(G

}) that would be obtained by considering g

as a

new sample v, not already in G. The g

achieving the

minimum f(G, g

)=H(G) -H(G

\ {g

}) is selected; M

is updated by deleting the i-th row and column, and

the process is repeated, until all elements of G have

been selected. In practice, we select the templates in

descending order of representativeness. The

inhomogeneity of the set progressively reduces, and

we use this to identify clusters of templates with

similar information content. An example of the

ordering of a set of templates is given in Figure 1.

3 E-AC CLUSTERING

Our clustering problem is nontrivial. Representation

used in face recognition algorithms such as

eigenfaces (Turk and Pentland, 1991) or graph-based

approaches (Wiskott et al., 1996) do not explicitly

encode suitable information. Moreover, the

templates in each cluster (bin) have to be

significantly less than the total number. This

involves a trade-off between search space reduction

and bin-miss errors.

Among clustering techniques, K-Means

Clustering is very popular. However, among its

drawbacks, it needs to fix k a priori, which is a

problem in itself. We propose a method based on the

entropy of a set of templates, which does not require

to fix the number of classes. The dataset is

partitioned according to the information content of

the single template with respect to the gallery, so

that templates with similar information are grouped

together. The proposed technique performs better

than K-Mean, when compared with a gold standard,

as we will show through experimental results.

The robustness of the characteristics that a

Feature Extraction Technique (FET) extracts from a

biometric sample, can significantly influence the

performance of a biometric classifier. A Distance

Matrix (or symmetrically, a Similarity Matrix)

contains the distance between each pair of templates

in a set. A classifier puts two templates in the same

class if their distance is below a given threshold.

We call the algorithm for biometric clustering

Entropy based Aggregative Clustering (E-AC). It

applies to the input biometric templates the entropy-

based function f in Section 2, to sort them in a list L

according to representativeness. The templates in the

terminal part of the list (the last selected ones) are

very similar to each other, and they can possibly fit

into a single cluster. The procedure creates a new

cluster and the last m elements of L are moved into

it. The remaining elements of L are then considered

backwards. The last one is compared with those

already in the new cluster, using the Pearson's

correlation index (-1 = maximum negative

correlation; 0 = no correlation; 1 = maximum direct

correlation). If at least 30% of the comparisons

provide a correlation greater than 0.8, the element is

moved into the cluster too, and the new last one is

considered. The insertion stops, when an item does

not meet the condition to be inserted.

The procedure is repeated, after that residual

templates are reordered, since template removal

generally changes the entropy of the set. Neither the

number of clusters nor the number of items in each

cluster are fixed a priori. The problem of templates

of the same class which are placed in different

clusters is solved by a further aggregation phase.

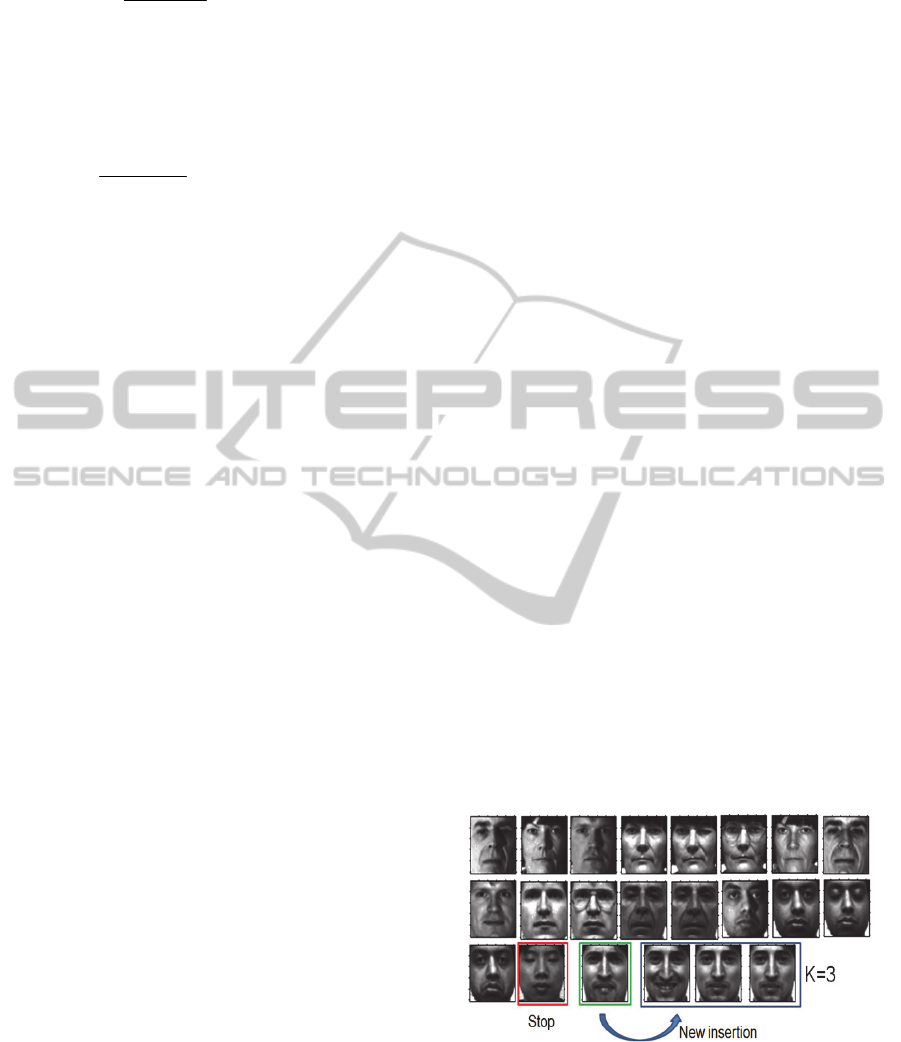

Figure 1: An example E-AC clustering. We here create a

cluster of size m=3. The immediately preceding template

satisfies the insertion criterion, while the further preceding

one does not and therefore causes a stop, the creation of a

new ordered list L’ and the initialization of a new cluster.

The aggregation process computes a (Pearson)

correlation matrix for each pair of clusters C

and C

EntropybasedBiometricTemplateClustering

561

from the previous phase. The Correlation Matrix

CM, size | C

|  | C

|, is such that CM (i, j) = corr (t

),  t

C

and t

C

. Given a positive threshold



(here 0.2, 0.3, and 0.4 have been used), fixed in

advance, E-AC evaluates the percentage of entries in

CM with a correlation coefficient of at least 0.8. If

this percentage exceeds the threshold



, the two

clusters are merged. The process stops when no pair

of clusters can be further merged.

Figure 1 shows the starting phase of the

described process on an ordered list of templates.

4 EXPERIMENTAL RESULTS

Clustering algorithms were tested with a subset of

faces from FERET (Phillips et al., 1998). We

selected 35 subjects with at least 6 frontal images

labeled fa or fb, according to the FERET protocol.

The subset contains 366 images with 256  384

resolution and 8 bits depth.

The samples were segmented and normalized

through an automated process, which cuts and scales

it with respect to the interocular distance.

We considered Principal Component Analysis

(Kirby and Sirovich, 1990), Linear Discriminant

Analysis ( Zhao and Yuen, 2008), and Face Analysis

for Commercial Entities (FACE) (De Marsico et al.,

2012). These three FETs were chosen for their

different robustness to pose, illumination and

expression (PIE) distortions. For feature vectors

produced by PCA and LDA, d measure was the city

block distance (norm 1), and was also used in the

calculation of clusters with the K-Means technique.

For FACE biometric templates, d was a localized

version of the index of correlation (more details

about this in (De Marsico et al., 2012)).

Each subject in FERET database is identified by

a label. Therefore, the benchmark set can be

considered as a sort of gold standard. This allows

implementing standard procedures for external

evaluation in testing the considered clustering

algorithms. Notice that, given the nature of the

clustering used for comparison, achieving a good

similarity with it also implies to be less affected by

the bin miss problem. We compared the

performance of our clustering algorithm with that of

K-Means (adopting its MATLAB implementation)

on the considered FETs. Besides the number of

clusters, we based the comparison on Rand Measure

(RM) (Rand, 1971), and on Fowlkes–Mallows Index

(FMI) (Fowlkes and Mallows, 1983) defined as the

geometric average of Precision and Recall:

RPFMI 

(4)

Precision and recall concentrate the evaluation on

the true positives, asking what percentage of the

relevant elements have been correctly classified and

how many false positives have also been returned.

When comparing two clusterings C

and C

, we can

consider as true positives the points that are present

in the same cluster in both clusterings, false

positives as the points that are present in the same

cluster in C

but not in C

, false negatives as the

points that are present in the same cluster in C

but

not in C

, and as true negatives the points that are in

different clusters in both C

and C

The first experiment evaluates the performance

of K-Means, when the face samples are points in the

space generated by PCA or LDA. This experiment

was not carried out with FACE, due to the different

distance function and of the particular comparison

algorithm. K-Means requires the number of clusters,

which has been set to the number of subjects from

FERET, i.e. 35. The comparison was performed with

the clustering induced by the database labeling,

which is the true correct one (our gold standard).

Table 1 shows that the robustness of the FET heavily

influences the performance of the K-Means

algorithm. This phenomenon is confirmed by the

different values of Precision / Recall with PCA and

LDA, which reach 0.3846 and 0.3796 in the first

case, against 0.4822 and 0.4309 in the second.

Table 1: Comparison of K-Means, with different FETs,

and the database clustering induced by included labels.

FET RM FMI

PCA 0.9667 0.3821

LDA 0.9717 0.4558

The second experiment evaluated the algorithm

E-AC. Also for this experiment, the three FETs have

been considered as a starting point for the generation

of the initial set of clusters, which were then input to

the merging procedure. Even in this case, the

comparison is with the database labelling. Results of

this experiment are summarized in Table 2.

Table 2: Comparison of E-AC clustering using different

FETs with the database labeling.

FET RM FMI

PCA

0.9729 0.4121

LDA

0.9736 0.4087

FACE

0.9777 0.5227

We can observe how a more robust FET allows

entropy to provide a better ordering of templates in

the input set. As a consequence, it is possible to

ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods

562

detach from the tail of the ordered list a series of

template sequences which actually belong to the

same class. This increases the uniformity and

consistency of initial clusters, allowing a better

result after the merging procedure. In fact, there is

no implementation of a process of cluster split or

deletion of an item from a cluster: when a template

is added to a cluster, it is never removed from it. If

the initial clusters, produced by E-AC are very

heterogeneous (i.e. contain templates belonging to

different classes), the final result, will be hopelessly

affected by this. In a final experiment, the merging

step was reapplied to the final clustering with

increasing thresholds, in an iterative way. With

LDA, the procedure initially generated 104 clusters,

to which merging was applied with threshold 0.2 to

obtain the first final clustering (the procedure used

for Table 2). The merging procedure was applied

again to the set of clusters obtained so far, with a

higher threshold 0.3, and again to the set of clusters

obtained with a threshold 0.4. Table 3 shows the

performance in terms of number of clusters and

performance indices for the various iterations. The

same procedure was applied with FACE obtaining

the results in Table 4.

Table 3: Performance indices for the sequence of iterations

of the merging step when E-AC is applied with LDA FET.

FET Cl.s RM FMI P R

it-0

104 0.9736 0.4087 0.84 0.20

it-1

84 0.9729 0.3927 0.79 0.19

it-2

60 0.9771 0.5077 0.78 0.33

it-3

45 0.9806 0.5856 0.71 0.48

Table 4: Performance indices for the sequence of iterations

of the merging step when E-AC is applied with FACE

FET.

FET Cl.s RM FMI P R

it-0

62 0.9777 0.5227 0.81 0.34

it-1

50 0.9813 0.6237 0.79 0.49

it-2

39 0.9833 0.6790 0.71 0.65

Table 3 and Table 4 show that the different

applications of the merging procedure consistently

fuse together the clusters with similar templates, as

indicated by the growth of the value of Recall.

However, the reduction of Precision shows that

merging may put elements of different classes within

the same cluster.

E-AC is slightly slower than K-Means, but this

can be fixed by suitable computation optimizations.

5 CONCLUSIONS

Clustering is a promising solution to address the

problem of biometric recognition with a large scale

database. K-means Clustering is a very popular

technique to address the problem, but needs the

parameter k a-priori. Our technique achieves better

results even without this information.

REFERENCES

Bhatnagar J., Kumar A.(2009). On Estimating Some

Performance Indices for Biometric Identification.

Pattern Recognition, vol. 42( 5), pp. 1805-1818.

De Marsico M., Nappi M., Riccio D. (2012). Entropy in

Biometric Face Template Analysis. In: Campilho,

Aurélio and Kamel, Mohamed (eds.)

Proceedings of

International Conference on Image Analysis and

Recognition – ICIAR 2012. Lecture Notes in Computer

Science

, Vol. 7325, pp. 72-79.

De Marsico M., Nappi M., Riccio D., Wechsler H.

(2012). Robust Face Recognition for Uncontrolled

Pose and Illumination Changes.

IEEE Trans. on

Systems, Man and Cybernetics, Part A: Systems and

Humans

, vol.PP, no.99, pp.1-15, doi:

10.1109/TSMCA.2012.2192427

Fowlkes E. B., Mallows C. L. (1983). A Method for

Comparing Two Hierarchical Clusterings.

J. of the

American Statistical Association,

78(383), 553–569.

Kirby M., Sirovich L. (1990). Application of the Karhunen

Loeve procedure for the characterization of human

faces.

IEEE Trans. on Pattern Analysis and Machine

Intelligence

Vol.12, pp.103–108.

Maltoni D., Maio D., Jain A. K., Prabhakar S. (2003).

Handbook of Fingerprint Recognition. Springer.

Phillips P. J., Wechsler H., Huang J., Rauss P.(1998). The

FERET Database and Evaluation Procedure for Face

Recognition Algorithms, Image and Vision Computing

Journal, Vol. 16(5), pp. 295-306.

Rand W. M. (1971). Objective criteria for the evaluation

of clustering methods.

J. of the American Statistical

Association

Vol, 66(336), 846–850.

Singh, J. K. (2009). A Clustering and Indexing Technique

suitable for Biometric Databases. MSc Thesis, Indian

Institute Of Technology Kanpur, Kanpur, India.

Turk M., Pentland A. (1991) Eigen Faces for Recognition.

J. of Cognitive Neuroscience, Vol. 3(1), pp. 71-86

Wiskott, L., Fellous, J. M., Krüger, N., von der Malsburg,

C. (1996). Face Recognition by Elastic Bunch Graph

Matching.

IEEE Trans. on Pattern Analysis and

Machine Intelligence

, Vol. 19(7,) pp.775-779

Zhao H., Yuen P.C. (2008). Incremental linear

discriminant analysis for face recognition. IEEE

Trans. on Systems, Man and Cybernetics – Part B:

Cybernetics

. Vol. 38, pp. 210–221

EntropybasedBiometricTemplateClustering

563
