Classiﬁcation of Text and Image Areas in Digitized Documents for

Mobile Devices

Anne-Sophie Ettl

1,2

, Axel Zeilner

, Ralf K

oster

and Arjan Kuijper

1,3

Technische Universit

at Darmstadt, Darmstadt, Germany

FINARX GmbH, Darmstadt, Germany

Fraunhofer IGD, Darmstadt, Germany

Keywords:

Digitizing, Mobile Devices, Classiﬁcation.

Abstract:

Post processing and automatic interpretation of images plays an increasingly important role in the mobile area.

Both for the efﬁcient compression and for the automatic evaluation of text, it is useful to store text content as

textual information rather than as graphics information. For this purpose pictures from magazines are recorded

with the camera of a smartphone and classiﬁed according to text and image areas. In this work established

desktop procedures are presented and analyzed in terms of their applications on mobile devices. Based on

these methods, an approach for image segmentation and classiﬁcation on mobile devices is developed, taking

into account the limited resources of these mobile devices.

1 INTRODUCTION

Smartphones are becoming increasingly important

and have become indispensable in professional and

private life. The introduction of the iPhone in 2007

and the Android smartphone operating system in 2008

revolutionized the mobile market and, for example,

now 43% of all mobile phones sold in Germany are

smartphones. This trend of ubiquitous availability

of computing power and network access continues.

Particularly simple smartphones are now equipped

with computational resources that have been part of

a workgroup server less than 10 years ago. Smart-

phones have another feature compared to the com-

puter. On most desktop PCs (ﬂexible) cameras are

still not widely available. Meanwhile, the mobile

cameras have a zoom range with regard to the reso-

lution and the quality of a ﬂatbed scanner. Therefore,

the processing of images plays an increasingly impor-

tant role in the Mobile area (Wientapper et al., 2011;

Engelke et al., 2012).

An important use case represents the digital stor-

age of documents, magazines and documents. This

can be done locally on the device or via an online

storage, the cloud. In both cases, an efﬁcient com-

pression of the image material is advantageous. For

the automatic evaluation of text it thus makes sense

to store the text portion of an image not as a graphic,

but as textual information. Therefore it is necessary to

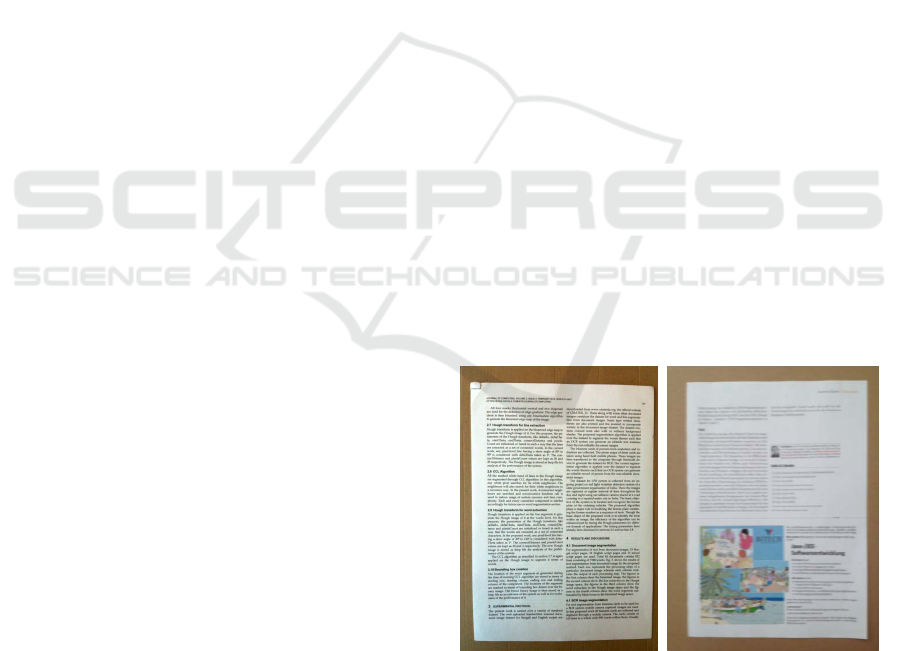

Figure 1: Typical example of a scan made using a smart

phone (left) and a slightly Gaussian blurred image used in

the processing pipeline (right).

classify the recorded image material in text and image

regions and to process them in different ways. For text

ﬁelds, for example, the further processing can be done

with an OCR engine.

For desktop computers and laptops a standard set

of applications for the problem has been established

(Liang et al., 2005). Because of the lower computing

and storage applications, they are not directly trans-

ferable to mobile devices. Especially speed is a crit-

ical issue, since a smartphone user does not want to

wait more than a few seconds for the result of an op-

eration.

Ettl A., Zeilner A., Köster R. and Kuijper A..

Classiﬁcation of Text and Image Areas in Digitized Documents for Mobile Devices.

DOI: 10.5220/0004273600880091

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 88-91

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

In this work, a method for image segmentation

and classiﬁcation is presented, which is suitable for

use in mobile applications. Shots of magazines that

were taken by a smartphone camera are considered as

images. The method has to locate text or image re-

gions in the image, extract them and provide them for

further processing, for example for use with an OCR

application. The procedure must satisfy the following

claims for applicability of mobile devices:

i) High speed

ii) Low demands on resources

iii) Easy portability / Cross-platform

iv) Low complexity of the implementation to ensure

the practical application.

The resulting prototype should be ported with lit-

tle effort on various mobile Platforms (e.g. iOS, An-

droid). The prototype is therefore implemented in

Python using the OpenCV library. In the remainder,

ﬁrst existing methods are presented for image seg-

mentation. Their performance and portability to mo-

bile devices are discussed. Then, a suitable procedure

for use on mobile devices, together with the theoreti-

cal basis is explained. The results of the prototypical

implementation of the process are presented, analyzed

and discussed and an outlook for future work is given.

2 RELATED WORK

In the literature, there are a variety of approaches for

the segmentation of documents. They can be divided

into three categories: bottom-up, top-down and hy-

brid methods (Lin et al., 2006). See (Ettl, 2012) for

more details.

Yuan & Tan (Yuan and Tan., 2000) segment the source

image into text and non-text areas and let the OCR

engine carry out a reﬁned analysis. For this purpose

they require certain properties of text ﬁelds: It can be

assumed that words in text ﬁelds have similar height,

alignment, and spacing. Unfortunately, they do not

provide runtime data. Single statement: The algo-

rithm is ”relatively fast”.

Mollah et al. (Mollah et al., 2010) describe a method

of text segmentation on Business cards, which is spe-

cially designed for use on mobile devices. First, the

background is removed. Then, detection of text com-

ponents is performed using Connected Components

in isolated information areas. This procedure takes

between 0.06 seconds (0.3 megapixels) and 0.6 sec-

onds (3 megapixels) on a dual-core 1.73 GHz proces-

sor with 1 GB RAM.

Lin, Tapamo, and Ndovie (Lin et al., 2006) present a

method that segments a document using a gray scale

matrix for the detection of textures. Regions are clas-

siﬁed in text, image and empty areas. The running

time of this process on a Pentium 4 is about 3 seconds

for an image with a resolution of 1449x2021 pixels.

3 IMAGE SEGMENTATION ON

MOBILE DEVICES

In this work, some algorithms that are frequently used

in the image segmentation are combined and tested.

The aim is to develop a two-stage process:

In the ﬁrst step, a pre-processing method is car-

ried out and all the foreground objects are separated

from the background (object extraction). Foreground

objects can be text, images, or drawings. The algo-

rithms are applied to the entire original image.

In the second step, the detected objects are clas-

siﬁed into text and non-text objects (object classiﬁca-

tion). The algorithms are applied only to certain areas

of the source image’s regions of interest (ROI). This

has the advantage that individual objects may be ex-

amined according to need with various methods. In

addition, the running time is reduced when small ar-

eas of the image are edited instead of the whole im-

age.

From the available approaches a selection of ap-

propriate algorithms (Burger and Burge, 2009) for

rapid segmentation was selected. An important crite-

rion based on which algorithms were selected, was the

performance. The histogram analysis was deferred in

favor of heuristic lines of text recognition, because the

running time is worse and it has other weaknesses in

the distinction between text and drawings. The Canny

edge detector was rejected because it didn’t add value

to the Connected Components Analysis. The edge

detector produces a binary edge image, whereas the

CCA supplies object contours that are stored in a list

or a tree structure that can easily be further processed.

The original image is ﬁrst smoothed by a Gaus-

sian ﬁlter. This is to reduce the noise on the one hand,

by ﬁltering out small noise pixels. On the other hand

object contours are highlighted. Depending on the

degree of blurring, individual words blur into lines

of text, lines of text into blocks, and smaller objects

are grouped into larger areas. This allows text lines,

blocks of text, photos, and graphics to delimit easily

from the background of the picture. This effect is en-

hanced by the application of the Gaussian pyramid,

which also increased the processing speed by reduc-

ing the image resolution. In the next step, the image

is binarized by an adaptive thresholding method and

thus a binary mask is created. Background pixels are

set to 0 and foreground or object pixels to 255.

On the mask Connected Components Analysis

ClassificationofTextandImageAreasinDigitizedDocumentsforMobileDevices

(CCA) analysis is performed to identify foreground

objects and to draw bounding boxes around them. In

the Connected Components Analysis, the contour ex-

traction of (Suzuki and Abe, 1985) is used, as the

OpenCV library (the language used in the implemen-

tation) provides a very fast implementation of the al-

gorithm. On the mask an erosion is applied to again

remove small noise pixels and to ensure that in the

subsequent dilatation no objects are merged that do

not belong together. By means of the dilation of small

holes within objects are closed and objects lying very

closely together, such as lines of text or objects within

a graphic, are merged into a larger object (Figure 2).

A closing operation does not bring the desired effect,

since the use of different structural elements gives bet-

ter results. On the mask, a second Connected Com-

ponents Analysis is performed. The identiﬁed objects

are then used to extract the ROIs from the original

image.

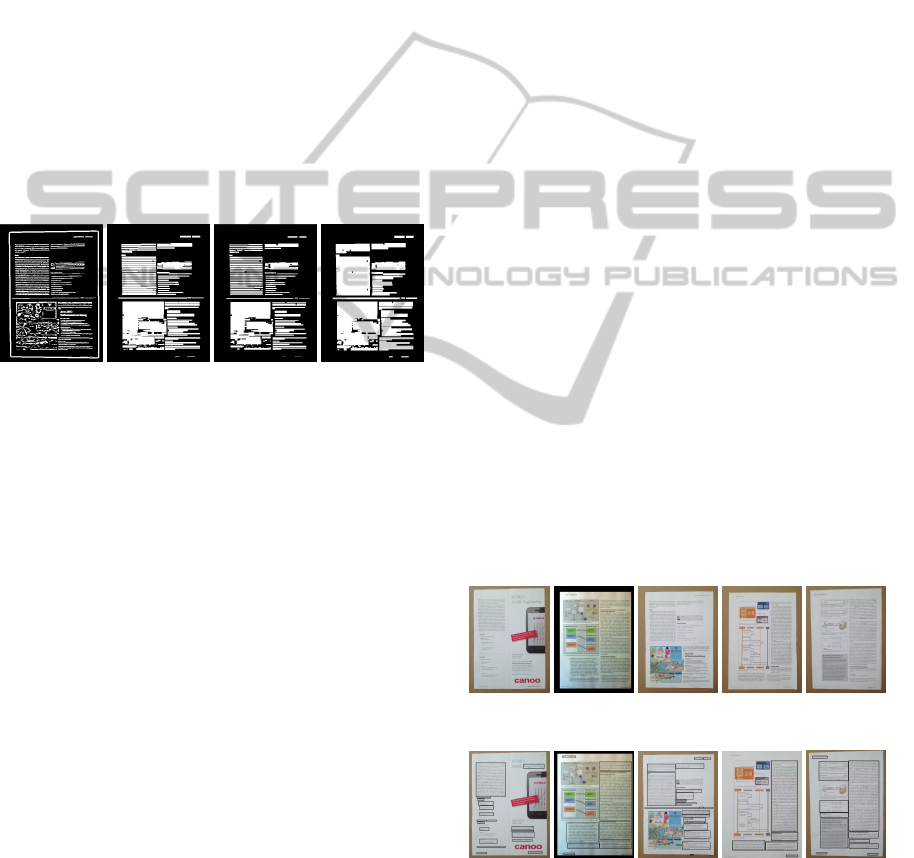

Figure 2: Segmentation Pipeline: Binarization of the

slightly blurred image, CC-Analysis, erosion and dilation

(left to right).

The next step is to decide whether the extracted

ROIs are text or non-text areas. The following heuris-

tics are adopted (Mollah et al., 2010):

i) Lines of text have a certain ratio of height to width;

ii) Lines of text have a certain distance from each

other;

iii) Text ﬁelds have a certain ratio of background pix-

els to foreground pixels.

To extract text lines the image region is ﬁltered

with a Gaussian and then binarized. Next, using CCA

bounding boxes are drawn around the objects. Using

heuristics, it is decided whether objects are text lines

or not. When the objects within a ROI are exclusively

or predominantly clearly marked as lines of text, then

the ROI is classiﬁed as a text area. This is not the

case, then the ROI initially is classiﬁed as a non-text

and with reﬁned heuristics or with other methods, for

example a texture analysis, it can be tested if it con-

tains any text components.

4 RESULTS

The times were measured on a MacBook Pro 2.4 GHz

Intel Core 2 Duo processor. Shown here are the pure

running times of the algorithm, without loading the

image, or displaying it on the screen. To normalize

the runtime, the algorithm was run 50 times and the

mean value was obtained.

The segmentation using the Hough algorithm was

discarded after a few test runs, as it has the following

disadvantages compared to a Connected Components

Analysis:

1) The algorithm is much more computationally in-

tensive. The pure running time for an image with

612x816 pixels is 0.21 seconds (threshold of the ac-

cumulator array = 150) and 0.49 seconds (threshold =

100). Compared to the complete CCA including his-

togram analysis (0.21 seconds), the algorithm is 1-2

times as computationally intensive.

2) In order to obtain approximately equivalent results

a signiﬁcantly more complex implementation is re-

quired. The output image must ﬁrst be prepared with

the Canny edge detector with appropriate parameters,

and thereafter an appropriate parameterization of the

Hough algorithm must be determined.

The histogram analysis yields qualitatively similar

results as heuristic analysis, but was deferred in this

work however:

1) It is computationally more intensive than the use

of heuristics to recognize the text: For an image with

612x816 pixels, the method with histogram analysis

requires 0.21 seconds, with heuristics 0.042 seconds.

2) It is difﬁcult to distinguish between text ﬁelds and

drawings.

The method has been tested on various sample im-

ages with different resolutions, taken with an iPhone

3 and an iPhone 4. Representative results on 5 images

are shown in Figures 3 and 4.

Figure 3: Original images.

Figure 4: Results of object classiﬁcation.

To evaluate the classiﬁcation of the image objects

following cases were evaluated (Mollah et al., 2010):

1) True positive (TP): Text areas are classiﬁed as text

2) True negative (TN): Non-text is classiﬁed as non-

text

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

Table 1: Evaluation of the shown test images.

Image Size Recall Prec. Acc.

1 734x979 0.75 0.88 0.70

2 623x921 0.73 1.00 0.77

3 734x979 0.90 0.82 0.76

4 612x816 0.56 1.00 0.64

5 612x816 0.89 0.73 0.69

3) False negatives (FN): Text areas are classiﬁed as

non-text

4) False Positive (FP): Non-text is classiﬁed as text

From the number of occurrences of the different

cases one can calculate Recall, Precision and Accu-

racy. Recall indicates how many text components are

correctly identiﬁed from any existing text components

of an image. Precision indicates how many of the

identiﬁed text components also are actually text com-

ponents. Accuracy is the proportion of all the objects

that have been classiﬁed correctly. The values of the

three dimensions are between 0 and 1 In an ideal clas-

siﬁcation they take the value 1.

Recall = TP / (TP + FN)

Precision = TP / (TP + FP)

Accuracy = (TP + TN) / (TP + FP + TN + FN)

The average recall is thus 76.6% and average pre-

cision 88.6%, and average accuracy at 71.2%.

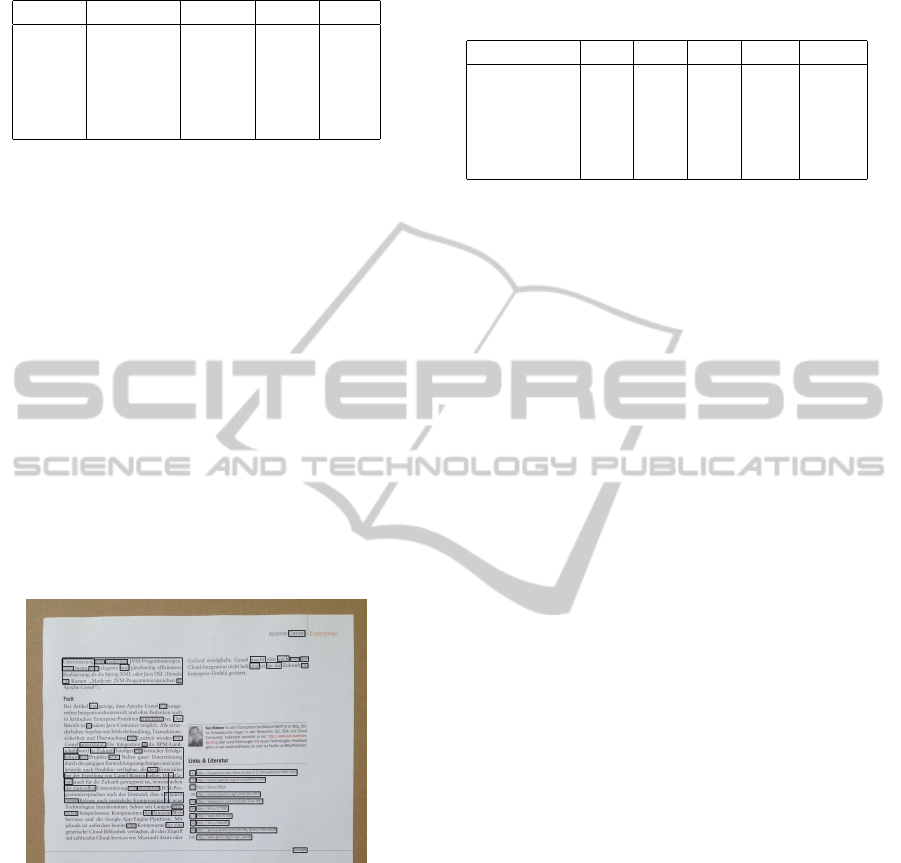

Figure 5: Figure 3, 1714x2285 pixels: result of the classiﬁ-

cation at too high resolution.

As part of the implementation it turns out that the

algorithm for an A4 page of a magazine photographed

only with a resolution from 0.3 to 1 megapixel (MP)

returns most useful results. When the resolution is

lower, then in the Connected Components Analy-

sis and the dilatation too many objects fuse to a re-

gion, which then can not be clearly classiﬁed. When

the resolution is higher, possibly related objects are

not merged and only individual words are recognized

(Figure 5). In both cases, the algorithm does not lead

to meaningful results. In the implementation, there-

fore, the original image is scaled in the pre-processing

Table 2: Running times in milliseconds for image 3 for dif-

ferent sizes (megapixels), including preprocessing, extrac-

tion and classiﬁcation.

Size MP tot. pre. extr. class.

2448x3264 8.0 747 29 75 643

1714x2285 4.0 378 15 40 323

1224x1632 2.0 161 6.6 18 136

857x1142 1.0 75 4.2 9 62

612x816 0.5 42 2.3 4.7 35

in the above-mentioned range, the algorithm is ap-

plied to the scaled image, and then extrapolated to

the original image, where the classiﬁed objects are

marked or extracted.

From the measurements it can be seen that the

running time of the process is nearly linear. Be-

cause the algorithm provides good classiﬁcation re-

sults for scaled images in the range between 0.3 and

1 megapixel, this area is also of particular interest for

running time analysis. Here the duration of the pro-

cess is 20 to 70 ms.

REFERENCES

Burger, W. and Burge, M. (2009). Principles of Digital Im-

age Processing. Springer, London.

Engelke, T., Becker, M., Wuest, H., Keil, J., and Kui-

jper, A. (2012). MobileAR browser - a generic ar-

chitecture for rapid AR-multi-level development. Ex-

pert Systems with Applications, x(x):xx–xx. in press,

DOI=10.1016/j.eswa.2012.11.003.

Ettl, A.-S. (2012). Klassiﬁkation von bildbereichen in dig-

italisierten dokumenten zur andendung auf mobilen

geraeten. Technical report, TU Darmstadt.

Liang, J., Doermann, D., and Li, H. (2005). Camera-based

analysis of text and documents: a survey. Interna-

tional Journal on Document Analysis and Recogni-

tion, 7:84–104.

Lin, M.-W., Tapamo, J.-R., and Ndovie, B. (2006). A

texture-based method for document segmentation and

classiﬁcation. South African Computer Journal,

36:49–56.

Mollah, A., Basu, S., and Nasipuri, M. (2010).

Text/graphics separation and skew correction of text

regions of business card images for mobile devices.

Journal of Computing, 2(2):96–102.

Suzuki, S. and Abe, K. (1985). Topological structural anal-

ysis of digitized binary images by border following.

Computer Vision, Graphics, and Image Processing,

30(1):32–46.

Wientapper, F., Wuest, H., and Kuijper, A. (2011). Com-

posing the feature map retrieval process for robust

and ready-to-use monocular tracking. Computers &

Graphics, 35(4):778–788.

Yuan, Q. and Tan., C. (2000). Page segmentation and text

extraction from gray scale image in microﬁlm format.

In Proceedings SPIE vol. 4307, pages 323–332.

ClassificationofTextandImageAreasinDigitizedDocumentsforMobileDevices
