A JMVC-based Error Concealment Method for Stereoscopic Video

Xiaorui Zhu

, Li Zhuo

and Xiaoqin Song

Singal & Information Processing Laboratory, Beijing University of Technology, Beijing, China

College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing, China

Keywords: Stereoscopic Video, Error Concealment, Coding Mode, Inter-view Correlation.

Abstract: When transmitted over error-prone environments, the stereoscopic video data may undergo transmission

errors and loss. In order to improve the quality of the reconstructed video, a Joint Multi-view Coding

(JMVC) based error concealment method for stereoscopic video is proposed in this paper. In this method,

the errors in the independent view are concealed by traditional two-dimensional (2-D) video error

concealment algorithm. For the lost macroblock (MB) in the dependent view, intra and inter-view

correlation are utilized to conceal the errors based on the characteristics and its coding mode of the

stereoscopic videos. Combined with related reference MBs’ partition mode, the lost MBs are divided into

two types: smooth block and texture block. Smooth block is to be processed by improved Boundary Smooth

Degree (BSD), while reconstruction of texture block is done by unit of 8×8 block with related pixel Sum of

the Absolute Differences (SAD). Experimental results show that, compared with the conventional error

concealment methods for stereoscopic video coding, the proposed method can achieve better subjective and

objective performances.

1 INTRODUCTION

Digitalization, high-definition and Three-dimension

are directions of development of modern video

technology, in which stereoscopic video technology

is an important field of research. Relative to the

traditional two-dimensional video, stereoscopic

video is widely used in various fields because it can

offer viewers the 3-D perception (Tekalp et al.,

2007), and its applications involve 3DTV,

Stereoscopic Video Conference System, Video

Surveillance, Tele-Medicine and so on (Wang et al.,

2012). Stereoscopic video technology is affecting

every aspect of people’s life, but the amount of

video data is too huge to store and transmit. In order

to improve compression efficiency, intra and inter-

view predictions are mostly used for stereoscopic

video coding. However, highly compressed video

stream is extraordinarily sensitive to the

transmission error. Once the transmission errors

occurred, the errors will spread in both views, which

will have serious impact on the quality of the

reconstructed videos and the video applications. So

it becomes more and more actual to recover the

video error and improve the quality of the

reconstructed videos.

Error concealment technique is an effective error

resilience technique. It utilizes correlation between

the video data and human visual characteristics to

recover error data and improve subjective quality of

the reconstructed videos (Chunbin, 2010). Error

concealment technique for stereoscopic video is

closely related to its coding structure, so different

error concealment techniques usually adopt different

stereoscopic video coding structures. Among the

state-of-the-art stereoscopic video coding structures,

the joint dual-color channel video coding structure is

most frequently used, which consists of left and right

channels to simulate the images in the left and right

human eyes. One channel adopts traditional 2-D

coding structure to encode independently (called

independent view in this paper). When encoding the

other channel, both Motion Compensation

Predication (MCP) and Disparity Compensation

Predication (DCP) modes are employed to eliminate

temporal and inter-view redundancy, thus,

increasing stereoscopic video coding efficiency

substantially (Li et al, 2005). Because this view is

predicted based on independent view and cannot be

decoded independently, so it is named as dependent

view in this paper.

Many researchers study error concealment

techniques based on this coding structure. Among

these error concealment techniques, the errors in the

201

Zhu X., Zhuo L. and Song X..

A JMVC-based Error Concealment Method for Stereoscopic Video.

DOI: 10.5220/0004290802010207

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 201-207

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

independent view are usually concealed with

traditional 2-D video error concealment algorithms.

For the errors occurred in the dependent view, most

techniques employ the intra and inter-view

correlation to recover the error data. For example,

Xiang et al., (2007) used vector extrapolation

technique, overlapped block motion and disparity

compensation to recover a lost MB. Compared with

Boundary Matching Algorithm (BMA) of single

view, this method can achieve about 1dB gain in

Peak Signal to Noise Ratio (PSNR). Next, Xiang et

al., (2011) utilized Auto-Regressive (AR) model to

recover the erroneous data. AR model coefficients

were calculated with the pixels related to the optimal

motion/disparity vector, and each pixel value of the

lost MB was interpolated. Compared with the

conventional Temporal Replacement (TR) method,

this method can achieve about 3.7~6.7dB gain. The

algorithms above mostly utilize motion information

of lost MBs to recover the data, but not considering

texture features of video sequences, so the detailed

video information cannot be recovered well.

Tang and Zhu (2009) proposed Boundary

Smooth Degree (BSD) to divide the lost MBs into

texture block and border block, and then treated

them with different methods. The texture blocks

were reconstructed using mean value of the disparity

vectors, and the border blocks were reconstructed

with the directional interpolation method. Zhou et al.,

(2011) firstly judged the lost MBs into the disparity

compensation blocks or motion compensation blocks

according to the related reference blocks. Then

based on the classification result, concealed the

blocks accordingly with the interpolation method,

disparity compensation based method or motion

compensation method. It can be seen that these

algorithms basically considered the texture features

of lost MBs, and can recover texture-rich region

efficiently, but at the cost of higher computational

complexity.

In this paper, a JMVC based error concealment

method for stereoscopic video is proposed. The

errors in the independent view are to be recovered

with traditional 2-D video error concealment

algorithms. For the errors in the dependent view,

intra and inter-view correlation is efficiently utilized

to recover the erroneous data. The basic idea of the

proposed method is: Determine the reference blocks

first. The reference blocks include spatial adjacent

blocks of the lost MB, the MB at same position in

prior frame to the damaged frame, and the MB at

same position in the spatial adjacent frame in the

independent view. Then exam the MB-Partition

mode of the reference blocks. If the partitioning

sizes of the most of blocks are bigger than 8×8, the

lost MBs are regarded as the smooth blocks, and the

vectors of the reference blocks with big MB-

Partitioning mode will be treated as the candidate

vector set. Combined with the improved Boundary

Smooth Degree (BSD), the smooth blocks will be

reconstructed. If most of MB-Partitioning sizes of

the reference blocks are smaller than 8×8, the lost

MBs are regarded as the texture blocks, and the

reference blocks with small MB-Partitioning mode

will be treated as the candidate blocks. Using the

vectors of the candidate blocks and related pixel

SAD, the texture blocks are reconstructed with a 8×8

block unit. The experimental results show that, our

proposed scheme can achieve 2.2 dB performance

improvement in average than Temporal

Replacement (TR) method and stereo JM method,

which can recover error data efficiently.

The rest of this paper is organized as follows:

section 2 describes the proposed error concealment

algorithm, section 3 presents the experimental

results including both the subjective and objective

comparisons. Conclusion remark is drawn in the

final section.

2 PROPOSED JMVC BASED

ERROR CONCEALMENT

METHOD FOR

STEREOSCOPIC VIDEO

Joint Multi-view Video Coding (JMVC) is the most

commonly used multi-view video coding scheme

currently, and it is also the most commonly used

platform for the study on stereoscopic video coding.

Therefore, in this paper, reference software JM18.2

is adopted to research the error concealment method

(JVT reference software, 2011). The stereoscopic

video coding structure is shown as follows.

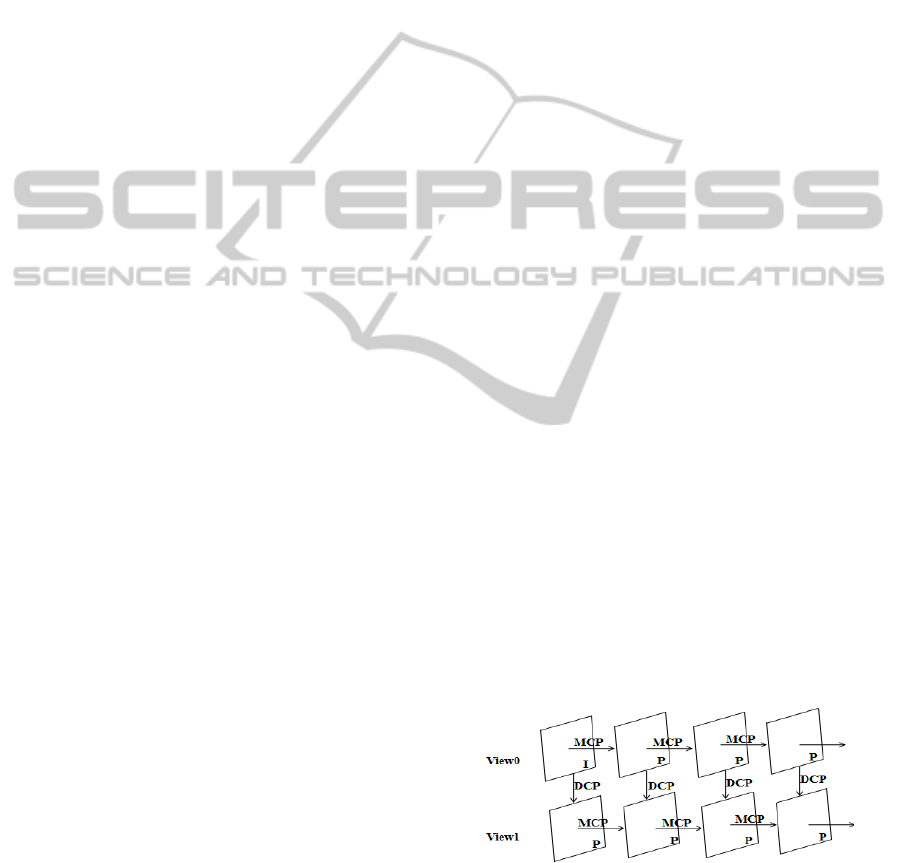

Figure 1: The related stereoscopic video coding structure.

View0, also named as independent view, is

independently encoded with Motion Compensation

Prediction (MCP) structure, while view1, also

named as dependent view, is encoded with both

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

202

Motion Compensation Prediction (MCP) and

Disparity Compensation Prediction (DCP) structure.

This kind of coding structure can efficiently

eliminate intra and inter-view redundancy to a

certain extent, thus, increasing stereoscopic video

coding efficiency substantially.

2.1 Procedures of the proposed Method

The errors occurred in the independent view are to

be recovered with the traditional 2-D video error

concealment techniques. Therefore, the work in this

paper mainly focuses on the error concealment

method of the dependent view.

The flowchart of error concealment method for

the dependent view is shown as Figure 2. The

proposed method firstly divides the lost MBs into

smooth block and texture block according to the

MB-Partitioning modes of the reference blocks, then

treats them with different methods. The smooth

blocks are to be reconstructed with the improved

Boundary Matching Algorithm (BMA), and the

texture blocks to be recovered with a 8×8 block unit.



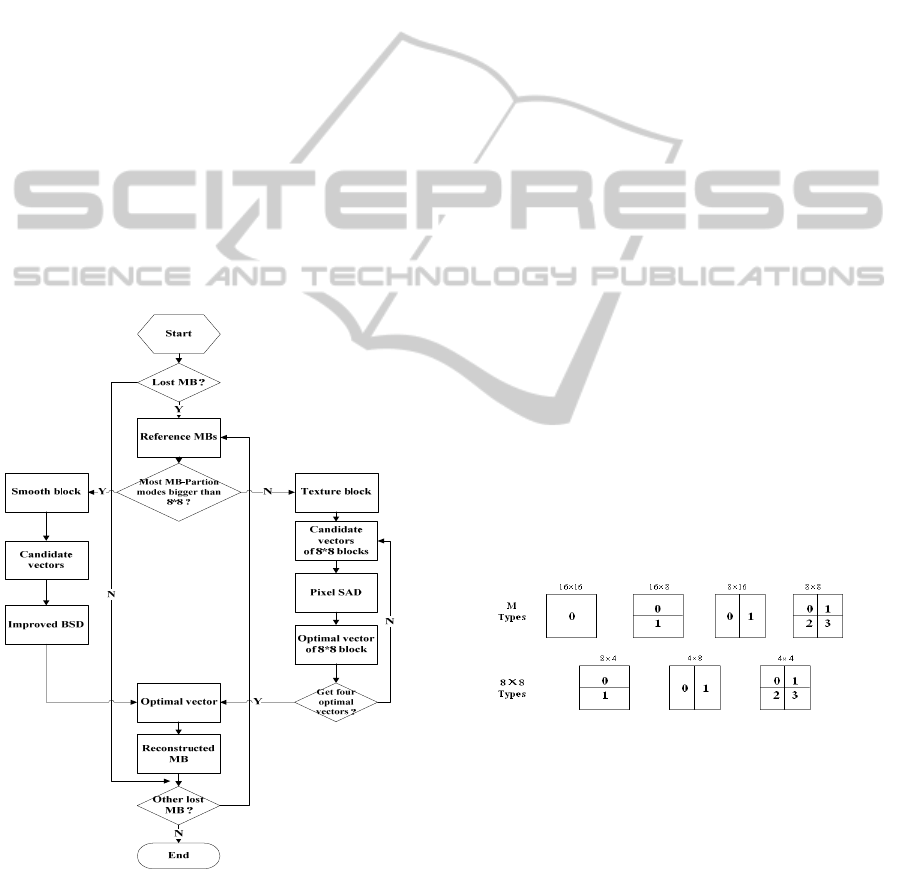

Figure 2: The flowchart of error concealment method for

the dependent view.

The error concealment procedures of the

dependent view are as follows:

 Determine reference blocks: The reference

blocks are spatial adjacent blocks of the lost MB, the

MB at same position in prior frame to the damaged

frame, and the MB at same position in the spatial

adjacent frame in independent view;

 Classify the lost MBs: Exam the MB-Partitioning

modes of reference MBs. If most of them are bigger

than 8×8, the lost MB is regarded as smooth block,

or as texture block;

 Process different lost MBs: For the smooth

blocks, the vectors of reference blocks with big MB-

Partitioning modes will be treated as the candidate

vector set. Combined with the improved Boundary

Smooth Degree (BSD), the best vector and the

relevant matching block will be obtained to

reconstruct the smooth blocks. For the texture

blocks, the reference blocks with small MB-

Partitioning modes will be treated as the candidate

blocks, and the vectors of the candidate blocks will

form the candidate vector set. The texture blocks are

reconstructed with a 8×8 block unit, and the optimal

vector of 8×8 block is choosed by the pixel Sum of

the Absolute Differences(SAD) between internal

boundary and external boundary of the 8×8

predicted blocks. After the four 8×8 blocks are

reconstructed, the reconstructed MB will be obtained.

The coding mode of the reconstructed MB is set as

Inter8×8;

 Repeat the above steps to recover all lost MBs.

2.2 MB-partitioning Mode

In H.264 standard, inter-view coding mode includes

seven partitioning modes (Houjie, 2009), which is

shown in Figure 3.

Figure 3: The way of MB-partitionings.

The state-of-the-art research results show that

bigger partitioning size usually corresponds to the

flat areas in the image, while the smaller size

corresponds to the texture-rich regions. Therefore in

this paper, if the most reference blocks are encoded

with a bigger size, the lost MBs will be processed as

a smooth block, or as a texture block.

2.3 Process the Smooth Blocks

Smooth block is to be processed in a MB (16×16

AJMVC-basedErrorConcealmentMethodforStereoscopicVideo

203

pixels) unit in the proposed method. Reference

blocks with big MB-Partitioning mode will be

treated as the candidate blocks. If the candidate MBs

are encoded with MCP structure, the lost MB will be

motion compensated, while if the candidate MBs are

encoded with DCP structure, the lost MB will be

disparity compensated.

The vectors of candidate blocks form candidate

vector set. To choose the best vector, this paper

adopts an improved BSD. Conventional BSD is Sum

of the Absolute Differences (SAD) of external

boundary of predicted MB and its internal boundary

in the current frame (Yongkui, 2010), which only

considers the spatial correlation, shown as follows:

IN OUT

DYY

=−

∑

(1)

where N=16,

is internal boundary of the

predicted MBs, and

OUT

is external boundary of

the predicted MBs in the damaged frame.

Taken the temporal correlation into account, the

traditional BSD is improved in this paper, another

BSD factor is added as follows.

IN OUT

Tii

DYY

=−

∑

(2)

where

is external boundary of the lost MBs,

OUT

is external boundary of the predicted MBs in

reference frame. So, the equation of the improved

BSD is:

imp T

DDD

αβ

(3)

where α+β=1, and after testing, the result is

relatively good when α=β=0.5.

2.4 Process the Texture Blocks

Texture block is usually encoded with a smaller size.

And interpolation method was mainly adopted to

conceal detailed information in other papers, in

which information was reconstructed for each pixel.

Taken detailed information concealment and

computational complexity into account, texture

block is processed in a 8×8 block unit in this paper,

as Figure 4 shows.

The lost MB is divided into four parts, block_0,

block_1, block_2 and block_3. Each part is a 8×8

block, which will be processed one by one.

Reference blocks with small MB-Partitioning size

will be regarded as the candidate blocks, and the

vectors from the partitionings of the same position in

the candidate blocks form the candidate vector set.

Optimal vector of 8×8 block is obtained by the pixel

SAD between internal boundary and external

boundary of the 8×8 predicted block. Take block_0

for example, the SAD between left boundary pixels

and spatially adjacent pixels add the SAD between

up boundary pixels and spatially adjacent pixels can

determine the first optimally predicted 8×8 block.

Next, we can get the other three optimally predicted

8×8 blocks, and reconstruct the lost MB at last. If

spatially adjacent blocks of lost MBs are not

available, the candidate block in reference frame

will be employed.

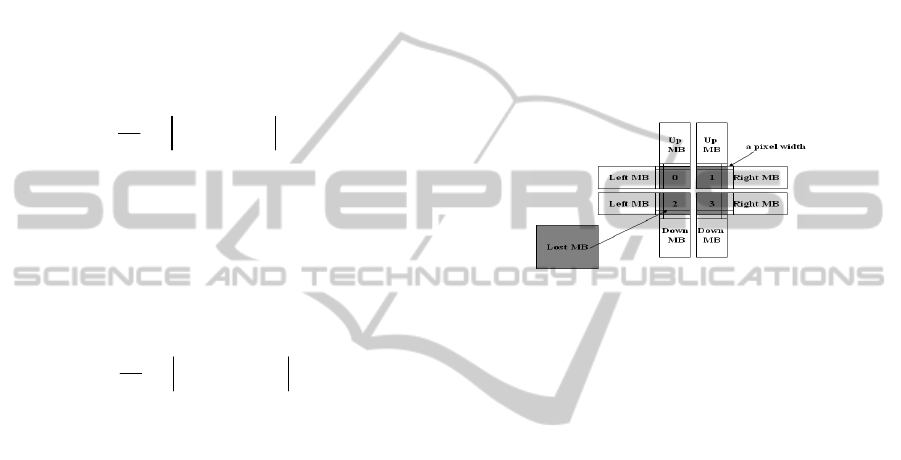

Figure 4: The processing of texture block.

3 EXPERIMENTAL RESULTS

Reference software JM18.2 is used in this paper as

the stereoscopic video coding structure in Figure1.

Three stereoscopic video sequences, Exit, Ballroom,

and Racel are tested, in which sequence Exit has low

motion degree, Ballroom moderate motion degree

and Racel highest motion degree. Ballroom

possesses rich texture. These sequences are encoded

250 frames. And GOP is set as 8. Packet Loss Rate

(PLR) is set as 5%, 10% and 20%, and the QP is set

as 28, 32 and 38 respectively.

3.1 Objective Image Quality

In order to demonstrate the effectiveness of our

proposed method, we compare the performance of

the proposed algorithm with Temporal Replacement

(TR) and stereoscopic JM (stereo JM) algorithm, in

which stereo JM algorithm utilizes single view

Boundary Matching Algorithm (BMA) of

H.264/AVC reference software and the inter-view

correlation to recover lost MBs. The Boundary

Matching Algorithm (BMA) in single view adopts

the vectors of the available spatial adjacent blocks as

the candidate vectors, then determines the optimal

vector with Boundary Smooth Degree (BSD).

Finally, it uses the best matched block to reconstruct

the lost MB (Yongkui, 2010).

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

204

Table 1: Case 1: Reconstructed video’s average PSNR

performance comparison of different error concealment

methods with different PLR.

QP Sequence PLR

PSNR(dB)

TR Stereo JM

Proposed

Method

Exit

5% 45.2644 43.7501 45.3982

10% 24.3598 25.0269 25.4828

20% 22.0063 22.6102 23.3511

Vassar

5% 43.1398 42.8866 43.5853

10% 30.6742 30.5775 31.6213

20% 28.6270 28.7737 29.8059

Ballroom

5% 43.0989 43.5334 44.1271

10% 22.8358 24.0631 24.5970

20% 20.6548 22.0562 23.4676

Flamenco2

5% 31.3602 32.5664 33.3726

10% 28.7995 29.4981 30.8588

20% 21.2670 22.2520 23.5245

Race1

5% 26.2684 29.2606 30.6326

10% 23.8230 25.7477 27.4452

20% 22.6741 24.0685 25.5324

Table 2: Case 2: Reconstructed video’s average PSNR

performance comparison of different error concealment

methods with different PLR.

QP Sequence PLR

PSNR(dB)

TR Stereo JM

Proposed

Method

Exit

5% 46.3016 45.7509 46.4460

10% 25.3655 25.6609 26.3050

20% 23.0190 23.4389 24.3271

Vassar

5% 44.5393 43.6317 45.0489

10% 32.4285 32.8035 33.5697

20% 29.1782 29.5623 30.5430

Ballroom

5% 44.0989 44.9371 45.4318

10% 24.3722 25.5824 26.2038

20% 21,9942 23.5876 24.8398

Flamenco2

5% 33.4575 34.2259 35.3100

10% 30.4475 31.4791 32.6618

20% 23.5319 24.2914 26.0394

Race1

5% 29.9197 33.0298 34.1738

10% 26.6163 28.4365 30.1815

20% 25.4795 26.9502 28.3821

Two cases are mainly considered in the

experiments. Case 1 is that independent and

dependent views are under the same channel

conditions, i.e PLR is the same. And the errors

occurred in the independent view is concealed with

the traditional methods, while the dependent view is

processed with the proposed method in this paper.

Case 2 is that the independent view is transmitted

correctly while the dependent view is transmitted

with packet loss and processed with the proposed

method in this paper.

Table 1 and 2 illustrates the average PSNR

performance comparison of the whole dependent

view processed with the three different methods with

QP is 28 and PLR is 5%, 10% and 20% respectively.

From table 1 and 2, it can be seen that in both

cases the reconstructed video quality with our

proposed method is better than the other two

methods. The proposed method has 0.13~4.36dB

error concealment performance improvement than

TR, 0.14~1.75dB improvement than stereo JM. And

as PLR increases, the improvement is getting better

and better.

Table 3: Case 1: Reconstructed frame’s average PSNR

performance comparison of different error concealment

methods with different QP value.

PL-R Sequence Q-P

PSNR(dB)

Stereo

Proposed

Method

10%

Exit

28 32.8291 33.3478 33.8985

32 31.7341 31.6559 32.2332

38 30.8092 31.1164 31.4375

Vassar

28 36.4527 36.0711 37.1597

32 35.5339 35.3021 36.1842

38 35.2179 35.5506 35.8391

Ballroo-m

28 34.6422 35.4261 35.9080

32 33.8573 34.8602 35.3146

38 34.6504 35.5578 35.7858

Flamenco2

28 35.5264 36.5299 37.6305

32 34.2341 35.1665 35.9166

38 33.2269 33.9904 34.4882

Race1

28 35.2755 36.8342 38.5398

32 34.9737 35.6768 37.0230

38 34.4807 35.4274 36.7670

Table 4: Case 2: Reconstructed frame’s average PSNR

performance comparison of different error concealment

methods with different QP value.

PL-R Sequence Q-P

PSNR(dB)

Stereo

Proposed

Method

10%

Exit

28 34.8530 35.1354 35.8625

32 34.3765 34.1078 34.9872

38 33.8451 34.0227 34.3427

Vassar

28 38.4527 38.1390 39.3113

32 37.6339 37.3591 38.3823

38 36.5167 36.8264 37.3957

Ballroom

28 35.6109 36.2977 37.1526

32 34.8476 35.8108 36.0984

38 35.2726 36.2320 36.3955

Flamenco-2

28 37.1477 37.9322 39.1312

32 37.2347 37.8560 38.9682

38 36.2527 36.9772 37.8138

Race1

28 36.6440 37.6419 39.0290

32 35.0459 36.9588 38.0732

38 35.2449 36.6659 37.9436

Table 3 and 4 illustrate the PSNR performance

comparison of the error frame by the three different

methods with PLR of 10% and different QP values.

Due to the randomness of packet loss, we performed

AJMVC-basedErrorConcealmentMethodforStereoscopicVideo

205

ten experiments and take the average PSNR value as

the last result.

From table 3 and 4, it can be seen that the

reconstructed frame quality with our proposed

method is better than the other two methods. The

proposed method has 0.61~3.26dB error

concealment performance improvement than TR,

0.16~1.70dB improvement than stereo JM. And as

QP increases, the number of the skip coding mode

increases, the gain of our proposed method gets

smaller.

3.2 Subjective Image Quality

For subjective evaluation, this paper compares the

subjective quality of the reconstructed view. The

concealed results of the eleventh frame of dependent

view of video sequence Racel are shown in Figure 5-

8, where QP is 28 and both views have PLR of 10%.

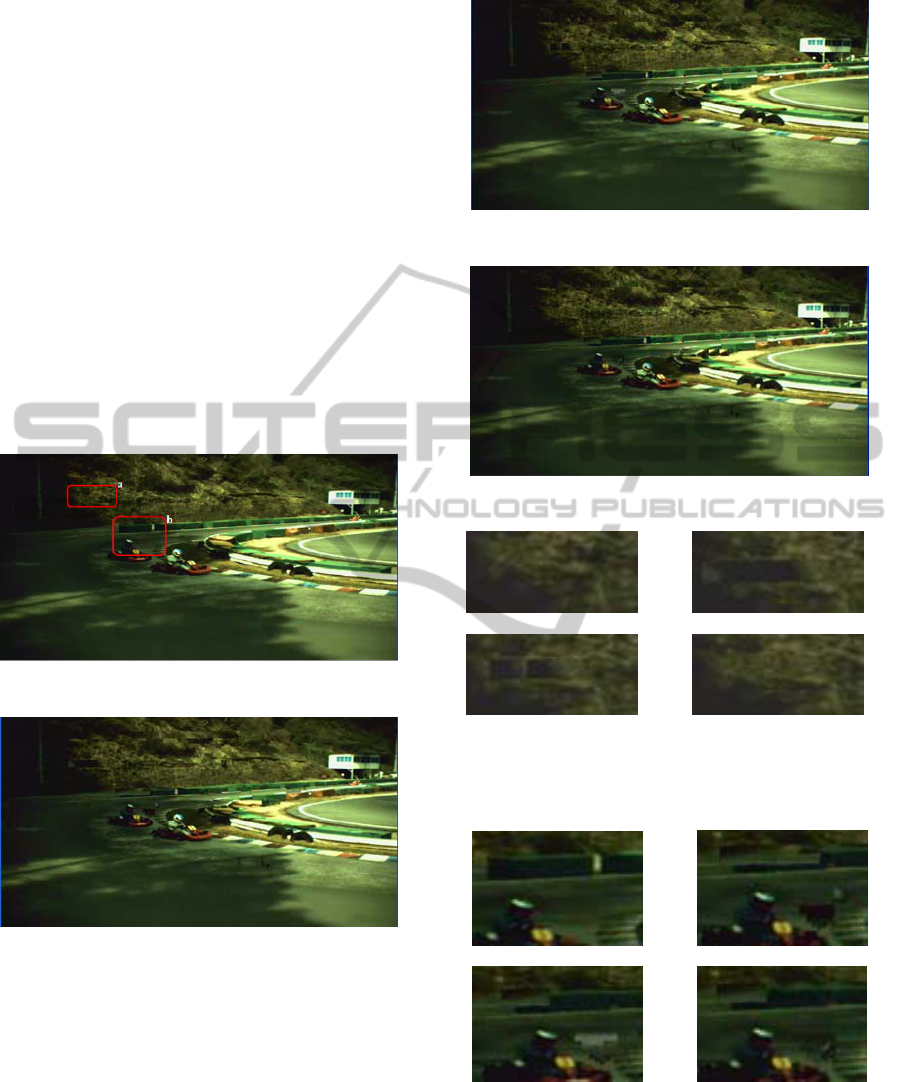

Figure 5: Original image.

Figure 6: Reconstructed image with TR.

The result of TR is the worst because neither

motion nor disparity compensation is adopted.

Stereo JM algorithm gets better performance as it

considered inter-view correlation, but the result of

the proposed method is the best. Compared with the

other two methods, we can see that the lost MBs of

background and around the car are reconstructed

better by the proposed method. The enlarged images

of area a and b are shown in Figure 9 and 10. We

can see that our method can achieve better

subjective quality than the other two schemes.

Figure 7: Reconstructed image with stereo JM.

Figure 8: Reconstructed image with proposed method.

(1) (2)

(3) (4)

Figure 9: Enlarged images of area a. (1) Original image. (2)

Image with TR. (3) Image with stereo JM. (4) Image with

the proposed method.

(1) (2)

(3) (4)

Figure 10: Enlarged images of area b. (1) Original image.

(2) Image with TR. (3) Image with stereo JM. (4) Image

with the proposed method.

Moreover, the computational complexity of the

proposed error concealment algorithm is evaluated.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

206

We test the proposed algorithm on PC with an

Intel(R) Core(TM) 2 Quad CPU which runs at

2.83GHz. We compare the average decoding time

per frame in Ballroom sequence with PTR 20% and

QP is 28. The experiment results show that the time

of stereo JM algorithm is 996ms, compared with the

proposed algorithm of 850ms, as the previous

algorithm will travel all reference MBs to conceal a

lost block while the proposed algorithm travel part

of them. Therefore, the computational complexity of

the proposed error concealment algorithm is lower

than that of the stereo JM method.

4 CONCLUSIONS

AND PERSPECTIVE

Based on stereoscopic video framework of JMVC,

this paper proposes an error concealment method.

The errors occurred in the independent view are

concealed by the traditional 2-D video error

concealment algorithm. And for the lost MBs in the

dependent view, this paper utilizes intra and inter-

view correlation. Combined with related MB-

Partitioning mode, the lost MBs are divided into two

types: smooth block and texture block, and then

processed with different methods. Experimental

results on both subjective and objective quality show

that the proposed algorithm is efficient.

Our proposed method conceals lost data at the

angle of codec, while inter-view mapping shows the

characteristics of stereoscopic video at the visual

angle (Chen et al., 2009). So we can study error

concealment technique at this angle in the next step,

and with the development of Error concealment

technique, people will accept more and more video

applications in the future.

ACKNOWLEDGEMENTS

The work in this paper is supported by the National

Natural Science Foundation of China (No.61003289,

No.61100212), the Natural Science Foundation of

Beijing (No. 4102008), supported by Program for

New Century Excellent Talents in

University(No.NCET-11-0892), the Excellent

Science Program for the Returned Overseas Chinese

Scholars of Ministry of Human Resources and

Social Security of China, Scientific Research

Foundation for the Returned Overseas Chinese

Scholars of MOE, Youth Top-notch Talent Training

Program of Beijing Municipal University, the

Fundamental Research Funds for the Central

Universities (No.NS2012045).

REFERENCES

Tekalp, A. M., Kurutepe, E., &Civanlar, M. R., 2007.

3DTV over IP. IEEE Signal Processing Magazine,

24(6), 77-87.

Wang, M., Hong, R.C., Yuan, S. C., & Chua, T. S., 2012.

Movie2Comics: Towards a Lively Video Content

Presentation. IEEE Transactions on Multimedia,

14(3), 858-870.

Xiong, C. B., 2010. Research on Error Concealment

Techniques of H.264 Compression Coding. Master

Dissertation, Shandong: Shandong University.

Li, S. P., Jing, G. Y., & Yu, M., 2005. Approach to H.264-

based Stereoscopic Video Coding. Computer

Engineering and Applications.(1), 77-79.

Xiang, X. G., Zhao, D. B., Wang, Q., Ji, X. Y., & Gao, W.,

2007. A novel error concealment method for

stereoscopic video coding. Proceeding of the

International Conference on Image Processing, San

Antonio 16-19 September 2007. 101-104.

Xiang, X. G., Zhao, D. B., Ma, S. W., & Gao, W., 2011.

Auto-regressive model based error concealment

scheme for stereoscopic video coding. The 36th

International Conference on Acoustics, Speech, and

Signal Processing. Prague Congress Center, Prague

22-27 May 2011. 849-852.

Tang, G., & Zhu, X., 2009. Error concealment for

stereoscopic images using boundary smooth degree.

The 15th Asia-Pacific Conference on Communications,

Shanghai 8-10 October 2009. 459-461.

Zhou, Y., Yu, M., Jiang, G.Y., Liu, W. Y., Jiang, Z. D., &

Li, F. C., 2011. Right-view error concealment for

stereoscopic video transmission. Journal of

Optoelectronics·Laser, 22(4), 600-606.

JVT reference software[CP/OL] Available from:

http://iphome.hhi.de/suehring/tml/[ Accessed on 7

May, 2011]

Bi, H. J., 2009. The New Generation of Video

Compression Coding Standard—H.264/AVC. Beijing:

Posts & Telecom press.

Guo, Y. K., 2010. Research on Error Concealment

Algorithms Based on H.264 Decoder. Master

Dissertation, Yanshan: Yanshan University.

Chen, Y. B., Cai, C. H., & Ma, K. K.,2009. Stereoscopic

Video Error Concealment for Missing Frame

Recovery using Disparity-based Frame Difference

Projection. 2009 IEEE International Conference on

Image Processing, Cairo, Egypt 7-10 November 2009.

4289-4292.

AJMVC-basedErrorConcealmentMethodforStereoscopicVideo

207
