Programming Smart Object Federations for Simulating and

Implementing Ambient Intelligence Scenarios

Yannis Georgalis

, Yuzuru Tanaka

, Nicolas Spyratos

and Constantine Stephanidis

1,4

Institute of Computer Science, Foundation for Research and Technology - Hellas, Heraklion, Crete, Greece

Meme Media Laboratory, Hokkaido University, Sapporo, Japan

Laboratoire de Recherche en Informatique, Université Paris-Sud 11, Orsay, France

Department of Computer Science, University of Crete, Heraklion, Crete, Greece

Keywords: Programming Languages, Service Federation, Smart Objects, Ubiquitous Computing, Ambient Intelligence.

Abstract: This paper leverages previous work on the concept of smart object federations and proposes a new dynamic

programming language for implementing and simulating smart objects and their interactions. Following

their description in the proposed programming language, smart objects can be fully simulated and used for

describing ambient intelligence scenarios. In this context, the contributions of the paper are two-fold: (a) the

introduction of a new programming language whose runtime semantics allows for a simple and effective

description of smart objects, and (b) the description of meaningful interaction strategies, that are

implemented in the proposed language, through which executable smart object federations can be used for

simulating and implementing ambient intelligence scenarios.

1 INTRODUCTION

Smart objects, at a basic conceptual level, are

autonomous computing units that can operate in

isolation, connect to other objects, thus creating

complex structures in the form of object federations,

and interact with each other within their

environment (Tanaka, 2010). A smart object can be

viewed in three different ways: as a container unit,

as a structural unit (passive or active), and as an

interaction unit. As a container unit, an object

contains memory and an arbitrary number of

external services. As a structural unit, it can initiate

(active) or accept (passive) connections from other

objects, and, lastly, as an interaction unit, a smart

object is able to issue and to execute commands, to

emit and capture events, and to use the functionality

that is implemented by its contained services.

Smart objects are thus defined in terms of their

characteristics, capabilities and behaviour. Provided

that they follow a basic set of operational primitives

(Tanaka, 2010); (Julia et al., 2012), they can be

realized as either software or hardware entities. In

this paper we will be focusing on software smart

objects with the final goal being the seamless

coexistence of software and hardware smart objects

that federate and interact with each other in order to

implement ambient intelligence (AmI) scenarios.

Our primary motivation was to provide an effective

and intuitive way to program software smart objects

for (a) the implementation of scenarios whose

architecture requires software smart objects and (b)

the simulation of scenarios whose architecture

requires a mixture of software and hardware smart

objects.

Akkadian, the dynamic executable programming

language proposed in this paper, allows for the full

implementation of the structure of smart objects and

all interactions among them. The decision to propose

a completely new language is justified for three

reasons. First of all, due to the asynchronous

semantics of the software smart object model it is

difficult to create syntactically intuitive and effective

frameworks in existing popular general-purpose

languages. Secondly, an implementation in a

general-purpose language has to accommodate

extraneous programming statements that increase the

complexity of the text representation of a program

without contributing anything to the core

functionality of the objects themselves (boilerplate

code). Thirdly, full control to the language’s high-

level constructs was necessary not only to simplify

the description of smart objects and their interactions

but to also accommodate for future extensions and

Georgalis Y., Tanaka Y., Spyratos N. and Stephanidis C..

Programming Smart Object Federations for Simulating and Implementing Ambient Intelligence Scenarios.

DOI: 10.5220/0004305600050015

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 5-15

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

common programming and usage patterns that will

emerge from the application of the smart object

paradigm to real-world scenarios. In this context, the

proposed programming language for the description

of smart objects falls into the category of Domain

Specific Languages (DSL).

In the following sections we will describe

Akkadian’s semantics and usage. Specifically, in

section 2 we will give an overview of related work,

in section 3 we will present the language, its runtime

semantics and the usage of its basic statements, in

section 4 we will show two examples, one of which

is a simulated AmI scenario, and finally, we will

conclude with a short discussion and our future work

in section 5.

2 RELATED WORK

The proposed programming language shares many

core design goals with the programming language

nesC (Gay et al., 2003), which is used for

programming sensor nodes for Wireless Sensor

Networks (WSNs). Both are component-based,

event-driven programming languages where the

execution happens concurrently as emitted events

reach the relevant code units. Additionally, like

nesC, the execution of a command in Akkadian does

not block the flow of the program. However, they

have four fundamental differences. First of all, the

proposed language is dynamic and weakly-typed

whereas nesC, being an extension of the C

programming language, is static and strongly-typed.

Secondly, in nesC, the bidirectional interfaces that

are either “used” or “provided” by a WSN node are

essentially static libraries that are linked with the

final program at compile time. In the case of

Akkadian, a port that “provides” or “requests” a

service, resolves the service definition dynamically,

at runtime, and the target service can be

implemented in any of the supported service

technologies (see 3.2). Thirdly, in nesC, event

handlers are implemented for individual events, and

trigger conditions that involve multiple events have

to be explicitly identified by the programmer using

shared variables. On the other hand, in Akkadian,

multiple events can be considered in an event

handler and connected with Boolean operators to

create powerful and expressive trigger conditions.

Moreover, concerning the fourth fundamental

difference, changes to the memory of smart object

ports, can be captured as events and participate as

trigger conditions in event handlers.

Aside from the fundamental differences, the

common design decisions between Akkadian and

nesC are no coincidence, since WSNs share similar

goals with smart objects. However, WSNs are

primarily designed for implementing low-level

application scenarios, realized by the redundant

deployment of low reliability hardware devices. In

this sense, WSNs are organized and acting

autonomously while trying to achieve their goals

requiring little or no user intervention (Akyildiz et

al., 2002). On the other hand, the target of smart

objects is the description and implementation of

high-level user-centric application scenarios in

which the actions of the user actively influence the

operation of the smart objects in the environment

(Tanaka, 2010). Additionally, smart objects as

mentioned before, are designed to model both

hardware devices and software entities and it is that

potential for seamless interoperation that drives their

effectiveness to describe high-level, user-centric

scenarios.

Moreover, languages like ESTEREL (Boussinot

and de Simone, 1991) and LUSTRE (Halbwachs et

al., 1991) target embedded hard real-time systems

following an inherently synchronous message

passing paradigm. PushLogic (Greaves and Gordon,

2006) is a compiled block-structured imperative

language that provides the means to centrally

manage the services offered by distributed or local

devices. These devices are collectively referred to as

pebbles. PushLogic allows the definition of rules

that are evaluated concurrently ensuring that all the

assertions over its variables hold during the

execution of the program. Despite having

similarities with Akkadian, since both consume

diverse services and evaluate concurrently their

rules, PushLogic targets safety-critical systems and

thus provides only static memory allocation, does

not implement arrays and provides lower-level

constructs and operators in order to exercise very

fine-grained control over the devices it manages and

to keep the memory and processing requirements of

the resulting programs low. ArchJava (Aldrich et al.,

2002) is implemented as an extension of Java for

allowing the latter to dynamically invoke external

software components by binding them to

bidirectional interfaces, called input and output

ports. However, ArchJava is only applicable to

components running under the same Java virtual

machine, does not support the binding of distributed

services, and provides no means for message-

matching and concurrent execution.

Furthermore, Akkadian, can be viewed as a

composition language (Nierstrasz and Meijler,

1995), since smart objects, through their ports, can

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

offer or consume services that are either running on

the same hardware or are distributed over the

network. A smart object may incorporate an

arbitrary number of services built on different

technologies making an object described in

Akkadian an effective container for composing

functionalities from diverse, heterogeneous

components. The composition language PICCOLA

(Achermann et al., 1999) shares similar goals, while

supporting both imperative and functional

programming styles. It also supports concurrent

component invocations but does neither provide any

means for filtering invocation results nor is able to

utilize distributed components.

Service composability, apart from the efficient

and rapid implementation of high-level

functionality, also allows for easier deployment and

testing of the target application as it is being built.

This is an important and useful property in the field

of AmI, as also identified in the AMIGO project

(Georgantas et al., 2005). In this project,

composition is possible only for services

implemented using the supplied libraries for the Java

programming language. The Business Process

Execution Language (BPEL) (Curbera et al., 2003)

is a declarative, XML-based language that supports

process-oriented service composition. BPEL

describes a composition result (process), in terms of

participating services (partners) and message

exchanges or intermediate value transformations

(activities). BPELJ (Blow et al.), extends BPL and

enables the inclusion of standard Java code inside

BPEL declarations. Aside from the fact that BPEL-

based languages are available only for web services,

their declarative XML-based syntax makes them

verbose and difficult to read. Graphical development

environments for BPEL, however, mitigate the

readability problem at the cost of requiring the

programmer to describe the composition with

graphical elements representing process workflows.

3 LANGUAGE AND SEMANTICS

This section describes the structure and runtime

semantics of Akkadian. At first, the structure of

smart objects and the environment in which they can

interact is presented, followed by the definition of

services within the language’s model. Subsequently,

we present the basic syntactic constructs that allow

an object to handle service and memory events,

invoke service commands, and change memory

elements. Lastly, we show how objects can sense the

presence of other objects and establish connections

in order to form smart object federations.

When appropriate, the Z notation (Spivey, 1992)

will be used to describe more formally the structure

and semantics of Akkadian’s operations. We decided

to use the Z notation over π-calculus (Milner et al.,

1992), since the former allows for better modelling

of the language’s semantics through the changes

operators perform on the system’s data structures.

Conversely, π-calculus would be ideal for modelling

the execution of a specific scenario that utilizes

many different objects. Hence, we will use Z’s

named schema notation where the Name of a schema

appears on top, it is followed by the schema’s

variables, and the Constraining-Predicates appear

last, below the short vertical line. Essentially, a

schema is modelled as a set of tuples Name =

;…; x

| Constraining-Predicates}, where

denotes that x

has type T

, i.e., x

∈ T

3.1 Software Smart Objects

Software smart object federations are represented as

labelled directed multi-graphs with no self-loops.

These graphs are contained within the single smart

object environment. In a smart object federation

graph, the vertices represent the smart objects, and

each directed edge a connection of a smart object to

another one through a port. The head of an edge is

the object that requests a service from another one

(through a service-requesting port) and its tail is the

object that offers a service (through a service-

providing port). The label of the edge represents the

common name of the ports through which the

connection is established. Two objects may be

connected to each other through multiple ports

(multi-graph) but cannot establish a connection to a

port contained in the same object (no self-loops).

Figure 1 shows a smart object federation graph.

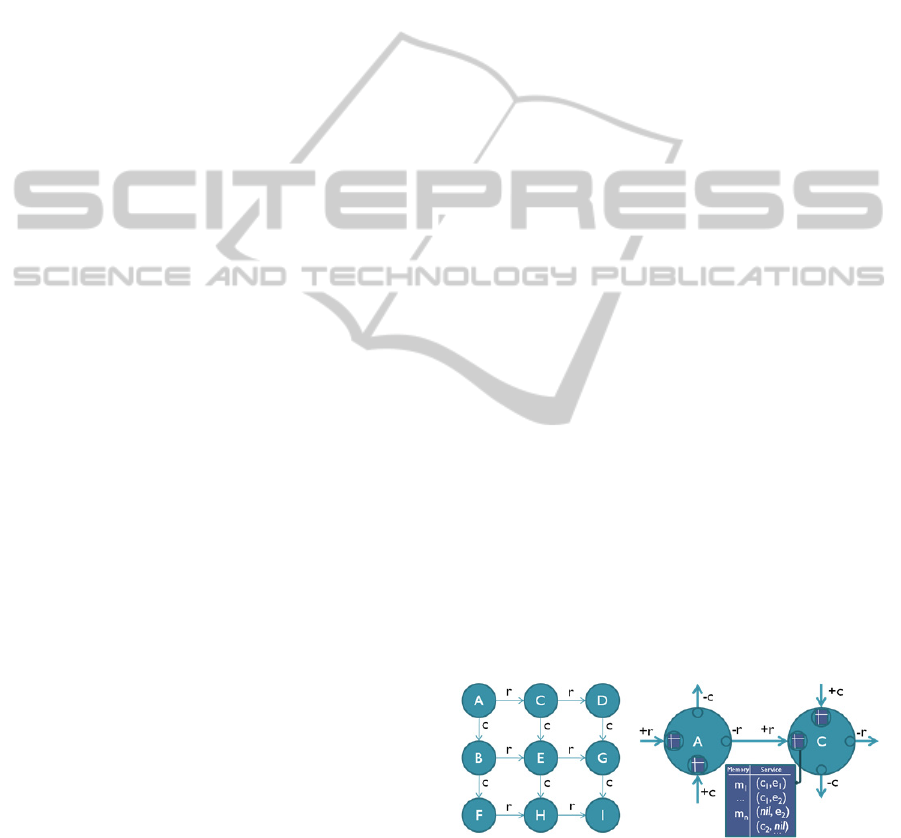

Figure 1: Example federation of 9 objects that are

connected through ports named “r” (for row) and “c” (for

column) (left), and the structure of smart objects and their

connections, with service-requesting (-) and service-

providing (+) ports (right).

In this sense, the environment is represented by

ProgrammingSmartObjectFederationsforSimulatingandImplementingAmbientIntelligenceScenarios

the Z schema below, where ℙT denotes the power

set of T, i.e., A ∈ ℙT ⇔ A ⊆ T, and X ⇸ Y denotes

a partial function from a set, X, to another set, Y.

Environment

objs : ℙSO

conns : ℙ(SO × SO × NAME)

sport: SO ⇸ ℙSP; rport: SO ⇸ ℙRP

∀x,y∈objs; l∈NAME ⦁ (x, y, l) ∈ conns ⇒ x ≠ y

dom sport = dom rport = objs

Each smart object is essentially a pair of two sets:

(SP, RP). The first set, SP, represents the service

providing ports through which an external service

can be used by the object or its peers, and the second

set, RP, represents the service requesting ports

through which an object can connect to another one

and thus use the service that is provided by the

corresponding service providing port.

An element p of SP is, in turn, associated with

two partial functions, mem and serv, to an element of

M and S respectively, with the set M representing the

memory of the port and the relation S ∈ I* ↔ O*,

(where I* = I ∪ {nil} and O* = O ∪ {nil}), modeling

Akkadian’s runtime service representation (see also

3.2). The aforementioned types are described by the

Z schemata below, where the symbol “↔”

represents the set of relations between two sets, i.e.,

S ↔ T = ℙ(S×T). The types (sets) that are irrelevant

for our modeling are referenced in the declaration

header using Z’s square-bracket notation.

[NAME, SP, RP, M, I, O]

I* ≙ I ∪ {nil}; O* ≙ O ∪ {nil}

sp : ℙSP; rp : ℙRP

sname : SP ⇸ NAME; rname : RP ⇸ NAME

mem : SP ⇸ ℙM

serv : SP ⇸ (I* ↔ O*)

∀x, y ∈ sp ⦁ sname(x) = sname(y) ⇒ x=y

∀x, y ∈ rp ⦁ rname(x) = rname(y) ⇒ x=y

dom sname = sp

dom rname = dom mem = dom serv = rp

3.2 Services and Memory

From the programmer’s viewpoint, a service-

providing port has memory, and can export and

make available to its containing object a set of

commands and events. An object containing a

service-requesting port can access and utilize all the

available memory, commands and events as soon as

it establishes a connection with a service-providing

port. In this context, the functionality provided by a

port, i.e., its commands and events, is referred to as a

“service”. A command invocation does not block the

evaluation of the program and potential results are

fed back to the invoking object as events.

Therefore, as mentioned in the previous section,

services in Akkadian are modelled as a binary

relation S ∈ I* ↔ O*. The domain of the relation

represents the set of commands that can be issued

through the service and the codomain represents the

events that can be received through the service. The

relation specifies that certain events (elements of the

codomain) are generated as a result of the invocation

of a command (elements of the domain). All the

pairs of the form (nil, o), with o ∈ O, denote events

that are generated by the service automatically

without any previous command invocation (e.g., an

asynchronous “door-opened” event). Similarly, all

pairs of the form (i, nil), with i ∈ I, denote those

commands that do not cause the service to produce

any events (e.g., a “turn-off” command). Based on

this, the semantics of the invocation of a command

(cmd) that does not produce any event and the

semantics of receiving an event (evt) that is not

associated with a command are defined below. In the

Z notation, the symbol “Δ” includes the referenced

schema in the current one, allowing the use of the

variables defined previously. The symbol “?”

indicates the schema variables that work as the

inputs of the operation. The symbol “⩤” denotes the

domain subtraction operation, which obtains all the

pairs of the second set whose first member is not

contained in the first set, i.e., R ∈ S↔T and A⊆S, A

⩤ R = {a:S;b:T|(a, b)∈R ∧ a∉A}. Finally, variables

decorated with an apostrophe (′) refer to their value

in the post-state, after the evaluation of the schema.

InvokeCommand

ΔSO

cmd?: I; p? : SP

p? ∈ sp

serv (p?)′ =({cmd?} ⩤ serv (p?)) ∪ {(cmd?, nil)}

ReceiveEvent

ΔSO

evt? : O; p? : SP

p? ∈ sp

serv (p?)′ = (serv (p?) ⩥ {evt?}) ∪ {(nil, evt?)}

As long as services adhere to this model, they can be

fully used by smart objects through their service-

providing ports. In the actual implementation of the

language, different service technologies can be

adapted to adhere to the model through the runtime

environment’s service-engine extension mechanism.

Currently, we have implemented one service engine

that is able to view any .NET (CLR) object as a

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

service and another engine through which we can

utilize all the services built on top of our in-house

middleware, which is based on CORBA (DEC et al.,

1992). It is our short-term goal to also implement a

web service (Christensen et al., 2001) engine.

In Akkadian programs, services can be attached

to service-providing ports using Uniform Resource

Identifiers (URIs). The schema indicates the service

technology whereas the rest of the URI is evaluated

by the indicated service-engine to identify and

resolve the actual service. The syntax for attaching

services to service-providing ports appears below.

+a("clr://mscorlib/System/IO/Console");

+b("ami://LightService/bedroom");

Apart from the set of commands and events, a

service-providing port, as mentioned in the previous

section, also contains memory independently from

the attached service. The port’s memory is defined

only within the context of Akkadian’s runtime and is

not associated with the actual service

implementation. This is the only way for an

Akkadian program to keep its state, since the ad-hoc

definition of variables is not allowed. The update

operation of a port memory is defined below, where

the ∖ symbol represents the set difference operation.

UpdateMem

ΔSO

n:M ⇸ NAME

v? : M; p? : SP

p? ∈ sp ∧ dom n = mem(p?)

mem(p?)′ = (mem(p?) ∖

{m:M | n(m) = n(v?)}) ∪ {v?}

Given a service-providing port with the name

“a”, which is expressed in Akkadian as “+a”, the

following statements can be used to invoke a

command (first statement) and to write to the

service’s memory (second and third statements):

+a.WriteLine("Hello World");

+a["last_msg"] = "Hello World";

+a.previous = 1821; //+a["previous"]=1821;

3.3 Handling Memory and Service

Events

Memory and service events are emitted from a

service-providing port in the following cases: (a)

when the port’s memory is modified by the

container object, (b) when the attached service emits

an event – either due to the execution of a command

on the same service or because the attached service

independently emitted the event to indicate a sudden

change in its state, (c) when another object

connected through a matching port modifies its

memory, or (d) when another object connected

through a service-requesting port invokes a

command on the service associated with the port. On

the other hand, memory and service events are

emitted from a connected service-requesting port in

each of the aforementioned cases except (d).

Regardless of the reason an event is emitted, in

Akkadian, its presence is checked with the when

statement. The statement’s syntax is: when capture-

expr statement, where capture-expr is a Boolean

expression of either a service-event-capture-expr or

a memory-event-capture-expr, and statement is any

valid Akkadian statement. In EBNF-like syntax, this

can be expressed as follows:

when-stmt := 'when' capture-expr statement;

capture-expr := capture-expr

('and' | 'or') capture-expr

| 'not' capture-expr

| service-event-capture-expr

| memory-event-capture-expr;

Essentially, a service-event capture expression

and a memory-event capture expression are satisfied

when the respective predicates below are true. In Z,

the symbol “Ξ” adds the referenced schema in the

current one, like “Δ”, but also indicates that its post-

state is not affected. We also assume three functions,

memmatch, eventmatch, and payloadmatch that

check whether a memory element, an event and its

payload are, respectively, satisfied by the relevant

capture expression. The operator “ran” obtains the

range of the relation.

ΞSO

memmatch: M → {true, false}

eventmatch: O → {true, false}

payloadmatch : O → {true, false}

v? : M; e? : O; p? : SP

p? ∈ sp ∧ v? ∈ mem(p?) ∧ memmatch(v?)

p? ∈ sp ∧ e? ∈ ran serv(p?) ∧ eventmatch(e?)

∧ payloadmatch(e?)

When the capture expression is satisfied by all

the conjunct event-capture expressions, then the

statement is said to be “matched” and its associated

actions are evaluated by Akkadian’s runtime.

Consider, e.g., the capture statement below.

when +t.TemperatureChanged(*sensorId,

temp < +t["low_temp_thr"])

and not +t.disabled {actions...}

This statement captures an event called

“TemperatureChanged” (checked by eventmatch)

that is emitted by the service attached to the service-

providing port with name t, which is contained in the

object described by the Akkadian program. Also,

ProgrammingSmartObjectFederationsforSimulatingandImplementingAmbientIntelligenceScenarios

this statement captures two memory locations

(checked by memmatch) that are part of the

aforementioned service-providing port (t). Those

memory locations are named “low_temp_thr” and

“disabled” respectively. Interpreting the inequality

and the Boolean operators, this specific statement is

triggered when the “TemperatureChanged” event is

emitted, its second parameter is less than the number

written in memory position “low_temp_thr”, and the

value of the memory position “disabled” is evaluated

to false. The event in the above statement has two

named parameters in its payload. The second one is

called “temp” (for temperature) and is compared

(checked by payloadmatch) with the value of the

memory location “low_temp_thr”. The first

parameter of the payload is the id of the specific

sensor that reported the temperature, and since it is

not needed in this specific instance, we could have

omitted it completely from the event-capture

expression. Alternatively, we can use the parameter

alias syntax as above, an identifier prefixed with ‘*’

(in which case payloadmatch evaluates to true), in

order to be able to refer to that parameter with the

given identifier in the capture statement’s actions.

The actions of a “when” event-capture statement

are evaluated every time the capture expression is

matched. Testing of whether the capture expression

is matched by the emitted events happens every time

an event that participates in a specific event-capture

expression is emitted to the containing object.

Capture statements can be nested in other capture

statements. Consider, for example, the following

statements:

when +t.TemperatureChanged(temp < 1)

{ when –g.Humidity(v > 0.2){} }

If the outer statement’s actions do not contain any

other invocations, the above statements are

semantically equivalent to the following:

when +t.TemperatureChanged(temp < 1)

and –g.Humidity(v > 0.2){}

When a capture statement is matched, then all

the encapsulated capture statements become eligible

for being matched, i.e., they become active.

Conversely, when a matched capture statement

becomes unmatched, all the encapsulated capture

statements cannot be matched even if their capture

expression can be satisfied by the emitted events,

i.e., they become inactive.

3.4 Scope, Linking and Path

A smart object A can connect to another smart object

B through a port named p, when: (a) object A

becomes “aware” of object B, (b) object A has a

service-requesting port with name p (-p), which is

unconnected, (c) object B has a service-providing

port with the same name p (+p), (d) the command

“Link(-p, B)” is invoked in the context of object A.

An object can become aware of another object

through the InScope event. The event’s payload

includes a reference to the object that enters the

scope of the first object. Currently, Akkadian defines

scope only in terms of proximity among smart

objects. Namely, when the Euclidean distance

between two smart objects in a two-dimensional

space becomes less than the predefined value that

represents the first object’s range, then, an InScope

event is sent to that object with a reference to the

second object. If the first and second objects have

equal range, the InScope event is emitted to both

objects. Among objects that are in the same

federation (graph), InScope is not emitted, as those

objects can be accessed through a path expression

(see 3.4). Conversely, the OutScope event is emitted

when an object exits the scope of another object. It is

our short-term goal to define the scope in a broader,

more systematic manner, in order to incorporate

security primitives in the smart object model.

A connection between two smart objects can

only be established through their ports. A service-

requesting port that is not already connected can be

connected to a service-providing port of another

object as long as the latter has the same name as the

former, i.e. the ports are “matching ports”. If these

conditions are met, the Link command, successfully

establishes the connection.

Link

ΔEnvironment

ΞSO

o1?, o2? : SO; p1? : RP, p2? SP

p1? ∈ rport(o1?) ∧ p2? ∈ sport(o2?)

rname(p1?) = sname(p2?)

¬(∃ x ∈ objs; l∈NAME ⦁ (o1?, x, l) ∈ conns)

conns′ = conns ∪ {(o1?, o2?, rname(p1?))}

The Link command’s syntax in an Akkadian

program, given a reference to an object (objref) and

a service-requesting port (-p) is the following:

self.Link(-p, objRef);

The identifier “self” above, refers to a standard

port that is part of all objects. Its attached service

and memory enables an Akkadian program to invoke

object-wide commands (e.g., Link/Unlink), to access

object-wide state (e.g., object’s name, position), and

to sense object-wide events (e.g., InScope). The self

port cannot be used for establishing a connection.

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Each smart object can refer to another object in

the same federation through Akkadian’s path

expression. In a federation a port sequence defined

in the context of a specific object can describe a path

from that object to another one by means of the

established connections through the ports that appear

in the path sequence. Therefore for the federation

depicted in Figure 1, object A can refer to objects C

and H respectively through the expressions below,

which are evaluated in the context of object A.

-r(self); // object C

-c-c-r(self); // object H

Path expressions can participate in capture

statements through which an object can capture the

events of other objects. E.g., in Figure 1, object A

can capture the connection of object H to I through

port r with the following statement.

when –c-c-r-r(self).Linked(*obj) {}

If any of the ports referenced by a path

expression is not connected, then the path is invalid,

i.e., it is dangling. Capture expressions that contain

dangling paths cannot be matched. However, as soon

as the path becomes valid, the affected expressions

are evaluated and are subsequently tested against the

emitted events on the target object.

The above examples, lastly, showcase another

trait of Akkadian, which is weak typing. Whenever

possible, the type of a value changes implicitly to

match the one expected by the operation in which

the value participates. Therefore, in the above

examples, a port reference is implicitly converted to

an object reference (to the object that contains it).

4 EXAMPLE

Akkadian’s programming and runtime environment

is implemented as a graphical tool in which

developers can program and deploy smart objects.

This tool, named ObjectivSim, can be seen in Figure

2 and Figure 3 and contains all the necessary

components for (a) editing Akkadian programs and

smart objects, (b) executing, simulating and

visualizing their federations and interactions.

In ObjectivSim, when an object is defined in

terms of its visual characteristics and its program, it

can be dropped inside the environment (Figure 3)

where it is evaluated and starts interacting with the

other objects. The environment in our

implementation is limited neither with respect to the

number of objects it can host nor its size and can be

zoomed in and out to allow a better view of all

objects that operate in it.

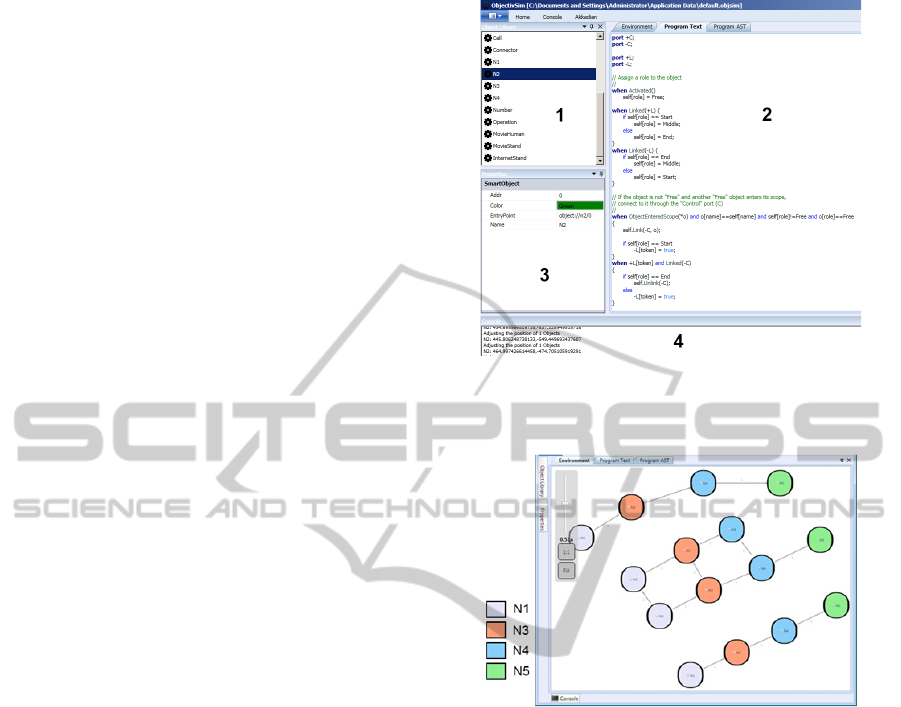

Figure 2: The design environment (ObjectivSim) with the

object library (1), Akkadian text editor (2), object property

editor (3), and output console (4).

Figure 3: ObjectivSim’s smart object environment.

4.1 Replicating a Simple Chain

As the first example of using Akkadian to describe

smart objects we will use a simplification of the

smart object connection algorithm, presented in

(Julia et al., 2012). Given a sequence of an arbitrary

number of smart objects connected through port L

towards the same direction, i.e., a connected chain of

n objects, the path –L–L–L... –L = -L

, evaluated in

the context of the first object, will reference the last

) one, the Akkadian program presented in this

section, enables them to make an exact replica of

their chain – provided that (a) the environment

contains enough instances of the required objects,

and (b) those objects can enter in the scope of the

objects that participate in the initial chain.

In the first part of the Akkadian program, objects

are assigned a role depending on their relative

position in the chain:

ProgrammingSmartObjectFederationsforSimulatingandImplementingAmbientIntelligenceScenarios

port +L; port -L;

when Activated()self.role = Free;

when +L.Linked() {

if self.role == Start

self.role = Middle;

else self.role = End; }

when –L.Linked() {

if self.role == End

self.role = Middle;

else self.role = Start; }

The Activated event is emitted the first time an

object is placed in the environment and its program

is evaluated – i.e., the object is activated. At first, the

object is not connected through any other object, and

thus its “role” in the chain is marked as “Free”. In

Akkadian, when an identifier is not an alias for an

event payload (see 3.3), it is equivalent to a string

with the same name. Subsequently, when an object

connects to the current object through port +L, then,

provided that –L is unconnected, the current object is

surely at the end of the chain, and so it is assigned

the role “End”. Conversely, when an object connects

through port –L and +L is unconnected, then the

current object is at the beginning of the chain and is

assigned the role “Start”. If both +L and –L are

connected, then the current object is assigned the

role “Middle”. This can also be seen in Figure 3,

where object N1 has the role “Start”, N5 the role

“End” and all others “Middle”.

After assigning roles, the key point in the

algorithm is for objects participating in the chain to

connect to other “Free” objects with the same name

through a port –C. This happens as soon as those

free objects enter the scope of the object in the

chain. Following that, when the next object

connected through -L (the one on the right in the

case of Figure 3) connects with another object

through port –C and the current object has an object

connected through its own –C port, then those child

objects are connected to each other through their L

ports, thus gradually forming a replica of that part of

the chain.

port +C; port -C;

when InScope(*o) and

o[name]==self.name and

self.role!=Free and o.role==Free {

self.Link(-C, o);

if self.role == Start

-L.token = true; }

when -L-C(self).Linked(*nextObj)

and –C.Linked()

-C+self(self).Link(-L,nextObj);

when +L.token and –C.Linked() {

if self[role] == End

self.Unlink(-C);

else -L.token = true; }

when -L-C(self).Unlinked() self.Unlink(-C);

Finally, the last two when statements describe the

terminal conditions and proceed in breaking all the

connections through the C ports in order to finalize

the replication of the chain (Figure 3). The key part

of the Akkadian program in this case is the

transmission of a “token” from the start-object of the

chain to the end-object, which is gradually

propagated to the next object as soon as the current

object connects with another one through port –C.

When the token reaches the end-object, then it

means that the replication is finished and so end-

object breaks the connection through port –C and,

recursively, every previous object that observes that

disconnection, also disconnects its own –C.

4.2 Ambient Theatre

In this example we consider a simple AmI scenario.

When the user approaches a movie screen and

performs a hand wave gesture with both hands, the

lights turn off and a movie starts playing. While a

movie is playing, the waving of the user’s right or

left hand instructs the movie screen to start playing

the next or previous movie in the playlist,

respectively. When the user moves away from the

screen, the movie stops playing and the lights turn

back on. Subsequently, when the user approaches an

internet stand, the display shows information about

the movies previously watched. Had the user not

used the movie screen prior to approaching the

internet stand, no information is displayed.

Breaking down this scenario, first of all, we

assume that the following services are implemented

and can be utilized by smart objects: (i) a Human

tracking service that can track the position of the

user inside a room, (ii) a Video playing service that

controls a screen, maintains a playlist and is able to

play movie files on the screen, (iii) a Human-gesture

recognition service that is able to tell apart different

hand gestures performed by a human, (iv) an

Internet service that is able to present information on

a screen about a topic, and (v) a Lights service that

is able to control the room’s lights.

Having the aforementioned services available,

we can fully implement the scenario with software

smart objects. Specifically, we can model the

scenario using three smart objects: (i) a “Movie

Human” smart object whose role is to move around

the room, control the video screen and the internet

stand, (ii) a static (unmovable) “Movie Stand” object

that offers the video service and can control the

lights, and (iii) an “Internet Stand” object that just

offers the Internet service mentioned before.

Implementing the scenario with these smart objects,

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

apart from being able to utilize the services through

smart objects (see 3.2), requires the “Movie Human”

to be able to “move” in the environment, following

the user’s physical movement into the room. This

can be achieved by using the events of the Human

tracking service:

port +Track("ami://room1/HTracking");

when +Track.PosChanged(*dx, *dy)

self.Move(dx, dy);

In this example, however, we will show the

implementation of a simulation of this scenario. In

this case, the movement of the object representing

the user can be simulated by dragging (with the

mouse) the visual representation of the object in

ObjectivSim. Additionally, the Human gesture

service can be simulated by providing buttons on the

visualized objects, and lastly, we can show the

actions performed on the video and internet services

by altering the colour and label of the participating

objects. The buttons that trigger the simulated

behaviour of the gesture service are declared in

Akkadian as ports with the “button” scheme:

port +GestWave("button:///WaveHands");

port +GestLeft("button:///LeftHand");

port +GestRight("button:///RightHand");

The object representing the user can, therefore,

determine when it should access or disconnect from

the video service and the internet service through the

InScope and OutScope events:

port –Video; port –Internet;

when InScope(*obj){

if obj.name == "MovieStand"

self.Link(-Video, obj);

else if obj.name=="InternetStand"

and self[movies] != null

self.Link(-Internet, obj);

}

when OutScope(*obj){

if obj.name == MovieStand

self.Unlink(-Video);

else if obj.name == InternetStand

self.Unlink(-Internet); }

Finishing the description of the object

representing the user, the following statements

describe how the object interacts with the other

ones:

when -Video.Linked() and

+GestWave.Pressed() -Video.PlayMovie();

when -Video.Linked() and

+GestLeft.Pressed() -Video.PrevMovie();

// Similarly for GestRight

when -Video.FinishedMovie(*m)

self[movies] = self[movies] + m;

when -Internet.Linked()

-Internet.Info(self[movies]);

On the other hand we simulate the behaviour of

the “Movie Stand” smart object as follows:

port +Video;

when +Video.Linked() self.Color("Black");

when +Video.Unlinked() {

self.Color("Gray");

self.Display("MovieStand"); }

when +Video.PlayMovie(){

self.Color("Blue");

self.Display("Playing"); }

when +Video.PrevMovie(){

+Video.FinishedMovie("Blue");

self.Display("Prev"); }

// Similarly for NextMovie

Lastly, for simulating the “Internet Stand” smart

object, in this example, we just change the colour of

the object to a value that reflects the name of the

first movie watched.

port +Internet;

when +Internet.Info(*m) self.Color(m[0]);

when +Internet.Unlinked()self.Color("Gray");

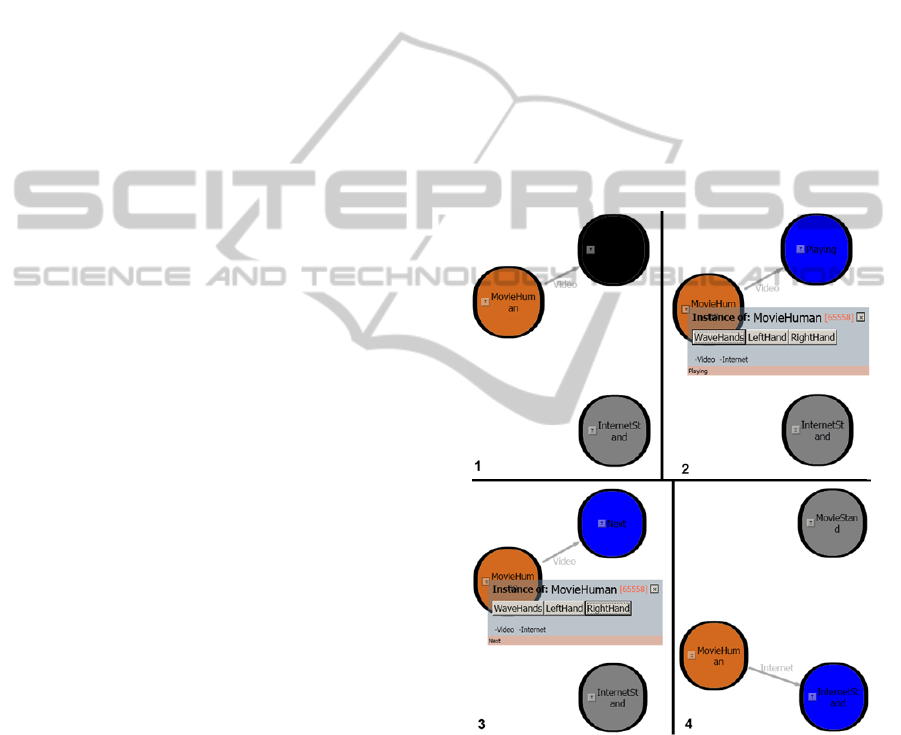

The visualization and execution of this scenario in

ObjectivSim can be seen in Figure 4.

Figure 4: The Ambient Theatre scenario running under

ObjectivSim.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a dynamic, weakly-typed

programming language for describing the behaviour

and interactions of smart object federations within

their environment. Using the proposed programming

ProgrammingSmartObjectFederationsforSimulatingandImplementingAmbientIntelligenceScenarios

language, Akkadian, we can fully implement

ambient intelligence scenarios that are described in

terms of software smart objects. Those software

smart objects can consume, and offer to other

objects an arbitrary number of networked services

through which they can sense and change the

physical environment in the way the scenario

defines. Additionally, for scenarios described in

terms of hardware smart objects, Akkadian can be

used for simulating their executions. Finally, we

demonstrated the language’s effectiveness through

two examples in which smart objects are

implemented as Akkadian programs.

As mentioned in the previous sections, one

important short-term goal for Akkadian runtime is

the implementation of additional service engines.

Specifically, the implementation of a Web Service

engine will allow software smart objects to fully

utilize web services through their ports in addition to

the already available service technologies. Provided

that there is a plethora of publicly available web

services on the Internet, this addition will greatly

expand the utility of software smart objects.

A big section missing from Akkadian, and the

smart object model in general, is the support for

security primitives. Currently, as mentioned before,

an object can connect to another object and use the

services it offers as soon as it senses its presence

(see 3.4). For achieving an effective level of

security, the notion of the scope and the process

through which objects can connect to each other,

needs to be refined. Towards this direction, we are

working on introducing scope-specific statements in

Akkadian, through which an object will be able to

define its own scope and control if, and under which

conditions, it can appear in the scope of other

objects.

Ultimately, the most important reason for

proposing a new language – and not developing a

framework in a general-purpose language – for

programming smart objects is to systematically

extract and support, in a syntactically intuitive way,

common usage patterns as smart objects are used in

ambient intelligence and ubiquitous computing

scenarios. It is an important goal of Akkadian, its

runtime environment, and its design environment to

be robust and easily extensible for incorporating

new, high-level behaviours.

ACKNOWLEDGEMENTS

This work has been supported by the FORTH-ICS

internal RTD program “Ambient Intelligence

Environments”.

REFERENCES

Achermann, Franz, Markus Lumpe, Jean-guy Schneider,

and Oscar Nierstrasz. 1999. PICCOLA - a Small

Composition Language.

Akyildiz, I. F., W. Su, Y. Sankarasubramaniam, and E.

Cayirci. 2002. “Wireless Sensor Networks: a Survey.”

Computer Networks 38 (4) (March 15): 393–422.

Aldrich, J., C. Chambers, and D. Notkin. 2002. “ArchJava:

Connecting Software Architecture to Implementation.”

In Proceedings of the 24rd International Conference

on Software Engineering, 2002. ICSE 2002, 187 –197.

Blow, M, Y Goland, M Kloppmann, F Leymann, G Pfau,

D Roller, and M Rowley. “BPELJ: BPEL for Java

Technology”.

Boussinot, F., and R. de Simone. 1991. “The ESTEREL

Language.” Proceedings of the IEEE 79 (9)

(September): 1293 –1304.

Christensen, Erik, Francisco Curbera, Greg Meredith, and

Sanjiva Weerawarana. 2001. Web Services

Description Language (WSDL) 1.1.

http://www.w3.org/TR/wsdl.

Curbera, F, Y Goland, J Klein, F Leymann, Thatte, and S

Weerawarana. 2003. Business Process Execution

Language for Web Services, Version 1.1.

Digital Equipment Corporation, Object Management

Group, and X/Open Company. 1992. The Common

object request broker : architecture and specification,

revision 1.1. New York, NY: John Wiley.

Gay, David, Philip Levis, Robert von Behren, Matt Welsh,

Eric Brewer, and David Culler. 2003. “The nesC

Language: A Holistic Approach to Networked

Embedded Systems.” SIGPLAN Not. 38 (5): 1–11.

Georgantas, N., S. B. Mokhtar, Y. Bromberg, V. Issarny,

J. Kalaoja, J. Kantarovitch, A. Gerodolle, and R.

Mevissen. 2005. “The Amigo Service Architecture for

the Open Networked Home Environment.” In 5th

Working IEEE/IFIP Conference on Software

Architecture, 2005. WICSA 2005, 295 –296.

Greaves, D., and D. Gordon. 2006. “Using Simple

Pushlogic.” In WEBIST 06: Proceedings of the Second

International Conference on Web Information Systems

and Technologies. Citeseer.

Halbwachs, N., P. Caspi, P. Raymond, and D. Pilaud.

1991. “The Synchronous Data Flow Programming

Language LUSTRE.” Proceedings of the IEEE 79 (9).

Julia, Jeremie, Yuzuru Tanaka, and Nicolas Spyratos.

2012. “Formalization of an RNA-inspired Middleware

for Complex Smart Object Federation Scenarios.” In

PECCS 2012, 96–105.

Milner, R., J. Parrow, and D. Walker. 1992. “A Calculus

of Mobile Processes, i.” Information and Computation

100 (1): 1–40.

Nierstrasz, Oscar, and Theo Meijler. 1995. “Requirements

for a Composition Language.” In Object-Based

Models and Languages for Concurrent Systems,

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

924:147–161. LNCS. Springer.

Spivey, J. M. 1992. The Z Notation: a Reference Manual.

Hertfordshire, UK, UK: Prentice Hall International

(UK) Ltd.

Tanaka, Yuzuru. 2010. “Proximity-Based Federation of

Smart Objects: Liberating Ubiquitous Computing from

Stereotyped Application Scenarios.” In Knowledge-

Based and Intelligent Information and Engineering

Systems, 6276:14–30. LNCS. Springer.

ProgrammingSmartObjectFederationsforSimulatingandImplementingAmbientIntelligenceScenarios
