Towards a Meta-model of the Cloud Computing Resource Landscape

∗

Kleopatra Chatziprimou, Kevin Lano and Steffen Zschaler

Department of Informatics, King’s College London, London, U.K.

Keywords:

Cloud Computing, Meta-model, Resources.

Abstract:

As Cloud Computing becomes more predominant, large scale datacenters are subject to an increasing demand

for efﬁciency and ﬂexibility. However, growing infrastructure management complexity and maintenance costs

are becoming a hindrance to the advancement of the Cloud vision. In this paper we discuss how existing

datacenter resource management approaches fail to provide infrastructure elasticity and suggest a resources

provisioning architecture to ﬁll this gap. As a ﬁrst step towards implementing our targets, we present a meta-

model to describe the characteristics of the Cloud landscape, emphasising on a provider’s perspective. With

this meta-model we intend to introduce new modelling concepts towards facilitating the selection of optimal

reconﬁgurations in a timely fashion.

1 INTRODUCTION

The advent of Cloud Computing has brought datacen-

ter design at evolutionary crossroads. However, mas-

sive data growth, challenging economic conditions,

and physical limitations of power, heat and space are

exerting pressure on the enterprise. Finding architec-

tures that can minimize cost, complexity and associ-

ated risks in the Cloud has become a priority (Josyula,

2012).

Inside a Cloud, workload is balanced among hun-

dreds of Virtual Machines (VMs). Each VM hosts

one or more applications and VM sizes are decided

according to load, while VMs are packed to Phys-

ical Machines (PMs) (i.e. actual hardware servers)

employing live VM migrations. The mapping of

VMs to PMs form the current conﬁguration. Dur-

ing operation, the Cloud runtime execution context

continuously evolves, as workload demand ﬂuctu-

ates according to unstable user-preferences, demand

spikes (i.e., unexpected increases in workload vol-

ume) and/or data spikes (i.e., change in the distri-

bution of particular objects’ popularity) can be no-

ticed. In addition, system attacks or unexpected fail-

ures might occur. The volatility of the runtime con-

text poses the need for reconﬁgurations in order to

preserve the system’s functionality and QoS targets.

To highlight the criticality of the aforementioned,

consider the case of a news company such as

∗

This work has been funded by the European Commis-

sion under FP7 ITN RELATE.

Guardian, which offers public facing internet-scale

services to millions of users. In the case of an unex-

pected “snap” article (e.g., terrorist attack) the com-

pany’s infrastructure will have to temporarily serve

a massive amount of user queries, without compro-

mising the expected QoS level. Questions as the fol-

lowing arise: How many new resources need to be

added to the system to meet the SLAs? How will the

reconﬁgurations affect the operational expenditures

(OPEX)? Answering these questions involves time

consuming, complex procedures that cannot be per-

formed in a timely fashion by human operators. Will

the system manage to provide up-to-date response to

the crisis?

Existing resource provisioning solutions seem to

focus on technology silos and not platforms as a

whole. Hence, they cannot sufﬁciently handle mis-

sion critical workloads, withstand variable demand

or widely control operational costs. Towards ﬁll-

ing this gap, we propose an interoperable infras-

tructure management layer to optimize the resources

(re)conﬁgurations complexity within a reasonable

cost and time-range during datacenter operation. To

this end, we suggest the combination of Model

Driven Engineering (MDE) tools with dynamic multi-

objective optimization and policy-driven design. Ex-

pected outcomes of this combination include dynamic

selection of the Cloud optimization objectives accord-

ing to the runtime context, as well as automation of

the transitions between problematic Cloud states and

corresponding reconﬁguration strategies.

As a ﬁrst step towards implementing our solution,

111

Chatziprimou K., Lano K. and Zschaler S..

Towards a Meta-model of the Cloud Computing Resource Landscape.

DOI: 10.5220/0004311001110116

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 111-116

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

we present a meta-model that speciﬁes the core con-

cepts of the Cloud space. First, the proposed meta-

model aligns the notion of an enterprise Cloud with its

expected revenue. Second, it comprises information

regarding both physical and virtual Cloud resources

as well as the mapping of the running services be-

tween them. Finally, it models the Cloud points of

variability i.e., the aspects of the Cloud architecture

that can be reconﬁgured at run-time. The meta-model

serves as a basis to support on-line performance anal-

ysis, automated extraction of valid reconﬁgurations

and run-time validations towards achieving optimal

adaptations.

The rest of the paper is organised as follows:

In Section 2 we discuss the literature in the ﬁeld

of resources management in dynamic datacenters

and Clouds, Section 3 introduces our envisioned ap-

proach, Section 4 presents the meta-model, Section

5 demonstrates a use case and ﬁnally Section 6 con-

cludes the paper.

2 RELATED WORK

In the current literature, systems are continuously

monitored and accordingly adapt their resource con-

ﬁgurations, to comply with volatile user requirements

and preserve end-to-end QoS. Particularly, research

in the resource provisioning ﬁeld span the following

directions: (a) Operational Costs Awareness, (b) Net-

work/Communication Overheads Awareness and (c)

Applications Afﬁnities Awareness.

Operational Costs Awareness. A plethora of so-

lutions has been proposed to alleviate the costs of

operating and maintaining a datacenter. Bin pack-

ing heuristics have been widely explored to densely

pack overloaded VMs to underutilized PMs (Khanna

et al., 2006). The problem of minimization of eager

VM migrations is considered crucial to achieve sta-

bility inside the datacenter (Ferreto et al., 2011). (Ku-

sic et al., 2008) approached dynamic consolidation

by building estimates for future workloads incorpo-

rating Limited Lookahead Control, and feed them to

a utility maximization problem. Other utility based

approaches are presented in (David Breitgand, 2011;

Chuen et al., 2011). Costs optimization is attempted

through Constraint Programming, deduction to Gen-

eralized Assignment Problem (GAP) or Genetic Al-

gorithms. Reinforcement Learning (RL) is used in

(Tesauro et al., 2006) to estimate rewards of different

reconﬁguration actions. Feedback control theory has

been suggested to manipulate server utilization (Ab-

delzaher et al., 2001).

Network/Communication Overheads Awareness.

Attention has been given to the control of network

bandwidth consumption inside a datacenter. Stage

and Setzer (Stage and Setzer, 2009) aim to minimize

the risk of overloading the system’s links by predict-

ing workloads and network utilization rates. (Piao

and Yan, 2010) suggests a communication-overhead

minimization solution that places VMs to PMs with

smallest data transfer times. Meng et al. (Meng et al.,

2010b) indicate the need for trafﬁc-aware VM place-

ment to improve scalability.

Applications Afﬁnities Awareness. Considering de-

pendencies among VMs (e.g. memory sharing pos-

sibility) and their hosted applications could be bene-

ﬁcial to conﬁguration planning. Appaware (Shrivas-

tava et al., 2011) e.g., accepts as input a VMs depen-

dency Graph and exploits VM communication pat-

terns to minimize the overall placement cost. Meng et

al. leverage multiplexing to identify compatible VMs

for being jointly provisioned so as to achieve capacity

savings (Meng et al., 2010a).

2.1 Discussion

As increased expenditures and complexity in data-

center resources management remain open issues, we

note the limitations of existing approaches. RL and

Control Theoretic frameworks suffer from poor scal-

ability, being inappropriate for Cloud applications.

Utility based solutions aim to provide local or global

optimizations. The ﬁrst category achieves faster re-

sponse times though it can be inaccurate, while the

latter faces feasibility issues due to computational

costs.

Utility based approaches can be further classiﬁed

into proactive or reactive. Proactive are based on re-

source utilization predictions to keep a system run-

ning. However, predictions include intrinsic predic-

tion errors and introduce inaccuracies as well as com-

plexity. Reactive schemes achieve their objectives by

recovering from failures, which might be risky for the

anticipated Cloud agility. The biggest concern with

objective functions, is that they remain rigid to a set

of initial objectives and system constraints.

However, due to volatile granularities of human

(i.e., Cloud users, Cloud providers) requirements, un-

predictable events occurrences, complex interactions

between workloads and shared infrastructure, the dat-

acenter state continuously evolves. Simultaneously,

multiple, (often) conﬂicting goals need to be accom-

plished in order to deliver a competent solution tar-

geted to modern enterprises e.g, resource wastage,

power consumption, network communication over-

heads and others. Additionally, the duration of adap-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

112

tations decisioning and implementation, is strictly

bounded by a time-sensitive window after which the

target conﬁguration becomes stale. Hence, the sys-

tem optimization objectives may vary from time to

time and the optima have to be found in time, pos-

ing new challenges for the design of robust resource

provisioning solutions for Clouds.

3 ENVISIONED APPROACH

As the number of possible conﬁgurations grow expo-

nentially with the number of optimization objectives

mentioned above, research community faces the is-

sues of complexity and uncertainty. We aim to tame

these burdens combining Model Driven Engineering

(MDE) tools with multi-objective optimization strate-

gies as Figure 1 shows. We assume a diagnostics

interface to ﬁngerprint the Cloud runtime states and

provide automated identiﬁcation of performance cri-

sis or changes in Cloud Provider’s optimisation goals.

For example, in scenario a could be identiﬁed that

the provider focuses on pursuing green environmen-

tal policies minimizing power electricity and thermal

dissipation costs, in scenario b that the provider pri-

oritises to greedily increase its proﬁt offering IaaS

services to the maximum possible number of clients

while in scenario c that the provider has to quickly

overcome a network attack overloading the system

links.

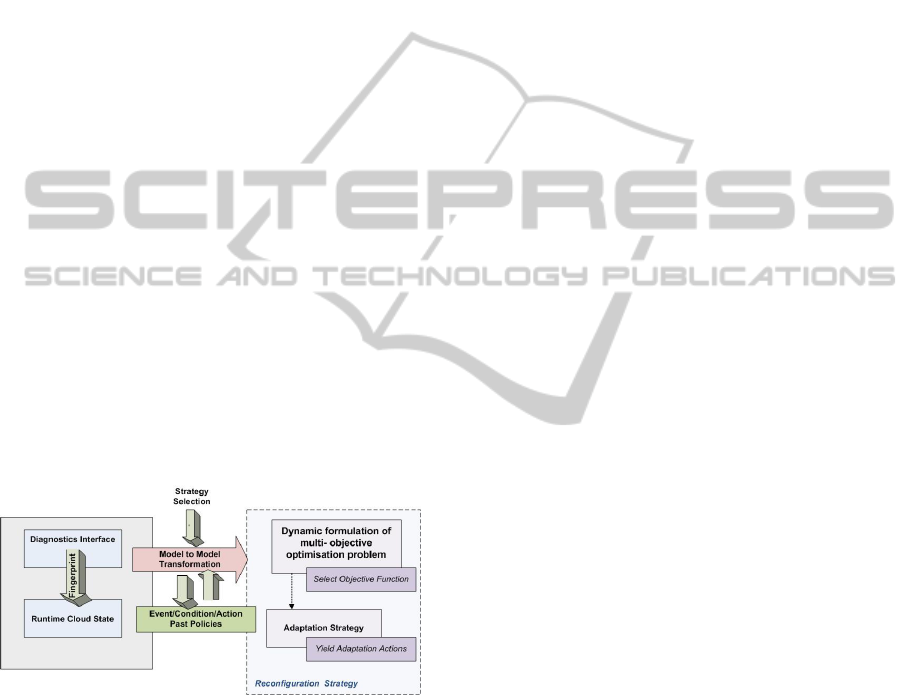

Figure 1: Overview of Envisioned Solution.

Management automation enables operational ef-

ﬁciencies related to change of control. Therefore,

we intent to automate the transition from diagnosed

Cloud states to appropriate reconﬁguration strate-

gies exploring model transformations and constraints

(enforcing system viability). Each reconﬁguration

strategy entails the dynamic formulation of a multi-

objective Optimization Problem, specifying an objec-

tive function to capture only the most critical current

Cloud optimisation goals (e.g., minimization of re-

sources wastage, control of power consumption etc.)

in order to limit the possible solutions space and sup-

port timely reconﬁgurations. The purpose of enabling

the dynamic formulation of multiple possible objec-

tive functions is to allow expression of preference for

optimal feasible system states from an ideal state, in

the Cloud’s valid states-space. The update of the ob-

jective function (i.e., replacement of objectives) will

be aligned with the runtime evolution of the Cloud.

Thereafter, the deﬁnition of an adaptation strat-

egy within the reconﬁguration, provide means to

solve the speciﬁed multi-objective optimization prob-

lem, and can encompass -according to scenario- so-

lutions already existing in the literature, promot-

ing interoperability. Finally, successful transforma-

tions will be cached in the system as customisable

Event/Condition/Actions (ECA) to facilitate future

reconﬁguration decisions. This policy-driven design

will help reduce maintenance complexity and costs

through the ability to reuse. Moreover, the low level

conﬁguration syntax is abstracted, enabling higher

level management tools to require knowledge only

about the policy semantics.

As a ﬁrst step towards realizing the aforemen-

tioned, we acknowledge that an abstract meta-model

is needed in the Cloud resources landscape. There ex-

ist different approaches on modelling resources and

the environment where they are contained (Becker

et al., 2009; Huber et al., 2012). In general such ap-

proaches are either targeted for design time analysis

or do not sufﬁce to cover the whole extent of a Cloud’s

topology.

The purpose of the meta-model is to support au-

tomated extraction of the possible valid Cloud states,

and capture properties relevant to performance analy-

sis in order to enable runtime reasoning of the conﬁg-

urations. Hence, the meta-model comprises informa-

tion about: (a) the actual capabilities and limitations

of the system; (b) trade-offs developed inside an oper-

ating system which are unknown at design time (i.e.,

VM communication patterns); (c) points of variabil-

ity (i.e., dynamic aspects of the Cloud infrastructure

that can be adapted at run-time) (d) expression of the

system’s runtime optimization targets.

We have focused on a high-level meta-model of

the Cloud landscape and in particular information

needed to describe feasible infrastructure variability

points, in terms of physical hosts and virtual ma-

chines. Detailed speciﬁcation of aspects as storage,

network, or computing requirements will need to be

added to this meta-model for application to real sce-

narios. However, we omit them in this paper due to

lack of space.

TowardsaMeta-modeloftheCloudComputingResourceLandscape

113

4 THE CLOUD META-MODEL

In this section we present the Cloud landscape meta-

model. As shown in Figure 2 the meta-model was

designed utilizing the Eclipse Modelling Framework

(EMF)

Figure 2: Cloud System Metamodel.

The root entity comprising all the other entities is

the Cloud. The deliveryModel property refers to the

commercial Cloud realization (i.e., public, hybrid or

private). The property budget denotes the provider’s

invested capital. A Cloud’s purpose is to serve an ar-

bitrary amount of Workloads. The Workload proper-

ties type, periodicity and userProﬁle specify the inten-

sity and characteristics of the imposed workloads.

The Cloud can have many possible Conﬁgurations,

denoting the system’s hardware and software compo-

nents as well as the possible mappings between them.

The Cloud Components can be encountered in dif-

ferent states, as enumerated in ComponentState, in-

dicating their health and availability. We distinguish

ﬁve different states: “Switched-on” indicating that the

component is in use; “Switched-off” indicating that

the component has been deactivated; “Idle” indicat-

ing that no function or service is running on this com-

ponent; “Overloaded” indicating that there are not

enough resources in this component to complete a re-

quested task; and “Non-responding” indicating a pos-

sible failure.

4.1 Cloud Components

The central entity Component abstracts the Cloud in-

frastructure. As Figure 3 shows, we distinguish be-

tween two component types, the HardwareCompo-

nent denoting the Hardware Infrastructure and the

SoftwareComponent denoting the Software Infras-

tructure.

The software landscape can be summarized as De-

ployedServices executing on Virtual Machines (VM)

http://www.eclipse.org/modeling/

Figure 3: Cloud Infrastructure.

while assisted by RuntimeEnvironment Entities, e.g.,

the hypervisor. Other properties that the VM class en-

tail, are vCPU i.e., the quantity of physical CPU as-

signed to it, vMemory i.e., the quantity of physical

Memory assigned to it, and the downtime i.e., time

period when a VM is unavailable as a VM migration

is being carried out. The relation interactsWith mod-

els shared communication among VMs.

The HardwareComponent’s properties utilization-

Ratio capacity and operatingCost provide feedback

relevant to the efﬁciency and cost of a conﬁguration.

Core entity of the hardware landscape are the Physi-

cal Machines (PM), comprised of storage and CPU.

PMs can host multiple VMs during their operation.

4.2 Cloud Variability

In Figure 4 the volatility of the Cloud’s context and its

capability to adapt accordingly are depicted. Imagine

for example, the case of two VMs sharing resources

and assume that the workload of one increases leading

to an SLA violation. The Cloud conﬁguration will

have to be adapted by e.g., increasing the size of the

overloaded VM so as to support its hosted services

without SLA violations.

A Cloud can have many possible High Level

Goals e.g., capital/operating costs optimisation, en-

forcement of resilience etc. The Detector interface

is responsible to diagnose the most urgent among

them and dynamically form a corresponding multi-

objective optimisation problem, modelled by the Rev-

enue entity. The Revenue essentially denotes a -

closely aligned with the runtime context - objective

function, expressing the quantity that has to be cur-

rently maximised (e.g., server utilisation ratio) or

minimised (e.g., network Trafﬁc) to achieve an efﬁ-

cient system conﬁguration.

The realisation of the Revenue yields an Adapta-

tionStrategy, which provides means towards a Cloud

reconﬁguration. The AdaptationStrategy is imple-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

114

Figure 4: Cloud Variability.

mented via a concatenation of AdaptationActions. The

AdaptationActions entity captures the degrees of free-

dom of a Cloud resources landscape describing the

types of actions that can be performed towards transi-

tioning from an old conﬁguration to an improved tar-

get. The identiﬁed possible action types span: (a) VM-

Resize i.e., how much virtual memory or virtual CPU

should a VM receive (b)VMCreate i.e., creation of a

new VM (c)VMMap: (re)selection of PMs to host the

aforementioned VMs (d)VMDestroy i.e., switch off a

VM (e)PMSwitchOn i.e., activation of a new PM (f)

PMSwitchOff i.e., switching-off a PM.

The property variationRange speciﬁes the range in

which the aforementioned entities may vary, while the

property variationDuretion indicates time limits for the

reconﬁguration actions.

5 USE CASE

In this section we provide a use case to indicate the

applicability of the proposed meta-model.

Let’s consider the simple Cloud infrastructure of

Figure 5, consisting of three PMs (PM0, PM1, PM2)

hosting over Xen hypervisor two intercommunicat-

ing VMs (VM0, VM1), each one executing a differ-

ent enterprise service (DeployedService0, Deployed-

Service1), serving the customer’s workload. The

Provider’s High level goal has been diagnosed as

minimisation of OPEX expenses, hence the prob-

lem’s revenue can be formalised as e.g., min

∑

i=1

min

∑

i=1

(where c

symbolizes residual ratio of re-

sources and t

the performance overhead due to recon-

ﬁguration). This revenue basically imposes the need

to minimize the idle infrastructure. We assume that in

the initial conﬁguration PM2 hosts VM0 and VM1,

Figure 5: Cloud Use Case.

while PM0 and PM1 are idle. Moreover, Deployed-

Service0 runs on VM1 and DeployedService1 is exe-

cuted on VM0.

Let’s assume that the PM utilisation thresholds are

violated for an extended period of time, resulting to

non satisfactory OPEX. The Cloud has to reconﬁgure

in order to provide a resources conﬁguration solution

that will support improved asset usage, therefore op-

timised OPEX.

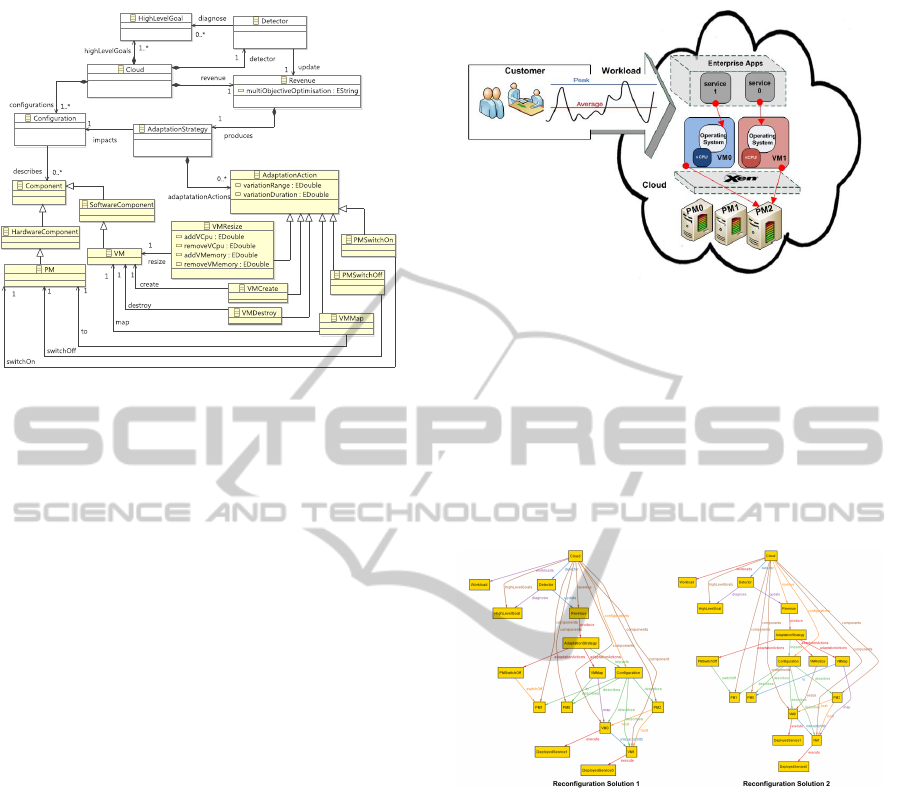

Figure 6: Possible Reconﬁguration Solutions.

The description of our meta-model structures, en-

ables automated extraction and exploration of the

valid reconﬁguration solutions space of the problem.

Figure 6 shows two valid reconﬁguration instances. In

the ﬁrst, the concatenation of reconﬁguration actions

yielded to optimise the revenue include: switch-off

PM1 which does not host any VMs, and migration of

VM0 from PM2 to PM0. From further observation of

the instance we notice that VM0 and VM1 are inter-

communicating, hence we gather that DeployedSer-

vice1 and DeployedService0 have dependencies (e.g.

may share memory pages). This feedback can assist

future decisioning of these VMs sizing and location.

The second reconﬁguration instance, models another

possible solution of the same optimisation problem

where PM1 is switched-off, VM0 receives less mem-

ory resources and and VM1 is migrated from PM2 to

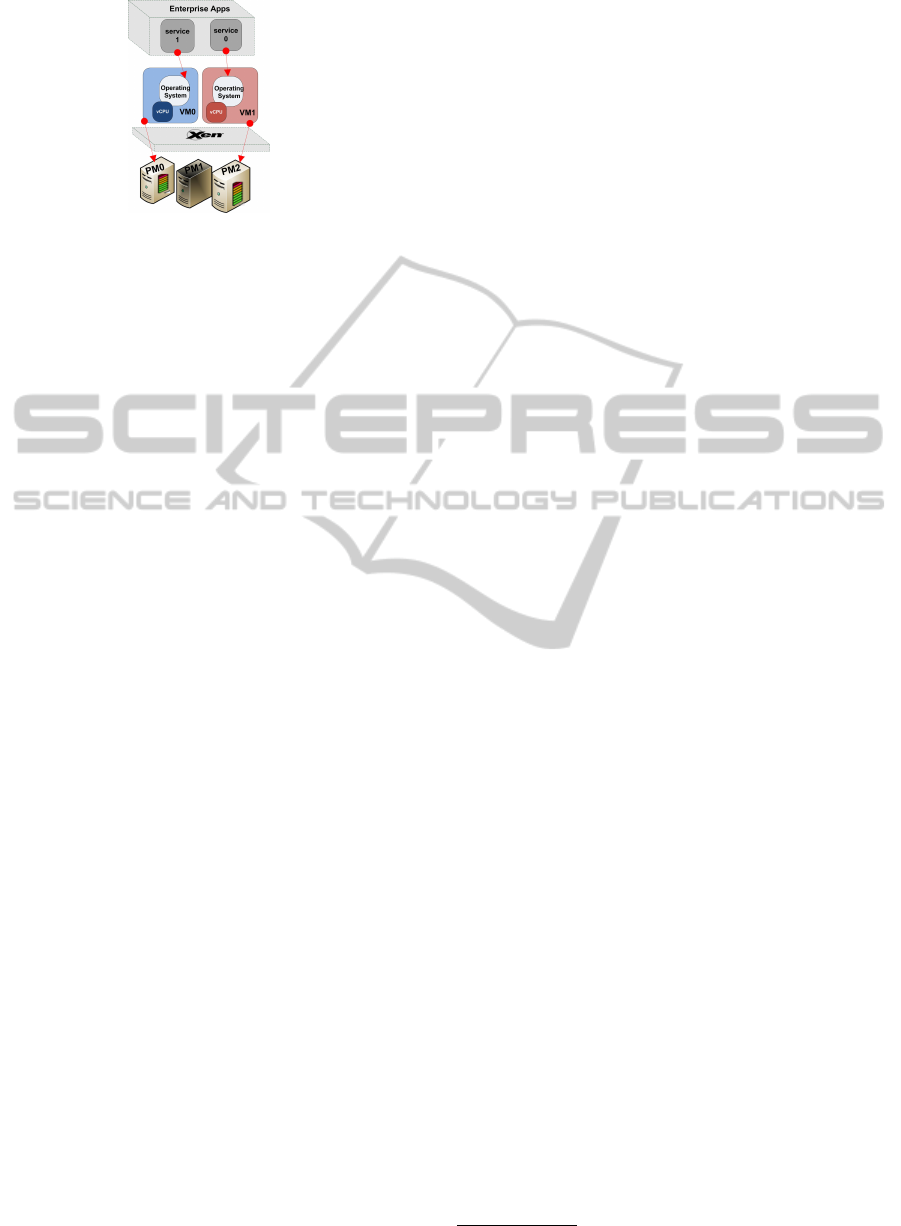

PM0. Figure 7 depicts the application of the ﬁrst re-

TowardsaMeta-modeloftheCloudComputingResourceLandscape

115

Figure 7: Cloud Infrastructure After Reconﬁguration.

conﬁguration solution to the use case cloud.

The proposed modelling concepts provide means

for automated exploration and reasoning of the Cloud

resources landscape space. Hence, both reconﬁgura-

tions pictured in Figure 6 show possible solutions of

the problem discussed in the use case. However, we

can not answer which solution dominates the other,

or which solution will provide a faster alleviation of

the identiﬁed issues. Therefore, our next step towards

realizing our vision is the design of a heuristic to con-

trol the evolution of reconﬁgurations solution space

as Cloud objectives change, enforcing runtime con-

straints (e.g. time range of adaptation steps).

6 CONCLUSIONS

Cloud Computing promises infrastructure elasticity

at a low cost. However, modern datacenters are be-

coming increasingly complex. In this paper we are

concerned with the issue of resource management in

Clouds. Particularly, we suggest that a combination of

MDE and dynamic multi-objective optimization can

efﬁciently manage the resulting trade-offs between

the various possible Cloud optimisation goals.

As a ﬁrst step towards realizing our vision we pre-

sented a meta-model to describe the Cloud Comput-

ing resources landscape with focus on the provider’s

perspective. The presented modelling approach com-

prises information regarding the provider’s optimisa-

tion objectives, Cloud physical and virtual infrastruc-

ture as well as points of dynamic infrastructure vari-

ability. The meta-model aims to serve as a basis to fa-

cilitate automated extraction of Cloud resources fea-

sible space, towards selecting optimal conﬁgurations.

As part of our on-going work, we intend to design

a heuristic to control the evolution of reconﬁguration

space during replacement of problem objectives. We

also aim to formalise the possible reconﬁgurations

within the model as run-time model transformations

based on Cloud revenue and available adaptation ac-

tions. Further plans, include the use of Kevoree

ex-

perimental Cloud platform to validate our approach.

REFERENCES

Abdelzaher, T., Shin, K. G., and Bhatti, N. (2001). Perfor-

mance Guarantees for Web Server End-Systems: A

Control-Theoretical Approach. IEEE Transactions on

Parallel and Distributed Systems.

Becker, S., Koziolek, H., and Reussner, R. (2009). The Pal-

ladio component model for model-driven performance

prediction. J. Syst. Softw.

Chuen, C., Mark, T., Niyato, D., and Chen-khong, T.

(2011). Evolutionary Optimal Virtual Machine Place-

ment and Demand Forecaster for Cloud Computing.

International Conference on Advanced Information

Networking and Applications.

David Breitgand, Alessandro Maraschini, J. T. (2011).

Policy-Driven Service Placement Optimization in

Federated Clouds. Technical report, IBM Research.

Ferreto, T. C., Netto, M. A. S., Calheiros, R. N., and

De Rose, C. A. F. (2011). Server consolidation with

migration control for virtualized data centers. Future

Generation Computer Systems.

Huber, N., Brosig, F., and Kounev, S. (2012). Modeling dy-

namic virtualized resource landscapes. In ACM SIG-

SOFT.

Josyula, Orr, P. (2012). Cloud Computing: Automating the

Virtualized Data Center.

Khanna, G., Beaty, K., Kar, G., and Kochut, A. (2006).

Application Performance Management in Virtualized

Server Environments. In NOMS 2006, pages 373–381.

Kusic, D., Kephart, J. O., Hanson, J. E., Kandasamy, N.,

and Jiang, G. (2008). Power and performance man-

agement of virtualized computing environments via

lookahead control. Cluster Computing.

Meng, X., Isci, C., Kephart, J., Zhang, L., Bouillet, E., and

Pendarakis, D. (2010a). Efﬁcient resource provision-

ing in compute clouds via VM multiplexing. In 7th

international conference on Autonomic computing.

Meng, X., Pappas, V., and Zhang, L. (2010b). Improv-

ing the scalability of data center networks with trafﬁc-

aware virtual machine placement. In 29th conference

on Information communications.

Piao, J. T. and Yan, J. (2010). A Network-aware Virtual

Machine Placement and Migration Approach in Cloud

Computing. In 9th International Conference on GCC,

pages 87 –92.

Shrivastava, V., Zerfos, P., Lee, K.-w., Jamjoom, H., Liu, Y.-

h., and Banerjee, S. (2011). Application-aware virtual

machine migration in data centers. IEEE INFOCOM.

Stage, A. and Setzer, T. (2009). Network-aware migration

control and scheduling of differentiated virtual ma-

chine workloads. In ICSE Workshop.

Tesauro, G., Jong, N., Das, R., and Bennani, M. (2006).

A Hybrid Reinforcement Learning Approach to Auto-

nomic Resource Allocation. In ICAC ’06.

http://www.kevoree.org/

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

116
