An Efﬁcient Approach to Object Recognition for Mobile Robots

M. Shuja Ahmed, Reza Saatchi and Fabio Caparrelli

Materials and Engineering Research Institute, Shefﬁeld Hallam University, Shefﬁeld, U.K.

Keywords:

Object Recognition, SURF, Harris Features, Multi-robotics.

Abstract:

In robotics, the object recognition approaches developed so far have proved very valuable, but their high

memory and processing requirements make them suitable only for robots with high processing capability

or for ofﬂine processing. When it comes to small size robots, these approaches are not effective and light-

weight vision processing is adopted which causes a big drop in recognition performance. In this research,

a computationally expensive, but efﬁcient appearance-based object recognition approach is considered and

tested on a small robotic platform which has limited memory and processing resources. Rather than processing

the high resolution images, all the times, to perform recognition, a novel idea of switching between high and

low resolutions, based on the “distance to object” is adopted. It is also shown that much of the computation

time can be saved by identifying the irrelevant information in the images and avoid processing them with

computationally expensive approaches. This helps to bridge the gap between the computationally expensive

approaches and embedded platform with limited processing resources.

1 INTRODUCTION

Object recognition, when it comes to robotics, is con-

sidered an essential element since, in most robotic

applications, the robots are required to look for and

recognize the objects of interest in the environment

to achieve the given objectives. The use of vision

sensors in robotic applications has provided many

solutions for object recognition. Object recognition

is considered as one of the most challenging prob-

lems in computer vision. It presents several chal-

lenges such as, view point changes, intensity varia-

tions, occlusions and background clutter. Its use in

mobile robotics applications introduces an important

challenge given by the constraints for execution time

(i.e. computational complexity). In real world sce-

narios, robots are normally equipped with high pow-

ered processing systems which can fulﬁl the com-

putational demands of the object recognition algo-

rithms. For such robots the choices of object recogni-

tion techniques may be diverse and computationally

expensive object recognition techniques may be sim-

ply adopted with minor changes. But when it comes

to small robots with limited processing resources, the

task becomes challenging because the algorithm fails

to achieve real time performance.

In computer vision, many object recognition ap-

proaches have been introduced. The content based

approaches (i.e. using colour, texture and shape) and

geometric approaches (i.e. using afﬁne or projective

transformations) are computationally less expensive,

but does not give good performance in varying light-

ing conditions. On the other hand, context based

and appearance based approaches (e.g. using SIFT,

SURF or PCA features) are computationally inten-

sive. These are less sensitive to the changes in scale,

rotation, skew and lighting conditions. In most of the

recent research (Lowe, 2004), appearance-based ap-

proaches are adopted. In (Nayerlaan and Goedeme,

2008), an appearance based approach, using SURF

(Speeded Up Robust Features) features, have adopted

to perform trafﬁc sign recognition in an embedded

system environment. In the beginning, the system

was given training using SURF features, extracted

from the database of trafﬁc sign images. In the

database, the number of images were large which re-

sulted in too many features. This reduced the speed

of feature matching process in the recognition stage.

To reduce the number of features, the feature space

clustering approach (Tuytelaars et al., 2008) can be

utilised. Feature space clustering is also called fea-

ture space quantization in some approaches (Asanza

and Wirnitzer, 2010) and it provides signiﬁcant saving

in memory usage which makes the approach suitable

for the implementation on embedded systems. Some

researchers have used probabilistic models on the top

of SURF feature based approaches to perform robot

localisation and mapping (Cummins and Newman,

Ahmed M., Saatchi R. and Caparrelli F..

An Efﬁcient Approach to Object Recognition for Mobile Robots.

DOI: 10.5220/0004314800600065

In Proceedings of the 3rd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2013), pages 60-65

ISBN: 978-989-8565-43-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2010). In comparison to this, in some approaches

(Chrysanthakopoulos and Shani, 2010), the authors

relied on Harris features to reduce the computational

time and used Partially Observable Markov Decision

Process (POMDP) probabilistic methods to track the

probability distribution of the robot’s where-about.

In another work (Ramos et al., 2010), SURF fea-

tures were further processed using Conditional Ran-

dom Fields (CRF) algorithm to discard those features

which do not show geometric consistency. In (Ri-

cardo and Pellegrino, 2010), a detailed comparison of

SIFT, PCA-SIFT and SURF feature based approaches

is presented and SURF was found to be the fastest to

compute features. Authors in (Juan and Gwun, 2009)

used K-Nearest Neighbour (KNN) approach for fea-

ture space clustering and Random Sample Consensus

(RANSAC) to get rid of outliers and showed that the

selection of methods to perform recognition mainly

depends on the target application. In (Krose et al.,

2001), linear image features extracted using Princi-

pal Component Analysis (PCA) were used for ob-

ject recognition. In PCA, the eigenvectors of the im-

age are computed and are used as an orthogonal ba-

sis for individual image representation. The motiva-

tion of using eigenvectors is that only few of them

are required for recognition, but this approach is very

sensitive to the effect of perceptual aliasing. In an-

other work, a fast gradient based feature extraction

approach was used (Dillmann et al., 2007) together

with PCA, to perform the recognition task. Similar

to the work done by (Nayerlaan and Goedeme, 2008)

and (Asanza and Wirnitzer, 2010), the feature space

was quantized using a k-means algorithm. The sys-

tem used for recognition was a 3GHz high powered

processing system which takes 350 milli-seconds on

an average to recognise the object. This seems a slow

performance considering the power of the processing

system. Another similar approach using SIFT fea-

ture based recognition is presented by (Siegwart et al.,

2010) where features were dynamically assigned dif-

ferent weights, according to the uncertainty associ-

ated with them and ﬁnally avoid using those features

which does not show good recognition results. It is

to be noted that, in most of the research where ap-

pearance based object recognition is employed, a high

performance system is used.

This study suggests some techniques following

which, the advantages of computationally expensive

algorithms can be enjoyed in small robotic systems

to achieve object recognition. This study presents

an optimised implementation of SURF features based

recognition approach which can show acceptable per-

formance on small robotic platforms without sacri-

ﬁcing the recognition performance. We have used

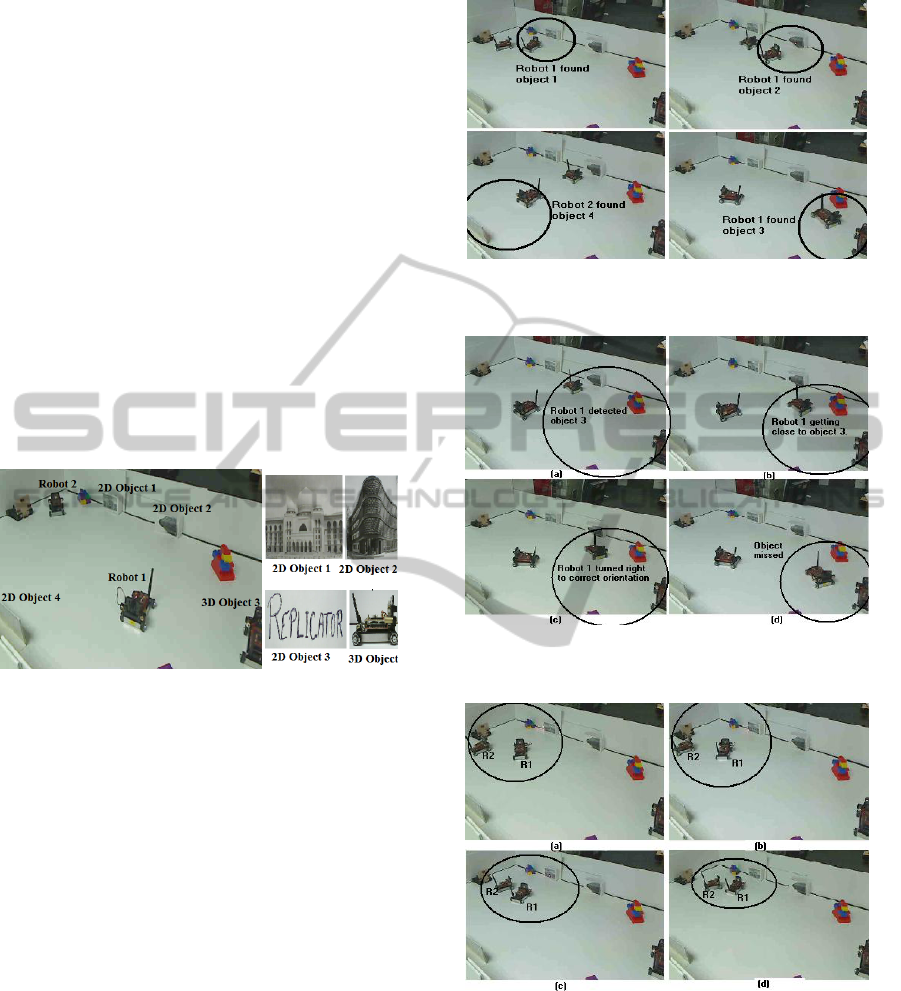

a group of small robots and show that how multi-

ple robots look for 3D and 2D objects of interest in

an unknown controlled environment. For recogni-

tion purposes, all robots will be given a common vi-

sual vocabulary. To help achieve this task efﬁciently,

all robots will be sharing their knowledge with each

other. Through wireless communication medium, ev-

ery robot will be updating other team members about

the number of objects found. This way, other team

members will not search for the objects found by an-

other robot.

2 METHODOLOGY

The aim of this study was to use the advantages of

computationally expensive appearance based recogni-

tion approaches and make them run efﬁciently using a

group of small robots. Based on the literature review,

the SURF features based approach was found to be

the fastest to compute and favourable for implemen-

tation on an embedded system. There are a number

of open source implementations of SURF feature ex-

traction and matching algorithms. OpenCV (Kaehler

and Bradski, 2008) is an open source computer vi-

sion library which provides a possible implementa-

tion of the SURF algorithm. Another implementation

is found in OpenSURF (Evans, 2009) library which

is a faster and a more optimized implementation of

SURF as compared to OpenCV. In this study, we de-

cided to use the OpenSURF library as a reference im-

plementation of SURF algorithm. To perform exper-

iments, a group of SRV robots were used which are

developed by Surveyor Corporation Inc. The SRV

robots used a 16/32-bit Blackﬁn BF537E processor

as on-board processing unit. For code execution on

the processor, an open source customised version of

linux operating system, called uClinux (micro con-

troller Linux), was used. The SURF algorithm pro-

vided by the OpenSURF library, was cross compiled

for the target Blackﬁn processor using GNU cross

compilation tool-chains on a Linux based develop-

ment platform. At the beginning, when the cross com-

piled SURF algorithm ran on Blackﬁn processor, it

took 33 seconds to process an image with 320x240

pixels resolution. There were two main reasons for

this slow processing speed. One was the expected

computationally expensive nature of the algorithm.

Second, the lack of Floating Point Unit (FPU) on the

Blackﬁn processor and the extensive use of ﬂoating

point operation by the SURF algorithm. To reduce

the execution time of the SURF algorithm, code op-

timisation was performed. For further performance

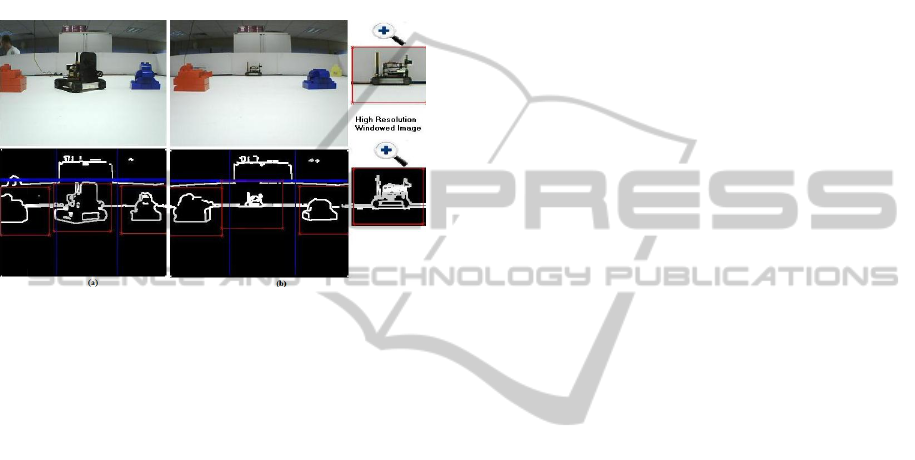

improvement, image data elimination and use of mul-

AnEfficientApproachtoObjectRecognitionforMobileRobots

tiple resolutions were also made. These are explained

in the following sub-sections.

2.1 Optimisation of SURF for the

Blackﬁn Processor

This section discusses the customisation of the SURF

algorithm for the target Blackﬁn processor based em-

bedded system. Processor speciﬁc code customisa-

tion requires a detailed study about the architecture of

the underlying embedded system. By exploring the

architectural features of the embedded system, the full

processor performance can be achieved through the

software. For example, in this study, Blackﬁn pro-

cessor is selected, and since this processor is a ﬁxed

point processor it is recommended to avoid ﬂoating

point operation. The use of uClinux operating system

on the target Blackﬁn processor makes the customi-

sation more challenging as it allows 1.31 ﬁxed point

operations only. This restriction requires that all the

data in the algorithm should be normalised at every

point in the program ﬂow in order to guarantee that

data values lies within the range of -0.9 to +0.9. If

values exceed these limits then unexpected results can

occur.

The Blackﬁn code optimisation can be done in

three different phases which are usually followed in

the following order. These phases are Compiler op-

timization, System optimization and Assembly opti-

mization as detailed by (Katz et al., 2005). After per-

forming these optimisation steps, the improvements

achieved in the algorithm’s execution performance is

shown in Table 1. When no optimization was applied,

the program took 33sec to process a single image

frame. Compiler optimization (i.e. using fast-math

and mfast-fp ﬂoating point libraries for Blackﬁn pro-

cessor) brought the execution time to 12sec per frame.

For further reduction in the execution time, the detail

timing analysis for the different portions of the pro-

gram was done. The parts of the program which were

taking more time to execute, were identiﬁed. These

parts of the program were customised by exploiting

the ﬁxed point architecture of the Blackﬁn processor.

Therefore, 1.31 ﬁxed point operations were adopted

in the place of ﬂoating point operations. This helped

in reducing the time to 3 sec per frame. The main rea-

son for the signiﬁcant reduction in time from 12sec to

3sec was the use of 1.31 ﬁxed point operation libraries

which are optimised for Blackﬁn processor and fur-

ther customised in assembly language. After elimi-

nating the routing of redundant data or by optimizing

the data ﬂow in the algorithm, the time was further re-

duced to 2.8sec per frame. Further reduction in time

can be achieved by using the lower resolution image.

As lower resolution image provides less details of the

object in the image, so SURF algorithm produce less

number of features and recognition performance also

drops. As shown in Table 1, the processor speciﬁc

optimisation is an essential step to achieve real time

performance as it signiﬁcantly reduces the execution

time of the algorithm. However, further reduction in

the execution time is still required.

Table 1: Optimisation of SURF for the Blackﬁn Processor.

Optimisation Steps Execution Time (milli-sec)

No Optimisation 33000

-fast-math emulation 31100

mfast-fp emulation 12200

1.31 ﬁxed point library 2995

Data ﬂow management 2800

Low Resolution 750

2.2 Image Data Elimination and

Resolution Switching

In the second stage, regions in the image are identiﬁed

which are redundant and does not contribute in the

generation of SURF features. For example, smooth

image regions and texture less surfaces in the image

does not generate any reliable SURF features. So

by not processing these image regions, with compu-

tationally intensive SURF algorithm, can reduce the

image processing load by a large factor. To eliminate

these redundant image regions and identify the image

pixels which represent the presence of an object in

the image, many light weight feature extraction tech-

niques can be applied. The use of simple edge de-

tector (e.g., canny) can also be made to identify the

pixels, but they also detects edges caused by straight

lines. In this study, we have used Harris feature ex-

traction algorithm. The reason for using Harris al-

gorithm is that, Harris features detects corners in the

image which provides more reliable features.

At the beginning, the whole image was divided

into two portions, the top and the bottom. The top por-

tion always lies outside the arena and is causing fea-

tures from the environment which is outside the arena

(see Figure 1). Therefore, the top portion was not con-

sidered for processing. Another way of avoiding the

outside environment was to use higher arena bound-

aries. The top portion, separated by the thick Blue

line, is shown in Figure 1a and 1b. The bottom por-

tion, lying under the thick Blue line, was further di-

vided into three portions that is middle, left and right

(middle, left and right portions shown are separated

by the thin blue line) and features extraction is per-

formed using the Harris algorithm. Extracted image

features are also shown in Figure 1a and 1b. The cen-

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

troids of the feature points were computed from the

middle, left and the right portions and the windowed

images were extracted. These windowed images con-

tain the objects in the image. These windowed images

are shown by the red boundary lines. Now SURF

features are computed for these extracted windowed

images. In these windowed images, while extracting

SURF features, again only those pixels were consid-

ered for processing which were also identiﬁed by the

Harris feature detection algorithm.

Figure 1: Image data reduction and resolution switching

(Ahmed et al., 2012a).

The SURF feature extraction and matching tech-

nique works in two stages: training stage and recog-

nition stage. In the training stage, the features of the

target object were extracted and kept in memory. In

the case of more target objects to be recognized, a

database containing the features, resulting from all the

target objects, was generated and kept in memory for

recognition purposes. In the case of 2D object recog-

nition, only a single object image was required dur-

ing training stage for extracting SURF features. If the

target object was a 3D object, then pose based fea-

ture extraction was performed. That is, the images

from different poses of the target object were taken

and SURF features were computed for all of these

images. During the recognition stage, features from

all these images were compared with the features ex-

tracted from the current view and the best match pro-

vides the information about the object and also the

direction from which the robot was heading towards

the object. This pose based recognition for 3D objects

increased the database size by a large factor but keep-

ing the resolution low during the training stage helped

in reducing the database size.

To make the recognition technique scale invari-

ant, the SURF algorithm generated the scale-space

image pyramid where the input image was iteratively

convolved with the Gaussian kernel and, at the same

time, the image was sub-sampled iteratively (this re-

duced the size of the image) (Evans, 2009). During

the training stage, if the image resolution was set to

320x240 pixels and the number of times the image

was sub-sampled was set to 4, then in the image pyra-

mid, the sequence in which the resolution was down

sampled was 320x240, 160x120, 80x60 and, ﬁnally,

40x30 pixels. As the target embedded system had a

limited memory and processing resources, the train-

ing was given in 320x240 pixels resolution so that

the resultant features database was smaller in size and

can be kept in the memory for recognition purposes.

With this resolution, if the object lied a bit far from

the robot then it was still recognized. But if it lied

further away, then recognition was not possible as it

appeared really small in the 320x240 pixels image. To

overcome the problem of recognizing the objects ly-

ing far from the robot, a multi-resolution analysis was

performed. The distance to the objects was measured

in 320x240pixels resolution. To measure the distance

to the objects, a segmentation based approach was

used as addressed in (Ahmed et al., 2012b), where

it was originally adopted to perform obstacle avoid-

ance. After measuring the distance, near lying ob-

jects were processed in lower resolution and for far

lying objects, their positions were determined in the

higher resolution image and windowed images were

extracted from the higher resolution image. This way,

the number of pixels, deﬁning the far lying object, in-

creased and made the recognition possible. In other

words, to increase the recognition performance, the

objects detected in the image were processed in dif-

ferent resolutions depending upon their distance from

the robot. This concept is explained in Figure 1b.

The two objects on the left and right side are placed

closer to the robot vision system. The windowed im-

age is extracted from the lower resolution image(i.e.

320x240 pixels) for SURF features extraction and

matching purposes. The object in the center of the im-

age (i.e. another robot) is lying far from the robot so a

higher resolution analysis is performed and windowed

image is extracted from the high resolution image, as

shown on the right side of Figure 1b.

3 RESULTS

For performance analysis, a test was planned in which

the task was to recognise three 2D objects (i.e., two

building images and one plain text “Replicator”) and

one 3D object (i.e., another robot) as shown in Fig-

ure 2. During the training stage, a single image was

used to extract SURF features of 2D object, whereas,

for 3D object, images from 16 different poses of the

robot were used. The objects’ features were provided

to each robot participating in the experiment. In the

AnEfficientApproachtoObjectRecognitionforMobileRobots

current experiment, only two robots were used but the

process can also scale-up to larger number of robots

as long as each robot is provided the features of the

target objects. The two robots were programmed to

move randomly in the unknown structured environ-

ment and search for the objects of interest collectively.

To perform the collective operation, the robots also

shared information about the number of objects found

and which they were still looking for, over a wireless

network. When one robot found the object of inter-

est, it informed the other robot to remove this object

from the search list so that redundancy of searching

the same object by two robots could be avoided. The

placement of the objects of interest in the test arena

is shown in Figure 2. Apart from the target objects,

some unknown objects can be noticed in the arena

as shown in Figure 2. These objects will be treated

as obstacles because the features extracted from these

objects will not match with the features provided dur-

ing the training stage.

Figure 2: Position of robots and objects of interest before

the experiment was performed.

In this experiment, while collectively searching

for the objects, robot 1 found the 2D object 1, object 2

and 3D object 3. Robot 2 found 2D object 4. The po-

sitions of the robots, when they found the objects, are

shown in Figure 3. During this experiment, robot 1

missed the 3D object in the ﬁrst attempt and success-

fully found it in the second attempt. The sequence of

robot 1 positions when it missed object 3, are shown

in Figure 4. In scene image(a), robot 1 detected ob-

ject 3. Then, it was required to get closer to object

3 to conﬁrm its presence. In scene image(b), robot 1

got closer to object 3. Object 3 was detected on its

right side, so in scene image(c), robot 1 turned right.

After detecting the object in scene image(c), the robot

moved towards the object. But it moved a bit more in

the forward direction such that it left object 3 on its

left side undetected. Now, in scene image(d), only a

small portion of the 3D object was in its ﬁeld of view

and it was not enough for recognition.

Similarly, robot 2 also missed object 1 after detec-

tion. This happens because of the interruption from

the robot 1. The sequence of robots 1 and 2 positions,

Figure 3: Position of the robots when they recognize the

object in the environment.

Figure 4: Sequence of robot 1 positions when it detected

and then missed object 3.

Figure 5: Sequence of robot 2 positions when it detected

and then missed object 1.

when robot 2 missed object 1, are shown in Figure 5.

In scene image(a), robot 2 detected object 1 while

robot 1 was also nearby. In scene image(b), robot 1

also detected object 1 on its right side. In scene im-

age(c), robot 1 corrected its orientation towards ob-

ject 1 and robot 2 moved towards object 1. In scene

image(d), robot 1 moved towards object 1 but it also

moved between robot 2 and object 1. Now in scene

PECCS2013-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

image(d), it can be seen that robot 1 partially blocked

robot 2 ﬁeld of view such that robot 2 could not see

object 1. Due to this robot 2 missed object 1 and then

it was found by robot 1.

It is observed that once the robot found the 2D

objects, then they hardly missed them while getting

closer to the objects. But in the case of 3D ob-

ject, sometimes the robot detects the object and then

missed it while getting closer to it. This happens be-

cause the recognition algorithm switches resolution

based on the distance to the object and if at some

point, the distance information is wrong then the robot

misses the object.

4 CONCLUSIONS

In this research, an implementation of the computa-

tionally expensive object recognition approach on a

small robotic platform is addressed. It is concluded

that information pre-processing and fully utilizing the

architectural features of the target platform can make

a big difference in the execution performance of the

algorithm. It is shown that, the algorithm perfor-

mance, to extract and match SURF features, improved

from 33 seconds to 750 milli-seconds. Further im-

provement in the performance can be achieved by

coding critical parts of the algorithm in assembly lan-

guage. It is noticed that, as the size of the visual

vocabulary grows, the recognition performance may

degrade. To overcome this, clustering of the feature

space would be required which will make the algo-

rithm suitable for embedded system implementation.

ACKNOWLEDGEMENTS

Funded by EU-FP7 research project REPLICATOR.

REFERENCES

Ahmed, M., Saatchi, R., and Caparrelli, F. (2012a). Vision

based object recognition and localisation by a wireless

connected distributed robotic systems. In Electronic

Letters on Computer Vision and Image Analysis Vol.

11, No. 1, Pages 54-67.

Ahmed, M., Saatchi, R., and Caparrelli, F. (2012b). Vision

based obstacle avoidance and odometery for swarms

of small size robots. In Proceedings of 2nd Interna-

tional Conference on Pervasive and Embedded Com-

puting and Communication Systems, Pages 115-122.

Asanza, D. and Wirnitzer, B. (2010). Improving feature

based object recognition in service robotics by dispar-

ity map based segmentation. In International Confer-

ence on Intelligent Robots and Systems (IROS). Pages

2716-2720.

Chrysanthakopoulos, G. and Shani, G. (2010). Augment-

ing appearance-based localization and navigation us-

ing belief update. In Proceedings of AAMAS 2010,

Pages 559-566.

Cummins, M. and Newman, P. (2010). Fab-map:

Appearance-based place recognition and mapping us-

ing a learned visual vocabulary model. In Proceed-

ings of the 27th International Conference on Machine

Learning (ICML-10), Vol.27 No.6 Pages 647-665.

Dillmann, R., Welke, K., and Azad, P. (2007). Fast and ro-

bust feature-based recognition of multiple objects. In

6th IEEE/RAS International Conference on Humanoid

Robots, Pages 264-269.

Evans, C. (2009). Notes on the opensurf li-

brary. In OpenSurf, Page 25, URL:

www.cs.bris.ac.uk/Publications/Papers/2000970.pdf.

Juan, L. and Gwun, O. (2009). A comparison of sift, pca-sift

and surf. In International Journal of Image Processing

(IJIP), Vol.3, No.4, Pages 143-152.

Kaehler, A. and Bradski, G. (2008.). Computer vision with

the opencv library. In Learning OpenCV, Page 576.

Katz, D., Lukasiak, T., and Gentile, R. (2005). Enhance

processor performance in open-source applications. In

Analog Dialogue, Vol.39.

Krose, B., Vlassis, N., Bunschoten, R., and Motomura, Y.

(2001). A probabilistic model for appearance-based

robot localization. In In First European Symposium

on Ambience Intelligence (EUSAI), Pages 264-274.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. In International Journal of Com-

puter Vision, Vol. 60. No.2 Pages 91-110.

Nayerlaan, J. and Goedeme, T. (2008). Trafﬁc sign recog-

nition with constellations of visual words. In Interna-

tional conference on informatics in control, automa-

tion and robotics - ICINCO.

Ramos, F., Tardos, J., Cadena, C., Lopez, D., and Neira, J.

(2010). Robust place recognition with stereo cameras.

In International Conference on Intelligent Robots and

Systems (IROS), IEEE, Pages 5182-5189.

Ricardo, C. and Pellegrino, S. (2010). An experimental

evaluation of algorithms for aerial image matching.

In IWSSIP 17th International Conference on Systems,

Signals and Image Processing.

Siegwart, R., Sabatta, D., and Scaramuzza, D. (2010). Im-

proved appearance-based matching in similar and dy-

namic environments using a vocabulary tree. In IEEE

International Conference on Robotics and Automa-

tion(ICRA), Pages 1008-1013.

Tuytelaars, T., Bay, H., and Gool, L. (2008). Surf speeded

up robust features. In Computer Vision and Image Un-

derstanding (CVIU), Pages 110-346.

AnEfficientApproachtoObjectRecognitionforMobileRobots
