A Systematic Comparison of Semantic Integration Data Storage

Architectures for Multidisciplinary Systems

Estefan

ıa Serral, Olga Kovalenko, Thomas Moser and Stefan Bifﬂ

Christian Doppler Laboratory ”Software Engineering Integration for Flexible Automation Systems”

Vienna University of Technology, Vienna, Austria

Keywords:

Multidisciplinary Projects, Data Integration, Ontologies, Querying Across Disciplines.

Abstract:

Multidisciplinary projects typically rely on the contributions of various disciplines using heterogeneous en-

gineering tools. This paper focuses on the challenge of querying across different disciplines, which may be

inﬂuenced by the selection of a proper instance data storage architecture for storing the heterogeneous tool

data. Speciﬁcally, we have identiﬁed three different architectures: ontology ﬁle stores, triple stores and rela-

tional database stores. This paper systematically compares these architectures using an industrial case study

and analyses their selection according to important requirements such as performance and maintainability.

1 INTRODUCTION

Multidisciplinary projects bring together experts from

various engineering domains and organizations that

work in a heterogeneous engineering environment.

This environment involves a wide range of models,

processes, and tools that were originally not designed

to cooperate seamlessly. In order to reach the com-

mon goal of developing software products in the en-

gineering team, it is important to share the neces-

sary knowledge for common work processes between

engineering-domain experts. These experts usually

want to use their well-known local tools and data

models, and additionally want to access data from

other tools in their local syntax. Thus, experts have to

invest considerable effort to bridge the semantic gaps

between common project-level engineering concepts

and the diverse local data representation.

In this context, the three major challenges of

semantic data integration in the area of multidisci-

plinary projects can be deﬁned as (a) the deﬁnition

of mappings between local and common engineer-

ing concepts for integrating and sharing the neces-

sary data; (b) the transformations between local en-

gineering concepts used in the different domains fol-

lowing these mappings; and (c) queries to local engi-

neering concepts using the syntax of the common en-

gineering concepts. The ﬁrst two challenges have al-

ready been addressed in recent research (Moser et al.,

2011)(Moser and Bifﬂ, 2012) by proposing a seman-

tic data integration framework, the so-called Engi-

neering Knowledge Base (EKB). The EKB maps the

data elements of local tool data models (models of

tools which are relevant for supporting speciﬁc engi-

neering tasks), to the respective elements in a com-

mon project-wide or domain-wide data model (Moser

and Bifﬂ, 2012), so called the Engineering Object

(EO) Model. The EKB models the tool data mod-

els and the common data model using ontologies and

explicitly represent the mappings using a machine-

understandable ontology syntax.

This paper focuses on the third challenge, which is

the ability of performing queries in a general project

context and independently of local engineering tools.

To query the knowledge of the local tool data mod-

els using the EKB, we apply the mediator architec-

ture(Wiederhold, 1992). Mediated query systems rep-

resent a uniform data access solution by providing

a single access point (so called common model) for

querying various data sources. A mediator contains

a global query processor which is used to send sub-

queries to local data sources. The local query results

are then combined and returned back to the query pro-

cessor. Using the EO ontology model (the common

model), the structure of the query is more intuitive for

the user because it corresponds more to the users ap-

preciation of the project relevant information. We use

SPARQL(P

erez et al., 2006) for describing a query

over the EO ontology (i.e., the mediator) since it is the

W3C standard for querying ontologies. SPARQL syn-

tax makes virtually all join operations implicit, mak-

ing the queries more compact and easier to describe

190

Serral E., Kovalenko O., Moser T. and Bifﬂ S..

A Systematic Comparison of Semantic Integration Data Storage Architectures for Multidisciplinary Systems.

DOI: 10.5220/0004318101900197

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 190-197

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

and to get them right with less debugging time spent.

This SPARQL query is decomposed and rewritten in

order to be executed over the local tool data models.

The SPARQL queries are locally evaluated and the re-

sults are returned to the mediator site.

With a speciﬁc focus on querying in the EKB,

different factors may have an impact on important

project requirements (such as scalability, mainte-

nance, semantic expressiveness, etc.). In this paper,

we focus on the study of three different semantic inte-

gration data storage architectures that can be used in

the EKB for storing the instance data (i.e., the individ-

uals). The paper presents a comparative study of these

architectures, which can be classiﬁed as follows:

• Ontology ﬁle stores: the ontology deﬁnition and

the data instances are stored using ﬁle systems

based on ontology languages.

• Triple stores: the ontology deﬁnition and the data

instances are speciﬁed using an ontology lan-

guage, but the data instances are internally stored

using special ontology-based databases capable of

storing triples (i.e., subject-predicate-object ex-

pressions, which is the speciﬁc form of describing

data using an ontology).

• Relational databases stores: the ontology deﬁni-

tion is deﬁned in an ontology language, but the

data instances are stored in relational databases.

The remainder of this paper is structured as fol-

lows: Section 2 pictures a typical multidisciplinary

case study, which is situated in the hydro power plant

engineering domain. Sections 3 - 5 present the three

introduced architectures for data storage. Section

6 describes how the data of the case study can be

queried depending on the applied data storage archi-

tecture. Further, these architectures are discussed and

compared in Section 7. Finally, Section 8 concludes

the paper and identiﬁes further work.

2 CASE STUDY: HYDRO POWER

PLANT ENGINEERING

A typical example of multidisciplinary system is the

engineering of hydro power plants. Figure 1 shows

two engineering tool data models corresponding to

two different domains: software engineering (SE)

domain and mechanical engineering (ME) domain.

These tools contain local data sources, which produce

and/or consume data with heterogeneous data struc-

tures. Speciﬁcally, the data model of the SE domain

contains information about Programmable logic con-

troller (PLC) variables; and the data model of the ME

Listing 1: Mapping M1.

ME: S e n s o r ( ? s e n s o r ) ∧

ME: h as ID ( ? s e n s o r , ? s e n s o r i d ) ∧

SE : V a r i a b l e ( ? v a r ) ∧

SE : d e v ic e I D ( ? var , ? s e n s o r i d ) →

S i g n a l ( ? s i g n a l ) ∧

: c o r r V a r i a b l e ( ? s i g n a l , ? v a r ) ∧

: c o r r S e n s o r ( ? s i g n a l , ? s e n s o r )

domain comprises information about monitoring de-

vices. Figure 1 shows a simpliﬁed version of these

models. The left hand side shows the concept Sensor

from the ME domain, while the right hand side shows

the concept Variable from the SE domain. The at-

tribute Type of the concept Sensor could be deﬁned as

either analog or digital, which directly correlates to

the attribute Type of the concept Variable that could

be deﬁned as either ﬂoat or boolean. These two con-

cepts can be mapped to the common engineering ob-

ject Signal which is shown in the middle of the ﬁgure.

The upper side of the ﬁgure shows some instances of

these data models.

The EKB facilitates the efﬁcient data exchange

between these tools by deﬁning the tool data mod-

els and the EO model using ontologies and making

explicit and in machine-understandable way the map-

ping among them. The EO in this system is identiﬁed

as the Signal concept, which is composed by: a vari-

able, a sensor, and a property to indicate whether the

signal is consistent or not. Thus, the Signal EO links

the two domain-speciﬁc data models (i.e., the ME on-

tology and the SE ontology).

For representing the mappings that link the local

tool ontologies with the EO ontology, we specify that

the properties corrVariable and corrSensor of the Sig-

nal EO are object properties; and that their range is

Variable (from the SE ontology) and Sensor (from

the ME ontology), respectively. In addition, we use

SWRL rules

. In particular, three mappings are de-

ﬁned. The ﬁrst mapping (see Listing 1) deﬁnes that if

a variable is linked with a sensor then there must be a

corresponding signal in the EO ontology.

The next two mappings (see Listing 2 and Listing

3) basically mean that if a value obtained from a mon-

itoring device sensor is represented in PLC code as a

variable var then the types of these two must conform

to each other (”digital” and ”boolean”; ”analog” and

”ﬂoat”). Otherwise there is an inconsistency in the

signal description that has to be checked by domain

experts.

Next we describe the different semantic integra-

tion data storage architectures that can be applied in

the EKB according to the store used for the engineer-

http://www.w3.org/Submission/SWRL

ASystematicComparisonofSemanticIntegrationDataStorageArchitecturesforMultidisciplinarySystems

191

Software

Engineer

Mechanical

Engineer

Mechanical

Engineering Domain

Software Engineering

Domain

Engineering Object Ontology

Engineering Knowledge Base

Definition

Signal

corrVariable

corrSensor

notConsistent: Boolean

ME Ontology

Sensor

hasID: int

hasType: (“digital”, “analog”)

SE Ontology

Variable

hasName: String

hasType: (“boolean”, “float”)

hasDeviceID: int

----------------

boolean

float

Type

----------------

i_ls_01

o_ls_01

i_ts_02

i_ts_03

Name

----------------

1100

1101

1102

1103

DeviceID

Variable

----------------

digital

analog

digital

Type

----------------

1100

1101

1102

1103

Sensor

Engineering Data Instances

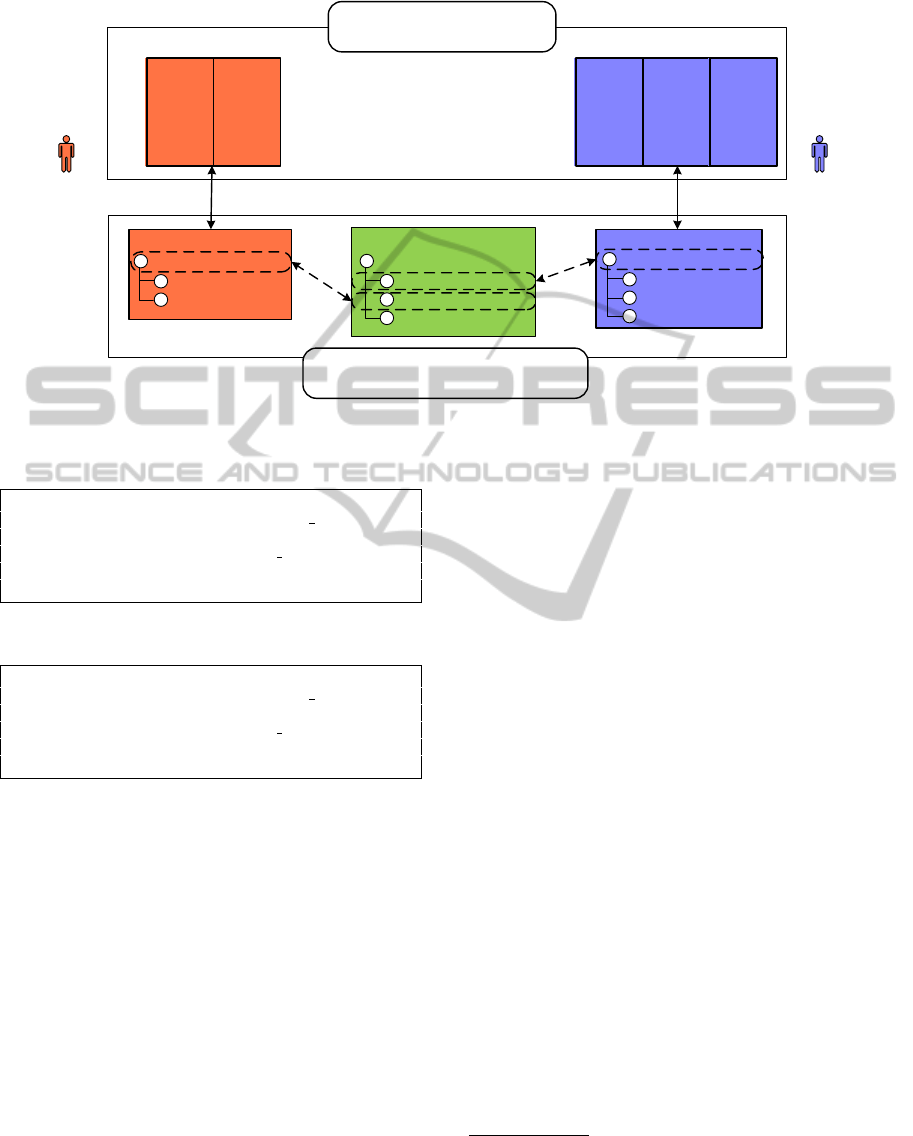

Figure 1: EKB for Automation Systems Engineering (adapted from (Moser and Bifﬂ, 2012)).

Listing 2: Mapping M2.

SE : h asDev i c e I D ( ? v ar , ? s e n s o r i d ) ∧

SE : ha sT ype ( ? va r , ” b o o l e a n ” ) ∧

ME: h as ID ( ? s e n s o r , ? s e n s o r i d ) ∧

ME: h as Typ e ( ? s e n s o r , ” a n a l o g ” ) →

: n o t C o n s i s t e n t ( ? s i g n a l , t r u e )

Listing 3: Mapping M3.

SE : h asDev i c e I D ( ? v ar , ? s e n s o r i d ) ∧

SE : ha sT ype ( ? va r , ” f l o a t ” ) ∧

ME: h as ID ( ? s e n s o r , ? s e n s o r i d ) ∧

ME: h as Typ e ( ? s e n s o r , ” d i g i t a l ” ) →

: n o t C o n s i s t e n t ( ? s i g n a l , t r u e )

ing data instances. Afterwards, we use the explained

case study for showing how the data is queried in each

one of the architectures.

3 USING ONTOLOGY FILE

STORES

The engineering data instances can be directly stored

as individuals together with the corresponding local

tool ontology on XML-based semantic ﬁles, either in

a single ﬁle or distributed among several segments

across several ﬁles.

For managing and querying the data, this ap-

proach loads the whole ontology model data (i.e.,

the engineering knowledge base deﬁnition and the

data instances) into the memory. This allows the

data to be queried using SPARQL queries through

the EO ontology, but also introduces high memory

cost. For instance, the Jena framework

, Oracle

11g

and Sesame

provide this type of store, charg-

ing the models in memory. The family of seman-

tic RDF

(Resource Description Framework) stor-

age solutions OWLIM(Bishop et al., 2011) also pro-

vides with SwiftOWLIM, which is an in-memory

RDF database. It uses optimized indexes and data

structures to be able to process tens of millions of

RDF statements on standard desktop hardware. Jena,

Sesame and SwiftOWLIM source code are provided

free of charge for any purpose.

Some approaches, such as (Nov

ak and Sindel

ar,

2011) (Battista et al., 2007) have successfully used

this architecture; however, in both approaches the

users plan to use other more sophisticated storage

solutions to make their approaches scalable to large

models. More detail about these approaches can be

found in (Serral et al., 2012).

This type of store is considered very useful for

tests or small examples, but in general it is not rec-

ommended for working with large models.

4 USING TRIPLE STORES

In the same way that the engineering data instances

can be stored in ﬁles and managed in memory, they

can be also stored and managed using triple stores

http://jena.apache.org

http://www.oracle.com

http://www.openrdf.org

http://www.w3.org/RDF/

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

192

(one triple store for each tool ontology). In a triple

store, the local tool ontologies and the instances are

speciﬁed using ontology languages; however, the in-

stances (i.e., the individuals) are internally managed

using special databases built speciﬁcally for storing

triples. These databases are also called semantic

stores or semantic web databases. In this way, the

database management is transparent for users and the

data can be queried using SPARQL queries through

the EO ontology.

The generic schema of these special databases cor-

responds to one table that contains three columns

named Subject, Predicate and Object. Thus, it re-

ﬂects the triple nature of RDF statements. The triple

store can be used in its pure form (Oldakowski et al.,

2005), but most existing systems add several modi-

ﬁcations to improve performance or maintainability.

A common approach, the so-called normalized triple

store, is adding two further tables to store resource

URIs and literals separately, which requires signiﬁ-

cantly less storage space (Harris S, 2003). Further-

more, a hybrid of the the normalized triple store can

be used, allowing the values to be stored themselves

either in the triple table or in the resources table

By using this approach, users can manage the data

in an ontology language (e.g., OWL or RDF) and use

SPARQL queries having a better performance than

ontology ﬁle stores thanks to the use of the databases.

Some relevant examples of these stores are TDB

and BigOWLIM (Lu et al., 2007). The TDB com-

ponent is provided by the Jena framework for op-

timized RDF storage and query. TDB supports the

full range of Jena APIs and TDB performs and scales

well. BigOWLIM is designed for large data volumes

and uses ﬁle-based indices that allow it to scale, po-

sitioning it as an enterprise-grade database manage-

ment system that can handle tens of billions of state-

ments.

Some examples of applications of this architecture

are (Klieber et al., 2009)(Miles et al., 2010). Both of

them have used Jena TDB triple store and speciﬁcally,

(Klieber et al., 2009) shows the feasibility of using

TDB with a population of about 4.5 million triples.

More detail about these approaches can be found in

(Serral et al., 2012).

5 USING RELATIONAL

DATABASE STORES

Applying this architecture, the local engineering tool

Jena2 Database Interface - Database Layout. http://

jena.sourceforge.net/DB/layout.html

ontologies are speciﬁed using an ontology language,

while the engineering data instances are stored us-

ing relational databases (one relational database for

each tool ontology). In this case, only ontology

classes, their hierarchies, object and data properties,

axioms and restrictions are extracted into a mem-

ory. Instances have to be accessed by queries to the

databases. Thus, the SPARQL queries written for

querying the EO ontology have to be ﬁnally translated

into the query language associated with the database.

This process can be deﬁned as follows: to query

the overlapping engineering concepts described in the

EO ontology, a SPARQL query is speciﬁed. This

query is then automatically transformed to the terms

of the engineering tool ontologies, which include

concepts that are mapped to the concepts of the

common ontology that were included in the origi-

nal query. These engineering tool ontology-speciﬁc

queries are then executed using the query language

of the database where the knowledge is stored, and

the results are obtained. Then, these results are again

transformed into their representation in the EO on-

tology by exploiting the mappings between tool on-

tologies and the EO ontology. Finally, the combined

results are returned using the representation described

in the EO ontology.

Several relational databases have been already

proposed for applying this architecture. For instance,

the Jena framework provides the SDB

component

that allows the data of the model to be stored in a re-

lational database. The storage is provided by a SQL

database and many databases, such as Oracle, Post-

greSQL, MySQL and MS SQL, are supported. A

SDB store can be accessed and managed with the Jena

API and can be queried using SPARQL. SDB is able

to perform well up to 100 million triples.

Another example is D2RQ

, which is an RDF

based platform that is used to access the content of

relational databases without having to replicate it into

an RDF store. The D2RQ is open source software

published under the Apache license.

Minerva(Zhou et al., 2006) is a component of

the IBM Integrated Ontology Development Toolkit

(IODT). The query language supported by Minerva

is SPARQL. Using Minerva, one can store multi-

ple large-scale ontologies in different ontology stores,

launch SPARQL queries and obtain results listed in

tables or visualized as RDF graphs. Currently, Min-

erva can take IBM DB2, Derby

and HSQLDB

the back-end database.

Other examples are Oracle 10g RDBMS

, Sesame

http://d2rq.org

http://incubator.apache.org/derby

http://www.hsqldb.org

ASystematicComparisonofSemanticIntegrationDataStorageArchitecturesforMultidisciplinarySystems

193

on PostgreSQL

, and DLDBOWL

This type of storage adopts binary tables for the

database, mapping the triples of the RDF graph to

these binary tables. The most common schema is

composed by a table for each class (resp. each prop-

erty) in an ontology; each class table stores all in-

stances belonging to the same class and each property

table stores all triples which have the same property

(Lu et al., 2007).

This architecture has been successfully applied

in several projects such as (Calvanese et al.,

2011)(Wiesner et al., 2011)(Tinelli et al., 2009).

More detail about these approaches can be found in

(Serral et al., 2012).

6 APPLYING THE DATA

STORAGE ARCHITECTURES

TO THE CASE STUDY

Using the EKB approach, comprehensive queries

against the project data can be done in terms of EOs,

i.e. using the classes and properties deﬁned in the EO

ontology. To be evaluated over the engineering data

instances, which are located in data storages, such

queries must be transformed. First, the initial query

(in terms of EO ontology) must be rewritten in terms

of the engineering tool ontologies. The rewriting pro-

cess bases on mappings that bind the EO ontology

with the engineering tool ontologies.

Listing 4: Query Q1.

SELECT ? s i g n a l

WHERE {

? s i g n a l n o t C o n s i s t e n t t r u e ;

}

In the hydro power plant engineering case study

described in Section 2, two different engineering tool

ontologies are integrated using the Signal EO. Let’s

consider that project engineers want to obtain a list

of all signals that are not consistent. Such kinds of

queries can be expressed in SPARQL as shown in

Listing 4 (in terms of engineering object ontology).

Based on mappings M1, M2 and M3 (see Listings

1, 2 and 3) the query Q1 can be rewritten in terms

of engineering tool ontologies, resulting in the two

queries Q2 (see Listing 5) and Q3 (see Listing 6).

http://www.postgresql.org

http://swat.cse.lehigh.edu/downloads/dldb-owl.html

Listing 5: Query Q2.

SELECT ? var , ? s e n s o r

WHERE {

? v a r a SE : V a r i a b l e ;

? v a r SE : h asDev i c e I D ? s e n s o r i d ;

? v a r SE : h as Typ e ” b o o l e a n ” ;

? s e n s o r a ME: S e n s or ;

? s e n s o r ME: hasID ? s e n s o r i d ;

? s e n s o r ME: hasTy pe ” a n a l o g ” ;

}

Listing 6: Query Q3.

SELECT ? var , ? s e n s o r

WHERE {

? v a r a SE : V a r i a b l e ;

? v a r SE : h a s D e v iceID ? s e n s o r i d ;

? v a r SE : h as Typ e ” f l o a t ” ;

? s e n s o r a ME: S e n s or ;

? s e n s o r ME: hasID ? s e n s o r i d ;

? s e n s o r ME: hasTy pe ” d i g i t a l ” ;

}

If the engineering tool data instances are stored

in ontology ﬁle stores or triple stores, then Q2 and

Q3 can be already executed to obtain results since

SPARQL queries can be executed across several on-

tology models. However, if the data is stored in

databases then several further transformations will be

needed before the queries could be executed over the

data. Basically, Q2 and Q3 must be translated into

SQL queries to be evaluated over the databases. This

can be done in 2 steps. First of all, since each query

has terms from more than one database, evaluating

them independently over SE or ME database would

fail. This problem can be solved by creating a set of

independent queries.

For the sake of brevity we show only the rewrit-

ing for Q2 (as it will be similar for Q3). Listing 7

shows the rewritten SPARQL query for the SE en-

gineering tool ontology, while Listing 8 shows the

rewritten SPARQL query for the ME engineering tool

ontology.

Listing 7: Query Q4.

SELECT ? var , ? s e n s o r i d

WHERE {

? v a r a SE : V a r i a b l e ;

? v a r SE : h a s D e v iceID ? s e n s o r i d ;

? v a r SE : h as Typ e ” b o o l e a n ” ;

}

Listing 8: Query Q5.

SELECT ? s e n s o r , ? s e n s o r i d

WHERE {

? s e n s o r a ME: S e n s or ;

? s e n s o r ME: hasID ? s e n s o r i d ;

? s e n s o r ME: hasTy pe ” a n a l o g ” ;

}

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

194

These independent queries can be ﬁnally trans-

lated to SQL and evaluated over the domain databases

as shown in Listing 9 and Listing 10.

Listing 9: Query Q6.

SELECT ∗

FROM S en s o r s

WHERE s . h as Typ e = ” a n a l o g ”

Listing 10: Query Q7.

SELECT ∗

FROM V a r i a b l e v

WHERE v . h as Typ e = ” b oo l e a n ”

After obtaining the results, an intermediate join

should be done to obtain the correct answer for the

initial query.

7 DISCUSSION

The comparison among the presented methodologies

is summarized in Table 1. Based on the consulted

literature, the following aspects have been analyzed

and compared:

• Query and Result Transformations. It indicates

if a SPARQL query can be directly executed or it

has to be transformed to other query languages to

be executed. If the query has to be transformed,

then another transformation is also needed to re-

turn the results as asked in the SPARQL query.

Ontology ﬁles and triple stores allow SPARQL

queries to be directly executed across the on-

tology models. However, the use of relational

databases requires: 1) the SPARQL queries to be

transformed to the corresponding relational query

language; and 2) the obtained results from the

databases to be transformed in accordance to the

data asked in the SPARQL query.

• Scalability. It indicates how efﬁcient the architec-

ture for accessing the data is (the more response

time, the less efﬁciency) and how it scales to large

data applications.

Ontology ﬁles are very efﬁcient for small mod-

els greatly reducing the load and update time;

however, when the data grows in volume, this

storage becomes unsuitable (Shen and Huang,

2010)(Vysniauskas et al., 2011).

The performance of the relational database

methodology considerably varies according to the

used database (Shen and Huang, 2010); however,

this methodology provides many query optimiza-

tion features, thereby contributing positively to

query response time (Lu et al., 2007). Accord-

ing to the Berlin SPARQL Benchmark (Bizer and

Schultz, 2009), the comparison of the fastest triple

store with the fastest relational database store

shows that the last one has a better overall per-

formance with increasing dataset size.

• Reusability of Existing Knowledge. It indicates

the facilities provided for reusing data instances

stored in other existing databases or ontologies.

Nowadays, there is a massive amount of data

stored in SQL databases with associated technol-

ogy, infrastructure and know-how (Sami Kiminki

and Hirvisalo, 2010). The use of relational

databases facilitates to reuse this data. However,

in a similar way, ontology ﬁles and triple stores

facilitate the reuse of data stored in a compatible

ontology language.

• Support for SQL Queries: Queries can be per-

formed over the ontology (high level of abstrac-

tion), but also directly over the database (lower

level of abstraction).

Only the use of relational databases supports SQL

queries; in this way, users and applications can

perform queries at both ontology level (higher

level) and database level (lower level).

• Facilities to Use Semantic Technologies. The use

of semantic standard languages like OWL or RDF

facilitates the use of numerous semantic technolo-

gies available to perform tasks such as data man-

agement (e.g., by using Prot

e or Jena), rea-

soning (using reasoners such as Pellet, Racer

etc.), ontology mapping or model transformation.

For instance, given the mapping between a source

ontology and a target ontology, the OntoMerge

(D. Dou and Qi, 2003) tool can translate instances

that conform to the source ontology to instances

conforming to the target ontology.

Ontology ﬁles and triple stores represent the data

using semantic standard languages; therefore,

these methodologies facilitate the use of existing

semantic technologies.

• Maintenance. Facilities provided in order to per-

fect the system, to adapt the system and to correct

the system (Lientz and Swanson, 1980).

In ontology ﬁles and triple stores both the knowl-

edge base deﬁnition and the data instances can

be maintained using semantic tools (e.g., Prot

and middlewares (e.g., Jena). Using relational

databases, the knowledge base deﬁnition and the

data instances are managed differently. While the

ontologies’ deﬁnition can be managed by using

http://www.racer-systems.com/

ASystematicComparisonofSemanticIntegrationDataStorageArchitecturesforMultidisciplinarySystems

195

Table 1: Comparative table of the presented data storage methodologies.

Ontology Files

Triple Stores

Relational Databases

Query and Result

transformations

Not needed

Needed

Scalability

Low

Medium/High

High

Reusability of

existing data

Facilities to reuse data

stored in a compatible

ontology language

Facilities to reuse data

stored in a compatible

ontology language

Facilities to reuse data stored

in relational databases.

Support for SQL

queries

Yes

Facilities to use

semantic

technologies

Yes

Only for the knowledge base

definition

Maintenance

Using semantic tools.

Knowledge base definition:

using semantic tools.

Database schema has to be

synchronized with the

ontologies when they change.

Data instances: using

relational database tools.

Semantic

expressiveness

High

Low

Available tools

SwiftOWLIM, Jena

framework, Oracle 11g,

Sesame, etc.

Jena TDB, BigOWLIM,

etc.

Jena SDB, D2RQ, Minerva,

Oracle 10g, RDBMS, Sesame

on PostgreSQL, and

DLDBOWL, etc.

semantic tools, the data instances have to be man-

aged using relational database tools, at a lower

level of abstraction. In addition, the schema of

the databases has to be modiﬁed (e.g., deleting or

creating tables) when ontologies change.

• Semantic Expressiveness It indicates if the archi-

tecture provides total support for representing se-

mantics.

Since ontology ﬁles and triple stores use semantic

languages for representing the data instances, they

can be semantically represented at a high level of

abstraction (using the concepts deﬁned in the on-

tologies, which are close to the domain); there-

fore, they provide more semantic expressiveness

than relational databases, where semantics may be

lost in the process for transforming the data into a

relational schema (Uschold and Gruninger, 2004).

• Available Tools. It gives some examples of cur-

rent available tools for applying each one of the

architectures.

8 CONCLUSIONS AND FURTHER

WORK

In this paper, we have performed a systematic com-

parison of three different data storage architectures

with a speciﬁc focus on querying data over heteroge-

neous engineering tools. We have summarized avail-

able technologies that make these architectures pos-

sible and also research approaches that have applied

these technologies successfully.

The comparison shows that the data storage selec-

tion is an important architectural decision that must

be made according to the requirements of the soft-

ware project to develop. Thus, ontology ﬁle stores are

better for testing and for small data models; however,

they are not scalable for large models, for which triple

stores and relational databases are more appropriate.

The management of the data in triple stores is

quite efﬁcient and invisible for the users. Further-

more, these stores provide more semantic expres-

siveness and allow SPARQL to be directly executed

over the data instances. In addition, triple stores and

ontology ﬁle stores allow the use of semantic web

tools facilitating the reusability of existing data rep-

resented in compatible ontology languages. On the

other side, the use of relational database stores pro-

vides a very good performance for accessing, manag-

ing and querying the data of large models. In addi-

tion, this type of store facilitates reusability of exist-

ing knowledge in SQL databases.

Besides the data store, other factors have an in-

ﬂuence in the aspects discussed in Section 7. For in-

stance, storage layouts and the order of query patterns

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

196

have signiﬁcant effects on query performance (Shen

and Huang, 2010). As further work, we plan to eval-

uate these effects in our case study.

ACKNOWLEDGEMENTS

This work has been supported by the Christian

Doppler Forschungsgesellschaft and the BMWFJ,

Austria.

REFERENCES

Battista, A. D. L., Villanueva-Rosales, N., Palenychka, M.,

and Dumontier, M. (2007). Smart: A web-based,

ontology-driven, semantic web query answering ap-

plication. In Semantic Web Challenge, volume 295.

CEUR-WS.org.

Bishop, B., Kiryakov, A., Ognyanoff, D., Peikov, I., Tashev,

Z., and Velkov, R. (2011). Owlim: A family of scal-

able semantic repositories. Journal of Web Semantics,

2(1):3342.

Bizer, C. and Schultz, A. (2009). The berlin SPARQL

benchmark. Int. J. Semantic Web Inf. Syst, 5(2):1–24.

Calvanese, D., Giacomo, G. D., Lembo, D., Lenzerini, M.,

Poggi, A., Rodriguez-Muro, M., Rosati, R., Ruzzi,

M., and Savo, D. F. (2011). The mastro system for

ontology-based data access. Semantic Web, 2(1):43–

53.

D. Dou, D. M. and Qi, P. (2003). Ontology translation on

the semantic web. In Proceedings of International

Conference on Ontologies, Databases and Applica-

tions of Semantics.

Harris S, G. N. (2003). 3store: Efﬁcient bulk rdf storage.

In Proceedings of the 1st International Workshop on

Practical and Scalable Semantic Systems, PSSS 2003.

Klieber, W., Sabol, V., Muhr, M., and Granitzer, M. (2009).

Using ontologies for software documentation. In Pro-

ceedings of Malaysian Joint Conference on Artiﬁcial

Intelligence.

Lientz, B. P. and Swanson, E. B. (1980). Software main-

tenance management: a study of the maintenance of

computer application software in 487 data processing

organizations. Addison-Wesley.

Lu, J., Ma, L., 0007, L. Z., Brunner, J.-S., Wang, C., Pan,

Y., and Yu, Y. (2007). Sor: A practical system for on-

tology storage, reasoning and search. In VLDB, pages

1402–1405. ACM.

Miles, A., Zhao, J., Klyne, G., White-Cooper, H., and Shot-

ton, D. M. (2010). Openﬂydata: An exemplar data

web integrating gene expression data on the fruit ﬂy

drosophila melanogaster. Journal of Biomedical In-

formatics, 43(5):752–761.

Moser, T. and Bifﬂ, S. (2012). Semantic integration of soft-

ware and systems engineering environments. Systems,

Man, and Cybernetics, Part C: Applications and Re-

views, IEEE Transactions on, 42(1):38 –50.

Moser, T., Bifﬂ, S., Sunindyo, W., and Winkler, D. (2011).

Integrating production automation expert knowledge

across engineering domains. International Journal

of Distributed Systems and Technologies (IJDST),

Special Issue on Emerging Trends and Challenges

in Large-Scale Networking and Distributed Systems,

2(3):88–103.

Nov

ak, P. and Sindel

ar, R. (2011). Applications of ontolo-

gies for assembling simulation models of industrial

systems. In OTM Workshops, pages 148–157.

Oldakowski, R., Bizer, C., and Westphal, D. (2005). Rap:

Rdf api for php. In Proceedings of Workshop on

Scripting for the Semantic Web, SFSW 2005, at 2nd

European Semantic Web Conference, ESWC 2005.

erez, J., Arenas, M., and Gutierrez, C. (2006). Semantics

and complexity of sparql. In Cruz, I., Decker, S., Alle-

mang, D., Preist, C., Schwabe, D., Mika, P., Uschold,

M., and Aroyo, L., editors, The Semantic Web - ISWC

2006, volume 4273 of Lecture Notes in Computer Sci-

ence, pages 30–43. Springer Berlin / Heidelberg.

Sami Kiminki, J. K. and Hirvisalo, V. (2010). Sparql to

sql translation based on an intermediate query lan-

guage. In Proceedings of 6th International Workshop

on Scalable Semantic Web Knowledge Base Systems

(SSWS2010).

Serral, E., Kovalenko, O., Moser, T., and Bifﬂ, S.

(2012). Semantic integration data storage archi-

tectures: A systematic comparison for automation

systems engineering. Technical report, Institute

of Software Technology and Interactive Sys-

tems. http://cdl.ifs.tuwien.ac.at/ﬁles/TechReportNo

TR2012.2.5.pdf.

Shen, X. and Huang, V. (2010). A framework for perfor-

mance study of semantic databases. In Proceedings of

the International Workshop on Evaluation of Semantic

Technologies (IWEST 2010).

Tinelli, E., Cascone, A., Ruta, M., Noia, T. D., Sciascio,

E. D., and Donini, F. M. (2009). I.m.p.a.k.t.: An in-

novative semantic-based skill management system ex-

ploiting standard sql. In Cordeiro, J. and Filipe, J.,

editors, ICEIS (2), pages 224–229.

Uschold, M. and Gruninger, M. (2004). Ontologies and

semantics for seamless connectivity. SIGMOD Rec.,

33(4):58–64.

Vysniauskas, E., Nemuraite, L., and Paradauskas, B.

(2011). Hybrid method for storing and querying on-

tologies in databases. Electronics and Electrical En-

gineering, 115(9).

Wiederhold, G. (1992). Mediators in the architecture of fu-

ture information systems. Computer, 25(3):38 –49.

Wiesner, A., Morbach, J., and Marquardt, W. (2011). In-

formation integration in chemical process engineering

based on semantic technologies. Computers & Chem-

ical Engineering, 35(4):692–708.

Zhou, J., Ma, L., Liu, Q., Zhang, L., Yu, Y., and Pan, Y.

(2006). Minerva: A scalable owl ontology storage and

inference system. In ASWC, pages 429–443.

ASystematicComparisonofSemanticIntegrationDataStorageArchitecturesforMultidisciplinarySystems

197
