A MDE Framework for Semi-automatic Development of Web

Applications

Javier Solis, Hasdai Pacheco, Karen Najera and Hugo Estrada

Fondo de Informacion y Documentacion para la Industria INFOTEC

Av. San Fernando 37, Col. Toriello Guerra, Mexico D.F, Mexico

Keywords:

Semantic Web Applications, Ontologies, Ontology-driven Development.

Abstract:

One of the current trends in computer science is the use of ontologies in Software Engineering. In this context,

several academic and industrial works have used ontologies as mechanism for system requirements represen-

tation and automatic code generation. However, most of current works propose generic development platforms

regardless the reuse of components for a speciﬁc domain. In this paper, a Model-Driven Development Frame-

work, called SemanticWebBuilder (SWB) is presented. SWB provides an agile development platform for the

Web application domain, where system requirements are modeled through ontologies and from this knowl-

edge representation, the infrastructure of the system is automatically generated. The resultant system can be

extended by reusing of code, thus allowing to build complex systems in a short time. Moreover, system data

is represented as RDF triples, making this data available in the Semantic Web. SWB has been widely used to

develop Web applications for several government dependencies in Mexico.

1 INTRODUCTION

Currently, there is a consensus, in academia and in-

dustry, about the importance of analysis and design

phases in developing large scale software systems. In

this context, most of current software development

environments are based on traditional UML analysis

and design techniques, and on the use of Domain Spe-

ciﬁc Languages for modeling system requirements.

This approach, even when it gives partial solution to

the automatic code generation following the Model-

Driven Development paradigm, has some issues that

need to be addressed. For instance: the need to de-

velop several models to specify system requirements,

such as, architecture, behavior and data model; the

static structure of the data model; and the mecha-

nism to store system information. To solve this, other

mechanisms to model a system have been proposed.

One of the most promising trends in this are area is

the use of ontologies.

In this context, research works have proposed the

use of ontologies to drive the process of software ap-

plications development, since ontologies brings ad-

vantages to the software development cycle (Happel

and Seedorf, 2006) enabling analysts to better face the

evolution of systems. However, most of the current

works in this area have proposed generic software de-

velopment platforms which do not consider the reuse

of components for a speciﬁc domain.

In this paper, a Model-Driven Development

Framework called SemanticWebBuilder (SWB) is

presented. SWB provides an agile development plat-

form for Web applications. It uses domain knowl-

edge as a starting point by modeling system require-

ments through ontologies. Then, the infrastructure of

the system (in object-oriented source code) is auto-

matically generated from ontologies. The resultant

infrastructure contains the basic functionality for the

system, however, it could be extended to add spe-

ciﬁc functionality by reusing of code, thus allow-

ing to build complex systems in a short time. SWB

aims the automatic generation of interoperable soft-

ware systems to be feasible for several application

domains by representing system and business infor-

mation in a common format, that is as RDF triples.

Moreover, SWB provides the mechanisms to expose

business information in the Semantic Web. SWB has

been widely used in practice to develop real semantic

applications for several government dependencies in

Mexico.

The paper is structured as follows. Section 2

presents the deﬁnition of ontologies in Computer Sci-

ence. Section 3 describes the motivation of using on-

tologies as models in our proposal. Section 4 explains

the SWB Framework. Section 5 presents the ontol-

ogy driven development process. Section 6 describes

241

Solis J., Pacheco H., Najera K. and Estrada H..

A MDE Framework for Semi-automatic Development of Web Applications.

DOI: 10.5220/0004321302410246

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 241-246

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

related works. And ﬁnally, section 7 presents conclu-

sions and future works.

2 ONTOLOGIES

The term ontology is deﬁned as ‘an explicit represen-

tation of conceptualization’ (Gruber, 1993), as well

as ‘a formal speciﬁcation of a shared conceptualiza-

tion’ (Borst, 1997). ‘Conceptualization refers to an

abstract model which represents the relevant concepts

of some phenomenon in the world; Explicit means

that the type of concepts used, and the constraints

on their use are explicitly deﬁned; Formal indicates

that the ontology should be machine readable. And

Shared denotes that an ontology captures consensual

knowledge accepted by a group’ (Studer et al., 1998).

3 MOTIVATION

We aim to provide a Framework based on the MDE

approach to automatically generate Semantic Web ap-

plications by exploiting ontologies. Following we de-

scribe our motivation for using ontologies and the

Web application domain. Model-Driven Engineer-

ing (MDE) is an approach to software development

in which abstract models of software systems are cre-

ated and systematically transformed to concrete im-

plementations. In this context, modeling languages

such as the Uniﬁed Modeling Language (UML) and

Domain Speciﬁc Languages (DSL) have been pro-

posed to represent these abstract models. However, to

cover the complete software speciﬁcation, these mod-

eling languages use of several models, for instance,

to represent system structure, behavior, data model,

etc. The use of ontologies as models in MDE allows,

rather than UML and DSLs, to represent system struc-

ture, behavior and data model in a single ontology,

together with business logic and software restrictions

that would be commonly hard coded in most current

systems. Furthermore, ontologies bring the follow-

ing advantages: they provide a shared understanding

of the problem domain and formal speciﬁcation of

system requirements, allow reuse of existing domain

knowledge deﬁnitions, guide automatic generation of

source code through an API that maps concepts of the

ontology to classes in an object-oriented language,

provide better support for logical inference, integra-

tion and interoperability with other components or ap-

plications and improve maintenance and update tasks

because the source code could be automatically re-

generated from ontology deﬁnitions if requirements

change (Uschold, 2008; Happel and Seedorf, 2006).

On the other hand, the engineering of Web ap-

plications is a fairly mature ﬁeld, however, although

there is an abundance of libraries and Frameworks

supporting the construction of Web applications, cur-

rent works do not consider directly the tendencies of

the Web domain, such as Semantic Web and Linked

Data approaches. In order to provide a Framework

that takes into account this tendencies, we propose

the use of ontologies as models in the MDE approach

to enable Semantic Web application development. In

this way, business data is represented as Semantic

Web data, that is as RDF triples, therefore, it can be

exposed in the Semantic Web.

4 SWB FRAMEWORK

e present our Model-Driven Development Framework

called SemanticWebBuilder (SWB)

. SWB provides

semi-automatic system development. The starting

point of the development process is the representa-

tion of the system requirements of a particular do-

main in terms of an ontology. Then, transformations

rules are provided in order to obtain, in an automatic

way, object-oriented source code according to con-

cepts and properties deﬁned in the ontology. As an

output, the SWB Framework provides the infrastruc-

ture of the domain system which manages the per-

sistence of system and business information as RDF

triples. Although SWB supports the development

of different domain systems, it is specialized in the

Web application domain. Therefore, an ontology with

Web applications requirements has been developed

and speciﬁc components capable to manage Web ap-

plications features have been integrated to the SWB

Framework.

Following, we describe the main components of

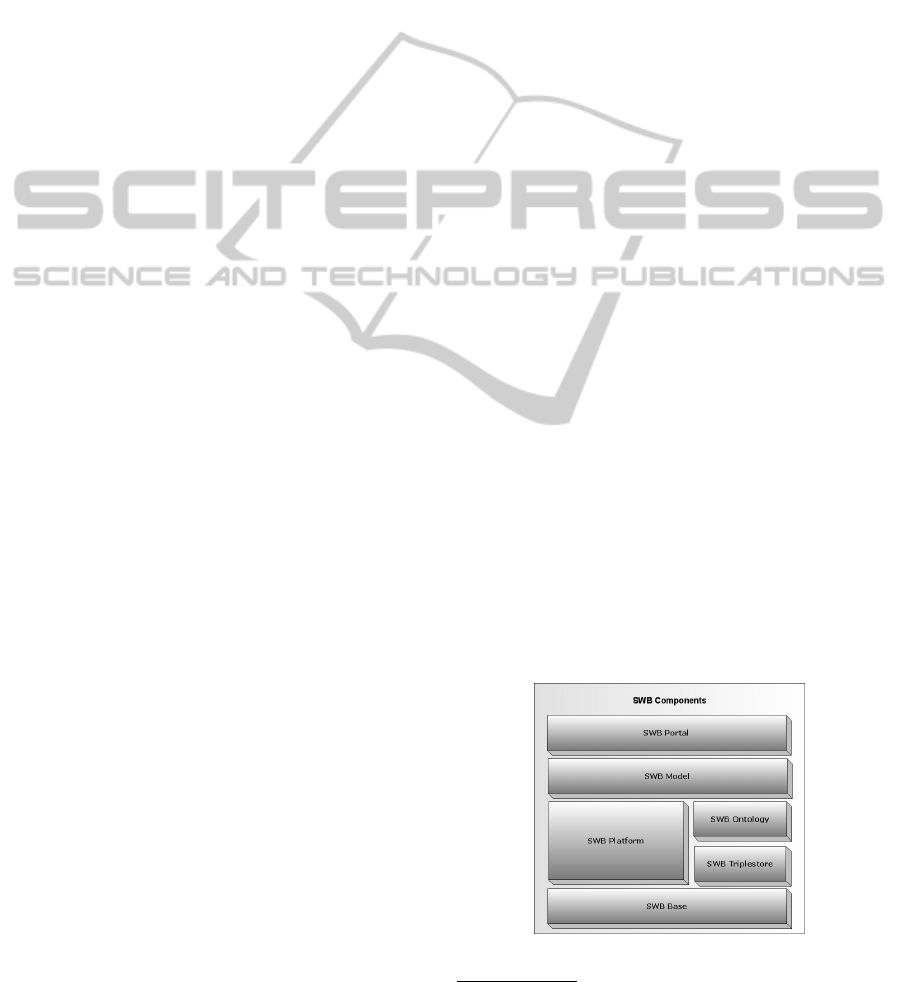

the SWB Framework (Fig. 1):

Figure 1: SWB Framework components.

SemanticWebBuilder website. http://www.semantic

webbuilder.org.mx

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

242

SWB Ontology. A predeﬁned OWL ontology called

SWB ontology is provided by the Framework. It

has been described by the Web Ontology Language

OWL

. The SWB ontology contains a base structure

with predeﬁned classes and properties for the trans-

formation from the ontology to object-oriented source

code. The classes are OWL class extensions, i.e., sub-

classes of owl:Class. For instance, swb:Class, to map

ontology concepts to Java classes and swb:Interface,

to map shared behaviors as Java interfaces; SWB on-

tology accelerates the development of speciﬁc do-

main ontologies by reusing its base structure. For the

Web applications domain, it has been extended with

classes to describe Web components and Web sites

features.

SWBBase. SWBBase corresponds to a set of libraries

implementing generic code utilities, such as string

formatting, e-mail sending, database query manage-

ment, error handling, ﬁle manager, etc.

SWBPlatform. It is the main component of the

SWB Framework. SWBPlatform implements a

Model-Driven Development platform which gener-

ates object-oriented source code in the Java language.

Its main elements are: the Application layer and the

Code Generator.

The Application layer corresponds to the Java rep-

resentation of RDF and OWL concepts. RDF and

OWL concepts (resource, class, property, literal, etc.)

has been mapped in a set of of Java classes as is shown

in the ﬁrst two columns of Table 1. Each Java class

has deﬁned a set of methods that allow to represent

some of the relations considered in RDF and OWL

such as: subclass relation (isSubClassOf) and sub-

Property relation (isSubPropertyOf). These relations

are listed in Table 2.

The Code generator makes use of the the SWB

ontology and the Application layer to carry out the

automatic code generation. It consist of transforma-

tion rules and a transformation engine. By running

the transformation engine, the Code generator classi-

ﬁes each concept and property deﬁned in the SWB on-

tology to generate its corresponding Java implemen-

tation according to the transformation rules. For in-

stance: each subclass of swb:SWBClass is mapped as

a Java class where each class contains a set of acces-

sors methods (getters and setters) to manipulate the

bounded properties deﬁned for the SWBClass con-

cept in the ontology; RDF properties or literals are

mapped as Java properties or literals as presented in

the last column in Table 1; and, each subclass of

swb:SWBInterface is mapped as a Java interface since

swb:SWBInterface represents speciﬁc behaviors that

require to be inherited by more than a concept. After

OWL Reference. http://www.w3.org/TR/owl-ref/

running the Code generator, two Java layers are gen-

erated: Java Base layer and Java Extended layer. The

Java Base layer implements the wiring among classes,

properties and interfaces deﬁned in the ontology with

their supporting Java objects. Classes in this layer

must not be modiﬁed, due they are automatically re-

generated accordingly to the SWB ontology if code

generator is re-executed. The Java Extended layer al-

lows developers to implement speciﬁc functionality

required by the system, such as speciﬁc objects be-

havior.

Fig. 2 represents the transformation from the SWB

ontology to Java source code according the MDE ap-

proach. On the left side is situated the OWL meta-

model in the M2 layer and the SWB ontology in the

M1 layer. On the right side is situated the Applica-

tion layer at the same level than the OWL metamodel

(M2) since it represents OWL language in Java code.

The transformation rules have been deﬁned in this

layer. The transformation engine applies the transfor-

mation rules in the layer M1, transforming the SWB

ontology into Java code.

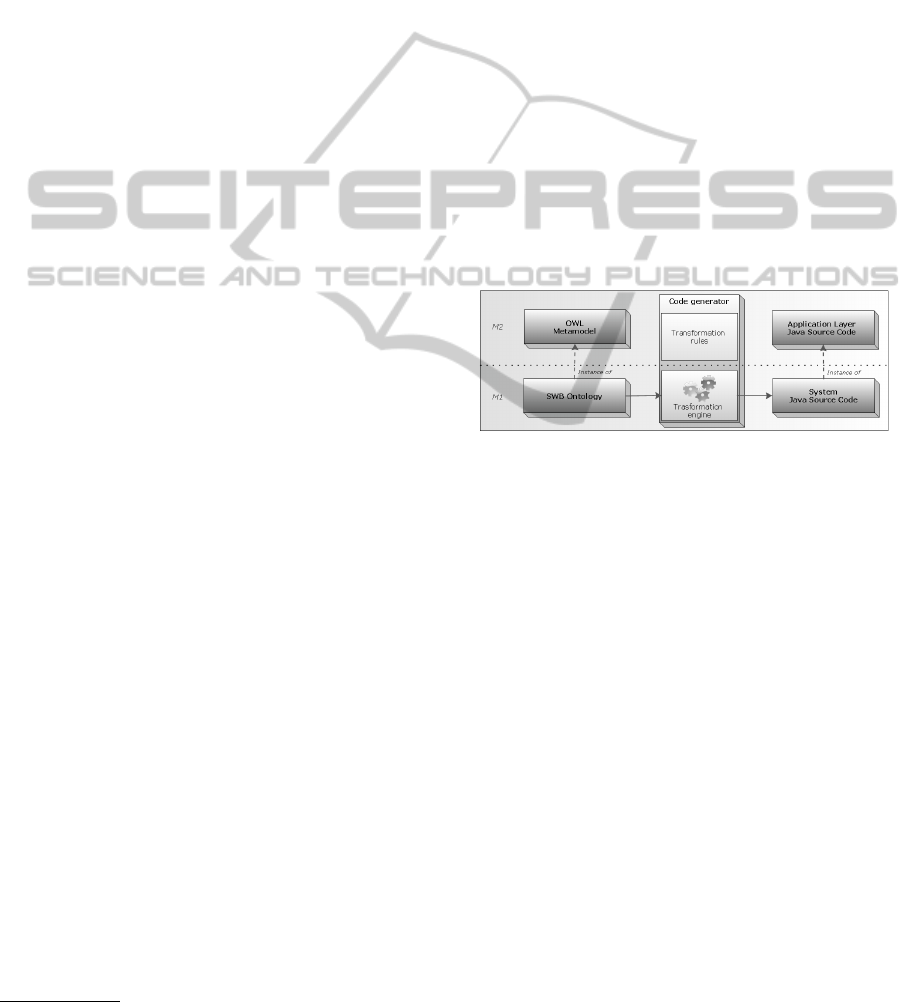

Figure 2: Code generation through the MDE approach.

Additionally, SWBPlatform contains classes that

implement the communication mechanism with dif-

ferent triple stores and encapsulates the complexity

associated with the direct manipulation of RDF data.

SWBModel. It is a set of classes automatically gen-

erated by the SWBPlatform for the Web applications

domain. It contains the implementation of Web page,

Web site, User and Role concepts. The classes pro-

vide methods to manipulate RDF data in a high level

of abstraction through Semantic managers, Semantic

Vocabularies and native Java objects.

SWBTripleStore. It is a set of classes to encapsulate

methods for RDF management with the Jena API. The

classes provide features to improve the performance

when accessing triple stores in several database man-

agers through different built-in connectors.

SWBPortal. It is a set of classes to develop Web ap-

plications for a Java application server. It implements

a set of embeddable Web components, an HTML tem-

plate processor, a request distributor and utilities for

user session management, data validation, security is-

sues, a content management system for testing com-

ponents, an extension point for the rapid development

of new Web components, etc.

AMDEFrameworkforSemi-automaticDevelopmentofWebApplications

243

Table 1: Application layer.

RDF/OWL Concept Application layer object Java Concept

RDF Resource Semantic object Object instance

OWL Class Semantic class class

RDF Property Semantic property property

RDF Literal Semantic literal literal

Table 2: OWL relationships representation.

Application layer object Relationship Application layer object

Semantic class isSubClassOf Semantic class

Semantic class hasProperty Semantic property

Semantic property isSubPropertyOf Semantic property

Semantic object hasDataTypeProperty Semantic class

Semantic object hasObjectProperty Semantic object

The Ontology-Driven Development process

through the SWB Framework and a descriptive

example are presented in following sections.

5 DEVELOPMENT PROCESS

We present the Ontology-Driven Development pro-

cess which automatically generates the source code

of Web applications and extensions to existing ones

by exploiting the SWB Framework. The process con-

sists of three steps:

1. Problem conceptualization: Problem require-

ments, such as: concepts and interactions, proper-

ties, and behaviors of each concept needed in the

problem domain are modeled by means of OWL

ontologies.

2. Automatic source code generation: By running

the Code generator, each element in the ontol-

ogy is transformed into Java code according to the

transformation rules. After the code generation,

developers have these elements available: a) Java

classes for all deﬁned concepts in the ontology, b)

methods for objects communication as deﬁned in

the ontology properties and relations, including:

association, aggregation, inheritance and compo-

sition, c) methods for object persistence in differ-

ent triple-stores and databases, d) view modes to

display and manipulate properties of each object

instance and e) cache system of semantic objects

for system and data access performance.

3. Speciﬁc functionality implementation: Additional

Java source code could be developed to accom-

plish speciﬁc functionalities required by the sys-

tem, such as, speciﬁc behavior of each object, data

validation or user interface implementation.

SWB provides a software requirement traceability

mechanism which ensures that the model is consistent

with the resultant source code. Changes in the model

affect the implementation directly, however, exten-

sions to the implementation do not affect the model.

This allows to easily modify and to previously extend

developed functionality, to reduce code maintenance

and to increase reuse of code.

Following we describe an example of the devel-

opment process where a Web application is extended

with a speciﬁc functionality.

5.1 Extending a Web Application

Web applications generated through the SWB Frame-

work can be extended with several speciﬁc functional-

ities depending on the domain of the Web application,

for instance, tourism, economics, health, etc.

In order to illustrate the development process a ba-

sic example is presented. The example is related to

the development of an online contact directory. The

contact directory manages personal contacts as part

of a social Web site. It allows to add, edit and delete

contacts. Each contact entry holds the name, address,

phone and email. The contact directory should pro-

vide four views: a view with the list of all registered

contacts, a view to visualize detailed information of

each contact; a view to add new contacts, and a view

to modify the information of a contact.

The application of the proposed development pro-

cess for the contact directory is presented below.

Problem Conceptualization. The conceptualization

consists of modeling the problem domain to extract

important entities and relations. In this way, a ﬁrst un-

derstanding of the knowledge implicit in the problem

domain is obtained. The ﬁrst analysis of the contact

directory leads to the creation of the draft diagram of

Fig. 3. By using the draft diagram and knowledge

of domain experts, we can start with the contact di-

rectory ontology deﬁnition by reusing and extending

the basic structure of the SWB ontology. Therefore,

concepts, properties, relations, object behavior and

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

244

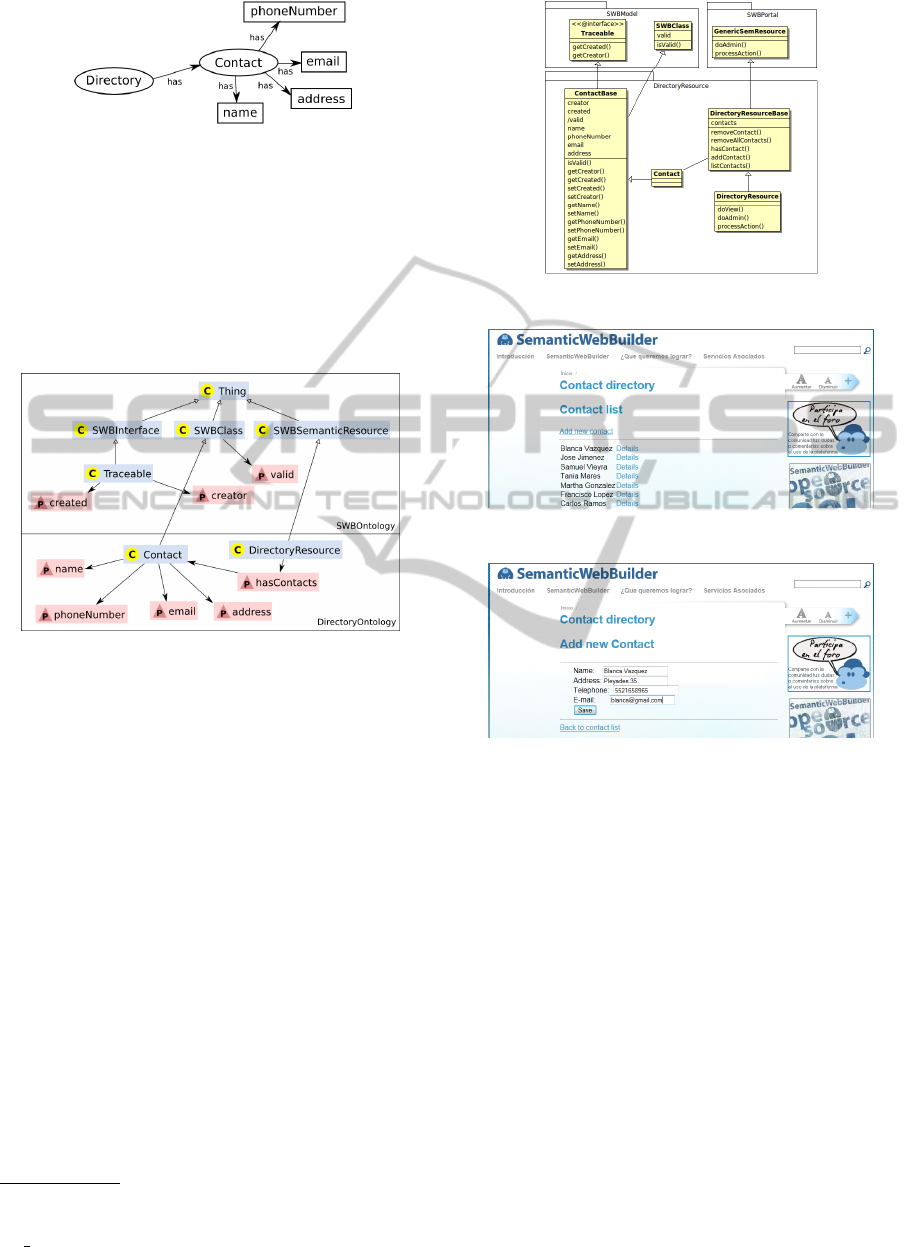

Figure 3: Contact directory conceptualization.

restrictions related to the contact directory are mod-

eled in the SWB ontology via an ontology editor such

as Protege

or TopBraid

. Properties to display and

to format the contact directory are added to let the

SWBPlatform automatically build the necessary Web

forms for the manipulation of the contact directory in

the Web application. The Contact directory ontology

is described in Fig. 4.

Figure 4: Contact directory ontology.

Code Generation. A script is created for code gen-

eration through SWBPlatform. The script applies the

transformation rules embedded in the Code genera-

tor and, from de SWB ontology, it generates the base

source code for the contact directory. This script al-

lows to regenerate the source code if the ontology

changes. The generated source code represents a high

level domain Java API that hides all complexity of

RDF data management (Fig. 5). The contact directory

is represented as the DirectoryResource class. It con-

tains all the methods needed to implement the contact

directory and its behavior using SWBPortal.

Speciﬁc Functionality Implementation. An ‘All

contacts’ view has to be implemented to accomplish

the contact directory requirements. The development

is carried out in the Java Extended layer by using the

methods and properties encapsulated in the Java Base

layer. Each mode and action is created through the

SWBPortal to manage http requests, render HTML

code for the user view and to achieve user interac-

tion. Object persistence and retrieval is done through

http://protege.stanford.edu/

http://www.topquadrant.com/products/

TB Composer.html

Figure 5: Contact directory classes.

Figure 6: ‘Contact list’ view.

Figure 7: ‘Add new contact’ view.

SWBPlatform, which manages all RDF data.

The ﬁnal contact directory source code is incor-

porated to the Web application source code by the

content management system provided by SWBPortal.

Fig. 6 shows the ‘All contacts’ view and Fig. 7 the

‘Add contacts’ view.

6 RELATED WORKS

Currently, there is a growing trend, in academia and

industry, of works that propose the use of MDE for

software development. General purpose develop-

ment tools such as AndroMDA (Bohlen et al., 2012)

and Acceleo (Musset et al., 2012) are open source

MDA Frameworks. AndroMDA generates compo-

nents in different programming languages by means

of customizable plug-ins that support code genera-

tion. It mainly uses UML models stored in XMI.

Acceleo provides code generators (JEE, .Net, Php)

AMDEFrameworkforSemi-automaticDevelopmentofWebApplications

245

and template editors for Eclipse. Web application

domain purpose such as WebDSL generator (Hemel

et al., 2010) and WebRatio (Brambilla et al., 2010).

WebDSL is a DSL for web-applications with rich

data models. WebDSL provides sub languages for

the speciﬁcation of data models, for the deﬁnition of

custom pages, and for the manipulation of data. We-

bRatio is a an eclipse-based case tool for engineering

web applications. It uses the WebML modeling lan-

guage for designing Web sites. This kind of tools use

several models to represent system speciﬁcation, such

as, architecture, behavior and data model. Instead,

SWB uses only an ontology to represent those mod-

els. Moreover, by using ontologies SWB provides

the mechanism to expose system data in the Semantic

Web.

Other works are those related with the use

of ontologies for code generation, such as:

ODASE (Uschold, 2008), an ontology-driven

architecture which permits to represent into an

ontology the business knowledge needed to build an

IT application. ODASE is a general purpose plat-

form, instead SWB has a specialized set of reusable

components for the Web applications domain,

therefore, in this domain, SWB can be more usable.

RDFReactor (V

olkel and Sure, 2005) automatically

generates Java classes from OWL ontologies through

an intermediate model.This intermediate model must

be updated as RDF speciﬁcations evolve and the Java

generated classes must be extended manually in order

to keep all changes made during the development

process. SWB automatically supports the evolution

of models by the modiﬁcation of the SWB ontol-

ogy.Jastor (Kalyanpur et al., 2004) generates Java

code from OWL ontologies using Java Beans. OWL

classes are mapped into Java interfaces to solve the

problems of multiple inheritance. Manual extensions

need to be addressed for each generated Java interface

to achieve the system implementation. With SWB,

Java Class extensions are deﬁned automatically.

7 CONCLUSIONS

We have presented an Ontology-Driven Development

Framework called SemanticWebBuilder (SWB). The

starting point of the development process is the onto-

logical representation of a problem domain by extend-

ing the base structure of our proposed ontology SWB

ontology. As output, SWB automatically generates

the infrastructure of the domain system which man-

ages the persistence of system and business informa-

tion as RDF triples. The semi-automatic development

process through SWB has been described, so that, a

resultant system could be easily extended, being able

to build complex systems. SWB is specialized in the

Web application domain. Therefore, the SWB ontol-

ogy has been supplemented with Web applications re-

quirements. Additionally, speciﬁc components have

been integrated to the SWB Framework to manage

Web applications needs. Through the use of ontolo-

gies SWB provides the following advantages: ﬂexi-

ble and agile mechanisms to adapt to new business

needs, reducing code maintenance issues and increas-

ing reuse of code; increased reliability since human

errors are reduced; reasoners can run over ontologies

and data to make proof of assertions about business

information; and ﬁnally, Semantic Web mechanisms

can be applied to expose business information in the

Semantic Web and to exploit data through paradigms

such as Linked Data.

SWB has been successfully applied in the

development of several Web applications ac-

tually used by government dependencies in

Mexico. For instance, Visit Mexico - http://

www.visitmexico.com/, Secretary of labor and social

welfare - http://www.stps.gob.mx, and Secretary of

public education - http://www.sep.gob.mx/.

REFERENCES

Bohlen, M. et al. (2012). AndroMDA. http://

www.andromda.org/.

Borst, W. N. (1997). Construction of Engineering Ontolo-

gies for Knowledge Sharing and Reuse. PhD thesis,

Enschede.

Brambilla, M., Butti, S., and Fraternali, P. (2010). Webra-

tio bpm: A tool for designing and deploying business

processes on the web. In Web Engineering, volume

6189, pages 415–429.

Gruber, T. R. (1993). Toward principles for the design

of ontologies used for knowledge sharing. In Inter-

national Journal of Human-Computer Studies, vol-

ume 43, pages 907–928.

Happel, H.-J. and Seedorf, S. (2006). Applications of

ontologies in software engineering. In SWESE’06,

Athens, USA.

Hemel, Z., Kats, L. C. L., Groenewegen, D. M., and Visser,

E. (2010). Code generation by model transformation:

a case study in transformation modularity. Software

and System Modeling, 9(3):375–402.

Kalyanpur, A., Pastor, D. J., Battle, S., and Padget, J. A.

(2004). Automatic mapping of owl ontologies into

java. In SEKE’04, pages 98–103.

Musset, J. et al. (2012). Acceleo. http://www.acceleo.org/.

Studer, R., Benjamins, R., and Fensel, D. (1998). Knowl-

edge engineering: principles and methods. Data and

knowledge engineering, 25:161–197.

Uschold, M. (2008). Ontology-driven information systems:

Past, present and future. In FOIS’08, pages 3–18.

olkel, M. and Sure, Y. (2005). Rdfreactor - from ontolo-

gies to programmatic data access. In ISWC’05.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

246
