Composition of Domain Specific Modeling Languages

An Exploratory Study

Edmilson Campos

1,2

, Marília Freire

1,2

, Uirá Kulesza

, Adorilson Bezerra

1,2

and Eduardo Aranha

Department of Informatics and Applied Mathematics, PPgSC / CCET, UFRN, Natal, RN, Brazil

Federal Institute of Education, Science and Technology of Rio Grande do Norte, IFRN, Natal, RN, Brazil

Keywords: Domain Specific Languages, Model Composition, Experimental Software Engineering.

Abstract: This paper presents an exploratory study in the context of composition of domain-specific modeling

languages (DSMLs). It aims evaluating a composition method using Ecore-based DSMLs based on xText

tool. The study was performed applying the method to modelling a composition of DSMLs from the domain

of controlled experiments in software engineering. The study consists of four different DSMLs, whose

ultimate goal is to generate executable workflows for each experiment subject. The study results present: (i)

new adaptations that can be incorporated into the method in order to enable its application to the xText

context; and (ii) a brief comparison of the method application using xText and XML based approaches.

1 INTRODUCTION

The development of software systems using domain-

specific languages (DSLs) has increased in the last

years. DSLs raise the abstraction level and bring

facilities for generation of models or source code. It

can contribute to increase the development produc-

tivity, and it also facilitates a precise definition of

concerns within a particular domain (Lochmann and

Bräuer, 2007). The successful development and

customization of DSLs depend on the effective

collaboration between several stakeholders as well

as a flexible and coherent problem domain con-

ceptualization (Hessellund et al., 2007). In complex

projects, the use of a single DSL is usually insuffi-

cient to deal with several views and perspectives of

the software system modeling, thus the usage of

multiple DSLs can be interesting and useful in such

context. As a consequence, there is an increased risk

of consistency loss among several models elements,

requiring greater concern with regard to this issue.

Consistency maintenance among models is one of

critical challenges involved on DSLs composition.

In this way, new methods and tools must provide

support to address their composition.

Recent research work has explored the con-

sistency problem between models (Mens et al.,

2006) (Nentwich et al., 2003); (Bézivin and Jouault,

2005). However, many of them have not explicitly

addressed the problem of DSLs composition.

Hessellund and Lochmann (2009) were one of these

few works that proposed a specific method to deal

with multiple DSLs. However, although the method

had been applied in some case studies (Hessellund et

al., 2007); (Lochmann and Grammel, 2008), they

have only reported experiences and case studies with

XML-based DSLs composition. Hence, there is a

need to conduct new assessments of existing meth-

ods of DSL composition considering new scenarios

and mainstream technologies.

This paper presents an exploratory study that

aims to assessing the DSL composition method

proposed in (Hessellund and Lochmann, 2009). Our

study focuses on the method application for the

composition of DSMLs based on xText and Ecore

metamodel from the Eclipse Modeling Framework.

The method was evaluated in the development of

DSLs for the domain of controlled experiments

modeling in software engineering. It involves the

combination of four different DSLs proposed to

automate the controlled experiments execution by

generating executable workflows for each experi-

ment subject. As a result of our study, we have

adapted the original method in order to consider

specificities of Ecore-based DSLs. In addition, we

also discuss several issues that still need to be ex-

plored in the DSL composition context.

Moreover, Section 2 explains some background

topics. Section 3 describes the exploratory study, the

DSLs and some additional discussions. Finally,

Section 4 concludes and suggests possible future

149

Campos E., Freire M., Kulesza U., Bezerra A. and Aranha E..

Composition of Domain Speciﬁc Modeling Languages - An Exploratory Study.

DOI: 10.5220/0004321401490156

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 149-156

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

work.

2 BACKGROUND

2.1 DSL Composition

The development of software systems with the ap-

plication of DSLs has brought new challenges to the

software engineering. The complexity of modern

software systems has motivated the adoption of

multiple DSLs in order to address different perspec-

tives from existing horizontal and vertical software

domains. However, there are several questions re-

garding the adoption of multiple DSLs that still need

to be explored and investigated (Hessellund, 2009).

Their study explored four kinds of constraints

DSLs that was identified in a study case realized in

Hessellund et al, (2007). They are these: (i) Well-

formedness of individual artifacts, when an element

presence and attribute declaration depends on the

presence of other elements or attributes in that same

context; (ii) Simple referential integrity across

artifacts; (iii) References with additional

constraints, when a reference has an additional

constraint; and (iv) Style constraints.

For Bézivin and Jouault (2005), constraints vio-

lation may be still classified according to the

severity level which can be errors or warnings.

Errors are serious violations and they invalid the

model whereas warnings just indicate a problem, but

they don’t invalidate the model. Other levels can

also be defined to improve the violations accuracy.

2.2 The DSL Composition Method

Aiming to solve the listed problems, a specific

method was proposed (Hessellund and Lochmann,

2009) for dealing with multiple DSLs. The method

divides the composition development in three steps:

(i) Identification; (ii) Specification; and (iii) Appli-

cation. We adopted the method in our exploratory

study whose purpose was to compose DSLs to

model controlled experiment in the experimental

software engineering context. Below we present the

method overview and in the Section 3 we explain

more details about the study.

Identification: This is the first method step and its

purpose is to uncover the overlaps between different

DSLs. Overlaps among two or more languages

happen when there is a reference among their

models, i.e. one DSL references another DSL. This

identification can be made manually or automatic,

with some support tool, such as the SmartEMF

(Hessellund, 2007) proposed with the method.

Specification: The purpose of this step is to

implement the connections identified previously,

according to the reference type. The specification

may be: (i) partial − when only the overlaps among

models have to be encoded; or (ii) full − when the

whole system needs to be encoded and represented

in a common format. Supporting tools are also re-

quired in order to perform the encoding.

Application: The application step makes visible the

method adoption gains distributed in three areas: (i)

navigation; (ii) consistency checking; and (iii)

guidance presentation. The navigation is simply the

way to navigate between models; the consistency

checking is a more advanced kind of application and

it allows to check integrity rules; and the guidance is

a well-explored concept in programming IDEs to

present suggestions, errors and warnings so this

concept is also availed in this investigated method.

3 EXPLORATORY STUDY

This section presents an exploratory study conducted

aiming to investigate the Hessellund and

Lochmann’s method in the context of Ecore-based

DSLs. Our study involves the composition of differ-

ent DSLs used to modeling the domain of controlled

experiments. The modeling of controlled experi-

ments is used in a model-driven approach to gener-

ating specialized workflows for each experiment

subject according to the experiment design (Freire et

al., 2011); (Freire et al., 2012). The composition

method has been applied to promote the metamodels

integration from each one of the defined DSLs.

Figure 1: Approach overview.

Figure 1 presents an overview of our model-

driven approach for modeling of controlled experi-

ments. It is presented from two perspectives: plan-

ning and execution. The planning perspective aggre-

gates a series of DSLs that are composed to model

an experiment. These DSLs are used to specify ex-

periments with their respective processes and met-

rics during the experiment planning phase. After this

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

150

step, the experiment modeling with DSLs is used to

generate specialized workflows and web forms re-

sponsible to promote the execution of the experi-

ment and monitoring of the subjects’ activities.

Figure 1 also presents this execution perspective.

The mapping between the perspectives is imple-

mented by means of model-driven transformations,

which are not presented in this paper because it is

out of scope. In this work, we are more interested in

the application of the composition method to the

DSLs from the planning perspective.

3.1 Study Activities

The main aim of our study was to apply the compo-

sition method to a still unexplored scenario, collect

and evaluate the results and lessons learned. Our

study was organized into the following activities:

 DSL Definition: The DSLs were defined to

address the software engineering experimental

field. They have been proposed based on current

research work of our research group when

conducting controlled experiments;

 DSLs Composition: We adopt the method pro-

posed (Hessellund and Lochmann, 2009)

adapting it for our scenario to implement the

DSLs composition;

 Analysis of the results and discussions: Our

study can be characterized as a qualitative

analysis that contrasts the results of our study

with a previous study (Hessellund et al, 2007).

3.2 DSL Definition

A controlled experiment is an experimental tech-

nique that allows us to test a research hypothesis and

the cause-and-effect relationship between the varia-

bles (dependent and independent) involved in the

study environment. In this context, we have been

motivated to propose a customizable and extensible

support environment for conducting controlled ex-

periments. Our first aim has been the planning and

execution stages. Based on the know-how of our

research group carrying out controlled experiments,

we have specified a set of DSLs, which allows mod-

eling a controlled experiment. These DSLs were

developed with xText (http://eclipse.org/xtext), a

model-driven framework for the DSLs development.

Each DSL has its own syntax and semantics and

they can be used alone or combined.

Altogether we used four DSLs. Their grammars

are presented in detail in (

DSL Composition, 2012).

The first one, ProcessDsl, is used to define the pro-

cedures to be followed to collect the needed data

from the subjects in a controlled experiment. The

second, MetricDsl, allows specifying metrics related

to some of the dependent variables of the specified

experiment and that it will be collected during its

execution. The other, ExperimentDsl, is defined for

the ESE context and it basically allows setting the

treatments and the control variables that are required

for the specified experiment. A treatment can be

composed of the combination of one or more factors

that can have different control levels. And the last

one defined DSL, called QuestionnaireDsl, allows

specifying questionnaires with the aim of collecting

feedback from the experimental subjects.

3.3 DSL Composition

The composition method application in our DSLs

context required some adjustments. Most of them

were applied in the original proposal to adapt the

method for considering Ecore-based DSLs. We have

used the modeling of two controlled experiments to

evaluate the application of the composition method.

This section presents the experiments modeling and

discussions about the method application.

3.3.1 Controlled Experiments Modeling

The DSLs have been used to model two different

controlled experiments. The first experiment in-

volves the comparison of the development produc-

tivity using the Java and C++ programming lan-

guages. It has been adapted from Wohlin et al

(2000) and was used as an initial validation of our

model-driven approach. The second experiment

aims to investigate the comprehension of configura-

tion knowledge specification in three existing prod-

uct derivation tools. It was conducted in cooperation

with the Software Engineering Laboratory from

PUC-Rio, Brazil (Cirilo et al., 2011). Next we detail

of both experiments.

a) Programming Languages Experiment

Modeling. The goal of this first experiment was to

compare the development productivity using the

Java and C++ languages. The experiment considers

as its control factors, the two languages, the systems

under development and the different subjects. The

two languages are also the treatments of our

experiment. The language and system factors were

still subdivided in two levels each one. We used the

Java and C++ languages as the language levels. For

the system control factor, we use two systems of

different levels of complexity. The first one, called

Phonebook, has a reduced number of use cases. The

second one, called Event Management System, has a

CompositionofDomainSpecificModelingLanguages-AnExploratoryStudy

151

greater degree of complexity. The participants were

randomized for the experiment, as well as the sys-

tems and languages, according to the Latin Square,

the statistical design selected. At the end, each

subject performed the same activities sequence with

the two systems using in each treatment a different

language (Java or C++). Figure 2 shows the experi-

ment modeling using ExperimentDsl.

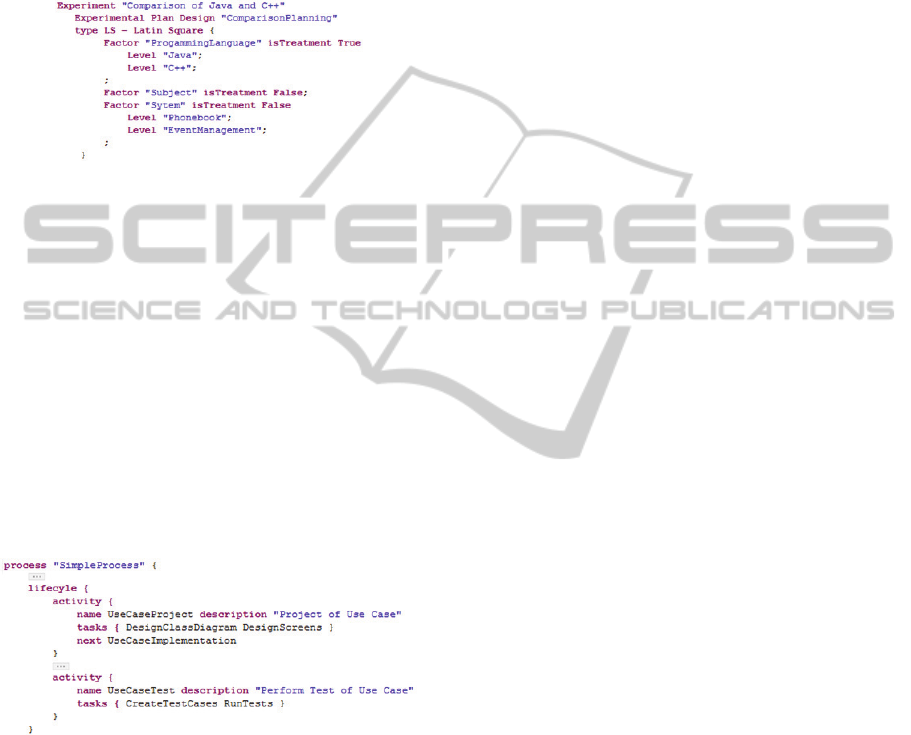

Figure 2: Programming Languages Experiment modelling.

In each treatment, the subjects received an input

artifact containing the use cases specification of one

random system (according to the Latin Square) and

then each one of them had to perform the following

activities, with the selected language:

(i) Use Case Project: It involves the tasks to de-

sign the reference architecture and the user in-

terface, according to the use case specification;

(ii) Use Case Implementation: It contains the tasks

responsible to codify the implementation arti-

facts designed in the previous activity;

(iii) Perform Use Case tests: This activity involves

the development and execution of test cases for

each use case implemented.

Figure 3: Simple Process modeling fragment.

This set of activities, tasks and artifacts are the

simple process used to perform this experiment.

Figure 3 presents a fragment of this process model-

ing using the ProcessDsl. It shows the process

lifecycle with its activities arranged in the execution

order and tasks grouped by activity. Moreover, the

process modeling contains the definition of artifacts

and roles involved in each task. This process has

only a role that represents the experiment subject.

The process is part of the experiment, as well as the

metrics related to this process. In this experiment,

three metrics were considered for analysis: (i) the

time spent to design the use cases; (ii) the time spent

to implement each use case; and (iii) the time taken

to prepare and execute test cases.

b) Configuration Knowledge Experiment

Modeling. The second modeled experiment was

performed in collaboration with another research

group and is described in (Cirilo et al., 2011). The

aim of experiment is to investigate the

comprehension of configuration knowledge in three

product derivation tools (CIDE, GenArch+,

pure::variants) in the context of software product

line (SPL) engineering. A SPL (Clements and

Northrop, 2011) represents a software family from a

particular market segment that shares common

functionalities, but that also defines specific

variabilities for members (products) of the software

family (Czarnecki and Helsen, 2006). Features are

used to capture commonalities and discriminate

variabilities among SPL systems. A feature can be a

system property or functionality relevant to a

stakeholder. The product derivation (Deelstra et al.,

2005) refers to the process of building a product

from the set of code assets that implement the SPL

features. The selection, composition and

customization of these code assets based on a set of

selected features constitute a SPL configuration and

the way to perform this configuration changes

according to the adopted automated tool. The speci-

fied experiment investigates the adoption of deriva-

tion tools with distinct approaches in order to ana-

lyze the configuration knowledge comprehension in

each one.

This experiment was modeled (DSL Compostion,

2012) using our DSLs such as the previous

experiment. Its experimental design is a three-

dimensional Latin Square. There are three factors

(tool, SPL and subject) with three levels each one.

The tool factor represents the three tools that have to

be compared. They also constitute the treatments of

the experiment. The SPL factors are modeled as

three distinct values: OLIS, Buyer Agent and eShop.

Each SPL has been developed using different

frameworks and technologies. Finally, the subject

factor represents the experiment participants. All the

participants need to analyze a different SPL imple-

mentation for each one of the three distinct treat-

ments. The order and combination of the tool/SPL

pair under evaluation for different subjects are ran-

domly selected according to the Latin Square. Sev-

eral SPLs are used to avoid that the participants get

used to the same one from one treatment to another

(the learning effect) and this could cause influence

on results. There are three processes (set of activi-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

152

ties) related to the experiment, one for each treat-

ment. Each process defines ten activities linearly

linked. During the experiment execution, the sub-

jects need to perform the task answering a question

about the comprehension of configuration

knowledge on each activity. The only metric meas-

ured in the experiment is the time spent by each

subject to perform the activities in each process,

only the correct answers were considered during the

analysis of the experiment.

This experiment has also some questionnaires

that were applied after and before the experiment

activities or at the beginning or end of the experi-

ment. Altogether there are five questionnaires, one

applied before the experiment beginning and four

applied after each process activity and after experi-

ment end of the experiment. All they were modeled

using the QuestionnaireDsl. Figure 4 shows the

specification of one of these questionnaires applied

before the execution of the SPL implemented using

Jadex framework. It has questions about the sub-

jects’ expertise level. A relationship to the process

name (BuyerAgentProcess) is realized.

Figure 4: BuyerJadex questionaries modelling.

3.3.2 Composition Method Application

1) Identification: As it was said in Section 2, the

purpose of the identification step of the composition

method is to discover overlaps between the DSLs

that we are interested to compose. Our expertise in

the ESE domain was useful to perform the manual

identification that was adopted since the automatic

type is not currently supported by xText framework.

The analysis resulted in the identification of eight

reference points between the metamodels, which are

illustrated in Figure 5 and discussed below.

ProcessDsl is the only that does not reference

another one. For this reason it can be used to specify

processes from distinct domains such as software

development or experiment process or even a busi-

ness process. ExperimentDsl, in its turn, needs to

reference the processes, metrics and questionnaires

that are part of the experiment. A questionnaire is

referenced in an experiment and modeled with

QuestionnaireDsl. Each questionnaire may reference

one or more processes. Moreover, the MetricDsl is

always related to a process and must indicate the

artifacts, activities or tasks of this process that have

to be considered for measurement. Here we identify

a typical reference case with additional constraint

where the referenced element in the metric has to

respect the restriction of being an artifact, activity or

task in the existing related process.

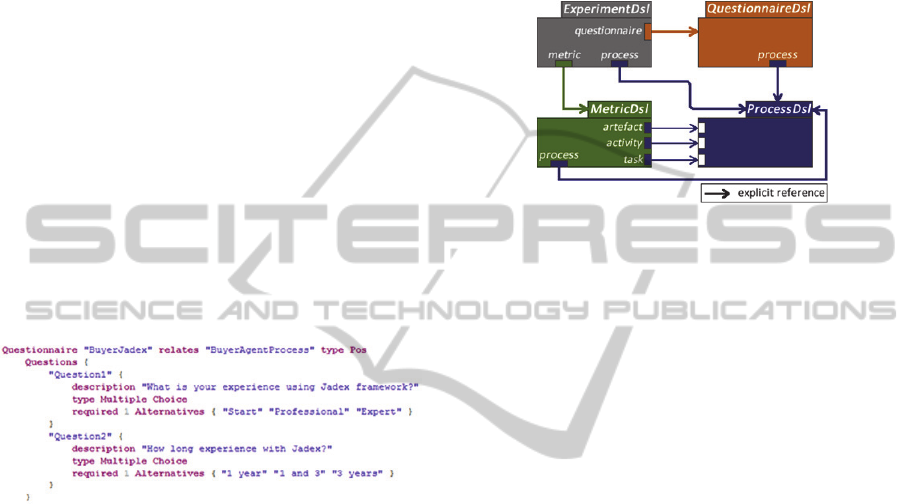

Figure 5: Overlaps between the metamodels.

Although some overlaps depend on the addi-

tional restriction for validation, as in the case of

MetricDsl, all overlaps identified in our study are

from the simple references type. There are no exist-

ing complex connections cases, where a DSL relates

to another one requiring a certain semantic condi-

tion. Accordingly, we have two possible strategies

for implementing these overlaps, the explicit or

implicit references (Hessellund, 2009).

2) Specification: In our study, the encoding was

performed using special features from xText and

some additional validations written in the Java lan-

guage. It was not necessary to recode any DSL

grammar, since they were already created in the

same environment where we were implementing the

specification. In the case of SmartEMF, the tool

imported the metamodels and therefore was needed

to perform their complete specification in order to be

able to know all the DSLs grammar.

Natively, xText offers the possibility that a

metamodel imports another one thus implementing

the explicit references among models. Since we are

working with DSLs based on Ecore metamodel,

xText has a model generator created for each gram-

mar and responsible for the equivalent Ecore meta-

model generation. To perform the importing, it is

only needed to inform the grammar model generator

path to create the reference. After that, each refer-

enced metamodel can be recognized by an alias

name making possible to refer explicitly anyone of

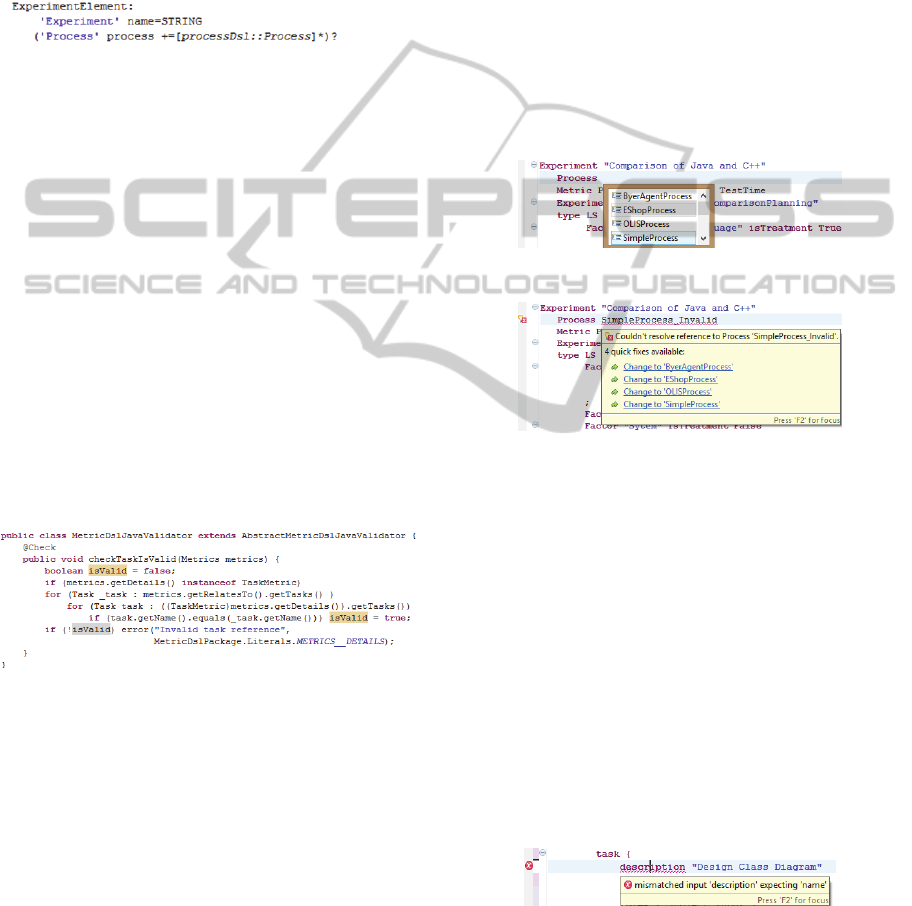

its elements. Figure 6 illustrates an ExperimentDsl

grammar fragment after the composition.

An alternative implementation would be to

continue using STRING values as implicit reference

CompositionofDomainSpecificModelingLanguages-AnExploratoryStudy

153

since there are some validations to check whether

the referenced value corresponds to a valid element

in another DSL. This solution was used for the

method application in XML-based approaches, using

SmartEMF. However, with xText, we have chosen

the first strategy because of the several integrated

features provided by the tool during the DSL speci-

fications, such as pop-ups automatic generation with

reference names suggestions functioning as a guide.

Figure 6: ExperimentDsl referencing ProcessDsl.

For MetricDsl and QuestionnaireDsl it was

followed the same strategy used in ExperimentDsl.

However, as seen in the metrics language there is

some references with additional constraints, which

demand the creation of extra validation routines.

That is the case of the references to artifacts, tasks or

activities that depend on the process to which the

metric is related. In Ecore-based grammars, the

model generator creates also equivalent Java classes

to each DSL model element beyond helper classes

with specific function, such as formatting, valida-

tion, and so on. We used these xText features to

encode additional restrictions just in case they are

necessary. Figure 7 shows examples of these rules

implemented using the Java language. The code pur-

pose is to recover all the related process Tasks and

iterate over them so that it can check the additional

restrictions to validate them.

Figure 7: Validating method for the TaskMetric element.

The

MetricDslJavaValidator

class was auto-

matically generated by xText after grammar compi-

lation and we added to it only the validation meth-

ods. Figure 7 shows this class fragment focusing on

the

checkTaskIsValid(Metrics metrics)

method

that was created to validate the tasks in the metrics

DSL. Similarly, two other methods were

implemented to validate activities and artifacts.

3) Application: This is last method step and it

consists on applying the composition that was

codified in the specification step. The application is,

used for navigation, maintenance and guidance.

Navigation is a visualization and communication

resource between models. The xText framework

does not provide very sophisticated navigation

functionalities, but it allows specifying links among

languages through of their reference points. It is

based on the code navigation features from Eclipse

platform, which do not provide graphical views but

presents interesting interaction capabilities.

A maintenance checking is the method key-point

because it allows examining whether the restrictions

are maintained or violated. This consistency

checking is consequence of the encoding performed

on the specification step and it becomes visible from

the xText alert resources. The xText can provide

warnings or errors guidance and also pop-ups with

suggested values (Figure 8) or suggested repairs

(Figure 9) during the typing.

Figure 8: Pop-up with reference suggestions.

Figure 9: Pop-up with error and repair suggestions.

We also investigated the xText support for the

four restrictions types listed in the case study per-

formed by the method authors (Hessellund and

Lochmann, 2009). For the restriction related to the

well-formed artefacts issue, the xText uses the DSL

grammar to confront the syntax used in the

modelling in order to check missing attributes or

incorrect syntax. In case of failure, error alerts are

displayed, for example, when in a task modelling in

the ProcessDsl is not informed the process name

before the description attribute. Figure 10 show that

error messages present guidelines for the correction.

If it is required to present custom messages, extra

validation routines can be created such as we have

made for the additional restrictions of the MetricDsl.

Figure 10: Pop-up indicating not well-defined artefacts.

The second restriction type, the simple referential

integrity, is the constraint that is better supported by

xText since using explicit references, these become

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

154

known by the framework. Thus the integrity

validation among models only requires code imple-

mentation in the case of references with additional

restrictions, such as presented in the next paragraph.

References with additional restrictions occurred

in our study only in the MetricDsl. In this current

step, these restrictions result in similar effects to

others, but with customized alerts messages presen-

tation. The warnings and error messages are used to

validate the constraints and are introduced through

pop-ups conforming encoded in the specification

step. Figure 11 illustrates the metrics modelled using

MetricDsl for the Configuration Knowledge experi-

ment. We can see that the ReplyTimeOLIS metric is

related to the OLISProcess process but its attribute

activityBegin refers to an activity (Question1) that

belongs to another process, BuyerAgentProcess. An

error message was displayed as a result of the exe-

cution of the validation routine created in the speci-

fication step. The error is shown even whether the

activity is a valid activity in other process. It does

not make sense for this metric to refer to activities

from different processes.

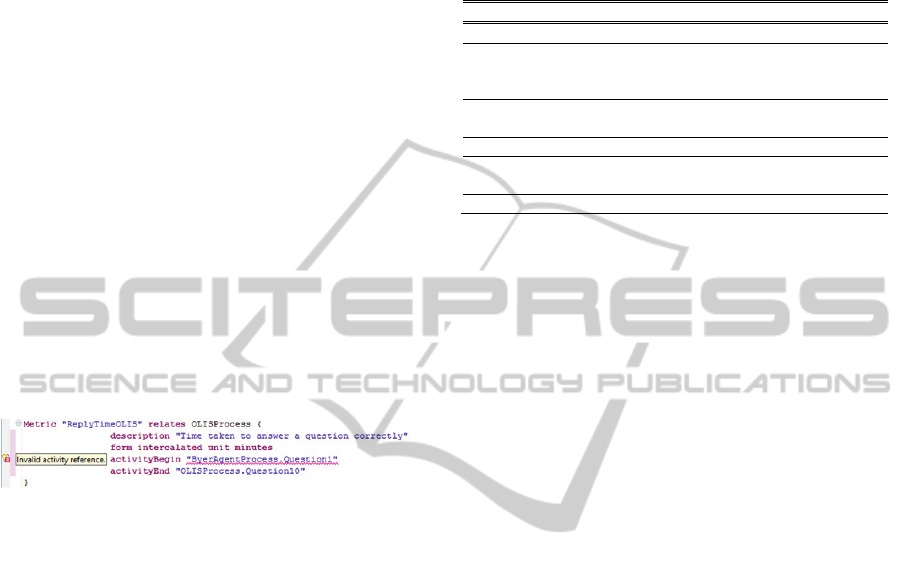

Figure 11: Metric modeling violating additional

restriction.

The last restriction type is the style constraint.

The specification of this restriction also needs

validation methods but it was not identified any case

in our exploratory study. We could imagine a style

that prevents processes to be typed with lowercase

start letter. As this rule would not be an actual style,

its violation would generate only a warning.

3.4 Results and Discussions

After the method usage, we can reflect about some

preliminary results about its applicability. Our re-

sults are general enough to make them applicable to

existing Ecore-based DSLs, specially when

developed using xText. Moreover, it was also

possible to apply the method in a context that does

not require the usage of SmartEMF tool as it was

originally proposed by the method.

Table 1 presents a comparison results summary.

The first column lists the points used to analyse both

tools. The second column shows the results obtained

with the performed SmartEMF studies (Hessellund

et al., 2007); (Hessellund and Lochmann, 2009). The

results obtained for the xText are presented in the

third column. Next we discuss several issues related

to the adoption of SmartEMF and xText for the DSL

composition context.

Table 1: Comparison between SmartEMF and xText.

Features \Approach SmartEMF xText

DSLs types

XML-based Ecore-based

Support for DSL

implementation and

composition

only composition,

DSLs imported

implementation /

composition

Support type for

identification

manual or

automatic

manual

Specification type

full Partial

Support type for

navigation

SmartEMF’s tree

navigation

Eclipse IDE’s

navigation

Guidance type

warning / error warning / error

Except for semantics references

Changes applied to the Method. The method

application required performing some changes to

your original specification. The main changes

occurred in the specification and application steps

due to the replacement of SmartEMF tool for xText

framework. We have decided to implement simple

references identification using explicit references

encoding type that had been not explored by the

original method. They argue that this kind of

composition brings strong coupling between the

models, since it forces changes in the metamodels

thus bringing difficulties to the reuse of the DSLs.

However, in our approach, this weakness was not

critical, since we can still reuse our DSLs (see

“DSLs Reuse” discussion). Furthermore, using

explicit references, the xText automatically verifies

all the possible references thus improving the

validation capabilities of the DSLs composition.

There are some cases where the xText requires

additional implementation compared to SmartEMF.

This is the reference with additional constraints case.

However, only the overlaps are encoded, i.e. partial

specification, because the grammar is already known

by the tool. The references classification type issue

is not proposed in the method, but in other related

work (Hessellund et al., 2007). In our work, we have

applied this classification together with the method

to evaluate and adapt it in the context of the xText

framework.

DSLs Reuse. We have applied the method on a

specific scenario, but some of our specified DSLs

could be reused in other contexts. The

ExperimentDsl can be used to model experiments

from other domains. The MetricDsl, on the other

hand, is always related to a process; whereas the

QuestionnaireDsl, by definition, also may or not be

related to processes. Finally, the ProcessDsl is the

only independent DSL in our approach that does not

CompositionofDomainSpecificModelingLanguages-AnExploratoryStudy

155

reference any other. Because of that, it can be reused

in different contexts, such as in the modelling of

software or business processes.

If we think about the modelling reuse level, the

processes, metrics and even questionnaires modelled

for a given experiment using our DSLs can be

completely or partially reused in the context of other

experiments. Hence, despite reuse has been not

explicitly investigated in this study, there is a great

opportunity to explore the reuse of the specification

of an experiment using our DSLs.

Variability in DSLs. In the Configuration

Knowledge Experiment modelling, there were three

processes related to the experiment, where each one

is related to a specific SPL implementation, which

represents one factor of the experiment. During the

workflows generation, these processes will vary

conform the randomized selected SPL for the

treatment, thus it represents a variation point. The

identification of these variabilities is important in

our approach in order to support their specification

and customization. In the case of our Experiment

Software Engineering DSLs, for example, we plan to

explicitly specify such variabilities in the DSLs in

order to support the customized generation of

workflows for each subject according to the

experiment statistical design, for example, Latin-

square.

4 CONCLUSIONS

This paper investigated the composition DSLs

problems through an exploratory study using a

proposed method. Our study focuses on the

application of the method for the composition of

Ecore-based DSLs implemented using the xText

framework. The composition method was applied in

the modelling and composition of DSLs that allow

specifying and executing controlled experiments in

the experimental software engineering domain. Our

main contributions were: (i) the evaluation of the

investigated method in a new context comparing to

the previous one; and (ii) the two experiments

specification using the DSLs composition that

supports the modelling of different perspectives of a

controlled experiment.

As future work, we intend to extend our model-

driven approach to completely support the workflow

generation. Furthermore, we will investigate

techniques and mechanisms to explicitly model

variabilities in these DSLs in order to address the

customized generation of workflows for subjects

according to the chosen experimental statistical

design.

ACKNOWLEDGEMENTS

This work was partially supported by the National

Institute of Science and Technology for Software

Engineering (INES, www.ines.org.br), funded by

CNPq under grants 573964/2008-4, 560256/2010-8,

and 552645/2011-7.

REFERENCES

Bézivin, J. and Jouault, F., 2005. Using ATL for Checking

Models. Workshop GraMoT. Tallinn: pp. 69-81.

DSL Composition, 2012. [Online] Available at: https://

sites.google.com/site/compositiondsl/

Cirilo, E. et al, 2011. Conﬁguration Knowledge of

Software Product Lines: A Comprehensibility Study.

Workshop on VariComp. New York: pp. 1-5.

Clements, P. and Northrop, L., 2011. Software Product

Lines: Practices and Patterns. Addison-Wesley.

Czarnecki, K. and Helsen, S., 2006. Feature-based survey

of model transformation approaches. IBM Systems

Journal - MDSD, 45(3), pp. 621-645.

Deelstra, S. et al, 2005. Product derivation in software

product families:a case study. JSS, 74(2), pp. 173-194.

Freire, M. A. et al, 2011. Automatic Deployment and

Monitoring of Software Processes: A Model-Driven

Approach. SEKE 2011, 9 dec., pp. 42-47.

Freire, M. A. et al, 2012. Software Process Monitoring

Using Statistical Process Control Integrated in

Workflow Systems. SEKE 2012, 20 jan., pp. 557-562.

Hessellund, A. and Lochmann, H., 2009. An Integrated

View on Modeling with Multiple Domain-Specific

Languages. IASTED on ICSE. pp. 1-10.

Hessellund, A., 2007. SmartEMF: guidance in modeling

tools. OOPSLA. New York: ACM, pp. 945-946.

Hessellund, A., 2009. Domain-specific multimodeling,

Denmark. Thesi.

Hessellund, A. et al, 2007. Guided Development with

Multiple Domain-Specific Languages. MoDELS’2007,

Nashville, Springer, pp. 46-60.

Lochmann, H. and Bräuer, M., 2007. Towards Semantic

Integration of Multiple Domain-Specific Languages

Using Ontological Foundations. MoDELS, Nashville.

Lochmann, H.; Grammel, B., 2008. The Sales Scenario: A

Model-Driven Software Product Line. In:: Software

Engineering (Workshops). s.l.:s.n., pp. 273-284.

Mens, T. et al, 2006. Detecting and resolving model

inconsistencies using transformation dependency

analysis. MoDELs. Genova: Springer, pp. 200-214.

Nentwich, C., et al, 2003. Consistency management with

repair actions. ICSE. Portland: IEEE, pp. 455-464.

Wohlin, C. et al, 2000. Experimentation in Software

Engineering: An Intoduction. Norwell: Kluwer

Academic Publishers

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

156
