An Efficient Method for Surface Registration

Tomislav Pribanic

, Yago Diez

, Sergio Fernandez

and Joaquim Salvi

Faculty of Electrical Engineering and Computing, University of Zagreb, Unska 3, 10000 Zagreb, Croatia

Institute of Informatics and Applications, University of Girona, 17071 Girona, Spain

Keywords: Surface Registration, 3D Reconstruction, Structured Light, Inertial Sensor.

Abstract: 3D object data acquired from different viewpoints are usually expressed in different spatial coordinate

systems where systems’ spatial relations are defined by Euclidean transformation parameters: three rotation

angles and a translation vector. The computation of those Euclidean parameters is a task of surface

registration. In a nutshell all registration methods revolve around two goals: first how to extract the most

reliable features for correspondence search between views in order to come up with the set of candidate

solutions, secondly how to quickly pinpoint the best, i.e. satisfying, solution. Occasionally some registration

method expects also other data, e.g. normal vectors, to be provided besides 3D position data. However, no

method assumed the possibility that part of Euclidean parameters could be reliably known in advance.

Acknowledging technology advancements we argue that it become relatively convenient to include in 3D

reconstruction system some inertial sensor which readily provides info about data orientation. Assuming

that such data is provided, we demonstrate a simple, but yet time efficient and accurate registration method.

1 INTRODUCTION

The task of a surface registration is to fuse 3D data

originally acquired from different viewpoints (Salvi

et al., 2007). To this end it is required to find the 6

degrees of freedom: three rotation angles and three

dimensional translation vector that describe a spatial

relationship between a pair of viewpoints. An

alternative to readily solve the surface registration,

using rotating tables and/or robot arms, is neither

always available nor a feasible solution due to the

number of degrees of freedom of the mechanics and

particularly in the case of large surfaces, self-

occlusion areas etc. Consequently software based,

coarse and fine, surface registration methods have

been investigated which operate on 3D data only.

The former searches for a good enough initial

estimate which is then usually refined by some fine

registration method.

The majority of published algorithms, except for

few PCA based exceptions (Chung and Lee, 1998),

consist of two important phases: first a selection of

candidate solutions, and second, the detection of the

optimal candidate solution. The intrinsic

combinatorial complexity of the problem causes

that, for all algorithms, both phases are very likely to

be memory and time demanding, as well as sensitive

to outliers. Genetic (Santamaría et al., 2011) and

RANSAC based algorithms (Diez et al., 2012) are

known for its reliability to give eventually a good

solution, but at the expense of a substantial

computation time which can make them quite

impractical. On the other hand, a ready to use PCA

fast solutions are additionally sensitive to the object

symmetries (otherwise common problem to all other

methods too) and a requirement for a large overlap

between views. Next, most methods require at least

three correspondences between pair of views to

define a candidate solution. Even if they seemingly

require only a single correspondence (Feldmar and

Ayache, 1994) then there is a substantial pre-

processing involved during which a feature vector

for every point is first found and afterwards used for

the extensive comparisons. Finally, some methods

(Makadia et al., 2006) expect as input from 3D

reconstruction system not only 3D point position

data, but also a normal vector in every 3D point.

Somewhat surprisingly, it appears that neither

method expected a possibility if a part of Euclidean

parameters are known in advance, rather they try to

solve all six Euclidean transformation unknowns.

In this work we propose a surface registration

method assuming that rotation is provided by an

inertial sensor (e.g. MTx, 2012), and translation

500

Pribanic T., Diez Y., Fernandez S. and Salvi J..

An Efﬁcient Method for Surface Registration.

DOI: 10.5220/0004346505000503

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 500-503

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

vector is still left to be found. We justify our

assumption by the fact that nowadays technologies

have made quite affordable a large pallet of various

inertial devices which reliably outputs data about

object orientation. This is not only present in popular

smart phones and accessories for video games, but

there are also smart cameras which have an

embedded on-board inertial sensor for orientation

detection in 3D space (Shirmohammadi and Taylor,

2011). Nevertheless, it seems that this fact has not

been exploited in the context of surface registration.

2 METHOD DEFINTION

The proposed method consists of the following

straightforward steps:

1 Given a pair of views A and B align them

partially using the system provided (ideally from

some embedded inertial sensors) orientation data

(rotation angles).

2. Pick a single point X

from view A for which

a correspondence in the second view exists.

3. Sample (e.g. uniformly) a set of M points X

from the second view B, where is typically M≤100.

4. Construct a candidate translation vector

between point X

and every point i from X

set. For

every translation vector candidate solution, translate

views A and B into common reference system and

evaluate the goodness of solution using some merit

function. For a further consideration, keep only a

single X

from X

set for which an extreme of merit

function is achieved.

5. Take the closest N points (~100) to X

and

similar as in step 4, define N candidate translation

vectors, for each of them translate A to B view,

evaluate the goodness of potential solution using

some merit function. At last, the one for which an

extreme of merit function is achieved, take as a final

solution.

3 EXPERIMENTS

In this work we have used 3D data from a structured

light scanning of mannequin head from several

different viewpoints (Figure 1). The white markers

set on it (Figure 2) served as control points to

compute registration data and are in the subsequent

experiments considered as ground truth data. In fact,

we use those control points to compute rotation data

between views just as if they were provided by some

inertial sensor.

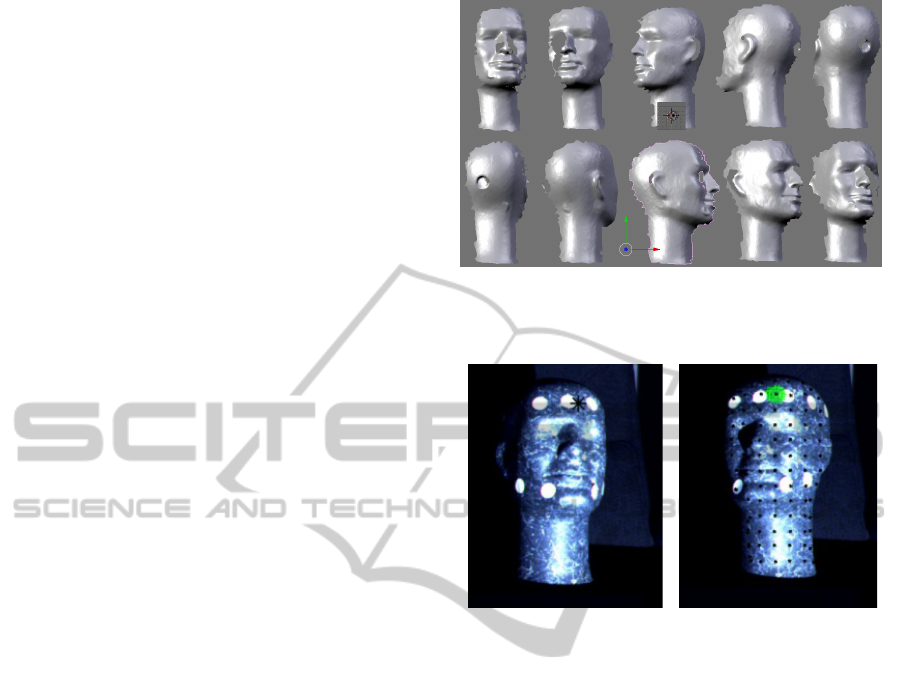

Figure 1: A screen snap from Blender software package

where 3D raw data from ten viewpoints were input and

surface meshes created.

Figure 2: Camera images for a pair of views A and B. See

text for more details.

The left image on Figure 2 is an example of view A

and the black star on is a point chosen for which a

correspondent one is searched in the view B (right

image). Black dots on the view B image represent

the actual candidate solutions sampled during step 3

and processed during step 4 of the proposed method.

The green area is neighborhood within which a

correct solution is, i.e. within which a final solution

is searched (step 5).

Figure 3 shows an alignment between two views

after applying a rotation. The right (blue) and left

(red) point clouds are view A and B respectively.

The black dots on the view B point cloud, the green

area marked on it and the black star on the view A

point cloud represent the same points as already

introduced for Figure 2, but now in 3D space.

Moreover, black dots on Figure 3 shows that

even a sparse consideration of candidate solution

allows a pretty good estimate of the final one.

Hence, a candidate solution providing an extreme of

merit function after step 4 is actually a black dot

within a green area. Thus, the green area on Figure 3

shows the neighborhood of points which is further

evaluated in order to set a final solution (step five).

AnEfficientMethodforSurfaceRegistration

501

Table 1: Comparison of the ground truth data with the initially computed and final results.

View Pair Number

of Points

Ground truth data[mm] Error initial solution[mm] Error final solution[mm]

∆T

(33110, 34109) -75,72 -16,25 -86,57 -6,10 -5,12 -0,06 -0,98 -0,47 -0,38

(34109, 39255) -119,04 -19,89 -104,45 -2,29 -7,33 0,14 -1,59 -1,97 -1,24

(39255, 43096) -158,73 -37,78 -194,54 -8,46 1,98 -4,73 -1,36 0,21 -0,87

(43096, 38759) -111,19 -8,00 -54,98 -4,10 7,40 4,63 -1,60 1,92 2,33

(38759, 35371) -102,26 -27,49 -156,87 8,88 13,00 -4,64 -3,76 4,36 -3,86

(35371, 39647) -133,69 -21,36 -104,36 -4,84 -10,29 0,17 -2,47 -4,18 0,44

(39647, 44440) -133,58 -30,09 -155,76 0,55 -11,91 -4,17 -2,35 -1,27 -1,96

(44440, 41044) -44,59 -8,93 -59,90 -1,10 5,82 -2,49 -0,10 0,23 0,09

(41044, 36357) -82,26 -13,36 -65,99 -12,06 -0,17 -2,61 -1,65 0,08 -2,57

Absolute average error[mm] 5,38 7,00 2,63 1,76 1,63 1,52

Figure 3: An alignment of 3D point clouds (downsampled

for better visualization) from two views after applying a

rotation. See text for more detail.

Table 1 is a representative example of extensive

experimenting using real 3D noisy data and it

demonstrates a very good agreement of ground truth

data for translation vector components with the

computed values. The central table rows resemble

the registration of back of the mannequin head

which due to symmetries (Figure 1) is harder to

accuracy is witnessed.

Although the speed optimization was out of the

scope of this work (Park et. al., 2011), for

completeness we stress out that it took about 4

minutes in Matlab to align a pair of views (Intel

Core 2 DUO 2.5GHz), where we used all available

points (>35000 points, first column Table 1). We

point out that such excessive number of points is

normally not used in practice (Salvi et al., 2007).

When we downsampled our 3D point clouds to be

~6000 points (note this is still a rather large number

for registration) per view, we have acquired

basically the same results as in Table 1 (not shown

here for the lack of space). But in addition, the

processing time significantly dropped to only 10-15

seconds per view pair, even using this noticeably

suboptimal Matlab code version. Based on this

timing and earlier experience, we estimate that even

CPU optimized C like code (future work) would

allow processing time in matter of seconds for point

clouds of size 15000-20000 points.

4 DISCUSSION

AND CONCLUSIONS

Unlike other methods the proposed one does not pre-

process data in order to first compute certain

Euclidean invariants and/or local features around

candidate points (Chua, 1997). The proposed

method has basically an inherent Euclidean invariant

which allows that after rotation alignment is done

then all points needs to be moved by the very same

translation vector. Since for a some point in view A

we know that there is its correspondent point in view

B we simply search for the best candidate in view B

which minimizes our merit function. However, we

do not perform an exhaustive search, typical for

some RANSAC based approaches, of all candidate

solutions in view B. In our particular experiment it

was sufficient to try altogether just a couple hundred

of candidate solutions to reach a final one. But we

note that we did essentially work all the time with all

available reconstructed points (~30000 to 40000

points per view). It means that we have tested <1%

of possible solutions. At the same time, no initial

data downsampling (Trucco et al., 1999) was

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

502

performed to make the method actually applicable.

Our method uses a point-to-point correspondences

strategy, which is generally much simpler than

curves or surface correspondence (Wyngaerd, 2002).

The merit function used here to estimate candidate

solution quality is very simple one: distance point-

to-point. We do not require implementation of point-

to-plane distances known to be more robust, but also

harder to compute (Rusinkiewicz and Levoy, 2001).

As shown the method performs quite well even

without removing any outliers (Dalley and Flynn,

2002) and we do not bother with the computing and

assigning different weights during processing

(Godin et al., 1994). In addition, our method does

not require a priory any initial guess for the searched

translation vector, but computes accurately even a

final solution and therefore can be recognized as

both coarse and final method in one. In terms of

speed and simplicity our method resembles the

character of PCA method, but it is also quite less

subtle to the size of overlapping regions. Our

method is general purpose one, meaning that to be

successfully applied it does not require any typical

environment, such as buildings where planar regions

and straight lines are expected (Stamos and

Leordeanu, 2003). Furthermore, no estimation of

certain experimental parameters is needed, as usual

in some genetic algorithms. We think that

technology associated with inertial sensor has

become mature enough to be more affordable, and

therefore, additional cost justified. Particularly if we

compare it with the alternative of using rotation

tables and/or robot arms which can be also

prohibitive in many practical situations. Our future

course is the implementation of proposed idea using

the actual inertial sensor which experimenting began

during the submission of this work.

ACKNOWLEDGEMENTS

This work has been supported by the University of

Zagreb Development Fund, Croatia. Additionally

this work has been partially supported by the project

ANDREA/RAIMON – Autonomous Underwater

Robot for Marine Fish Farms Inspection and

Monitoring (Ref CTM2011-29691-C02-02) funded

by the Spanish Ministry of Science and Innovation.

REFERENCES

Chua, C. J. R., 1997. Point signatures: a new

representation for 3d object recognition, Int. J.

Comput. Vision 25 1, 63–85.

Chung, D., Lee, Y. D. S. 1998. Registration of multiple-

range views using the reverse-calibration technique,

Pattern Recogn. 31 (4) 457–464.

Dalley, G., Flynn, P., 2002. Pair-wise range image

registration: a study in outlier classification, Comput.

Vis. Image Und. 87 (1–3), 104–115.

Diez, Y., Martí, J., Salvi, J., 2012. Hierarchical Normal

Space Sampling to speed up point cloud coarse

matching Pattern Recognition Letters 33 (16), 2127–

2133

Feldmar, J., Ayache, N., 1994. Rigid, affine and locally

affine registration of free-form surfaces, Tech. rep.,

Technical Report of INRIA, Sophia Antipolis.

Godin, G., Rioux, M., Baribeau, R., 1994. Three-

dimensional registration using range and intensity

information, in: Proceedings of SPIE Videometric III,

vol. 2350, pp. 279–290.

Makadia A., Patterson A., Daniilidis K., 2006. Fully

automatic registration of 3D point clouds. In

Proceedings of the 2006 IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition-Volume I, pp. 1297-1304.

MTx Access date: November 2012. http://www.xsens.com

Park, S.-Y., Choi, S.-I., Kim, J., Chae, J. S., 2011. Real-

time 3D registration using GPU. Machine Vision and

Applications, 22 5, 837-850

Rusinkiewicz, S., Levoy, M., 2001. Efficient variant of the

ICP algorithm, in: 3rd International Conference on 3-

D Digital Imaging and Modeling, pp. 145–152

Salvi, J., Matabosch, C., Fofi, D., Forest, F., 2007. A

review of recent range image registration methods

with accuracy evaluation. Image and Vision

Computing 25, pp. 578–596.

Santamaría, J., Cordon, O., Damas, S., 2011. A

comparative study of state-of-the-art evolutionary

image registration methods for 3D modelling.

Computer Vision and Image Understanding. 115,

Issue 9, 1340-1354

Shirmohammadi, B., Taylor, C. J., 2011. Self-localizing

smart camera networks. ACM Transactions on

Embedded Computing Systems, Vol. 8, pp. 1-26.

Stamos, I., Leordeanu, M., 2003. Automated feature-based

range registration of urban scenes of large scale, in:

IEEE Computer Society Conference on Computer

Vision and Pattern Recognition, vol. 2, pp. 555–561

Trucco, E., Fusiello, A., Roberto, V., 1999. Robust motion

and correspondences of noisy 3-d point sets with

missing data, Pattern Recogn. Lett. 20 (9) 889–898.

Wyngaerd, J. V., 2002. Automatic crude patch

registration: Toward automatic 3d model building,

Comput. Vis. Image Und. (87) 8–26.

AnEfficientMethodforSurfaceRegistration

503
