Octopus

A Redundant Array of Independent Services (RAIS)

Christian Baun

, Marcel Kunze

, Denis Schwab

and Tobias Kurze

SAP AG, Walldorf, Germany

Steinbuch Centre for Computing, Karlsruher Institut f¨ur Technologie, Eggenstein-Leopoldshafen, Germany

Hochschule Karlsruhe, Fakult¨at f¨ur Informatik, Karlsruhe, Germany

Keywords:

Cloud Computing, Cloud Federation, Storage Services, Availability.

Abstract:

Cloud storage services such as the Amazon Simple Storage Service (S3) are widely accepted and are reaching

an ever-expanding range of customers. Especially services providing S3-compatible interfaces enjoy great

popularity due to S3’s simplistic, yet powerful approach to store and retrieve data via web protocols. While

cloud storage services present a convenient tool, they also might turn into a risk for your data. Apart from

planned service outages which may or may not be covered by Service Level Agreements (SLA), there is

no guarantee that a service provider might go out of business. One might also imagine that data could be

destroyed, lost or altered due to unplanned outages or physical disaster. One possibility to improve availability

and also data robustness is to consume services of more than one cloud storage provider simultaneously and

to establish a federated, redundant cloud storage system. Octopus cloud storage implements such a federated

system realizing the concept of a Redundant Array of Independent Services (RAIS).

1 INTRODUCTION

Software as a Service (SaaS), Platform as a Service

(PaaS) and Infrastructure as a Service (IaaS) are the

most popular cloud service delivery models. Since

Amazon launched its Simple Storage Service (S3) to

handle web objects in 2006, an ecosystem of compat-

ible tools and implementations came into existence.

While the functionality of object-based storage ser-

vices usually is sufﬁcient for many use-cases, the ac-

companying dependency to a provider may present

a problem. If a provider goes out of business, nor

the service and neither the stored data would be ac-

cessible any more. A federated cloud service setup,

based on the simultaneous use of multiple providers

may be more resilient. In addition, a high availability

setup may be realized comprising multiple, indepen-

dent services.

This paper highlights the concept of a Redundant

Array of Independent Service (RAIS) and uses fed-

erated object-based storage services to implement a

prototype called Octopus.

In section 2 we provide some background infor-

mation on object based cloud storage services and

their issues regarding availability. We also givea short

introduction concerning the concept of cloud federa-

tion and how our redundant storage service conceptu-

ally ﬁts into the picture. Section 3 outlines the con-

cept of storage federation and the redundant storage

service. Section 4 explains the service architecture,

and describes some challenges and issues we faced

and their corresponding solution. Finally, in section 6

we concludeour work be givingan overviewof poten-

tially useful extensions, as well as of persisting chal-

lenges we did not tackle yet.

2 BACKGROUND

2.1 Object-based Storage Services

The Amazon Web Services (AWS)

are a popular col-

lection of public cloud service offerings. Due to their

widespread use, the AWS API may be considered as

a de-facto standard for cloud services. Amongst oth-

ers, the AWS include S3, a web object data storage

for applications. The AWS comprise a broad range

of additional cloud computing web services like Elas-

tic Block Store (EBS), Relational Database Service

(RDS), SimpleDB, and DynamoDB.

http://aws.amazon.com

321

Baun C., Kunze M., Schwab D. and Kurze T..

Octopus - A Redundant Array of Independent Services (RAIS).

DOI: 10.5220/0004352003210328

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 321-328

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Interfaces of S3 compatible Cloud storage services.

REST SOAP BitTorrent

Amazon S3 X X X

Google CS X — —

Host Europe CS X — —

Eucalyptus Walrus X X —

OpenStack Swift X — —

Nimbus Cumulus X — —

S3 stores data in form of web objects and each ob-

ject is assigned to a bucket. Objects are identiﬁed by

unique keys and are addressable using HTTP URLs.

S3 implements a ﬂat name space and has therefore

no support for folder hierarchies. Buckets and objects

may be created, listed and retrievedusing web service

interfaces either via REST or SOAP. Objects may also

be retrieved using HTTP GET and a BitTorrent pro-

tocol interface. Users may check and alter the access

rights – the Access Control List – of each S3 bucket

and object to authorize access to the data.

2.1.1 S3 Ecosystem

An advantage of S3 is the growing ecosystem of

compatible programming libraries, management tools

and services. With Walrus from Eucalyptus

(Nurmi

et al., 2008a) (Nurmi et al., 2008b) (Nurmi et al.,

2009), Cumulus (Bresnahan et al., 2011) from Nim-

bus

(Keahey et al., 2009) (Marshall et al., 2010)

and Swift from OpenStack

three open source private

cloud solutions exist that implement at least a subset

of the S3 API. A unique characteristic of this API in

contrast to others is the existence of open source pri-

vate cloud solutions and several public cloud imple-

mentations. Beside Amazon S3, Google Cloud Stor-

age (CS)

and Host Europe Cloud Storage

provide

more or less equivalent functionality and implement

the S3 API as well. Table 1 gives an overview of S3

compatible cloud storage offerings.

Other object storage service offerings from, e.g.,

GoGrid

or FlexiScale

come with their own propri-

etary APIs. However, those offerings lack an ecosys-

tem of compatible tools and open source implementa-

tions when compared to S3.

There are also efforts to establish standardized,

provider-independent cloud APIs such as the Open

http://open.eucalyptus.com

http://www.nimbusproject.org

http://www.openstack.org

http://developers.google.com/storage/

http://www.hosteurope.de/produkte/Cloud-Storage/

http://www.gogrid.com/cloud-hosting/cloud-api.php

http://www.ﬂexiscale.com/reference/api/

Cloud Computing Interface (OCCI)

which would

certainly by beneﬁcial but currently there is only lim-

ited to no support by commercial cloud providers. As

service providers usually try to seal off their offer-

ings from competitors (Harmer et al., 2010), a multi-

provider agreement for implementing an open cloud

service interface is unlikely in the near future.

For the AWS API on the other hand there is a

growing number of adaptor libraries available like

JetS3t

and boto

as well as tools like GSutil

s3cmd

and S3Fox

that help working with S3.

2.1.2 Availalablity

In the following section we discuss the availability of

public and private cloud storage services:

Public Cloud Providers. Amazon guarantees that

S3 stores data redundantly at multiple facilities of

a region and offers two different redundancy op-

tions. The standard S3 redundancy option provides

99.999999999% durability based on three replicas.

The reduced redundancy option replicates objects

only two times, resulting in an expected durability of

99.99%

. Switching to reduced redundancy results

in cost savings of about 45%. In both cases the SLA

guarantees a minimum availability of 99.99%.

For Google’s Cloud Storage the Service Level

Agreement (SLA)

guarantees an availability of

99.99% but doesn’t make any statement concerning

durability. If the monthly uptime percentage falls be-

low the guaranteed value, customers of Amazon re-

spectively Google receive service credits for future

monthly bills.

Apart from guarantees stated in SLAs, there still

is a risk in case of an unplanned outage.

Private Clouds. Very often private cloud deploy-

ments do not guarantee SLAs the same way public

cloud offerings do. If a certain level of availability

is required, it has to be provided by a thoroughly de-

veloped and operated storage service. Some private

cloud storage solutions help to accomplish this goal

through their design. For example, the pWalrus

http://occi-wg.org

http://www.jets3t.org

http://code.google.com/p/boto/

http://code.google.com/p/gsutil/

http://s3tools.org/s3cmd

http://www.s3fox.net

http://aws.amazon.com/s3-sla/

http://developers.google.com/storage/docs/sla/

http://www.pdl.cmu.edu/pWalrus/index.shtml

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

322

project tries to improve the throughput and availabil-

ity of the web objects by using more than just a sin-

gle instance of Walrus in a parallel way. These stor-

age server instances use a distributed ﬁle system (e.g.

PVFS, GPFS or LUSTRE) to store the data (Abe and

Gibson, 2010). A disadvantage of pWalrus and simi-

lar approaches howeveris that the source code of Wal-

rus and therefore the installation itself needs to be al-

tered, which is not always possible or desirable. An-

other drawback is, that the simultaneous use of public

and private storage services is tedious.

In order to increase availability it seems promis-

ing to design a redundant meta storage service imple-

menting the S3 API. Such a storage solution would

enable the use of various public and private storage

services simultaneously without the necessity of al-

tering these services in any way.

2.2 Cloud Federation

In (Kurze et al., 2011) we analyzed the term cloud

federation and categorized federation strategies along

several dimensions. Concerning IaaS, and especially

storage services we identiﬁed three basic federation

strategies:

• Replication: data items, i.e., objects in an object-

based storage, are distributed and stored in mul-

tiple locations. Amongst other advantages, this

usually increases availability and decreases ven-

dor lock-in.

• Erasure Coding: parts of data, i.e., parts of ob-

jects in an object-based storage, are split up and

stored at different locations to, for example, in-

crease overall availability or address data privacy

concerns.

• Fragmentation: data items are stored according to

their requirements. For example, it might be nec-

essary to store sensitive, individual-related data

inside a certain country or region, but then, other

data might be stored elsewhere to optimize costs.

The RAIS storage described in this paper is a ba-

sic implementation of the IaaS federation concepts of

replication and erasure coding. At the moment frag-

mentation is not supported as the focus is on availabil-

ity rather than compliance.

3 REDUNDANT ARRAY OF

INDEPENDENT SERVICES

We propose a Redundant Array of Independent Ser-

vices (RAIS) that is based on the simultaneous usage

of multiple storage services in a RAID (Redundant

Array of Independent Disks)-like manner to increase

availability and to decrease provider dependency. The

storage system supports two modes of operation:

• RAID-1-like Mode: RAID-1 provides mirroring

without parity or striping. The objects are written

identically to multiple storage services. At least

two S3-compatible services are required to built

up a RAID-1 array. The array is operational as

long as at least a single service is available, though

it might be in a degraded state.

When an object is transferred to RAIS using

RAID-1, the ﬁle is subsequently sequentially re-

layed to the registered storage services. If a single

transfer to one of storage services fails, the action

is rolled back, i.e., transfers to remaining storage

services is cancelled and already transferred ob-

jects are deleted. This ensures the consistency of

the array.

• RAID-5-like Mode: RAID-5 provides block-level

striping with distributed parity data. Therefore,

objects are partitioned in equal parts, according

to the number of registered storage services mi-

nus one. If it is not possible to split the data into

equal partitions, zero-bits are added to the smaller

part. Then, the parity information is computed

for each partition and stored on the appropriate

node. To ensure that data and its corresponding

parity information are not stored in the same stor-

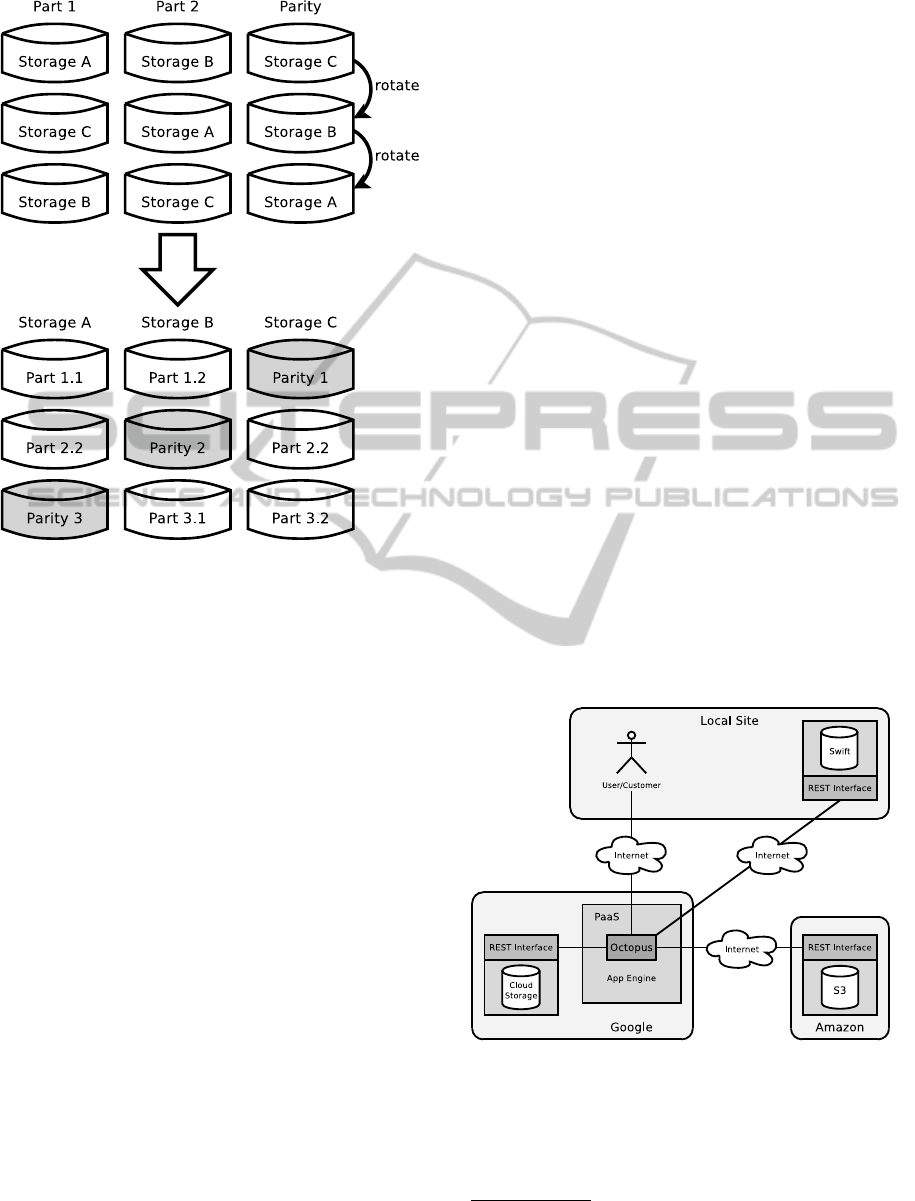

age service, Octopus has implemented a mecha-

nism called rotating-parity whose principle is il-

lustrated in ﬁgure 1.

To calculate the parity information in case of

three storage services the original data is split into

two partitions. The ﬁrst partition is stored with

provider A, the second partition with provider

B and provider C stores the parity information,

which is being calculated by applying the XOR

operator to partitions one and two. In general, the

parity information is calculated by applying the

XOR operator to all partitions except the one that

would have been stored with the corresponding

storage provider. Rotating parity guarantees, that

data can always be recovered - even in the case

of one storage service being unavailable. If more

than one storage service is unavailable though,

i.e., more than one data partition is lost, the ob-

ject can’t be recovered any more.

The RAID-5 operation mode not only provides

better availability, but also improves data privacy,

as no single provider has an entire object stored

on its premise. To further improve security, the

parts could also be encrypted before being up-

Octopus-ARedundantArrayofIndependentServices(RAIS)

323

Figure 1: Uploads through Google’s Blobstore.

loaded. (Schwab, 2012)

To check whether objects in storage services are

in sync or not, RAIS strongly relies on MD5 check-

sums. All S3-compatible storage services generate

and store an MD5 checksum for each object. These

checksums along with some other meta-data are trans-

ferred automatically whenever an object or a list of

objects is requested. Figure 2 depicts the meta-data

for an object with the key “testobject.txt”, as returned

by Amazon S3, following a customer requests to list

objects in a bucket. For RAIS, the important informa-

tion are

, holding the display name

of the object, and

, holding the

MD5 checksum.

Whenever RAIS receives a request to list objects

in a certain bucket, it checks if the data is still syn-

chronized across the registered storage services by

comparing the MD5 checksums. First, it requests the

list of objects inside the user’s buckets from all reg-

istered storage services. Then RAIS compares the

names and checksums of the received objects inside

the returned lists. If the returned lists have identi-

cal keys and checksum entries, the data is considered

in sync across the registered storage services. (Baun,

2011).

<Key>testobject.txt</Key>

<LastModified >2012-01-29T21:18:24.000Z<

/LastModified>

<ETag>"71388

ba9a76ddb7ecd43a14f2a9ae216 "</

ETag>

<Owner>

<DisplayName >username</DisplayName >

</Owner>

<StorageClass >STANDARD</StorageClass>

Figure 2: Object-related meta-data as returned by Amazon

S3.

4 PLATFORM &

ARCHITECTURE

The RAIS concept has been implemented using the

Google App Engine (GAE) in a project called Oc-

topus. GAE is a platform as a service (PaaS) of-

fered by Google that provides a stable and highly

available runtime environment at a fair price or - de-

pending on the usage - even for free. It comes with

APIs to manage user authentication, mail delivery

and reception, manipulate images and many more.

Another advantage of GAE is its inherent scalabil-

ity. There are compatible and free private cloud alter-

natives to GAE, namely AppScale

(Chohan et al.,

2009)(Bunch et al., 2010) and typhoonAE

Figure 3: Octopus running inside the public cloud PaaS.

Figure 3 depicts how Octopus may be run in a

public cloud. In contrast, ﬁgure 4 shows the situation

when operating Octopus in a private cloud environ-

ment based on AppScale respectively typhoonAE.

http://appscale.cs.ucsb.edu

http://code.google.com/p/typhoonae/

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

324

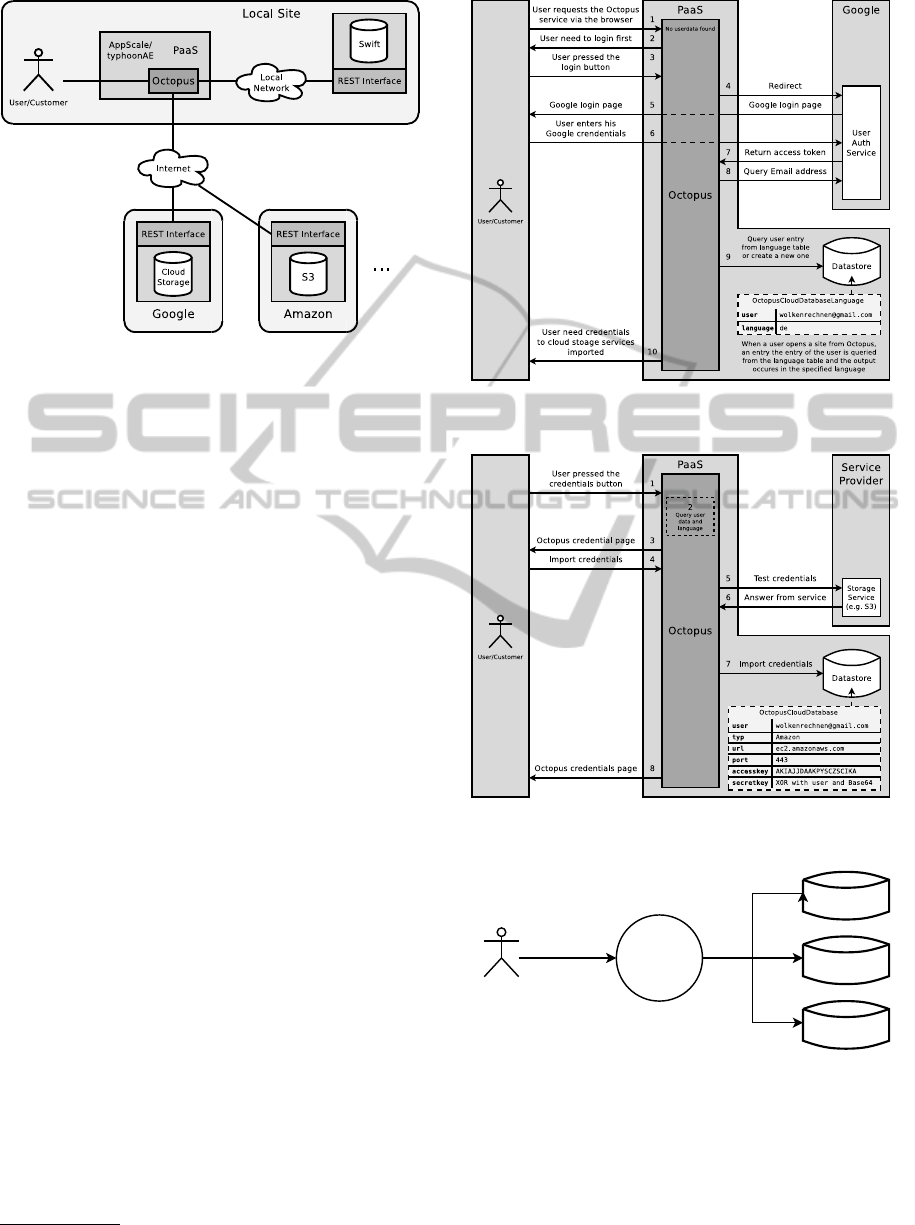

Figure 4: Octopus running inside a private cloud PaaS.

Octopus has been implemented in Python using

the web framework Django

. In order to communi-

cate with storage services compliant to S3, Octopus

uses boto, an open source python interface to AWS.

The App Engine provides several helpful APIs

e.g. to use the Google authentication mechanism and

storage services of the Google infrastructure. The

user management and authentication of Octopus is

based on Google user accounts (see ﬁgure 5). The

Datastore (a BigTable service with a SQL-like query

language) is used to store the customers imported

credentials for S3-compatible storage services (see

Figure 6). The corresponding APIs and services

of the App Engine are supported by AppScale and

typhoonAE too. If Octopus is running on a private

AppScale or typhoonAE platform service the user au-

thentication is implemented with AppScale respec-

tively typhoonAE so that there is no need to use any

Google user accounts.

When multiple storage services are used to store

the same ﬁle or parts of a ﬁle redundantly, it is ob-

viously necessary to transfer the ﬁle respectively the

parts multiple times as well. In a ﬁrst implementa-

tion of Octopus, ﬁles were uploaded directly from the

clients, i.e., from the clients browsers to each associ-

ated storage service. This was an easy but very inefﬁ-

cient and time consuming solution.

In order to improve Octopus an object to be stored

in multiple storage services is uploaded only once and

cached in the Blobstore before being uploaded to the

storage services. Though this is a much better ap-

proach from a customer’s perspective, it also is tech-

nically more complex and has to respect restrictions

of Google’s Blobstore, such as the maximum ﬁle size,

for example. Figure 7 illustrates how Octopus handles

uploads.

http://www.djangoproject.com

Figure 5: Concept of Octopus’ user management and au-

thentication.

Figure 6: Concept of Octopus’ managing the users creden-

tials to storage services.

User/Customer

Datastore

Google

Blobstore

Datastore

upload

Figure 7: Uploads through Google’s Blobstore.

4.1 Interaction with Storage Services

Octopus has been designed to work in a multi-user

environment. To support multiple tenants simultane-

ously, it prepares a bucket for each user upon his or

hers registration for a certain storage service. There-

Octopus-ARedundantArrayofIndependentServices(RAIS)

325

fore, the following scheme for bucket names has been

deployed:

octopus-storage-<username>

. These

buckets, created for every registered storage service,

serve as root storage locations for Octopus. In order

to register a storage service a user has to provide the

corresponding credentials using the Octopus web in-

terface.

Once a storage service is registered, Octopus in-

teracts with its S3-compatible REST API. We are not

using SOAP interfaces or BitTorrent due to limited

support by some storage providers. Table 1 provides

an overview of interfaces implemented by different

cloud storage services.

REST is an architectural-style that relies on HTTP

methods like

GET

PUT

. S3-compatible services use

GET

to receive the list of buckets that are assigned to

an user account, or a list of objects inside a bucket

or an object itself. Buckets and objects are created

with

PUT

and

DELETE

is used to erase buckets and

objects.

POST

can be used to upload objects and

HEAD

is used to retrieve meta-data from an account,

bucket or object. Uploading ﬁles into S3-compatible

services is done via HTML forms and

POST

directly

from the customers client, i.e., browser. Table 2 gives

an overview of methods used to interact with S3-

compatible storage services.

Table 2: Description of the HTTP methods with request-

URIs that are used to interact with storage services.

Account-related Operations

GET /

List buckets

HEAD /

Retrieve metadata

Bucket-related Operations

GET /bucket

List objects

PUT /bucket

Create bucket

DELETE /bucket

Delete bucket

HEAD /bucket

Retrieve metadata

Object-related Operations

GET /bucket/object

Retrieve object

PUT /bucket/object

Upload object

DELETE /bucket/object

Delete object

HEAD /bucket/object

Retrieve metadata

POST /bucket/object

Update object

The basic functionality of all S3-compatible stor-

age services is more or less identical, but the exact

behavior is often slightly different.

4.1.1 Amazon Web Services

Amazon S3 supports multi-part uploads to break

larger objects into chunks of smaller size and upload

a number of chunks in parallel. This feature is helpful

in case of upload failures, as the upload some chunks

can be restarted imposing less overhead compared to

the re-upload of the entire ﬁle. So multi-part uploads

could help to improve the performance of the meta-

storage service but the other S3-compatible storage

solutions do not support this feature and therefore it

is not implemented in Octopus.

4.1.2 Cumulus and Host Europe

Cumulus and Host Europe Cloud Storage both do

support uploading objects via

GET

but not via

POST

yet. Eventually future releases may have this feature

to be used by Octopus. As long as this feature is miss-

ing, it is impossible to upload ﬁle objects using these

services with Octopus.

4.1.3 Walrus and OpenStack

In Amazon S3, Google Cloud Storage, Cumulus and

Host Europe Cloud Storage, the MD5 checksums are

enclosed by double quotes (see Figure 2). In Wal-

rus and OpenStack they are not. The reason for this

difference behavior remains unclear. Octopus has

been designed to handle this implementation detail

and thus nonetheless works with these storage sys-

tems.

If no submit button inside a form is used to upload

an object into Walrus, some bytes of garbage data is

appended to the object.

An annoying issue of Walrus is that the service

adheres faulty data to all objects that are transferred

via

POST

when no submit element exists at the end

of the HTML message. Walrus recognizes the submit

element as the objects’ end. If the subject element is

missing, Walrus attaches all data until the end of the

transfer to the object.

Another problem of Walrus is that in the version

that is part of Eucalyptus 1.6, inside each bucket an

object with the key

None

exists, which is incorrect. As

this object cannot be erased Octopus need to ignore it.

When using Amazon S3 or Walrus, inside

the HTML form and the related policy docu-

ment

, the developer has the freedom to use

either die attribute

redirect

or alternatively

success_action_redirect

to set the page, the

browser will be redirected to, if the upload was suc-

cessful. Google Cloud Storage in contrast just makes

use of the attribute

success_action_redirect

and

ignores

redirect

The policy document contains i.a. the object’s name,

a description of the content, the bucket and the destination

address to which the browser will be redirected if the upload

was successful.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

326

4.1.4 Google Cloud Storage

An issue of Google Cloud Storage is that the submit

button, that is used inside a HTML form to transfer

objects to the storage service must not contain the

name

attribute. Amazon S3 and Walrus both ignore

the

name

attribute.

5 RELATED WORK

Various systems to avoid vendor lock-in and to im-

prove availability have been developed. Bermbach et

al. developed MetaStorage (Bermbach et al., 2011),

which is a federated cloud storage system that dis-

tributes data across different cloud storage services

and relies on some mechanisms from Amazon’s Dy-

namo (DeCandia et al., 2007) for cross-providerrepli-

cation to achieve higher levels of availability as well

as of fault tolerance and scalability. It relies on a dis-

tributed hashtable and extends the (N,R,W)-quorum

approach to include providers as a supplemental di-

mension. MetaStorage consists of multiple compo-

nents, of these the most important ones are: storage

nodes, distributors and coordinators. Storage nodes

provide an abstraction from the underlying infrastruc-

ture, i.e. cloud storage services or just hard-disks.

Distributors are in charge of the replication and of the

retrieval of ﬁles using the underlying storage nodes.

To avoid a bottlneck, multiple distributors can be used

but have to be managed. Coordinators provide this

management and assure that every distributor has the

same conﬁguration.

RACS (Abu-Libdeh et al., 2010) is a system that

uses RAID-like techniques to distribute data across

multiple cloud storage providers to, for example, re-

duce costs in case of a provider switch or to avoid

vendor lock-in. By striping data across multiple

providers, provider changes become easier; also era-

sure coding provides redundancy against outages.

Thereby data objects are broken down into m frag-

ments and mapped to a larger set of n fragments of

the same size, in a way that the original fragments

can still be obtained by certain subsets of the m-

fragments. RACS is designed as a proxy between

a client application and potentially different cloud

providers. It provides an Amazon’s S3 interface and

therefore enables usage by S3-compatible software.

To avoid a bottleneck, multiple RACS proxies can

interact concurrently with the same storage systems.

Apache ZooKeeper is used to provide distributed syn-

chronization primitives to avoid data races.

OceanStore (Rhea et al., 2003) is another storage

service that uses multiple layers of replication and

distributes data over the internet to provide a persis-

tent, und durable data store.

(Chun et al., 2006) discusses replication strate-

gies for distributed storage systems. It focuses on the

development of algorithms permitting to store data

durably at low bandwidth costs. A basic implementa-

tion of the presented algorithm using distributed hash

tables is presented and detailed.

HAIL (Bowers et al., 2009) is no storage system,

but a system to ensure that a ﬁle, stored with storage

services, is still intact and retrievable. It is a remote-

ﬁle integrity check protocol that extends the princi-

ples of RAID to work in cloud settings.

(Dabek et al., 2004) provides background infor-

mation about the design of an efﬁcient distributed

hash table providing high-throughputand low-latency

network storage.

6 CONCLUSIONS AND FUTURE

WORK

We have described the concept of a Redundant Ar-

ray of Independent Services (RAIS) to realize a fault-

tolerant cloud storage. The application of RAIS may

improves data storage availability as well as secu-

rity. Octopus is a ﬁrst implementation that can be de-

scribed as a meta-storage service that allows to store

data using storage services of different providers si-

multaneously.

The Octopus service is licensed as open source ac-

cording to the Apache License v2.0 and the source

code is available at the project site

. The graphical

user interface currently supports the English and Ger-

man language. Due to the design of the application, it

is straightforward to implement additional languages.

A useful extension of Octopus would be some

kind of proxy or buffer storage into which objects

are uploaded by Octopus from the client side be-

fore they are distributed to the storage services. The

Google Datastore is not suitable as proxy, because ob-

jects inside the Datastore can have a maximum size

of 1 MB. The Blobstore is another storage service of

the Google infrastructure, that can be used by appli-

cations running inside the App Engine. It allows the

persistent storage of data in form of so-called BLOBs

(Binary Large Objects), each with up to 2 GB. An-

other possible basis for a proxy is the Google Cloud

Storage. Objects inside Google Cloud Storage can be

accessed directly from web applications that run in

the App Engine, which is a requirement for transfers

via HTTP

POST

to the other storage services used. A

http://code.google.com/p/cloudoctopus/

Octopus-ARedundantArrayofIndependentServices(RAIS)

327

disadvantage of the App Engine in general is that out-

going data connections are limited to 1 MB for each

transfer.

As the objects are transferred directly from the

customers browser to each storage service used, the

amount of data that need to be transmitted increases

linearly with each additional storage service. Even

large objects must be transferred at least two times,

if they should be stored in a redundant way. For this

reason, the use of multiple storage services leads to

extended transfer times.

Our next steps in the development of Octopus

foresee the evaluation of further approaches to imple-

ment a proxy to upload the objects to the storage ser-

vices in parallel to improve the performance.

REFERENCES

Abe, Y. and Gibson, G. (2010). pWalrus: Towards better

integration of parallel ﬁle systems into cloud storage.

In Cluster10: Int. Conf. on Cluster Computing 2010.

IEEE.

Abu-Libdeh, H., Princehouse, L., and Weatherspoon, H.

(2010). Racs: a case for cloud storage diversity. In

SoCC’10: 1st Symposium on Cloud computing. ACM.

Baun, C. (2011). Untersuchung und Entwicklung von

Cloud Computing-Diensten als Grundlage zur Schaf-

fung eines Marktplatzes. PhD thesis, Universit¨at Ham-

burg.

Bermbach, D., Klems, M., Menzel, M., and Tai, S. (2011).

Metastorage: A federated cloud storage system to

manage consistency-latency tradeoffs. In CLOUD’11:

4th Int, Conf. on Cloud Computing. IEEE.

Bowers, K. D., Juels, A., and Oprea, A. (2009). Hail: a

high-availability and integrity layer for cloud storage.

In CSS’09: 16th Conf. on Computer and communica-

tions security. ACM.

Bresnahan, J., Keahey, K., LaBissoniere, D., and Freeman,

T. (2011). Cumulus: An open source storage cloud

for science. In ScienceCloud’11: 2nd Int. Workshop

on Scientiﬁc Cloud Computing. ACM.

Bunch, C., Chohan, N., Krintz, C., Chohan, J., Kupferman,

J., Lakhina, P., Li, Y., and Nomura, Y. (2010). An

evaluation of distributed datastores using the appscale

cloud platform. In Cloud10: Int. Conf. on Cloud Com-

puting. IEEE.

Chohan, N., Bunch, C., Pang, S., Krintz, C., Mostafa, N.,

Soman, S., and Wolski, R. (2009). Appscale: Scal-

able and open appengine application development and

deployment. 1st Int. Conf. on Cloud Computing.

Chun, B.-G., Dabek, F., Haeberlen, A., Sit, E., Weather-

spoon, H., Kaashoek, F., Kubiatowicz, J., and Mor-

ris, R. (2006). Efﬁcient replica maintenance for dis-

tributed storage systems. In NSDI’06: Symposium

on Networked Systems Design and Implementation.

USENIX.

Dabek, F., Li, J., Sit, E., Robertson, J., Kaashoek, M. F.,

and Morris, R. (2004). Designing a dht for low la-

tency and high throughput. In NSDI’04: 1st Sympo-

sium on Networked Systems Design and Implementa-

tion. USENIX.

DeCandia, G., Hastorun, D., Jampani, M., Kakulapati,

G., Lakshman, A., Pilchin, A., Sivasubramanian, S.,

Vosshall, P., and Vogels, W. (2007). Dynamo: ama-

zon’s highly available key-value store. In SOSP’07:

21st Symposium on Operating Systems Principles,

New York. ACM.

Harmer, T., Wright, P., Cunningham, C., Hawkins, J., and

Perrott, R. (2010). An application-centric model for

cloud management. In SERVICES’10: 6th World

Congress on Services. IEEE.

Keahey, K., Tsugawa, M., Matsunaga, A., and Fortes, J.

(2009). Sky computing. Internet Computing, IEEE,

13(5):43–51.

Kurze, T., Klems, M., Bermbach, D., Lenk, A., Tai, S.,

and Kunze, M. (2011). Cloud federation. In CLOUD

COMPUTING 2011: 2nd Int. Conf. on Cloud Com-

puting, GRIDs, and Virtualization.

Marshall, P., Keahey, K., and Freeman, T. (2010). Elas-

tic Site Using Clouds to Elastically Extend Site Re-

sources. In CCGrid: 10th Int. Conf. on Cluster, Cloud

and Grid Computing. IEEE/ACM.

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, G., So-

man, S., Youseff, L., and Zagorodnov, D. (2008a). Eu-

calyptus: A technical report on an elastic utility com-

puting architecture linking your programs to useful

systems. In UCSB Computer Science Technical Re-

port Number 2008-10.

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, G., So-

man, S., Youseff, L., and Zagorodnov, D. (2008b).

The eucalyptus open-source cloud-computing system.

In CCA’08: Cloud Computing and Its Applications

workshop.

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, G., So-

man, S., Youseff, L., and Zagorodnov, D. (2009). The

eucalyptus open-source cloud-computing system. Int.

Symposium on Cluster Computing and the Grid.

Rhea, S., Eaton, P., Geels, D., Weatherspoon, H., Zhao, B.,

and Kubiatowicz, J. (2003). Pond: The oceanstore

prototype. In FAST’03: 2nd Conf. on File and Storage

Technologies. USENIX.

Schwab, D. (2012). Implementierung eines redundanten

Datenspeichers f¨ur die Hybride Cloud. Hochschule

Karlsruhe.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

328
