SLA Management in Clouds

Nikoletta Mavrogeorgi

, Spyridon Gogouvitis

, Athanasios Voulodimos

, Dimosthenis Kiriazis

Theodora Varvarigou

and Elliot K. Kolodner

Department of Electrical and Computer Engineering, National Technical University of Athens, Athens, Greece

IBM Haifa Research Labs, Haifa University, Mt. Carmel, Haifa, Israel

Keywords: Cloud, SLA Schema, SLA Management, Content Centric Storage, Policies, Proactive Violation Detection.

Abstract: The need for online storage and backup of data constantly increases. Enterprises from different domains,

such as media and telco operators, would like to be able to store large amounts of data which can then be

made available from different geographic locations. The Cloud paradigm allows for the illusion of unlimited

online storage space, hiding the complexity of managing a large infrastructure from the end users. While

Storage Cloud solutions, such as Amazon S3, have already met with success, more fine-grained guarantees

on the provided QoS need to be offered for their larger uptake. In this paper, we address the problem of

managing SLAs in Storage Clouds by taking advantage of the content terms that pertain to the stored objects

thus supporting more efficient capabilities, such as quicker search and retrieval operations. A system that

better captures the content of the signed SLAs is very useful, as the benefits in terms of reducing the

management overhead while offering better services are potentially significant.

1 INTRODUCTION

Nowadays, online storage of data is very demanding.

Many sectors, such as media, enterprises, medicine

and telco need to store data and access them rapidly

any time from different geographic locations.

Storage Cloud environments can provide the

solution for these demands. The customers do not

need to own specialized hardware for storing their

data objects or have concerns for management tasks,

such as backups, replication levels, etc.. In order for

customers to be willing to move their data to Cloud

solutions, proper Service Level Agreements (SLAs)

should be made available and signed. SLAs are

contracts between the customer and the service

provider, where the terms and conditions of the

offered service are agreed upon.

In this paper, we address the problem of

managing SLAs in cloud computing environments

exploiting the content term that concerns the stored

objects, in order to provide more efficient

capabilities.

The proposed SLAs are enriched versions of the

traditional ones. Apart from determining the classic

elements such as the parties involved, the SLOs and

the cost rules, the SLAs additionally include content

term determination of the objects that will be

associated with this SLA, a fact that permits the

Cloud to provide the users with content-centric

services.

For instance, let’s assume that we want to store

scientific papers and news. The papers are requested

less often than the news, which are accessed

frequently on a daily basis. So, for the daily news it

would be better to create more replicas than the

papers and store them to many geographic places, in

order to have a quicker access.

The content terms permit to the Cloud to support

capabilities with different levels, such as the

estimation for data transfer and the billing models.

Furthermore, specific actions can be executed

depending on the SLA content related term, such as

storage at specific data centers, execution of

compression or format transformation of an object.

For instance, if a video is requested to be stored in

the Cloud, then it automatically gets transformed to

e.g. mpeg format by the system, which facilitates

internal actions in Cloud and it is stored in data

centers that provide efficiently video related

services.

The following sections describe the proposed

SLA schema and the SLA Management mechanism.

Mavrogeorgi N., Gogouvitis S., Voulodimos A., Kiriazis D., Varvarigou T. and K. Kolodner E..

SLA Management in Clouds.

DOI: 10.5220/0004354200710076

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 71-76

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

A lot of research and protocols have been done as

far as Service Level Agreements (SLA) and the SLA

Management are concerned.

SLA schemas are XML schemas that represent

the content of an SLA. Some existing approaches for

SLA schemas and the corresponding languages to

define service description terms are: SLAng

(Lamanna et al., 2003), WS-Agreement (Andrieux et

al., n.d.), WSLA (Dan et al., 2004), WSOL (Tosic et

al., 2003), and SWAPS (Oldham et al., 2006).

However, weaknesses exist. SWAPS is quite

complex and the implementation is not publicly

available. WSLA and SLAng have not further

development at least since 2009. Apart from this,

SLAng does not permit to define management

information such as financial terms and WSLA has

not formal definition of metrics semantics. WSOL

lacks SLA related functionalities, such as the capture

of the relationship between service provider and

infrastructure provider.

The WS Agreement (Web Services Agreement)

is a Web Services protocol for establishing

agreement between two parties using an extensible

XML language for specifying the nature of the

agreement, and agreement templates to facilitate

discovery of compatible agreement parties. It allows

arbitrary term languages to be plugged-in for

creating domain-specific service description terms.

A challenge research issue is the proactive

violation detection. Many proposals have been done,

but very little for cloud environments, e.g. authors of

GRIA SLAs (Boniface et al., 2007) suggest a

solution for avoiding violations but concerns only

Grid environments. In DesVi (Emeakaroha et al.,

2011), an architecture is proposed for preventing

SLA violations based on knowledge database and

case-based reasoning.

3 SLA SCHEMA

The Service Level Agreement is encapsulated in an

SLA schema. The basic element is the SLA element,

which defines what data can be contained in an SLA

(e.g. cost, contract dates, user requirements, fines,

etc) and in which format. The language that is used

for the SLA schema is XSD (XML Schema

Document).

3.1 Basic Elements

The SLA element is the outermost element, which

encapsulates the entire SLA. An SLA is created by

filling an SLA template. In the SLA Template there

is the choice to determine the content term that will

concern the SLA.

The proposed SLA schema consists of the

following basic elements:

 SLA: this element represents the SLA.

 SLATemplate: this element represents the SLA

template, that is, the template that the user should

fill out in order to create an SLA.

 ContentTerm: this element represents the content

term that concerns the SLA (e.g. media,

enterprise, healthcare, telco, video, scientific

paper etc.).

 TermAttribute: this element represents the QoS

metrics (e.g. availability, jitter, ingest rate,

geographic constraints etc.).

 Requirement: this element represents the SLOs

that the user poses. The requirements are an

expression of the term attributes of the concerned

SLA content term. Assuming that the user wants

to use the termAttribute ''availability'', then an

expression could be: ''availability>0.999''. (Note:

the requirements must be something that can be

measured).

 Responsibility: this element represents the

responsibilities that the user or the provider

should have (e.g. the provider should send him

monthly reports and notify the user for an SLA

violation).

 Cost: this element represents the cost (e.g. the

user should pay 10 cents per 1GB upload).

 Penalty: this element represents the fines that the

provider should pay in case the user's

requirements are violated.

Figure 1 and 2 displays the schema of the SLA

and the content term element respectively.

3.2 SLA Properties

An SLA contains, based on the WS agreement, a

name element, a context element and a terms

element, the latter containing a collection of SLA

terms. The context element contains the metadata of

the agreement (e.g. participants and dates) and the

terms element contain the SLOs, the content term,

the responsibilities, and the billing rules.

More specifically, the SLA consists of the

following properties (see Figure 1):

 Name

o id: the SLA's identifier Context (contains

metadata)

 Context (SLA metadata)

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

o providerId: the identifier of the provider

o customerId: the identifier of the customer

(user)

o dates: the contract data and the date from

which and until which the SLA is valid

o templateID: the id of the template that was

used

 Terms (main body of the agreement)

o contentTermId: the identifier of the content

term that concerns this SLA

o requirements: the SLOs that the user poses

o responsibilities: the responsibilities that the

customer or the provider should have

o cost: the billing rules

o penalties: the fines that the provider should

pay in case that the customer's requirements

are violated

o changesAgreements: the rules that are signed

in case that the customer or the provider

desires to change some data from the signed

SLA during the SLA lifecycle.

3.3 Content Term Properties

The basic properties that compose the Content Term

element are the following (see Figure 2):

 id: the identifier of this content term

 name: the name of the content term

 description: the description of the content term

 terms: the associated metrics (e.g. ingest rate)

with this content term

 services: the associated services with this content

term

The content terms support inheritance.

Therefore, a content term can be an extension of

another. There are general term attributes that are

inherited by all content terms, such as availability,

durability, geographic location constraints, etc.

4 SLA MANAGEMENT

4.1 Description

The SLA Management is responsible for the creation

of an SLA and its enforcement and maintenance.

The SLA Management is based on the

aforementioned SLA schema. It takes into

consideration content related terms that will be

included in the SLAs since content-centric access to

storage poses the need to use content-related

information. Moreover, the system is one of the

consumers of the analyzed monitored data in order

to enable proactive SLA violation. To this direction,

the specific SLA terms as well as policies that may

be set by the administrators of the infrastructure (e.g.

perform replication in case of a given percentage of

increase in user requests) will be analyzed in the

SLA management component and propagated to the

Analysis in order to pro-actively trigger events that

will prevent possible SLA violations

The main operations of this component are the

SLA negotiation, the SLA templates generation, the

SLAs creation, the proactive SLA violation

detection and handling and the configuration of the

rest components when a new SLA is created (it

creates policies that should be checked during the

SLA lifecycle, it sends the parameters to be

monitored to the Monitoring component, it informs

Accounting and Billing for the new SLA and its cost

related data, etc.). As far as the proactive SLA

violation detection is concerned, this component gets

the analyzed monitored data, it processes them and

creates policies that are sent to Analysis to

proactively trigger events.

4.2 Architecture

The architecture of the SLA Management is

displayed in Figure 3. The basic components of the

SLA Management are the following:

4.2.1 Templates Generator

This component is responsible for generating SLA

templates. It creates SLA templates based on the

capabilities that the Cloud can provide and based on

content terms, having as a result to provide dynamic

and customized SLAs

4.2.2 Negotiator

The Negotiator is responsible for the SLA

negotiation between the user and the provider. When

an SLA is signed, it notifies the interactive

components. Also, it informs the user with reports

and notifications (e.g. for SLA violation). The steps

are depicted in Figure 4.

4.2.3 Policies Associator

This component is responsible for the linkage of

policies with SLA templates. This will be achieved

through historical data and the way specific policies

had an effect on the SLA violations.

The Policies Associator decides for the policies

that should be followed for the concerned SLA and

provides them to the Configurator.

SLAManagementinClouds

Figure 1: SLA element. Figure 2: Content Term element.

Figure 3: SLA Management Architecture.

4.2.4 Configurator

The Configurator creates the necessary configuration

regarding the SLA in order the system to support the

customer requested requirements. It receives the

signed SLA from the Negotiator in order to obtain

specific values (e.g. thresholds on parameters), and

decides which parameters will be monitored and

which policies will be checked. Also, it consults the

Placement where the uploaded objects should be

stored and with how many replicas depending on the

SLA constraints. In table 1, an example of an SLA

and its SLA configuration is depicted.

4.2.5 Proactive Violation Detector

This component handles the proactive SLA violation

detection. It creates policies for detecting proactively

SLA violations and in case that a violation is

detected it decides for which reactive actions will be

performed. It calculates for each metric the threat

threshold, that is, a more restrictive threshold than

the signed one and sends to the Analysis the metric

and the threat threshold.

Analysis receives monitoring information for this

metric and calculates trends and patterns. When

Analysis forecasts that a metric reaches the given

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

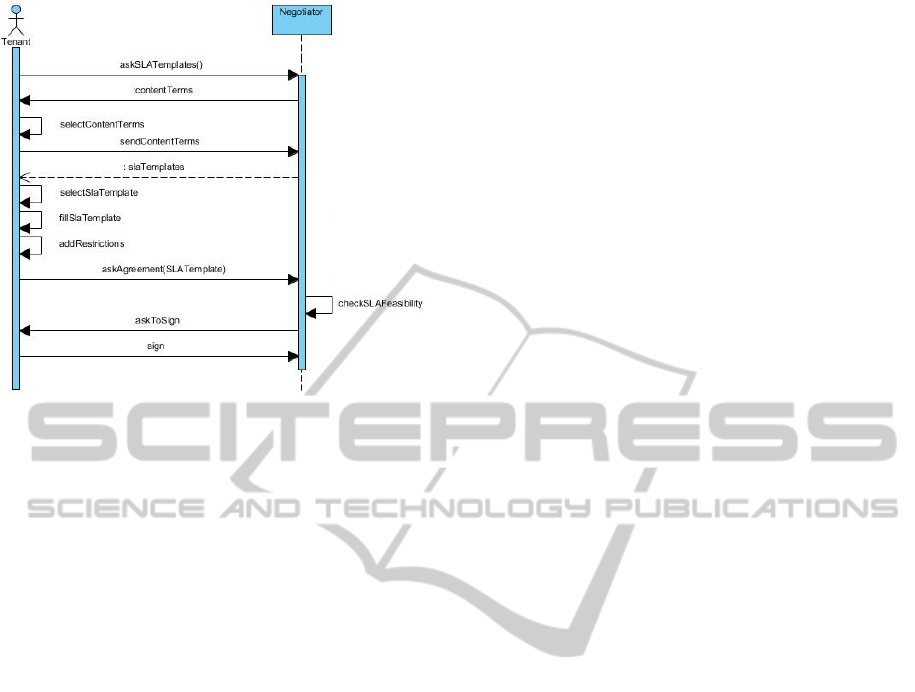

Figure 4: SLA Negotiation.

threshold, it notifies the SLA Management. Then,

SLA Management handles this notification and

makes reactive actions (e.g. informs placement to

create a new replica when throughput reaches the

threat threshold) in order to avoid the imminent

violation. The conditions and the solution are

retrieved by the knowledge database which contains

data based on historical data.

For instance, let's assume that we have an SLA

with durability 99,5% and geographical constraints

that the objects are preferred to be stored in Greece

and Israel. The equivalent low level requirements

will be the creation of 3 replicas (at least one in

Greece and at least one in Israel). If the data centers

in Greece have no more free space, then a reactive

action would be either to move some replicas to

other countries in order to get free space or to buy

new hardware in Greece. So, for the concerned SLA,

the free space of the data centers in these countries

should be checked in order to identify when the data

centers are going to get filled.

Following we demonstrate the data that are

exchanged (simplified examples, where some data

are not demonstrated). The policies for an SLA that

SLA Management sends to Analysis is:

{

'sla_id': '20120204',

'metrics':{'CPU': { 'max': '75%' },

'memory': { 'max': '65%'}}

}

Let’s assume that Analysis found that the CPU

utilization for the SLA with id '20120204' will reach

the threat threshold and it will be 75% in 20 minutes

from now, then it will send the following

notification to the SLA Management:

{

'sla_id': '20120204',

'timestamp': '2012-05-12_13:08'

'metric': 'CPU',

'forecast': {

'value': '75%',

'time': '20 min'

}

Then, the SLA Management will find the

reactive action that should be taken. In this case, a

new replica should be created.

4.2.6 Interactive Components

The SLA Management in order to accomplish its

tasks needs some interactions with other

components. The basic external components that the

SLA Management interacts are:

 Monitoring: measures data during the SLA

lifecycle (e.g. CPU speed) which are needed for

checking the SLA policies.

 Analysis: is responsible for forecasting the

metrics computing trends and patterns.

 Placement: decides in which data centers the

requested objects will be stored.

 Knowledge Base (KB): is a database that stores

data related to an SLA.

 Requirements Translator: translates the SLA

requirements that the user determines to low

level requirements with which the internal

system communicates. For instance, the

requirement “availability>0.999” could be

translated to “number of replicas = 3”.

 Accounting and Billing: charges the user

according to the user operations.

5 CONCLUSIONS

Concluding, we presented an enriched SLA schema

which contains content terms and an automated SLA

Management for content centric storage, which

exploits the content terms and support services to the

customer more efficiently and with less cost. Also,

dynamic SLAs are supported, as the SLA templates

are generated according to the current supplies.

More work should be done for the requirements

translation and the analysis of metrics in order to

detect trends and patterns of the metrics. Finally,

examination of complicated requirements should be

done and renegotiation should also be added in the

proposed framework in order to provide a complete

automated SLA Management.

SLAManagementinClouds

Table 1: Service ‘SLA configuration’ with its input parameter and output.

Input: SLA Output :SLA Configuration

{

"slaId": "0",

"customerId": "ntua",

"slaRequirements": {

"durability":"99%",

"preferredRegions": ["Greece",

"Israel", "Italy"],

"blacklist": [ "Russia" ],

}

{

"slaId": "0",

"customerId": "ntua",

"lowLeveRequirements": {

"wishlist": [[[1], [Greece, Israel]],

[[1], [Italy]]]],

"blacklist": [Russia],

"distance": [2, 100]

}

ACKNOWLEDGEMENTS

This paper is supported by the European

Community’s Seventh Framework Programme

(FP7/2007-2013) under grant agreement n 257019,

in the context of the VISION Cloud Project.

REFERENCES

H. Kolodner, D. Naor, S. Tal, S. Koutsoutos, N.

Mavrogeorgi, S. Gogouvitis, D. Kyriazis, and E.

Salant, “Data-intensive Storage Services on Clouds:

Limitations, Challenges and Enablers,”in eChallenges

e-2011 Conference, 2011.

A. Voulodimos, S. Gogouvitis, N. Mavrogeorgi, Roman

Talyansky, D. Kyriazis, S. Koutsoutos, V.

Alexandrou, E. Kolodner, P. Brand, T. Varvarigou, "A

Unified Management Model for Data Intensive

Storage Clouds," IEEE First International Symposium

on Network Cloud Computing and Applications,

Toulouse, France, November 21-23, 2011.

Mavrogeorgi, N.; Gogouvitis, S.; Voulodimos, A.;

Katsaros, G.; Koutsoutos, S.; Kiriazis, D.; Varvarigou,

T.; Kolodner, E. K.; , "Content Based SLAs in Cloud

Computing Environments," Cloud Computing

(CLOUD), 2012 IEEE 5th International Conference

on , vol., no., pp.977-978, 24-29 June 2012.

D. D. Lamanna, J. Skene, and W. Emmerich, “SLAng: A

Language for defining Service Level Agreements,” in

FTDCS ’03: Proceedings of the The Ninth IEEE

Workshop on Future Trends of Distributed Computing

Systems (FTDCS’03), (Washington, DC, USA), IEEE

Computer Society, 2003.

V. Tosic, B. Pagurek, and K. Patel, “WSOL - A Language

for the Formal Specification of Classes of Service for

Web Services.,” in ICWS (L.-J. Zhang, ed.), pp. 375–

381, CSREA Press, 2003.

N. Oldham, K. Verma, A. Sheth, and F. Hakimpour. 2006.

Semantic WS-agreement partner selection. In

Proceedings of the 15th international conference on

World Wide Web (WWW '06). ACM, New York, NY,

USA, 697-706. DOI=10.1145/1135777.1135879.

A. Dan, D. Davis, R. Kearney, R. King, A. Keller, D.

Kuebler, H. Ludwig, M. Polan, M. Spreitzer, and A.

Youssef, Web Services on demand: WSLA-driven

Automated Management, IBM Systems Journal,

Special Issue on Utility Computing, Volume 43,

Number 1, pages 136-158, IBM Corporation, March,

2004.

A. Andrieux, K. Czajkowski, A. Dan, K. Keahey, H.

Ludwig, T. Kakata, J. Pruyne, J. Rofrano, S. Tuecke,

M. Xu: Web Services Agreement Specification (WS-

Agreement), GFD.107.http://www.ogf.org/documents/

GFD.107.pdf.

V. C. Emeakaroha, M. A. S. Netto, R. N. Calheiros, I.

Brandic, R. Buyya, C. A. F. De Rose ;“Towards

autonomic detection of SLA violations in cloud

infrastructures”, Future Generation Computer Systems

(November 2011), doi:10.1016/j.future.2011.08.018.

M. Boniface, S. C. Phillips, A. Sanchez-Macian, M.

Surridge, Dynamic service provisioning using GRIA

SLAs, in: Proceedings of the 5th International

Workshops on Service-Oriented Computing,

ICSOC’07, 2007.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience
