Using Personal Assistant Dialogs for Automatic Web Service Discovery

and Execution

arcio Fuckner

, Jean-Paul Barth

and Edson Emilio Scalabrin

UMR CNRS 7253 Heudiasyc, Universit

e de Technologie de Compi

egne, Centre de Recherche de Royallieu,

60200 Compi

egne, France

Programa de P

os-Graduac¸

ao em Inform

atica - PPGIa, Pontif

ıcia Universidade Cat

olica do Paran

Rua Imaculada Conceic¸

ao, 1155 - Prado Velho, Curitiba - PR, Brazil

Keywords:

Web Services, Discovery, Execution, Natural Language, Personal Assistants.

Abstract:

Web services and their standards have reduced the complexity of integration between heterogeneous systems,

having a widespread adoption by industry. Several semantic Web services techniques concerning automatic

discovery and execution are promising but still too complex to allow a large-scale adoption. Consequently,

such services require end users to use traditional software engineering practices, with complex and non-

intuitive interfaces in some cases. In this paper, we present an automatic approach for service discovery

and execution, using the Web service descriptor as the only source. The process could be summarized as a two

step process: (i) identifying candidates based on linguistic cues extracted from the Web service descriptor; (ii)

extracting from the user’s natural language sentences the necessary parameters to complete the action. The

generated proof-of-concept shows its viability for publishing independent Web services to end-users using

natural language sentences, giving only their descriptors as a source.

1 INTRODUCTION

Web services and their standards, such as the SOAP

message format (XML Protocol Working Group,

2007) and the WSDL interface deﬁnition language

(Web Services Description Working Group, 2007)

have gained widespread adoption and reduced the

complexity of integration between heterogeneous sys-

tems. Lightweight Web services, such as REST

(Fielding, 2000) also have encouraged the adoption

of basic and ad hoc integration scenarios. As a re-

sult, many industrial development tools adopted such

standards and now can reduce the complexity of de-

veloping such Web service applications.

The semantic Web vision proposed by (Berners-

Lee et al., 2001) has brought new opportunities to

leverage the Web services, moving them from a syn-

tactic to a semantic level. Standards such as OWL-S

(Web-Ontology Working Group, 2004) and WSMO

(WSMO Working Group, 2005) have created a com-

mon entry point to different proposals for discov-

ery, composition and execution of services. How-

ever implementing them using a bottom-up approach

is still complex, where thousands of services are al-

ready available within and outside enterprises (Vitvar

et al., 2008). Allowing the leverage of even simple

Web services from the syntactic level to the semantic

level at a large scale still remains a major challenge.

Service wrapping requires traditional software engi-

neering steps, in some cases leading to the creation of

complex and non-intuitive interfaces with end-users.

The paper of (Chai et al., 2001) presents a case

study aiming at validating the usage of natural lan-

guage by end users, in comparison with traditional

point-and-click systems. The study reveals a reduc-

tion of 33 percent in time to execute the same task, as

well as a reduction of 63 percent regarding the quan-

tity of mouse clicks. Companies are also working on

better end-users interfaces in order to improve their

efﬁciency. An example of this behavior was presented

in a recent post of MIT Technical Review Magazine

(Simonite, 2012): an international bank reveals that

around 65 percent of the time is used by their branch

staffers with customer information desk. As a re-

sponse, the bank is installing a new personal assistant

using natural language through a chat window added

as a mashup in their customer’s Internet banking soft-

ware. Thus, the customer could send sentences like

“How about my investments today?” to the assistant.

Having those issues in mind, we propose an ap-

189

Fuckner M., Barthès J. and Emilio Scalabrin E..

Using Personal Assistant Dialogs for Automatic Web Service Discovery and Execution.

DOI: 10.5220/0004355001890198

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 189-198

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

proach for wrapping independent Web services to

end-users using a natural language dialog approach.

We call independent services, those services executed

directly, without semantic dependencies on other ser-

vices. We built a proof-of-concept system using

NLP techniques, running in a multi-agent environ-

ment with dialog-based human-interaction facilities.

The system allows end-users to make requests in nat-

ural language sentences representing what they are

looking for. The system identiﬁes and understands

key concepts from the user’s input and conducts the

user towards an appropriate dialog, which is ﬁnished

when a service is executed. The proof-of-concept

shows the viability of usage, giving only the web ser-

vice descriptors as a source.

The rest of the paper is organized as follows: In

Section 2 we present some background information

regarding the techniques used in our work. In Section

3 we describe in detail our approach. The outcomes

of a usage example are shown in Section 4. A discus-

sion of related work is presented in Section 5. Some

conclusions presenting what we have learned from the

study and proposed future work are presented in Sec-

tion 6.

2 BACKGROUND

In this section we brieﬂy describe two key areas re-

lated to this work: (i) Personal assistants, which use

multidisciplinary approaches to improve the interface

between a human and a software component, such

as natural language processing. (ii) Web service de-

scription languages, which present key information to

build the basic vocabulary and information model.

Personal Assistants. In Multi-Agent Systems, the

Personal Assistant Agent (PA) is an agent built to

be an assistant of one user or its master. The term

“digital butler”, coined by (Negroponte, 1996) is also

commonly used to describe a PA. It aims to sim-

plify the interface between a human and an agent in

a multi-agent system. This approach is promoted by

projects like the PAL Program (DARPA PAL Pro-

gram, 2012) (Personalized Assistant that Learns) pro-

posed by DARPA, with contributions from SRI and

several other laboratories with the CALO project (Tur

et al., 2010). The CALO framework provides assis-

tant components, such as the CALO Express (CE), a

lightweight personal desktop assistant that uses learn-

ing techniques to identify relevant information on the

desktop, such as documents, presentations, emails

and agenda. Meeting Express (ME) is another com-

ponent example, designed to help a user in a meeting.

One special interest to the personal assistant ap-

proach in this work is the frequent usage of natural

language (NL) written or spoken as a common inter-

face. Natural language processing (NLP) is a ﬁeld of

computer science and linguistics concerned with the

interactions between computers and humans. In this

work we use the available tools to deal with NL and

also improve the personal assistant vocabulary. Tech-

niques such as stemming, part of speech tagging and

word sense disambiguation are explored in our proof-

of-concept application.

Web Service Description Languages. Several

speciﬁcations were proposed during the Web service

history. For the sake of clarity, we listed some impor-

tant standards using (Vitvar et al., 2008) taxonomy,

which proposes a two-level stack, namely a semantic

and a non-semantic level.

• At a non-semantic level, WSDL is the de-facto

standard for Web services speciﬁcation. It spec-

iﬁes the interface, operations, the data types us-

ing XML Schema, and non-functional descrip-

tions, such as communication protocol and physi-

cal endpoint information. Behavioral aspects can

also be speciﬁed, for example, using WS-BPEL

(WS-BPEL Technical Committee, 2007).

• At a semantic level, OWL-S and WSMO pro-

vide a framework for describing semantics for ser-

vices, adopting a domain ontology, a formalism

to describe the service capabilities, the effects and

goals of Web services.

This clear separation between semantic and syn-

tactical information on Web services is only concep-

tual, revealing in practice a thin line between them

in industry. As a response to the difﬁculty to imple-

ment them in a large-scale, the work from W3C called

Semantic Annotations for WSDL and XML Schema

(SAWSDL Working Group, 2007) was initiated. It

provides a model where the WSDL could be anno-

tated with semantic information. It could be inter-

preted as a bridge between the non-semantic layer and

the semantic one, using the WSDL as a non-marginal

source of information. WSMO-Lite (Vitvar et al.,

2008) creates an extension of SAWSDL, addressing

the need of a concrete service ontology as its next evo-

lutionary step.

3 OVERALL APPROACH

In this section we present a detailed description of our

approach to Web service discovery and execution us-

ing a multi-agent platform. We could summarize it

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

190

in two high-level processes:

i service parsing, in order to create a knowledge

representation of the service and its dialog;

ii discovery and execution using a personal assistant

with natural language understanding skills.

First, we present the OMAS multi-agent platform

and its components, used to implement the proposed

solution. The subsequent sections describe each high-

level process separately.

3.1 Multi-agent Platform

To implement our proof-of-concept, we selected

OMAS

, as a multi-agent platform (Barth

es, 2011b).

This platform was designed for building cognitive

agents and provides several types of agents: service

agents (SA), transfer agents (XA) and personal as-

sistant agents (PA). They are organized around a sin-

gle net local loop and share messages using broadcast

mode (UDP). A physical loop is called a local coterie

and transfer agents are responsible to connect differ-

ent physical loops or different platforms. A set of

loops in a particular application is called a coterie. All

the communications are P2P meaning that there is no

central directory or a single point of failure (SPOF).

These are mandatory features when talking about ser-

vice oriented and loosely coupled architectures. To il-

lustrate the architecture, a typical conﬁguration of an

OMAS multi-agent system is shown in Figure 1 con-

taining service agents, transfer agents and personal

assistants.

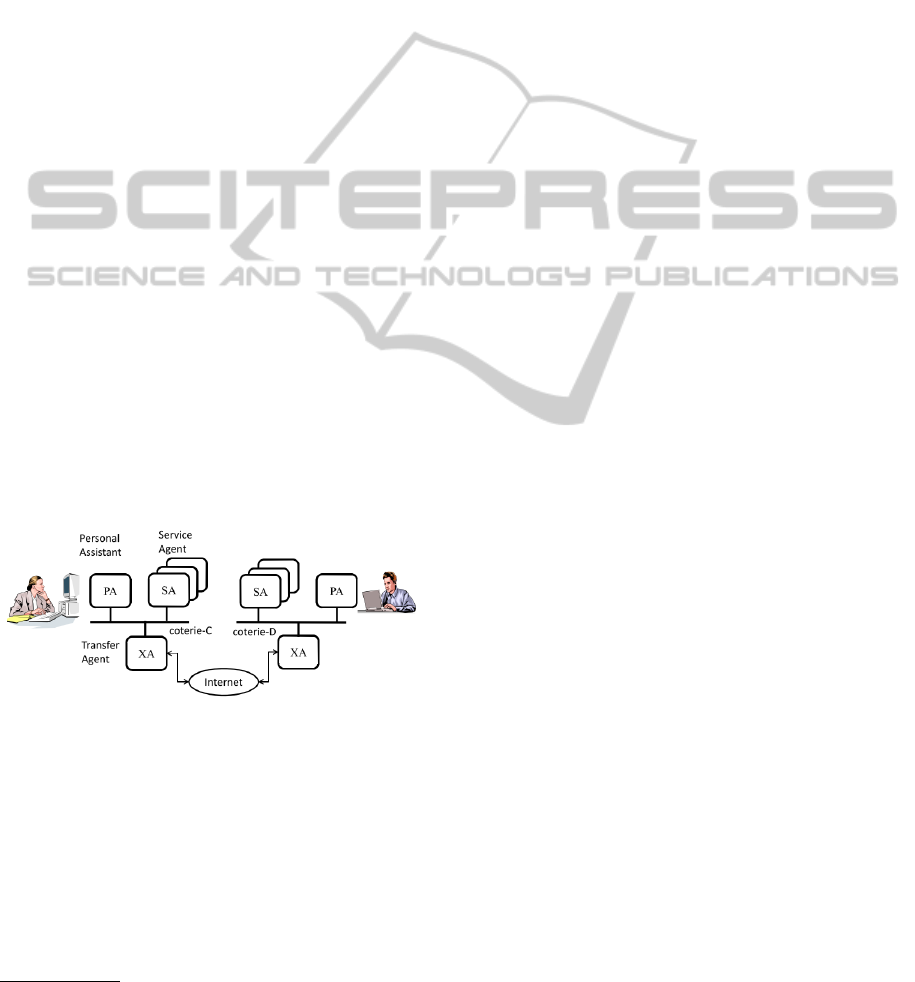

Figure 1: A typical conﬁguration of an OMAS multi-agent

system.

Personal Assistant Agents. An agent targeted to

this work is the personal assistant (PA). This agent

has a very specialized task: it makes an interface with

a person or its master and delegates more speciﬁc

tasks to other types of agents present in the environ-

ment. As a design principle, a PA has very super-

ﬁcial technical skills and for technical problems re-

lies on other agents called service agents. This design

The platform and the documentation are available at

http://www.utc.fr/∼barthes/OMAS/.

approach leads to modularization and easier mainte-

nance, since the technical expertise is distributed in

separate agents. As a good design practice, service

agents answer their PA and no other agents. However,

a service agent can access any other agent.

A personal assistant agent in OMAS has a set of

functions to deal with the user through a natural lan-

guage dialog (NL). It has a standard top-level dia-

log that determines what the user wants to do: a re-

quest, an assertion or a command for example. The

agent reacts executing the underlying task or invokes

an ELIZA-like dialog to analyze the input and either

produces an adequate answer or tells the master that it

did not have enough information to process the input.

The ELIZA-like dialog is a special dialog inspired by

the work of (Weizenbaum, 1966).

Certainly, the top-level dialog is not enough to

model more complex applications. Therefore, the

framework allows the creation of nested sub-dialogs.

Such sub-dialogs are modeled by a conversation

graph, having a set of nodes representing states of the

conversation. Each node contains a set of rules that

apply to a fact base containing information obtained

from the master’s input or resulting from the analysis

steps of the previous states. The fact base is similar

to the fact base of a rule-based system. At a given

node, applying the rules triggers either a transition to

a new state or an action (e.g. a message sent to some

agent) (Barth

es, 2011a). These features will be ex-

plored with more details in the next sections, when an

automatic dialog is created, based on the Web service

structure.

3.2 Service Parsing

This process aims at extracting relevant keywords and

structural information of Web services using a de-

scriptor as an input. Each step contributes to construct

a representation for service discovery and execution:

for the discovery point of view, a keyword construc-

tion and the mechanism to add synonyms; for the exe-

cution point of view, a structural representation of the

service and a dialog to extract the input from natural

language sentences. The diagram shown in Figure 2

provides an overview of the process and also of the

relevant information used and generated during each

step.

3.2.1 Extract Service Information

This is the starting step, which uses a Web service de-

scriptor as an input parameter, as shown in Figure 2.

The goals of this step are: (i) extract keywords from a

Web service descriptor; and (ii) build a tree represent-

ing the service. As presented in the Background Sec-

UsingPersonalAssistantDialogsforAutomaticWebServiceDiscoveryandExecution

191

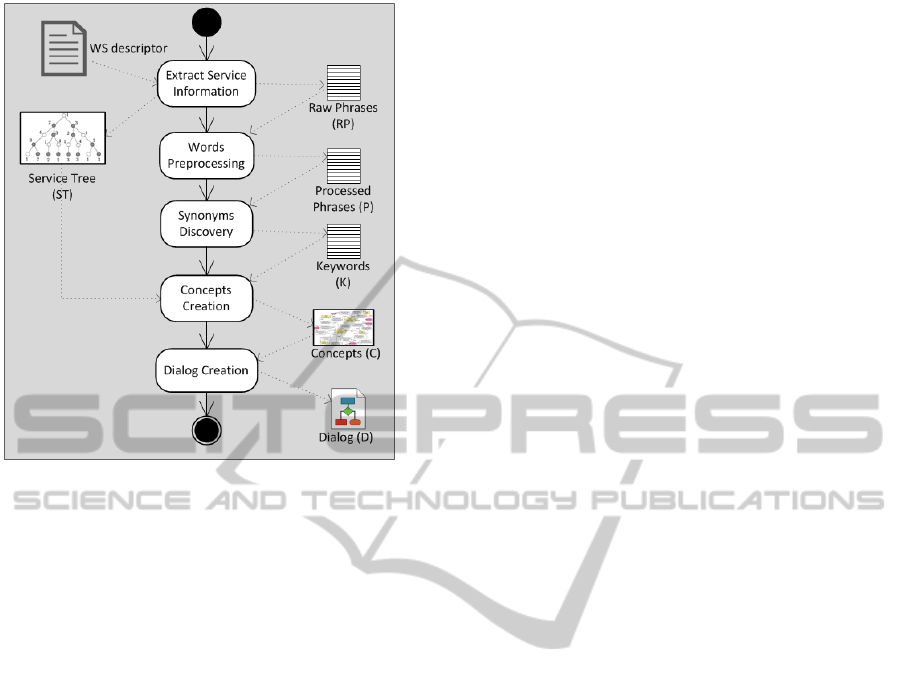

Figure 2: Service parsing diagram.

tion, there are many different standards for the Web

service speciﬁcation. As a result, one must build spe-

ciﬁc parsers to provide input for the goals (i) and (ii).

By all means, we believe that a minimum documen-

tation and a description of the input and output pa-

rameters are a kind of least common denominator for

Web services. For example, standards such as OWL-

S and WSMO allow rich semantic speciﬁcations such

as capabilities, conditions and effects.

For our ﬁrst prototype we created a parser for the

WSDL speciﬁcation, focusing on the operations and

their parameters. For the operations, we extract the

values from the nested documentation tags. For the

parameters, we extract the input and output represen-

tation, described as XML Schema types.

The documentation tag value related to the op-

eration is used to build a set of raw phrases RP =

{rp

, rp

, ...rp

}. A raw phrase rp in this context is

interpreted as the original phrase with spaces and stop

words. Figure 3 shows a fragment of a WSDL doc-

ument with a documentation tag inside the operation.

In this case, the resulting set RP would be: {“Get a

share price quote on any listed NY stock”, ”Requires

one valid stock identiﬁer”}.

During the breadth-ﬁrst search, a service tree ST is

generated for each operation found containing a rep-

resentation of the complex types in the input and out-

put parameters. The tree will be used to build a com-

mon representation and an automatic goal-oriented

dialog, using natural language sentences.

The root of the tree is the operation, with two

branches representing the input and the output struc-

<wsdl:interface name="StockInterface">

<wsdl:operation name="getSharePrice" ... >

<wsdl:documentation>

Get a share price quote on

any listed NY stock. Requires

one valid stock identifier.

</wsdl:documentation>

...

</wsdl:operation>

</wsdl:interface>

Figure 3: A documentation fragment for an operation.

<all>

<documentation>Identifier<...

</element>

<documentation>Date<...

</element>

</all>

</complexType>

</element>

<all>

<element name="stockPrice" ...

<documentation>Price<...

</element>

</all>

</complexType>

</element>

Figure 4: Types fragment.

ture. Finding the input and output structure is not a

complex task, once the complex types are described

with their respective types and documentation in the

WSDL structure, as can be seen in the fragment ex-

ample shown in Figure 4. The WSDL speciﬁcation al-

lows the tag documentation in all element deﬁnitions.

We took the advantage of this feature to improve the

experience with the user and give him a user-friendly

description of such pieces of information in the di-

alog. If the documentation is not present, the name

deﬁned in the type will be used. A resulting graphical

representation of the generated tree is shown in Fig-

ure 5, with the operation GetSharePrice as the root

of the tree, followed by the input and output branches

and their respective attributes.

To sum up, this step generates for each operation

a set of raw phrases RP that will be used to create

the keywords and a tree ST for creating a common

representation and an automatic dialog.

3.2.2 Words Preprocessing

After extracting the service information, a set of raw

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

192

GetSharePrice

Output

Price

Input

Date

Identiﬁer

Figure 5: Generated tree.

phrases RP = {rp

, rp

, ...rp

} is used in this step as

an input. This process aims at preparing the set of

words using some NLP techniques, described in the

Background Section.

First, a word segmentation of each raw phrase (rp)

is processed, using white space, tabs and new line

characters as delimiters. Second, a ﬁlter removes all

the stop words. Third, in order to improve the accu-

racy of the word synonym lookup process, a Part of

Speech (POS) is executed for each word, identifying

nouns, verbs, adverbs and adjectives.

A phrase could be used to give an example about

the usage of the POS algorithm. For the phrase

{Financial, Reserve}, the POS recognizes the word

“Reserve” as a noun instead of a verb. This approach

has a positive impact on the disambiguation qual-

ity and performance, thanks to the reduction on the

search space. The word “reserve” in this example has

7 senses for nouns and 4 senses for verbs in the Word-

Net 3.1 database. Without the POS algorithm, the

verb senses would represent noisy information and,

of course more information to process.

Finally, a stemming algorithm is invoked, trans-

forming the original words into root words. As a

result a new set of phrases called P = {p

, p

}

is generated, where each p is a set of instances

{(w

, t

), (w

, t

), ..., (w

, t

)}, w is the word, t is their

respective type (noun, verb, adverb or adjective) and

j is the quantity of words in the given phrase.

3.2.3 Synonyms Discovery

The goal of this step is to collect as many synonyms

as possible for each word extracted from the service

descriptor. Discovering a word synonym is a complex

action, due to the multiple meanings of the same word

in different contexts (aka polysemy). Therefore, two

minimum components are necessary to work on this

problem of word sense disambiguation: (i) a dictio-

nary or a thesaurus; and (ii) a method of disambigua-

tion.

For (i), we chose WordNet (Miller, 1995) (Stark

and Riesenfeld, 1998): an electronic lexical database

for the English language, developed at Princeton Uni-

versity. WordNet groups noun, verbs, adjectives and

adverbs by means of conceptual semantic and lexical

relations. Each grouping is called synset, and a wide

range of tools is available to deal with these struc-

tures.

For (ii) we chose one of the ﬁrst works related to

the theme, proposed by (Lesk, 1986). Lesk uses an

unsupervised method that disambiguates two words

by ﬁnding the pair of senses with the greatest overlap

in their dictionary deﬁnitions. This algorithm presents

a low computing overhead because it explores only

the sense of the words presented in the phrase, avoid-

ing a deep navigation in the graph.

The algorithm receives the set of phrases P gen-

erated in the previous section as an input. Then, for

each word processed, it looks for the set of senses in

WordNet. To clarify the concept of sense, each sense

has a dictionary deﬁnition that will be used by the

disambiguation process. Giving an example, we try

to disambiguate the word “risk” in the set of words

p = {{pro ject, noun}, {risk, noun}}. The word risk

has 6 senses for noun and each one points to at least

the original word plus one or more synonyms. Using

the algorithm, the chosen sense of risk was “a venture

undertaken without regard to possible loss or injury,”

instead of “the probability of being exposed to an in-

fectious agent.” This is an effect of the presence of

the word “undertaken” in both deﬁnitions (risk and

project). As a result two new words, related to the

same sense were added: “peril” and “danger,” ex-

panding the vocabulary.

Lesk’s approach is sensitive to the exact wording

of deﬁnitions. In certain cases, words in the deﬁnition

do not link in fact the words. The absence of a certain

word or a presence of a frequent word can radically

change the results. Several proposed methods achieve

good results for disambiguation, but require a prepro-

cessed dependency knowledge database as presented

in (Chen et al., 2009) or make deep explorations in

the glosses graph as presented in (Navigli and Velardi,

2005) and (Adala et al., 2011). They should be con-

sidered in future experiments.

In brief, at the end of this step, a set of keywords

are generated for the service called K = {k

, k

where each k

is a word (original or synonym) and n

is the number of keywords for the underlying service.

3.2.4 Concepts Creation

A representation language is necessary to model the

services, the dialogs and the input and output param-

eters to deal with the service. We use a representa-

tion language called MOSS

(Barth

es, 2011b), sum-

marized in the next paragraphs.

available at http://www.utc.fr/∼barthes/MOSS/

UsingPersonalAssistantDialogsforAutomaticWebServiceDiscoveryandExecution

193

MOSS. MOSS is a complex frame-based represen-

tation language, allowing the description of concepts,

individuals, properties, classless objects, default val-

ues, virtual concepts or properties. It includes an

object-oriented language, a query system, multilin-

gual facilities and many other features described in

the online documentation. MOSS is centered on the

concept of property and adopts a descriptive (typical-

ity) rather than prescriptive approach, meaning that

defaults are privileged and individuals may have prop-

erties that are not recorded in the corresponding con-

cept. Reasoning is done via a query mechanism. We

only present here the features used for the creation

of a general concept representing the service and its

structure.

Concepts, Attributes and Relations. The service

tree generated in Section 3.2.1, called ST , will be used

as a source to create a representation of the service

using the MOSS language. Given the tree, if a vis-

ited node is a leaf, then it will be transformed into

a ﬁnal attribute. On the other hand, if the node is

intermediary, then it will be transformed into a new

concept, and also a relationship with this new concept

will be created in the current concept. This approach

could result in possible redundancies when a complex

type is used more than once. However it simpliﬁes

the transformation and also prevents the occurrence

of circular references. To give an example of the cre-

ation of nested concepts, let’s use the tree of Section

3.2.1, changing the simple attribute date to one more

complex; for example a date type with a day, month

and year inside its structure. Figure 6 shows the re-

factored tree.

GetSharePrice

Output

Price

Input

Date

year

month

day

Identiﬁer

Figure 6: Modiﬁed tree.

In this example we have four nodes as candi-

dates to concepts: The toplevel node GetSharePrice,

the standard Input and Output nodes and the Date

node. Figure 7 shows the generated concepts using

the MOSS syntax. The Date node was transformed

into a concept called DateConcept, once the node is

intermediary. It also inﬂuenced the creation of the In-

putConcept, which had a relationship with the con-

cept DateConcept instead of a simple attribute.

(defconcept "GetSharePriceConcept"

(:rel "Input"

(:to "InputConcept"))

(:rel "Output"

(:to "OutputConcept")))

(defconcept "InputConcept"

(:att "Identifier")

(:rel "Date"

(:to "DateConcept")))

(defconcept "OutputConcept"

(:att "Price"))

(defconcept "DateConcept"

(:att "day")

(:att "month")

(:att "year"))

Figure 7: Generated concepts (:att speciﬁes an attribute, :rel

a relation).

After the creation of the concepts (C), they are in-

corporated into the OMAS environment, allowing the

creation of individuals during any dialog session.

3.2.5 Dialog Creation

The goal of this step is to build an automatic sub-

dialog based on the concept set (C), created during

the previous step. To allow a conversation between

the user and the PA, this goal-driven dialog is mod-

eled as a ﬁnite state machine as shown in Figure 8.

The goal of this type of dialog is the fulﬁllment of all

of the attributes and relations of an individual repre-

senting the input.

Figure 8: Service execution state machine.

Selection State. The sub-dialog starts in the Selec-

tion state. This state aims at ﬁnding empty input at-

tributes. Our technique proceeds along the following

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

194

assumptions:

1. One individual or instance related to the service

context is created for each dialog;

2. For each relationship, at least one individual cor-

responding to the type of the relationship is cre-

ated and associated to the underlying individual.

If all of the attributes of the input are ﬁlled, the

next state will be Execution, responsible for the ex-

ecution of the service, as well as displaying the exe-

cution outcomes represented by the output individual.

The Selection state does not have interaction with the

user and only uses the input individual for making the

inference.

Fulﬁllment State. If an empty attribute n is found,

the control is transferred to this state, which aims at

asking the master to fulﬁll the information. A ques-

tion/answer dialog is started, asking the user to ﬁll the

attribute n.

Update State. The control is transferred to this state

if the algorithm detects an update pattern. Knowledge

engineering processes using unstructured natural lan-

guage texts are still an expert task and are sensitive to

the context. We choose a discovery process that ex-

tracts the attribute value from the sentence based on

simple grammatical constructions. We used a small

subset of the proposal made by (Hahn and Schnat-

tinger, 1998) called Linguistic Quality Labels. Lin-

guistic quality labels reﬂect structural properties of

phrasal patterns in which unknown lexical items oc-

cur. We assume here that the type of grammatical con-

struction exercises a particular interpretative force on

the unknown item. Based on this idea, we used the

traditional triple noun-verb-noun phrase to detect sen-

tences like “My age is 23” or “The window has a size

of 3x5m.” Apposition is also a source of information.

The apposition almost unequivocally will determine

the attribute in our case. An example of apposition

phrase could be “The user Mary,” where user is the

attribute name and Mary is the correspondent value.

Abort State. When the PA detects abort patterns in

the master’s phrase, it interrupts the process conﬁrm-

ing their action. If the user conﬁrms, then the service

execution is aborted. If not, the control returns to the

Selection state. An abort pattern could be interpreted

as a set of words such as {cancel, quit, ...}. The sets

were made empirically during this preliminary phase

and must be evaluated in the future in order to im-

prove their accuracy.

Change State. This state enables the user to change

the sequence of the fulﬁllment and for example, ask to

change the value of any other attribute. Let’s use the

phrase “Sorry, I made a mistake when giving my age”

during the Fulﬁllment state. The sentence does not ﬁt

in the requirements of the Abort state nor the Update

state. It also presents linguistic cues indicating the de-

sire to change something such as {mistake, sorry, ...}.

If the algorithm matches one attribute in the phrase,

then the control returns to the Fulﬁllment state. If

there is no correspondence, the control returns to the

Selection state.

Execution State. The control is transferred to this

state when the master has ﬁlled all the attributes.

Here, the PA sends a message to the service agent

(SA) responsible for the SOAP envelope creation,

transportation and response decoding. The PA waits

for the response and then presents the output to the

end user, terminating the sub-dialog.

3.3 Discovery and Execution

The discovery and execution process is tailored to

identify the user needs based on linguistic cues and

conduct a dialog conversation. This process was in-

spired by the work on multi-agents task selection and

execution using personal assistants dialogs described

in (Barth

es, 2011a).

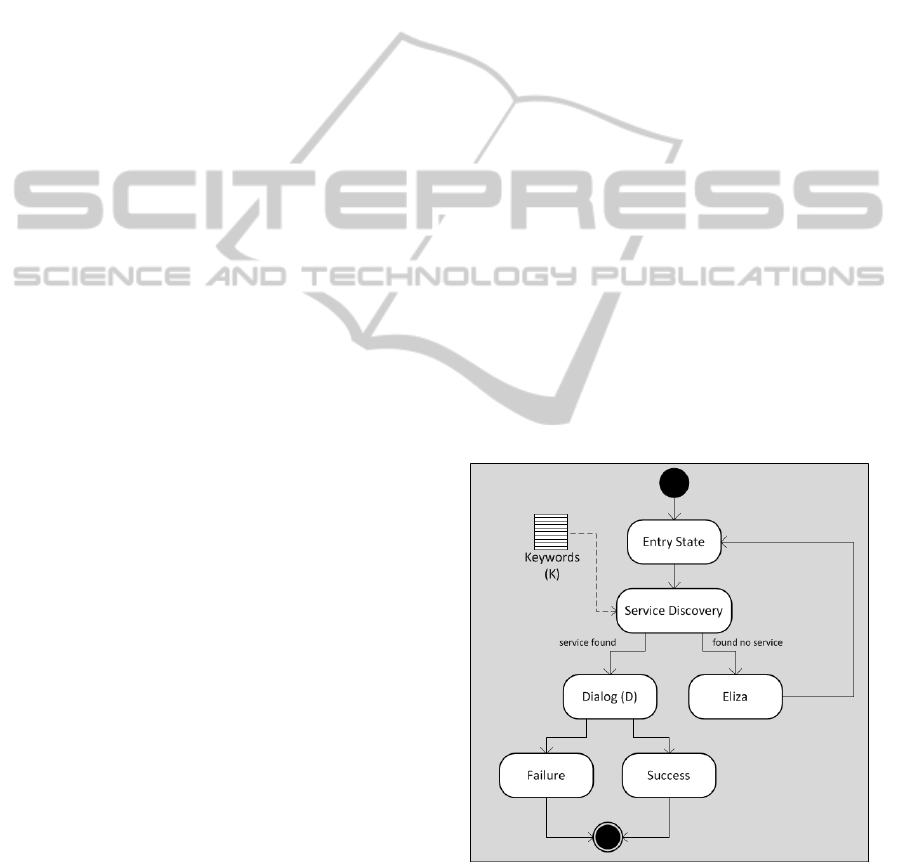

Figure 9: Discovery and execution activity diagram.

During this stage, we assume that the PA is cur-

rently associated with an end-user. That is to say,

the user now has a channel opened with the personal

assistant to make requests and also see the PA re-

sponses. It is important to point-out that the conversa-

UsingPersonalAssistantDialogsforAutomaticWebServiceDiscoveryandExecution

195

tion between a PA and the end-user starts in a generic

top-level dialog, described in the diagram shown in

Figure 9. Any other dialog in the PA is considered

a nested or sub-dialog, even our special sub-dialog

used here. The starting point of the top-level dia-

log, namely Entry State allows users to input their re-

quests. The next state is called Service Discovery.

Service Discovery. Using the service keywords

(K), the service discovery is done as follows:

1. The user asks something to the PA (e.g., “Give me

the project risks and their ﬁnancial reserves”)

2. The phrase is segmented into a set of words,

removing spaces, words separators and empty

words. For example, the resulting list of

words would be {give, pro ject, risk, f inancial,

reserves};

3. A stemming algorithm is executed for each word,

transforming them into root words.

4. For each known service, the PA matches the user

set of words with the set of keywords (K), using a

MYCIN-like formula to compute a score. This is

a simple but efﬁcient approach, since each match

of a subexpression reinforces the overall match

score;

5. Services are then ordered by decreasing scores;

6. The service with the highest score is selected.

If a task cannot be determined, the PA enters in

the state Eliza, in order to analyze the input and either

produces an adequate answer or tells the user that it

did not have enough information to process the input.

Dialog Execution. Once the top-level dialog has

identiﬁed the target service to execute, a nested sub-

dialog associated with the service is instantiated and

started. The creation of this goal-oriented dialog was

detailed in Section 3.2.5. After the execution of the

sub-dialog the control is then returned to the main di-

alog.

4 A DIALOG EXAMPLE

In this section we present an utilization dialog exam-

ple extracted from one ready-to-use OMAS environ-

ment, since the details to build one dialog were pre-

sented in previous sections. Figure 10 shows the be-

ginning of the dialog, started with a welcome message

from the PA, followed with some interactions.

When the PA sends the greeting message to the

end-user, the conversation graph is currently in the

P: Good morning and welcome to the ACME Bank.

I am Ariberto, your personal assistant.

How can I help you?

U: I’d like to contract a health insurance.

P: Thank you for the interest in our

Health Insurance Quote service.

P: Could you please tell me your name?

Figure 10: A conversation fragment that triggered the ser-

vice identiﬁcation.

Entry state. This state allows the interaction with the

user and is changed as soon as the user types the re-

quest. The next state, Service Discovery, will pro-

cess the user input, transforming the data into a set

of root words, without delimiters and stop words. A

matching process is then executed for each known ser-

vice in the environment, using a MYCIN-like formula

(a + b − ab). Given the set of words provided by the

user, the selected service was the Health Insurance

Quote Service. For demonstration purposes the envi-

ronment had a few services, related to health, travel

and vehicle insurance quotes.

As a result, a sub-dialog related to the health ser-

vice was created. As a preparation process, one indi-

vidual representing the service concept were created,

as well as individuals to ﬁll its relationships. To be

more speciﬁc in this case, one individual was created

for both input and output concepts, once the types re-

lated to this service are simple attributes. All service

sub-dialogs start in the Selection state. It means that

the sub-dialog behavior is to look for empty attributes

in the input individual. In this example, the PA found

the name and transferred the control to the Fulﬁllment

state, which always waits for the user input.

As shown in Figure 11, the user sent the sentence

“My name is John Doe” to the PA. The pattern found

by the PA was compatible with an update, which in

turn, extracted only the fragment “John Doe”. This

context information was then available in the Update

state. As a result, the PA changed the value to “John

Doe”, returning the control back to the Selection state.

The user can change the order of fulﬁllment at any

time. The same dialog of Figure 11 shows the PA

asking for the user’s age. In the dialog example, the

user refused the fulﬁllment answering: “No, sorry, the

name is not correct.” The pattern found in the phrase

matched with the Change state. This state found the

attribute name. Hence, the control was transferred

back to the Fulﬁllment state, which allowed the user

to change his name and transfer the control to the Up-

date state. The control was then returned back to the

Selection state. Finally, the Web service was executed

after the fulﬁllment process, as show in Figure 12.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

196

U: My name is John Doe.

P: Thank you for the information.

Confirming your name as John Doe.

P: Could you please tell me your age?

U: No, sorry, the name is not correct.

P: Your current name is John Doe. Could you

please tell me your name again?

U: The name is John Malbec Doe

P: Thank you for the information.

Confirming your name as

John Malbec Doe.

Could you please tell me your age?

U: I’m 23.

P: Your age is 23.

Figure 11: A conversation fragment that identiﬁes a user

intervention.

P: Now, I have all of the information to

process your request.

I would like your attention to check

the following information before

confirming your request.

Name: John Malbec Doe

Age: 23

...

P: Could you please confirm the request?

U: yes

P: Service requested successfully.

Process number is 9992323231.

Insurance price: $ 150.00.

Figure 12: A conversation fragment that shows the service

execution.

5 RELATED WORK

Many research efforts have been made to propose

approaches for discovery, composition and execu-

tion of Web services. In general, the proposals use

semantic-based approaches on semantic descriptors

and domain-speciﬁc ontologies. To give some exam-

ples, (Rivera et al., 2011) presents a framework for

building applications targeted to end users who have

no previous technology experience. One of the fea-

tures is the service discovery, which is based on pre

and post-conditions expressed in RDF graph patterns.

It also presents a solution to service execution using

a wrapper ﬁgure. This approach uses a dummy ser-

vice execution in order to match the messages with

domain speciﬁc data and wraps it into an application

widget, which could be used as a common compo-

nent for application modeling. (Lim and Lee, 2010)

presents a sophisticated mechanism to discover and

execute web services using semantic Web service in-

formation described in OWL-S. Different workﬂow

templates are extracted, and then the algorithm selects

the most suitable workﬂow by calculating similarities

between sub-workﬂows. (Adala et al., 2011) uses a

similar Web service discovery mechanism, using NLP

techniques such as word disambiguation. However,

the approach used to match the user natural language

request and their knowledge representation is slightly

different. It uses SUMO (Suggested Upper Merged

Ontology) as a source to calculate the distance be-

tween the user request and the representation.

As could be seen, most of these solutions use

semantic descriptors as an input. We have a great

amount of services lacking semantic descriptors, nor-

mally found by third-party providers or even tradi-

tional Web services published in UDDI directories.

It opens an opportunity for other techniques based on

non-semantic information.

6 CONCLUSIONS

The work proposed in this paper provides an approach

for discovery and execution of Web services. The ap-

proach presented here is both simple and efﬁcient,

particularly in environments with independent Web

services without a proper domain-ontology and se-

mantic annotations describing the service capability.

It presents a discovery mechanism based on expanded

keywords presented in a Web service descriptor and a

fulﬁllment process using natural language. The sen-

tences are provided by and end-user without previous

knowledge about the physical location and structure

of the service. The approach leverages the usage of

several Web services constructed in a bottom-up fash-

ion where only operational descriptors are available.

We are working on improvements of the approach

in order to: (i) allow more sophisticated dialogs, es-

pecially when dealing with complex representation of

input data and (ii) allow more complex scenarios us-

ing composite Web services.

The OMAS platform containing all the machin-

ery for implementing multi-agents and dialogs, and

the corresponding documentation can be downloaded

from http://www.utc.fr/∼barthes/OMAS/

REFERENCES

Adala, A., Tabbane, N., and Tabbane, S. (2011). A frame-

work for automatic Web service discovery based on

semantics and NLP techniques. Advances in Multime-

dia - Special issue on Web Services in Multimedia ,

2011.

Barth

es, J.-P. A. (2011a). Flexible communication based

on linguistic and ontological cues. In E-Technologies:

Transformation in a Connected World, volume 78 of

UsingPersonalAssistantDialogsforAutomaticWebServiceDiscoveryandExecution

197

Lecture Notes in Business Information Processing,

pages 131–145. Springer.

Barth

es, J.-P. A. (2011b). OMAS - a ﬂexible multi-agent

environment for CSCWD. Future Generation Com-

puter Systems, 27(1):78–87.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web. Scientiﬁc American.

Chai, J., Lin, J., Zadrozny, W., Ye, Y., Stys-budzikowska,

M., and Horvath, V. (2001). The role of a natural lan-

guage conversational interface in online sales: A case

study. International Journal of Speech Technology,

4:285–295.

Chen, P., Ding, W., Bowes, C., and Brown, D. (2009).

A fully unsupervised word sense disambiguation

method using dependency knowledge. In Proceedings

of Human Language Technologies: The 2009 Annual

Conference of the North American Chapter of the As-

sociation for Computational Linguistics, NAACL ’09,

pages 28–36. Association for Computational Linguis-

tics.

DARPA PAL Program, D. (2012). Personalized Assis-

tant that Learns. SRI International. Available at

https://pal.sri.com/Plone/framework.

Fielding, R. T. (2000). Architectural Styles and

the Design of Network-based Software Architec-

tures. Doctoral dissertation, University of Califor-

nia, Irvine. Available at http://www.ics.uci.edu/ ﬁeld-

ing/pubs/dissertation/top.htm.

Hahn, U. and Schnattinger, K. (1998). Towards text knowl-

edge engineering. In AAAI ’98/IAAI ’98 Proceed-

ings of the ﬁfteenth national/tenth conference on Ar-

tiﬁcial intelligence/Innovative applications of artiﬁ-

cial intelligence, pages 524–531. American Associa-

tion for Artiﬁcial Intelligence.

Lesk, M. (1986). Automatic sense disambiguation using

machine readable dictionaries: how to tell a pine cone

from an ice cream cone. In Proceedings of the 5th an-

nual international conference on Systems documenta-

tion, SIGDOC ’86, pages 24–26. ACM.

Lim, J. and Lee, K.-H. (2010). Constructing composite Web

services from natural language requests. Web Seman-

tics: Science, Services and Agents on the World Wide

Web, 8(1):1–13.

Miller, G. A. (1995). WordNet: a lexical database for En-

glish. Communications of the ACM, 38(11):39–41.

Navigli, R. and Velardi, P. (2005). Structural semantic in-

terconnections: a knowledge-based approach to word

sense disambiguation. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 27(7):1075–1086.

Negroponte, N. (1996). Being Digital. Knopf Doubleday

Publishing Group.

Rivera, I., Moller, K., Handschuh, S., and Zundorf, A.

(2011). Web service wrapping, discovery and con-

sumption - more power to the end-user. 7th Inter-

national Conference on Web Information Systems and

Technologies (WEBIST 2011).

SAWSDL Working Group, W. (2007). Semantic Annota-

tions for WSDL and XML Schema. W3C Recommen-

dation. Available at http://www.w3.org/TR/sawsdl/.

Simonite, T. (2012). Siri’s new cousin works as a bank

teller. MIT Technology Review - Business Re-

port - The Future of Work. Available at http://

www.technologyreview.com/news/428430/siris-new-

cousin-works-as-a-bank-teller/.

Stark, M. M. and Riesenfeld, R. F. (1998). WordNet: An

electronic lexical database. In Proceedings of 11th

Eurographics Workshop on Rendering. MIT Press.

Tur, G., Stolcke, A., Voss, L., Peters, S., Hakkani-Tur,

D., Dowding, J., Favre, B., Fernandez, R., Frampton,

M., Frandsen, M., Frederickson, C., Graciarena, M.,

Kintzing, D., Leveque, K., Mason, S., Niekrasz, J.,

Purver, M., Riedhammer, K., Shriberg, E., Tien, J.,

Vergyri, D., and Yang, F. (2010). The CALO Meet-

ing Assistant System. Audio, Speech, and Language

Processing, IEEE Transactions on, 18(6):1601–1611.

Vitvar, T., Kopecky, J., Viskova, J., and Fensel, D.

(2008). WSMO-Lite annotations for Web services. In

ESWC’08 Proceedings of the 5th European semantic

web conference on The semantic web: research and

applications, pages 674–689. Springer-Verlag.

Web-Ontology Working Group, W. (2004). OWL-S: Se-

mantic Markup for Web Services. W3C Mem-

ber Submission. Available at http://www.w3.org/

Submission/OWL-S/.

Web Services Description Working Group, W. (2007). Web

Services Description Language (WSDL) Version 2.0

Part 1: Core Language. W3C Recommendation.

Available at http://www.w3.org/TR/wsdl20/.

Weizenbaum, J. (1966). ELIZA - a computer program for

the study of natural language communication between

man and machine. Communications of the ACM,

9(1):36–45.

WS-BPEL Technical Committee, O. (2007). Web Ser-

vices Business Process Execution Language Version

2.0. OASIS Standard. Available at http://docs.oasis-

open.org/wsbpel/2.0/wsbpel-v2.0.pdf.

WSMO Working Group, W. (2005). Web Service Model-

ing Ontology (WSMO). W3C Member Submission.

Available at http://www.w3.org/Submission/WSMO/.

XML Protocol Working Group, W. (2007). SOAP Version

1.2 Part 0: Primer (Second Edition). W3C Rec-

ommendation. Available at http://www.w3.org/TR/

soap12-part0/.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

198
