Taas – Ticketing as a Service

João C. Ferreira

, Porfírio P. Filipe

, Carina Gomes

, Gonçalo Cunha

and João Silva

ADDETC-ISEL, Lisbon, Portugal

Link-SA, Lisbon, Portugal

Keywords: Cloud Computing, Software as a Service, Ticketing, Automatic Fare Collection.

Abstract: The goal of this research work is to introduce the concept of a lower cost and flexible system for transport

ticketing purposes implemented on a cloud platform. We propose therefore the evolution of the traditional

architecture of ticketing system for a cloud based architecture in which the core processes of ticketing are

offered through a Software-as-a-Service (SaaS) business model, which can be subscribed by operators that

pay-per-use. Ticketing device (e.g. gates, validators, ticket vending machines) are integrated in the cloud

environment. This approach is achieved by moving business logic from terminals to the cloud. Each

terminal is registered to be managed by each own operator, configuring a multi-tenant implementation

which is vendor hardware independent, allowing to address elasticity and interoperability issues. The

elasticity of the cloud will support the expansion/implosion of small (transport) operators business around

electronic ticketing. In the near future, this ticketing solution will promote collaboration between transport

operators.

1 INTRODUCTION

In this work we propose the definition of an

architecture that allows the building of common

transportation ticketing services to which devices

can connect using to a simple Plug-and-Play model,

so the cloud automatically recognize and configure a

device to work as ticketing device without the need

for manual configuration.

It will therefore be necessary to define the

architecture of the cloud services, as well as the

characteristics of devices to consume those services.

The goal is to achieve centralization of all business

logic and move device specific logic to the cloud,

consequently reducing the overall system

complexity and the total cost of ownership

associated with the growth and evolution of a

ticketing system.

This change of paradigm will benefits from the

fact that cloud ticketing services can be accessed

through the Internet and they can be elastically

grown or shrunk, providing easier scalability and

high availability.

Thus the entire application logic can be

consolidated and centrally implemented on open and

secure protocols, making the device simple

frontends benefiting from being online with the

central ticketing system to offer value-added

features on lower capacity devices.

This will also impact the suppliers of traditional

ticketing devices allowing the growth of lightweight

devices with smaller memory capacity or power

processing or increase the adoption of other type of

devices types, such as, tablets or smart phones to

accomplish the same tasks.

In the aviation industry there are already systems

for seat reservations and ticketing to be offered "as a

service" for several airlines, often at a cost of only

pennies per ticket (GAO, 2003). In fact, very few

low cost operators manage and maintain its own

ticketing system because SaaS options available in

the market do it more efficiently and at a lower cost.

Having lightweight devices connecting to the

business logic on the cloud are also have the

following advantages:

 Consolidated logic with easier maintenance and

lower IT costs;

 Improved physical security (avoid secure elements

distribution and logistics);

 Enable functionality by subscription for devices;

 Support offline and online operation models over

the same infrastructure;

 Reduced complexity for supporting new devices

and new ticketing media, by using open

C. Ferreira J., P. Filipe P., Gomes C., Cunha G. and Silva J..

Taas – Ticketing as a Service.

DOI: 10.5220/0004356000770082

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 77-82

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

interoperable protocols.

This paper was written within the scope of the

“SmartCITIES Cloud Ticketing” project, which is

focused on designing an interoperable, cost-efficient,

multi-supplier, cloud based ticketing solution, where

transport operators and authorities may opt in and

out when they need to. This project brings together

two complementary sets of experiences: the

engineering experience applied to ticketing solutions

of Link Consulting (http://www.link.pt/smartcities)

and the computer science and research experience of

ISEL – Instituto Superior de Engenharia de Lisboa

(http://www.isel.pt), which lays out the path to a

solid foundation of a cloud ticketing solution.

2 ELECTRONIC TICKETING

An electronic ticketing system is designed to enable

fare collection in a simple, secure and efficient way.

In the public transport operators market, electronic

ticketing is associated with a trip or set of trips of a

transportation service. A survey of electronic

ticketing system can be found at (Mut-Puigserver et

al., 2012) and (Vilanova et al., 2002).

The customer obtains an electronic ticket

medium (smart card, mobile device ticket) which is

the storage location for electronic tickets. When a

ticket is sold by one operator, the sale is registered in

the ticket medium and validated before use [TCRP,

2006]. In connection with the sale and use of tickets,

electronic information is stored and processed for

the purpose of producing: (1) Billing data are used in

the sharing of ticket revenues among the various

operators involved in the ticketing system; (2)

Revenue data; and (3) Statistics (about the sale and

use of tickets).

An electronic ticketing system may also

incorporate a number of other functions: (1) Ticket

inspection function; (2) Internet services (for

example online sales of tickets); (3) ticket vending

machine; and (4) entrance/exit ticket validation

machines. This operation is performed at front end

system (entrance and exit ports) with dedicated

equipment solution using a private dedicated

network.

A ticketing system operation is based on one

token issuing entity (issuer), a set of users, tokens,

and verifiers who verify whether tokens are valid,

performed in a dedicated solution using a private

network to deal with security and privacy issues.

Typically, a user U must buy a token from token

issuer I. Therefore, U selects his desired ticket and

pays it. Issuer I then checks whether U is eligible to

obtain a token (e.g., whether U paid for the ticket),

and, if applicable, issues a token T and passes it to

U. From now on, U is able to use token T to prove

that he is authorized to use the transit network. This

means that every user who is in possession of a

token that has been issued by a genuine issuer is

considered to be an authorized user. If a user U

wants to travel from a place X to some location Y .

Before U is allowed to enter the transit system at X,

he must first prove to a verifier Vin at the entrance

of the transit network that he is authorized to access

it. If Vin can successfully verify the user’s token, U

is allowed to enter. Otherwise access will be denied.

During his trip, U may encounter arbitrary

inspections where he must prove that he is

authorized to use the public transport network. Thus,

a controller C may check the user’s token T. If

verification of T is successful, U is allowed to

continue his trip. Otherwise, U must leave the

transport network and may be fined for using it

without authorization. After arriving at Y , the user’s

token T can be checked for a last time. Again, if T

cannot be verified successfully, U may be fined.

Note that the token is typically bound to some

limitations. For instance, it may be bound to some

geographical or temporal usage restrictions.

Additionally, a token may be bound to the identity

of its owner (i.e., the entity that bought the ticket).

Most of these ticketing systems are based on

proprietary solutions that include devices and a

central system to handle all related operations.

3 CLOUD TICKETING

The vision of present proposal is illustrated on Figure

1, where a set of dedicated services are available in

an SaaS approach and front end devices (e.g.

validators, ticket vending machines, gates and others)

‘migrate’ from an integrated fat device to a flexible

and modular thin device with all or part of business

process logic executed remote in a SaaS approach.

The idea is to interact with several equipment

interfaces and integrate related business process in a

SaaS approach. The proposed idea for a ticketing

system on the cloud can be simply described as a set

of standard based services on the cloud to perform a

specific business function (e.g., card issuing, ticket

sale). These services are available through a

communication protocol that is common to all

registered devices. When front end devices first

announce themselves to the cloud services, they

identify themselves, as well as the tenant they belong

to and automatically download the relevant software

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

and configurations for the functions assigned to

them. After the registration occurs, the device is able

to interact with the cloud services, for instance a

tablet computer connects to the cloud provisioning

service, authenticates itself, and automatically

downloads the ticket sales software. Afterwards is

allowed to start selling tickets to customers.

Figure 1: Vision of current proposal for electronic ticketing

system development.

The proposed architecture is composed of the

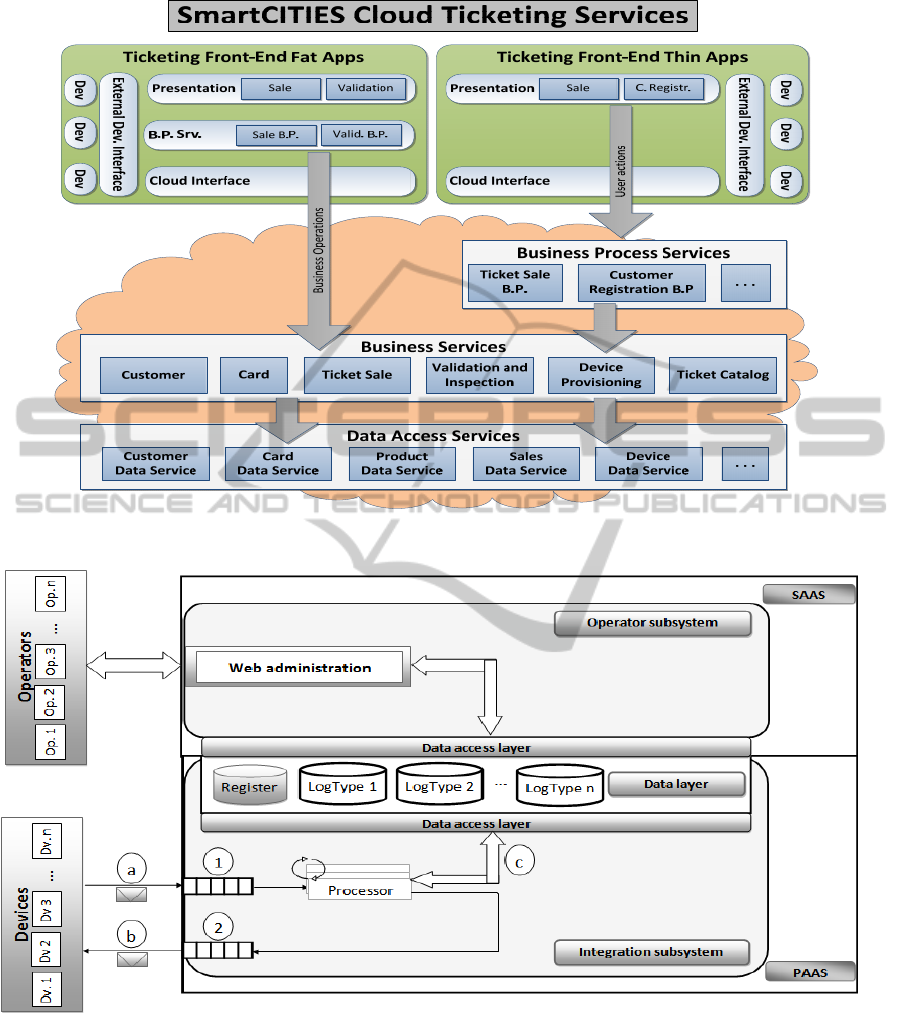

following layers of services (see Figure 2):

 Data Access Services – internal services to access

business data (customers, cards, sales, validations,

etc);

 Business Services – cloud exposed services to

implement business operations like registering a

new customer, authorizing a ticket sale for a

specific customer, or consulting a catalog of tickets

available to the specific card;

 Business Process Services – services that

coordinate among multiple business services to

implement specific use cases, e.g., ticket sale use

case, which generally involves: (1) reading the

card; (2) browse the ticket catalog for available

products; (3) choose the ticket to buy; (4) pay; (5)

load the card; and (6) confirm and register the sale.

The output of this service the information to

present to the user on the screen, as well as

available operations. The inputs of the service are

the actions performed by the user.

The Data Access Services Layer is a lower level

internal layer, used to abstract the access to the data

provider. The Business Services Layer should

implement the service business logic of the overall

system, including data validations, user

authorization, accounting algorithms and data

correlation. Here we highlight the proposed cloud

services on the Business Services Layer: (1)

Customer Service; (2) Card Service; (3) Ticket Sale

Service; (4) Validation and Inspection Service; (5)

Device Provisioning Service; and (6) Ticket Catalog

Service.

To implement a full ticketing system multiple

use cases have to be considered, here we highlight

only a few of them, which are included on the

Process Coordination Services Layer: (1) Ticket

Sale Business Process Service; (2) Customer

Registration Business Process Service; (3) Card

Renewal Business Process Service; and (4) Card

Cancellation Business Process Service.

To complement the exposed cloud services, there

is also a range of backoffice applications, to manage

the system as a whole (e.g., CRM, Product Catalog

Management, Reporting, Device Management, etc).

The proposed architecture is designed to support

two different sets of front-end devices on the

customer side: The ones with lower processing

capacity but are always online; the other that at some

point in time need to work offline but have higher

processing capacity. The first set of devices has what

we call “thin apps” the second set has the “fat apps”.

Thin apps know nothing about business logic and

only have presentation logic built-in. They receive

the screens to be displayed and send back

commands. All process coordination logic, as well

as business logic is located on the cloud. Every

operation must be made with an online connection to

the cloud services on the Business Process Services

Layer.

A generic workflow of a thin app performing and

action with a cloud service, where we highlight a

few points: (1) The thin app interacts with one

business process service, which coordinates multiple

business services; (2) The thin app receives

presentation information and sends back commands;

(3) Every app interaction communicates with the

cloud; and (4) When a use case ends, the app sends

an action which generates a confirm operation (e.g.,

ticket sale confirmation). The confirm operation

commits the information to a persistent storage.

On the other hand, fat apps are for example PCs,

tablet computers or even POS and typically have the

process coordination logic installed locally and some

offline data to enable offline usage. In ticketing

applications they are still required for some use

cases, where short timing requirements exist and

offline capability is a must, for instance a validation

device on a bus. In this example, there may parts of

the bus route where it does not have network

coverage and the timing requirement from the

moment the user puts the cards on the validator to

Taas-TicketingasaService

Figure 2: Cloud Ticketing Architecture.

Figure 3: Architecture for Device Integration.

the moment his access is approved should be

typically bellow 300ms (Smart, 2006).

A generic workflow of fat apps, the general case

is to have the process coordination logic installed on

the device, with interactions local to the device (e.g.,

ticket validation), and at the end of the operation the

cloud service is informed of the operation result.

Below is a generic workflow of the interactions,

with the following highlights: (1) The fat app

performs every interaction locally (possibly using

cached reference data); and (2) The fat app

periodically sends the confirm operations to the

cloud service (e.g., ticket validations). These

confirm operations commit the information to

persistent storage.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

4 CLOUD INTEGRATION

The proposed architecture for integrating ticketing

devices in a cloud computing platform is depicted in

Figure 3. The integration protocol admits that part of

the logic of each device runs in the cloud platform.

Figure 3 shows in the periphery, two sets of entities:

operators and devices.

The operator manipulates the historical data of

the device and the respective configuration accessed

via the data layer by an administration cloud

application. The operation of the subsystem

comprises a multi-tenant feature, which interacts

with the data layer. The device activation can be

made by its owner/operator, using the application,

where is selected previously defined device’s type

and returned the device’s unique identifier. The

application's main responsibilities are to setup,

access to the register operation and activation /

deactivation of device.

A request / response protocol allows the device

(e.g. ticket validator or sale operation) to call remote

operations hosted in the cloud. The data manipulated

by the devices flows across queues "1" (input for

request) and "2" (output for response). Within the

integration subsystem, instances of processors

handle messages from queue "1", to dynamically

instantiate the type of device and perform the

requested operation indicated in the message.

The session context associated with the

maintenance status of the device is dependent on

their type. Objects, that store configuration and

historical data of the interactions, are managed in a

data layer. To ensure load balancing and isolation of

data, the history of each type of equipment is stored

in isolated data object, called a "LogType n" where

"n" represents the type of device. The configurations

are stored in a data object, referred as "Register".

The quantity of entries in this object coincides with

the quantity of integrated devices.

Is interesting to note, for sending the requests

made by the device there is only one message.

Instances of processors read the messages and

validate its format. Validation consists in

confronting the XML document, which represents

the message, with appropriate XML Schema

Definition (XSD). If one assumes that the message is

malformed, relevant information is added to the

history and the processing of the current request is

finished. Subsequently, the processor accesses data

the session handling information specific to a

particular type of device. With the information

received, it is checked if the device has been

previously registered and is in active state. If any of

the validation is unsuccessful, the history is updated

and the processing of the current request is finished.

In the next phase, the processor checks whether the

request corresponds to the first message from the

device designated by check message. If so, the

processor creates the queue "2" for response

messages and sends through this queue a message

notifying that the cloud component of the device is

ready to be used. Given the information present in

the device’s configuration, the message parameters

lead the processor to dynamically instantiate the

processing of its contents in accordance with the

identifier of the requested operation. After the

instantiation and execution of the operation, in the

context of the current session, the log history is

updated. Finally, the processor sends a message to

the queue "2", with the result of the operation, the

device that was blocked (interaction “b”) receives

the message. For details of the common message

model for messages exchanged in interaction "a" and

"b" and for the definitions of the validation rules for

messages and data objects are described and a

Windows Azure Demonstrator, see (Gomes, 2012).

5 TICKETING AS A SERVICE

Taking into account a small transport operator, that

wants to implement an electronic ticketing system.

Our approach for the system development involves

three main actors the cloud provider, the transport

operator and the technological partner. The Cloud

Provider gives three levels of cloud services: SaaS,

PaaS e IaaS. In our concept demonstrator, we use

Microsoft Windows Azure (WA) platform.

The Technological Partner (TP) is responsible for

developing and maintaining the ticketing system, and

creating a set of services to enable a personalized

business process for the transport operator. From this

modular approach TP can use previous developed

services to implement the required system able to

support the business and the front end device can also

be provisioning and using past developed projects.

The current proposal is oriented for a SaaS approach,

but with more work development can be

implemented in a PaaS or even used in dedicated

solution. A complete description is available on

(Gomes, 2012), where two devices were integrated in

the cloud using resources of cloud provider (e.g.

processors, message queues). The operator buys the

front-end devices (e.g., gates and validators) that are

account the device provision procedure. At this point

Taas-TicketingasaService

we are exploring a novel approach integrating an

Android device.

In order to support multi-tenancy on the cloud

services it is important to consider that multiple

operators may be organized in a common

metropolitan area, having some (not all) common

customers, smartcards and multi-modal tickets

(Globalplatform´s, 2009). In these cases, it is

important to have a consolidated view of common

business information (customer, cards, sales,

validations, etc) by all operators to enable revenue

distribution. With this scenario in mind, we propose

a hierarchy of tenants with multiple roots (see Figure

4). Each root is a transport area with multiple

operators where some parts of the business

information (customers, cards, etc) are common to

several operators. The hierarchy of tenants has the

following rules: (1) Lower level tenants (operators)

can view information about their private customers,

as well as business information common to the

metropolitan area; (2) Upper level tenants can read

and consolidate common business information to the

lower level tenants (e.g., customers, cards, sales and

validations); and (3) Upper level tenant may not see

information about private customers, and

sales/validations of private tickets.

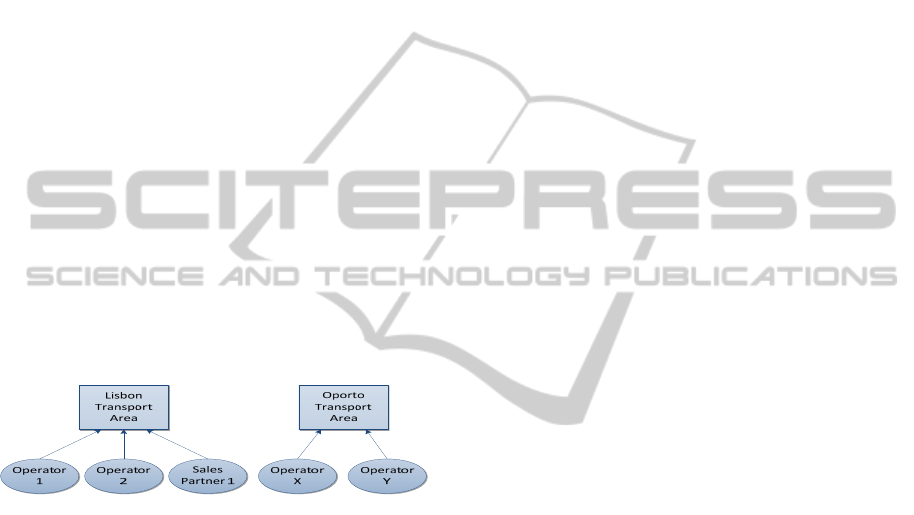

Figure 4: Sample hierarchical structure of tenants.

Here we discuss the option of having a shared

database or separate database/schema

implementation of multi-tenancy. The main

concerns on this decision were privacy, security and

extensibility. It is necessary to avoid risks of having

one operator see information about other operators

(they may be competitors). On the other hand it is

very common for an operator to require

customizations specific to its business. Therefore we

have chosen to have a separate database approach.

With the requirement of having a hierarchy of

tenants, using a separate database approach, has an

additional challenge – how to consolidate common

business information (e.g., sales of multi-modal

tickets) on the upper levels, which is generated at the

lower levels? The answer is to have the lower levels

ship the common business information to the upper

levels, where it is consolidated and becomes its

master repository. Private information on the lower

levels is never shipped.

6 CONCLUSIONS

The proposed system uses a novel approach based

on SaaS approach for the development of

personalized ticketing software. This project started

12 months ago in a synergy between the technology

company Link Consulting (www.link.pt), with 10

years of experience in ticketing business and

researchers in computer science at ISEL

(www.isel.pt) a polytechnic institute in Lisbon.

Starting from the initial kickoff meeting several

Masters thesis are running: (1) network security,

where we study the privacy and security problems of

moving business logic from terminals to the cloud;

(2) Cloud Computing projects, where we are

developing the concept for different cloud platforms

as well the implementation of a set of services

regarding the complete ticketing process; and (3) the

thin devices are being developed for the Android

platform, where ticket selling and validation

processes are also under development.

The architecture described in this paper shows

how devices may communicate with cloud services

to enable a business process and a general overview

of our vision for the development of electronic

ticketing system in a modular service approach

available in the Cloud.

REFERENCES

Carina Gomes (2012). Estudo do Paradigma Computação

em Nuvem. Master project. at ISEL, (in Portuguese).

GAO (2003). AIRLINE TICKETING - Impact of Changes

in the Airline Ticket Distribution Industry, available at

http://www.gao.gov/assets/240/239237.pdf.

GlobalPlatform’s Value Proposition for the Public

Transportation Industry (2009). Seamless, Secure

Travel Throughout Multiple Transportation Networks.

http://www.globalplatform.org/documents/whitepaper

s/GP_Value_Proposition_for_Public_Transportation_

whitepaper.pdf.

Macià Mut-Puigserver, M. Magdalena Payeras-Capellà,

Josep-Lluís Ferrer-Gomila, Arnau Vives-Guasch,

Jordi Castellà-Roca (2012), A survey of electronic

ticketing applied to transport, Computers & Security,

Volume 31, Issue 8, November 2012, Pages 925-939.

Smart Card Alliance (2006). Transit and Contactless

Financial Payments: New Opportunities for

Collaboration and Convergence.

TCRP Report 115 (2006). Smartcard Interoperability

Issues for the Transit Industry, Transit Cooperative

Research Program.

Eugenia V. Vilanova, R. Endsuleit , J. Calmet, I. Bericht

(2002). State of the Art in Electronic Ticketing.

Universität Karlsruhe, Fakultät für Informatik.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience
