DAG – Index

A Compressed Index for XML Keyword Search

Stefan Böttcher, Marc Brandenburg and Rita Hartel

University of Paderborn, Computer Science, Fürstenallee 11, D-33102 Paderborn, Germany

Keywords: Keyword Search, XML, XML Compression, DAG.

Abstract: With the Growing Size of Publicly Available XML Document Collections, Fast Keyword Search Becomes

Increasingly Important. We Present DAG-Index, a New Indexing and Keyword Search Technique That Is

Suitable for DAG-Compressed Data and Has the Advantage That Common Sub-Trees Have to Be Searched

Only Once.

1 INTRODUCTION

Motivation: Nowadays, an increasing amount of

data in the web is available in form of XML docu-

ments. While query languages for XML data are

powerful search tools for expert users, the non-ex-

pert users who just want to retrieve information

related to some given keywords do not have the

technical knowledge to write these search queries.

Therefore, for these users which are the great major-

ity of users, there exists a great demand for efficient

keyword search for XML data, where a user can

write its query as a list of keywords expressing his

search query – similar as the user is used to do this,

when he uses a search engine within the internet.

Contributions: Our paper presents DAG-Index,

an approach to efficient keyword search within

XML data that is based on a compressed keyword

index. Prior to building of the index, DAG-Index

transforms the document into a DAG (directed

acyclic graph) which removes redundant sub-trees

from the document. DAG-Index uses proxy nodes

for searching repetitive sub-trees only once, if all the

searched keywords are found in the sub-tree.

Goal of XML Keyword Search: Keyword

search is known to many users e.g. in form of an

internet search engine. The user provides a list of

keywords, and the search engine returns a list of

documents containing these keywords.

Similar to the idea of traditional keyword search

is the idea of keyword search for XML data. The

user provides a list of keywords and gets all minimal

sub-trees of the document that contain all keywords.

A sub-tree is minimal w.r.t. a set of keywords, if

it contains all keywords, but does not contain a

smaller sub-tree that also contains all keywords.

This Paper’s Example: The example used in

this paper is a fragment of an XML document of a

university database. Our example contains infor-

mation about a student named “Alice” with ID

“1234” and a lecture with name “Arts” of which

“Alice” is a participant.

Fig. 1 shows the binary XML tree of this docu-

ment. The numbers in parentheses represent the

preorder number of each node.

A user might ask for all minimal sub-trees

containing the keywords (“name”, “1234”) in order

to retrieve the name of the student with id “1234".

The document contains several combinations of

nodes with labels “name” and “1234”, namely (4,7),

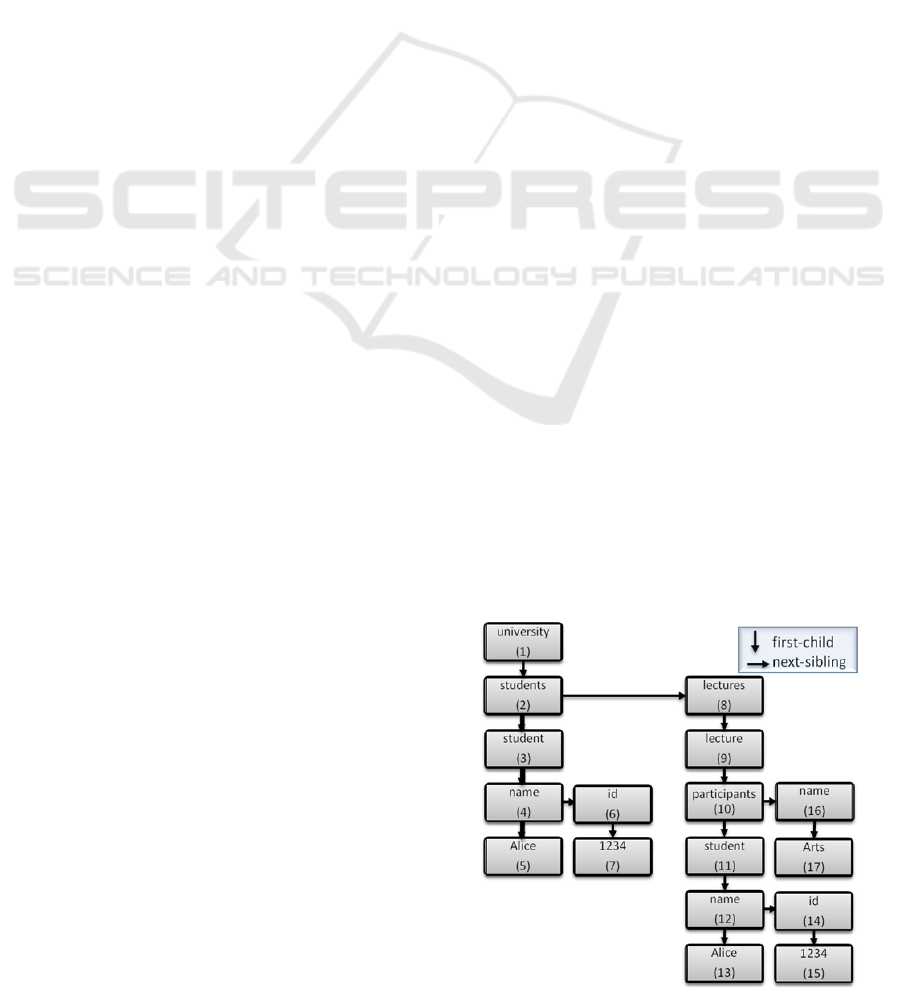

Figure 1: University Example as binary XML tree.

137

Böttcher S., Brandenburg M. and Hartel R..

DAG – Index - A Compressed Index for XML Keyword Search.

DOI: 10.5220/0004364101370140

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 137-140

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

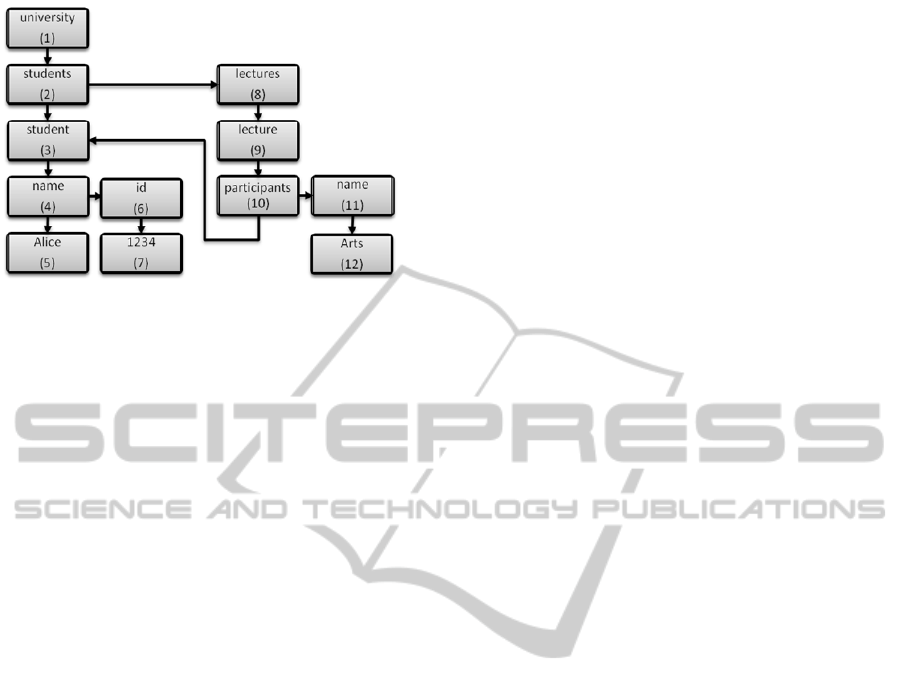

Figure 2: DAG of the example shown in Figure 1.

(4,15), (12,7), (12,15), (16,7), and (16,15). But

intuitively, only the combinations (4,7) and (12,15)

returning the sub-trees with roots 3 and 11 are

results expected by the user. Therefore, besides the

requirement to each result sub-tree that it must

contain all keywords, an additional requirement is

that a minimal result sub-tree must not contain

another result sub-tree. This property is called the

“shortest lowest common ancestor (SLCA)”. As e.g.

the combination (16,15) with root node 10 contains

the result with root 12, the result 10 is not consid-

ered as a solution.

2 XML KEYWORD SEARCH

ON AN UNCOMPRESSED

INDEX

Our paper follows the idea of anchor-based keyword

search as presented in (Sun, Chan, & Goenka, 2007).

The approach is based on inverted lists that store

for each keyword a list of references to the

document nodes with the keyword as node label.

Step 1: Chose an Anchor. Initially chose that

node n as an anchor that occurs last in document

order from all the first nodes of the inverted element

lists L

of the keyword w

If we consider a keyword search for w

=“name”

and w

=“1234”, we get the following two inverted

element lists: L

= (4,12,16) and L

= (7,15). There-

fore, we chose the node n=7 with label “1234” as

initial anchor.

Step 2: Compute the SLCA Candidates. Let L

be the inverted element list containing the anchor n.

We compute an SLCA candidate for a list M contai-

ning all nodes v

of each list L

that are closest to n.

For this purpose, in each inverted element list L

≠ L

of keyword w

, we chose first that v

that is the

last node in L

that precedes n as current node. The

node n and all these nodes v

form the initial list M

containing the match being currently regarded.

Considering our example, M = { 4,7 } .

Next, we repetitively check, whether the first

node v

of the list M belonging also to the list L

could be replaced by a node v

’ of L

following n in

document order and being closer to n. As long as we

find such a node v

’, we substitute v

by v

’, until no

replacement is possible anymore.

If we have checked for all nodes of the list M

whether or not they could be replaced by a node

closer to the anchor, the lowest common ancestor of

the set M is a result candidate. A node v1 is a lowest

common ancestor of M, lca(M), if v1 is a common

ancestor of all nodes in S and there is no common

ancestor v2V of S with v1 isanancestorofv2.

In our example, we check whether v

=4 could be

replaced by the node v

’=12. As 12 is not closer to 7

as 4, we do not replace 4 by 12. 4, the lca({4,7})

becomes a result candidate.

Furthermore, whenever replacing a node v

’, we have to chose v

’ as the next anchor if the

following holds: For each keyword w

(i≠j), there

exists a node that occurs after the old anchor n and

before v

’ in document order.

Whenever we have computed a result candidate,

we form a new set M’ that contains for each inverted

element list L

the node v

’ following v

€ M in L

We chose the element of M’ that comes last in

document order as new anchor and proceed with

Step 2, until we have reached the end of the

document.

Step 3: Compute the Result set from the Set C

of candidates. Finally, we remove all nodes ca  C

from the set of candidates C for which a node cdC

exists such that ca is an ancestor of cd. All

remaining nodes form the result set R.

In our example, the final result set consists of the

nodes 4 and 12.

3 XML KEYWORD SEARCH

BASED ON A DAG-INDEX

While redundancies are avoided in relational

databases, they are nearly unavoidable for XML data

and occur, e.g., if the data modelled contains many-

to-many relationships. Such redundancies are

typically removed by DAG compression, where a

repetitive occurrence of a sub-tree is replaced by a

pointer to the first occurrence. Fig. 2 shows the

DAG of the example document shown in Fig. 1.

Instead of computing the inverted elements lists

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

138

for each keyword k

based on the XML document,

we compute the keyword list based on the com-

pressed DAG of the XML document. Besides

keeping the index small, our goal of using DAG

compression is to search shared sub-trees only once

and thereby to achieve a faster search speed.

3.1 Compressed Index

Prior to computing the index, we transform the XML

document into its minimal DAG by replacing each

repeated occurrence of a sub-tree with a pointer to

the sub-tree’s first occurrence.

Similarly as for the uncompressed index, our

compressed index consists of inverted element lists

for each potential keyword k

that occurs as an

element label or as a text node within the DAG. We

do a bottom-up search for DAG nodes with multiple

incoming edges and split the DAG into multiple sub-

DAGs as follows: Whenever a node v of the DAG D

has more than one incoming edge, i.e., v has the

incoming edges ev

, …, ev

, we remove v from D

and start a new sub-DAG Dv, where Dv is a copy of

D with all nodes not being a descendant-or-self of v

in D being removed from Dv and with all dangling

edges being removed, such that v is the root node of

Dv. Let Lv be the set of labels occurring in Dv. Each

edge ev

gets a new (virtual) target node p

, called

proxy node of v, and for each k

 Lv, p

is added to

the inverted element list L

representing all the oc-

currences of keyword k

in D.

Additionally, the information that v

is a proxy

node for v is stored in a table of proxy references

where each node v

has a reference to the root node v

of Dv.

Fig. 3 shows the document of our example where

the DAG is split into two DAGs connected by the

proxy nodes p1 and p2 (represented by white

rectangles) and their references to the second DAG’s

root node (1’).

3.2 Keyword Search on the compressed

Index

Keyword search on the compressed index works

similar to keyword search on the uncompressed

index, with the following differences: Due to the

introduction of proxy nodes that represent multiple

keywords occurring in a sub-DAG, the same proxy

node-ID may occur in multiple inverted element

lists, and the same proxy node-ID may occur

multiple times within the currently considered list M

of actual nodes. Whenever during the computation

of M, all elements of M contain the same proxy node

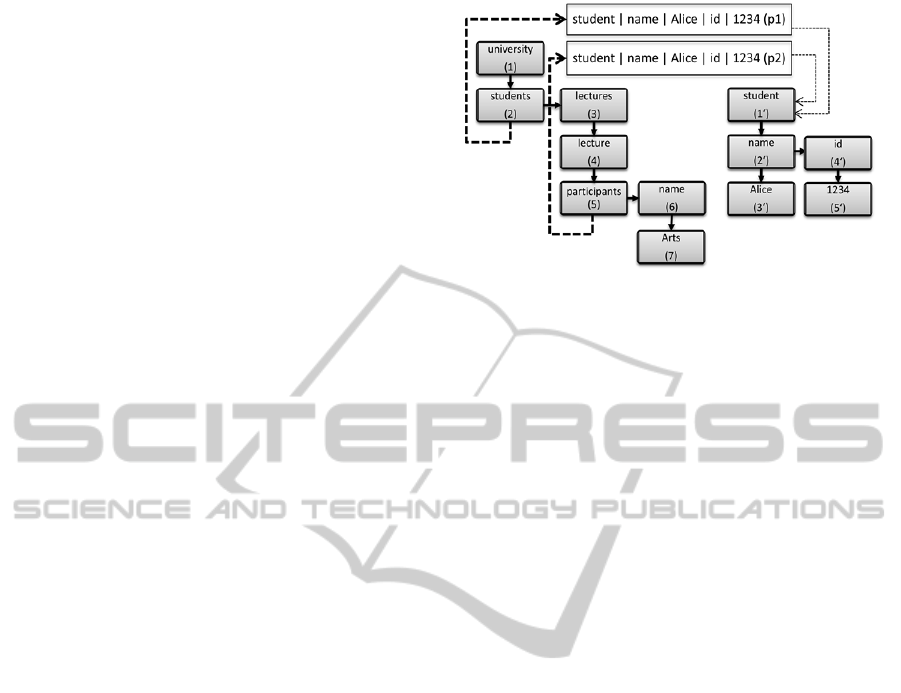

Figure 3: Document showing 2 DAGs and proxy nodes.

, where v

refers to the root node v of a sub-DAG

Dv, the complete match is contained in Dv or in a

sub-DAG of Dv. In this case, first, we remove a

possible SLCA candidate C in D, second, if C ≤

we perform the keyword search in Dv, and third, we

start a new keyword search within D with a new

anchor among the nodes after v

, i.e., we continue

after we have increased the pointer positions in all

inverted keyword lists of D to next(v

). In this case,

we have the advantage of computing the SLCAs

within Dv only once for all shared sub-trees repre-

sented by Dv. Whenever this optimization is possi-

ble, we yield a faster search compared to computing

all these solutions individually.

In the example of Fig. 3, the first anchor node is

the proxy node p1 and v

is the same proxy node p1.

As all nodes in M represent the same proxy node p1,

we recursively start a new search at the node (1’)

referred to by p1, i.e., inside the second DAG.

Within this DAG, we find that the node with

preorder position (2’) is a SLCA. Later, the second

anchor node found in first DAG is the proxy node p2

and a corresponding node v

is the same proxy node

p2. As p2 also refers to node (1’) which now has

already been investigated, no new search starting in

(1’) is required. Thereby, we have dynamic

programming to compute the SLCAs for both shared

sub-trees in parallel – whereas, within the non-

compressed XML tree index, we had to compute the

results in both sub-trees sequentially.

4 RELATED WORKS

There exist several approaches that address the

problem of keyword search in XML. On the one

hand, there are approaches that examine the

semantics of the queries to achieve query results of

higher relevance (Guo et al., 2003), (Petkova et al.,

2009), and (Li et al., 2010).

DAG-Index-ACompressedIndexforXMLKeywordSearch

139

On the other hand, there are approaches that con-

centrate on a higher performance for the computa-

tion of the set of query results.

Early approaches were computing the LCA for a

set of given keywords on the fly (Schmidt et al.,

2001). Recent approaches try to enhance the query

performance by using a pre-computed index. The

approach (Florescu et al., 2000) is based on storing

the inverted element lists within a relational

database.

(Li et al., 2004) present an approach based on

computing the MLCA with the help of XQuery

operations and a second approach that, similar as

XKSearch (Xu and Papakonstantinou, 2005),

processes the document bottom-up in order to

compute the index and store all nodes not yet com-

pletely parsed on a stack. Whenever a node is found

as result, all its ancestors are removed from the

stack, as they cannot form a result anymore.

JDeweyJoin (Chen and Papakonstantinou, 2010)

returns the top-k most relevant results. They com-

pute the results bottom-up based on a kind of join on

the lists of DeweyIDs of the nodes in the inverted

element lists. They sort the list entries according to a

weight function and stop the computation after k

results, returning the top-k most relevant results.

(Zhou et al., 2012) present an approach that en-

riches the inverted element lists by all ancestor-

nodes of the nodes with the keyword as label. There-

fore, they can compute the SLCAs by intersecting

the inverted element lists with the list of keywords

and by finally removing each result candidate, the

descendant of which is another result candidate.

Our paper focuses on efficient result computa-

tion. It follows the anchor-based approach as it was

presented in (Sun et al., 2007). However, different

from all other contributions, instead of computing an

XML-index, we compute a DAG-Index. This

enables us to compute several keyword search

results in parallel, and thereby speeds-up the SLCA

computation. To the best of our knowledge, DAG-

Index is the first approach that improves keyword

search by using XML compression before comput-

ing the search index.

5 SUMMARY

AND CONCLUSIONS

Keyword search is of increasing interest for search-

ing relevant data within large XML document col-

lections, especially for the huge majority of non-

expert users. Due to the increasing amount of pub-

licly available data in the XML format, there is an

increasing interest in fast keyword search tech-

niques. We have presented DAG-Index, an indexing

and keyword search strategy for large XML docu-

ments that allows compressing an XML tree and the

search index in such a way that common sub-trees

have to be indexed only once. As a consequence, a

repeated keyword search within a repeated sub-tree

can be avoided. We consider our DAG-Index-based

keyword search to be a significant contribution to

improve the search performance especially for the

majority of the non-expert users.

REFERENCES

Chen, L. J., & Papakonstantinou, Y. (2010). Supporting

top-K keyword search in XML databases. Proceedings

of the 26th International Conference on Data

Engineering. Long Beach, CA, USA.

Florescu, D., Kossmann, D., & Manolescu, I. (2000).

Integrating keyword search into XML query

processing. Computer Networks , 33.

Guo, L., Shao, F., Botev, C., & Shanmugasundaram, J.

(2003). XRANK: Ranked Keyword Search over XML

Documents. Proceedings of the 2003 ACM SIGMOD

International Conference on Management of Data.

San Diego, California, USA.

Li, J., Liu, C., Zhou, R., & Wang, W. (2010). Suggestion

of promising result types for XML keyword search.

13th International Conference on Extending Database

Technology. Lausanne, Switzerland.

Li, Y., Yu, C., & Jagadish, H. V. (2004). Schema-Free

XQuery. (e)Proceedings of the Thirtieth International

Conference on Very Large Data Bases. Toronto,

Canada.

Petkova, D., Croft, W. B., & Diao, Y. (2009). Refining

Keyword Queries for XML Retrieval by Combining

Content and Structure. Advances in Information

Retrieval, 31th European Conference on IR Research.

Toulouse, France.

Schmidt, A., Kersten, M. L., & Windhouwer, M. (2001).

Querying XML Documents Made Easy: Nearest

Concept Queries. Proceedings of the 17th

International Conference on Data Engineering.

Heidelberg, Germany.

Sun, C., Chan, C. Y., & Goenka, A. K. (2007). Multiway

SLCA-based keyword search in XML data.

Proceedings of the 16th International Conference on

World Wide Web. Banff, Alberta, Canada.

Xu, Y., & Papakonstantinou, Y. (2005). Efficient

Keyword Search for Smallest LCAs in XML

Databases. Proceedings of the ACM SIGMOD

International Conference on Management of Data.

Baltimore, Maryland, USA.

Zhou, J., Bao, Z., Wang, W., Ling, T. W., Chen, Z., Lin,

X., et al. (2012). Fast SLCA and ELCA Computation

for XML Keyword Queries Based on Set Intersection.

IEEE 28th International Conference on Data

Engineering. Washington, DC, USA.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

140
