Multi-Cloud Governance Service based on Model Driven

Policy Generation

Juan Li, Wendpanga Francis Ouedraogo and Frédérique Biennier

Université de Lyon, CNRS INSA-Lyon, LIRIS UMR 5205, 20 Avenue Albert Einstein,

F-69621 Villeurbanne cedex, France

Keywords: Multi-Cloud Governance, Policy Generation, Model Driven Engineering, NFP Management, Security.

Abstract: Cloud computing is an innovative and promising paradigm that is leading to remarkable changes in the way

we manage our business. Cloud computing can provide scalable IT infrastructure, QoS-assured services and

customizable computing environment. Such scalable and agile environment increases the call for agile and

dynamic deployment and governance environments over multi-cloud infrastructure. Unfortunately, by now,

governance and Non Functional Properties (such as security, QoS…) are managed in a static way, limiting

the global benefits of deploying service-based information system over multi-cloud environments. To

overcome this limit, we propose a contextualised policy generation process to allow both an agile

management NFP in a multi-cloud context and a secured deployment of the service-based information

system. Thanks to the generation of these NFP policies, NFP management functions can be orchestrated at

runtime so that the exact execution context can be taken into account.

1 INTRODUCTION

Cloud computing is transforming the way

enterprises purchase and manage computing

resources (Gartner, 2012), increasing corporate

information System robustness and scalability

thanks to multi-cloud implementation strategy.

Moreover, this multi-cloud re-organisation also fits

the collaborative business stake as collaborative

business processes are distributed among different

IS and clouds. According to a “cloud provider

vision”, this multi-cloud strategy leads to different

challenges such as the ability to automatically

provision services, effectively manage workload

segmentation and portability (i.e., seamless

movement of workloads across many platforms and

clouds), and manage virtual service instances, while

optimizing use of the resources and accelerating the

deployment of new services (DMTF, 2009). These

challenges increase the call for a common cloud

service reference architecture, enabling cloud

portability and cloud service governance.

As far as the “cloud consumer” vision is

concerned, the (multi-)cloud strategy adoption

increases the call for developping agile and secured

deployment means so that the target cloud

characteristics can be taken into account in a

transparent way.

Several works (presented in the related works

section) cope partly with these agile and secured

deployment and governance challenges: some of

them are related to the “technical” side of the multi-

cloud system (such as QoS management,

middcleware improving cloud portability,…)

without taking into account the way business

requirements can be integrated to adjust the

deployment (this may lead to set more protection or

resources than really needed) whereas others are

mostly “Business” oriented i.e. defining high-level

requirements to secure and govern the business

processes without integrating dynamic knowledge

related to the target (multi-)cloud.

To overcome these limits, we propose to federate

the business and cloud vision in a single model-

driven approach to generate security and governance

policies (section 3). These policies are turned in a

“model at runtime” organisation and and are used to

orchestrate conveniently the required security or

governance services at runtime. Lastly a use case is

presented (section 4).

165

Li J., Francis Ouedraogo W. and Biennier F..

Multi-Cloud Governance Service based on Model Driven Policy Generation.

DOI: 10.5220/0004365001650174

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 165-174

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 STATE OF THE ART

In this paper we adopt the NIST definition of Cloud

computing which is a model for enabling

convenient, on-demand network access to a shared

pool of configurable computing resources (e.g.,

networks, servers, storage, applications, and

services) that can be rapidly provisioned and

released with minimal management effort or service

provider interaction (Mell, 2011). To tune the

deployment process depending on the cloud

characteristics, one can use the 2-dimension

typology introduced by (Zhang, 2010):

- The Service Dimension (which refers to the

common XaaS vision) is used to split the cloud

offer into 4 layers (hardware/ data center

Infrastructure as a service layer, Platform as a

Service layer and Application / Software as a

Service layer) that may even be “enriched” with a

Business Process as a Service layer.

- The Deployment Model Dimension which

depends on who owns and who uses the cloud

resources. This dimension leads to classify cloud

resources in 4 categories: Public clouds, Private

clouds, Community clouds and Hybrid clouds

which mix public and private resources.

Unfortunately, the layered service dimension

does not really integrate a business vision. Moreover

QoS and security management are often defined

statically depending on the target deployment model.

2.1 Adapting QoS Management and

Governance to Multi-Cloud

Systems

As stated in (Rodero-Merino, 2010), users increase

their call for functionalities that automate the

management of services as a whole unit, from the

business to the infrastructure layer to increase

efficiency and global benefits. To this end

(Papazoglou, 2006) provides a formal model to

express visibility constraints, manage compliance

and configure cloud resources on demand but this

model do not allow a dynamic reconfiguration at

runtime depending on the context.

To overcome this limit, and allow a fine-grain

tuning of resources, specification at the IaaS layer

must integrate both computational and network

constraints while adjusting the delivered

infrastructure components to the users’ requirements

and SLAs. Unfortunately, if pricing models can be

used to evaluate the “price” of infrastructure services

depending on the required SLA, they do not

integrate QoS assurance (Freitas, 2012). Moreover,

some low-level scalability rules, such as VMs

adjustment (Vaquero, 2012) must be integrated in a

larger QoS management vision as application

consolidation processes (used to increase resource

utilization) should take into account the performance

interference of co-located workloads to fit the

application required QoS (Zhu, 2012). Lastly, while

optimizing the “real” resource utilization at runtime,

a particular attention must be paid on the way

“elastic QoS” is defined in order to avoid penalties

due to the risk of deviation from the agreed QoS

level (Jayasinghe, 2012) scalability, On the opposite,

higher-level approaches fail to provide mechanisms

for a fine grained control of services at runtime

(Moran, 2011). This increases the call for a global

governance system allowing an efficient execution

and support of collaborative business processes,

without wastes and cause of defect.

This requirements involves monitoring both

infrastructure and services, taking into account

SLAs, elasticity, QoS, etc (Clayman, 2010). As trust,

managerial capability and technical capability have a

significant relationship with cloud-deployment

performance (Garrison, 2012); SLAs should be

understood by both cloud expert and non experts so

that common performance indicators can be

recognised. Unfortunately, as stated in the SLA

survey made by (Alhamad, 2011), SLA frameworks

are focused on technical attributes and do neither

take into account security nor other business related

non-functional properties. Moreover, resources

measuring techniques need further refinement to be

applied in the cloud context in order (1) to ensure

some level of trust between service providers and

customers, (2) to provide a flexible and agile way to

tune performance metrics parameters and (3) to

support real costs evaluation means.

To this end, (Katsaros, 2012), proposes a self-

adaptive hierarchical monitoring mechanism for

clouds. This framework implemented at the Platform

as a Service layer, allows monitoring the QoS

parameters based on SLA for business benefits.

Nevertheless it lacks of providing a flexible policy

enforcement mechanism and it does not indicate its

scalability in web service framework. While

considering quality from a “customer” point of view,

(Jureta, 2009) proposes a comprehensive quality

model for service-oriented systems. It allows

specifying the quality level, determining the

dependency value and ranking the quality priority.

However, the performance issues related to cloud

resources are not discussed and details are missing

regarding the correlation of the quality model with

the service cost model.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

166

Lastly, the monitoring mechanisms should be

non-intrusive and should let a minimum runtime

footprint over the execution environment (Heward,

2010). It has also (1) to fit the cloud elasticity to

keep up when an application or infrastructure scales

up or down dynamically (Gogouvitis, 2012) and (2)

to provide a “simple” interface so that the cloud

complexity is as transparent as possible for end

users. This requires being able to “generate and

deploy on the fly” contextual monitoring means.

2.2 Integration of Security Management

Due to the variety of cloud deployment models,

different security challenges must be taken into

account. While private Cloud deployment does not

require to enforce the corporate security policy, the

openness involved by the other kinds of deployment

involves paying attention to data isolation and to

data storage protection so that the corporate security

policy can cope the particular vulnerabilities

involved by the cloud deployment (Ouedraogo,

2012). To fit these security challenges, cloud

security-oriented models have also been defined

such as:

-The Cloud Security Alliance Security Stack

(Cloud Security Alliance, 2012) uses the XaaS

levels to identify threats and mitigation means.

-The Jericho Forum Security Cube Model

(Jericho, 2009) uses a 4 criteria classification:

(resources physical location, the resource provider,

the cloud technology and the operating area) to

evaluate the risks and propose the associated

mitigation means.

Nevertheless, both models are organised to

identify and deploy security countermeasures in a

static vision and do not fit an “adaptive” security

deployment in a multi-cloud context. This often

leads either to “over-protect” information systems

while deploying them on clouds (that may reduce

the Quality of Service) or to “forget” protecting

corporate assets while transferring them on a cloud

platform.

In order to overcome this limit, one can adapt the

Model Driven Engineering (MDE) approach as it

allows generating code from requirements thanks to

different transformation steps (Marcos, 2006),

raising the abstraction level and introducing more

automation in software development (Van Der

Straeten, 2009). Such an engineering strategy can be

worthy used in a multi-cloud context as it can

improve reusing abilities of requirements, Platform

Independent Models and parts of Platform specific

models depending on the deployment platform (see

for example (Torres, 2012) that present: how BP-

driven web applications can be developed using

technology independent models before setting

transformation strategies to generate “technology

specific” applications).

Moreover, MDE has also been adapted to define

the Model Driven Security (MDS) strategy (Basin,

2003; Clavel, 2008). MDS defines a framework used

to generate security policies out of annotated

business process models (Souza, 2009, Wolter,

2009) (thanks to either UML based security model

integration (Jürjens, 2005) or BPMN annotations

(Mülle, 2011)) taking advantage of SOA agility and

policy flexibility. Nevertheless, this approach does

not allow generating and deploying automatically

the convenient monitoring functions that are

necessary to guaranty that the system is safe

(Loganayagi, 2011).

2.3 Challenges

Taking advantage of the multi-cloud deployment to

support collaborative business requires integrating a

unified approach to deploy secured BP and govern

performances and security from the business to the

infrastructure in a dynamic way. This requires first

to enrich the traditional XaaS layer model with a

“Business as a Service” level, used to express

business-dependant performance and security

requirements. Then, to fit the dynamicity required by

a multi-cloud deployment, transformation models

should also integrate a “model at runtime” vision to

support the necessary flexibility.

By now, the different works do not cover these

requirements nor are end-user oriented (so that

requirements can be captured more easily). To

overcome these limits, we propose to take advantage

of the well-know MDE strategy to generate and

deploy service-related policies that will be used to

take into account non-functional requirements (as

security and quality of service) while deploying and

monitoring service oriented systems over a multi-

cloud infrastructure.

3 MODEL DRIVEN POLICY

GENERATION PROCESS

To support the policy generation process to allow an

agile management Non Functional Properties (NFP)

in a multi-cloud context, we couple the MDE to the

Pattern based engineering to generate service-related

policies. Then NFP management functions that can

Multi-CloudGovernanceServicebasedonModelDrivenPolicyGeneration

167

be orchestrated at runtime so that the exact

execution context can be taken into account. To

achieve this goal, we propose a format model used

to weave the business and deployment environment

related knowledge in order to define transformation

patterns and generate, compose and orchestrate NFP

related policies.

3.1 Global Architecture

We use a multi-layer architecture to generate

contextualised policies that will be used at runtime

to select and orchestrate the security and governance

services accordingly. Functionally, Business

Requirements analysis allows designing the process

workflow that is used to select and compose services

to achieve each task. Accordingly, services are also

used to select and orchestrate lower level

components. This leads us to organise a 3-layer

architecture on the top of the XaaS model:

- Business Layer (BL) includes all business context

information, such as business deciders, business

requirements that are used to identify the Business

Process workflow.

- Service Layer (SL) includes all virtualized service

context information, such as service provider/

consumer/ register and includes all the services

that are selected and compose to achieve a business

task.

- Implementation Layer (IL) includes all

implementation components, such as hardware,

equipments, human resources and XaaS resources

etc. It contains all the components that must be

composed and orchestrated to support a service

execution. It is an abstraction level of the different

XaaS components.

Our governance architecture has been designed

in a “transversal” way on this architecture in a

Governance as a Service strategy (Li, 2012).

Governance services are composed and orchestrated

while running the enterprises’ business processes

depending on the NFP management requirements

and taking advantage of the “functional knowledge”

to select, compose and orchestrate the NFP

management components accordingly. This provides

a rather non-intrusive system that minimizes its

footprint by transforming and composing policy

rules depending on the context thanks to a set of

transformation patterns.

To select the convenient transformation patterns

NFP are classified into different groups

(‘Performance’, ‘Usability’, ‘Maintainability’,

‘Reliability’, ‘Security’…). Each NFP group is

divided into Critical Success Factors sets (CSFs)

associated to metrics used to constrain and / or

evaluate its accomplishment so that Governance

Agreements can be set and associated to the

different layers. Each agreement refers to the target

layer objectives, CSFs and factors metrics.

To allow a dynamic deployment and

orchestration of the NFP management components,

we propose to couple NFP related policy rules to the

different functional components. Using a pattern-

based transformation process, requirements are

turned into Platform Independent Policies and

Platform Dependant Policies used to orchestrate the

NFP management components at runtime.

Moreover, we take advantage of the functional

specification (i.e. the BP workflow description used

to compose and orchestrate the different services and

cloud components) to compose the NFP

orchestration and governance policies accordingly.

The policy generation process (figure 1) takes

advantage of both Model Driven Engineering and of

Pattern-based Engineering approaches adapting the

security patterns methods (Yoshioka, 2008)

(Uzunov, 2012) and those proposed as “best

practices” in security engineering methods (as

OCTAVE, EBIOS.).

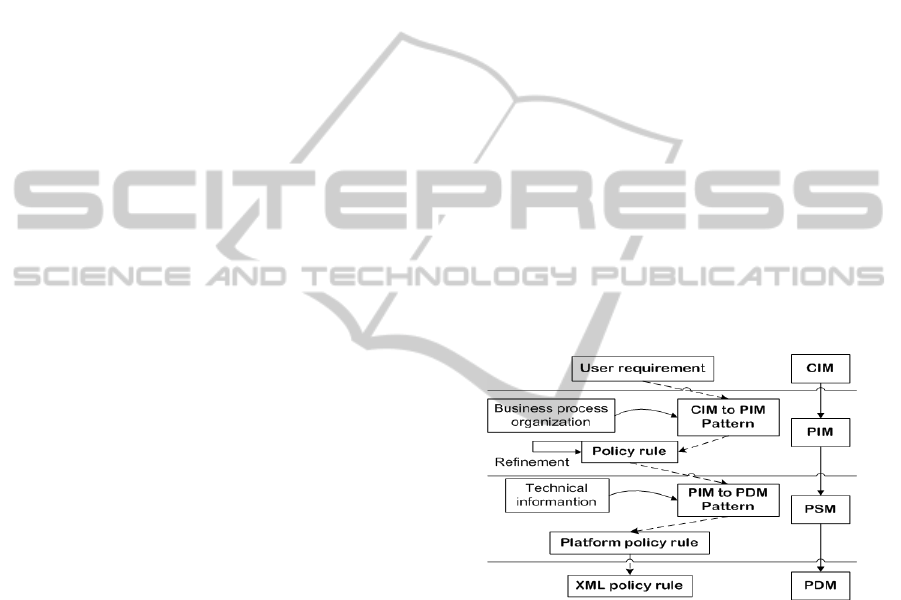

Figure 1: Policy transformation steps.

The transformation strategy relies on a global

model that connects business workflow, security and

governance requirements to monitoring patterns and

policies (figure 2). A ‘Resource’ is associated either

to a ‘task’, a ‘service’ or an ‘implementation’

component. Each resource has its own properties

and interacts with others depending on the business

workflow. NFP requirements (either related to

security or governance) are associated to resources.

Each requirement is analysed and transformed into

policy rules thanks to ‘transformation pattern’.

‘Security rules’ are used to select, orchestrate

and invoke ‘security deployment pattern’ to

implement security means accordingly. In a similar

way, ‘governance rules’ select, orchestrate and

invoke ‘monitoring pattern’ to constrain

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

168

accomplishment of functional rules by assigning and

computing ‘KPIs’. ‘Monitoring pattern’ also can

invoke ‘Action engine (AE)’ to tune and improve

the resources performance by doing actions on

related resources, then at the runtime to improve the

performance of business activities.

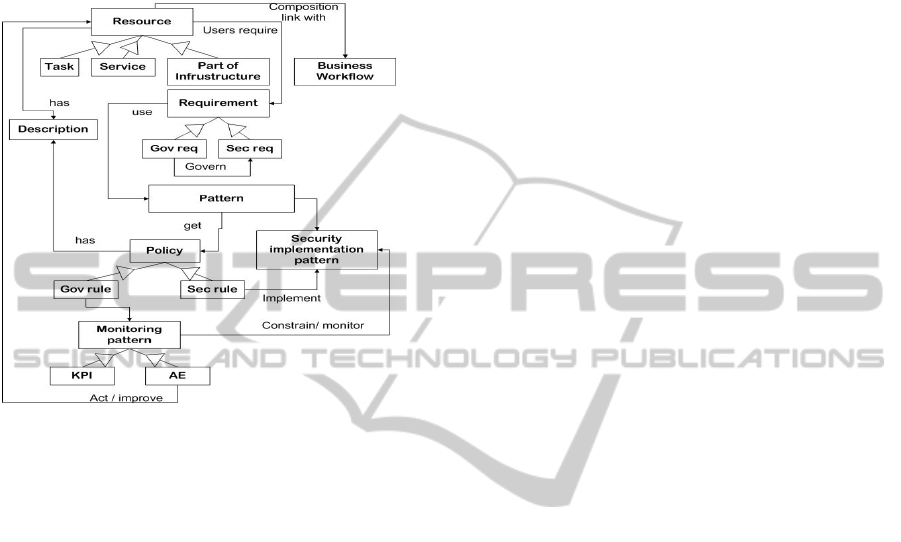

Figure 2: Global model.

3.2 Policy Formal Model

Our policy transformation process is based on a

formal model integrating requirements, patterns and

policy so that policy rules can be designed and

transformed in a generic way.

Formally, a Requirement i is defined as a tuple:

Req

= (RR, (RT, RM), RG, RL, RC) (1)

Where

- RR (Requirement Resource) defines the resource

concerned by the requirement. It can be a task

(business activity), a service or a part of the

infrastructure / piece of data.

- RT (Requirement Type) defines the type of the

requirement (governance of one of the NFP group,

ensure security, support QoS control…)

- RG (Requirement Goal) defines precisely the

goal of this requirement (governance or other

functional requirement related to a NFP)

- RM (Requirement Metrics) is the metric

(specifically defined or standardized) to measure

this requirement’s implementation.

- RL (Requirement Layer) defines the layer

(BL/SL/IL) associated to the resource targeted by

this requirement.

- RC (Requirement Context) the condition of this

requirement’s implementation. Such as, association

of involved resource’s with other resources in

business workflow.

According to this definition, we can gather all

the requirements for all the resources as:

Reqs = {Req

} where 0<i<Ni; (2)

Where “i” is the requirement number and Ni the

total of the all requirements of all resources.

We can also get the requirements associated to a

resource R

(Reqs(R

)) by selecting (thanks to the

selection function σ) all the requirements in Reqs

which associated resource (RR) matches with R

Reqs(R

) = σ(Reqs.RR=R

)(Reqs) (3)

Where “i” is the requirement number and “Ni” is the

total number of requirements of resource R

A pattern j is defined as a tuple:

Pat

= (PatN, PatG, {PatCtx}, PatP,

{PatCol},{PatR}, {PatCsq, PatStep} )

(4)

Where

- PatN is the name which identifies the pattern. This

name is related to the requirement type, a NFP

identification or or a CSF for a group of NFP.

- PatG defines the pattern goal (or the reason for

using it). This goal is similar to the requirement

goal and the associated value can be either

governance or any other functional requirement

related to a NFP or CSF.

- PatCtx identifies the context under which which

this pattern can be used.

- PatP defines a list of “participants” and their roles

in the pattern definition. A participant can refer to

requirement which need to be transformed,

transformed policy rule, relevant sub-pattern,

collaborative business process organization, etc.

- PatCol describes the collaboration strategy used

by the participants to interact with each other.

- PatR a set of related patterns. For example,

governance requirement pattern requires a set of

the CSF pattern for a parent NFP group pattern. )

- PatCsq describes the results or actions

implemented by the pattern.

- PatStep defines the transformation step (CIM to

PIM, PIM to PSM or PSM to PDM) for which the

pattern must be used.

In a similar way, the set of patterns is defined by:

Pats= {Pat

} where 0<j<=Nj (5)

Where “j” is the pattern number and “Nj” the total

number of patterns.

A policy rule x is also defined as a tuple:

PolR

= (PR, PT, PG, PL, {PC}, PP) (6)

Multi-CloudGovernanceServicebasedonModelDrivenPolicyGeneration

169

Where

- PR is the set of resources involved in the policy.

- PT is the Policy type. It refers to the requirement

type and Pattern Name (RT and PatN) as well, as

to the NFP group or the CSFs for a parent NFP

group)

- PG defines the Policy goal and is related to RG

and PatG such as governance or any other

functional goal related to the NFP.

- PL is the layer of the involved resource for this

policy. As we defined before it could be BL/SL/IL.

- PC is the set of conditions to decide if the policy

can be used or not. (For governance policy rule, it

is related to business process and organization of

business workflow)

- PP identifies the pattern to use to define the policy

implementation.

According to this definition, we can gather all

the policy rules of all resources as:

PolRs= {PolR

} where 0<x<Nx; (7)

Where “x” is the policy rule number and Nx the total

number of policy rules (for all resources).

Lastly, policy rules attached to any resource R

can be defined by selecting (σ) the policy rules in the

PolRs while the policy resource (PR) matches with

resource R

PolRs(R

) = σ(PolRs.PR=R

) (PolRs) (8)

Where “x” is the policy rule number and “Nx” the

total number of policy rules involving resource R

3.3 From Requirements to Computer

Independent Model (CIM)

At the beginning of the process, users define their

requirements using a rather high abstraction level

and do not have to provide any implementation

technical details. As NFP management requirements

are mostly specified at the Business layer, we use

the “functional composition process” knowledge to

select the resources belonging to the lower-levels

and involved in the BL resource deployment and to

propagate these requirements to these SL and IL

resources. Our CIM elicitation process is based on

this “composition-based” propagation models.

As stated in our formal model (see eq. 1), each

requirement is defined by specifying the resource

(RR) to which this requirement is associated to and

the layer to which this resource belongs as well as

the type of requirement (RT), its goal (RG) and the

associated metric (RM).

As a resource R

(‘k’ is numbering the resource)

can be associated to many requirements, the

Computer Independent Model is defined as the set of

requirements associated to the different resources:

Reqs = {Reqs (R

)} where0< i<Ni, 0< k<Nk (9)

Where ‘i’ is the requirement number, ‘Ni’ is the total

number of requirements associated to the resource

3.4 From Requirements to Policy Rules

After gathering and formatting the requirements in a

single Computer Independent Model, the policy

generation process consists in turning each CIM

assertion in a Platform Independent policy rule.

Basic policy rules are generated thanks to a pattern-

based transformation process. Our NFP

classification is used to organize transformation

patterns depending on the NFP they are related to.

Pattern’s name (PatN) and patterns’ goal (PatG) are

used to identify each pattern.

For each resource, the requirements are turned

one after the other in a policy rule. To this end, for a

given requirement i associated to a resource R

Req

, the convenient pattern (Pat) is selected from

the patterns set (Pats) thanks to the selection

function (σ) that extract the pattern which name

(PatN) matches the requirement type (RT) and

which pattern goal (PatG) matches the resource

goal(RG):

Pat= σ (Pats.PatN= Req

.RT AND

Pats.PatG =Req

.RG)(Pats)

(10)

The selected pattern is used to instantiate the

corresponding policy rule. According to this, a

policy rule refereeing to the requirement and the

resource is generated. Let R

be the resource

associated to the i

requirement Req

, (i.e. R

Req

.RR), the policy rule which refers to this

requirement and to the k

resource is defined as:

PolR

= (Req

.RR, Pat.PatN, Pat.PatG,

Req

.RL, Req

.RC,Pat)

(11)

After discovering the ‘basic policy rule’ thanks

to this selection process, we have to check the

selected pattern’s related sub-pattern to get more

precise policy rules. If a selected pattern contains a

related sub-pattern (i.e. when Pat.PatR is not an

empty set), a refinement algorithm (see Algorithm 1)

is recursively launched to precise and develop the

policy rules associated to this pattern (for example, a

generic “confidentiality management” pattern can be

refined using authentication and authorization

patterns as well as encryption sub-patterns).

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

170

Ref.PatR(pattern Pat)

{ int j ; //numbering pattern;

Pat

= Pat;

If (Pat

.PatR ≠ ࣘ)

//if pattern ‘Pat

’ has related

transfer pattern Pat

.PatR

{then call Ref.PatR(Pat

.PatR );

//the consequence is call

refinement algorithm until the pattern

has no related pattern; }

If (Pat

.PatR = ࣘ)

//if patter ‘Pat

’ has no related

transfer pattern;

{Then int x;//numbering policy rule;

Pat

.PatCsq = PolR

;

// if Pat

has no related pattern

then its consequence is generated

policy rule ‘PolR

’; } }

Algorithm 1: Refinement algorithm.

At the end of this step the different policy rules

associated to the requirements are generated. As for

the CIM elicitation, we use a policy composition

process, including the functional composition

knowledge, to select, extract and compose the

different policy rules attached to a resource. Each

task (in the BL level) is considered as a sub-process

and used to compose / derive the policies associated

to same or lower-level resources composed to

implement this sub-process (see algorithms 2 and 3).

Comp-subPB (Resource R, Policy-rule

PolR)

{ Int k , x;

//numbering resource and policy rule;

=R; PolR

= PolR;

Extract (R

.RT , PolR

. PR );

//extract policy rule’s resource and

the resource type:’R

.RT’;

//all relevant resources are in the

same sub-BP;

If (R

.RT == ‘Task’)

{call Comp-task(R

)}

//if resource type is Task call ‘Task’s

PIM rule composition process;

If (R

.RT == ‘service’)

{call Comp-service(R

)}

//if resource type is service call

service’s PIM rule composition process;

}

Comp-task (task R)

{ Int num-task, k ;//numbering task

and resource;

= R; //R

has related services

int num-service,n-service;

//’num-service’ is the related service

number;

//’n-service’ is the total number of

related services;

Service

(num-service)

= R

’s related

service;

// 0<num-service<=n-service

Valid R

’s PIM policy rules to

service

(num-service)

;

//valid task’s policy rules to all

related service resources;

If (service

(num-service)

has related

infrastructure resource)

Call Comp-service (service

(num-service)

);}

Comp-service (service R)

{ Int num-service,k ; //numbering

service and resource;

=R; //R

has related

infrastructure resource;

int num-inf,n-inf;

//’num-inf’ is the related

infrastucture number;

//’n-inf’ is the total number of

related infrastructure;

Inf

num-inf

= R

’s related

infrastructure; // 0<num-inf<=n-

inf

Valid R

’s PIM policy rules to

Inf

num-inf

;

//valid service’s policy rules to all

related infrastructure resources; }

Algorithm 2: Cross layers sub-PB PIM policy rule

composition.

Comp-samelayer(provider-resource R1,

consumer-resource R2)

{ Int k1 , k2;

//’k1’’k2’ are resource numbers;

= R1; R

=R2;

is provider resource;

is consumer resource;

//Which means R

’s input == R

’s

output;

Valid R

’s PIM policy rules to R

;

If (R

, R

’s resource type== task

and they have related resources)

{Call Comp-task(R

)and Comp-task(R

)};

//If R

, R

’s resource type is task

and they have related services, then

call task composition process;

If (R

k1)

, R

’s resource type ==

service and they have related

infrastructures)

{Call Comp-service(R

)and Comp-

service(R

)};

//If R

, R

’s resource type is service

and they have related infrastructures,

then call service composition process;}

Algorithm 3: At same level’s PIM policy rule

composition.

Multi-CloudGovernanceServicebasedonModelDrivenPolicyGeneration

171

4 USE CASE

Our use case aims at generating the security and

delay governance policies for a business level

Payment Task described Figure 3.

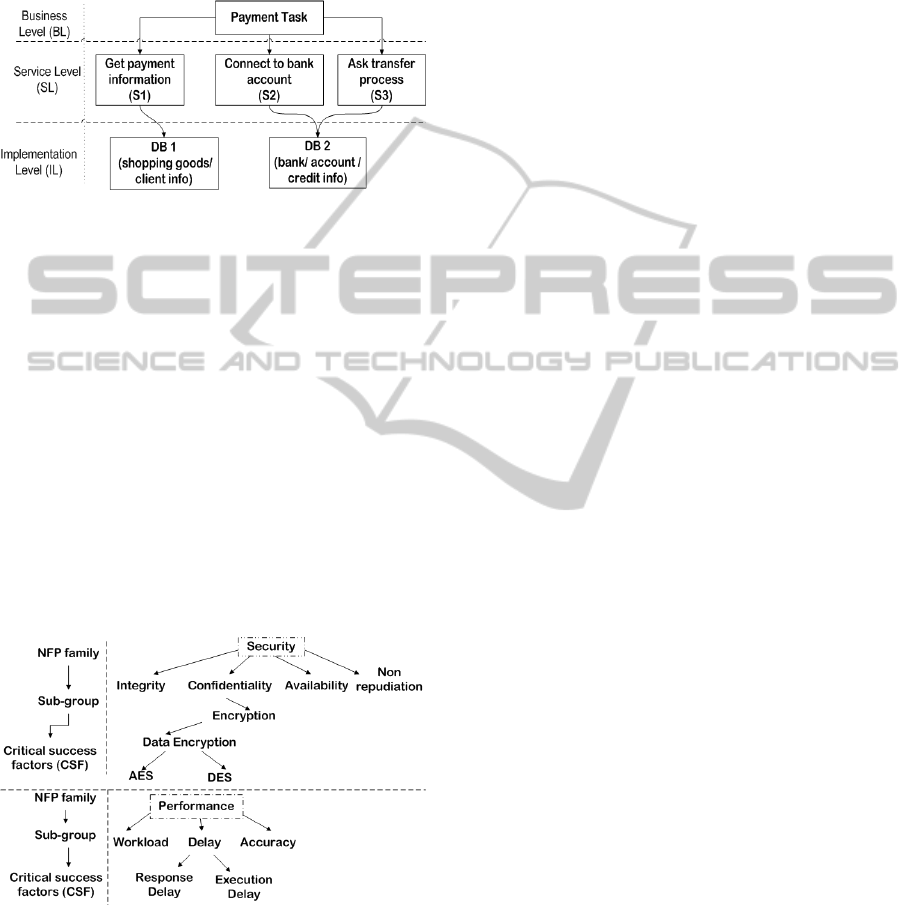

Figure 3 Example of a Payment Task crossing the 3 layers.

At the first step, the user defines his

requirements according to our formal model:

1) Requirement 1: Managing and governing the

confidentiality at a high level (level 2)

Req

= {“PaymentTask”, (“Confidentiality”,

level2), “Govern”, “Business layer”}

2) Requirement 2: Being able to capture the

payment task execution delay at a business level to

evaluate its impact to the global business

performance system

Req

= {“PaymentTask”, (“Delay”), “Govern”,

“Business Layer”}

Then governance patterns are identified and used

to define the governance policy rule. Figure 4

presents the confidentiality and performance patterns

organization.

Figure 4: Organization of the Confidentiality and

Performance NFP family and governance pattern.

Based on the requirement type and on the goal,

the selection function is used to discover the CIM to

PIM transformation pattern to apply in order to

generate the policy rule associated to the payment

task: As far as the security requirement is concerned,

the confidentiality governance pattern is selected

(Eq. 1) and checked: to identify if it contains sub-

patterns (i.e. related patterns) that can be a Critical

Success Factor or not. As the Conf-Pattern contains

an Encryption pattern (that is not a CSF) the policy

rule is refined to integrate the sub-pattern invocation

(Eq. 2) and the refinement algorithm is launched is

re-launched to refine the Encrypt-Pattern which is

associated to CSF.

=Req

.RR==PaymentTask)

PolR

)={“PaymentTask”, “Confidential”,

“Govern-confidentiality”, “ Business Layer”,

{PC},”Conf-Pattern”}) (Eq. 1)

PolR

)=(“PaymentTask”, “Encryption”,

“Govern-encyption”, “Business Layer”,

{PC},”Encrypt-Pattern”) (Eq. 2)

As far as the performance requirement is

concerned; we use a similar pattern selection process

to support the CIM to PIM transformation,

identifying the Delay pattern (Eq. 3) and refining it

with the 2 CSF patterns (Response delay pattern and

Executive delay pattern) (Eq. 4)

=Req

.RR==PaymentTask)

PolR

)=(“PaymentTask”, “Delay”,

“Govern -delay”, “Business Layer”, {PC},

“Delay-Pattern”) (Eq. 3)

PolR

)={“PaymentTask”, “Delay”, ”Govern-

Delay”, ”Business Layer”,{PC},”Response

delay”}

PolR

)={“PaymentTask”, “Delay”, ”Govern-

Delay”, ”Business Layer”,{PC},”Execution

delay”} (Eq. 4)

Each policy rule is analyzed to identify the sub-

resource related to the policy’s “root resource”.so

that relevant policy rules can be composed. In our

case, the resource attached to the policy is the

payment-task which belongs to the business layer.

This task is implemented thanks to a service chain

composed of 3 services: S1, S2 and S3 deployed at

the service layer. The policy rule is “propagated” to

each service (see Eq. 5 which presents the security

policy rule associated to S1). In a similar way, the

selection process is used to identify the

implementation level resources related to the service

in order to generate the corresponding policy rules

accordingly (see the example for DB 1 in Eq. 6)

PolR

(S1)=(“S1”, “Encryption”, “Govern-

encyption”, “SL”, “”,”Encrypt-Pattern”) (Eq. 5)

PolR

(DB1)=(“DB1”, “Encryption”, “Govern-

encyption”, “IL”, “”,”Encrypt-Pattern”) (Eq. 6)

The delay governance requirement is also used

to generate policy rules attached to the different

services and resources (Eq. 7 and 8).

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

172

PolR

(S1)=(“S1”, “Delay”, “Govern-delay”,

“SL”, “”,”ExecDelay-Pattern”) (Eq. 7)

PolR

(DB1)=(“DB1”, “Delay”, “Govern-delay”,

“IL”, “”,”ExecDelay-Pattern”) (Eq. 8)

While deploying the task and related services,

the deployment environment knowledge is used to

generate platform dependant policy rules. For each

platform independent policy rule, we select the

“deployment” pattern depending on the PIM rule

name and on the deployment platform

characteristics. As we use an hybrid cloud platform

to support the Payment Task deployment, the

transformation pattern is selected thanks to the

following criteria: PatStep is associated to the PIM

to PDM transformation step, PatG fits the

“Encryption level 2” goal and PatCtx fits the hybrid

cloud context. This leads to select the AES-256 data

encryption implementation pattern. So for each PIM

rule that refers to the Encrypt-Pattern, the AES-256-

KPI pattern is substituted (Eq. 9 and 10)

PolR

(S1)=(“S1”, “Encryption”,

“Govern-encyption”, “SL”, “”,”AES-256-KPI

pattern”) (Eq.9)

PolR

(DB1)=(“DB1”, “Encryption”,

“Govern-encyption”, “IL”, “”,”AES-256-KPI

pattern”) (Eq. 10)

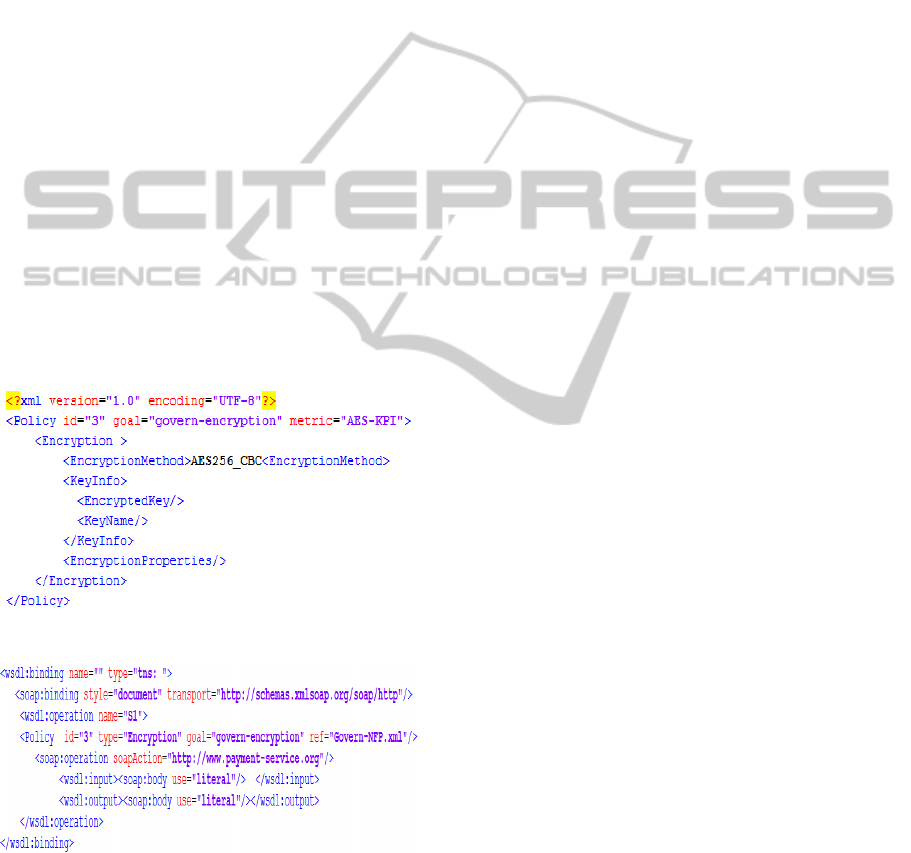

Figure 5: Extract of Policy file “Govern-NFP.xml”.

Figure 6: Policy reference added in Service S1 description

(WSDL: Binding part).

Then these policy rules are used to generate the

XML policy file that is attached to each service.

Figure 5 shows the policy file related to the

encryption whereas figure 6 shows the service

annotation which refers to the policy file. At

runtime, each policy rule is analysed and leads to the

execution of the convenient security / governance

service invocation while orchestrating the

Governance KPIs. This PaymentTask’s relevant

KPIs’ results can be aggregated into comprehensive

result for business decision makers

5 CONCLUSIONS

To support governance functions and secured

deployment in a multi-cloud context we proposed to

take advantage of the MDE and pattern-based

engineering approaches to generate NFP

management policies depending on the deployment

process. Our multi-level architecture built on the top

of the XaaS model allows taking advantage of the

Business knowledge to derive and compose policy

rules at each layer based on a single business

requirement and deploy them depending on the

execution context. Further works will focus on the

service orchestrator component so that the policy

rules will be used to compose and orchestrate the

NFP management and governance services “on the

fly” depending on the exact deployment context.

ACKNOWLEDGEMENTS

This work has been partly supported by the French

economy ministry DGCIS under the Web Innovant

Process 2.0 project grant.

REFERENCES

Alhamad, M., Dillon, T., Chang, E., 2011. a survey on

SLA and performance measurement in cloud

computing, on the move to meaningful internet

systems: OTM 201, springer Berlin, 7045, 469-477.

Basin, D., Doser J., Lodderstedt, T., 2003. Model Driven

Security for Process Oriented Systems, In SACMAT

’03: Proceedings of the eighth ACM symposium on

Access control models and technologies.

Clayman, S., Galis, A., Chapman, C., Toffetti, G., Rodero-

Merino, L., Vaquero, L. M., Nagin, K., Rochwerger

B., 2010. Monitoring Service Clouds in the Future

Internet. In: Tselentis, G and Galis, A and Gavras, A

and Krco, S and Lotz, V and Simperl, E and Stiller, B

and Zahariadis, T, (eds.) Towards the Future Internet

- Emerging Trends from European Research.,pp. 115 -

126

Multi-CloudGovernanceServicebasedonModelDrivenPolicyGeneration

173

Cloud security alliance, 2012. Security Guidance for

Critical Areas of Focus in Cloud Computing V3,

https://cloudsecurityalliance.org/wp-content/themes/

csa/guidance-download-box.php.

Clavel, M., Silva, V., Braga, C., Egea, M., 2008. Model-

Driven Security in Practice: An Industrial Experience,

ECMDA-FA '08 Proceedings of the 4th European

conference on Model Driven Architecture:

Foundations and Applications, pp.326 – 337.

DMTF Informational, 2009. Interoperable Clouds – A

White Paper from the Open Cloud Standards Incubator

Freitas A.L., Parlavantzas N., Pazat J., 2012. An

Integrated Approach for Specifying and Enforcing

SLAs for Cloud Services.; In Proceedings of IEEE

CLOUD. pp. 376-383.

Gartner, Inc. analysts, 2012. Gartner Report. Top 10

Strategic Technologies for 2012.

Garrison, G., Kim, S., Wakefield, R. L., 2012, Success

factors for deploying cloud computing. Commun.

ACM 55(9) pp., 62-68.

Gogouvitis, S., Konstanteli, K., Waldschmidt, S.,

Kousiouris, G., Katsaros G., Menychtas A., Kyriazis

D., Varvarigou, T., 2012. Workflow management for

soft Real-time Interactive applications in virtualized

environments. Future Generation Computer Systems

28 (1), 193–209.

Heward, G., 2010. Assessing the Performance Impact of

Service Monitoring. In Proceedings of the 2010 21st

Australian Software Engineering Conference (ASWEC

'10). IEEE Computer Society, Washington, DC, USA.

Jureta, J.I., Herssens, C., Faulkner S., 2009. A

comprehensive quality model for service-oriented

systems. Software Quality Control 17 (1), , 65-98.

Jericho Forum, 2009. “Cloud Cube Model: Selecting

Cloud Formations for Secure Collaboration,” Jericho

Forum, Version 1.0, http://www.opengroup.org/

jericho/cloud_cube_model_v1.0.pdf.

Jürjens, J., 2005. Model-Based Security Engineering with

UML, FOSAD 2004/2005, Springer-Verlag Berlin

Heidelberg, pp.42-77.

Jayasinghe D., Swint G., Malkowski S.,Li J., Wang Q,

Park J., Pu C., 2012. Expertus: A Generator Approach

to Automate Performance Testing in IaaS Clouds,

IEEE Fifth International Conference on Cloud

Computing, pp. 115-122,

Katsaros, G., Kousiouris, G., Gogouvitis, S.V., Kyriazis

D., Menychtas, A., Varvarigou T., 2012. A Self-

adaptive hierarchical monitoring mechanism for

Clouds, Journal of Systems and Software, 85 (5),

1029-1041,

Li, J., Biennier, F., Amghar, Y., 2012. Business as a

Service governance in a Cloud organization.

Proceedings of the I-ESA Conferences 6, Enterprise

Interoperability V, pp. 355-365.

Loganayagi, B., Sjuatha, S., 2012. Enhance Cloud

Security by Combining Virtualization and Policy

Monitoring Techniques, Procedia Engineering, 30,

654-661,

Mell, P., Grance, T., 2011. The NIST Definition of Cloud

Computing, NIST Special Publication 800-145.

Marcos, E., Acuria, C., Cuesta C., 2006. Integrating

Software Architecture into a MDA Framework,

sofware architecture, pp 127-143.

Mülle, J, von Stackelberg, S., Böhm, K., 2011. Security

Language for BPMN Process Models, Karlsruhe

institute of technology, Germany.

Moran, D., Vaquero, L.M., Galan, F., 2011. Elastically

Ruling the cloud: specifying application’s behavior in

federated clouds. in: IEEE International Conference

on Cloud Computing - CLOUD, pp. 89-96,

Ouedraogo, W.F., Biennier, F., Ghodous, P., 2012.

Adaptive security policy model to deploy business

process in cloud infrastructure. The 2nd International

Conference on Cloud Computing and Services

Science, CLOSER 2012. Porto, Portugal, pp. 287-290.

Organization for the Advancement of Structured

Information Standards (OASIS), 2009.OASIS:

Reference Architecture Foundation for Service

Oriented Architecture, Version 1.0.

Papazoglou M., Van Den W., Heuvel, 2006. Service-

oriented design and development methodology. Int. J.

Web Eng. Technol. 2, 4, 412-442.

Rodero-Merino L., M. Vaquero L., Gil V., Galán F, Javier

Fontán J., Montero R. S., Llorente I. M., 2010. From

infrastructure delivery to service management in

clouds, Future Generation Computer Systems, Volume

26, Issue 8, 1226-1240.

Souza, A., Silva B., Lins F., Damasceno J., Rosa N., 2009.

Sec-MoSC Tooling – Incorporating Security

Requirements into Service Composition. Proceeding

ICSOC-ServiceWave '09 Proceedings of the 7th

International Joint Conference on Service-Oriented

Computing, pp 649 – 650.

Torres, V., Giner, P., Pelechano, V., 2012. Developing

BP-driven web applications through the use of MDE

techniques, Software & Systems Modeling, Springer-

Verlag Volume 11, Issue 4, pp 609-631

Uzunov, A. V., Fernandez, E. B., Falkner, K., 2012.

Securing distributed systems using patterns: A survey,

Computers & Security, Volume 31, Issue 5, pp.681–

703.

Van Der Straeten, R., Mens, T., Van Baelen, S., 2009.

Models in Software Engineering: challenges in Model-

Driven Software Engineering, Springer-Verlag

Berlinpp. 35 - 47 .

Vaquero L. M., Morán D., Galán F., Alcaraz-Calero,J. M.,

2012.Towards Runtime Reconfiguration of

Application Control Policies in the Cloud, Journal of

Network and Systems Management,Volume 20, Issue

4, pp 489-512.

Wolter, C., Menzel M., Schaad A., Miseldine P, 2009.

Model-driven business process security requirement

specification, Journal of Systems Architecture JSA,

211–223.

Yoshioka, N., Washizaki, H., 2008. A survey on security

patterns, Progress in Informatics, No. 5 pp. 35-47.

Zhu Q., Tung, T., 2012. A Performance Interference

Model for Managing Consolidated Workloads in QoS-

Aware Clouds, Cloud Computing (CLOUD), 2012

IEEE 5th International Conference, pp.170-179,

Zhang, Q., Cheng, L., Boutaba R.., 2010. Cloud

Computing: state-of-the-art and research challenges, J:

Internet Services and Applications,1(1), 7-18

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

174
