Pre-order Compression Schemes for XML in the Real Time Environment

Tyler Corbin

, Tomasz Müldner

and Jan Krzysztof Miziołek

Jodrey School of Computer Science, Acadia University, Wolfville, B4P 2A9 NS, Canada

IBI AL, University of Warsaw, Warsaw, Poland

Keywords:

XML, Online Compression, Network Performance.

Abstract:

The advantages of using XML come at the cost, especially when used on networks and small mobile devices.

This paper presents a design and implementation of four online XML compression algorithms, which exploit

local structural redundancies of pre-order traversals of an XML tree, and focus on reducing the overhead of

sending packets and maintaining load balancing between the sender and receiver. For testing, we designed

a suite consisting of 11 XML ﬁles with various characteristics. Ten encoding techniques were compared,

compressed respectively using GZIP, EXI, Treechop, XSAQCT and its improvement, and our algorithms.

Experiments indicate that our new algorithms have similar or better performance than other online algorithms,

and have only worse performance than EXI for ﬁles larger than 1 GB.

1 INTRODUCTION

The eXtensible Markup Language, XML (XML,

2012) is a World Wide Web Consortium (W3C) en-

dorsed standard for semi-structured data. XML is

simple, open-source, and platform independent, and

has become the most popular markup language for

the interchange and access of data between heteroge-

neous systems. Because of its textual format, XML’s

data sets may increase as much as ten-fold. A naive

solution to reduce the XML format overhead uses a

general-purpose data compressor, e.g., (GZIP, 2012).

However, such compressors do not take advantage of

the XML structure, thereby increasing ﬁrst order en-

tropy of the data. Therefore, there has been consid-

erable research on XML-conscious compressors, e.g.,

XMill (Hartmut and Suciu, 2000), XGrind (Tolani

and Haritsa, 2002) and XQueC (Arion et al., 2007).

XML-conscious compressors can be homomor-

phic, in which each node is processed during a

pre-order traversal thereby preserving the original

tree structure in the compressed representation, or

permutation-based, in which the structure is sepa-

rated from content to which a partitioning strategy is

applied to group content nodes into a series of data

containers compressed using general-purpose com-

pressor (a back-end compressor). A speciﬁc class of

XML compressors consist of queryable XML com-

pressors, which answer queries using lazy decom-

pression, i.e., decompressing as little as possible;

e.g., (Lin et al., 2005), and (Ng et al., 2006). Here,

querying is based on path expressions, see (XPath,

2012) and (XQuery, 2012). Finally, another subset of

XML compressors, which we focus on in this paper, is

centred on real-time network activities. Online XML

compressors are deﬁned as compressors that work

in real time, therefore the encoder or decoder pro-

cesses chunks of data whenever possible rather than

doing it ofﬂine when the entire document is available.

Online XML compressors are particularly useful for

streaming data, especially in conditions where the en-

tire document may never be available without sub-

stantial buffering or on devices with limited hardware

resources. For online compression, the efﬁciency of

an algorithm involves several factors, including com-

pression ratio, encoding/decoding times and network

bandwidth. Therefore a collection of algorithms that

can be tuned is often desired.

Contributions. This paper presents a design and im-

plementation of four online XML compression algo-

rithms, which exploit local structural redundancies of

pre-order traversals of an XML tree. Our algorithms

focus on reducing the overhead of sending packets

and maintaining load balancing between the sender

and receiver with respect to encoding and decoding.

Speciﬁcally, we present (1) a SAX-Event based en-

coding scheme; (2) its improvement using bit pack-

ing; (3) path-centric compression, and its improve-

ment with variable size buffers. For testing, we de-

signed a suite consisting of 11 XML ﬁles with vari-

Corbin T., Müldner T. and Krzysztof Miziołek J..

Pre-order Compression Schemes for XML in the Real Time Environment.

DOI: 10.5220/0004365100050015

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 5-15

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

ous characteristics. In order to take into account net-

work issues, such as its bottleneck, we took two mea-

sures of the encoding process. Ten encoding tech-

niques were compared, using GZIP, EXI, Treechop,

XSAQCT and its improvement, and our new algo-

rithms. Experiments show that our algorithms have

similar or better performance than existing online al-

gorithms, such as XSAQCT and Treechop, and have

only worse performance than EXI for ﬁles larger than

1 GB.

This paper is organized as follows. Section 2 pro-

vides a description of related work and Section 3 de-

scribes our algorithms. Section 4 gives a description

of the implementation and results of testing aimed at

evaluating the efﬁciency of our algorithms, and ﬁnally

Section 5 provides conclusions and future work.

2 RELATED WORK

Treechop (Leighton et al., 2005) is a queryable, on-

line XML compressor, which allows streaming XML

ﬁles. XQueC (Arion et al., 2007) is queryable, on-

line XML compressor that given a query workload

(a set of queries) can be tailored to decide the best

method of compressing. However, a complexity anal-

ysis in (Leighton and Barbosa, 2009) showed that the

problem of selecting an optimal compression conﬁg-

uration is NP-hard. XSAQCT(Müldner et al., 2009)

is a queryable and updateable compressor. Although

the original version of XSAQCT was ofﬂine, there is

a more recent online version of XSAQCT (Müldner

et al., 2012b) and (Müldner et al., 2012a). The Efﬁ-

cient XML Interchange, EXI (EXI, 2012) provides a

very compact XML representation thereby optimizing

performance and efﬁciently utilizing computational

resources. While (Snyder, 2010) determined that us-

ing EXI can double a bandwidth potential and it is

well-suited for the real-time network.

For a detailed comparison and evaluation of some

of above-mentioned XML compressors, and other

ofﬂine-variants, see (Sakr, 2008). Now, we will de-

scribe previous research on characteristics of XML

ﬁles. (Qureshi and Samadzadeh, 2005) described

the complexity of XML documents using the num-

ber of elements, the number of distinct element, the

size of the document, and the depth of the docu-

ment. (Measurements, 2012) adds two more char-

acteristics, namely (1) content density deﬁned as the

ratio of the sum (in characters) of all texts and at-

tribute values, over the size of the entire document

in characters; (2) the structure regularity deﬁned as

one minus the ratio of the total number of distinct el-

ements over the total number of elements in the XML

document (documents with a few distinct elements

have high structure regularity, while documents us-

ing many different elements have low structure reg-

ularity). Furthermore, Structure Regularity provides

a meaningful value only when the distribution of

element-occurrences is uniform. Otherwise the dis-

tribution of occurrences would provide more insights

to the regularity of occurrence. In addition, (Ruel-

lan, 2012) considers the ﬁrst order entropy, and ﬁnds

that while the entropy of XML documents is lower

than the document’s size, the compressed size (using

GZIP) is sometimes lower than the entropy, showing

that the entropy value does not represent the quan-

tity of information contained in a XML document (the

symbols used to compute the ﬁrst-order entropy are

not independent).

3 ONLINE ALGORITHMS

Our work on online compression is partially based on

the XSAQCT compression process, therefore we start

by recalling the basic terminology, based on (Müldner

et al., 2012b) and (Müldner et al., 2012a).

3.1 Introduction to XSAQCT

Compression

This section recalls the ﬁrst phase of ofﬂine compres-

sion, in which the compressor transforms the original

XML document into a more compressed form, called

an annotated tree. Then it strips all annotations to

a separate container and ﬁnally compresses all con-

tainers using a back-end compressor. These actions

are performed using a SAX compliant parser (SAX,

2012).

Deﬁnition 1. An annotated tree of a XML document

is a tree in which all similar paths (i.e., paths that are

identical, possibly with the exception of the last com-

ponent, which is the data value) of a XML document

are merged into a single path labeled by its tag name

and each node is annotated with a sequence of inte-

gers (referred to as an annotation list).

Deﬁnition 2. Character data is data that must be as-

sociated with the correct parent node no matter what

transformation of the input XML document is used.

Conversely, Markup Data is data used to provide self

documenting structure of the character data.

For character data (and not markup data), com-

pression must be strictly lossless; e.g., the text deﬁned

by XPath query /a[1]/b[101]/text() never changes.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

Deﬁnition 3. A text container of a XML path P is an

ASCII zero delimited (and possibly indexed) list of all

character data for all paths equal to P.

Given an XML document as shown in Figure 1,

its associated annotated tree is shown in Figure 3.

Because of space limitations, we refer the reader to

(Müldner et al., 2008) for the algorithms to create an

annotated tree and to (Müldner et al., 2009) for the de-

scription of how cycles (consecutive children X, Y, X)

are dealt with. For a XML document to be uniquely

represented by a single annotation tree, it has to sat-

isfy the full mixed content property, i.e., all tags in

an XML document have to be separated by character

data (see (Müldner et al., 2012a)).

An example of full mixed content is shown in Fig-

ure 1 and one that does not exhibit full mixed content

would be when the node t3 from the same document

was missing (i.e. the document ended </a>). To

achieve full mixed content the encoder inserts empty

text, consisting only of ASCII zero, whenever a text-

node is missing; the decoder will neglect such empty

texts.

3.2 Online Compression

Although the annotated tree represents a permutation-

based representation of an XML document, it is a

lossless representation of the XML document. For

network transfers, assuming the annotated tree is al-

ready constructed, the encoder would ﬁrst encode the

tree using a left-child/right-sibling encoding scheme

followed by the annotation list for each path in depth

ﬁrst order, and ﬁnally the actual compressed text for

each text container (again in depth ﬁrst order), thereby

creating the compressed output O. Since the mapping

which converts the input XML document to an anno-

tated tree is one-to-one, after rebuilding the annotated

tree, the receiver can decompress O to produce the

original XML document D, query O using lazy de-

compression or write O to persistent storage for later

use. Although this technique can satisfy soft-real time

requirements, it is not scalable (i.e., the entire tree

needs to be created) and does not translate well to

<?xml version="1.0" encoding="UTF-8"?>

<a>(t1)

(t4)

<d>(t8)</d>(t5)

(t2)

(t6)

<e>(t9)</e>(t7)

(t3)

</a>

Figure 1: A sample XML document D. (t#) represents (pos-

sibly whitespace) character data.

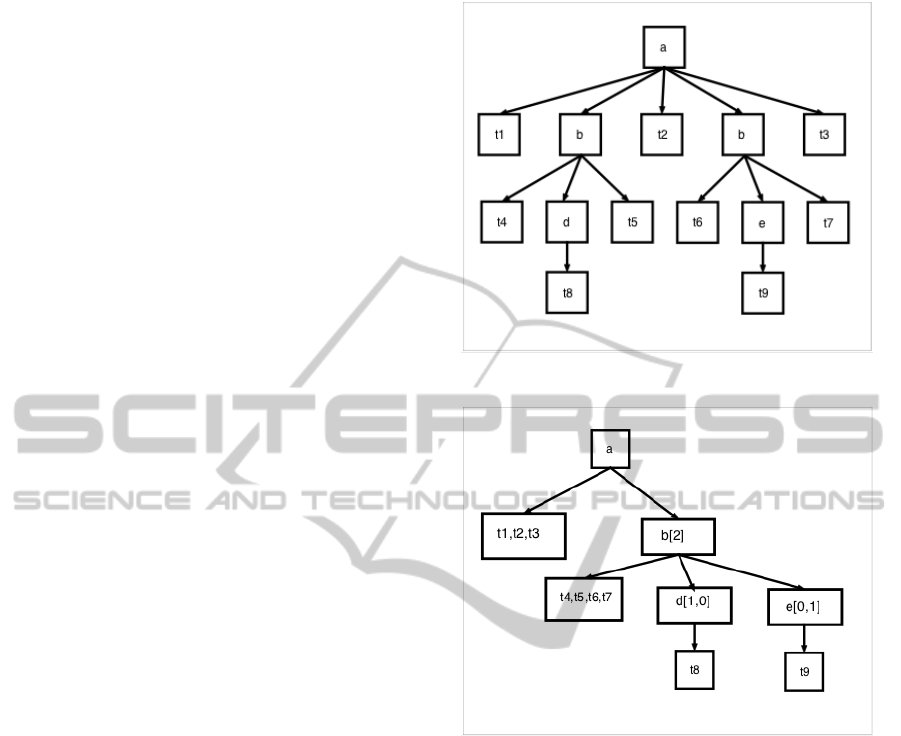

Figure 2: Tree representation of Figure 1.

Figure 3: The annotated tree for the document D.

hard-time requirements.

Deﬁnition 4. Online Compression or real time com-

pression is deﬁned as an encoding or decoding

scheme where the encoder operates on data as it is

being received and the decoder is not forced to wait

until the entire encoded document has been received;

instead decoding of the document can be started as

soon as the beginning of the encoded data stream is

received.

The majority of online compressors are homomor-

phic. While existing work on real time compres-

sion has focused on maximizing compression ratios;

processing-time and (least frequently considered) bot-

tleneck effects caused by network bandwidth have not

been considered.

Deﬁnition 5. There are two basic applications of the

decoder: (1) restoration, the decoder restores the

original XML document, and (2) querying, the de-

coder saves or transforms the data into a represen-

Pre-orderCompressionSchemesforXMLintheRealTimeEnvironment

tation suitable for subsequent queries.

In case of ofﬂine algorithms, for restoration the

encoder builds a model/compressed representation of

the original XML document; the decoder decom-

presses the compressed data and restores the original

XML document. If this approach were used on a net-

work, we would have singular-processing, i.e., the en-

coder/decoder would be inactive for the time it takes

for decoding/encoding, and the network would be in-

active during encoding and decoding. For querying,

the encoder performs the same actions as for restora-

tion, while the decoder stores the compressed data (or

queries the compressed data). Therefore, depending

on processing powers and bottleneck effects, in some

cases ofﬂine compression in the networked environ-

ment would be beneﬁcial.

In the case of online algorithms, for restoration,

the encoder node produces encodings while the de-

coder node receives this encoding and outputs (to a

network application or storage device) the original

XML document, or in most of our applicative cases

the annotated representation of the original XML doc-

ument. From a network perspective, three situations

can occur: (1) Perfect network utilization, in which

the encoder and decoder are never bottlenecked by a

network, or by one another and never have to wait or

the process has to sleep for data to process; (2) De-

coder starvation, in which the decoder (or its associ-

ated process) is often located on its associated operat-

ing system I/O wait queue, because the encoding pro-

cess or the network bandwidth is limited; (3) Encoder

starvation, in which the encoder (or its associated pro-

cess) is often located on its associated operating sys-

tem I/O wait queue, which can arise when the de-

coding process (or the network bandwidth) is lagging

and the encoding socket is waiting for a RR or ACK

request for speciﬁc TCP/UDP packet/frame. There-

fore, cases (2) and (3) often occur in parallel on low-

bandwidth networks. However, in terms of processing

load, online algorithms have intersection processing

loads. For querying, the encoding node produces en-

codings while the decoding node translates these en-

codings into a format that can be used to answer spe-

ciﬁc queries. In any case, an encoding can be trans-

lated back into its original XML representation and

be queried using tools such as SOAP (soap, 2012),

the encoding can directly interface with the Query

Streams design pattern as described in (Leighton

et al., 2005), or the encoding could be directly con-

verted into an annotated representation and be queried

as well. Regardless of situation, the processing load

negatively favours the decoder.

The ofﬂine XSAQCT compression algorithm de-

scribed in (Müldner et al., 2008) will be used as a

i. {-1, a, t1, b, t4, d, t8}

ii. {1, t5}

iii. {1, t2, b, t6, e, t9}

iv. {1, t7}

v. {1, t3}

vi. {EOF} // End of File

Figure 4: Example of XSAQCT online encoding.

baseline for comparison for two reasons. First, un-

der most circumstances, the client receiving this data

will be building the annotated tree for future query-

ing (and use). Therefore if an online algorithm can

transfer less encoded data than what an annotation al-

gorithm produces, we will consider the online algo-

rithm to be efﬁcient. Second, while the scope of com-

pression is greater for the annotated algorithm (i.e.,

a model is developed for the entire XML document,

while for online compression a model is developed

for speciﬁc branches of tree), compression may not

necessarily be optimal for entire document modelling.

For example, the zeros in Figure 3 tell the decoder

that this speciﬁc subtree has no tag element. There-

fore the goal of our approach to online compression

will be to produce an encoding for XML that is more

space efﬁcient than the ofﬂine XSAQCT counterpart.

This comparison will mostly revolve around the num-

ber of bits in representing the structure of an XML

ﬁle, as character data (deﬁned in Section 3.1) is of-

ten not manipulated. This is because learning gram-

mars, caching substrings can incur severe space/time

overheads, where-as using a real-time text compres-

sor could be just as beneﬁcial.

Encoding. Figure 4 shows the encoding generated

by the algorithm discussed in (Müldner et al., 2012b)

for the document in Figure 1. The encoding is cre-

ated by a pre-order traversal on the non-text nodes and

whenever there is traversal up the tree, a new encod-

ing packet is created. For the sake of brevity, the ﬁrst

element of each block (packet) of data is used to rep-

resent the number of elements required to be popped

off from a stack (number of traversals going up the

tree). In general, within a XML document, tag names

may be repeated many times. The example shown

in Figure 4 has only one tag repetition (‘b’), but in

general tag names are long and also dependant on the

character-set of the data. Using a dictionary that can

be synchronously built on the ﬂy by both the encoder

and the decoder, for tag names that have been seen be-

fore the encoder will only have to send indices within

the dictionary, which will decrease the overhead of

sending tag names.

Figure 5 depicts the encoding using a synchronous

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

i. {-1, 1, a, t1,

2, b, t4, 3, d,

t8}

ii. {1, t5}

iii. {1, t2, 2, t6,

4, e, t9}

iv. {1, t7}

v. {1, t3}

vi. {EOF} //

End of File

D={a,b,d}

D={a,b,d,e}

Figure 5: Node Name Dictionary.

dictionaries generated by the algorithm discussed

in (Müldner et al., 2012b) for the document in Fig-

ure 1. The reasoning behind using a dictionary is that

tag names (and attribute names) are often repeated

many times. The example shown in Figure 5 has

only one tag repetition (‘b’), but in general tag names

are long and also dependant on the character-set of

the data. Therefore, a dictionary that can be syn-

chronously built on the ﬂy by both the encoder and

the decoder, for tag names, is an easy technique for

reduction of markup.

To handle XML attributes in a pre-order encoding,

all attribute data can be encoded along with a dictio-

nary index. For example, if the "d" node in Figure 1

had an attribute "href", a standard encoding would be

{...3, nameAndAttrEncoding(d)...}. The next sections

describe our main contributions.

3.2.1 Lightweight SAX Parsing

For compressing data we are interested in the four

major components of an XML Document: (1) XML

Declaration; (2) Start Element Tags; (3) End Ele-

ment Tags; and (4) Character Data, which can be sub-

categorized as parsed character data, unparsed char-

acter data (processing instructions, comments), and

intermittent namespace deﬁnitions. An XML decla-

ration only occurs once, start and end tags deﬁne the

pre-order traversal of a tree, and character data (re-

call Deﬁnition 2) encompasses everything else. Since

we assume full-mixed content, all Start Element and

(non-child) End Element events are followed with a

text string which is, at minimum, an ASCII zero byte.

Encoding. Deﬁne the following two elements, both

encoded by single bytes: (1) Start Element, encoded

by 0x0; and (2) End Element, encoded by 0x1. The

description of Lightweight SAX is provided in Algo-

rithm 1. Figure 6 shows the encoding generated by

this algorithm for the document in Figure 1. Note that

the synchronous dictionary techniques can be used to

reduce the overhead in sending node names.

Bit Packing Improvement. The encoding bytes 0x0

i. {0x0, a, t1, 0x0, b, t4, 0x0, d, t8}

ii. {0x1, t5, 0x1, t2}

iii. {0x0, b, t6, 0x0, e, t9, 0x1, t7}

iv. {0x1, t3, 0x1=EOF} // End of File

Figure 6: Encoding with Lightweight SAX.

Algorithm 1: Lightweight SAX.

Require: n is the Root on initial function call

Require: XML Declaration Information has all ready been

transferred.

1: function ENCODE(Node n)

2: // Start Element

3: send(0x0);

4: // send name+attribute

5: send(handleAttributes(n));

6: // send text, possibly empty

7: send(getText(n));

// Pre-order Traversal

9: for Each Child Node s Of n do

10: Encode(s);

11: // Full mixed content states that

12: // text exists between all children.

13: send(getText(n,s))

14: end for

15: // End Element

16: send(0x1);

17: end function

and 0x1 can be represented using a single bit. Intro-

ducing bit-level operations can reduce each start/end

declaration by at minimum seven bits. Using this

technique, the encoding from Figure 6 changes to the

one shown in Figure 7. However, a low-level design

choice must be made for this technique: either (1)

the entire encoding will be done on the bit level, i.e.,

one bit will be written for start/end declaration fol-

lowed by multiple bytes that include tag index, char-

acter data, etc., or (2) an algorithm is forced to buffer

eight bits, each representing a SAX event. While both

techniques may induce extra processing and memory

overheads, for example, using the second technique,

the corresponding tag-dictionary keys and associated

character data must be buffered until a byte is packed

and the amount of data to buffer is undeﬁned. The

second method is preferred for the following reason.

By packing bits, the entropy of the entire encoding

will be smaller because no character data (the most

common form of data) is being bit-shifted before the

encoder outputs it and by extension, allows more sep-

aration between structure and data.

3.2.2 Path-centric Compression

Recall that for ofﬂine XSAQCT a text container for

path P contains a list of text data for all paths simi-

lar to P. This technique provides a good compression

Pre-orderCompressionSchemesforXMLintheRealTimeEnvironment

i. {00011001

, a, t1, b,t4, d, t8,t5,t2, b,t6, e, t9,t7}

ii. {11

, t3, EOF }

Figure 7: Encoding using two bits.

ratio because the types of data for each path are typ-

ically related (e.g. a ID tag will only have characters

deﬁned by the class [0 − 9]

) and thus will have a

smaller entropy in comparison to all of the text in to-

tal. Consider the two algorithms provided before. For

both algorithms, every packet of compression focuses

on a single pre-ordered branch of the XML document,

which makes it more difﬁcult to deal with text data. If

Z text nodes of each similar path are buffered and that

buffer is compressed before transfer, we will decrease

N-order entropy, or less formally, the entropy in spe-

ciﬁc locales of the document by exploiting character

locality properties used by permutation-based XML

compressors. However, if the receiving node is pip-

ing XML content directly into an application, text

data should be transferred as rapidly and frequently

as possible into the client. This conundrum necessi-

tates the reason for introducing context as a way to in-

crease compression ratios and potentially reduce pro-

cessing and transfer times. For storing XML content,

which would be queried upon, the same text contain-

ers used for Ofﬂine Compression could be losslessly

constructed on the sending node.

Deferred Text Compression. Similar to ofﬂine

XSAQCT, the encoder constructs text containers, one

for each unique path. However, each container is

a statically deﬁned buffer (with a statically deﬁned

buffer size). When the buffer becomes full, the en-

coder writes 0x2 (or 10

) and the contents of the

buffer are written to the output stream. One slight

modiﬁcation to the algorithm would allow variable

sized buffers that expand or contract depend on the

usage of the text container. In the following example

let square brackets [text] denote a buffer, and for the

following example assume it has a maximum capacity

of two elements (in our implementation it is actually

based on a speciﬁed number of bytes).

i. {0x0, a, 0x0, b, 0x0 d, 0x1}

ii. {0x2, [t4,t5], 0x1, 0x2, [t1,t2]}

iii. {0x0, b, 0x0, e, 0x1, 0x2, [t6,t7]}

iv. {0x1, 0x1, [t3], [\0], [t8], [t9]}

Figure 8: Buffering text.

Figure 8 gives the output of encoding for Fig-

ure 1 using the Algorithm 2. The last encoding line

in this ﬁgure includes all leftover text data, sent in

a commonly agreed upon ordering (for this example,

depth-ﬁrst fashion, the implementation uses the syn-

chronous dictionaries natural ordering). One addi-

tional note too make is that since three codes are re-

served, only four commands can be packed per byte.

Algorithm 2: Deferred Pre-order Encoding.

Require: n is the Root on initial function call

1: function ENCODE(Node n)

2: preorder(n);

3: for Each Unique Path : q do

// Any trailer data in the buffer.

5: buffer(q).ﬁnalize().close();

6: send(buffer(q));

7: end for

8: end function

9: function BUFFER(Path path, Text t)

10: buffer(path, getText(n));

11: // The buffer would do the following

12: // as data is being buffered:

13: if buffer(path).isLimitExceeded() then

14: send(0x2);

15: // Ofﬂoad the full buffer.

16: send(buffer(path));

17: // Reset the buffer

18: buffer(path).clear();

19: end if

20: end function

Require: n is the Root on initial function call

21: function PREORDER(Node n)

22: // Start element

23: send(0x0);

24: // Send name+attribute information.

25: send(handleAttributes(n));

26: // Buffer (possibly empty) left-most text node.

27: buffer(p, getText(n));

28:

// Pre-order traversal

29: if !isChild(n) then

30: c = LC(c);

31: while c 6= null do

32: preorder(c);

33: // Buffer right-most text child

34: // or separation text.

35: buffer(p, getText(n));

36: c = RS(c);

37: end while

38: end if

39: send(0x1);

40: end function

4 IMPLEMENTATION AND

RESULTS

4.1 Testing Environment

All our algorithms were implemented using Java ver-

sion 1.7.0. Based on the previous research on char-

acteristics of XML ﬁles, to create a test suite de-

scribed in the following section, we chose to con-

sider the following characteristics: ﬁle size, general

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

characteristics (such as number of elements and at-

tributes), ﬁrst order entropy, content density and a

variant of structure regularity (total number of ele-

ments over total number of distinct elements). For

encoding process, two measures were taken: (1) an

ordinary encoding of the entire document, which rep-

resents the number of raw bytes generated by the en-

coder; (2) a compression of the encoding from (1) us-

ing a general purposed back-end compressor that is

used often in real time environments. GZIP (GZIP,

2012) was chosen as the back-end (and text) com-

pressor because many bandwidth aware transfer pro-

tocols (including HTTP, see (HTTP, 2012)) use GZIP

or a DEFLATE variant for speedup. While the ﬁrst

measure may provide insights to how efﬁcient each

encoding is in comparison to the original data, the

second measure describes compressibility of each en-

coding. Therefore our proposed encoding strategies

focus on high compression ratio (reducing entropy)

at the expense total number of bytes sent. This phi-

losophy is also quite different from the EXI standard

that adopts the philosophy of pre-compressing spe-

ciﬁc pieces of data (common string subsequences), at

the cost of reducing the overall (how it appears con-

tiguously) compressibility. In total, ten total encod-

ing techniques are compared. First, we measured a

naive solution of using GZIP (or no compression de-

pending on the measure), followed by an EXI Imple-

mentation (Peintner, 2012) (using all ﬁdelity options,

default encoding options and a compression-oriented

coding mode). Next, we measured performance of

Treechop (Leighton et al., 2005), the original algo-

rithm as discussed in (Müldner et al., 2012b) and a

leaf improvement algorithm (grouping together long-

sequences of child-siblings) is borrowed from (Müld-

ner et al., 2012b), followed by our new algorithms,

Lightweight SAX and its bit-packed improvement.

Finally, we measured path-centric compression with

its bit packing improvement.

4.2 Characteristics of Test Suite

Our experiments used the following 11 ﬁles listed

here in the order of their sizes (from 5,685.77 GB to

159 KB): enwiki-latest-stub-articles.xml (in the tables

and pictures referred to as e.w.-stub) from (enwiki

dumps, 2012), 1gig.xml (a randomly generated XML

ﬁle, using xmlgen (xmlgen, 2012)), enwikibooks-

20061201-pages-articles.xml, (in the tables and pic-

tures referred to as e.w.-books),dblp.xml, Swis-

sProt.xml, enwikinews-20061201-pages-articles.xml

(in the tables and pictures referred to as e.w.-news),

lineitem.xml, shakespeare.xml, uwm.xml (all from

the Wratislavia corpus (Wratislavia, 2012)), base-

Table 1: Overview of XML Test Suite. (Sizes in Bytes).

XML File Size Entropy Size (Gzip) Unq. Paths

e.w.-stub 5.96E+09 4.905 9.54E+08 37

1gig 1.17E+09 4.768 3.85E+08 548

e.w.books 1.56E+08 5.152 4.57E+07 29

dblp 1.34E+08 5.198 2.45E+07 145

SwissProt 1.15E+08 5.54 1.41E+07 264

e.w.news 4.64E+07 5.202 1.30E+07 29

lineitem 3.22E+07 5.042 2.91E+06 19

shakespeare 7.65E+06 5.189 2.14E+06 58

uwm 2.34E+06 4.752 1.62E+05 22

BaseBall 6.72E+05 4.867 6.68E+04 46

macbeth 1.63E+05 5.164 4.67E+04 22

XML File Elements Attributes Density Regularity

e.w.-stub 1.70E+08 3.04E+07 0.549 4.60E+06

1gig 1.67E+07 3.83E+06 0.735 3.05E+04

e.w.books 5.34E+05 4.91E+04 0.942 1.84E+04

dblp 3.33E+06 4.04E+05 0.562 2.30E+04

SwissProt 2.98E+06 2.19E+06 0.444 1.13E+04

e.w.news 2.79E+05 2.46E+04 0.894 9.61E+03

lineitem 1.02E+06 1.00E+00 0.195 5.38E+04

shakespeare 1.80E+05 0.00E+00 0.646 3.10E+03

uwm 6.67E+04 6.00E+00 0.445 3.03E+03

BaseBall 2.83E+04 0.00E+00 0.109 6.15E+02

macbeth 3.98E+03 0.00E+00 0.633 1.81E+02

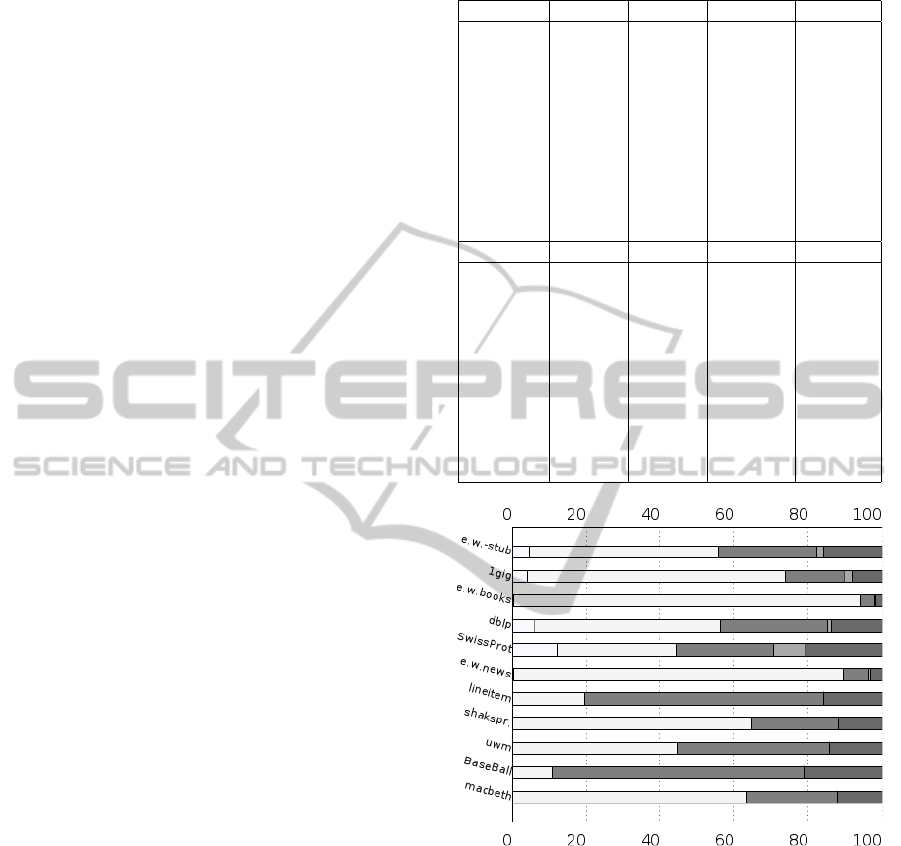

Figure 9: Character Density (Attribute Text + Element Text)

vs. Markup Density (Node Tags + Attribute Tags + Re-

served Chars).

ball.xml (from (Baseball.xml, 2012)), and mac-

beth.xml (from (macbeth, 2012)). Table 1 provides

an overview of each XML ﬁle, using characteristics

described in Section 4.1. The measurements show

that the (ﬁrst order) entropy for each XML document

is greater than four. In comparison, Shannon esti-

mated the entropy of written English to be between

0.6 and 1.3. Secondly, while the number of unique

paths in 1gig.xml ﬁle is greater than 500, the num-

ber of unique element names is roughly 80. This

phenomenon is common in XML ﬁles where many

subtrees differ by the name of a parent node. Fig-

Pre-orderCompressionSchemesforXMLintheRealTimeEnvironment

ure 9 provides a comparison of Content Density and

Markup Density. This comparison shows the major

issue with using XML as a representation language

for semi-structured data. Speciﬁcally, it shows that

in the worst case, for BaseBall.xml, ninety percent of

the document is considered markup overhead. In the

best case, for enwikibooks.xml, over ninety percent

of the document consists of text. Otherwise, the rest

of the suite lies within the two extremes. Table 2 pro-

vides a breakdown of XML Test Suite in percentage

points. These two tables show that our XML suite

includes XML ﬁles with low/high number of nodes

and attributes, and various amounts of text, such as

attribute text or element text.

4.3 Results of Testing

Reducing Markup Data. Table 3 compares the ef-

ﬁciency of each algorithm described in Section 3 in

terms of encoding only the markup of a XML docu-

ment. The compression ratio is calculated as the size

of the encoding divided by the size of the markup

data (column two). Note that for online compres-

sion the size of the markup includes all occurrences

of ASCII Zero to satisfy the full-mixed content prop-

erty (for algorithms that require it) and all additional

data required to describe text data (for example, block

lengths, text terminators, etc.).

Figure 10 provides two measures: (a) A grey bar

with a white bar stacked on top. This represents

the best compression of markup an online algorithm

could achieve, while the white bar stacked-upon it

represents the size of its GZIP’d encoding. (b) The

new grey bar with a black bar stacked on top. This

represents the number of bytes required to encode an

annotated tree, while the white bar stacked-upon it

represents the size of its GZIP’d encoding. For the

online algorithms we achieve over a 25% compres-

sion ratio (or a space savings greater than 75%) for

all ﬁles. For the ofﬂine algorithm, some ﬁles pro-

duce encodings that contain many zero annotations

and thus contain large portions of overhead. There

is no decisive winner when one compares both en-

codings compressed as these encodings produce com-

pression ratios of under 2% (space savings of 98%)

of the original markup. However, comparing the two

encodings after compression is also quite misleading,

but still provides interesting information none the less

(how compressible/similar the data is). For online al-

gorithms, these encodings aren’t continuous as large

portions of intermittent character data separate por-

tions of this markup, thus not allowing us to encode

markup data as one contiguous sequence.

Switching focus to only the online algorithms, the

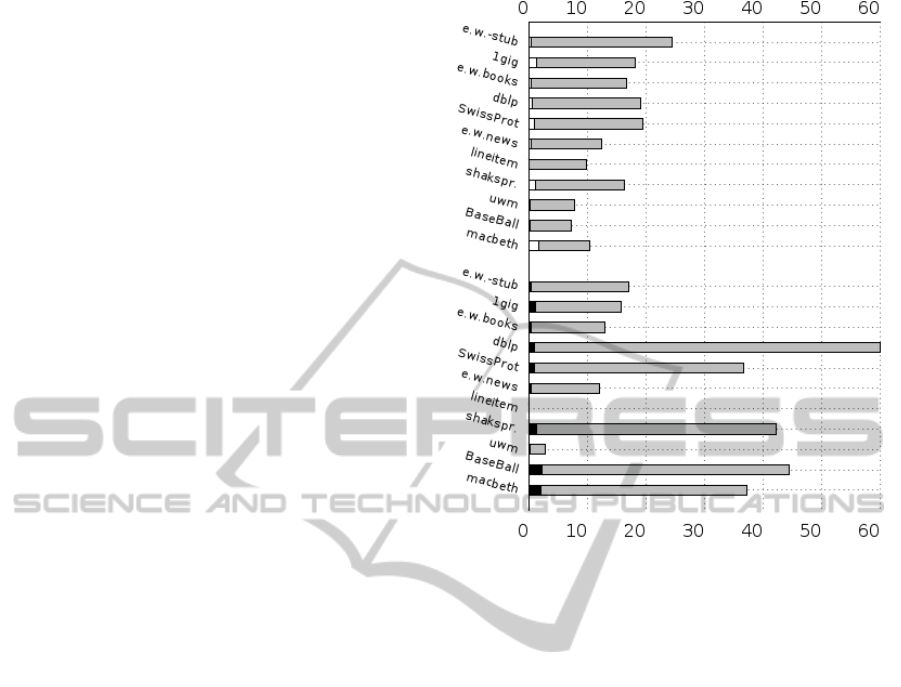

Figure 10: Compression of Markup Data. Best Online

Compressor (Top), Ofﬂine XSAQCT (Bottom) vs. GZIP’ed

encodings.

ﬁrst general trend is that as the ﬁle gets bigger (bot-

tom to top in Figure 10), the worse the compression

ratio of markup data gets. From Table 1, we see

that the four documents with the highest number of

tag elements are also the four least-compressed doc-

uments (enwiki-latest, 1gig, dblp, SwissProt). This

phenomenon can be attributed to the full-mixed con-

tents assumption. For each algorithm an ASCII zero

is required to delimit text so the decoder knows when

the character portion ends. In our future work, more

compressible text delimitation and full mixed content

techniques will be studied, as well as introducing con-

text models, similar to the ideas EXI proposes, to in-

crease path-centric compressibility.

Reducing XML Data. Tables 4 and 5 encompass

an entire XML encoding and transfer process. Each

element in the table represents the number of bytes

physically transferred over a socket. Let us ﬁrst com-

pare the our basic online algorithms, with their im-

proved variants. The improved variant of the original

XSAQCT algorithm performs slightly better. How-

ever, the improved variant of the Lightweight SAX

implementation that uses bit-packing (unsurprisingly)

does not, because it may represent a fewer number

of total bytes, and the self-information (entropy) of

the encoding tends to be much higher. This increased

self-information is also present in the Path-centric Al-

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

Table 2: Breakdown of XML Test Suite in Percentage Points. For character set, Number of Bits in Character Encoding /

Number of Unique Characters.

File Node Tags Attribute Tags Reserved Attribute Text Element Text Character Set

e.w.-stub 26.426 1.958 15.781 4.5 51.336 16/12460

1gig 15.94 2.191 7.949 4.001 69.918 8/80

e.w.-books 3.707 0.251 1.821 0.283 93.938 16/23795

dblp 29.106 1.017 13.656 5.739 50.482 8/126

SwissProt 26.442 8.557 20.593 12.086 32.322 8/86

e.w.-news 6.866 0.477 3.202 0.424 89.031 16/1777

lineitem 64.589 0 15.867 0 19.543 8/69

shakespeare 23.645 0 11.748 0 64.607 8/80

uwm 41.214 0.001 14.275 0.003 44.507 8/68

BaseBall 67.941 0 21.147 0 10.912 8/68

macbeth 24.558 0 12.195 0 63.247 8/70

Table 3: Compression Ratio of Structure Data: Number of Bytes to Encode Markup / Original Markup Size.

File XML-Markup XSAQCT Leaf Imprv. Lw SAX Bit Packing Path Cent. Defer. Text Min

e.w.-stub 2.59E+09 0.331 0.304 0.359 0.244 0.376 0.26 0.244

1gig 3.04E+08 0.282 0.249 0.312 0.216 0.325 0.181 0.181

e.w.-books 9.03E+06 0.279 0.277 0.312 0.208 0.317 0.167 0.167

dblp 5.86E+07 0.294 0.214 0.305 0.206 0.312 0.191 0.191

SwissProt 6.38E+07 0.302 0.244 0.316 0.235 0.37 0.194 0.194

e.w.-news 4.89E+06 0.27 0.264 0.3 0.2 0.305 0.123 0.123

lineitem 2.59E+07 0.193 0.128 0.197 0.128 0.197 0.099 0.099

shakespeare 2.71E+06 0.308 0.25 0.332 0.216 0.332 0.163 0.163

uwm 1.30E+06 0.233 0.213 0.257 0.167 0.257 0.077 0.077

BaseBall 5.96E+05 0.234 0.152 0.238 0.155 0.238 0.072 0.072

macbeth 5.99E+04 0.312 0.252 0.335 0.219 0.336 0.104 0.104

Table 4: Encoding the Entire XML Document. (Sizes in Bytes).

File Ofﬂine EXI Treechop XSAQCT Leaf Lw. SAX Bit Pck. Path Cnt. Defer.

e.w.-stub 4.09E+09 * 4.66E+09 4.12E+09 4.06E+09 4.21E+09 3.91E+09 4.25E+09 3.94E+09

1gig 9.47E+08 4.79E+08 1.24E+09 9.48E+08 9.38E+08 9.57E+08 9.28E+08 9.61E+08 9.17E+08

e.w.-books 1.49E+08 1.39E+08 1.45E+08 1.43E+08 1.43E+08 1.50E+08 1.49E+08 1.50E+08 1.41E+08

dblp 1.26E+08 8.69E+07 1.07E+08 9.24E+07 8.78E+07 9.31E+07 8.73E+07 9.35E+07 8.63E+07

SwissProt 8.26E+07 4.37E+07 8.46E+07 7.03E+07 6.66E+07 7.12E+07 6.60E+07 7.46E+07 6.25E+07

e.w.-news 4.27E+07 3.95E+07 4.27E+07 4.18E+07 4.17E+07 4.30E+07 4.25E+07 4.30E+07 4.10E+07

lineitem 8.35E+06 7.31E+06 1.19E+07 1.13E+07 9.61E+06 1.14E+07 9.62E+06 1.14E+07 9.40E+06

shakespeare 6.44E+06 5.94E+06 6.38E+06 5.77E+06 5.62E+06 5.84E+06 5.53E+06 5.84E+06 5.19E+06

uwm 1.21E+06 7.68E+05 1.52E+06 1.34E+06 1.31E+06 1.37E+06 1.26E+06 1.37E+06 8.33E+05

BaseBall 3.95E+05 1.77E+05 1.52E+06 2.13E+05 1.63E+05 2.15E+05 1.66E+05 2.15E+05 4.31E+04

macbeth 1.33E+05 1.21E+05 1.35E+05 1.22E+05 1.18E+05 1.23E+05 1.16E+05 1.23E+05 6.25E+03

* – Requires extraordinary amount of RAM. Crashes with 16GB of allocated memory.

Table 5: Using a Backend Compressor on the Encodings. (Sizes in Bytes).

File Ofﬂine EXI Treechop XSAQCT Leaf Lw. SAX Bit Pck. Path Cnt. Defer.

e.w.-stub 6.95E+08 * 9.14E+08 8.87E+08 8.86E+08 8.95E+08 9.39E+08 6.99E+08 6.95E+08

1gig 3.29E+08 1.57E+08 3.90E+08 3.71E+08 3.71E+08 3.70E+08 3.74E+08 3.32E+08 3.31E+08

e.w.-books 4.45E+07 4.39E+07 4.52E+07 4.51E+07 4.51E+07 4.54E+07 4.56E+07 4.44E+07 4.38E+07

dblp 1.94E+07 1.86E+07 2.36E+07 2.27E+07 2.27E+07 2.29E+07 2.34E+07 1.94E+07 1.92E+07

SwissProt 7.63E+06 7.71E+06 1.33E+07 1.23E+07 1.23E+07 1.24E+07 1.36E+07 7.74E+06 7.77E+06

e.w.-news 1.26E+07 1.26E+07 1.29E+07 1.28E+07 1.28E+07 1.29E+07 1.30E+07 1.26E+07 1. 25E+07

lineitem 1.43E+06 1.44E+06 2.34E+06 2.33E+06 2.20E+06 2.34E+06 2.44E+06 1.45E+06 1.44E+06

shakespeare 1.89E+06 1.99E+06 2.07E+06 2.02E+06 2.03E+06 2.03E+06 2.05E+06 1.91E+06 1.90E+06

uwm 1.02E+05 1.10E+05 1.50E+05 1.43E+05 1.42E+05 1.47E+05 1.66E+05 1.02E+05 1.01E+05

BaseBalll 4.67E+04 3.87E+04 5.29E+04 5.41E+04 4.82E+04 5.45E+04 5.41E+04 3.49E+04 3.46E+04

macbeth 4.34E+04 4.50E+04 4.56E+04 4.45E+04 4.48E+04 4.46E+04 4.53E+04 4.34E+04 4.32E+04

* – Requires extraordinary amount of RAM. Crashes with 16GB of allocated memory.

gorithm, however not to the same extent.

We did not report the compression ratio of enwiki-

latest-stub.xml with EXI due to hardware limitations.

In general, we made the hard restriction that the

Pre-orderCompressionSchemesforXMLintheRealTimeEnvironment

amount of internal memory allocated to a process can

never exceed twice the ﬁle size. Not only did EXI

exceed this, but it exceeded three times the original

ﬁle size. Section 5 provides a brief discussion on why

we think this occurs, and what can be done to im-

prove it. However, in terms of our online compression

algorithms (which don’t produce substantial memory

footprint), we can see that they scale well to data of

all sizes.

Relating each individual algorithm to the baseline

transfers (Ofﬂine & GZIP) we see that in each case all

online algorithms perform better than GZIP. However,

in each case as we relax the "online constraint" (the

more data we are allowed to buffer), the better and

more signiﬁcant results we receive. Comparing Of-

ﬂine XSAQCT, which requires processing the entire

document before transfer to Lightweight Sax, which

processes on the ﬂy, the Ofﬂine XSAQCT performs

on average, 15% better. However, comparing Ofﬂine

to Path-centric algorithm, Ofﬂine XSAQCT performs

on average, 2% better, which is signiﬁcant because

Path-centric algorithm does not require a full docu-

ment scope, which would be optimal in the domain of

large-scale XML streaming. In comparison to Tree-

chop, the original and lightweight SAX variants also

prove to be quite competitive and once again the Path-

centric algorithms beat Treechop. Finally, in com-

parison to EXI, the Path-centric algorithms tend to

be similar for documents whose size was larger than

1GB. For example, for 1gig.xml, a document which

contains a lot of character data, EXI beats "all" algo-

rithms by a substantial margin.

5 CONCLUSIONS AND FUTURE

WORK

This paper provided a design and implementation

of four new versions of online XML compression,

which exploit local structural redundancies of pre-

order traversals of an XML tree and focus on reduc-

ing the overhead of sending packets and maintaining

load balancing between the sender and receiver with

respect to encoding and decoding. For testing various

algorithms, a suite consisting of 11 XML ﬁles with

various characteristics was designed and analyzed. In

order to take into account network issues, such as

its bottleneck, two measures of the encoding process

were considered to compare ten encoding techniques,

using GZIP, EXI, Treechop, XSAQCT, and its im-

provement, and our new algorithms. Our experiments

indicated that our new algorithms have similar or bet-

ter performance than existing online algorithms, such

XSAQCT and Treechop, and have only worse perfor-

mance than (a non-queryable XML compressor) EXI

for ﬁles larger than 1 GB.

For future work we will consider the amount

of overhead of performing each encoding as in the

amount of resources required for encoding. Recall

the missing data in Table 4. The reason for the ex-

traordinary resource requirement can be attributed to

the fact that EXI also performs manipulation on the

text to increase compression ratios, which appears to

be resource heavy. In addition, more techniques will

be introduced that alleviate the vast overhead of send-

ing ASCII zero characters to delimit text and to sat-

isfy the full mixed content property. Next, context-

modeling techniques (such as those used in the PPM

& PAQ variants of data compression) will be intro-

duced as a pre-processor on character data to allow

higher compression ratios. Finally, a more concise

and meaningful deﬁnition of Structure Regularity that

takes into account the skewness of occurrences, by us-

ing the annotated tree representation, will be deﬁned

and studied.

REFERENCES

Arion, A., Bonifati, A., Manolescu, I., and Pugliese, A.

(2007). XQueC: a query-conscious compressed XML

database. ACM Transactions on Internet Technology,

7(2).

Baseball.xml (2012). baseball.xml, retrieved October 2012

from http://rassyndrome.webs.com/cc/baseball.xml.

enwiki dumps (2012). enwiki-latest.xml, retrieved October

2012 from http://dumps.wikimedia.org/enwiki/latest/.

EXI (2012). Efﬁcient XML Interchange (EXI) Format

1.0, Retrieved October 2012 from http://www.w3.org/

TR/exi/.

GZIP (2012). The gzip home page, retrieved October 2012

from http://www.gzip.org.

Hartmut, L. and Suciu, D. (2000). XMill: an efﬁcient com-

pressor for XML data. ACM Special Interest Group on

Management of Data (SIGMOD) Record, 29(2):153–

164.

HTTP (2012). HTTP RFC 2616, retrieved Octo-

ber 2012 from http://www.w3.org/protocols/rfc2616/

rfc2616.html.

Leighton, G. and Barbosa, D. (2009). Optimizing XML

compression. XML Database Symposium (XSym)

’09, pages 91–105, Berlin, Heidelberg. Springer-

Verlag.

Leighton, G., Müldner, T., and Diamond, J. (2005). TREE-

CHOP: A Tree-based Query-able Compressor for

XML. The Ninth Canadian Workshop on Information

Theory, pages 115–118.

Lin, Y., Zhang, Y., Li, Q., and Yang, J. (2005). Supporting

efﬁcient query processing on compressed XML ﬁles.

Proceedings of the Symposium on Applied Comput-

ing (SAC) ’05, pages 660–665, New York, NY, USA.

ACM.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

macbeth (2012). macbeth.xml, retrieved October 2012 from

http://www.ibiblio.org/xml/examples/.

Measurements (2012). Efﬁcient XML Interchange Mea-

surements Note, retrieved October 2012 from http://

www.w3.org/tr/exi-measurements/.

Müldner, T., Corbin, T., Miziołek, J., and Fry, C. (2012a).

Design and Implementation of an Online XML Com-

pressor for Large XML Files. International Journal

On Advances in Internet Technology, 5(3):115–118.

Müldner, T., Fry, C., and Miziołek, J. (2012b). Online

Internet Communication using an XML Compressor.

In The Seventh International Conference on Internet

and Web Applications and Services, pages 131–136,

Stuttgart, Germany. International Academy, Research,

and Industry Association. (IARIA).

Müldner, T., Fry, C., Miziołek, J., and Durno, S. (2008).

SXSAQCT and XSAQCT: XML Queryable Compres-

sors. In S. Böttcher, M. Lohrey, S. M. and Rytter,

W., editors, Structure-Based Compression of Complex

Massive Data, number 08261 in Dagstuhl Seminar

Proceedings.

Müldner, T., Fry, C., Miziołek, J., and Durno, S. (2009).

XSAQCT: XML queryable compressor. In Balisage:

The Markup Conference 2009, Montreal, Canada.

Ng, W., Lam, W.-Y., Wood, P., and Levene, N. (2006).

XCQ: a queriable XML compression system. Knowl-

edge and Information Systems, 10(4):421–452.

Peintner, D. (2012). EXI: EXIﬁcient retrieved October

2012, from http://exiﬁcient.sourceforge.net.

Qureshi, M. H. and Samadzadeh, M. H. (2005). Determin-

ing the complexity of XML documents. International

Conference on Information Technology: Coding and

Computing(ITCC) ’05, pages 416–421, Washington,

DC, USA. IEEE Computer Society.

Ruellan, H. (2012). XML entropy study. In Balisage: The

Markup Conference 2012, Montreal, Canada.

Sakr, S. (2008). An experimental investigation of XML

compression tools. The Computing Research Reposi-

tory (CoRR), abs/0806.0075.

SAX (2012). Simple API for XML (SAX), retrieved Octo-

ber 2012 from http://www.saxproject.org.

Snyder, S. (2010). Efﬁcient XML Iinterchange (EXI)

compression and performance beneﬁts: Develop-

ment, implementation and evaluation, retrieved

October 2012 from http://www.dtic.mil/cgi-bin/

gettrdoc?ad=ada518679. Master’s thesis, Naval

Postgraduate School, Monterey, California.

soap (2012). SOAP Version 1.2 Part 1: Messaging Frame-

work (Second Edition), retrieved October 2012 from

http://www.w3.org/tr/soap12-part1/.

Tolani, P. and Haritsa, J. (2002). XGRIND: a query-friendly

XML compressor. International Conference on Data

Engineering (ICDE)’ 02, pages 225–234.

Wratislavia (2012). Wratislavia XML corpus, retrieved Oc-

tober 2012 from http://www.ii.uni.wroc.pl/∼inikep/

research/wratislavia/.

XML (2012). Extensible markup language (XML) 1.0

(Fifth edition), retrieved October 2012 from http://

www.w3.org/tr/rec-xml/.

xmlgen (2012). The benchmark data generator, retrieved

October 2012 from http://www.xml-benchmark.org/

generator.html.

XPath (2012). XML Path Language (XPath), Retrieved Oc-

tober 2012 from http://www.w3.org/TR/xpath/.

XQuery (2012). XQuery 1.0: An XML Query Language

(Second Edition), Retrieved October 2012 from http://

www.w3.org/TR/xquery/.

Pre-orderCompressionSchemesforXMLintheRealTimeEnvironment
