A Coordination Protocol for User-customisable Cloud Policy Monitoring

Ming-Xue Wang, Lei Xu and Claus Pahl

School of Computing, Dublin City University, Dublin, Ireland

Keywords:

Cloud Computing, Cloud Architecture, Customisation, Cloud Governance, Policy.

Abstract:

Cloud computing will see a increasing demand for end-user customisation and personalisation of multi-tenant

cloud service offerings. Combined with an identiﬁed need to address QoS and governance aspects in cloud

computing, a need to provide user-customised QoS and governance policy management and monitoring as

part of an SLA management infrastructure for clouds arises. We propose a user-customisable policy deﬁni-

tion solution that can be enforced in multi-tenant cloud offerings through an automated instrumentation and

monitoring technique. We in particular allow service processes that are run by cloud and SaaS providers to be

made policy-aware in a transparent way.

1 INTRODUCTION

Cloud computing is service-based provisioning of

software, infrastructure and platform technology

(SaaS, IaaS, PaaS) (Buyya et al.,2011). SaaS

providers are the primary target of our policy deﬁ-

nition, instrumentation and monitoring solution, but

also SaaS users such as end users and mashup

providers are important in the context of service pro-

cesses. Programmatic management interfaces and

multi-tenancy are often named as open cloud issues.

A customer needs to be allowed to better control and

customise cloud offerings through speciﬁc manage-

ment interfaces. For the provider, this is a multi-

tenancy environment where users have varying re-

quirements. Governance and QoS issues are concerns

for users. QoS responsibilities are usually split be-

tween provider and user. This requires a coordina-

tion solution to deal with monitoring and enforcement

where QoS-related and other policies can be conﬁg-

ured by the user and enforced and monitored by the

provider. Policies are speciﬁcations that formulate

user QoS and governance requirements.

Two key objectives of our coordination model and

protocol for policy deﬁnition, instrumentation and

monitoring can be singled out. Firstly, the beneﬁt of

user-conﬁgured policy management for multi-tenancy

is to allow end-user customisable cloud computing,

i.e. creating a multitenant environment where user-

speciﬁc end-to-end SLAs can be formulated and spe-

ciﬁc needs speciﬁed and controlled by the user. Ma-

jor cloud providers often use a one-size-ﬁts-all SLA

approach for their cloud platforms. Governance of

clouds needs to be more open for the actual user

to specify and enforce requirements better, which

of course also requires infrastructure support on the

provider side in multi-tenancy environments to man-

age the execution within SLAs. Secondly, our solu-

tion to process-level policy management will work

not only for service offerings, but also for process-

level architectures, where the provider implements an

offered service as a process. This is particularly im-

portant for a growing market of cloud prosumers that

provide mashups of existing services.

2 FRAMEWORK OVERVIEW

A framework for user-controlled management of pol-

icy (governance and QoS) aspects can facilitate intel-

ligent (self-)management of cloud resources. Our so-

lution allows to optimise usage (the provider perspec-

tive) based on monitoring compliancy SLA compli-

ance (the user perspective) based on monitoring poli-

cies (Leusse et al., 2009). Our assumption is that ser-

vices processes (rather than individual services) are

enacted by Cloud/SaaS providers or users. These are

• either provider processes which are customer

policy-enhanced using the proposed techniques.

An example is Amazon’s EC2 offering, which

provides an interface (API) described in WSDL

and accessible via SOAP, that is internally enacted

as a process (for instance WS-BPEL-based).

• or customer processes which are customer policy-

enhanced. This refers to the combination and in-

337

Wang M., Xu L. and Pahl C..

A Coordination Protocol for User-customisable Cloud Policy Monitoring.

DOI: 10.5220/0004367003370344

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 337-344

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tegration of cloud services by intermediaries (i.e.

prosumers or brokers that provide mashups).

Technical challenges are multi-tenancy, user-

controlled end-to-end SLAs, and process-centricity.

Multi-tenancy applications, i.e. cloud applications

provided to many users, are manageable as long as

a one-size-ﬁts-all approach works, but a management

scalability problem arises if different users have dif-

ferent requirements (Mietzner et al., 2009). A con-

ﬁgurable policy monitoring technique is the proposed

solution (Wang et al., 2009). Customisation of policy

management requires a ﬁne-granular multi-tenancy

model, where end users can conﬁgure and enact (re-

motely) their speciﬁc requirements. Two types of in-

terfaces in cloud applications exist that are internally

enacted through service proceses. Firstly, the upload

and management of resources, executed by a provider

BPEL process. Secondly, functionality that the appli-

cation uses as a process (the cloud acts as a middle-

ware). Here, policy monitoring is a customer service.

Both are, however, subject to SLAs/policy speciﬁca-

tions. Our solution consist of:

• A policy model captures a range of cloud com-

puting context aspects in order to allow users to

specify their dynamic quality and governance re-

quirements. User-speciﬁc requirements and set-

tings will be validated and converted into an ex-

ecutable, commonly used (standardised) format

that can be enacted by providers.

• A policy coordination and instrumentation tool in-

struments services at process level with the user

policies. For the process view, mashups (compo-

sition) need to address composition of functional-

ity as well as composition of quality aspects and

their respective policy speciﬁcations.

We have implemented components for policies

[A], policy validation [B], policy instrumentation [C],

validation monitoring [D], and policy customisation

at the end user side [E] (Wang et al., 2009) to support

the policy deﬁnition and monitoring approach.

1. Police deﬁnitions are collections of XML rules.

Customised policies are stored at customer-end or

in a common repository.

2. A target process based on customer requirements.

3. Policy instrumentation for dynamic coordination

using pre/post conditions attached to constituent

Web services of the selected process.

4. A policy validation engine is needed.

5. Policy validation results are monitored. Monitor-

ing provides feedback for policy customisation -

implemented as a listener service for the process.

3 POLICY MODEL

The policy model needs to allow end-users to for-

mulate policies supported by policy validation tech-

niques and mechanisms for SLA-policy language in-

tegration and translation (Weigand et al., 2008). This

section introduces a policy model for process con-

sumers to formalize business policies as a customiza-

tion of business processes of process providers. A

range of sample policies, covering business aspects

(receipts, billing) and technical aspects (response

time), are the following:

• Buyer receipts need be issued for every checkout.

• Shipping is calculated for before payment.

• Retry the service for card processing if it fails, but

no more 5 times in the last minute, and no more

30 times in the last 5 minutes.

• Credit card processing should be completed in

less than 700 ms without faults. for each order

should less than 5 seconds.

The business policies are deﬁned after the business

processes they are meant to be applied to are imple-

mented and provided for process consumers. This

makes policy-ﬁrst process development for processes,

as in the conventional business rules approach, not

applicable. A new policy language for consumers

to formalize the business policies for pre-developed

processes is then a customization language of pre-

pared business processes. The deﬁned policies are

enforced on business processes by providers for the

consumers. This is a process-level contract between

process consumers and providers (Pahl, 2005). The

mechanism for process providers to carry out the con-

tract is a process coordination and governability tech-

nique - see next section. Hence the development of

the policy model is based on a coordination protocol

for runtime governance between process consumers

and providers to achieve on-the-ﬂy customization.

The core of the policy model is a language model

for process consumers to express business policies

for existing provided processes as process customiza-

tion metadata. The language model is inspired by the

XACML access control modelling language. The pol-

icy language model is based on standard syntax for

grouping rules into policies and policy sets. It is used

by business analysts and developers of process con-

sumers to express different rule categories of policies.

Flexibility rules are business-oriented rules (like the

ﬁrst two above) that would not result in any suspen-

sion or termination of the process. Constraint rules,

like the last two above, must be satisﬁed; otherwise

the process will not proceed. Fault rules refer to tech-

nical/infrastructure problems. A range of standard re-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

338

actions such as suspend, alert or log for the consumer

and validate, ignore or replace for the provider are

deﬁned. The policy language model also provides

features such as matching and and combination al-

gorithms for policy developers to resolve conﬂicts of

multiple policies. This allows policy developers to

express and reason about complex business policies,

such as policy hierarchies. As we focus on the coor-

dination, a detailed description of the policy model is

omitted here, but can be found in (Wang, 2012).

4 COORDINATION AND

INSTRUMENTATION

A coordination framework with protocols as real con-

tracts makes process consumers and providers con-

tribute together to governance to ensure that deﬁned

policies are enforced. For a business transaction re-

quested by a process consumer, there are a num-

ber of activities including those from subprocesses

within a process that will participate in the trans-

action. The WS-Coordination speciﬁcations are de-

signed for transactions of distributed Web services

(Barrett et al., 2006) rather than transactions of busi-

ness processes. Adaptive processes for handling pro-

cesses transactions lack coordination mechanisms for

our case to guarantee all participants working together

in a uniﬁed manner. The coordination framework we

designed is a response to these limitations. It includes

deﬁned protocols as contracts for all participants for

any business transactions of business processes.

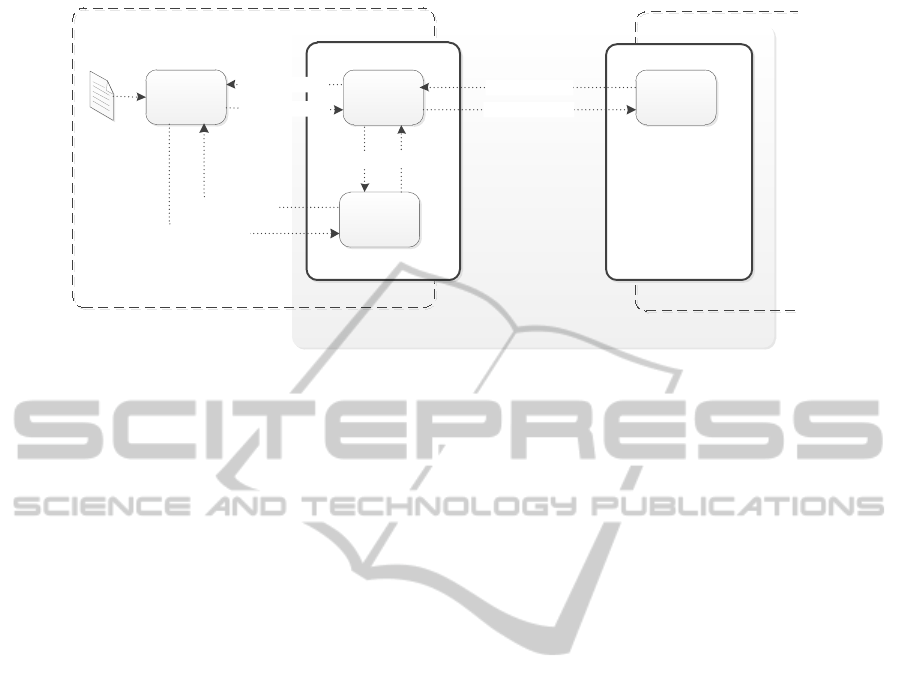

We develop a coordination model which focuses

on message exchange or coordination contexts be-

tween participants and coordinators. A coordination

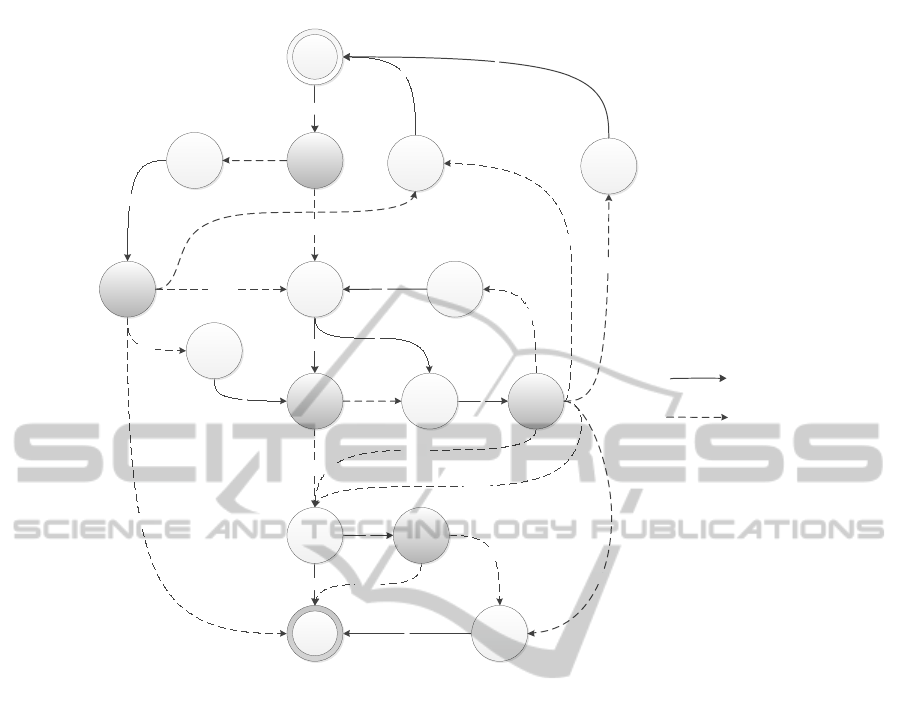

protocol for policy enforcement in business transac-

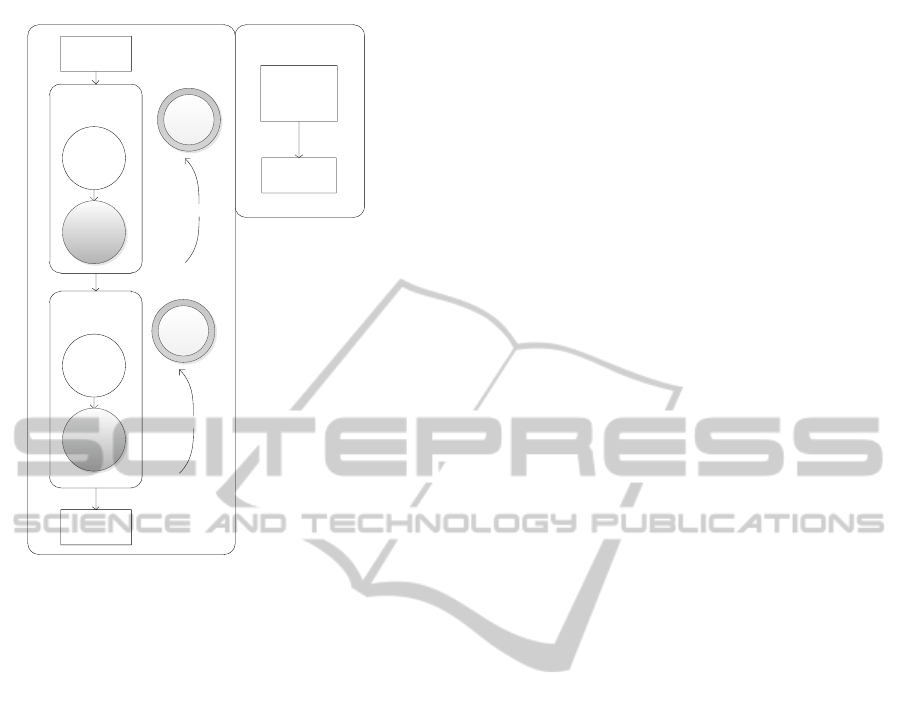

tions is also deﬁned. Then, we design an approach

which offers BPEL templates to implement the proto-

cols with BPEL processes for providers, but also with

the multi-tenancy capability.

4.1 The Coordination Model

The coordination model is inspired by the WS-

Coordination and XACML policy framework, re-

deﬁned for the needs of our coordination protocol

and mechanism for policy enforcement. The co-

ordination model deﬁnes two types of subcoordina-

tors for process consumers and providers. Thus,

each participant only interacts with its own type of

coordinator. The coordination model is deﬁned as

< COOR,COOR

context

>, where COOR = COOR

∪

COOR

and coor

∈ COOR

is a coordinator associ-

ated with the consumer and coor

∈ COOR

is a co-

ordinator associated with the provider. coor

context

∈

COOR

context

captures coordinaton context informa-

tion. coor

and coor

interact in a coordination con-

version. Protocol X and services X

and X

are in-

stances in this coordination protocol.

1. The process consumer sends a create coordina-

tion context request to the activation service of

coor

, getting back an initialized coor

context

(Cc)

that contains the identiﬁcation, a service reference

of the coor

’s protocol service and other informa-

tion for starting a coordination conversation.

2. The process consumer then sends a process re-

quest to the provider or business process contain-

ing the coor

context

3. The coor

context

is extracted from the SOAP mes-

sage and passed to the protocol service X

coor

. At this point, the protocol service X

ser-

vice reference is known to the protocol service X

and the communication between the protocol ser-

vices can be established.

4. The coordination conversation ends with the com-

pletion of the process execution.

4.2 Process Activity Protocol

The process activity protocol deﬁnes a coordination

type for coordination conversations. It relies on the

coordination model. A coordination conversation of a

business process is established upon coordination of

all activities which are within the overall process and

subprocesses for the consumer. The conceptual mod-

elling of the coordination protocol is activity-centric,

so it can be applied to any process regardless of ﬂow

logic, without losing the aspects related to business

processes. This coordination protocol applies to all

activities of business processes to be governed during

execution. A coordination protocol comprises three

deﬁnitions in its identiﬁcation (ct ∈ coor

context

1. a protocol message schema deﬁnes the message

data structure needed for protocol services com-

munication between COOR

and COOR

for the

extension element of the COOR

context

2. a Finite State Machine (FSM) of COOR

and

COOR

, described in more detail below.

The process activity protocol deﬁnes runtime gov-

ernability available for business processes and the re-

sponsibilities of process providers and consumers as

a contract. This should satisfy the requirements of all

rule categories in the policy model. It is formalized

as an FSM of the coordination protocol. It deﬁnes

a completed FSM for every activity in the business

processes, and describes the system behaviours of

ACoordinationProtocolforUser-customisableCloudPolicyMonitoring

339

COOR

and COOR

on coordination conversations.

The idea behind the FSM design is to instrument the

governance states into the process ﬂow as these gov-

ernance states are core to offer process governability.

The full FSM is divided into two parts for a pro-

tocol, which are responsible for COOR

and COOR

respectively. The FSM of COOR

is a submachine

state of FSM of COOR

. The process providers only

follow the part of the protocol which is deﬁned for

COOR

. The consumers follow the FSM of COOR

Since the implementation of the FSM will be executed

at the consumer and provider separately, the COOR

must have sufﬁcient information about the process ex-

ecution for its part of the state machine execution, as

the process executes on the provider side. In our de-

sign of the entire FSM, the FSM of COOR

deﬁned

for the submachine state in FSM of COOR

is iso-

lated from the business process. As a result, the pro-

tocol message schema only covers the complete infor-

mation about the activity rather than the process state

information. The execution of the FSM of COOR

does not require information other than the weav-

ing request, which is deﬁned in the protocol message

schema. The execution of the FSM of COOR

does

not require information other than the weaving re-

sponse. The rationale behind this is that, ﬁrstly, the

same protocol message schema can be used for dif-

ferent coordination protocols. A process consumer

can customize the FSM of COOR

for itself with-

out affecting the FSM of COOR

and other process

consumers. Secondly, it avoids possible complexity

in state machine implementation for both sides. One

side does not need to know the implementation details

of other side for its own implementation.

The two part design reduces the number of gov-

ernance states in the FSM of COOR

, hence reduc-

ing the message exchange times required between

COOR

and COOR

on coordination conversations.

The advantage is that it can reduce the performance

overhead caused by communication between the pro-

tocol services. Depending on the network situations

between a process consumer and providers, the mes-

sage exchange between them could be expensive in

some cases. Reducing required message exchange

times improves the overall coordination efﬁciency.

The FSM of COOR

speciﬁes the protocol which

is responsible for COOR

- the FSM of COOR

speciﬁed in full detail in (Wang, 2012). FSM of

COOR

is deﬁned as a 5-tuple (S, s

start

, F, TA, δ),

where

• S = S

∪ S

¬g

is a set of states. S

is a set of gov-

ernance states {s

man val

pre

, s

man val

post

, s

handling

pre

handling

pre

, s

cancelling

} directly involved with pro-

cess consumers or policies. The S

¬g

is a

set of non-governance states {s

start

, s

violated

pre

executing

, s

replacing

, s

waiting

, s

skipping

, s

violated

post

compensating

, s

com+rep

, s

com+ign

, s

completed

, s

end

}

not directly involved with consumers.

• s

start

∈ S

¬g

is an initial state. The activity coordi-

nation can only be started by the process provider,

and is not directly involved with consumers.

• F ⊆ S

¬g

is a set of ﬁnal states {s

end

• TA = TA

∪ TA

¬g

is a set of input symbols of

transaction actions. TA

is a set of transaction ac-

tions {ta

violate

, ta

validated

, ta

ignore

, ta

replace

, ta

skip

cancel

, ta

compensate

, ta

retry

, ta

com+ign

, ta

com+rep

}

expected from process consumers. TA

¬g

is a set

of transaction actions which are not expected from

process consumers {0, 1}. The input stream of

the FSM regarding TA

¬g

is decided by the pro-

cess providers based on the process state informa-

tion which is not covered by the FSM (the FSM is

only activity-scoped).

• δ is a transition system δ : S ×TA → S, see transi-

tion graph in Figure 2.

4.3 Coordination Implementation and

BPEL Instrumentation

The coordination protocol needs to be implemented to

enable coordination. The difﬁculty is on the provider

side, since all activities within a business process need

to comply with the protocol during the process or

BPEL execution.

We designed a set of templates for BPEL to avoid

platform dependency. In this case, the protocol would

be implemented with a BPEL process as a coor

for

activities. The process contains the ﬂow logic to be

executed and can be driven by protocol messages. A

process instance, not the BPEL process, is associated

with a coordination conversation belonging to a con-

sumer to enable multi-tenancy.

We divide the FSM of COOR

into two parts.

The ﬁrst is process-independent, i.e., does not require

awareness of the process states. The implementation

of this part is wrapped up in the main BPEL process.

The second part continues the FSM to the end state

of activities of the main process. The ﬁrst part can be

implemented in BPEL processes, but separated from

the main process. Through this hybrid design, we of-

fer a platform-independent approach that keeps the

main BPEL simple. However, the BPEL processes

are protocol-speciﬁc.

The BPEL transaction scope concept is applied for

implementing the protocol with BPEL for supporting

long-running transactions (LRTs). LRTs in BPEL are

centred on scopes and scopes can be nested. Nested

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

340

Coordination protocol

BP component

PG component

Coordinator P

FSM of

CoordinatorP

Coordinator C

Proxy

Policy weaver

WeavingRequest

WeavingReponse

WeavingRequest

Policies

FSM of

CoordinatorC

WeavingResponse

WeavingRequest

WeavingResponseWeavingRequest

Figure 1: Message ﬂow diagram.

scopes can be standalone BPEL subprocesses which

are business activities of the parent process. When a

fault occurs, all previously committed activities can

either be compensated within the fault process, or

compensated as an activity in its parent process. This

is deﬁned in the provided BPEL process and exposed

to process consumers.

Two templates for BPEL process development

minimise the development effort for protocol imple-

mentation. A template deﬁnes the program skeleton

of an algorithm from the template method pattern.

One or more of the algorithm steps can be overridden

by subclasses to allow differing behaviours while en-

suring that the overarching algorithm or the protocol

is still followed.

We extract the ﬁrst part of FSM as the non-

transactional requirement FSM for business activities

of a process. The second part is an extension for busi-

ness activities to support process transaction require-

ment. The FSM is separated into two implementation

parts with two templates: the wrapper service tem-

plate and the main process template. We discuss the

latter in detail. The process template is an implemen-

tation of the second part of the FSM containing activ-

ity states from s

completed

to the s

end

state. When the

process is in cancelling status, previous successfully

executed activities should be compensated if neces-

sary. The template is designed with an activity scope

and a process scope.

A BPEL template for the activity scope associ-

ated with activity states can be deﬁned. The BPEL

template for each activity is a separate scope. There

are two services inside the template indicated by grey

boxes. The ﬁrst service is the wrapper service for

the ﬁrst part of the FSM implementation. The nec-

essary variables are passed into the BPEL process

by a BPEL <assign> activity. With the following

BPEL <if> control structure, a <throw> activity

throws a deﬁned fault if the comp variable is set to

false. An attached BPEL <catchAll> handler catches

the fault and marks this scope as faulty. The BPEL

<compensationHandler> attachment would only be

triggered by a successful scope if the process in can-

celling status. In that case, e.g. if the s

executing

skipped in the ﬁrst FSM part, the compensation han-

dler attached to the activity scope will not be triggered

as the scope is marked as faulty. The last <if> con-

trol structure will mark the process in cancelling sta-

tus, it throws a deﬁned fault and will be caught in a

<catchAll> handler deﬁned in the process scope tem-

plate. Hence, the <compensationHandler> handler

at activity scope would be triggered. The activities

of the process would be executed from the s

completed

to the s

cancelling

state if required. A utility service in-

side the <compensationHandler> transfers from the

cancelling

to the s

end

state of the activity.

Figure 3 illustrates the BPEL template for the pro-

cess scope. All activities of the process are inside a

process scope, which is associated with a <catchAll>

handler. If a deﬁned fault for the process cancelling

is caught by the handler with the process scope, all

<compensationHandler>s of activity templates of

fault-free activity scopes are executed in reverse or-

der, which is speciﬁed in the process design. Activi-

ties in s

completed

will transition to the s

cancelling

state.

If this process is a subprocess and subprocess can-

celling is completed, the activity that represents this

subprocess would transition to s

violated

post

in its parent

process depending on constraint policies of the activ-

ity. The consequent violation handling depends on the

fault policy deﬁned in the parent process.

ACoordinationProtocolforUser-customisableCloudPolicyMonitoring

341

Ignore

Cancel

Ignore

Cancel

Skip

Retry

Validated

Compensate

Ingore

Replace

Completed

Skipping

Waiting

Compensat

ing

Replacing

Handling Pre

Handling

Post

Violated

Pre

Violated

Post

Cancelling

Manipulating

Validating

Pre

Manipulating

Validating

Post

Executing

start

End

Compensate+Replace

Violate

Replace

Violate

Compensat

Ing+

Replacing

Compensate+Ignore

participant generated

coordinator_p generated

participant as activity

of process provider

Figure 2: Transition graph for FSM for Coor

5 EVALUATION

In this section we are going to discuss our coordina-

tion framework. We focus on evaluating the effec-

tiveness of the coordination framework and the per-

formance overhead in the coordination framework.

We deﬁned 21 test cases (along the lines of the 4

examples given earlier) for a consumer that cover all

four types of rules to address effectiveness. A pur-

chase order checkout BPEL process was developed

for the experimental setup. All of the service context

information required for constraint validation and ser-

vice selection were manually and randomly assigned.

A test case in our case comprises of four parts: 1) a

target process of this test case (some test cases are

targeted on a sub process level), 2) as input a sec-

tion of SOAP message of the business process input

that contains the business object information, policies

deﬁned for the business process, 3) an expected pro-

cess activity log in a process instance and 4) expected

output in the form of a SOAP message referring to

the expected output from the process instance. We

compared the real process execution and coordination

log with the expected process activity log to verify

whether the validations have correctly occurred.

With these test cases, we can demonstrate that our

approach provides an effective coordination solution

for governance in a distributed and multi-tenant en-

vironment. The activity centric process coordination

protocol design can be applied to any business pro-

cess. The process runtime governance is both process

instance and consumer based. In addition, there was

no interference between different consumers sharing

a single BPEL process at the same time, which high-

lights its multi-tenancy capability.

We need to implement coordination frameworks

on both the process provider and consumer side in

our approach. However, once developed, the policy

weavers and COOR

can be used for any business pro-

cess. The only question that needs to be raised re-

garding is the difﬁculty of BPEL development with

COOR

. As described, the process activity proto-

col is implemented with BPEL processes following

the templates. That means additional efforts are re-

quired in BPEL development compared to conven-

tional BPEL development. However, from our own

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

342

CatchALL

Compensate

Activity scope

template

Receive

Activity scope

template

Completed

Cancelling

Completed

Cancelling

End

Compensate 1

End

Compensate 2

Figure 3: Process scope BPEL template.

experience with development for this case study, the

effort required is small. The wrapper service develop-

ment only requires a few lines of code for a business

activity, once the ﬁrst template is developed.

Regarding performance, we have generated 1000

test cases. Using a standard PC conﬁguration, the co-

ordination overhead is less than 2 ms for a new related

policy. The overall overhead can increase when we

apply it in networks with consideration of the network

latency. However, we still consider the performance

overhead is quite small, as long running business ac-

tivities take a few hours or even a few days for execu-

tion in a process with LRT. In some cases with utility

services (e.g. email notiﬁcation), the business activ-

ity is expected with instant activities response. For

example, the average execution time including a real-

world email notiﬁcation service only takes 854 ms. In

this case, our coordination overhead would be greater

than 29.7% and 14.9% with an additional cache en-

abled (see (Wang, 2012) for details). Since business

processes usually are mixed with long running activi-

ties for LRTs, the performance overhead for the over-

all process again is very small and acceptable.

In a violation situation, the coordination overhead

mean value for adaptation is 598ms (cache disabled).

If we deduct the time cost in a violation-free situation

(245ms), the overhead on adaptation would be 598-

245=254 ms for each process. Yet, it is possible to set

a permanent adaptation to avoid remedy overhead on

each process instance. However, the instance adap-

tation would avoid to store activity service informa-

tion on the provider side anyway. Still, we consider

the overhead to be acceptable compared with inherent

time delays of long running activities.

6 RELATED WORK

Current open research concerns for cloud computing

include end-user deﬁnition of governance and quality

policies and the non-intrusive instrumentation of pro-

cesses with policies. Today, one-size-ﬁts-all service

monitoring techniques are in place. However, their

inherent inﬂexibility makes multi-tenancy difﬁcult to

manage and adapt to individual needs. We discuss

related work in the ﬁeld of policy enforcement and

adaptive BPEL process. These solutions are generally

not tailored for the multi-tenancy problem.

The ﬁrst category is located at the BPEL layer.

BPEL processes are usually designed or generated to

serve their purpose, but also to realize a platform-

independent approach. (Wu and Doshi, 2008) pro-

vides a similar approach, where the BPEL speciﬁca-

tion itself is extended with a fault policy speciﬁcation.

Exception handling policies are bound into process

schemas as a BPEL extension. The SRRF framework

(Kareliotis et al., 2007) generates SRRF-aware BPEL

processes according to the deﬁned policies. However,

with these approaches, binding policies into business

processes or static policies are certainly not an option

for our objective, as it impossible to support multi-

tenancy adequately.

The second category is located at the BPEL engine

layer. The BPEL process is maintained to be simpli-

ﬁed, but the solution is platform-dependent. The dis-

advantage of the Dynamo project (Baresi and Guinea,

2011) in this regards is that BPEL event handlers must

be statically embedded into the process prior to de-

ployment, meaning that the recovery logic is deﬁned

once and for all, and that it can only be personalized

through the parametrization of the event handler it-

self (Baresi and Guinea, 2011). This approach does

not support dynamic policies and does not support a

multi-tenancy environment. The TWSO framework

(Hrastnik and Winiwarter, 2005) addresses process

transactions. The PAWS framework (Ardagna et al.,

2007) extends the ActiveBPEL engine to provide a

ﬂexible process that can change its behaviour dynam-

ically, according to variable execution contexts. Sim-

ilar frameworks (Mosincat and Binder, 2008), (Erradi

et al., 2006) also extend the BPEL engine for pro-

cess adaptation, but without an awareness of multi-

tenancy.

ACoordinationProtocolforUser-customisableCloudPolicyMonitoring

343

Furthermore, process-centricity is a major aim.

Recently, business-processes-as-a-service is being

discussed. While not addressed here, this perspective

needs to be further complemented by an architectural

style for its implementation (Wang, 2012).

7 CONCLUSIONS

Governance technology is crucial for the current trend

towards Software as a Service (SaaS). According to

technology reports the 451 Group, ”nearly 90% of or-

ganisations expect to maintain or grow their SaaS us-

age, with more than one third transitioning from on-

premises to SaaS” indicating that IT consumers need

more trustworthy infrastructures.

We presented a coordinator framework with pro-

tocols that ensures that consumer-deﬁned and con-

trolled policies are enforced during business transac-

tions for business processes between consumers and

providers. We deﬁned a coordination model and a

protocol for the policy-based governance of business

processes on business transactions. The BPEL tem-

plates are offered in order to provide best-practice so-

lution templates for the implementation with BPEL

business processes. Our overall approach supports

transaction management, adaptation for ﬂexible pro-

cesses, and multi-tenancy capability.

We have indicated some limitations in the evalu-

ation. BPEL process implementations are protocol-

speciﬁc. The BPEL activities of a business activity

must be placed in a BPEL scope. Better consumer

support for policy deﬁnition, e.g. through repositories

of common rules and adequate interfaces and meth-

ods for semantic policy speciﬁcation and customisa-

tion, needs to be investigated (Pahl et al., 2009; Pahl

et al., 2007).

REFERENCES

Ardagna, D., Comuzzi, M., Mussi, E., Pernici, B. and

Plebani, P. (2007). Paws: A framework for execut-

ing adaptive web-service processes. IEEE Software,

24(6):39–46.

Baresi, L. and Guinea, S. (2011). Self-supervising bpel pro-

cesses. IEEE Transactions on Software Engineering,

37(2):247 – 263,

R. Barrett, L. M. Patcas, J. Murphy, and C. Pahl. (2006).

Model Driven Distribution Pattern Design for Dy-

namic Web Service Compositions. International Con-

ference on Web Engineering ICWE06. Palo Alto, US.

ACM Press.

Buyya, R., Broberg, J., and Goscinski, A. (2011). Cloud

Computing - Principles and Paradigms. Wiley. 2011.

Erradi, A., Maheshwari, P. and Tosic, V. (2006). Policy-

driven middleware for self-adaptation of web services

compositions. ACM/IFIP/USENIX International Mid-

dleware Conference.

Hrastnik, P. and Winiwarter, W. (2005). Twso - transac-

tional web service orchestrations. International Con-

ference on Next Generation Web Services Practices.

Kareliotis, C., Vassilakis, C., and Panayiotis, G. (2007). En-

hancing bpel scenarios with dynamic relevance-based

exception handling. IEEE International Conference

on Web Services.

Leusse, P.D., Dimitrakos,T., and Brossard, D. (2009). A

governance model for SOA. IEEE International Con-

ference on Web Services.

Mietzner, R., Unger, T., Titze, R., and Leymann, F. ”Com-

bining different multi-tenancy patterns in service-

oriented applications,” in IEEE Intl Enterprise Dis-

tributed Object Computing Conf, 2009.

Mosincat, A. and Binder, W. (2008). Transparent runtime

adaptability for bpel processes. Intl Conf on Service-

Oriented Computing.

Pahl, C. (2005). Layered Ontological Modelling for Web

Service-oriented Model-Driven Architecture. Eu-

ropean Conference on Model-Driven Architecture -

Foundations and Applications ECMDA05. Springer.

Pahl, Giesecke, S. and Hasselbring, W. (2009). Ontology-

based Modelling of Architectural Styles. Information

and Software Technology. 1(12): 1739-1749

Pahl, Giesecke, S. and Hasselbring, W. (2007). An

Ontology-based Approach for Modelling Architec-

tural Styles. European Conference on Software Ar-

chitecture ECSA2007. Springer.

Subramanian, S., Thiran, P., Narendra, N.C., Mostefaoui,

C.K., and Maamar, Z. (2008). On the enhancement

of BPEL engines for self-healing composite web ser-

vices. Intl Symp on Applications and the Internet. pp.

33-39.

Wang, M.X., Bandara, K.Y. and Pahl, C. (2009). Inte-

grated constraint violation handling for dynamic ser-

vice composition. IEEE Intl Conf on Services Com-

puting. pp. 168-175.

Wang, M.X. (2012). A Policy-based Governance Frame-

work for Cloud Service Process Architectures. Ph.D.

Thesis. Dublin City University.

Weigand, H., Heuvel, W.-J. v. d. and Hiel, M. (2008). Rule-

based service composition and service-oriented busi-

ness rule management. Interdisciplinary Workshop

Regulations Modelling and Deployment.

Wu, Y. and Doshi, P. (2008). Making bpel ﬂexible and

adapting in the context of coordination constraints us-

ing ws-bpel. Intl Conf on Services Computing.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

344
