Migrating Application Data to the Cloud using Cloud Data Patterns

Steve Strauch, Vasilios Andrikopoulos, Thomas Bachmann and Frank Leymann

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Keywords:

Application Data Migration, Cloud Data Patterns, Cloud Migration Scenarios, Application Refactoring.

Abstract:

Taking advantage of the capabilities offered by Cloud computing requires either an application to be built

speciﬁcally for it, or for existing applications to be migrated to it. In this work we focus on the latter case,

and in particular on migrating the application data. Migrating data to the Cloud creates a series of technical,

architectural and legal challenges that the State of the Art attempts to address. We organize such efforts into a

set of migration scenarios and connect them with a list of reusable solutions for the application data migration

in the form of patterns. From there we deﬁne an application data migration methodology and we demonstrate

how it can be used in practice.

1 INTRODUCTION

Cloud computing has become increasingly popular

with the industry due to the clear advantage of reduc-

ing capital expenditure and transforming it into op-

erational costs (Armbrust et al., 2009). To take ad-

vantage of Cloud computing, an existing application

may be moved to the Cloud (Cloud-enabling it) or de-

signed from the beginning to use Cloud technologies

(Cloud-native application). Applications are typically

built using a three layer architecture pattern consist-

ing of a presentation layer, a business logic layer,

and a data layer (Fowler et al., 2002). The presenta-

tion layer describes the application-users interactions,

the business layer realizes the business logic and the

data layer is responsible for application data storage.

The data layer is in turn subdivided into the Data Ac-

cess Layer (DAL) and the Database Layer (DBL). The

DAL encapsulates the data access functionality, while

the DBL is responsible for data persistence and data

manipulation. Figure 1 visualizes the positioning of

the various layers.

Each application layer can be hosted using differ-

ent Cloud deployment models. Possible Cloud de-

ployment models, also shown in Figure 1, are: Pri-

vate, Public, Community, and Hybrid Cloud (Mell

and Grance, 2009). Figure 1 shows the various pos-

sibilities for distributing an application using the dif-

ferent Cloud types. The “traditional” application, not

using any Cloud technology, is shown on the left of

the ﬁgure. In this context, “on-premise” denotes that

the Cloud infrastructure is hosted inside the company

and “off-premise” denotes that it is hosted outside the

company.

In this work we focus on the lower two layers of

Figure 1, the DAL and DBL layers of the application.

Application data is typically moved to the Cloud be-

cause of e. g., Cloud bursting, data analysis or backup

and archiving. The migration of the Data Layer to the

Cloud includes two main steps to be considered: mi-

gration of the DBL to the Cloud, and adaptation of

the DAL to enable Cloud data access. This separation

of concerns allows for taking into consideration exist-

ing applications for migration that could potentially

keep their business logic (partially) on-premises and

use more than one Cloud data store provider at the

same time. It has also to be noted here that, for the

purposes of this work, we assume that the decision to

migrate the data layer to the Cloud has already been

made based on criteria such as cost, effort etc. (Tak

Overview of Cloud Application HostingTopologies

Traditional

Application Layers

Presentation

Layer

Application

Business

Layer

DataAccess

Layer

Database

Layer

Presentation

Layer

Business

Layer

DataAccess

Layer

Database

Layer

Private

Cloud

Community

Cloud

Deployment

Models

HybridCloud

Public

Cloud

Presentation

Layer

Presentation

Layer

Business

Layer

Business

Layer

DataAccess

Layer

DataAccess

Layer

Database

Layer

Database

Layer

Data

Layer

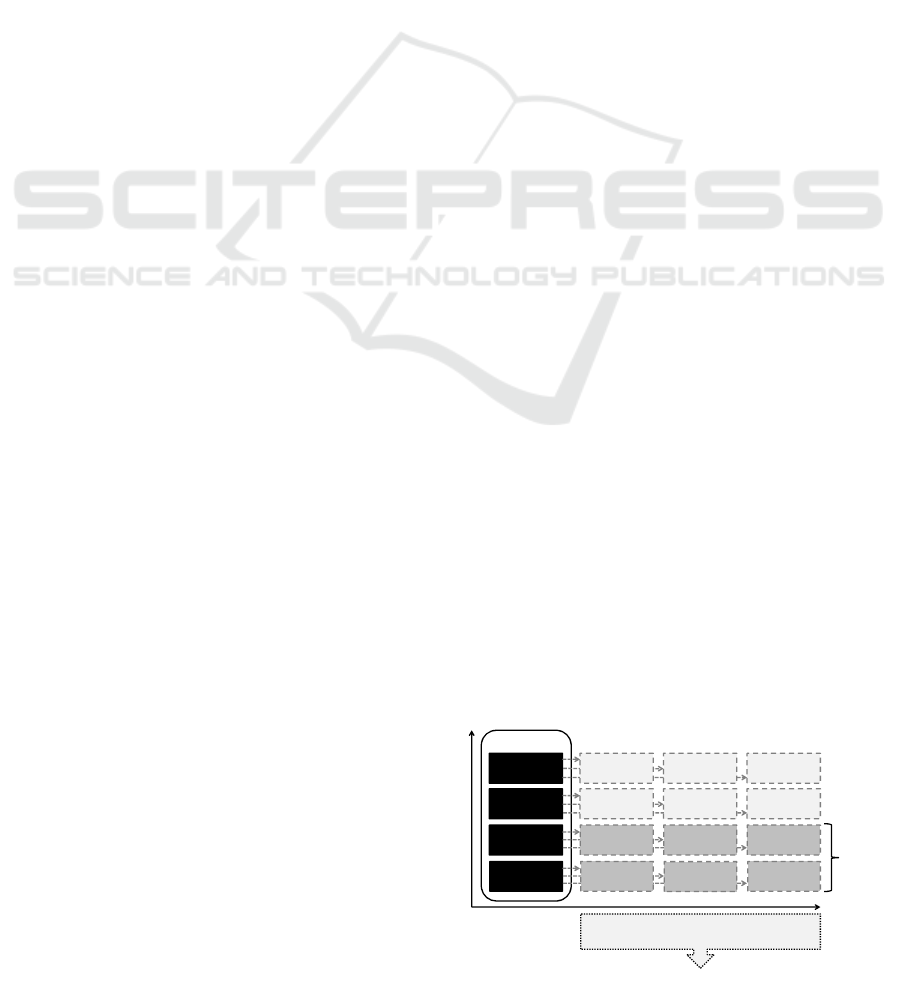

Figure 1: Overview of Cloud Deployment Models and Ap-

plication Layers.

Strauch S., Andrikopoulos V., Bachmann T. and Leymann F..

Migrating Application Data to the Cloud using Cloud Data Patterns.

DOI: 10.5220/0004376300360046

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 36-46

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

et al., 2011; Menzel and Ranjan, 2012; Andrikopou-

los et al., 2012).

As previously discussed (Strauch et al., 2012b),

using Cloud technology leads to challenges such as

incompatibilities with the database layer previously

used, or even accidental disclosing of critical data by

e. g., moving them to a Public Cloud. For this pur-

pose, in (Strauch et al., 2012b), a set of Cloud Data

Patterns is identiﬁed addressing these challenges us-

ing the format deﬁned by Hohpe and Woolf (Hohpe

and Woolf, 2003). A Cloud Data Pattern describes a

reusable and implementation technology-independent

solution for a challenge related to the data layer of an

application in the Cloud for a speciﬁc context.

The contribution of this work is focused on:

1. analyzing the State of the Art in migrating appli-

cations, and in particular application data to the

Cloud, and organizing these efforts into a set dis-

tinct migration scenarios with particular charac-

teristics,

2. mapping the identiﬁed Cloud Data Patterns with

the migration scenarios as best practices in order

to deal with each of the scenarios,

3. providing an application data migration method-

ology based on the scenario/pattern mapping, and

demonstrating its applicability by means of an il-

lustrative case.

The remainder of this paper is organized as fol-

lows: Section 2 discusses a motivating scenario that

will be used throughout the paper. Section 3 presents

the existing work on migrating the application and ap-

plication data and Section 4 organizes it into migra-

tion scenarios. Section 5 summarizes the Cloud Data

Patterns that were identiﬁed in (Strauch et al., 2012b)

and (Strauch et al., 2012a) and highlights their key

points. Section 6 then discusses the mapping between

scenarios and patterns, and the application data mi-

gration methodology that is based on this mapping.

The motivating scenario from Section 2 is refactored

in order to demonstrate our proposal in practice. Fi-

nally, Section 7 concludes the paper and discusses fu-

ture work.

2 MOTIVATING SCENARIO

For purposes of an illustrative example let us con-

sider the case of a Health Insurance Company (HIC)

in Germany. As a result of the increase of the num-

bers of its clients, the company stores their data in two

data centers in different parts of Germany. The data

centers, covering geographical regions A and B, re-

spectively, form a Private Cloud data hosting solution.

This Private Cloud acts as a uniform access point and

offers a uniﬁed view of the data to the various appli-

cations used by the employees of the company. The

company is required to provide access to an Exter-

nal Auditing Company (EAC) to audit the ﬁnancial

transactions processed by the company. EAC exe-

cutes a series of predeﬁned complex queries on the

ﬁnancial transactions data at irregular intervals and

reports back to HIC and the responsible authorities

their ﬁndings. HIC however is also obliged by law to

protect the personal data privacy and conﬁdentiality

of the medical record of its clients. For this purpose,

the company takes special care to anonymize the re-

sults of the queries executed by the auditor in order to

ensure that no client information is accidentally ex-

posed.

Providing EAC with direct access to the database

of HIC raises a series of concerns about ensuring the

security of the company-internal data, and the perfor-

mance of the company systems, as an indirect result

of the unpredictable additional load imposed by the

complex queries executed by the auditor. As a so-

lution to these issues, it is proposed to use a Public

Cloud data hosting solution provider and migrate a

consistent replica of the ﬁnancial transaction records

to the Public Cloud, stripped (to the extent that it is

possible) of any personal data. The auditing company

would then be able to retrieve the necessary informa-

tion without burdening the company systems. Such

a migration to the Cloud however, even if only par-

tial, requires addressing different kinds of challenges:

conﬁdentiality-related (ensuring that it is impossible

to recreate the medical records and other personal in-

formation of the company clients using the data in the

Public Cloud), functionality-related (providing both

all the necessary data and the querying mechanisms

for EAC to operate as required), and non-functional

(ensuring that the partial migration does not encum-

ber in any way the performance of HIC’s systems). In

the following we discuss how Cloud Data Migration

Scenarios and Patterns can be used in conjunction to

address such issues.

3 BACKGROUND

Data migration can either be seen as part of the mi-

gration of the whole application, or as the migration

of only the Data Layer. For this purpose, in the fol-

lowing we investigate not only the State of the Art on

use cases for application migration to the Cloud, in-

cluding which types of applications are suitable for

migration to the Cloud, but also use cases for data-

base layer migration only. Some of the cases include

MigratingApplicationDatatotheCloudusingCloudDataPatterns

also migration of application from the Cloud back to a

traditional on-premises model. Based on this analysis

in Section 4 we derive speciﬁc Cloud Data Migration

Scenarios.

Application Migration. Amazon proposes a phase-

driven approach for Cloud application migration,

which includes one phase focusing on data migra-

tion (Varia, 2010). The data migration is done in two

steps: selection of the Amazon AWS service, and mi-

gration of the data. Furthermore, Amazon provides

recommendations regarding which of their data and

storage services best ﬁt for storing a speciﬁc type

of data, e.g., Amazon Relational Database Service

(Amazon RDS)

. Apart from that, Amazon describes

three application migration use cases (Varia, 2010):

• Marketing and collaboration Web sites.

• Digital asset management solution using batch

processing pipelines.

• Claims processing systems using back-end pro-

cessing workﬂows.

Microsoft identiﬁes the following eight types of

applications to be considered for migration to the

Cloud (Microsoft Azure, 2012):

1. SaaS applications

2. Highly-scalable Web sites

3. Enterprise applications

4. Business intelligence and data warehouse applica-

tions

5. Social or customer-oriented applications

6. Social (online) games

7. Mobile applications

8. High performance or parallel computing applica-

tions

Microsoft also provides a step-by-step migration

guideline for migrating local MS SQL Server

databases to Azure SQL Database Service mainly

consisting of two phases: database schema migration

supported by a wizard, and migration of the data itself

based on command-line tools (Lee et al., 2009).

Furthermore, Cunningham speciﬁes the following

four general scenarios when an application is suitable

for migration to the Cloud (Cunningham, 2010):

1. The application is used only in predeﬁned periods.

2. The rapid increase in the need for resources can-

not be compensated by buying new hardware.

http://aws.amazon.com/rds/

3. The application load can be anticipated, e.g.,

for seasonal businesses, allowing to optimize re-

source utilization.

4. In case of unanticipated load, the load increases

without prior indication.

Laszewski et al. (Laszewski and Nauduri, 2011)

identify ﬁve scenarios for migration of a legacy ap-

plication to the Cloud: rewrite/re-architect the appli-

cation, changing the platform, automated conversion

using suitable tools, emulation, e.g., through Service-

Oriented Architecture enablement and Web services,

and data modernization. Data modernization entails

the migration of the database to the Cloud and it

is therefore directly relevant for this work. Finally,

Armbrust et al. identify the following types of ap-

plications as drivers for Cloud computing (Armbrust

et al., 2009):

• Mobile interactive applications

• Parallel batch processing

• Business analytics as a special case of batch pro-

cessing

• Extension of computationally-intensive desktop

applications

Data Migration. With respect to the migration of

the database layer in particular, Microsoft identiﬁes

the following migration scenarios where only the

database layer is migrated to the Cloud and the other

layers are kept hosted traditionally (Lee et al., 2009):

1. Web applications.

2. Applications only used by departments or smaller

working groups within a company.

3. Data hubs, where the data is mirrored, e.g., on the

laptops of employees, and regularly synchronized

with the data store in the Cloud.

Especially for the ﬁrst two scenarios, the performance

issues and complexity due to the potential latency

challenges after the migration of the database layer

to the Cloud have to be considered.

Informatica

is an SaaS provider for secure data

migration, data replication and data synchronization

into the Cloud. The user conﬁgures the synchroniza-

tion and migration service via a Web interface and the

data migration is done using locally installed secure

agents and encryption.

Different solutions and approaches can therefore

be used for migrating application data to the Cloud. In

the following section we organize them into distinct

migration scenarios with particular characteristics.

http://www.informatica.com

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

Table 1: Cloud Data Migration Scenarios Overview.

Migration Scenario Migration Direction (Traditional or Cloud)

Database Layer Outsourcing Traditional −→ Cloud

Using Highly-Scalable Data Stores Traditional/Cloud −→ Cloud

Geographical Replication Traditional/Cloud −→ Cloud

Sharding Traditional/Cloud −→ Cloud

Cloud Bursting Traditional/Cloud ←→ Cloud

Working on Data Copy Traditional −→ Cloud

Data Synchronization Traditional ←→ Cloud

Backup Traditional/Cloud −→ Cloud

Archiving Traditional/Cloud −→ Cloud

Data Import from the Cloud Cloud −→ Traditional/Cloud

4 CLOUD DATA MIGRATION

SCENARIOS

Table 1 summarizes the Cloud Data Migration Sce-

narios we derived from the State of the Art as dis-

cussed in the previous section. The table also iden-

tiﬁes the direction of data migration (from/to the tra-

ditional to/from any Cloud-based deployment model

in Fig. 1). The migration scenarios Backup, Archiv-

ing, and Data Import from the Cloud can be applied

independently from the migration of an application to

the Cloud. All other scenarios have been derived from

the types of applications and use cases for application

migration to the Cloud.

Database Layer Outsourcing is the complete or

partial migration of the local, traditionally hosted

database layer to the Cloud without changing the type

of the data store, e.g., relational, NoSQL, or Binary

Large Object (BLOB) data store. An example of a

complete Database Layer Outsourcing of a relational

data store is the migration of a local MySQL database

to Amazon RDS with MySQL conﬁguration.

The migration scenario Using Highly-Scalable

Data Stores assumes that before migration the data

are hosted in a non highly-scalable relational data

store, which might be hosted traditionally, or in a

Cloud environment. The data in this scenario are mi-

grated to a NoSQL or BLOB data store. Two ex-

amples taken from the industry are the media con-

tent delivery company Netﬂix (Anand, 2010) and the

Web information company Alexa (Amazon.com, Inc.,

2011). Both of them migrated their data from a re-

lational data store to a NoSQL (AmazonSimpleDB

)

http://aws.amazon.com/simpledb/

and BLOB data store (Amazon S3

) in the Cloud for

the purpose of achieving better scalability.

For latency critical applications, the data are

moved as near as possible either to the user, or to

the processing logic in order to reduce data access

latency. The Geographical Replication migration

scenario considers replicating the database layer for

static data, as in the case of content delivery networks,

or for data changing dynamically using, e.g., read

replicas or read-write replicas. This migration sce-

nario implies that the different replicas have to be kept

consistent by realizing synchronization mechanisms.

An example for replication of static data is Amazon

CloudFront

and an example for replication of data

changing dynamically is Microsoft Azure SQL used

with its Data Sync functionality (Redkar and Guidici,

2011).

In contrast to the previous scenario, Sharding dis-

tributes the data into disjoint groups without requir-

ing synchronization between the different data stores

(shards) (Pritchett, 2008). The distribution can be ei-

ther done geographically or based on the functional

grouping of the data. Guidelines for the realization of

a solution considering sharding are available for Mi-

crosoft Azure SQL

and Amazon RDS

Cloud Bursting is the temporary outsourcing of

the database layer to the Cloud in order to use ad-

ditional resources for off-loading of peak loads, be-

cause the available on-premise resources are not suf-

http://aws.amazon.com/s3/

http://aws.amazon.com/cloudfront/

http://social.technet.microsoft.com/wiki/contents/

articles/1926.how-to-shard-with-windows-azure-sql-

database.aspx

http://aws.amazon.com/articles/0040302286264415

MigratingApplicationDatatotheCloudusingCloudDataPatterns

ﬁcient. Typical cases where Cloud bursting is applied

are seasonal businesses like Christmas shopping out-

lets. A realization of a solution based on this scenario

can be implemented using Microsoft Azure SQL used

with its Data Sync functionality (Redkar and Guidici,

2011).

The migration scenario Working on Data Copy re-

quires the creation of a complete or partial copy of the

database layer in the Cloud for the purpose of avoid-

ing additional load on the production system by, e.g.,

running complex data analysis. As NoSQL data stores

are highly scalable and thus are able to handle addi-

tional load in parallel to the production process in the

general case the source and target data store for this

migration scenario are relational data stores. An ex-

ample of this migration scenario are data warehouse

applications operating on non-live data.

Data Synchronization enables a set of users to

work in parallel and temporarily off-line while shar-

ing relatively up-to-date data without latency for the

data access. The database layer is copied into the

Cloud and a synchronization mechanism is realized.

Each user works on a local replica of the database

layer which is regularly synchronized with the data-

base layer in the Cloud. A detailed example for Data

Synchronization is provided in (Lee et al., 2009). The

sales staff are working on local copies of customers

data and lists of company product prices on their lap-

tops. The data are regularly synchronized in the back-

ground when the employees of the company are con-

nected to the Web.

In order to fulﬁll compliance regulations such as

SOX (United States Congress, 2002) it is required to

keep business data and store them over a ﬁxed pe-

riod of time. These data provide a snapshot at a spe-

ciﬁc point in time and serve as a save point to re-

turn to, e.g., in case of data loss. Especially when

using Cloud providers it is recommended to regu-

larly backup your data as you have no direct control

over the data when stored on the infrastructure of the

Cloud provider (Badger et al., 2012). Backup there-

fore constitutes a particular case of data migration to

the Cloud, occurring at predeﬁned intervals. An ex-

ample backup solution in the Cloud is provided by

Datacastle

. Archiving also creates a complete copy

of the database layer to the Cloud, but serving a differ-

ent purpose than Backup. The usage of archived data

is not foreseen in case of errors or data loss, but for

analysis and as evidence in court cases (Consultative

Committee for Space Data Systems, 2002). Amazon

provides the Cloud archiving service Glacier

for this

purpose.

http://www.datacastlecorp.com

http://aws.amazon.com/glacier/

Several Cloud services are offering access to data

via an API. Thus, the database layer of the Cloud ser-

vice can be partially or completely imported to the

local data center in order to minimize the latency for

data access during processing. Examples for Cloud

services enabling the migration scenario Data Import

from the Cloud are governments providing their data

in a machine readable format like Open Data

and

services publishing data such as Twitter

in order to

enable social media monitoring.

5 CLOUD DATA PATTERNS

In order to provide support when migrating applica-

tion data to the Cloud there is a clear need for de-

scribing reusable solutions to overcome the recurring

challenges such as incompatibilities on an abstract

and technology independent level as patterns. For

this purpose, in previous work (Strauch et al., 2012a;

Strauch et al., 2012b) an initial list of reusable and

technology independent solutions for the identiﬁed

challenges was proposed in the form of Cloud Data

Patterns. A Cloud Data Pattern describes a reusable

and implementation technology-independent solution

for a challenge related to the Data Layer of an ap-

plication in the Cloud for a speciﬁc context (Strauch

et al., 2012b).

These patterns have been identiﬁed as part of the

work in various EU research projects, and especially

during the collaboration with industry partners. The

identiﬁed patterns are also based on literature research

focusing on available reports from companies that al-

ready migrated their application data to the Cloud and

adapted their application accordingly, e.g., by Net-

ﬂix (Anand, 2010). Additionally, guidelines and best

practices on how to design and build applications in

the Cloud, e.g., for enabling scalability (Adler, 2011),

are also taken into consideration. The patterns are fur-

thermore based on requirements and challenges con-

cerning adaptation of applications for the Cloud en-

vironment (Andrikopoulos et al., 2012) and manage-

ment of these applications in the Cloud (Conway and

Curry, 2012).

So far, three categories of Cloud Data Patterns

have been identiﬁed:

1. Functional Patterns

2. Non-functional Patterns

3. Conﬁdentiality Patterns

Conﬁdentiality patterns can be considered a subcate-

gory of the non-functional patterns; they are treated

http://www.opendata-network.org

http://dev.twitter.com/docs/streaming-api/methods

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

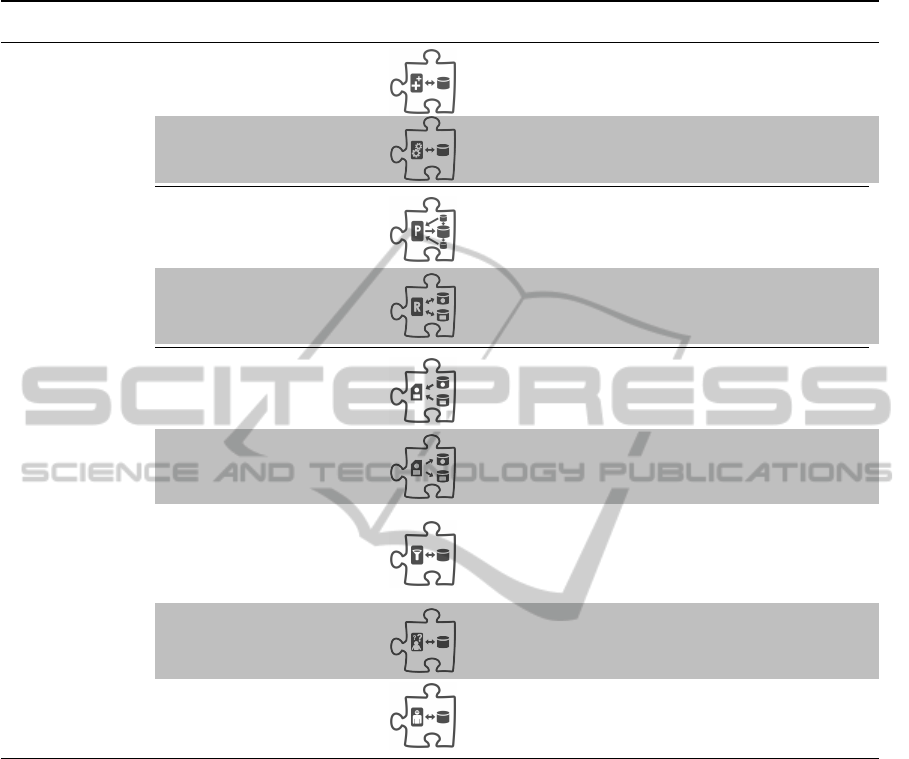

Table 2: Cloud Data Patterns Summary.

Category Name

Icon

Challenge

Functional

Data Store Functionality

Extension

How can a Cloud data store provide a missing

functionality?

Emulator of Stored

Procedures

How can a Cloud data store not supporting stored

procedures provide such functionality?

Non-

functional

Local Database Proxy

How can a Cloud data store not supporting hori-

zontal data read scalability provide that function-

ality?

Local Sharding-Based

Router

How can a Cloud data store not supporting hori-

zontal data read and write scalability provide that

functionality?

Conﬁdentiality

Conﬁdentiality Level

Data Aggregator

How can data of different conﬁdentiality levels

from different data sources be aggregated to one

common conﬁdentiality level?

Conﬁdentiality Level

Data Splitter

How can data of one common conﬁdentiality level

be categorized and split into separate data parts

belonging to different conﬁdentiality levels?

Filter of Critical Data

How can data-access rights be kept when moving

the Database Layer into the private Cloud and a

part of the Business Layer and a part of the data

access layer into the public Cloud?

Pseudonymizer of

Critical Data

How can a private Cloud data store ensure passing

critical data in pseudonymized form to the public

Cloud?

Anonymizer of Critical

Data

How can a private Cloud data store ensure passing

critical data only in anonymized form to the public

Cloud?

separately however due to their importance to the

Data Layer. Table 2 provides an overview of the iden-

tiﬁed and described Cloud Data Patterns so far.

Functional Cloud Data Patterns like Data Store

Functionality Extension and Emulator of Stored Pro-

cedures provide reusable solutions for challenges re-

lated to offered functionality by Cloud data stores and

services. In case the type of data store changes dur-

ing the migration, e.g., from RDBMS to NoSQL, or

BLOB store, it might be not sufﬁcient to emulate

or add additional functionality by using Functional

Cloud Data Patterns. For example, there may be no

equivalent database schema, the consistency model

may change from strict to eventual consistency (Vo-

gels, 2009), and ACID transactions may not be sup-

ported.

Non-Functional Cloud Data Patterns focus on

providing solutions for ensuring an acceptable Qual-

ity of Service (QoS) level by means of scalability in

case of increasing data read of data write load. There

are two options for this purpose: vertical and hor-

izontal data scaling (Pritchett, 2008; Zawodny and

Balling, 2004). Elasticity with respect to data reads is

normally achieved by data replication (Buretta, 1997)

using read replicas with a master/slave conﬁguration.

This is because when write replicas (several master

databases) are used, the performance might decrease

depending on the consistency model (strict or even-

tual consistency (Vogels, 2009)).

Conﬁdentiality Cloud Data Patterns provide solu-

tions for avoiding disclosure of conﬁdential data (Ta-

ble 2). Conﬁdentiality includes security and privacy.

With respect to conﬁdentiality, we consider the data to

be kept secure and private as critical data such as busi-

ness secrets of companies, personal data, and health

care data, for instance. The personal data and account

information of the customers as part of the billing

data of HIC, for example, have to be pseudonymized

MigratingApplicationDatatotheCloudusingCloudDataPatterns

or anonymized before migrating the billing data to

the Public Cloud. In this case, the actual people

the data is about (HIC customers), and the owner

and user of the data (HIC and EAC, respectively) are

clearly distinguished. The migration of anonymized

or pseudonymized data to the Cloud therefore does

not effect the management of the identity of users of

Cloud data hosting solutions, e.g., in large-scale Pub-

lic Cloud environments. The interested reader is re-

ferred to (Strauch et al., 2012a; Strauch et al., 2012b)

for an in-depth discussion on these patterns.

6 PATTERN-BASED

APPLICATION REFACTORING

In this section we ﬁrst introduce the mapping of

Cloud Data Migration Scenarios to Cloud Data Pat-

terns (Section 6.1). Afterwards we propose a step-by-

step methodology for the migration of the data layer

to the Cloud covering all migration scenarios and us-

ing the patterns (Section 6.2). Finally, we apply the

methodology to the application introduced in the mo-

tivating scenario focusing on application architecture

refactoring using the patterns (Section 6.3).

6.1 Mapping Scenarios to Patterns

Table 3 provides an overview on how Cloud Data Mi-

gration Scenarios map to Cloud Data Patterns. In or-

der to avoid repetition, in the following we discuss the

mapping of the migration scenario Database Layer

Outsourcing to the various patterns in detail and for

the other scenarios we focus on explaining the dif-

ferences compared to the mapping of this migration

scenario.

All patterns are applicable for the scenario Data-

base Layer Outsourcing depending on the speciﬁc

conditions of the required solution. As no change of

the data store type takes place, but there might be a

change of the product, potential incompatibilities, e.g.

regarding realization of data types, or missing func-

tionalities used before, like stored procedures, have

to be added or emulated using the functional patterns.

In case the DBL is completely moved to the Cloud,

a solution to reduce the latency for data access is to

host read replicas locally and to use a Local Data-

base Proxy to forward data reads to these replicas

instead of querying the DBL in the Cloud for every

read request. In order to scale both data writes and

reads, a Sharding-Based Router can be used to enable

sharding in case it is not supported by the Cloud data

store(s) chosen for migration.

When the database layer is migrated to the pub-

lic Cloud, it has to be decided which critical data

will not be moved to the Cloud, e.g., as business se-

crets. The patterns Conﬁdentiality Level Data Aggre-

gator and Conﬁdentiality Level Data Splitter enable

the differentiation and harmonization of the conﬁden-

tiality level of different data sets from potentially dif-

ferent domains and different data sources. The other

conﬁdentiality patterns enable ﬁltering of critical data

that have to stay locally in case the database layer

is only partially migrated to the Cloud, and remov-

ing or masking the critical data by anonymization or

pseudonymization before moving them to the public

Cloud.

As in the migration scenario Using Highly-

Scalable Data Stores the data in the DBL can also

be only partially migrated, the non-functional pat-

terns might be applicable as in the ﬁst migration sce-

nario. Thus, there are no differences in the pattern

mapping compared to the migration scenario Data-

base Layer Outsourcing. The usage of the Sharding-

Based Router is not typical for the migration scenario

Geographical Replication since sharding the data dis-

jointly distributes them, instead of replicating them.

When combining replication and sharding however,

e.g., by sharding some write replicas that are more of-

ten accessed, this pattern is also applicable.

A non-typical use of the Local Database Proxy

pattern for the scenario Sharding can be applied in

case, e.g., some shards that are more often accessed

via read are replicated for read scalability. The Lo-

cal Sharding-based Router might be even used in the

scenario Sharding in order to keep the sharding in the

database layer transparent for the business layer to

avoid adaptations to the business logic. In the Work-

ing on Data Copy scenario, data analysis is performed

on the complete or partial copy of the database layer,

instead of the actual data. As such, the non-functional

patterns are not applicable for this scenario.

None of the Cloud Data Patterns are applicable

in the Backup scenario, because the purpose of this

scenario is to restore the latest, saved state of the sys-

tem as fast as possible in case an error or outage oc-

curs. No further processing on the backup data takes

place. Thus, in such a time critical situation even

the usage of the Pseudonymizer of Critical Data is

to much overhead that delays restoring the latest sta-

tus. The Pseudonymizer of Critical Data however can

be used in the scenario Archiving to save even critical

data, e.g. personal data, in the public Cloud. The re-

lation of the masked data to the original data has to

be stored separately and safely in order to avoid re-

vealing and to be able to revert the masking of the

data before the archived data can be used. All other

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

Table 3: Scenario/Pattern Mapping.

Functional Non-functional Conﬁdentiality

Data Store

Functionality Extension

Emulator of Stored

Procedures

Local Database Proxy

Local Sharding-based

Router

Conﬁdentiality Level

Data Aggegrator

Conﬁdentiality Level

Data Splitter

Filter of Critical Data

Pseudonymizer of

Critical Data

Anonymizer of

Critical Data

Database Layer Outsourcing X X X X X X X X X

Using Highly-Scalable Data

Stores

X X X X X X X X X

Geographical Replication X X X (X) X X X X X

Sharding X X (X) (X) X X X X X

Cloud Bursting X X X X X X X X X

Working on Data Copy X X – – X X X X X

Data Synchronization X X X X X X X X X

Backup – – – – – – – – –

Archiving – – – – – – – X –

Data Import from the Cloud – – – – (X) (X) (X) (X) (X)

Legend: X: applicable, (X) : might be applicable, – : not applicable

patterns are not applicable to scenario Archiving, as

there will be no further processing on the data after it

has been archived.

As the user has no impact on the API offered by

the Cloud service to import data, the functional and

non-functional patterns are not relevant for the mi-

gration scenario Data Import from the Cloud. The

conﬁdentiality patterns might be applicable depend-

ing on the goal of using the imported data. Thus, the

data might be ﬁltered, anonymized, pseudonymized,

categorized or harmonized based on pre-deﬁned con-

ﬁdentiality levels before they are imported.

6.2 Cloud Data Migration

In this section we propose a methodology for migra-

tion of the database layer to the Cloud and adaptation

of the data access and business layer accordingly. The

methodology entails the following steps:

1. Identify relevant Cloud Data Migration Scenario.

2. Describe desired Cloud data store.

3. Select suitable Cloud Data Store.

4. Identify the applicable patterns to solve incompat-

ibilities and to refactor the application.

5. Refactor the application by adapting the database

layer and upper architectural layers while imple-

menting the identiﬁed patterns.

6. Migrate the data to the selected Cloud Data Store.

First of all the Cloud Data Migration Scenario has

to be identiﬁed. Therefore, the speciﬁc requirements

of the solution needed have to be mapped to the char-

acteristics of the migration scenarios deﬁned in Sec-

tion 4. Afterwards, the functional and non-functional

requirements such as data store type and read/write

throughput of the desired Cloud data store have to

be deﬁned. By mapping this set of requirements to

the speciﬁcations provided by the Cloud data store

providers, a speciﬁc Cloud data store can be selected.

This step can be automated, e.g., by querying a Cloud

data store repository containing the concrete proper-

ties of available Cloud data stores.

In order to identify the patterns to be used to

solve incompatibilities and refactor the application,

the non-functional and functional requirements of the

database layer used before migration have to be spec-

iﬁed. The comparison and mapping of these require-

MigratingApplicationDatatotheCloudusingCloudDataPatterns

Evaluation Scenario

Traditional / Cloud

Private Cloud

Deployment Models

Public Cloud

Application Layers

External

Auditing

Company

External Cloud

Data Store

Provider

Health

Insurance

Company

Database

Layer*

Data Access

Layer

Database Layer

Region A

Data Access

Layer

Legend

Dataflow

Partial Migration

Modified

Region B

Data

Layer

Component

Figure 2: Refactoring of motivating scenario using Cloud Data Patterns (Data Layer).

ments of the database layer previously used, to the

deﬁned requirements for the desired Cloud data store

lead to the identiﬁcation of potential conﬂicts and in-

compatibilities. The mapping of the identiﬁed mi-

gration scenario to the corresponding patterns (Sec-

tion 6.1) should be used for orientation and limiting

the number of patterns to be considered for applica-

tion refactoring. Based on the characteristics of the

Cloud Data Patterns, and on the speciﬁc conditions

when they can be applied (Section 5), the patterns

to solve the incompatibilities and conﬂicts have to be

chosen.

After the patterns to be applied have been identi-

ﬁed, the actual application refactoring can take place

by implementing the patterns and thus adapting the

database layer and upper architectural layers accord-

ingly. This is because the adaptation of the database

layer (and/or data access layer) by using Cloud Data

Patterns may require adaptations of the business layer

as well. For example the usage of conﬁdentiality pat-

terns for ﬁltering, anonymization, or pseudonymiza-

tion creates a different view on the data for the busi-

ness layer by retrieving the application data in an ag-

gregated format in comparison to the original data-

base layer. Finally, the data themselves have to be

migrated to the selected Cloud data store, including

the necessary DB schema creation. Existing tools and

services like the ones discussed in Section 3 can be

used for this purpose.

6.3 Refactoring the Motivating Scenario

In the following, we discuss how the functional, non-

functional, and conﬁdentiality patterns can be used in

practice to realize the application based on the mo-

tivating scenario introduced in Section 2 and refac-

tor the application accordingly. As discussed in Sec-

tion 2, HIC has to provide access to EAC to audit

the ﬁnancial transactions processed by the company

while avoiding additional load on the system. This es-

sentially means that only the data on ﬁnancial transac-

tions have to be replicated. Furthermore, EAC can do

no changes to the actual application data and therefore

no synchronization is required. These speciﬁc condi-

tions on the required solution lead to the choice of the

migration scenario Geographical Replication in the

ﬁrst step of the methodology (Section 6.2). Thus, the

database layer of the HIC is partially replicated in the

public Cloud by focusing on the ﬁnancial transactions

only.

In the following we focus on identifying the pat-

terns to be used and on the refactoring of the applica-

tion based on the requirements described in the moti-

vating scenario. According to the mapping of the sce-

nario Geographical Replication to Cloud Data Pat-

terns (Table 3) all patterns are potentially applicable

to this scenario. Figure 2 provides an overview of the

refactored application and realization of the scenario

using Cloud Data Patterns.

More speciﬁcally, in order to provide horizon-

tal scalability for reads and writes to the data of the

clients and their transactions, the Local Sharding-

Based Router pattern is used. The data is separated

between the two data centers according to the geo-

graphical location. The Google App Engine Datastore

is chosen for replicating the data on ﬁnancial transac-

tions, conﬁgured accordingly. The client information

and their corresponding medical records are critical

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

data to be kept only in the company’s private Cloud.

Financial transactions information will appear both in

the private and in the public Cloud. In order to keep

both the data stored in the private data store and the

one outsourced to the public Cloud consistent, data

updates and inserts should be done in parallel to both

the private and the public part of the database layer.

However, only a part of the ﬁnancial data is nec-

essary for the auditing (e. g., client names can be re-

moved) and the remaining can be pseudonymized be-

fore moving to the public Cloud (e. g., bank account

numbers replaced by serial IDs). A composition of

the Filter of Critical Data and the Pseudonymizer of

Critical Data is used to fulﬁll both requirements. The

ﬁlter is conﬁgured so that only data on ﬁnancial trans-

actions pass it. After passing the ﬁlter, the informa-

tion on ﬁnancial transactions is pseudonymized be-

fore it is stored in the public Cloud. Storage of data

on the auditing company side can be done either in a

private Cloud or in the traditional manner; this is out

of the scope of this discussion.

Due to the challenges identiﬁed in the motivat-

ing scenario regarding the data access of the audit-

ing company, the query results must not contain any

relations concerning clients and their corresponding

medical records or personal data. Therefore, this in-

formation has to be completely deleted before pass-

ing the query results to the auditing company (in-

stead of simply obfuscating this relation by using

pseudonymization). In addition, the queries to be ex-

ecuted by the auditor have to be agreed upon in ad-

vance. For these purposes, the realization uses a com-

position of the Anonymizer of Critical Data and the

Emulator of Stored Procedures patterns. The emula-

tor is used to predeﬁne and restrict the data queries

allowed to be executed by the auditing company. The

Anonymizer of Critical Data additionally ensures the

removal of any critical information from the results of

the queries.

A combination of functional, non-functional, and

conﬁdentiality patterns can therefore be used in tan-

dem by the proposed methodology to address the re-

quirements of the use case posed by the motivating

scenario.

7 CONCLUSIONS AND FUTURE

WORK

In the previous sections we discussed the need for

supporting the migration of application data to the

Cloud. A number of technical, architectural and legal

issues related to this effort were identiﬁed by means

of a motivating scenario. The State of the Art in mi-

grating applications and application data to the Cloud

was then analyzed for best practices and associated

challenges, and it was organized into ten distinct data

migration scenarios. These scenarios cover differ-

ent aspects of data migration to and from the Cloud

and include, among others, outsourcing the database

layer, replication of data to reduce latency, Cloud

bursting, and synchronization. A set of Cloud Data

Patterns as reusable solutions to common migration-

related challenges was then brieﬂy summarized, and a

mapping between the identiﬁed scenarios and the pat-

terns was presented. An application data migration

methodology was then introduced based on this map-

ping, and the motivating scenario application used in

the beginning of the paper was refactored to demon-

strate the applicability of our work.

Neither the list of the migration scenarios, nor the

one of the patterns is claimed to be complete. Further

effort in augmenting and reﬁning both scenarios and

patterns is required in the future. Providing tooling

support for applying the application data migration

methodology discussed in Section 6 could provide

signiﬁcant help in this direction. A decision support

system built for this purpose, in the manner of work

like (Menzel and Ranjan, 2012) and (Khajeh-Hosseini

et al., 2012), could be an important contribution on its

own, guiding practictioners and researchers through

the migration of their application to the Cloud. Fi-

nally, the discussion in this work has to be positioned

within a larger framework dealing with the migration

of applications to the Cloud, and the adaptations that

could result from this migration.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the 4CaaSt project (http://

www.4caast.eu) part of the European Union’s Seventh

Framework Programme (FP7/2007-2013) under grant

agreement no. 258862.

REFERENCES

Adler, B. (2011). Building Scalable Applications In the

Cloud: Reference Architecture & Best Practices,

RightScale Inc.

Amazon.com, Inc. (2011). AWS Case Study: Alexa.

Anand, S. (2010). Netﬂix’s Transition to High-Availability

Storage Systems.

Andrikopoulos, V., Binz, T., Leymann, F., and Strauch, S.

(2012). How to Adapt Applications for the Cloud En-

vironment. Springer Computing.

MigratingApplicationDatatotheCloudusingCloudDataPatterns

Armbrust, M. et al. (2009). Above the Clouds: A Berke-

ley View of Cloud Computing. Technical Report

UCB/EECS-2009-28, EECS Department, University

of California, Berkeley.

Badger, L., Grance, T., R., P.-C., and Voas, J. (2012). Cloud

Computing Synopsis and Recommendations - Recom-

mendations of the National Institute of Standards and

Technology. NIST Special Publication 800-146.

Buretta, M. (1997). Data Replication: Tools and Tech-

niques for Managing Distributed Information. John

Wiley & Sons, Inc.

Consultative Committee for Space Data Systems (2002).

Reference Model for an Open Archival Information

System (OAIS).

Conway, G. and Curry, E. (2012). Managing Cloud Com-

puting: A Life Cycle Approach. In Proceedings of

CLOSER’12. SciTePress.

Cunningham, S. R. (2010). Windows Azure Applica-

tion Proﬁle Guidance. Custom E-Commerce (Elastic-

ity Focus) Application Migration Scenario.

Fowler, M. et al. (2002). Patterns of Enterprise Application

Architecture. Addison-Wesley Professional.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration

Patterns: Designing, Building, and Deploying Mes-

saging Solutions. Addison-Wesley Longman Publish-

ing Co., Inc. Boston, MA, USA.

Khajeh-Hosseini, A., Greenwood, D., Smith, J. W., and

Sommerville, I. (2012). The Cloud Adoption Toolkit:

Supporting Cloud Adoption Decisions in the Enter-

prise. Software: Practice and Experience, 42(4):447–

465.

Laszewski, T. and Nauduri, P. (2011). Migrating to the

Cloud: Oracle Client / Server Modernization. Else-

vier Science.

Lee, J., Malcolm, G., and Matthews, A. (2009). Overview

of Microsoft SQL Azure Database.

Mell, P. and Grance, T. (2009). Cloud Computing Deﬁni-

tion. National Institute of Standards and Technology,

Version 15.

Menzel, M. and Ranjan, R. (2012). CloudGenius: Decision

Support for Web Server Cloud Migration. In Proceed-

ings of WWW ’12, New York, NY, USA. ACM.

Microsoft Azure (2012). Generic Migration Scenarios and

Case Studies.

Pritchett, D. (2008). BASE: An ACID Alternative. Queue,

6(3):48–55.

Redkar, T. and Guidici, T. (2011). Windows Azure Platform.

Apress.

Strauch, S., Andrikopoulos, V., Breitenb

ucher, U., Kopp,

O., and Leymann, F. (2012a). Non-Functional Data

Layer Patterns for Cloud Applications. In Proceedings

of CloudCom’12. IEEE Computer Society Press.

Strauch, S., Breitenb

ucher, U., Kopp, O., Leymann, F., and

Unger, T. (2012b). Cloud Data Patterns for Conﬁden-

tiality. In Proceedings of CLOSER’12. SciTePress.

Tak, B. C., Urgaonkar, B., and Sivasubramaniam, A.

(2011). To Move or Not to Move: The Economics of

Cloud Computing. In Proceedings of HotCloud’11,

Berkeley, CA, USA. USENIX Association.

United States Congress (2002). Sarbanes-Oxley Act (SOX).

Varia, J. (2010). Migrating your Existing Applications to

the AWS Cloud. A Phase-driven Approach to Cloud

Migration.

Vogels, W. (2009). Eventually Consistent. Communications

of the ACM, 52(1):40–44.

Zawodny, J. and Balling, D. (2004). High Performance

MySQL: Optimization, Backups, Replication, Load-

balancing, and More. O’Reilly & Associates, Inc. Se-

bastopol, CA, USA.

All links were last followed on February 5, 2013.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience
