Improve Resource-sharing through Functionality-preserving

Merge of Cloud Application Topologies

Tobias Binz, Uwe Breitenb

ucher, Oliver Kopp, Frank Leymann and Andreas Weiß

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Keywords:

Application Topology, Merge, Resource Sharing, Multi-tenancy, Cloud Computing, TOSCA.

Abstract:

Resource sharing is an important aspect how cost savings in cloud computing are realized. This is especially

important in multi-tenancy settings, where different tenants share the same resource. This paper presents an

approach to merge two application topologies into one, while on the one hand preserving the functionality

of both applications and on the other hand enabling sharing of similar components. Previous work has not

addressed this due to the lack of ways to describe topologies of composite applications in a decomposed,

formal, and machine-readable way. New standardization initiatives, such as TOSCA, provide a way to describe

application topologies, which are also portable and manageable. We propose an approach, realization, and

architecture enabling a functionality-preserving merge of application topologies. To validate our approach we

prototypically implemented and applied it to merge a set of test cases. All in all, the functional-preserving

merge is a method to support the optimization and migration of existing applications to the cloud, because it

increases resource sharing in the processed application topologies.

1 INTRODUCTION

Resource sharing is, besides automation and economy

of scale, the key to realize the signiﬁcant cost saving

promised and realized by cloud computing. Today,

resource sharing is mostly discussed in terms of multi-

tenancy, which is the fact that tenants, i. e. organiza-

tions or users, share one or a common set of resources

(Chong and Carraro, 2006). The concept of resource

sharing itself has been around for decades, as well

as its problems, such as security, performance, avail-

ability, and administrative isolation (Guo et al., 2007).

Increasing the utilization through resource sharing is,

however, often still not applied in enterprise IT. This

is reﬂected by the fact that in today’s non-cloud data

centers servers usually have a very low utilization

The applications running on this underutilized data

centers are no monolithic blocks. Usually, enterprise

applications require middleware (including applica-

tion servers, database management systems, and mes-

sage queuing) installed on an operating system, which

in turn requires computing, storage, networking, and

other infrastructure. Working together, these compo-

nents provide the business functionality implemented

by the application. An application topology is a graph

For example, according to (Andrzejak et al., 2002) the

80% percentile is typically utilized in the 15 to 35% range.

containing all these components as separate nodes and

their relations as edges. Recent advances in the formal-

ization and management of complex IT systems, for

example, the Topology and Orchestration Speciﬁca-

tion for Cloud Applications (OASIS, 2012) (TOSCA)

currently standardized at OASIS, are based on a ﬁne-

grained topology of the cloud application to enable

their automated deployment and management. This

formal description of the application’s conﬁguration,

structure, architecture, and dependencies enables auto-

mated processing of these application topologies and

is the technical foundation of our approach.

Based on this decomposition of the application,

this paper presents an approach to merge two previ-

ously separated application topologies into one inte-

grated application topology, while preserving the func-

tionality of the applications. For example, consider

two application topologies, each including a Web ser-

vice, which runs on its own Apache Tomcat on a sep-

arate virtual machine. Our approach shows how to

evaluate and, if possible, merge these two topologies

into one application topology. In this example the re-

sult would be one Tomcat hosting both Web services

and therefore only requires one virtual machine. There-

fore, our approach is a method to increase resource

sharing and support the migration of existing applica-

tions to the cloud.

Binz T., Breitenbücher U., Kopp O., Leymann F. and Weiß A..

Improve Resource-sharing through Functionality-preserving Merge of Cloud Application Topologies.

DOI: 10.5220/0004378000960103

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 96-103

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Company Website

( WAR )

ServletContainer

( Apache Tomcat )

(HostedOn)

Virtual Machine

( VMware VM )

(HostedOn)

OperatingSystem

( Linux )

(HostedOn)

Merge

Product Website

( WAR )

ServletContainer

( Apache Tomcat )

(HostedOn)

Virtual Machine

( VMware VM )

(HostedOn)

OperatingSystem

( Linux )

(HostedOn)

Application 1

Application 2

Support Workflow

( BPEL )

ProcessEngine

( Apache ODE )

(HostedOn)

Virtual Machine

( VMware VM )

(HostedOn)

OperatingSystem

( Linux )

(HostedOn)

Application 3

Company Website

( WAR )

ServletContainer

( Apache Tomcat )

(HostedOn)

Virtual Machine

( Amazon EC2 VM )

(HostedOn)

OperatingSystem

( Linux )

(HostedOn)

Product Website

( WAR )

ServletContainer

( Apache Tomcat )

(HostedOn)

Merged Application

Support Workflow

( BPEL )

ProcessEngine

( Apache ODE )

(HostedOn)

Virtual Machine

( Amazon EC2 VM )

(HostedOn)

OperatingSystem

( Linux )

(HostedOn)

Application 3

Credentials

Correspondences

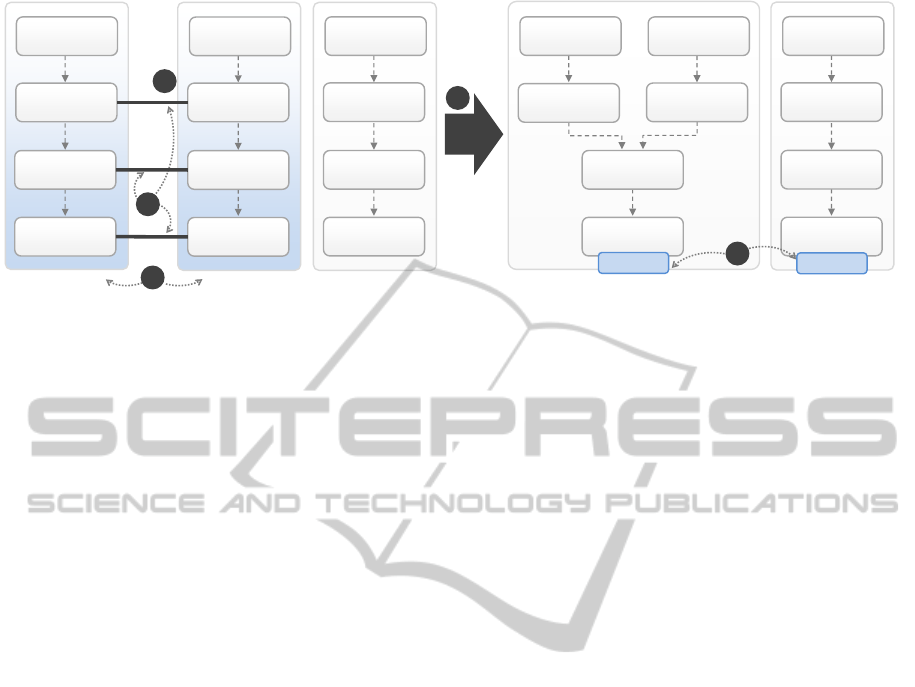

Figure 1: Motivating Scenario – Migrating the three applications on the left into the cloud on the right.

This leads us to the contributions of this paper,

which are threefold: (i) We propose an approach to

merge two separated application topologies into one,

while preserving their functionality and sharing as

much of the components as possible. This approach,

which is independent of a particular topology language,

describes a method following the ﬁve steps: identiﬁca-

tion, matching, manual evaluation, merging, and ﬁnal

evaluation & deployment. A cloud migration scenario

is used to extract the requirements towards a suitable

approach. (ii) Based on this, we present a realization

called TOSCAmerge which applies our approach to

TOSCA-based application topologies. (iii) Finally, we

present the architecture of TOSCAmerge, an exten-

sible framework to enable reuse of the functionality-

preserving topology merge operation.

The remainder of this paper is structured as follows:

First, Section 2 presents the migration of enterprise

applications as motivating scenario for our approach.

The proposed method to address this scenario is de-

scribed in detail in Section 3. Based on this, Section 4

shows our prototypical realization of the approach us-

ing TOSCA-based application topologies. Section 5

discusses the proposed approach and realization. Sec-

tion 6 presents related work. We conclude the paper

and give an outlook on future work in Section 7.

2 MOTIVATING SCENARIO

This section discusses the motivating scenario for our

approach, the migration of enterprise applications to

the cloud, which is used throughout the paper to illus-

trate our approach. In our scenario, a company has

three applications, shown as topologies on the left of

Figure 1. Application 1 implements the Web site of the

company as Java Web application which is packaged

as WAR-ﬁle. The application is hosted on an Apache

Tomcat servlet container which is hosted on a Linux

operating system. The operating system runs on a vir-

tual machine provided by a local VMware deployment.

The same stack is used by the company to implement

their advertising Web site for their main product. The

third application has the same infrastructure stack but

implements the support workﬂow of the company as

BPEL process which is hosted on an Apache ODE

workﬂow engine.

To reduce cost, the company decides to migrate

these customer-facing applications to the cloud, in this

case to Amazon EC2. However, running the same sup-

porting infrastructure three times is not efﬁcient. To

further reduce cost, the company looks for a solution

to automatically merge application topologies. In addi-

tion, an important goal is to preserve the functionality

provided by the applications. This is where the ap-

proach proposed in this paper is aimed to. The merged

application topology on the right hand side of Figure 1

is the result of the presented approach. The detailed

process from left to right is explained in the following

sections.

3 APPROACH

In this section we present our semi-automated ap-

proach for merging application topologies. First, we

present an analysis of the requirements in Section 3.1.

Based on this, we discuss our method in detail in Sec-

tion 3.2.

3.1 Requirements

Based on the motivating scenario, introduced in Sec-

tion 2, and a literature study we identiﬁed the follow-

ing requirements for a solution merging application

topologies:

Functionality Preservation and Correctness. The func-

tionality of the applications which have been merged

ImproveResource-sharingthroughFunctionality-preservingMergeofCloudApplicationTopologies

must not be altered. However, the non-functional prop-

erties may be different due to changes in the supporting

infrastructure. The result, i. e. the merged application

topology, must be syntactically and semantically cor-

rect. To facilitate this, we demand the input application

topologies also to be syntactical and semantically cor-

rect. In particular, they have to include all the compo-

nents, conﬁgurations, and relations required to operate

the merged application properly.

Open World Assumption. A viable solution for merg-

ing application topologies must not assume that there

is only a limited and well known set of semantics rep-

resented by the nodes and edges in the application

topology. The evolution of cloud offerings, software

systems, and hardware are changing too fast to restrict

the approach upfront to a certain set of types, i. e. a

closed world. Thus, the approach must be able to deal

with various kinds of nodes and relationships.

Algorithm. The implementation must produce deter-

ministic results, terminate for any valid input, and

have a reasonable computational complexity to allow

its application also to large application topologies.

3.2 Topology Merge Method

For functionality-preserving merging of application

topologies we propose a method which deﬁnes ﬁve se-

quential steps, presented in the following subsections:

(i) Identify Applications to be Merged, (ii) Matching,

(iii) Manual Evaluation, (iv) Merging, and (v) Final

Evaluation & Deployment.

Some details of the method depend on the lan-

guage used to describe application topologies, which

is explicitly noted in the respective step of the

method. In Section 4, our prototypical implementation

TOSCAmerge proposes a concrete realization of this

method based on TOSCA.

3.2.1 Identify Applications to be Merged

The ﬁrst step of our approach is identifying the ap-

plications to be merged. Good candidates to realize

savings through increased resource sharing are large

application topologies with common components in

the supporting infrastructure. However, the details of

the actual identiﬁcation is out of scope of this paper.

Motivating Scenario.

The company may decide that

only application 1 and application 2 shall be merged

and moved to the cloud, because the availability of the

two Web sites is lower prioritized than the availability

of their support workﬂow. This decision is represented

by (1) in Figure 1.

3.2.2 Matching

After the applications to be merged are identiﬁed, step

two identiﬁes possibilities to merge nodes and edges of

the application topologies. In the following, we regard

a pair of two application topologies

and

. The

result of this matching step is a set of correspondences.

Correspondences are binary, undirected overlay edges

between two nodes or two edges of the application

topologies. One node may have multiple correspon-

dences to different other nodes, this is resolved during

merging (see step four).

Matching Nodes.

During matching, each pair of

nodes

(n, m)

with

n, m ∈ T

∪ T

is evaluated if the

nodes correspond with each other and, therefore, could

be merged. We write

n ◦m

if a correspondence exits

between

and

. The existence of a correspondence

is evaluated by three checks, which must be all passed

to establish a correspondence:

(i) If the types of the nodes are the same, a merge might

be possible. How types are deﬁned and which rules

for their comparison have to be applied depends on

the language used to describe application topologies.

Only nodes of the supporting infrastructure, such as

hardware, operating systems, and middleware, should

be matched. The actual business logic is provided by

the nodes representing the application, such as the Java

WAR ﬁle in Figure 3, which are excluded. This is done

because the application logic cannot be merged in a

generic way. In contrast, the supporting infrastructure

can be merged in a generic way, because it mainly

consists out of standardized components conﬁgured to

operate the application logic. The conﬁguration of the

supporting infrastructure must also be considered as

some kind of application logic, crucial to operate the

application as intended, as presented in the next steps.

(ii) Thereafter, the functional properties of the nodes

are checked. For instance, the conﬁguration of a node

is a functional property. Functional properties are spe-

ciﬁc for the respective node type and therefore must

be handled by type-speciﬁc logic. For example, it

is not possible to determine in a generic way if the

values 32 and 64 for the property CPU architecture

are compatible. Some software products may offer

versions for both, 32-bit and 64-bit systems, some

not. Therefore, our approach uses plugins to integrate

the type-speciﬁc logic which checks if two nodes (or

edges) can be merged or not.

(iii) Nodes may also have non-functional properties

(NFP), for instance, the availability of a node. Simi-

lar to functional properties, non-functional properties

have to be processed by type-speciﬁc logic. If the

topology language has an inheritance, sub-graph, or

grouping mechanism, the NFPs of all parents also must

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

be considered. In this case, the accumulated NFPs of

all parent constructs must also be compatible, e. g. if

there is a NFP on the whole topology.

Matching Edges.

Edges are matched similar to nodes

to generate correspondences. However, only edges

connected to at least one node with a correspondence

are processed. Evaluating if a correspondence between

two edges exists requires that the type-speciﬁc logic

implementing the semantics of the edge is provided as

plugin, similar to the type-speciﬁc plugins for nodes.

In particular, edges may prevent certain node corre-

spondences. For example, two corresponding nodes

may be connected by an anti-colocation edge. This

means that two nodes must reside on different physi-

cal infrastructure to increase availability. As a conse-

quence, the nodes must not be merged.

Motivating Scenario.

After the company decided to

merge the applications providing the Web sites, the

matching step automatically generates the correspon-

dences between these two applications. The result is,

that the virtual machines, the operating systems, and

the two servlet containers are candidates to be merged.

This is denoted by (2) in Figure 1.

3.2.3 Manual Evaluation

The result of the matching step is a set of correspon-

dences between two nodes or two edges. However,

we do not think that all decisions can be made by the

implementation or its plugins. Therefore, this step

allows an architect to evaluate the correspondences

with respect to the application and enterprise archi-

tecture, as well as the responsible software developer

with respect to the internals and hidden assumptions of

the applications. This allows incorporating available

knowledge of these experts with minimal time invest-

ment, because an initial identiﬁcation and subsequent

merging is done by the implementation automatically.

The result of this step is a set of correspondences stat-

ing which nodes and edges should be merged.

Motivating Scenario.

In our scenario the architect

decides to run the two web applications on different

Web servers, therefore, he removes the respective cor-

respondence. The removal of this correspondence is

denoted by (3) and the red X in Figure 1.

3.2.4 Merging

This step processes the correspondences found during

matching, which may have been manually adapted by

the previous manual evaluation step. Merging of nodes

and edges is done in three steps:

(i) Merging the two nodes/edges connected through a

Full mapping

Partial mapping

Correspondences

Figure 2: Two example sets of possible Correspondences

between three nodes.

correspondence by calling the respective type-speciﬁc

logic to merge the functional and non-functional deﬁ-

nitions of the node. Similar to the matching step, the

type-speciﬁc logic must be provided by a plugin.

(ii) If applicable, reconnect the edges connected to one

of the merged nodes. The correspondences are also re-

connected accordingly; except that the correspondence

whose two nodes/edges have been merged is removed.

(iii) Finally, the two old nodes/edges, which are at this

point neither part of an edge nor of a correspondence,

are removed from the topology.

If a node has multiple correspondences, as depicted

in the two topologies in Figure 2, additional consid-

erations are required: Figure 2 shows at the top a set

of three nodes forming a full mapping, i. e. each node

has an correspondence with each other node. In this

case, all nodes of this set can be merged into one sin-

gle node, because each node has been matched with

each other node. If there is only some kind of partial

mapping for a set of three nodes, as exemplary shown

at the bottom of Figure 2, only a part of the nodes can

be merged. This is because nodes

and

are, for

some type-speciﬁc reason found during matching, not

capable of being merged, therefore, we infer that

also cannot be merged with a merged node

m + n

and

vice versa

cannot be merged with a merged node

n + o

. In this example it is only possible to merge two

of the nodes. The generic rule is deﬁned as follows:

Let

be the set of nodes which has been merged into

node

, if any, and

be the set of nodes merged into

node

. Then, nodes

and

can be merged if and

only if

∀x ∈ N ∀y ∈ M : x ◦ y

. This is the same for

edges and other grouping concepts supported by the

respective topology language.

Motivating Scenario.

After the correspondences

were evaluated, the applications get merged as de-

picted by (4) in Figure 1. The result is that both oper-

ating systems are merged into one now, as well as both

virtual machines. This decreases cost as, for example,

only one virtual machine and operating system license

must be paid for hosting both Web sites.

ImproveResource-sharingthroughFunctionality-preservingMergeofCloudApplicationTopologies

3.2.5 Final Evaluation & Deployment

Our approach works on the model level which implies

that the merge is not done on the running application.

Hence, the merged application topology can be evalu-

ated and adjusted by responsible architects and devel-

opers, which already evaluated the correspondences in

step three. For instance, this can be done by deploying

the merged topology into a test environment. If the

merged application has been evaluated and passed the

tests, it can be rolled out.

Motivating Scenario.

After merging both applica-

tions additional information for the deployment have

to be added. In our motivating scenario in Figure 1, (5)

denotes that the Amazon credentials are provided and,

afterwards, the application is automatically deployed.

4 TOSCA MERGE

IMPLEMENTATION

In this section we present our Java-based implementa-

tion “TOSCAmerge” to realize the approach presented

in Section 3. The prototype uses TOSCA to describe

application topologies. After an introduction into the

relevant concepts of TOSCA, we present concrete real-

izations for the aspects of the approach depending on

the language used to describe application topologies.

4.1 TOSCA

TOSCA, the Topology and Orchestration Speciﬁcation

for Cloud Applications (OASIS, 2012), is a speciﬁ-

cation currently standardized at OASIS, which can

be used to describe application topologies. We call

them TOSCA-based application topologies. We use

TOSCA to deﬁne application topologies in our proto-

typical implementation

. A TOSCA-based application

topology is deﬁned by Node Templates, which repre-

sent the components of an application such as a virtual

machine or Java application, and binary Relationship

Templates, which deﬁne relations between the compo-

nents represented by Node Templates, e. g. a Apache

Tomcat Node Template may be hosted on an Operating

System Node Template. These templates are generic

and typed by reusable Node Types and Relationship

Types, respectively. Types deﬁne the semantics of

templates, for example, there might be a Node Type

Apache Tomcat created by the Tomcat developer com-

munity, which is then used in different application

topologies to type Node Templates. Figure 3 presents

The implementation uses the speciﬁcation and XML

schema of TOSCA v1.0 working draft 05 (OASIS, 2012)

Online Shop

( WAR )

ServletContainer

( Apache Tomcat )

(HostedOn)

Virtual Machine

( Amazon EC2 VM )

(HostedOn)

OperatingSystem

( Windows 7 )

(HostedOn)

Product Database

( MySQL RDBMS )

(Calls)

(HostedOn)

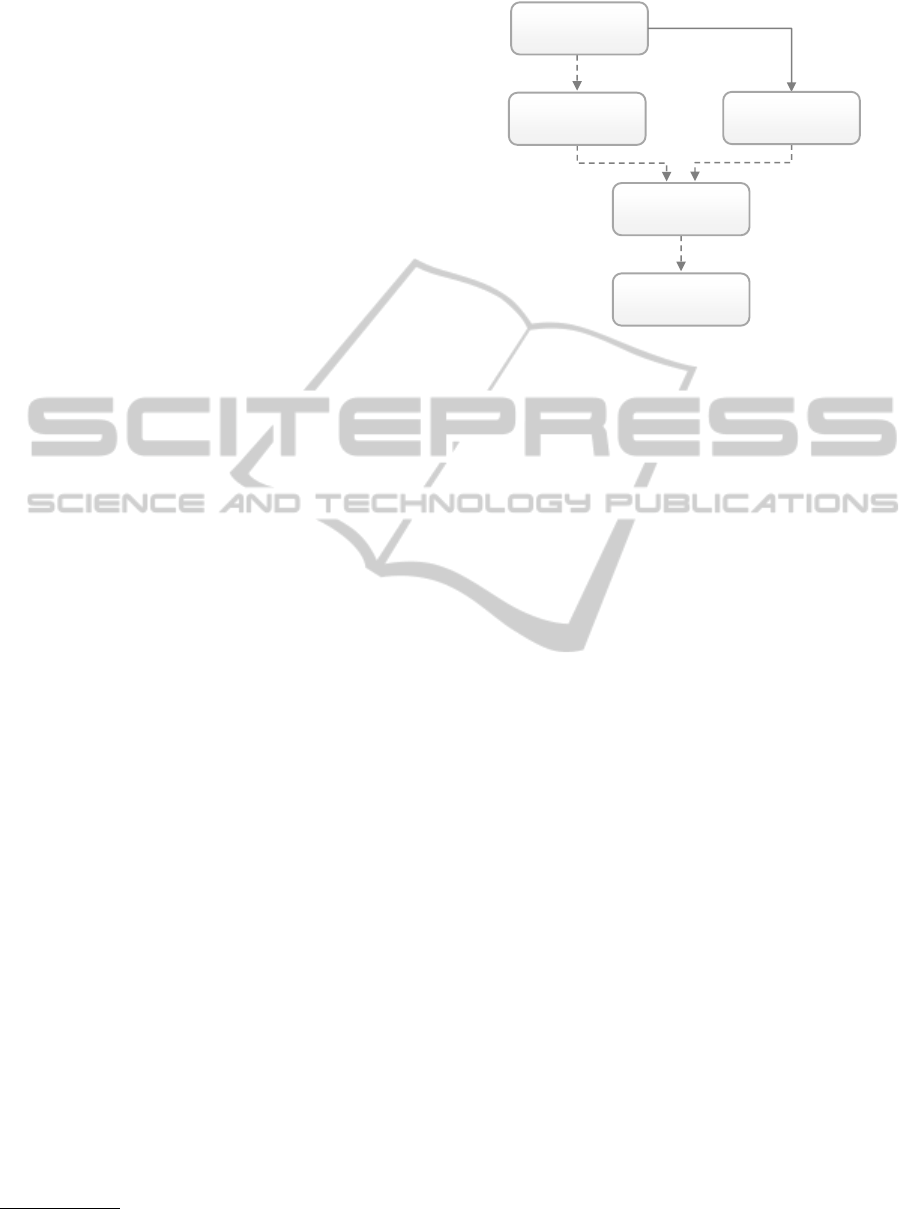

Figure 3: Example TOSCA application topology, visualized

with Vino4TOSCA (Breitenb

ucher et al., 2012).

an example TOSCA-based application topology. The

rounded rectangles denote Node Templates and the

arrows Relationship Templates. The type of each tem-

plate is rendered in parentheses.

TOSCA does not have a predeﬁned set of types,

but enables individual deﬁnition of types. Through

derivation, types can reﬁne other types, for example,

the Node Type Apache Tomcat may be a reﬁnement

of the Node Type Servlet Container. Besides other

information, which is not relevant for describing our

approach, types in TOSCA deﬁne the properties of

their templates, for example, a virtual machine may

have the property IP-address and a hardware speciﬁ-

cation. TOSCA provides a recursive grouping mecha-

nism for subgraphs of an application topology and is,

for example, able to deﬁne policies on all the contained

nodes, relationships, and groups. Describing applica-

tion topologies is only one aspect of TOSCA. Based on

the topology of the cloud application, TOSCA’s goal

is to provide portability of the application’s manage-

ment and operation, as well as increasing automation

(Binz et al., 2012a). Due to the portability offered

by TOSCA, the application may even run on different

TOSCA-compliant runtimes in different environments,

which supports our migration scenario.

4.2 Type-speciﬁc Logic

One requirement towards our approach (c.f. 3.1) is that

the number of types and their semantics must not be

restricted. We opted for a plugin-based architecture

to support arbitrary types: In case a type should be

supported, a respective plugin has to be written.

The type system of TOSCA is capable of single

inheritance of Node Types and Relationship Types

through stating, for example, that type Apache Tomcat

is derived from type Servlet Container. To use this ca-

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

100

pability, plugins must be able to match and merge two

nodes or relationships of different types, for example

Apache Tomcat and Servlet Container. This is ad-

dressed by associating plugins in TOSCAmerge with

two type ids (namespace + id). If the type ids are differ-

ent the plugin states to be able to evaluate matches and,

if applicable, merge a node of type Apache Tomcat

with a node of type Servlet Container.

In Section 3.2 we explained that nodes and relation-

ships are processed pairwise. If no plugin is available

for a pair of type ids, then neither a match nor a merge

of the respective nodes and relationships is possible.

In other words, to establish a correspondence the re-

spective plugin must be available to take the decisions

requiring type-speciﬁc logic.

4.3 Handling of Group Templates

Group Templates are a TOSCA-speciﬁc grouping

mechanism for subgraphs of TOSCA-based applica-

tion topologies. They may contain nodes, relationships,

and, recursively, other groups. A node or relation-

ship contained in one Group Template, or recursively

in multiple groups, must evaluate the policies (non-

functional requirements) of all the groups it is con-

tained in. This is done by calculating the accumulated

policy, which summarizes the policies of the node or

relationship and all of the groups it is contained in.

The accumulated policy is processed with the same

type-speciﬁc plugins that are used during matching,

i. e. the number of constraints possibly preventing the

creation of a correspondence possibly increases.

4.4 Handling Application Logic

Nodes representing application logic are not matched

or merged, as discussed in Section 3.2. Due to the open

world assumption discussed in Section 3.1, the imple-

mentation cannot know if a particular node represents

application logic or not. Therefore, the implementa-

tion maintains a list of type ids to be excluded from

matching and merging. New Node Types representing

application logic must be added by the users of the

implementation.

4.5 Architecture & Design

The architecture of TOSCAmerge is structured into

four layers, as depicted in Figure 4: (i) The user-facing

API, offering the merge operation to external clients

through the Merge Service Interface to enable the in-

tegration into other tools. The Manual Evaluation

Interface returns the identiﬁed correspondences after

the matching step for manual evaluation and applies

Plugins

Core

API

Plugin

Framework

Merge Service Interface

Manual Evaluation

Interface

Relationship

Match & Merge

Node Match & Merge

Merge Service

Implementation

TOSCA Parser

Tomcat Matcher

Merge Plugins

Tomcat Matcher

Match Plugins

Figure 4: Architecture of TOSCAmerge framework.

the changes to the correspondences. (ii) The core im-

plements the logic for functionality-preserving merge

described in the approach, presented in Section 3. It

also includes the components to read, write, and parse

the involved input and result TOSCA-based applica-

tion topologies. (iii) The plugin framework selects,

manages, and invokes the type-speciﬁc logic, as re-

quested by the core. (iv) The plugin layer represents

the actual match and merge plugins which implement

the type-speciﬁc logic. This ensures the logic for new

types can be easily added to the TOSCAmerge frame-

work and ensures extensibility.

5 DISCUSSION

In this section we discuss our generic approach and its

realization based on TOSCA.

The proposed approach ensures that only valid

merges of two nodes or two edges are executed. This

comes with the precondition that the type-speciﬁc plu-

gins used for merging and matching are correct. The

application logic is preserved because the nodes repre-

senting business logic are ignored by the matching step

and thus are never merged. Our approach focuses on

the supporting infrastructure containing mainly stan-

dardized components to operate the application. Stan-

dardized does not mean that components cannot be

tailored to customer’s needs (Mietzner et al., 2010).

Correctness and functionality preservation can only

be facilitated if the topology models include all the

components, properties, and relations required to oper-

ate the application. Due to the fact that our approach

processes the application topology only and not the

executables or other information sources, lack of infor-

mation in the application topology leads to incorrect

and unpredictable results.

In addition, application topologies have to be de-

composed into components. For example, modeling

ImproveResource-sharingthroughFunctionality-preservingMergeofCloudApplicationTopologies

101

the operating system, middleware components, and the

application as one single node represents a topology

which cannot be processed by our approach. This ﬁne-

granular modeling is also a best practice to facilitate

automated management using TOSCA. This results in

application topologies with similar granularity, which

is important to be able to process nodes and edges

pairwise.

Our approach is able to merge two input appli-

cation topologies into one result application topol-

ogy. However, if more than two application topologies

should be merged, the result of the ﬁrst merge must

be merged with a third application topology and so

on. This is called binary approach by (Leser and Nau-

mann, 2006) and comes with the challenge in which

order to merge the application topologies. This is out

of scope of this paper.

For the usage in enterprise IT projects, our ap-

proach increases automation in IT management by

reducing the effort of the respective domain experts

to a minimum. The responsible domain experts of

the infrastructure and middleware components put

their knowledge into the plugins, processing nodes

and edges of the respective types. This enables reuse

of domain knowledge, even shared between different

enterprises, and therefore improves the return on in-

vestment for the effort spent to deﬁne and optimize

the type-speciﬁc plugins. On the other hand, the effort

of the architects and developers is reduced by remov-

ing the time-consuming task of identifying (matching

step) and performing the merge manually. Instead,

architects and developers only review and verify the

correspondences identiﬁed automatically by our ap-

proach before they are processed. This is in line with

the TOSCA philosophy of domain experts deﬁning

and implementing Node Types and Relationship Types

which are composed to model applications (Binz et al.,

2012a).

For validation, we tested our approach with more

than 20 pairs of different test scenarios, covering the

most important concepts provided by TOSCA-based

application topologies. The TOSCA-based realization

is implemented as greedy algorithm, i. e. it generates

correct results, which are, however, not necessarily

the global optimum. The computational complexity

of the overall implementation is, also due to the

implementation as greedy algorithm, quadratic with

respect to the number of nodes. The algorithms and a

detailed discussion of their computational complexity

can be found in (Weiß, 2012).

6 RELATED WORK

This section reviews approaches for merging in other

areas, like schemas, processes, and graphs in general,

as well as languages to describe application topologies.

For business processes there is a large number of

approaches to merge them. An algorithm to merge two

Event-Driven Process Chains (EPC) into one, while

preserving the behavior of the input processes, is pre-

sented in (Gottschalk et al., 2008). This is done by

transforming the EPCs into Function Graphs, describ-

ing the sequence of functions, merge these graphs,

and transform them into EPCs again. A similar ap-

proach is presented in (La Rosa et al., 2010), where

EPCs are transformed into an Annotated Business Pro-

cess Graph, which is also able to depict connectors

and events. An approach to compose a business pro-

cess from process fragments—non-complete process

knowledge—is discussed in (Eberle et al., 2010). The

authors deﬁne a number of basic operations to facili-

tate the knitting of fragments.

A high-level methodology to merge graphs is pre-

sented in (La Rosa et al., 2010), which ﬁrst calculates

a mapping between the two graphs, then merges the

mapped entities, and ﬁnally foresees an optional post-

processing. Our method (Section 3.2) is structured

similarly. There are a number of other approaches

following this high-level methodology and using cor-

respondences to describe the result of their mapping

step. A generic approach in (Pottinger and Bernstein,

2003) assumes that the correspondences are given and

their merge operator merges two models to return a

duplicate-free union. Reintegrating adapted business

processes into the original version of the business pro-

cess, without having an (ordered) list of the change

operations done, is addressed by (K

uster et al., 2008).

They also foresee the manual intervention of domain

experts during the process of merging.

These approaches are focused on business pro-

cesses and the speciﬁcs in this area. One difference

is that the number of types in business processes is

usually restricted and known, which is in contrast to

our open world assumption (see Section 3.1).

A general method for matching of graphs based on

labels is the edit distance (Wagner and Fischer, 1974)

or graph edit distance (Sanfeliu and Fu, 1983), which

calculates the similarity of two labels or two graphs,

respectively. This is done by counting the number of

operations (remove, add, and so on) required to edit

the label/graph from one to the other. For our approach

the edit distance is not used, because we merge using

the exact type ids (namespace + id in TOSCA), not the

labels, i. e. names, of the nodes.

To the best of our knowledge we do not know

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

102

any works which are concerned with the merging of

decomposed application topologies. This might be due

to the fact that the concepts and way TOSCA depicts

topologies is relatively new to IT service management.

7 CONCLUSIONS

In this paper we proposed an approach for

functionality-preserving merging of application topolo-

gies. We ﬁrst presented a motivating scenario, based

on this we extracted the requirements of such a solu-

tion, and then deﬁned a suitable methodology. Addi-

tionally, we implemented our approach using TOSCA

to describe the application topologies. The discus-

sion showed that our approach is well applicable, but

requires the availability of a detailed application topol-

ogy and the respective type-speciﬁc plugins.

In the future we want to research how these topol-

ogy descriptions may be extracted from existing appli-

cation deployments by integrating this research with

our work on Enterprise Topology Graphs (Binz et al.,

2012b). TOSCA, used in the realization of the pre-

sented approach, is not limited to the description of

topologies, but in particular enables the portable man-

agement of applications. Therefore, in the future we

want to look into the adaptations required in the man-

agement plans, to adapt to the changes in the topology.

ACKNOWLEDGEMENTS

This work was partially funded by the BMWi project

CloudCycle (01MD11023).

REFERENCES

Andrzejak, A., Arlitt, M., and Rolia, J. (2002). Bounding the

resource savings of utility computing models. Inter-

net Systems and Storage Laboratory, Hewlett Packard

Laboratories, Palo Alto.

Binz, T., Breiter, G., Leymann, F., and Spatzier, T. (2012a).

Portable Cloud Services Using TOSCA. IEEE Internet

Computing, 16(03):80–85.

Binz, T., Fehling, C., Leymann, F., Nowak, A., and Schumm,

D. (2012b). Formalizing the Cloud through Enterprise

Topology Graphs. In Proceedings of 2012 IEEE Inter-

national Conference on Cloud Computing.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Schumm, D. (2012). Vino4TOSCA: A Visual Nota-

tion for Application Topologies based on TOSCA. In

Proceedings of the 20

International Conference on

Cooperative Information Systems (CoopIS 2012), Lec-

ture Notes in Computer Science. Springer.

Chong, F. and Carraro, G. (2006). Architecture strategies for

catching the long tail.

Eberle, H., Leymann, F., Schleicher, D., Schumm, D., and

Unger, T. (2010). Process Fragment Composition Op-

erations. In Proceedings of APSCC 2010, pages 1–7.

IEEE Xplore.

Gottschalk, F., Aalst, W. M., and Jansen-Vullers, M. H.

(2008). Merging event-driven process chains. In Pro-

ceedings of the OTM 2008 Confederated International

Conferences, CoopIS, DOA, GADA, IS, and ODBASE

2008, OTM ’08, pages 418–426. Springer-Verlag.

Guo, C., Sun, W., Huang, Y., Wang, Z., and Gao, B. (2007).

A framework for native multi-tenancy application de-

velopment and management.

uster, J. M., Gerth, C., F

orster, A., and Engels, G. (2008).

Detecting and resolving process model differences in

the absence of a change log. In Proceedings of the 6th

International Conference on Business Process Man-

agement, BPM ’08, pages 244–260. Springer-Verlag.

La Rosa, M., Dumas, M., Uba, R., and Dijkman, R. (2010).

Merging business process models. In Proceedings of

the 2010 On the move to meaningful internet systems,

OTM’10, pages 96–113. Springer-Verlag.

Leser, U. and Naumann, F. (2006). Informationsintegration:

Architekturen und Methoden zur Integration verteilter

und heterogener Datenquellen. Dpunkt.Verlag GmbH.

Mietzner, R., Leymann, F., and Unger, T. (2010). Horizon-

tal and Vertical Combination of Multi-Tenancy Pat-

terns in Service-Oriented Applications. 13th Interna-

tional IEEE EDOC Enterprise Computing Conference

(EDOC 2009), 4(3):1–18.

OASIS (2012). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0 Working Draft 05.

Pottinger, R. A. and Bernstein, P. A. (2003). Merging models

based on given correspondences. In Proceedings of

the 29th international conference on Very large data

bases - Volume 29, VLDB ’03, pages 862–873. VLDB

Endowment.

Sanfeliu, A. and Fu, K.-S. (1983). A distance measure

between attributed relational graphs for pattern recog-

nition. Systems, Man and Cybernetics, IEEE Transac-

tions on, SMC-13(3):353 –362.

Wagner, R. A. and Fischer, M. J. (1974). The string-to-string

correction problem. J. ACM, 21(1):168–173.

Weiß, A. (2012). Merging of TOSCA Cloud Topology Tem-

plates. Master thesis, University of Stuttgart.

ImproveResource-sharingthroughFunctionality-preservingMergeofCloudApplicationTopologies

103
