A Causal Tracking Monitoring Approach for Business Transaction

Management

Yehia Taher

1,2

, Willem-Jan van den Heuvel

, Salima Benbernou

and Raﬁqul Haque

European Research Institute in Service Science, Tilburg University, Tilburg, The Netherlands

Laboratoire PRiSM, Universit´e Versailles ST Quentin-En-Yvelines, Versailles, France

Laboratoire LIPADE, Universit´e Paris Descartes, Paris, France

LERO, University of Limerick, Limerick, Ireland

Keywords:

Business Transaction, SLA, Monitoring, CEP, Adaptation.

Abstract:

Business transaction are automated, agreed-upon, long running propositions between multiple trading part-

ners, that are speciﬁed over Service Level Agreement as constraints that need to be compliant. However, these

constraints could be violated at any time due to various unexpected events. In this paper we propose a Busi-

ness Transaction Management (BTM) system that amalgamates existing service composition and monitoring

techniques (e.g., BPEL) with complex event processing (CEP) technology. The proposed system is a ﬁrst

important step toward effective support of end-to-end processes that can monitor their own performance by

sensing and interacting with the physical word, and repair, upgrade, or replace themselves proactively.

1 INTRODUCTION

Business transactions can be loosely deﬁned as trad-

ing interactions involving multiple parties, spanning

many organizations, that strive to accomplish an ex-

plicitly shared business objective that extends over a

possibly long duration and which is terminated suc-

cessfully only upon recognition of the agreed conclu-

sions between the interacting parties (Papazoglou and

Kratz, 2007).

To successfully implement business transactions,

there is a critical need of concepts, mechanisms and

technologies that go far beyond their static analysis,

design and implementation (e.g., in terms of func-

tional and SLA-related terms), supporting also run-

time execution, monitoring and analysis to dynami-

cally enforce them to remain compliant to the end-to-

end SLAs, pointing towards comprehensive business

transaction management (BTM).

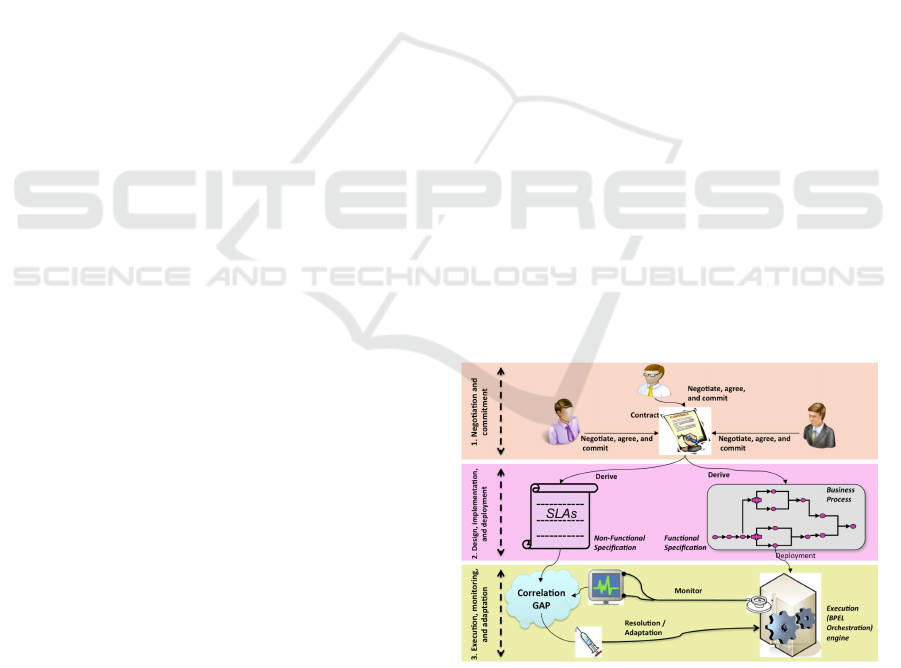

As illustrated in Figure 1, an integrated business

transaction management system basically requires

support for three major lifecycle phases. 1). Nego-

tiation and Commitment, which deals with mutual

commitments that parties are accepting to integrate

and govern their shared business processes. Par-

ticularly, business commitments mandate the shared

goals and policies of business collaborations and

glue shared goals and policies (e.g., business con-

straints and KPIs) with process deﬁnitions that col-

Figure 1: Layered structure of Business Transactions.

lectively implement a business transaction (Weigand

and van den Heuvel, 2002). 2). Design, Implementa-

tion, and Deployment, which concerns with design-

ing, implementing, testing and deploying the partners

processes including their functional and QoS features

that are rendered in their local SLA, in such a way

that it meets the global SLA that is associated to the

business transaction. 3). Execution, monitoring, and

adaptation, nce the business process - realized dur-

ing the previous phase - becomes operational, its ex-

ecution needs to be managed and monitored to gain

a clear insight in how the services that run within the

context of a business transaction perform against the

QoS policies. The management of QoS policies in a

140

Taher Y., van den Heuvel W., Benbernou S. and Haque R..

A Causal Tracking Monitoring Approach for Business Transaction Management.

DOI: 10.5220/0004380601400144

In Proceedings of the 3rd International Conference on Cloud Computing and Services Science (CLOSER-2013), pages 140-144

ISBN: 978-989-8565-52-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

business transaction is of paramount importance due

to their cross-organizational nature, ensuring that the

delivery of services by providers and the consump-

tion of services by consumers are performed within

the threshold of the service level objectives stipulated

in the local SLAs. Important questions have to ad-

dress during this phase, notably: How can a business

transaction remedy a potential future violation of the

local SLA, such as the unavailability or failure of a

service, local SLA violation, etc.? Is there any means

to enforce the transaction to comply with its global

SLAs even after one of the local SLA has been vio-

lated? Is there a need to make a correlation between

local and global SLA?

In paper, we ﬁrstly introduce a BTM model

that allows correlating critical business activities and

events, QoS requirements, and application signiﬁ-

cant business data in an end-to-end process at run-

time. Secondly, we propose a causal-tracking and

monitoring approach to track the progress of business

transactions against multi-party business agreements

(e.g., a Service Level Agreement). Lastly, we in-

troduces a preventive adaptation framework that pre-

empts end-to-end process SLA violations, and auto-

matically adapt the transaction execution in a way that

meets the agreed end-to-end SLAs.

2 MOTIVATING EXAMPLE

Let’s consider the following running example: an e-

commerce trading system supports requisition of car

parts between a car manufacturer and part automotive

supplier through a third tier, a shipper, as depicted in

Figure 2. We assume that the part supplier produces

highly specialized car parts for a car manufacturer,

and arranges the transportation. The car manufacturer

pays a ﬁxed rate for both the part and the transporta-

tion services. The part order business transaction will

involve a sequence of messages, ﬂowing between the

car manufacturer, part supplier, and shipper. Figure 2

graphically depicts the message exchanges that con-

form to the contract between the car manufacturer,

part supplier and shipper. It is basically structured as

follows:

1. Initiate an Order: A message of type MT502 may

be sent from the car manufacturer to the supplier

to initiate a new order or to cancel a previous or-

der, which is identiﬁed by the values of its data

ﬁelds.

2. Conﬁrm Order: A message of type MT513 must

be issued from the supplier to the customer in re-

sponse to an MT502 new order, conﬁrming the

execution of the order.

Figure 2: Steps capturing the collaboration protocol be-

tween the parties

3. Shipment Request: A message of type MT514

must be sent by the supplier to the shipper to de-

termine delivery dates, shipment, loading, timing,

and routing data-possibly offering multiple ship-

ping options.

4. Conﬁrm Delivery: A message of type MT515

must be sent by the shipper to the supplier in re-

sponse to an MT514 shipment request, conﬁrm-

ing the product delivery, including the shipment

schedule and charges.

5. Product Dispatch Notiﬁcation: A message of type

MT516 should be sent by the shipper to the sup-

plier as soon as the product has been dispatched.

6. Customer Billing: A message of Type MT517

should be sent upon receiving an MT517 mes-

sage by the supplier to the customer, billing the

latter with the ﬁnal price of the order including the

shipment charges.

7. Payment Notiﬁcation: Finally, a message of type

MT518 should be submitted by the customer to

the supplier notifying the payment achievement.

Details about the data content of the messages

would be spelled out as part of the contract. The con-

tract might also contain local and global constraints of

the business transaction. Constraints play important

role in crafting agreements. Here are some possible

examples of constraints:

Global Timing Constraint:

• C1. The transaction should be completed within

ﬁve working days.

Local Timing Constraints:

• C2. The supplier should issue an MT513 message

within 1 day upon receiving an MT502 message.

• The shipper should issue an MT515 message

within 2 days upon receiving an MT514 message.

• C4. The shipper should issue an MT516 message

within one day after issuing and MT517 message.

ACausalTrackingMonitoringApproachforBusinessTransactionManagement

141

• C5. The customer should issue an MT518 mes-

sage within one day upon receiving an MT517

message.

In order to ensure correct and consistent execu-

tion of business transactions, coordination protocols

between the business transaction collaborating pro-

cesses - derived on the basis the contract discussed

above - have been incorporated in Web service com-

position and transaction languages (Papazoglou and

Kratz, 2007). The car manufacturer plays the role of

the transaction central coordinator to ensure atomicity

over the set of the three collaborating processes.

3 BUSINESS TRANSACTION

MANAGEMENT

The steering philosophy of our BTM framework is

distilled from the old nursery rhyme, for a want or

a nail

. The rhyme is about the transitivity of causal-

ity between events in a battleﬁeld system. It teaches

us, at a young age, to pay attention to details because

a small event can lead to successive larger event and

ﬁnally grow into a catastrophic event in a transitive

manner.

3.1 BTM Approach

Our BTM framework is intended to not only dynam-

ically check whether contractual stipulations are met,

but also, provide means for preventing failure oc-

currences at an early stage. The BTM framework

is grounded on a ﬁne-grained, coherent, and con-

sistent correlation/mapping between the events gen-

erated from the process execution and the process

SLAs. The system comprises ﬁve steps:

1. Identify the events of interest. Each of the SLA

clauses are analysed in order to identify which are

the events of interest from the events generated

by the process execution. The mappings between

SLA and events are monitored. For instance:

C2: The supplier should issue an MT513:

Order Conﬁrmation message within 1 day

upon receiving an MT502: Initiate Order

message.

The analysis of this SLA clause will easily pin-

point the two following events of interest, MT513:

Order Conﬁrmation and MT502: Initiate Order.

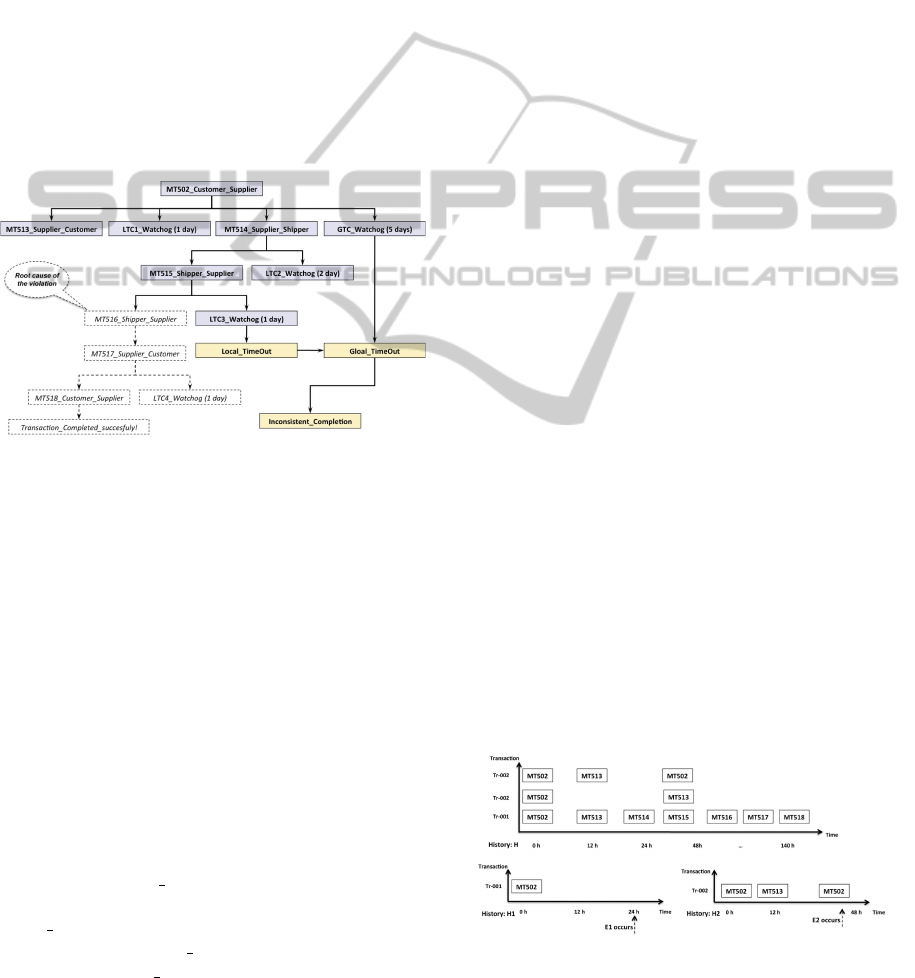

2. Construct the causal model (Poset, see sec-

tion 3.2) of the transaction. The causal model of

http://en.wikipedia.org/wiki/For Want of a Nail (proverb)

a transaction is the set of event pattern rules that

enable us to pinpoint which of the events - we are

observing from the transaction - are causally re-

lated. The causal model will help to analyse and

reconstruct the chain of events that led to the exe-

cution trail logged by the transaction monitor.

3. Generate the rules that specify violation situa-

tions. On the basis of the causal model con-

structed at the previous step, we generate the

(ESL) rules that capture the SLA violations that

may lead to the disruptions of the end-to-end pro-

cess SLAs. For instance, the local SLA clause C2

is violated if the supplier hasnt issued an MT513

message within 1 day upon receiving an MT502

message. This violation is expressed by the fol-

lowing ESL expression:

E1: (Sequence (MT502:Initiate

Order, Negation (MT513: Order

Confirmation))) Within (24h))

4. Generate the executable code to run into a

CEP engine. The last step concerns with auto-

matically generating the executable CEP code

to deploy on the CEP engine. We particu-

larly use the Continuous Computation Lan-

guage (CCL) (http://www.sybase.com/products/

ﬁnancialservicessolutions/complex-event pro-

cessing, ) to develop executable code in terms

of Coral8 CCL continuous queries. The snippet

below presents an excerpt of a CEP rule for

monitoring the violation of the constraint C2, i.e.,

the occurrence of the event E1.

INSERT INTO OUTPUTSTREAM ALERTVIOLA-

TION

SELECT LOCAL VIOLATION OF THE LOCAL

SLA CLAUSE C2

FROM INPUTSTREAM ESB.MT502 INITIATE-

ORDER, ESB.MT513 ORDERCONFRIMATION

MATCHING [24

HOURS:INITIATEORDER,!ORDERCONFRIMATION]

ON INITIATEORDER.ID = ORDERCONFRIMA-

TION.ID

CEP allows for constant, real time accumulation

of events to evaluate the event patterns speciﬁed

within the rules. The rule pattern subscribes to

the event input streams MT502 and MT513 from

the ESB, and publishes to the event outputstreams

AlertViolation. The rule is activated upon occur-

rence of the MT502, and initializes a 24h counter

check. If the time-frame 24h get expired before

the occurrence of the MT513 event, the rule pat-

tern will be satisﬁed and a violation alert will be

generated to trigger a process adaptation action.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

142

3.2 Event Causal Tracking Monitoring

To achieve pro-active transaction management, we

have made use of the causality notion introduced by

Luckham (Luckham, 2001).

Causality Approach. Causality denotes the relation-

ship between events that is deﬁned in a transitive and

asymmetric manner. As such, causality establishes a

partial ordering of events. A set of events together

with their casual relationship is called a Transaction

Poset (Partially Ordered Set of events) or map. As il-

lustrated in Figure 3, Posets are rendered as directed

acyclic graphs (DAGs). A node in a DAG represents

an event (and its data) and a directed arc represents a

dependency relationship. It allows analysing the ca-

sual history of events leading up to the event under

scrutiny.

Figure 3: Casual history of successful transaction.

Let’s illustrate the approach towards the example

of Figure 3. An order event from the manufacturer to

the supplier (signifying an MT502 message) causes

an MT513 event from the supplier to the manufac-

turer, an MT514 event from the supplier to the ship-

per, and two watchdog events. The ﬁrst is initializing

a check for the global timing constraint (5 days) while

the second is initializing a check for the local timing

constraint related to the events MT502 and MT13 (1

day). In turn, an MT14 event causes an MT515 event

from the shipper to the supplier, and a watchdog event

initializing a check for the local timing constraint re-

lated to the events MT514 and MT515 (2 days). Sub-

sequently, an MT515 event triggers an MT516 event

from the shipper to the supplier, and a watchdog event

initializing a check for the local timing constraint (1

day). In this example we assume that the time frame

initialised by LTC3 Watchdog got expired while the

MT516 event haven’t yet occurred. At this stage,

LTC3 Watchdog will take the hand over the transac-

tion and trigger a Local TimeOut event, which in turn

will cause a Global TimeOut event, and subsequently

the transaction will result in an inconsistent comple-

tion.

Causally relating event in a transaction helps to

analyse the root cause of the Global-TimeOut event.

In particular, the global timing constraint was violated

because MT502 event did not cause a consistent com-

pletion of the transaction within 5 days. And this is

because the local constraint C3 was violated. the root

cause of this violation is the non-occurrence of the

event MT516 in time.

Obviously, it is important to get deep understand-

ing of the root cause of any transaction failure. A

typical solution to deal with such situations consists

of improving the transaction diagnostics by checking

the event executions online for constraint violations.

Reducing constraint violations starts from having the

ﬂexibility to change the process. Essentially, pro-

cesses need to be changed to conform to constraints

and to handle exceptions.

Complex Event Speciﬁcation Operators to

Causally Relate Events. Event speciﬁcation deals

with primitive and complex events. Primitive events

are basic, yet meaningful system-level changes of an

application or business transactions, for instance, Ini-

tiate order, Conﬁrm order, Shipment request, conﬁrm

delivery, Customer billing, Payment notiﬁcation, etc.

A rule associated to the detection of primitive event

is ﬁred as soon as the primitive event happens. But

in real world applications, a complex sequence of

events may need to be detected for a rule ﬁring. A

complex event logically chains together primitive- or

other complex events occurring at time points other

than the time speciﬁed composite event happens. For

instance the complex event:

E1: The non-occurrence of an event conﬁrming the

execution of an order within one day upon receiving

the initiate order.

In order to get to grips with event complexity, re-

searchers have initially focused on the deﬁnition of

event algebra composed of a set of event operators.

Complex events are speciﬁed as event expressions

that make use of events operators to relate events in-

cluding primitive and complex ones - occurring at dif-

ferent time points.

Figure 4: Event history mapping.

As illustrated in Figure 4, an eventexpressioncon-

stitutes the mapping from one event history to another.

ACausalTrackingMonitoringApproachforBusinessTransactionManagement

143

The result of applying the expression E1 to the his-

tory H is the history H1 that contains the event occur-

rences of H at which the events speciﬁed by E1 take

place. Particularly, history H1 shows that the com-

plex event speciﬁed by E1 takes place at t = 24(h)

because the event MT513 did not happen within 24h

upon receiving the event MT502. Similarly, the result

of applying the expression E2 to the history H is the

history H2 that contains the event occurrences of H at

which the events speciﬁed by E2 take place. Particu-

larly, History H2 shows that the complex event spec-

iﬁed by E2 takes place at t = 36(h) where the event

MT502 happened after an event MT513.

For a space limitation reason, we only describe

the following operators. Sequence: the event type

E characterizing the sequence of two events e1 and e2

is of the form E= Sequence(e1, e2). An instance of E

occurs iff e1 occurs before e2. Negation: the event

type E characterizing the negation of an event e is of

the form E= Negation (e). An instance of E occurs

iff e doesnt occur in a validity interval that depends

on a context of detection. Within: the event type E

deﬁning a complex event P that occurs within a time

period T is of the form E= P Within (T). An instance

of E occurs iff the complex event P occurs within T

time period.

3.3 Adaptation Process

During the monitoring, in case of unfulﬁlment of

duties, we introduce a proactive adaptation frame-

work that pre-empts end-to-end process SLA viola-

tions. In this scenario, the soft constraints are used

to relax and decide how to rebuild a composition in-

volved in a transaction. Let ’s recall in a nutshell

the Soft constraint Solving Problem (SCSP, (Bistarelli

et al., 2002)). Traditional CSPs is an assignment of a

value to every variable, it can either be fully solved

(when all requirements are satisﬁed) or not solved at

all (some requirements cannot be satisﬁed). Solv-

ing techniques for soft CSPs can generate solutions

for overconstrained problems by allowing some con-

straints to remain unsatisﬁed. Soft constraints gener-

alize classical CSPs by adding a preference level to

every tuple in the domain of the constraint variables.

This level can be used to obtain a suitable solution

which may not fulﬁll all constraints, which optimizes

some metrics, and which in our case will be naturally

applied to the requirements of the business transac-

tions. The basic operations on soft constraints (build-

ing a constraint conjunctions and projecting on vari-

ables) need to handle preferences in a homogeneous

way. It is based on mathematical structure of semir-

ing algebra, enriched with additional properties and

termed a C-semiring. For instance, let’s consider that

the service execution related to the constraint C2 got

1.5 day instead of 1 day. That means that the exe-

cution time of services related to the remaining con-

straints is 3.5 day instead of 4 days. Thus, we relax

the individual constraints in a way that their aggre-

gate execution time satisfy the new global constraint

(3.5). In case we have four services to be executed,

we may have alternative selections by applying the

SCSP techniques. One could be 0.5, 1, 1, and 1 days

respectively for services S2, S3, S4, and S5, second

could be 1.5, 0.5, 0.5, and 1 days respectively for ser-

vices S

′

2, S

′

3, S

′

4, and S

′

4 CONCLUSIONS

The approach presented in this paper offers a struc-

ture for managing and controlling the QoS of a busi-

ness transaction at run-time. The proposed frame-

work monitors business transactions, computes po-

tential risks, and performs proactive adaptation ac-

tions in order to prevent the possible risks of violat-

ing global SLA. We identify the actual possible cases

of SLA violation during run-time and provide an ap-

proach for mitigating them by substituting services

that could have failed or triggering changes of the

composite services in terms of its compounding com-

ponents by relaxing the constraints. The limitation

of the framework is that it in its current version can-

not resist the violation of local SLAs. Extending the

functionality of the framework in terms of local SLA

violation prevention is our future work.

REFERENCES

Bistarelli, S., Codognet, P., and Rossi, F. (2002). Abstract-

ing Soft Constraints: Framework, Properties, Exam-

ples. Artiﬁcial Intelligence, 139(2):175–211.

http://www.sybase.com/products/ﬁnancialservicessolutions/

complex-event processing, S. C. E. P.

Luckham, D. (2001). The Power of Events: An Introduc-

tion to Complex Event Processing in Distributed En-

terprise Systems. Addison-Wesley Longman.

Papazoglou, M. P. and Kratz, B. (2007). Web services tech-

nology in support of business transactions. Service

Oriented Computing and Applications, 1(1):51–63.

Weigand, H. and van den Heuvel, W.-J. (2002). Cross-

organizational workﬂow integration using contracts.

Decision Support Systems, 33(3):247–265.

CLOSER2013-3rdInternationalConferenceonCloudComputingandServicesScience

144
