Lithofacies Prediction from Well Logs Data using Different Neural
Network Models
Leila Aliouane
1
, Sid-Ali Ouadfeul
2
, Noureddine Djarfour
1
and Amar Boudella
3
1
LABOPHYT,
Faculty of Hydrocarbone and Chemestry, University M’hamed Bougara, Boumerdès, Algeria
2
Algerian Petroleum Institue, IAP, Boumerdès, Algeria
3
FSTGAT-USTHB, Algiers, Algeria
Keywords: Lithofacies, Classification, MLP, RBF, SOM, Clayey Reservoir, Well-Logs.
Abstract: The main objective of this work is to predict lithofacies from well-logs data using different artificial neural
network (ANN) models. The proposed technique is based on three classifiers types of ANN which are the
self-organizing map (SOM), multilayer Perceptron (MLP) and radial basis function (RBF). The data set as
an input of the neural network machines are the eight borehole measurements which are the total natural
gamma ray; the three concentrations of the radioactive elements Thorium, Potassium and Uranium; the
slowness of the P wave, the bulk density, the neutron porosity and the photoelectric absorption coefficient
of two boreholes located in Algerian Sahara. Hence, the outputs of three neuronal kinds are the different
lithological classes of clayey reservoir. These classes are obtained by supervised and unsupervised learning.
The output results compared with basic stratigraphy show that the Kohonen map gives the best lithofacies
classification where the thin beds intercalated in the reservoir, are identified.
Consequently, the neural network technique is a powerful method which provides an automatic
classification of the lithofacies reservoir.
1 INTRODUCTION
Recently, pattern recognition context became a
popular interest in geosciences by neural network
techniques. In petrophysics, these last can be used
for classification (Aliouane et al., 2011); (Ouadfeul
and Aliouane, 2012) and approximation (Lim,
2005); (Amenian, 2005) and (Aminzadah, 1999);
(Aliouane et al., 2012) in reservoir characterization
by well log-data where the lithofacies prediction is
an important step in crossed formations, mainly, in a
reservoir.
Neural network as a nonlinear and non-
parametric tool is becoming increasingly popular in
well log analysis. Neural network is a computer
model that attempts to mimic simple biological
learning processes and simulate specific functions of
human nervous system. The main objective of this
work is to predict lithofacies from well-logs data
using different artificial neural network (ANN)
models. The proposed technique is based on three
classifiers types of ANN which are the self-
organizing map (SOM), multilayer Perceptron
(MLP) and radial basis function (RBF) in order to
choose the best lithological classifier.
The well-logs of the clayey reservoirs of two
boreholes located in Algerian Sahara are exploited.
One of them is selected as pilot well for training
networks and the second is used for generalization.
In the present study, we start by basic concepts
of principles of different neural network models
such as SOM, MLP and RBF and their training
model. Different learning parameters will be
discussed to improve the network’s architectures. At
the end, the results will be compared to a basic
stratigraphy.
2 DATA ANALYSIS OF THE
CLAYEY RESERVOIR
The clayey reservoirs are, generally, radioactive.
Their radioactivity is due to the presence of the three
nuclear elements such as Thorium, Potassium and
Uranium. The Cambrian reservoirs of two boreholes
located in Algerian Sahara present the geological
model constituted by sandstone and clay
(Shonatrach and Shlumberger, 2007). Thus, this kind
702
Aliouane L., Ouadfeul S., Djarfour N. and Boudella A..
Lithofacies Prediction from Well Logs Data using Different Neural Network Models.
DOI: 10.5220/0004380707020706
In Proceedings of the 2nd International Conference on Pattern Recognition Applications and Methods (PRG-2013), pages 702-706
ISBN: 978-989-8565-41-9
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
of reservoir is easily identified by the total natural
gamma ray and its radioactive elements spectra
(Ellis and Singer, 2008). This analysis is confirmed
using other petrophysical parameters recordings
sensitive to clays. These are the slowness of the P
wave, the bulk density, the neutron porosity and the
photoelectric absorption coefficient. (figure 1 and 2).

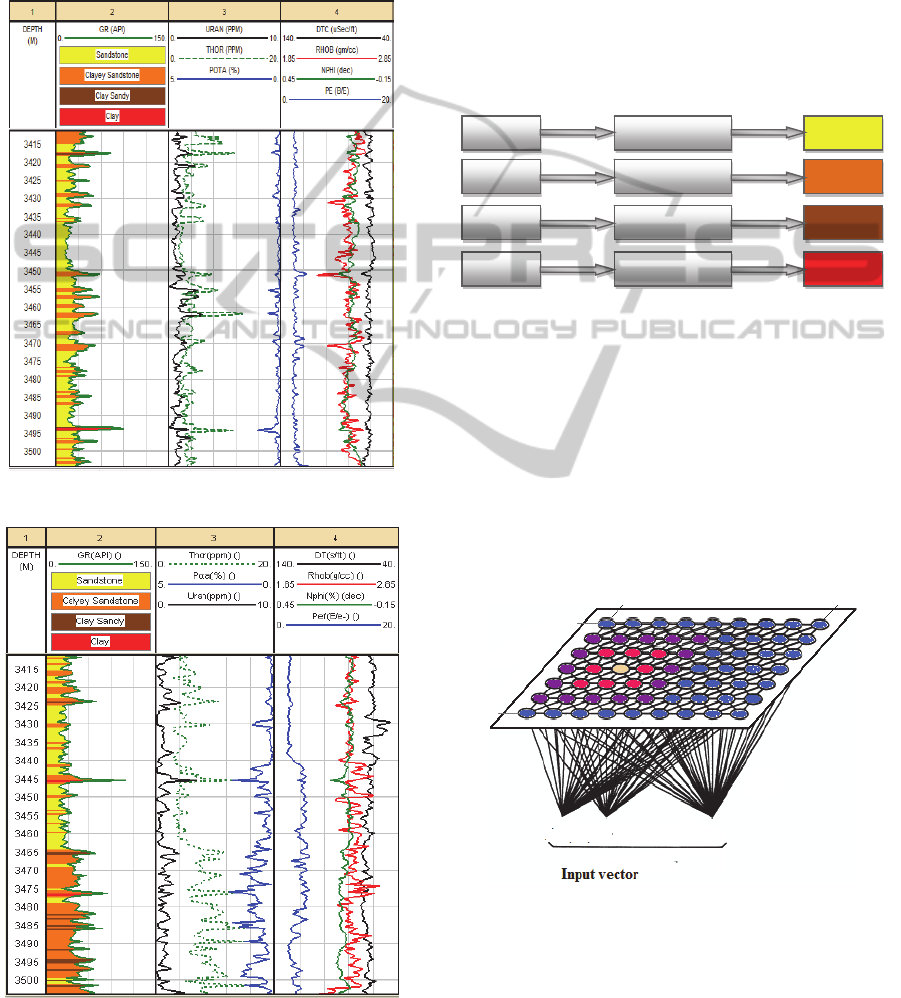

Figure 1: Petrophysical parameters recordings of well-1.
Figure 2: Petrophysical parameters recordings of a well-2.
The data set as an input of the neural network
machines are the eight borehole measurements
which are the total natural gamma ray; the three
concentrations of the radioactive elements Thorium,
Potassium and Uranium; the slowness of the P wave,
the bulk density, the neutron porosity and the
photoelectric absorption coefficient of two boreholes
located in Algerian Sahara. Hence, the outputs of
three neuronal kinds are the different lithological
classes of clayey reservoir. These classes are
obtained by supervised and unsupervised learning
and constituted by 04 classes: sandstone, clay,
clayey sandstone and sandy clay (Figure 3).
Classe1
Classe 2
Classe4
Classe3
Sandstone
Clayeysand
Clay
Sandyclay
Figure 3: Lithological classes of the clayey reservoir.
Data of well-1 are exploited for training and the
data of well-2 are used for generalization.
3 SELF ORGANIZING MAP
Self-organizing maps are different than other
artificial neural networks in the sense that they use a
neighborhood function to preserve the topological
properties of the input space (figure 4).
Figure 4: Kohonen’s map principle.
This makes SOM useful for visualizing low-
dimensional views of high-dimensional data, similar
to multidimensional scaling. The model was first
described as an artificial neural network by the
Finnish professor Teuvo Kohonen (Kohonen, 1982),
and is sometimes called a Kohonen map. Like most
LithofaciesPredictionfromWellLogsDatausingDifferentNeuralNetworkModels
703
artificial neural networks, SOMs operate in two
modes: training and mapping. Training builds the
map using input examples. It is a competitive
process, also called vector quantization. Mapping
automatically classifies a new input vector.
The goal of learning in the self-organizing map is
to cause different parts of the network to respond
similarly to certain input patterns. This is partly
motivated by how visual, auditory or other sensory
information is handled in separate parts of the
cerebral cortex in the human brain (Kohonen, 1982;
2000).
The training utilizes competitive learning. When
a training example is fed to the network, its
Euclidean distance to all weight vectors is
computed. The neuron with weight vector most
similar to the input is called the best matching unit
(BMU). The weights of the BMU and neurons close
to it in the SOM lattice are adjusted towards the
input vector. The magnitude of the change decreases
with time and with distance from the BMU. The
update formula for a neuron with weight vector
Wv(t) is:
Wv(t + 1) = Wv(t) + Θ (v, t)*α(t)*(D(t) - Wv(t))
where α(t) is a monotonically decreasing learning
coefficient and D(t) is the input vector. The
neighborhood function Θ (v, t) depends on the lattice
distance between the BMU and neuron v. In the
simplest form it is one for all neurons close enough
to BMU and zero for others, but a gaussian function
is a common choice, too. Regardless of the
functional form, the neighborhood function shrinks
with time. At the beginning when the neighborhood
is broad, the self-organizing takes place on the
global scale. When the neighborhood has shrunk to
just a couple of neurons the weights are converging
to local estimates.
This process is repeated for each input vector for
a (usually large) number of cycles λ. The network
winds up associating output nodes with groups or
patterns in the input data set. If these patterns can be
named, the names can be attached to the associated
nodes in the trained net.
During mapping, there will be one single
winning neuron: the neuron whose weight vector lies
closest to the input vector. This can be simply
determined by calculating the Euclidean distance
between input vector and weight vector.
While representing input data as vectors has been
emphasized in this article, it should be noted that
any kind of object which can be represented digitally
and which has an appropriate distance measure
associated with it and in which the necessary
operations for training are possible can be used to
construct a self-organizing map. This includes
matrices, continuous functions or even other self-
organizing maps.

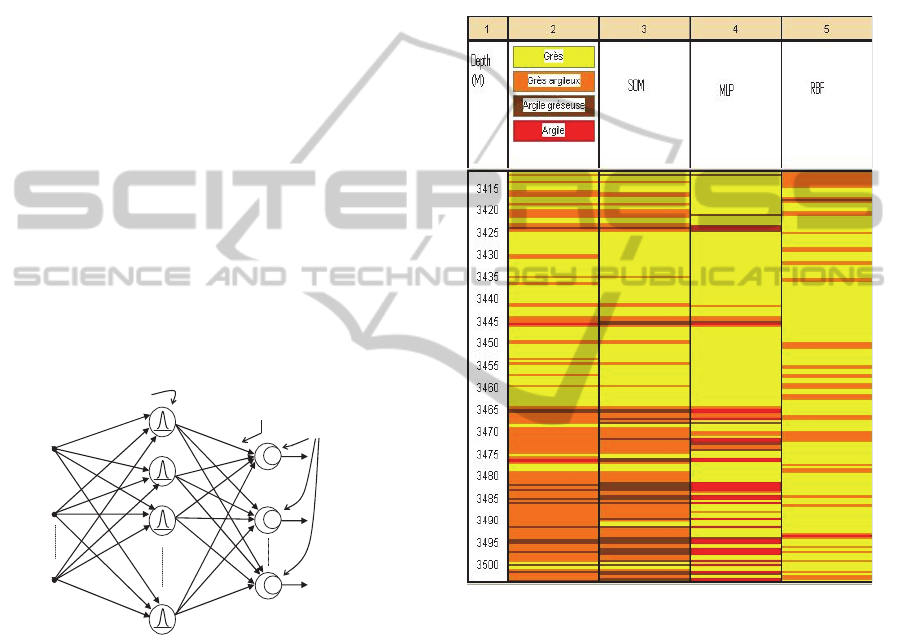

The obtained lithofacies classification is
presented in figure 7b.
4 MULTILAYER PERCEPTRON
The employed Neural Network type is a standard
layered Neural Network type with a linear
accumulation and a sigmoid transfer function, called
multi-layer perceptron. Usually the network consists
of an input layer, receiving the measurement vector
x, a hidden layer and an output layer of units
(neurons). In this configuration each unit of the
hidden layer realizes a hyperplane dividing the input
space into two semi-spaces. By combining such
semispaces the units of the output layer are able to
construct any polygonal partition of the input space.
For that reason it is theoretically possible to design
for each (consistent) fixed sample a correct Neural
Network classifier by constructing a sufficiently fine
partition of the input space. This may necessitate a
large number of neurons in the hidden layer. The
model parameters consist of the weights connecting
two units of successive layers. In the training phase
the sample is used to evaluate an error measure and
a gradient descent algorithm can be employed to
minimize this net error. The problem of getting stuck
in local minima is called training problem.
The structure is constituted of one layer for
inputs, one hidden layer and one layer for outputs
(figure 5).

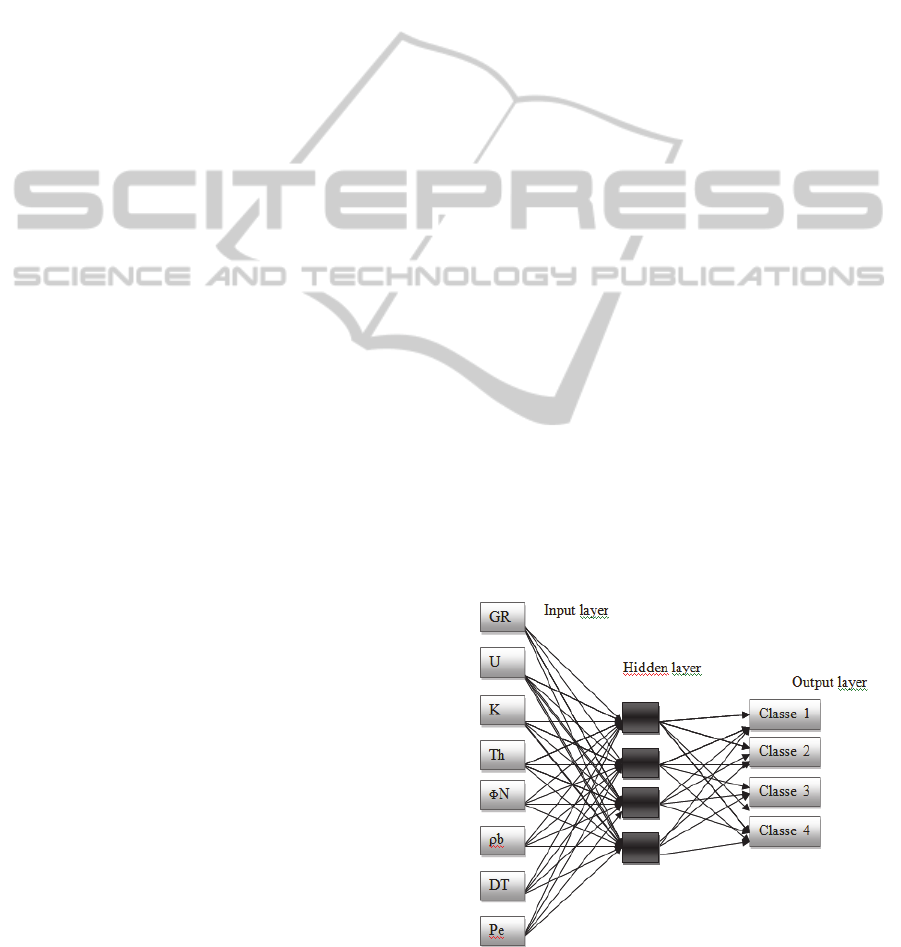

Figure 5: Architecture of MLP network.
Obtained lithological classification by the MLP
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
704
is presented in figure 7c.
5 RADIAL BASIS FUNCTION
Powell (1985) surveyed the early work on RBF
neural networks, which presently is one of the main
fields of research in numerical analysis. With respect
to this network, learning is equivalent to finding a
surface in a multidimensional space that provides a
best fit to the Learning data. Correspondingly,
generalization is equivalent to the use of this
multidimensional surface to interpolate the test data.
The construction of a RBF network in its most basic
form involves three entirely different layers. The
input layer is made up of input nodes. The second
layer is a hidden layer of high enough dimensions,
which serves a different purpose from that in the
multilayer perceptron. The output layer supplies the
response of the network to the activation patterns
applied to the input layer. In contrast to the
multilayer perceptron, the transformation from the
input space to the hidden layer space is non-linear,
whereas the transformation from the hidden layer
space to the output space is linear (figure 6).
f
f
f
Vecteurd’entrée
Vecteurdesortie
y
Matricedespoids
w
Fonctiond’activation
Couchecachée
Fonctiongaussienne
jj,σc
Figure 6: RBF principle.
The neurone number of the input layer is the
same for the RBF and for the MLP, corresponding to
the eight petrophysical measurements. The Obtained
lithological classification by the RBF is presented in
figure 7d.
6 RESULTS DISCUSSION AND
CONCLUSIONS
By analyzing figure 7, one can remark that the Self
Organizing neural network machine (figure 7b)
gives more lithological details than the MLP (figure
07c) and RBF (figure 7d) networks.
By implementing our analysis, we have
demonstrated that it is possible to provide an
accurate geological interpretation within a short time
in order to take immediate drilling and completion
decisions, but also, in a longer-term purpose, to
update the reservoir model.
Reservoir model based on the self organizing
map neural network machine with the raw data as
input gives a detailed information.
(a) (b) (c) (d)
Figure 7: Lithofacies classification of a reservoir of Well-
2. (a) basic stratigraphy; (b) by SOM; (c) by MLP; (d) by
RBF.
REFERENCES
Aliouane. L, Ouadfeul.S and Boudella. A, 2011, Fractal
analysis based on the continuous wavelet transform
and lithofacies classification from well-logs data using
the self-organizing map neural network. Arab J
Geosci, DOI 10.1007/s12517-011-0459-4.
Aliouane L., Ouadfeul S., Djarfour N., Boudella A., 2012.
Petrophysical parameters estimation from well-logs
data using Multilayer Perceptron and Radial Basis
Function neural networks. T. Huang et al (Eds):
ICONIP 2012, PartV, LNCS 7667, pp. 730-736,
Springer-Verlag.
LithofaciesPredictionfromWellLogsDatausingDifferentNeuralNetworkModels
705
Aminian. K, Ameri.S, 2005, Application of artificial
neural networks for reservoir characterization with
limited data, Journal of Petroleum Science and
Engineering 49 (2005) 212– 222.
Aminzadeh. F, Barhen . J, Glover. C. W and Toomarian.
N. B, 1999, Estimation of reservoir parameter using a
hybrid neural network, Journal of Petroleum Science
and Engineering 24 _1999. 49–56
Ellis D., V., Singer J. M., 2008. Well logging for earth
scientists. 2
nd
edition, Spriger.
Kohonen T., 1982. Organization and associative memory.
Springer Series in information sciences, Vol. 8,
Springer-Verlag.
Kohonen T., 2000. Self-organizing map. Third edition,
Springer.
Lim S., L., 2005: Reservoir properties determination using
fuzzy logic and neural networks from welldata in
offshore Korea, Journal of Petroleum Science and
Engineering 49 (2005) 182– 192.
Ellis D. V., Singer J. M., 2008. Well logging for earth
scientists. 2
nd
edition, Spriger.
Ouadfeul S., Aliouane L., 2012. Lithofacies classification
using Multilayer perecptron and the Self Organizing
neural network. T. Huang et al. (Eds.): ICONIP 2012,
Part V, LNCS 7667, pp. 737–744. Springer-Verlag.
Powell, M. J. D., 1985. Radial Basis Functions for
Multivariable Interpolation: A Review in IMA
Conference on Algorithms for the Approximation of
Functions and Data. RMCS, Shirvenham, UK, pp.
143–167.
Sonatrach and Shlumberger, 2007. Well Evaluation
Conference, Algeria.
ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods
706
